USER MANUAL NWC056BKD0 NewAir

Front view diagram of a server rack cabinet with ventilation grilles and indicator lights (no text or labels)

LANGUAGE INDEX

English Manual....3

A Name You Can Trust

Trust should be earned and we will earn yours. Customer happiness is the focus of our business.

From the factory to the warehouse, from the sales floor to your home, the whole Newair family promises to provide you with innovative products, exceptional service, and support when you need it the most.

Count on Newair

As a proud Newair owner, welcome to our family. There are no robots here, real people shipped your product and real people are here to help you.

Contact Us

Please reach out to our customer service team before making a return to your store of purchase. We are happy to help with any questions or concerns!

Mon-Fri from 8-4 PST at:

Call: 1-855-963-9247

Email: [e-mail]

Online: www.newair.com

A team member will respond to you within 24 hours.

Follow Us

Facebook.com/newairusa

Instagram.com/newairusa

YouTube.com/newairusa

Twitter.com/newairusa

READ AND SAVE THESE INSTRUCTIONS.

TABLE OF CONTENTS

Specifications 5

Register Your Product Online....6

Safety Information & Warnings 7

Parts List....10

Your Wine Cooler Features....11

Operating Instructions 12

Control Panel 12

Defrosting Your Wine Cooler 14

Recommended Temperature....14

Cleaning & Maintenance....15

Cleaning Your Wine Cooler 15

Troubleshooting....16

Limited Manufacturer's Warranty 17

SPECIFICATIONS

MODEL NO.	NWC056BKD0
POWER SUPPLY:	110-120V 60Hz
RATED POWER:	100W
BOTTLE CAPACITY:	56 bottles
NOISE LEVEL:	42dB
NET WEIGHT:	104.5 lbs.
TEMPERATURE RANGE:	41°F - 64°F
UNIT DIMENSIONS (W x D x H):	16.9 x 24.0 x 49.3 in
REFRIGERANT:	R600a

MODEL NO.	NWC062BK00
POWER SUPPLY:	110-120V 60Hz
RATED POWER:	100W
BOTTLE CAPACITY:	62 bottles
NOISE LEVEL:	42dB
NET WEIGHT:	102.5 lbs.
TEMPERATURE RANGE:	41 - 64°F (5-18°C)
UNIT DIMENSIONS (W X D X H):	16.9 X 24.0 X 49.3 in
REFRIGERANT:	R600a

REGISTER YOUR PRODUCT ONLINE

Register Your Newair Product Online Today!

Take advantage of all the benefits product registration has to offer:

Service and Support

Diagnose troubleshooting and service issues faster and more accurately

Recall Notifications

Stay up to date for safety, system updates and recall notifications

Special Promotions

Opt-in for Newair promotions and offers

Registering your product information online is safe & secure and takes less than 2 minutes to complete:

newair.com/register

Alternatively, we recommend you attach a copy of your sales receipt below and record the following information, located on the manufacturer's nameplate on the rear of the unit. You will need this information if it becomes necessary to contact the manufacturer for service inquiries.

Date of Purchase: ____

Serial Number: ____

Model Number: ____

SAFETY INFORMATION & WARNINGS

Your safety and the safety of others are very important to us.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

WARNING:

• Read all instructions carefully before attempting to operate your wine fridge. Improper usage could result in injury or a reduction in efficacy.
• Remove all packaging before using this device. Please keep all packaging materials out of reach of children and pets.
• Properly dispose of all packing materials immediately after unpacking product, as the bags used for packaging could present a suffocation or choking hazard.
• This product contains small parts that can be a choking hazard for children under the age of 3 years old. Please keep children away from the wine fridge during the installation process and do not let children near the wine fridge unsupervised.
• Never allow children to operate, play with, or crawl inside the wine fridge.
• This wine fridge is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not attempt to repair or replace any parts or service this unit unless specifically recommended in this User Guide. If the supply cord is damaged, it must be replaced by the manufacturer, a service agent or a similarly qualified person in order to avoid a hazard.
• When positioning your wine fridge, make sure the supply cord is not obstructed by other objects, tangled or damaged. If you suspect damage to the supply cord, please contact the manufacturer immediately and do not try and fix yourself.
• Use only with a properly grounded, standard 115V 60Hz electrical outlet to avoid the risk of electrical shock. Do not use with an extension cord.
• Leave a space of at least 5" (127 mm) in the back of the unit and on both sides to make sure the wine fridge has enough ventilation to avoid overheating.
• Do not use mechanical or electrical tools to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this wine fridge.

• This wine fridge is intended to be used in your home, however it can also be used in the following applications:

• staff kitchen areas in shops, offices and other work environments;
  o farmhouses and by clients in hotels, motels and other commercial environments;

• bed and breakfast type environments;
  o catering and similar non-retail applications.

- Follow these proper storage techniques:

• Keep the door closed. Opening the door for long periods can cause a significant increase of the temperature in the wine fridge.
• Clean the interior and exterior surfaces regularly.
• Follow this protocol if your wine fridge has been left on and empty for an extended period of time: switch off, defrost, clean, dry, and leave the door open to prevent mold from developing within the wine fridge.

- This wine fridge contains flammable refrigerant R600a and foaming agent cyclopentane. Please note the following:

• Please avoid any contact with fire when transporting or using the wine fridge.
• Please ask a professional to service the wine fridge when it needs fixing.
• Please send the wine fridge to your local appointed disposal station if it needs discarding.

IMPORTANT SETUP NOTES

• Before plugging in your Wine Cooler, allow to stand upright for 24 hours.
• Place only on a level surface that will support the full weight once Wine Cooler has been fully loaded. You can ensure the unit is level by placing a small ball on top and checking to make sure it does not roll in any direction.
• Position in a dry, well-ventilated space with temperatures between 50^ F – 100^ F ( 10^ C – 38^ C).
• Leave a space of at least 5" (127 mm) in the back of the unit and on both sides.
• Do not place any objects on top of the unit.
• Do not use without feet: the unit requires ground clearance.

WARNING: Risk of child entrapment. Before you throw away your old wine fridge, please follow these steps:

- Take off the doors.

• Leave the shelves in place so that children may not easily climb inside.
  ○ Make sure to leave at least 50mm of space on the back and each side.

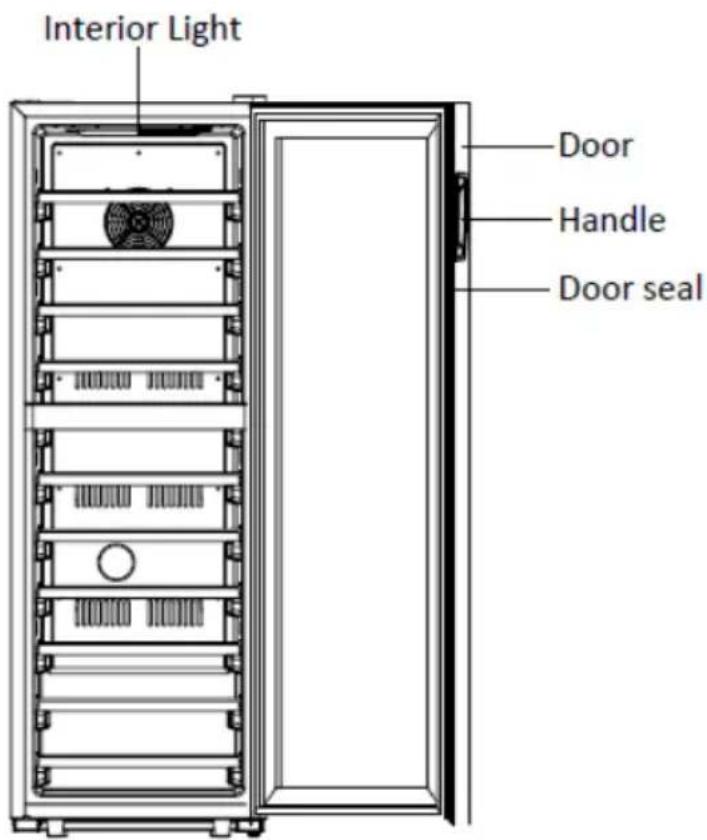

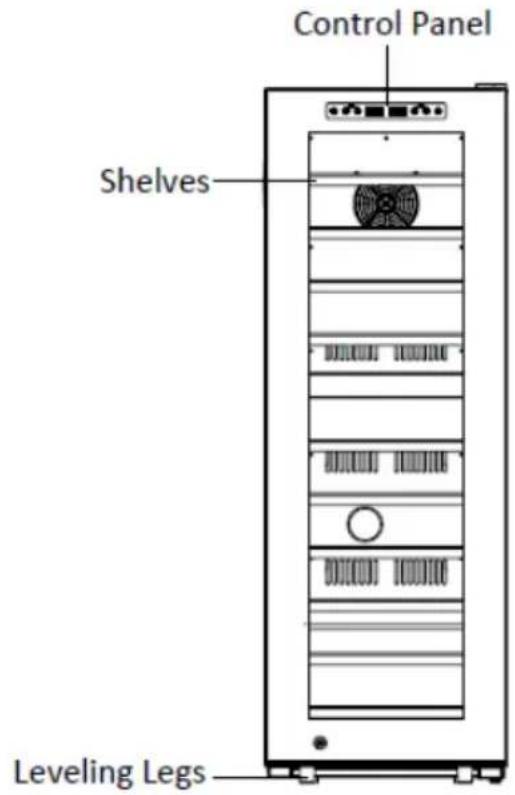

PARTS LIST

Control Panel Shelves Leveling Legs

Interior Light Door Handle Door seal

YOUR WINE COOLER FEATURES

• Keeps red and/or white wines at their proper temperature
  • One-touch controls and LCD display
• Interior lighting with independent on/off control
• Celsius or Fahrenheit, adjustable by one-degree increments
• Wire shelving with wood trim are easy to pull out
  • Automatic panel lock
• Tempered smoked glass door protects wines from UV rays
• Black metal exterior
• Door lock and key

OPERATING INSTRUCTIONS

CONTROL PANEL

SINGLE ZONE MODEL

NWC062BK00

Pure electrical control buttons without any text or symbols

1. Press 🎨 button for 3 seconds to turn on or turn off the appliance.
2. Press ☐ ton to turn on or turn off the light.
3. Press S^24 button to change temperature display from Celsius to Fahrenheit.
4. All the controls will be locked after no operation for 20 seconds. Press temperature control buttons and together for 5 seconds to unlock it.
5. Set the desired temperature in 1 degree increments by pressing 📄 or 🌐 buttons.

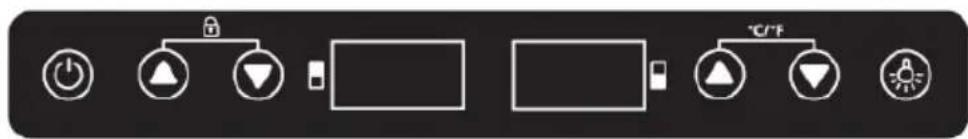

DUAL ZONE MODEL

NWC056BKD0

Control panel interface with battery, switch, and display icons including power, alarm, and temperature settings

1. Press 🪟 button for 3 seconds to turn on or turn off the appliance.
2. Press Button to turn on or turn off the light.

3. Press lower zone temperature buttons together for 5 seconds to change temperature display from Celsius to Fahrenheit.

4. All the controls will be locked after no operation for 20 seconds. Press

upper zone temperature buttons together for 5 seconds to unlock

1. Set the desired temperature in 1 degree increments by pressing ▲ or ▽ buttons for the appropriate zone.

DEFROSTING YOUR WINE COOLER

The unit's Auto Defrost feature should prevent ice accumulation from occurring.

However, should ice accumulation occur, do the following:

• Unplug the wine cooler
• Wait for all ice to melt
• Once the ice is completely melted, clean the water from the wine cooler with a dry cloth
• Plug in and restart the wine cooler

RECOMMENDED TEMPERATURE

Optimum Storage Temperature	Fahrenheit	Celsius
Red Wines	57° - 64°	14° - 18°
White Wines, Champagnes and Sparkling Wines, and Dry Varietals	49° - 58°	9° - 14°
Rosé Wines	51° - 53°	10° - 11°

Serving Temperatures	Fahrenheit	Celsius
Red Wines	55 - 64°	13 - 18°
White Wines, Champagnes and Sparkling Wines, and Dry Varietals	41 - 55°	5 - 13°
Rosé Wines	50 - 55°	10 - 13°

CLEANING YOUR WINE COOLER

TO CLEAN THE EXTERIOR:

• Unplug the wine cooler before cleaning.
• Do not use abrasive cleaning products.
• Wash the cabinet exterior only with mild soap and water and rinse thoroughly.
• Clean the glass door with glass cleaner or mild soap and water and a soft cloth.
• Wipe the control panel with a damp cloth and dry thoroughly. To avoid damaging the panel, do not use cleaning sprays or over-saturate it with water.

TO CLEAN THE INTERIOR:

• Unplug before cleaning.
• Do not use abrasive cleaning products.
• Cleaning the door gasket:
• Use mild soap or baking soda solution
• Rinse well
  ○ Apply a thin layer of petroleum jelly to the gasket at the hinge side to prevent it from sticking

- Use a warm water and baking soda solution inside the unit (about one tablespoon of baking soda to one quart of water) to clean and neutralize odors.

TROUBLESHOOTING

Problem	Possible Cause and Solution
If the unit doesn’t work:	Check to make sure the power supply has the correct voltage. Also check to make sure there isn't a circuit breaker that has been tripped or a blown fuse.
If the unit isn’t getting cold enough:	Make sure the temperature settings are adjusted correctly. If so, the room in which the unit is operating might be too hot. Also check whether the door has been opened too frequently or has not been completely closed. Check the seal on the door to make sure it is intact. Make sure the unit has sufficient clearance on all sides.
If the unit vibrates or makes excessive noise:	Make sure the unit has been placed on a level, stable surface. Also check to make sure the fan is working properly.
If the LED display is not working or shows an error message:	Check to see if the unit is plugged in properly. If so, there may be a problem with the main circuit board that requires professional servicing.
If the buttons don’t work:	The Control Panel may be damaged.

LIMITED MANUFACTURER'S WARRANTY

This appliance is covered by a limited manufacturer's warranty. For one year from the original date of purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in materials and workmanship, provided the appliance has been used under normal operating conditions as intended by the manufacturer.

Warranty Terms:

During the first year, any components of this appliance found to be defective due to materials or workmanship will be repaired or replaced, at the manufacturer's discretion, at no charge to the original purchaser. The purchaser will be responsible for any removal or transportation costs.

Warranty Exclusions:

The warranty will not apply if damage is caused by any of the following:

• Power failure
• Damage in transit or when moving the appliance
• Improper power supply such as low voltage, defective household wiring or inadequate fuses
• Accident, alteration, misuse or abuse of the appliance such as using non-approved accessories, inadequate air circulation in the room or abnormal operating conditions (extreme temperatures)
• Use in commercial or industrial applications
• Fire, water damage, theft, war, riot, hostility or acts of God such as hurricanes, floods, etc.
• Use of force or damage caused by external influences
• Partially or completely dismantled appliances
• Excess wear and tear by the user

Obtaining Service:

When making a warranty claim, please have the original bill of purchase with the purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a Newair™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer's discretion. For technical support and warranty service, please email [e-mail].
