USER MANUAL DO91336C DOMO

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

EN Instruction booklet Fridge-Freezer combination

Read all instructions carefully.

Save this instruction manual for future reference.

Labeled diagram of an open refrigerator showing eight interior compartments with numbered annotations

INSTALLATIE

Two safety signs: a checkmark and a cross, both pointing at a container with a lid.

Line drawing of a refrigerator with an inset close-up showing its exterior panel (no text or symbols)

Technical line drawing of a refrigerator with internal shelves and a separate view showing front and side views (no text or symbols)

Technical line drawings of a door panel, a slide, and a mechanical bracket component (no text or symbols)

Line drawings of a refrigerator with open doors and internal shelves, shown from front, side, and top views (no text or symbols)

Diagram showing a hand holding a ruler over a surface with two arrows indicating direction (no text or symbols present)

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

VERLICHTING

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ONTDOOIEN

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Labeled diagram of an open refrigerator showing eight interior compartments with numbered annotations

AVANT LA PREMIÈRE UTILISATION

Diagram showing two labeled containers with checkmarks and crosses, likely indicating cancellation or rejection status.

Line drawing of a refrigerator with an inset close-up showing its exterior panel (no text or symbols)

Technical line drawing of a refrigerator with internal shelves and a separate inset showing the exterior view (no text or symbols)

Technical line drawing of a door panel assembly with three views: front view, side view, and top view (no text or symbols)

Technical line drawing of a refrigerator with three views: front, side, and close-up (no text or symbols)

Diagram showing a hand holding a ruler and a stack of papers with arrows indicating direction (no text or symbols present)

Illustration of hands holding a rectangular device with arrows indicating movement or force (no text or symbols)

ÉCLAIRAGE

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Symbol of a trash bin crossed with two crossed lines and a black rectangular base (no text or numbers)

Labeled diagram of an open refrigerator showing eight interior compartments with numbered annotations

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating cancellation or rejection.

Line drawing of a refrigerator with an inset close-up showing its exterior panel (no text or symbols)

Line drawing of a refrigerator with shelves and a separate view of its shelf assembly (no text or symbols)

Technical line drawing of a refrigerator with side panel and front view (no text or symbols)

Technical line drawings of a door panel, a slide, and a mechanical bracket component (no text or symbols)

Line drawings of a refrigerator with open doors and internal shelves, shown from front, side, and top views (no text or symbols)

BEDIENFELD DES KÜHLSCHRANKS

A SET TEMPERATURE 1 2 3 4 5 6 FAST COOL 2°C 3°C 4°C 6°C 8°C

A. Temperatureinstellungstaste

LED-Anzeige

Diagram showing a hand holding a ruler with an arrow indicating upward and downward motion (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

BELEUCHTUNG

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

- Make sure that children do not touch the cord or appliance.

- Your appliance uses isobutane (R600a) as a refrigerant. Despite the fact that R600a is an environmentally friendly and natural gas, it is highly flammable. Therefore you should be careful

during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your refrigerator from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- Using the appliance incorrectly may cause an injury. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don’t cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

• It is prohibited to alter or modify the device and its specifications.
• When disposing of the appliance, remove the plug from the power socket, cut the power cord (as closely as possible to the appliance), and remove the door to prevent playing children getting an electrical shock or shutting themselves in the appliance.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• The lamp in the appliance is intended for use in this cooling device only. Do not use the lamp as a household light.

⚠️INSTALLATION

• Do not place near flammable materials, gases or explosives.
  • Always use the appliance on a steady, level and dry surface.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Keep the ventilation openings free of obstructions.
• Avoid long exposure to direct sunlight.
• Make sure that you have access to the plug of the appliance.
• Make sure the plug and cord are not crushed or damaged by the back of the appliance. This can cause short circuits and, as a result, overheating and fire.
• This is a heavy appliance. Be careful when moving it.
• This cooling unit is not intended for use as a built-in appliance.
• Do not place a power strip or other portable power supply behind the appliance.
  • After installation, it is advisable to wait 6 hours before connecting the appliance to allow the oil to flow back in the compressor.

⚠ USE

• Do not use or store this appliance outdoors.
• Do not use this appliance for other than intended use.
• Do not use any other electrical appliance inside the refrigerator, unless they are approved for this purpose by the manufacturer.
• Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a flammable propellant.

- Do not use the appliance without a lamp.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

- Ensure the food in the appliance does not touch the back wall.

- Do not touch anything that comes out of the freezer with damp or wet hands. This could cause skin burns.

- Be careful when consuming ice cubes or ice creams that come from the freezer. These can cause frostbite on the lips or tongue.

- Follow the instructions below to prevent contamination of food:

- Keeping the door open for long periods may cause the temperature in the compartments of the appliance to rise considerably.

- Clean the surfaces that could come into contact with food regularly.

- If the appliance is left empty for longer periods, it should be turned off, defrosted and cleaned. Allow it to dry and leave the door ajar to prevent mould from growing in the appliance.

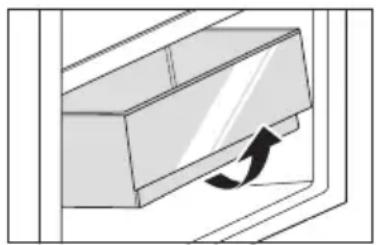

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Do not place warm or hot objects on top of the appliance.
• Do not clean the appliance with anything made of metal.
• Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.
• Do not use mechanical appliances or other means to speed up the defrosting process, unless approved by the manufacturer.

WARNING: Never place this appliance on or in the neighbourhood of a gas or electric fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.

Pay attention to the symbol 'Fire risk – flammable materials' located on the back of the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

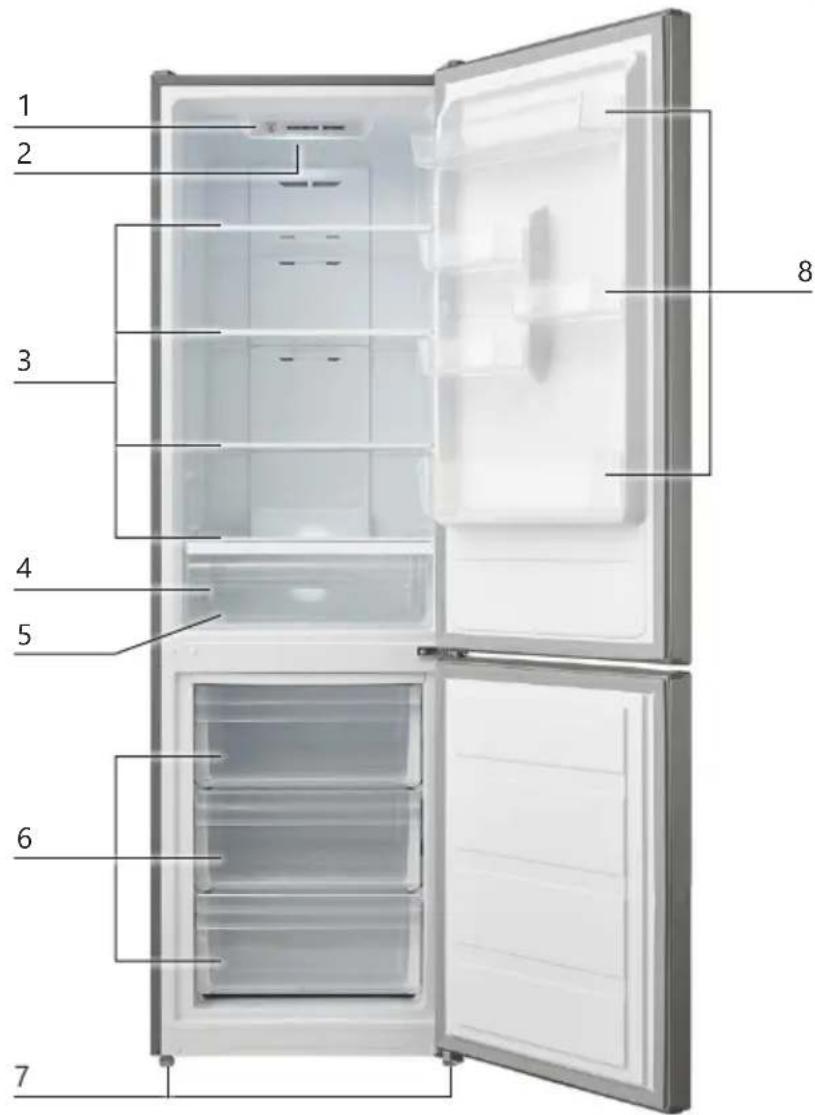

PARTS

1. Control panel
2. LED lighting
3. Glas shelves
4. Freezer operation
5. Vegetable drawer
6. Freezer drawers
7. Levelling feet
8. Door shelves

Labeled diagram of an open refrigerator showing eight interior compartments with numbered annotations

INSTALLATION

• Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth. Dry the appliance off well.

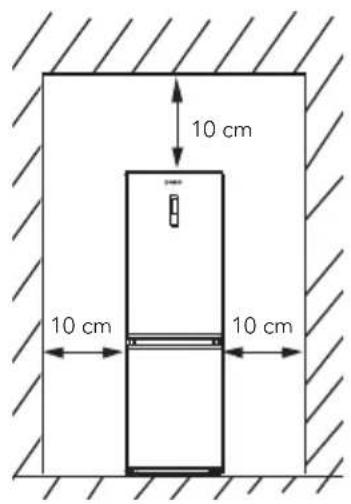

• Let air circulate freely around the cabinet.

10 cm 10 cm 10 cm

7,5 cm

59,5 cm 63 cm 135° 101,5 cm

• Make sure there is sufficient space to open the door.
• This cooling unit is not intended for use as a built-in appliance.
• Select a place with a strong, level floor.
• Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat sources nearby will cause higher electricity consumption.
• Avoid very moist places. Too much moisture in the air will cause frost to form very quickly on the evaporator, and your refrigerator.
• Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.
• The plug is the only way to disconnect the device from the power supply, make sure it is always easily accessible. To disconnect power to the device, turn off the device and then unplug it.
  • After installation, leave the fridge for 6 hours before turning it on. This way the refrigerant can settle.
• Allow the appliance to run empty for 12 hours so the compartment can cool to the appropriate temperature.

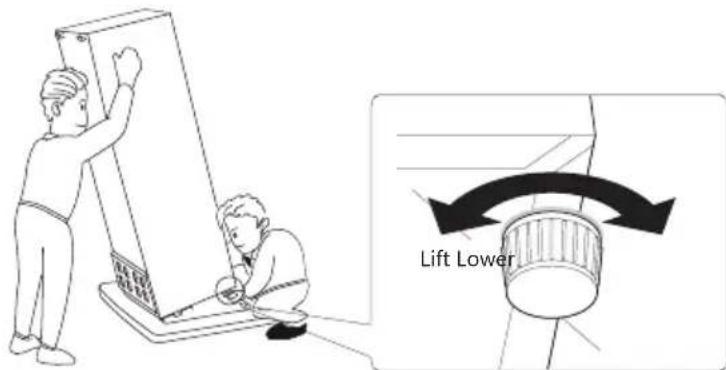

• You can level the appliance using the adjustable legs. The adjustable legs can be adjusted by screwing them in or out of the appliance.

Lift Lower

Two identical diagrams showing a checkmark and a cross symbol inside a container, likely indicating cancellation or rejection.

- The climate class indicates the minimum and maximum ambient temperature for the proper operation of an appliance. You can find the climate class on the type plate on the inside or back of the appliance.

• SN: Subnormal: ambient temperature between 10°C and 32°C
• N: Normal: ambient temperature between 16°C and 32°C
• ST: Subtropical: ambient temperature between 16°C and 38°C
• T: Tropical: ambient temperature between 16°C and 43°C

DOOR CONVERSION

If you need to hinge your door on the opposite side, it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the door, you should ensure the appliance is unplugged and empty. After reversing the door, leave the appliance alone for at least 2 hours before switching it on. This allows the coolant to set.

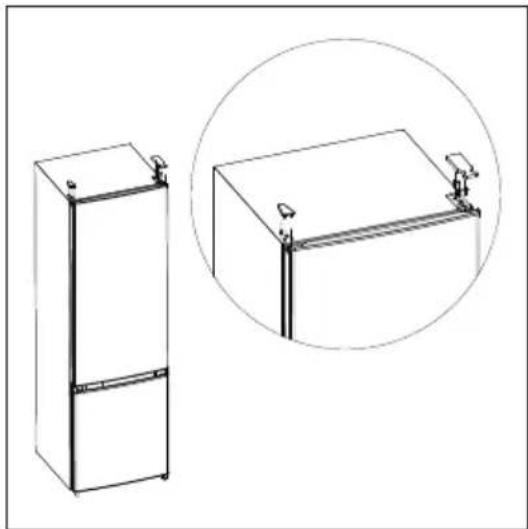

1. Remove the hinge cover, hole cap, and upper hinge.

Line drawing of a refrigerator with an inset close-up showing its exterior panel (no text or symbols)

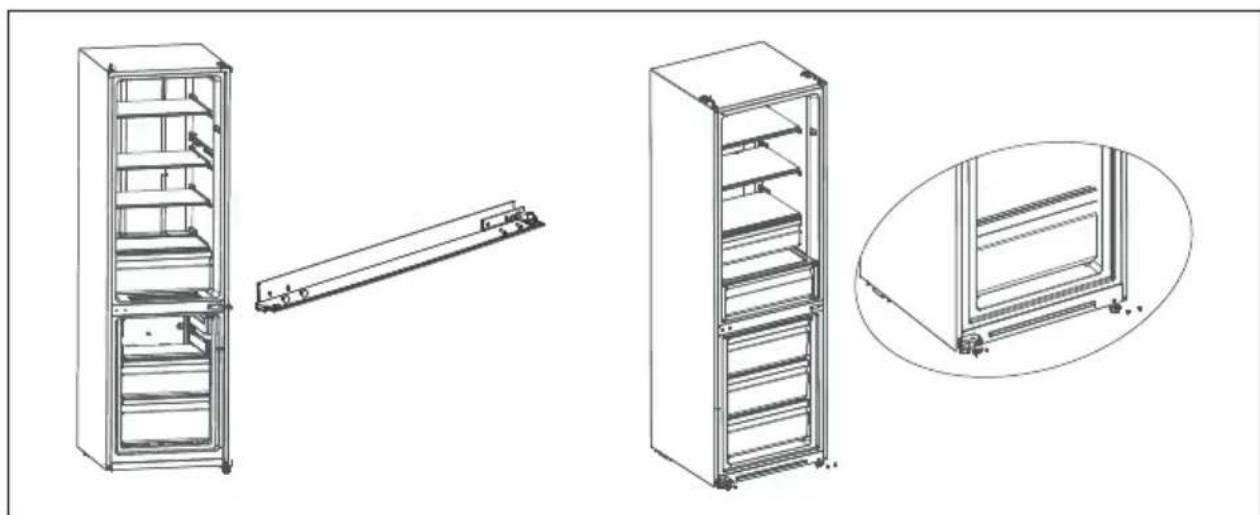

1. Take off the door of the refrigerator compartment. Then unscrew and remove the middle hinge using a Phillips screwdriver. Also remove the hole cap on the opposite side.
2. Remove the freezer door. Then dismantle the bottom hinge, hole caps, and leveling foot. Install the bottom hinge on the opposite side.

Technical line drawing of a refrigerator with internal shelves and a separate inset showing the exterior view (no text or symbols)

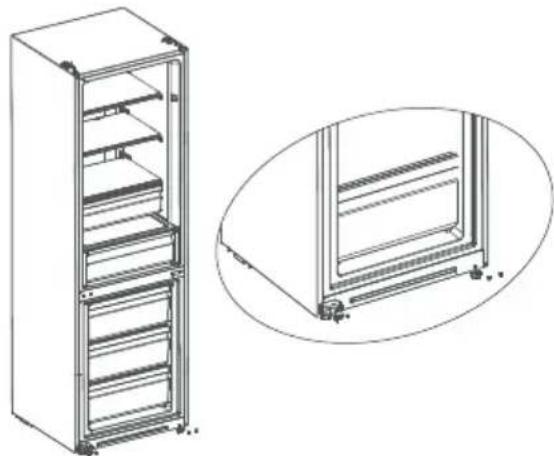

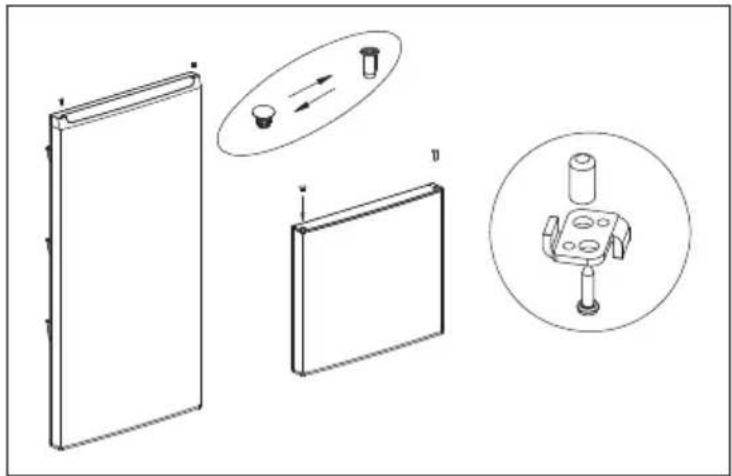

1. Unscrew the screws, sleeve pipe, and stopper from the lower end of both doors and reinstall them in the same order on the other side. Then remove the upper end cover of the refrigerator door and move the wire harness with the sleeve pipe to the other side of the door. Next, install the sleeve pipe for the upper hinge into the corresponding hole on the opposite side of the refrigerator door's top cover.

Technical line drawings of a door panel, a side panel, and a mechanical device with arrows indicating movement (no text or symbols)

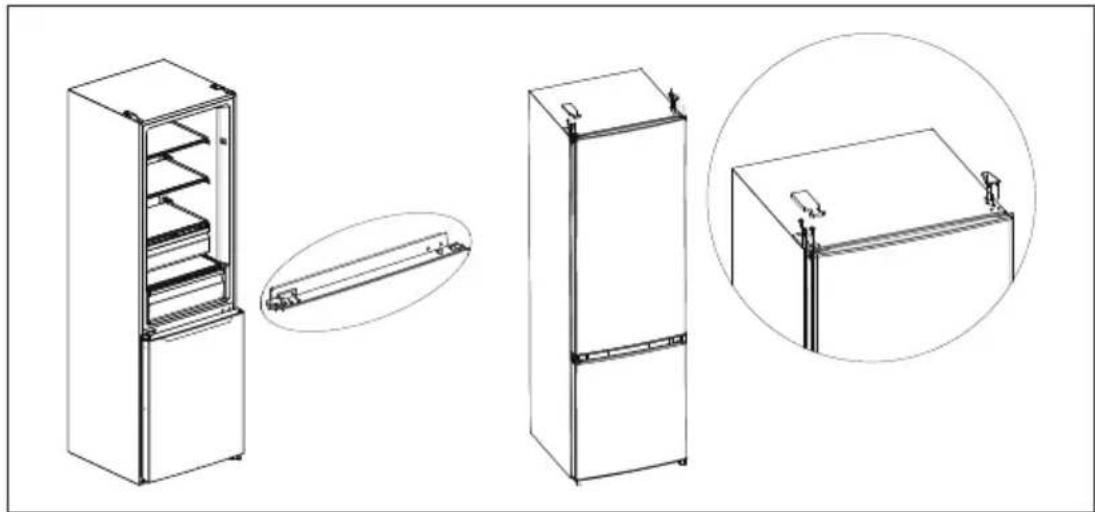

1. Place the freezer door onto the new bottom hinge and install the middle hinge and the hole caps.

2. Place the refrigerator door onto the new middle hinge and install the upper hinge, hinge cover, and hole cap.

Line drawings of a refrigerator with internal compartments and mounting brackets, shown in three views (no text or symbols)

1. Ensure that the screws of the hinge are firmly pressed against the hinge surface and are installed straight. After installation, check that the hinge is secure and there is no wobbling.

USE

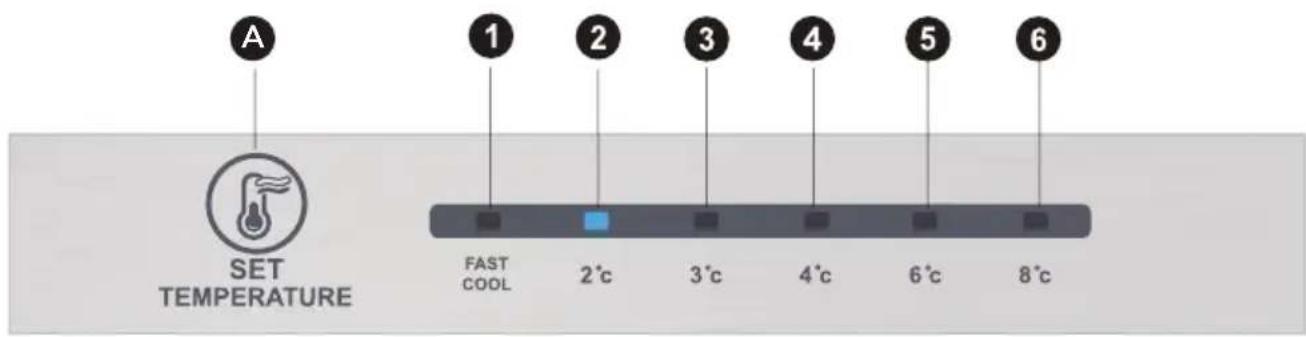

REFRIGERATOR CONTROL PANEL

A SET TEMPERATURE 1 2 3 4 5 6 FAST COOL 2°c 3°c 4°c 6°c 8°c

A. Temperature adjustment knob

LED display

1. FAST COOL: rapid cooling mode
2. Temperature setting 2^ C
3. Temperature setting 3^ C
4. Temperature setting 4^ C
5. Temperature setting 6°C
6. Temperature setting 8°C

When the appliance is plugged into the wall socket, it switches on automatically. The display lights up for 3 seconds. If the temperature setting button is not pressed, the unit will default to 4°C.

• Press the temperature setting button to change the temperature setting.
  • Each press of the button will change the setting to 1 step lower on the display:
• In FAST COOL mode, the fridge will be set to 2°C and remain in this mode for 6 hours. Then the fridge returns to the previously set temperature setting.

You can end the FAST COOL mode early by pressing the temperature setting button and choosing the desired temperature.

Malfunction

In case of a malfunction or defect, a combination of two settings will light up on the display. In this case, contact DOMO Elektro's after-sales service, the customer service department of the shop where you purchased the appliance, or the nearest qualified service centre for repairs.

See also under "Problems and solutions".

FREEZER OPERATION

- The controls for the freezer are located on the back wall of the fridge, at the bottom left, behind the vegetable drawer. - Slide the switch up and the actual temperature in the freezer compartment will drop. Slide the switch down and the actual temperature in the freezer compartment will rise.

STORAGE GUIDE

The higher up in your appliance, the warmer. So whatever spoils fastest (fish, meat, etc.) is best put at the bottom. The door is the least cold because it opens regularly. For the best storage, set up your refrigerating appliance as follows:

Refrigerator compartment Type of food
Door rack • Food with natural	preservatives such as jams, juices, drinks, spices, etc. • Do not store food with a limited shelf life here
Top shelf • Food that does not need to be cooked, such as ready-made meals, leftovers, spreads, etc.
Middle shelf • Dairy and eggs
Bottom shelf • Raw meat, poultry, fish
Crisper drawer • Fruits, herbs, and vegetables • Do not refrigerate bananas, onions, potatoes, or garlic

Freezer compartment Type of food

Top drawer • Ice cream, frozen fruit, frozen baked goods

Middle drawer • Frozen vegetables and fries

Bottom drawer • Raw meat, poultry, fish

MOVING THE SHELVES AND DOOR RACK

• Empty the fridge before moving the shelves or the door racks.
  • To move a shelf, lift it slightly at the back and pull it towards you.
• To move a door rack, grasp it with both hands. Squeeze and push up the rack. Then you can take it out.

LIGHTING

The lighting in the appliance is a LED light with energy efficiency class F. LED lights are more ecological and manufactured for a long life. For this reason, these may not be replaced. If there is a problem with the lighting, contact a qualified service centre in your area.

Diagram showing a hand holding a ruler with arrows indicating upward and downward motion (no text or symbols)

Illustration of hands holding a rectangular device with arrows indicating movement or force (no text or symbols)

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the fridge to avoid any shock.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 2 hours before turning on.

STORING FOOD IN THE FRIDGE

The fridge helps to extend the storage times of fresh perishable foods.

Fresh food care for best results:

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer.
• Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.
• Cool hot foods down before placing them in the fridge.

FREEZING AND STORING FOOD IN THE FREEZER

Use the freezer

• To store deep-frozen food.
• To make ice cubes.
- To freeze food.

⚠ Ensure that the freezer door has been closed properly. Avoid opening the freezer drawers unnecessarily.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the 'use by/best before/best by/' date.
• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer.

Freezing fresh food

Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

⚠️Keep food to be frozen away from food which is already frozen.

• The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.
• The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging: plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

Recommended storage times of frozen food in the freezer

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food Storage time
Bacon, casseroles, milk 1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months
Non-oily fish, shellfish, pizza, scones and muffins 3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

When you freeze fresh foods with a 'use by/best before/best by/' date, you must freeze them before the expiry of this date.

Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.

Once defrosted, food should be consumed quickly.

VACATION

For short vacation periods, leave the control knobs at their usual settings. During longer absences take the following measures:

• Remove all foods.
• Disconnect from electrical outlet.
• Clean the appliance thoroughly.
• Leave the doors open to avoid possible formations of condensate, mould or odours.

POWER FAILURE

• Most power failures are corrected within an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off.
• During power failures of longer duration, take steps to protect your food by putting dry ice on top of packages.

SOME IMPORTANT RULES FOR THE CORRECT USE OF THE REFRIGERATOR

• Never place hot foods in the refrigerator or freezer.
• Beverages should be stored in sealed containers.
• Foods to be stored for a long time should be wrapped in cellophane or polyethylene foil, or kept in glass containers.
• Never place spoiled foods in the refrigerator or freezer.
• Don't overload the cabinet.
• Don't open the doors unless necessary.
• Keep all accessories, such as shelves, door racks, and drawers, in the appliance to minimise energy consumption.
• Please read the storage instructions on the food packaging. Always check the storage date.
• Do not place carbonated drinks in the freezer. The bottle/can is pressurised and may explode.
• Be careful when consuming ice creams that come from the freezer. These can cause frostbite.
• An empty fridge consumes more energy. After all, when the door is opened, warm air enters the space and needs to be cooled. More air enters when there are fewer products, meaning that more energy needs to be consumed to cool that air. So fill your fridge properly or choose a model sized for your needs.
  ⚠️Not for outer camping use (e.g. in a tent).
  ⚠️For indoor use only.
  ⚠ The appliance can not be used in public transportation.

CLEANING AND MAINTENANCE

• Do not use abrasive cleaning agents or solvents.
• Turn the appliance off. Disconnect the mains plug from the mains socket.
  • Take out the food and store in a cool location.
• Remove the door racks, glass shelves, and vegetable drawer from the appliance and clean them with warm water and a mild detergent. Dry well.

- To remove the vegetable drawer from the appliance, pull the drawer out until it stops and then lift it to remove the drawer.

- Clean the appliance with a soft cloth, warm water and detergent. Dry well.

- Wipe the door seal with clear water only and then wipe dry thoroughly.

- Place the door racks, glass shelves, and vegetable drawer back in the appliance.

- Put the plug in the socket and set the desired temperature.

- Put the food back into the appliance.

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

DEFROSTING

This is a fridge-freezer with full no-frost function. The appliance defrosts automatically, so there is no need to do this manually.

If a slight layer of ice does form on the back wall of the fridge or freezer, defrost the appliance:

1. Remove the frozen food and place temporarily in a cool location.

2. Disconnect the appliance from the mains socket.

3. Open the fridge and freezer doors and wait for the ice layer to thaw.

4. Clean the appliance as described above.

5. Plug in the appliance and adjust the temperature control knob as desired.

6. Put the frozen food back in the freezer.

⚠️ Make sure the food has not defrosted. Frozen foods that have been completely or partially thawed should not be refrozen.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The refrigerator does not work.	Check connection of power cord to power source.Plug in unit.Use proper voltage.
The outer walls, cross beams, or vertical beams are hot.	This is normal. When the appliance is in operation, heat is dissipated to the outside. Always ensure adequate ventilation around the appliance.
The refrigerator cools too frequently.	The temperature setting is too cool.Close door securely.Be sure that food is cool before inserting.Do not keep door open for too long and minimize door openings.Use proper voltage.Do not place unit close to heat sources or direct sunlight.
The internal temperature is not cold enough.	Check connection of power cord to power source.Plug in unit.Check setting and adjust as needed.Close door securely.Be sure that food is cool before inserting.Do not keep door open for too long and minimize door openings.Allow room for air to circulate around unit.Use proper voltage.Do not place unit close to heat sources or direct sunlight.
Unusual sounds. • The appliance is not level. Readjust the adjusting feet and level the unit.The unit is touching a wall or another object. Gently move the appliance.
There is water on the floor. • The condensation duct is blocked. See the chapter on cleaning.• Too much condensation has formed in the fridge, causing the reservoir to overflow. Too much condensation is caused by a heat difference. Is the door closed properly? Have you put hot food in the fridge? Does the seal still close properly?
The door does not close properly.	• The door seal is deformed. Heat it gently using a hairdryer. The rubber seal will become flexible and the magnetic strip in the rubber will automatically pull towards the appliance. After cooling, the rubber stays in that position.

ERROR MESSAGE COMBINATIONS

In case of a malfunction or defect, a combination of two settings will light up on the display. In this case, contact DOMO Elektro's after-sales service, the customer service department of the shop where you purchased the appliance, or the nearest qualified service centre for repairs.

LED COMBINATION ERROR DESCRIPTION
"FAST COOL" and "2°C" Cooling	temperature sensor error
"FAST COOL" and "3°C" Freezer	defrost sensor error
"FAST COOL" and "4°C" Ambient	temperature sensor error

GUIDELINES

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Labeled diagram of an open refrigerator showing eight interior compartments with numbered annotations

INSTALACIÓN

Two labeled diagrams showing a checkmark and a cross symbol on vertical bars, likely indicating approval or cancellation.

Line drawing of a refrigerator with an inset close-up showing its exterior panel (no text or symbols)

Technical line drawing of a refrigerator with internal shelves and a separate inset showing the exterior view (no text or symbols)

Technical line drawings of a door panel, a side panel, and a mechanical device with arrows indicating movement (no text or symbols)

Line drawings of three different refrigerator units with internal compartments and mounting brackets (no text or symbols)

Diagram showing a hand holding a ruler and a stack of papers with arrows indicating motion (no text or symbols)

Illustration of hands holding a rectangular device with arrows indicating movement or force (no text or symbols)

ILUMINACIÓN

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Labeled diagram of an open refrigerator showing eight interior compartments with numbered annotations

INSTALLAZIONE

Two labeled diagrams showing checkmark and cross symbols on vertical bars, likely indicating approval or rejection status.

Line drawing of a refrigerator with an inset close-up showing its exterior panel (no text or symbols)

Technical line drawing of a refrigerator with internal shelves and a separate inset showing the exterior view (no text or symbols)

Technical line drawings of a door panel, a side panel, and a mechanical device with arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator with open doors and internal shelves, shown in three views: one with a close-up view of the lid (no text or symbols)

Diagram showing a hand holding a horizontal bar with arrows indicating direction (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

ILLUMINAZIONE

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Labeled diagram of an open refrigerator showing eight interior compartments with numbered annotations

PŘED PRVNÍM POUŽITÍM

Two safety signs: a checkmark and a cross, both pointing at a barrier with a minus sign.

Line drawing of a refrigerator with an inset close-up showing its exterior panel (no text or symbols)

Technical line drawing of a refrigerator with internal shelves and a separate inset showing the exterior view (no text or symbols)

Technical line drawing of a mechanical assembly with three views: front panel, side panel, and top view (no text or symbols)

Line drawings of a refrigerator with internal compartments and mounting brackets, shown from front, side, and top views (no text or symbols)

Diagram showing a hand holding a ruler with arrows indicating measurement or force direction (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

OSVĚTLENÍ

MANIPULACE S PŘÍSTROJEM

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Labeled diagram of an open refrigerator showing eight interior compartments with numbered annotations

PRED PRVÝM POUŽITÍM

Two identical diagrams showing a checkmark and a cross symbol inside vertical bars, likely indicating cancellation or rejection.

Line drawing of a refrigerator with an inset close-up showing its exterior panel (no text or symbols)

Technical line drawing of a refrigerator with internal shelves and a separate inset showing exterior view (no text or symbols)

Technical line drawing of a mechanical assembly with three views: front panel, side panel, and top view (no text or symbols)

Line drawings of a refrigerator with open doors and internal shelves, shown from front, side, and top views (no text or symbols)

Diagram showing a hand holding a ruler with arrows indicating upward and downward motion (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

OSVETLENIE

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

- Spotrebič čistite mäkkou handričkou, teplou vodou a saponátom. Dobre vysušte.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
