Product Type	Microwave Oven
Brand	DOMO
Model	DO23001
External Dimensions (W x D x H)	52 x 40.5 x 30.6 cm
Volume	30 L
Turntable Diameter	31.5 cm
Supply Voltage	230 V ~ 50 Hz
Rated Input Power	1440 W
Rated Output Power	900 W
Power Levels	5 levels: Low (17%), Defrost (30%), Med (55%), M. High (80%), High (100%)
Timer	Up to 35 minutes (graduations: 1 min steps up to 10 min, then 5 min steps)
Interior Light	LED lamp (non-user-replaceable)
Exterior Material	Stainless steel and plastic
Main Functions	Cooking, defrosting, reheating
Care and Cleaning	Clean inside after each use with a damp cloth; turntable washable in warm soapy water; do not immerse the appliance
Safety	Automatic shut-off when door opens; child safety lock; mandatory earthing
Warranty	2 years from date of purchase
Repairability	Contact DOMO after-sales service or an approved center; do not disassemble yourself
Included Accessories	Glass turntable, turntable ring
Standby Power Consumption	0 W

Frequently Asked Questions - DO23001 DOMO

How do I set the power and cooking time?

Use the upper knob to select the power (Low, 30%, Med, M.High, High) and the lower knob to set the time up to 35 minutes. The oven starts automatically after adjustment.

Which utensils can I use in this microwave?

Use only microwave-safe containers: heat-resistant glass, microwave-safe plastic, ceramic without metal. Avoid aluminum, metal, wood, and paper bags.

Why is my microwave not heating?

Check that the door is fully closed, the plug is properly inserted, and the fuse has not blown. If the problem persists, contact after-sales service.

How do I clean the inside of the microwave?

After each use, clean the inside with a slightly damp cloth. The glass turntable and ring can be washed in hot water with mild detergent. Never use abrasive cleaners.

Can I cook hard-boiled eggs in the microwave?

No, eggs in their shell or whole hard-boiled eggs should not be heated in the microwave as they may explode, even after cooking.

What should I do if smoke comes out of the oven?

Immediately unplug the appliance and leave the door closed to smother any flames. Do not open the door until you are sure the fire is out.

The turntable makes noise, is this normal?

Noise may result from dirt on the bottom plate or ring. Clean these parts. If the noise persists, contact after-sales service.

What is the minimum installation height?

The oven must be installed at least 85 cm above the floor. Allow 20 cm of free space on the sides and rear, and 30 cm above for proper ventilation.

How do I defrost food with this oven?

Set the power to Defrost (30%) and the required time (about 4 minutes for 200 g). Turn the food halfway through if possible.

Can I use a steam cleaner to clean the oven?

No, never use a steam cleaner. Moisture could enter the electrical components and cause electric shock or fire.

USER MANUAL DO23001 DOMO

Black DOMO microwave oven with control knobs and a power button (no visible text or symbols on body)

EN Instruction booklet Microwave oven

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Close-up of a computer monitor with a paper lid and a scale marker (no visible text or symbols)

Diagram showing a rotating disc with a curved arrow indicating rotation direction (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Close-up of a black electronic device with a scale marker and a curved glass component (no visible text or symbols)

AVANT LA PREMIÈRE UTILISATION

Diagram showing a circular plate with a downward arrow and a small particle at the bottom (no text or symbols)

Attention:

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Close-up of a black computer monitor with a magnified view showing a small glass lid and a numbered label '7' (no readable text or symbols beyond the number)

Diagram showing a circular component with internal features and a downward arrow pointing to a small particle (no text or symbols)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Thank you very much for placing your trust in DOMO. We hope you enjoy your new purchase.

All our products undergo strict quality control before reaching you. If you still experience any problems with your device, we sincerely regret that. We have collected the most frequently asked questions about our devices on our webshop. Scan the QR code and have a look!

If you cannot find a solution to your problem there, do not hesitate to contact our customer service via [e-mail]. Our staff will do everything they can to assist you!

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

To reduce the risk of fire, electric shock, injury or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

• WARNING: Liquids and other foods must not be heated in sealed containers since they can explode.
• WARNING: It is hazardous for anyone other than a competent person to carry out maintenance or repairs involving the removal of a cover that protects from exposure to microwave energy.
• Only use utensils suitable for use in microwave ovens.
• The oven should be cleaned regularly and any food remainders should be removed.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Do not overcook food.
• Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
• Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

- Install or locate this oven only in accordance with the installation instructions provided.

- Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

- Do not use corrosive chemicals or vapors in this appliance.

- This oven is not designed for industrial or laboratory use.

- Do not use this oven near water, in a wet area or near a swimming pool.

- The content of feeding bottles and baby food jars always needs to be stirred or shaken. The temperature needs to be checked before consumption, in order to avoid burns.

- Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.

- This appliance should not be placed into a cupboard.

- Do not use a steam cleaner to clean the appliance.

- Do not use abrasive cleaners or sharp metal scrapers to clean the oven door glass, since they can scratch the surface, which may result in shattering of the glass.

- The door or the outer surface of the appliance may get hot when the appliance is operating.

- The microwave oven is designed to heat food and beverages. Drying food or clothes and heating heat pads, slippers, sponges, damp cloths and the like can lead to risks of injury, ignition or fire.

⚠️PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

- Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.

- Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

- If the appliance is not maintained properly, the appliance could be damaged, which may affect the lifespan of the apparatus and may lead to a dangerous situation.

⚠ TO REDUCE THE RISK OF INJURY

• Caution: touching some of the internal components may cause serious personal injury or death.
• Do not disassemble this appliance.
• Improper use of the appliance and the grounding can result in electric shock. Do not turn on the appliance until it is properly installed and grounded.
• This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.
• A short power-supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

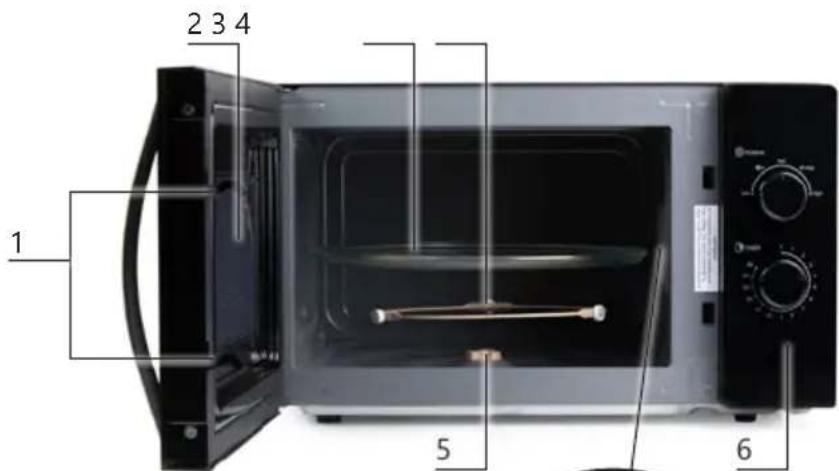

PARTS

1. Safety interlock system
2. Observation window
3. Glass turntable
4. Turntable ring assembly
5. Turntable shaft

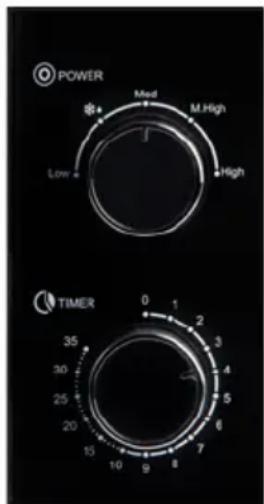

6. Control panel

1 2 3 4 5 6

1. Protection cover wave guide - never remove this cover!

Close-up of a computer monitor with a paper clip and label, no visible text or symbols

BEFORE THE FIRST USE

• Remove all packaging material and accessories.
• Remove the protective film around the machine, this is applied to avoid scratches.
• Check the oven for any damage, such as dents or a damaged door. Do not use the oven if it is damaged.

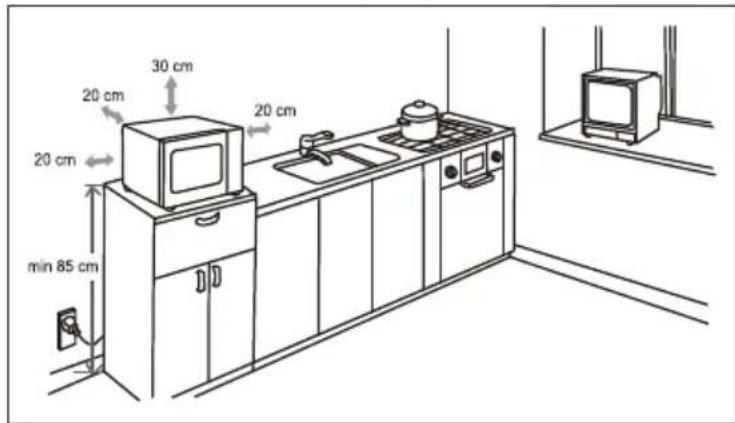

INSTALLATION

- Choose a place to install the microwave, where there is sufficient open space for the air intake and exhaust.

• The microwave oven must stand at least 85 cm high.
• Make sure that the left, right and back side are at least 20 cm from the wall or cupboard.
• The open space above the microwave must be at least 30 cm.

- The microwave may not be built into a cabinet.

30 cm 20 cm 20 cm 20 cm min 85 cm

- Place the oven as far as possible away from radio and TV, because the oven may cause reception problems.

- The microwave must be placed in a dry environment, away from heat and humidity, for example gas burners and water tanks.

- Blocking the air intake and exhaust opening can lead to damage.

⚠️ Do not place the oven above a stove or other heat producing device. This may damage the machine and void your warranty.

⚠ The accessible part of your machine may become warm during use.

TURNTABLE INSTALLATION

• First place the turntable ring in the middle of the microwave oven.
• Place the turntable on the ring. Make sure that the middle of the turntable fits into the turntable shaft.

Diagram showing a circular component with a downward arrow and a small irregular shape at the bottom (no text or symbols)

Caution:

• Never place the glass tray upside down. The glass tray should never be restricted.
• Both glass tray and turntable ring assembly must always be used during cooking.
• All food and containers should be placed onto the glass turntable during cooking at all times.
• If the glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center. Or you can order the accessories in our webshop: webshop.domo-elektro.be

Make sure that the timer knob is set to 0 so that the microwave oven is turned off and plug the plug of your oven into the wall outlet. Be sure to check that the voltage at home is consistent with the voltage indicated on the label on the appliance.

WHAT MATERIALS CAN BE USED IN THE MICROWAVE OVEN?

In the list below you can find which materials can and can not be used in the microwave oven. If in doubt, or if you can not find the material in the list below, you can test the utensil in question, following the procedure below:

• Fill a microwave-safe container with 1 cup of cold water (250 ml) along with the utensil. Cook on maximum power for 1 minute.
• Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

⚠️CAUTION: Do not exceed the 1 minute cooking time.

Materials that can be used in the microwave oven

• Dinnerware: microwave-safe only. Do not use cracked or chipped dishes.
• Glass jars: always remove the lid. Use only to heat up food until it is just about warm. Most glass jars are not heat-resistant and may break.
• Glassware: heat-resistant oven glass ware only. Make sure there is no metallic elements or parts. Do not use cracked or chipped dishes.
• Oven cooking bags: follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.

- Plastic: microwave-safe only. Follow the manufacturer's instructions. Should be labeled "microwave safe". Some plastic containers soften, as the food inside gets hot. Cooking bags and closed packaging must be punctured to allow steam to escape.

- Plastic wrap: microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.

• Thermometers: microwave-safe only.

Materials to be avoided in the microwave oven

• Aluminum tray: may cause arcing. Transfer food into a microwave-safe dish.
• Food carton with metal handle: may cause arcing. Transfer food into a microwave-safe dish.
• Metal or metal-trimmed utensils: metal shields the food from microwave energy. Metal trim may cause arcing.
• Metal twist ties: may cause arcing and could cause a fire in the oven.
  • Paper bags: may cause a fire in the oven.
• Plastic foam: plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
• Wood: wood will dry out when used in the microwave oven and may split or crack.

USE

CONTROL PANEL

- With the top knob of the control panel, you can set the desired power by turning the knob to one of the 5 positions (power levels).

- With the bottom knob, you can set the cooking time by turning the knob, up to 35 minutes. Each turn of the knob is equal to 1 minute, up to 10 minutes. After that, the turns are always equal to 5 minutes.

- Always set the time to 0 when the machine is not in use.

POWER + Med M High Low High TIMER 0 1 2 3 4 5 6 7 8 9 10 15 20 25 30 35

You can consult the table below as a guideline for settings:

Power Output Application
Low 17% 153 W Keep warm, softening ice cream
	30% 270 W Thawing (+/- 4 minutens/200 g)
Med. 55% 495 W Slow cooking: stew, fish,...
M. High 80% 720 W Normal cooking: rice, fish, chicken, meat
High 100% 900 W			Quick cooking: heating up, boiling water, vegetables,...

INSTRUCTIONS FOR USE

• Place the food on the glass turntable and close the door. Make sure the food is in a microwave-safe container.
  ⚠️ Never start the microwave without food in it. The appliance must never be operated empty.

- Choose the correct setting.

- Choose the desired time.

- The microwave oven will automatically start after the time has been set. During cooking you can open the door of the microwave any time. The microwave oven will automatically interrupt its cooking process. Close the door again to continue the cooking cycle.

• When the cooking time is over, a bell signal will sound.
• When you take food out of the microwave oven, make sure that the oven is off by turning the timer button to 0. Otherwise, the microwave oven may start to operate empty, which can cause overheating and damage to the microwave oven.

LIGHTING

The lighting in the microwave oven is a LED light. LED lights are more ecological and manufactured for a long life. For this reason, these may not be replaced. If there is a problem with the lighting, contact a qualified service centre in your area.

CLEANING AND MAINTENANCE

• Always make sure you remove the plug from the socket before cleaning the appliance.
- Clean the inside of the appliance after every use with a slightly damp cloth.
- Clean the parts like the glass turntable,... in warm water with a mild detergent.
- The door, the lock and the control panel can be cleaned with a slightly damp cloth when dirty.

⚠️Do not immerse unit, cord, or plug in water or other liquid.

⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The microwave oven is causing disruptions to radio or TV.	·You may notice a slight interference with your TV or radio when the microwave oven is in operation. Place the appliance as far away as possible from the TV, radio, antenna or Wi-Fi router. Make sure that all cables (coax, HDMI) are of good quality with good shielding. A direct wired connection is also less susceptible to interference than a wireless connection.
The microwave oven does not start. ·It may be that the plug is not correctly plugged into the outlet. Pull the plug out and after 10 seconds plug it back into the outlet. ·Check the fuse in the fusebox and have it repaired by a professional if necessary. ·There may be something wrong with the outlet. Test the outlet with other devices and have it repaired by a professional if necessary.
The oven does not heat up. ·Make sure the door is shut properly.
The revolving glass plate makes noise when the oven is in use.	·The floor of the oven and the ring on which the revolving glass plate sits may be dirty. Clean the oven according to the instructions.

SPECIFICATIONS

Model DO23001
Rated voltage 230 V~ 50 Hz
Nominal microwave input power 1440 W
Nominal microwave output power 900 W
Oven capacity 30 L
Turntable diameter 31.5 cm
Exterior dimensions 52 x 40.5 x 30.6 cm
Energy consumption in off-mode after 0 minutes 0 W

GUIDELINES

Warning symbol for a trash bin with crossed and unshaded lanes, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Diagram showing a circular component with a downward arrow and a small irregular shape at the bottom (no text or symbols)

Precaución:

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Diagram showing a circular object with internal features and a downward arrow pointing to a small irregular shape (no text or symbols)

Attenzione:

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Close-up of a black electronic device with a labeled panel and a transparent lid, showing internal components (no readable text or symbols)

PŘED PRVNÍM POUŽITÍM

Diagram showing a disc mounted on a circular base with a downward arrow indicating rotation or movement (no text or symbols)

JAKÉ NÁDOBÍ LZE POUŽÍVAT V MIKROVLNNÉ TROUBĚ?

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Close-up of a black computer monitor with a paper lid and label, no visible text or symbols

PRED PRVÝM POUŽITÍM

Diagram showing a circular plate with a downward arrow and a small irregular shape at the bottom (no text or symbols)

Upozornenie::

Warning symbol for a trash bin with crossed and unshaded lanes, indicating no waste or discharge.

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with ports and mounting brackets (no visible text or symbols)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
