USER MANUAL VCBKC800BC TORNADO

Important Safety Instructions

When using an electrical appliance, basic precaution should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)

WARNING-To reduce the risk of fire, electric shock, or injury:

1. Do not leave vacuum cleaner when plugged in. Unplug from outlet when no use and before servicing.

2. To reduce the risk of electric shock, do not use outdoors or on wet surfaces

3. Do not allow to be used as a toy. Close attention is necessary when used by near children.

4. Use only as described in this manual. Use only manufactures recommend attachments.

5. Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, enter it to a service center.

6. Do not pull or carry on cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

8. Do not handle plug or vacuum cleaner with wet hands.

9. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce airflow.

10. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.

11. Turn all controls off before unplugging.

12. Use extra care when cleaning on stairs.

13.Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present

14.Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

1. Unplug before connecting the hose

2. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

3. Do not use without dust bag and/or filter in place.

4. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

SAVE THESE INSTRUCTIONS

WARING:- to reduce the risk of electric shock, this vacuum cleaner has a polarized plug (one blade is winder than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit full in the outlet, reverse the plug. If it still does not fit, contract a qualified electrician to install the proper outlet do not change the plug in any way.

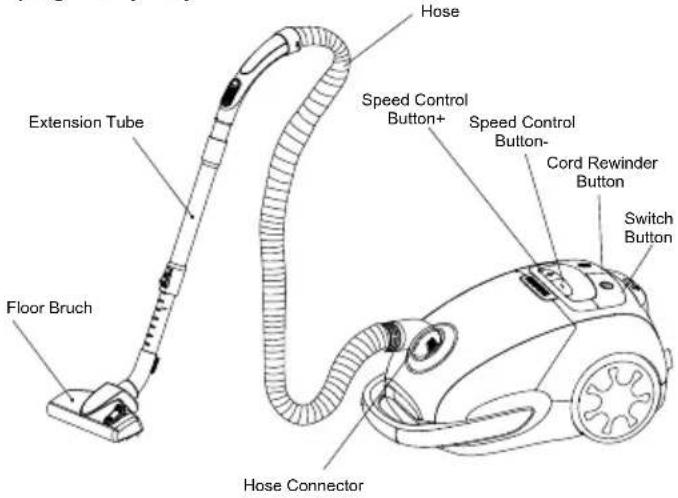

Extension Tube Floor Bruch Hose Speed Control Button+ Speed Control Button- Cord Rewinder Button Switch Button Hose Connector

Precautionary Measures

If the opening that sucks in the air, the suction pipe or the telescopic wand stick on pipe are blocked, you should switch off the vacuum cleaner at once. First clear the blocked substance before you attempt to start the vacuum cleaner again.

1. Do not operate the vacuum cleaner too close to heaters and like radiators, cigarette butts etc.

Illustration of a vacuum cleaner emitting exhaust smoke next to a trash bin (no text or symbols)

1. Before you insert the plug into the wall contact, make sure your hand is dry.

Safety warning symbol showing no protection and a hand inserting a device into a panel with text labels

1. Before you start using the vacuum cleaner, please remove large or sharp objects from the floor in order to prevent that the paper filter is damaged.

Safety warning symbol and line drawing showing a no-smoking sign next to a hand holding a tool.

1. When you want to pull the plug from the wall contact, please do this at the plug itself and not by means of the electrical cable.

Diagram showing a switch mechanism and its application on a power outlet, with Chinese text labels.

This vacuum cleaner is equipped with a plug and a cable, which rolls up automatically.

If anything gets damaged, both the plug and the cable must been repaired by a qualified repairman or electrician.

Always remove the plug from the power socket before fitting or removing accessories!

1. Connecting vacuum cleaner

1. Fitting or removing the flexible hose Fitting:

Insert flexible hose into the air intake duct on the front of appliance. Press until it clicks into position.

Removing:

Removing the plug from the power socket. To release the flexible hose firmly from the air intake duct.

Line drawing of a vacuum cleaner with a pipe bag attached (no text or symbols)

2. Fitting the extension tubes and accessories

a. Fitting the extension tube to the handle
b. Fitting the extension tubes.

Illustration of a hand holding a medical instrument with an arrow indicating direction (no text or symbols)

c. Fitting the brush to the extension tube.

Extension Tube Floor Bruch

d. Fitting Floor brush deal for the daily cleaning on carpets and hard floors.

Line drawing of a tool interacting with a surface, no text or symbols present

Line drawing of a person sitting on a bench with a book, no text or symbols present

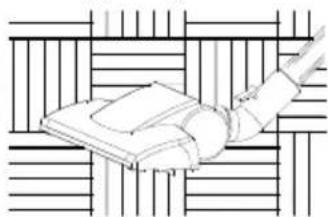

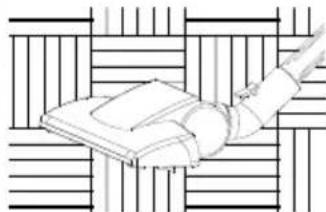

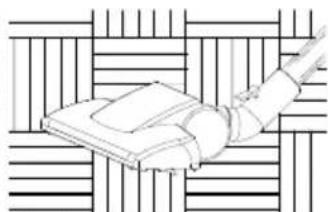

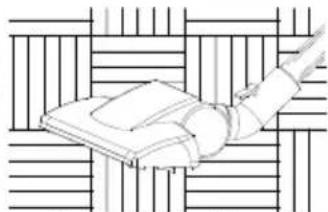

Clean on the hard floor Clean on the carpets

2.Cleaning tools use The crevice tool and dusting brush are stored on the accessories holder.

1. Crevice tool: For radiators, crevices, corners, baseboards and between cushions.
2. Dusting brush is used for the furniture, venation, blinds, book, lamp shades and shelves.
3. The small brush is used for clean the sofa.

Instructions For UseAssembling Vad

Before using appliance, unwind a sufficient length of cable and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Don't expend the cable beyond the red mark.

1. Press the ON/OFF button to switch the appliance on.

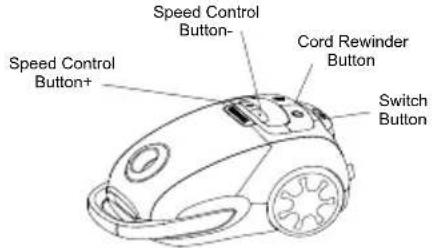

Speed Control Button+ Speed Control Button- Cord Rewinder Button Switch Button

1. To rewind the power cable, press the rewind button with one hand and guide the cable with the other hand to ensure that it does not whip causing damage.

Line drawing of a vacuum cleaner connected to a cable with a small card (no text or symbols)

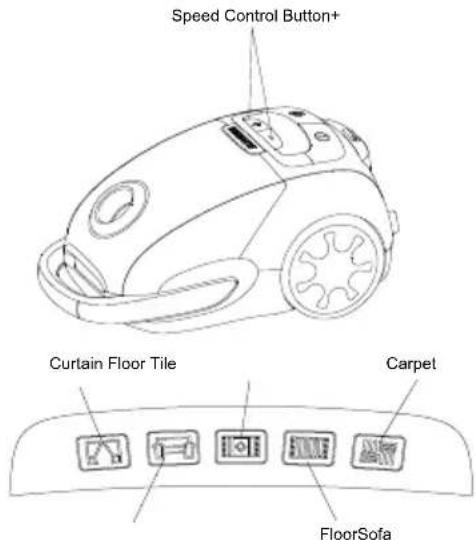

1. For T4030AE, slide the Electronic Power Switch to control the suction of the cleaner.

Speed Control Button+ Curtain Floor Tile Carpet FloorSofa

Maintenance

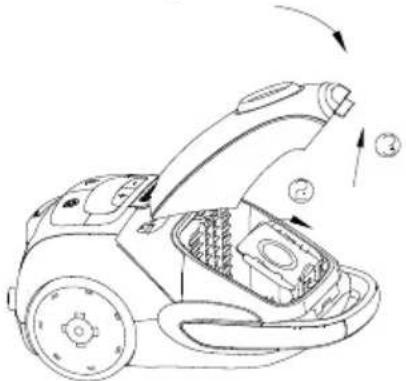

1. Changing of the dust bag

• Always operate the cleaner with dust bag installed.

• If you forget to attach the dust bag or attach it in the wrong manner, the dust cover may not close completely.

• After removing the flexible tube, open the front cover.

• Take out the dustcup.
• Press the lock of dustcup's lower cover.

Line drawing of a robotic vacuum cleaner with open lid and internal components, showing motion arrows (no text or symbols)

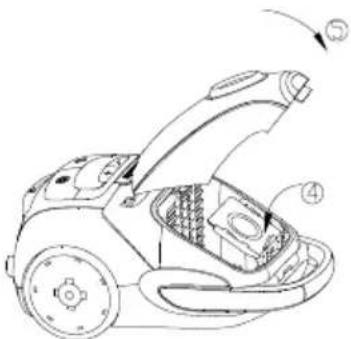

1. Carry away the dust-cover and Spill rubbish
2. Replace the dust compartment subassembly until it is locked.

Technical diagram of a robotic vacuum cleaner with labeled parts and directional arrow

2. Cleaning filter

• Filter should be cleaned at least twice a year or when it becomes visible solid.
• Always operate the cleaner with filter installed.
• Otherwise, reduced suction or motor damage may be result.
• Disconnect from electrical outlet, before cleaning filter.
• Do not use a washing machine to rinse filter.

• Do not use hair drier to dry it.

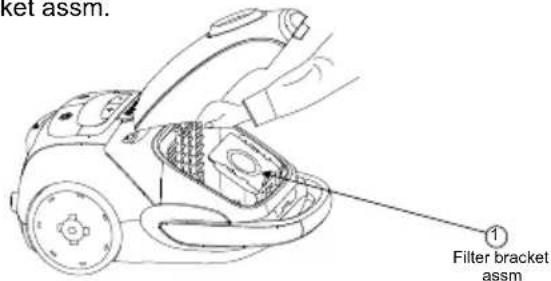

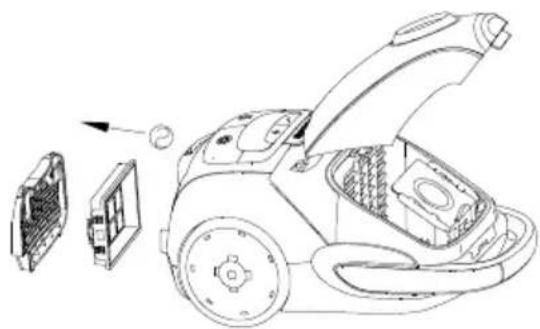

• Pullout the filter bracket assm and Separate the filter bracket assm.

ket assm. ① Filter bracket assm

1. Pull out the outlet Hepa.

Line drawing of a vacuum cleaner with internal components and a close-up view of its casing (no text or symbols)

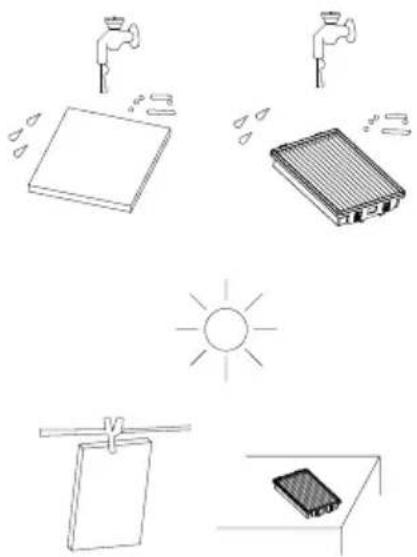

1. Rinse filter and Hepa in lukewarm water and dry the filter completely

Illustration of household items including a water tap, a solar panel, and a household appliance under sunlight (no text or symbols)

General Maintenance

Correct disposal of this product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories should not be disposed of with other household waste.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)
