IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

This machine is for commercial use, for example in hotels, schools, hospitals, factories, shops and offices other than normal residential housekeeping purposes.

THIS APPLIANCE IS INTENDED FOR DRY USE ONLY!

DO NOT USE FOR WET FLOOR OR CARPET!

WARNING!

To reduce the risk of fire, electric shock, or injury:

* Do not leave the appliance when it is plugged in. Unplug the unit from the outlet when not in use and before servicing.

WARNING!

To reduce the risk of electric shock, do not use outdoors or on wet surfaces.

* Do not allow to be used as a toy. Close attention is necessary when used by or near children.

* Use only as described in this manual. Use only the manufacturer's recommended attachments.

* If the appliance is not working as it should be, has been dropped, damaged, left outdoors or dropped into water, return it to a service center. The machine must not be used if the electrical cord shows any sign of damage. Regularly inspect the cord for damage, particularly if it has been crushed, shut in a door or run over.

* Do not pull or carry by the cord, use the cord as a handle, or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces.

* Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

* Do not handle the plug, cord or appliance with wet hands.

* Do not put any object into openings. Do not use with any opening blocked.

* Keep loose clothing, hair, fingers, and all parts of body away from openings and moving parts.

* Do not pick up anything that is burning or smoking, such as cigarettes or matches. Under no circumstances should the machine be used for picking up hot material. In particular the machine must not be used for cleaning open and closed fireplaces, ovens or similar that contain warm or glowing ashes.

* Do not use without dust bag and/or fi lters in place.

* Turn off all controls before unplugging. The plug must always be removed from the socket outlet before starting any service or repair work of the vacuum cleaner or the cord.

* Avoid vacuuming hard or sharp objects.

* Use extra care when cleaning on stairs.

* The machine must not be used for picking up combustible materials which are health endangering or explosive materials such as petrol (gasoline), nor should it be used in an explosive atmosphere.

The machine must not be used for picking up water, other liquids or for picking up hazardous - i.e. poisonous dust.

* The machine is not designed for picking up hazardous - i.e. poisonous dust.

* No changes or modifications of the mechanical, electrical or thermal safety devices should be made.

* When repairing or replacing the cord, the same type of cord as originally supplied with the machine must be used. This cord can be supplied by ADVANCE.

SAVE THESE INSTRUCTIONS

Diagram showing crossed-out cigarette stopper and cigarette flame symbols, indicating no smoking or anti-smoking.

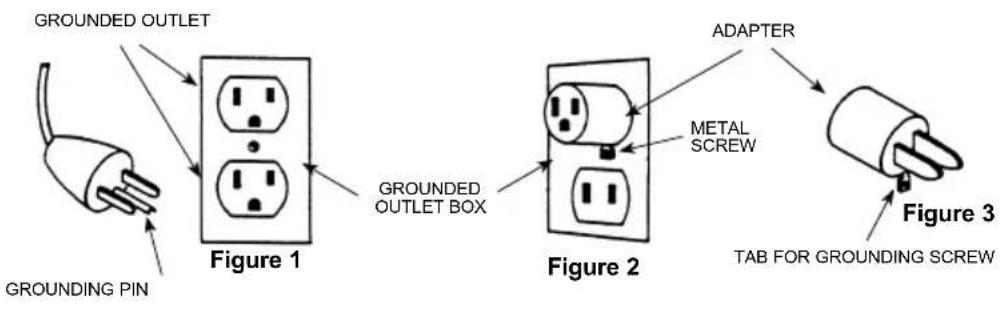

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should electrically malfunction, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

!DANGER!

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance.

If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This appliance is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in Figure 1 below. A temporary adapter illustrated in Figures 2 and 3 may be used to connect this plug to a 2-pole receptacle as shown in Figure 2 if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet (Figure 1) can be installed by a qualified electrician.

The green-colored rigid ear, tab, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.

Grounding adapters are not approved for use in Canada.

Replace the plug if the grounding pin is damaged or broken.

The Green (or Green/Yellow) wire in the cord is the grounding wire. When replacing a plug, this wire must be attached to the grounding pin only.

Extension cords connected to this machine should be 12 gauge, three-wire cords with three-prong plugs and outlets.

DO NOT use extension cords more than 50 feet (15 meter) long.

PLEASE NOTE: FOR NORTH AMERICA ONLY

INTRODUCTION

This manual will help you get the most from your Advance vacuum cleaner.

Read it thoroughly before operating the machine. This product is intended for commercial use only.

PARTS AND SERVICE

Repairs, when required, should be performed by your Authorized Advance Service Center, who employs factory trained service personnel, and maintains an inventory of Advance original replacement parts and accessories.

Call the ADVANCE DEALER named below for repair parts or service.

Please specify the Model and Serial Number when discussing your machine.

(Dealer, affi x service sticker here.)

RATING PLATE

The Model Number and Serial Number of your machine are shown on the rating plate on the machine.

This information is needed when ordering spare parts for the machine. Use the space below to note the Model Number and Serial Number of your machine for future reference.

MODEL NUMBER

SERIAL NUMBER

UNPACKING THE MACHINE

When the machine is delivered, carefully inspect the shipping carton and the machine for damage.

If damage is evident, save the shipping carton so that it can be inspected.

Contact the Advance Customer Service Department immediately to file a freight damage claim.

USA: Nilfisk-Advance Inc. 14600 21st Avenue North, Plymouth, MN 55447-3408, Tel.: [phone]

Canada: Nilfi sk-Advance Canada, 240 Superior Boulevard, Mississauga,

Ontario, L5T 2L2, Tel.: [phone]

For more information visit our web page;

www.nilfi sk-advance.com

TECHNICAL SPECIFICATION
(as installed and tested on the unit)

Model		12H, 12S, 15SGU 12 SMU, GU 15 SMU	12P, 12D, 15P, 18DGU 12 DMU, GU 15 DMU GU 18 DMU
Voltage V/Hz 110-120/50-60 110-120/50-60
Rated Power W 1000 1200
Protection class (electrical)		I ±	I ±
Sound Pressure Level dB(A) 69 69
Total weight lbs/Kg 17/7.7 18.7/8.5

Technical diagram of a two-wheeled vacuum cleaner with numbered parts labeled for identification.

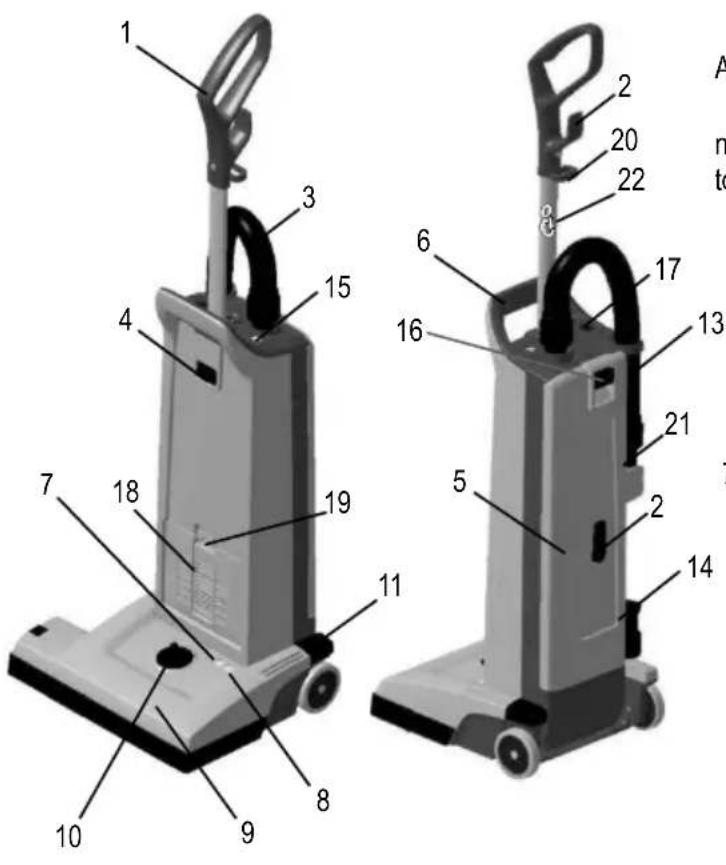

KNOW YOUR MACHINE

As you read this manual, you will occasionally run across a bold number in parentheses - example: (2). These numbers refer to an item shown on this page. Refer back to this page whenever necessary, to pinpoint the location of an item mentioned in the text.

1 Handle

2 Cord Hook

3 Vacuum Hose

4 Handle Lock Button

5 Dust lid

6 Carrying Handle

7 Light, Green - Only Double Motor Unit (Dual-versions)

8 Light, Red Only Double Motor Unit (Dual-versions)

9 Brush Housing

10 Brush Height Adjustment Knob

11 Pedal

13 Wand

14 Crevice Tool

15 "Restricted Airflow Light"

16 Dust lid button

17 Main Power Switch

18 Exhaust Filter Cover

19 Filter Cover Latch

20 Power Cord Clamp

21 Upholstery Tool

22 Anti strain clip (12H only)

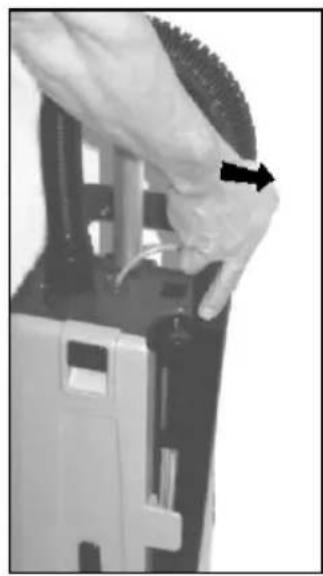

Close-up of a hand using a vacuum cleaner to lift a black rubber hose (no text or symbols visible)

2

Insert the handle at the opening at the top of the bag housing, until the button at handle snaps in place.

Close-up of a white mechanical device with attached black and white components, no visible text or symbols

3

Loop cord through cord restraint. On 12H model, connect the pigtail and extension cord as shown.

SET UP AND ASSEMBLY

1. Carefully take out the vacuum cleaner from its carton.

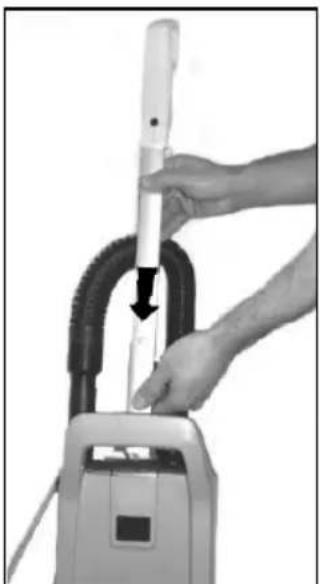

2. Push the Handle (1) into the opening at the top of the Dust compartment until the button at the rod snaps in place and secure the handle to the housing.

Never operate the vacuum cleaner without a Dust Bag in place. These machines are equipped with an "no bag" clip. This means that if a dust bag not is fitted or fitted uncorrectly - the dust lid (5) would not be able to close.

IMPORTANT!

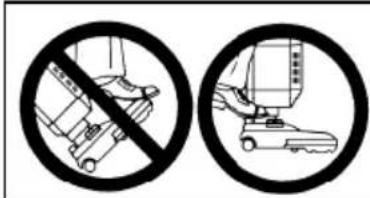

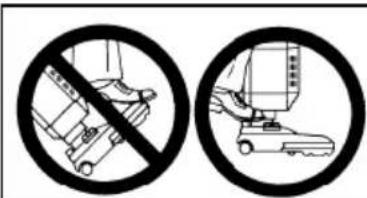

Foot pedal must be used to release base to operating/non operation position. Failure to do so could result in damage to the release mechanism.

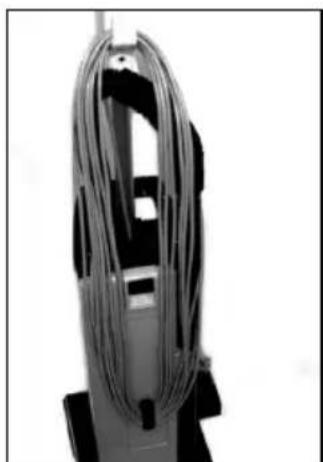

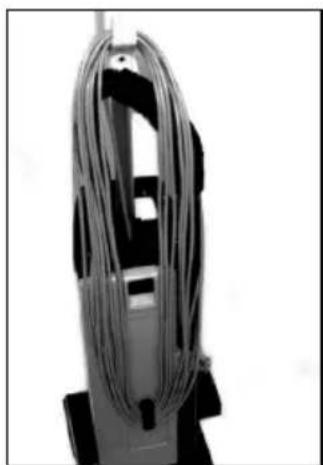

1. Release the power cord from the cord hooks (2) at the backside of the vacuum cleaner. Turn the lower hook so that the cord is released. Unwind the whole power cord.
2. Adjust the height of the handle, by pushing at the handle lock button (4) and then pull or push at handle to comfortable height.
3. Add the cord to the hook and the anti strain clip of the handle in order to make an anti strain function. Then plug-in the power cord into a electrical outlet.
4. Turn the Main Power Switch (17) ON. "I" is ON and "O" is OFF. Now the vacuum motor will start.
5. Step on the Pedal (11) and then tilt the cleaner backwards. Now the brush motor will start (Dual-versions only). Dual-versions, the green light (7) at the brush housing (9) will come on to indicate that the brush motor is running. On single motor versions, the brush is always turning when on.

Two safety symbols: one without a prohibition sign and another with a vehicle and device, both enclosed in circles.

IMPORTANT!

Foot pedal must be used to release base to operating/non operation position. Failure to do so could result in damage to the release mechanism.

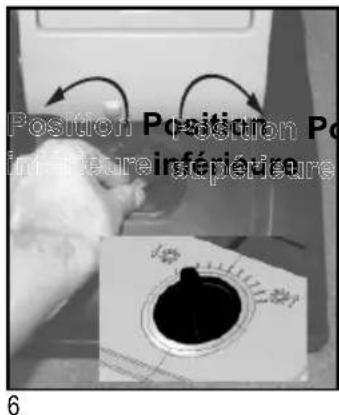

1. Turn the Height Adjustment Knob (10) to adjust the height that the brush will operate in - depending on the material at the surface to be vacuumed. For carpets with short textiles the brush should in the lower position. Turn the knob to the left (when you are placed in front of the machine) to lower the brush. For carpets with longer textiles the brush should in a higher position. Turn the knob to the right (when you are placed in front of the machine) to set the brush at a higher level. If the red light comes on, slowly turn the knob in the opposite direction until the light goes off (Dual-version only).

If the red light (8) stays on continuously, there may be debris wrapped around the brush, during operation. On double motor units, this can cause the overload protector for the brush motor to trip. If this occurs, turn the Main Switch (17) OFF and unplug the power cord. Remove any debris from the brush and plug in the power cord, turn the Main Switch (17) back ON. This will automatically reset the overload protector. If the overload protector trips repeatedly contact your dealer for service. For more information of the light indicators on the Dual-versions - see the table below.

NOTE! Always disconnect the power cord before performing any machine maintenance.

Whenever (15) "Restricted Airflow Light" indicator comes on, check the following: Is the bag full and needs to be changed or is the tube, hose or nozzle blocked.

For details of dust bag replacement see separate instruction in this manual. If the light comes on before the bag is full, the inside of the bag may be coated with very fine dust (change the bag), or debris may be built up somewhere between the brush and the bag.

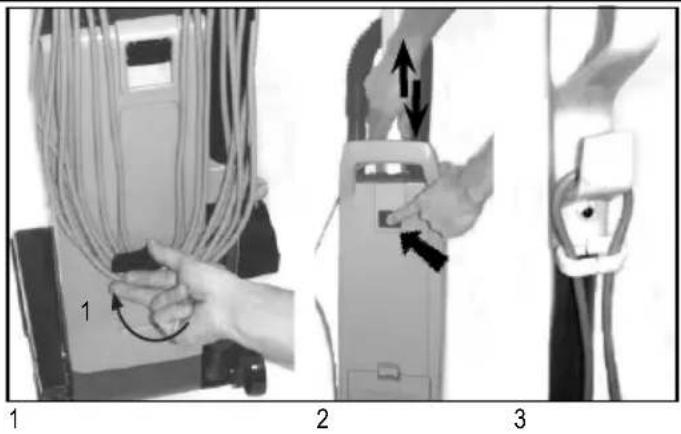

Diagram showing three steps of cable installation: handling cables, adjusting a switch, and connecting to a plug.

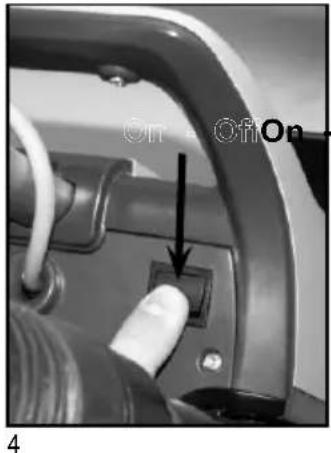

On Off On 4

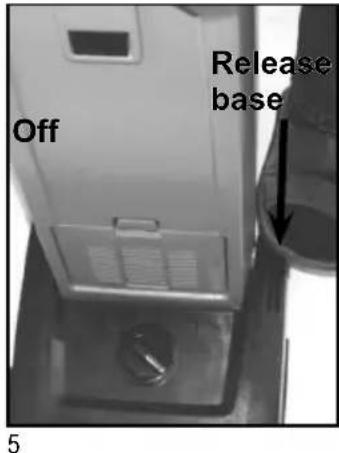

Off Release base 5

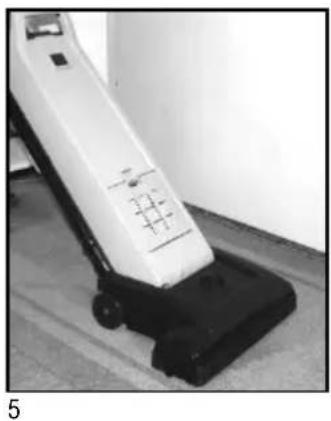

White and black vacuum cleaner on a tiled floor, no visible text or symbols

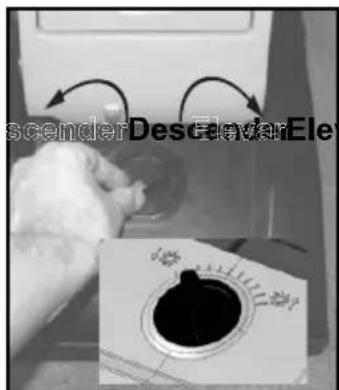

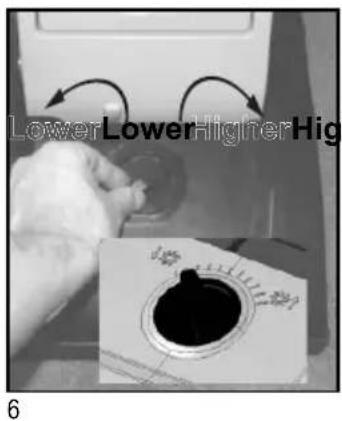

LowerLowerHigherHigh 6

LIGHT INDICATION AND FUNCTION FOR THE BRUSH MOTOR (DUAL - Double Motor Units only!)

	GREEN RED CONDITION		FUNCTION
1.	ON OFF		Normal operation In normal	operation, the green light is constantly illuminated.
2.	OFF ON -	BLINKING	Brush position too low (heavy loading)	1. If the condition 2, red light blinking, continues for 10 seconds or more, the control module will cut out the power supply to the brush motor.2.. The red light will still be illuminated until you turn off the switch or unplug the cord.
3.	OFF ON Brush stalled			1. The red light will be constantly illuminated and the control module will instantly cut the power supply to the brush motor, if the brush was stalled accidentally.2. The red light will still be illuminated until you turn off the switch or unplug the cord.

Close-up of a hand operating a cleaning or cleaning device with a black arrow pointing to the handle (no visible text or symbols)

1

Person using a leg lift on a wooden floor, no visible text or symbols

2

USING THE WAND (OPTIONAL)

The Wand (13) is not supplied as a standard item in all variants of these machines. To use the wand:

1. Push the machine to upright locked position. The brush motor will then stop (Dual-version only), and the brush will be lifted up from the surface on single motor versions. Then slide the Wand out of its holder.

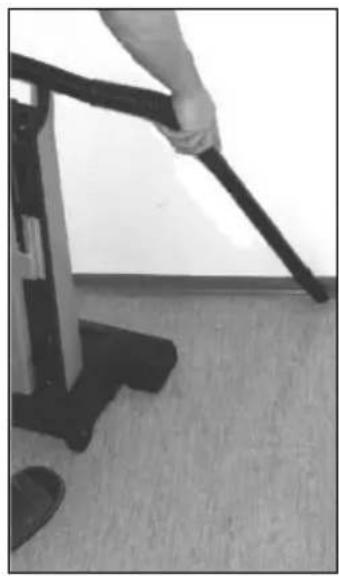

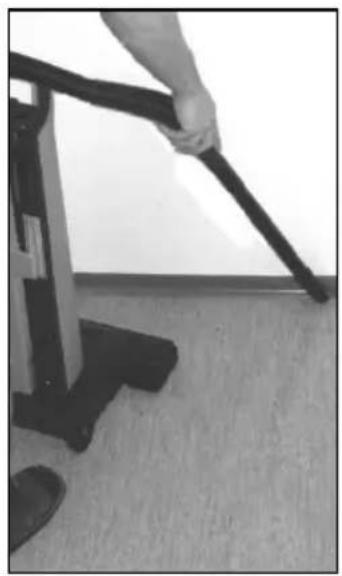

2. Use the wand for cleaning hard to reach places like floor corners, or furnitures.

Prohibition sign with hand crossed out, indicating no liability or prohibition

IMPORTANT!

Foot pedal must be used to release base to operating/non operation position. Failure to do so could result in damage to the release mechanism.

Close-up of a hand inserting a component into a device (no visible text or symbols)

1

Close-up of a hand inserting a component into a door panel (no visible text or symbols)

2

USING THE TOOLS (OPTIONAL)

These tools are not standard items in all machine variants. Use these tools for a better cleaning performance at hard to reach areas. A Crevice Tool (14) and Upholstery Tool (21) is placed conveniently on the machine, just behind the wand.

Remove the wand from the vacuum cleaner and you will have free access to the Tools.

1. The Upholstery Tool is placed in the upper section of the cleaner.
2. The crevice tool is placed in the lower section of the cleaner.

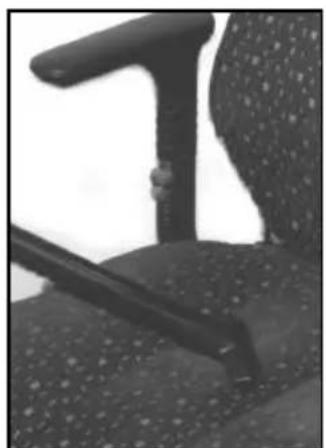

Close-up of a person's seat with patterned fabric and a black handle (no visible text or symbols)

3

Close-up of a black pen tip on a white surface (no text or symbols visible)

3

1. Install the Crevice Tool or Upholstery Tool on the end of the Wand, or on the end of the hose, which can be detached from the wand, if desired. Now the vacuum cleaner will have an extended coverage performance and can be used for cleaning hard to reach areas like roof strips, or furnitures.

Prohibition sign with crossed-out hand and device diagram, indicating no protection or disapproval

IMPORTANT!

Foot pedal must be used to release base to operating/non operation position. Failure to do so could result in damage to the release mechanism.

MAINTENANCE

Always disconnect the power cord before performing any machine maintenance.

	CHANGING THE PAPER DUST BAG
	Change the bag whenever the “Bag Full” (15) indicator comes on. To replace the Paper Dust Bag:

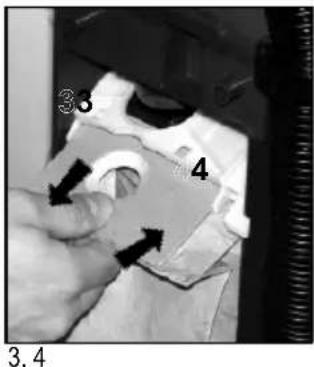

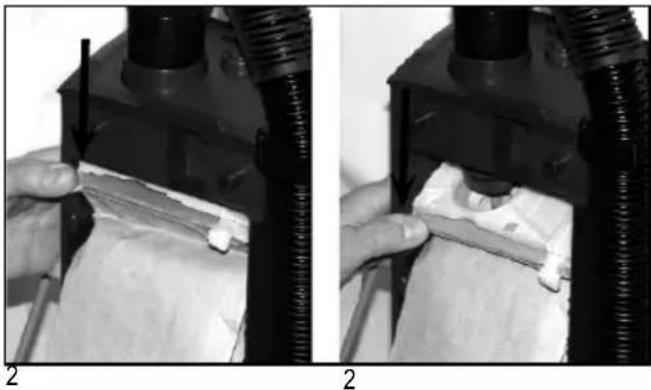

1.	Disconnect the power cord from the electrical outlet. Pull the Dust lid button (16) and remove the Dust lid outwards to remove it from the cleaner.

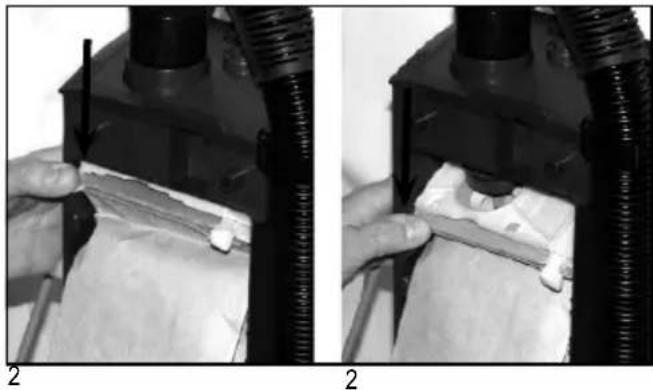

2.	Push downwards at the edge to the left of the plastic holder, so that the bag loosens from the vacuum inlet of the machine.

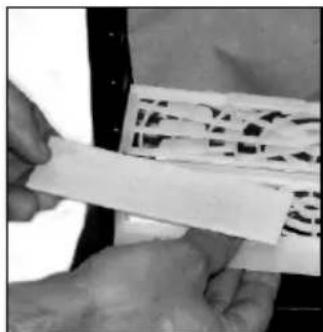

3.	Grasp at the cardboard piece of the bag and gently pull the full bag outwards - away from cleaner.
4.	Insert a new paper dust bag into the slot of the bag holder and push the bag in place. Check so that the paper dust bag not is jammed in the holder.Only the cardboard piece of the bag should be attached to the bag holder.

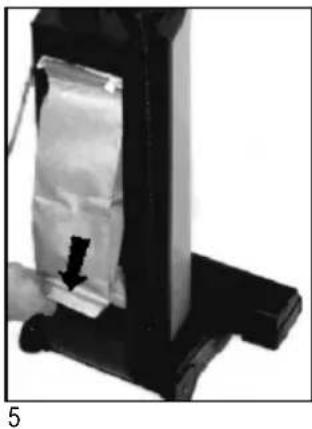

5.	Push the bag holder with the new bag upwards, so that the bag inlet fastens to the inlet of the machine. Make sure that the bag is unfolded and will fit in place in the bag housing. Also check that the "no bag" clip is placed to the left so that the lid will be able to close.

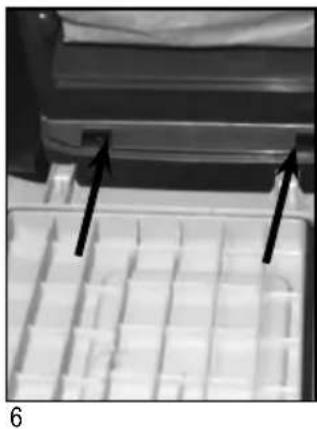

6.	Fit the two notches of the back cover to the two slots at the lower part of the bag housing, and push the back cover back in place at the housing.

	EMPTYING THE CLOTH DUST BAG
	Empty the Bag whenever the “Bag Full” Light (15) comes on. To empty or to replace:
1.	Remove cloth bag as above in steps 1-3.Disconnect the power cord from the electrical outlet. Pull the Dust lid button (16) and remove the Dust lid outwards to remove it from the cleaner.
2.	Push downwards at the edge to the left of the plastic holder, so that the bag loosens from the vacuum inlet of the machine.
3.	Grasp at the plastic fl ange of the bag and gently pull the bag outwards - away from cleaner.
4.	Remove bag clip and shake out bag contents.
5.	Put the bag clip back on the bag.
6.	Replace clean/new cloth bag into machine and close back cover as above in step 4-6.Insert the cleaned/new cloth bag into the slot of the bag-holder and push the bag in place so that bag is secured.
7.	Push the bag holder with the new bag upwards, so that the bag inlet fasten to the inlet of the machine. Make sure that the bag is unfold and will fi t in place at the bag housing. Also check that the "no bag" clip is placed to the left so that the lid will be able to close.
8.	Fit the two notches of the back cover to the two slots at the lower part of the bag housing, and push the back cover back in place at the housing.

NOTE!

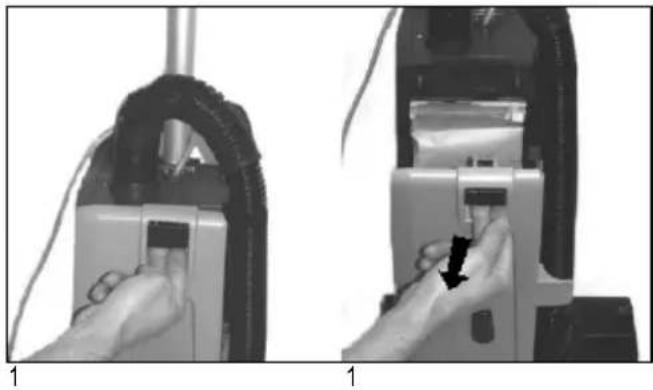

Photos below shows changing of the paper dust bags! Never operate the machine without a Dust Bag in place.

Two-step diagram showing hands operating a device with cable and a lock, no text or symbols present

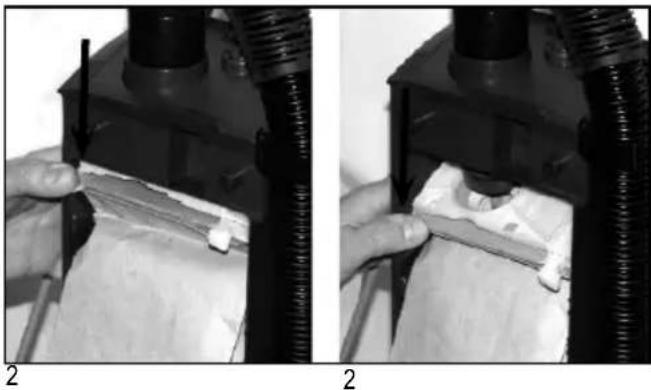

Two black-and-white photos showing hands operating a mechanical device with a textured surface, labeled '2' (no text or symbols on the device itself)

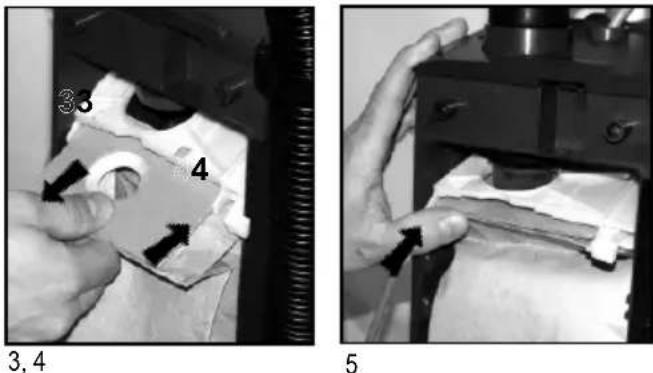

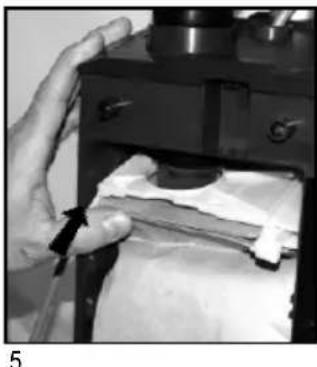

3, 4 4 5

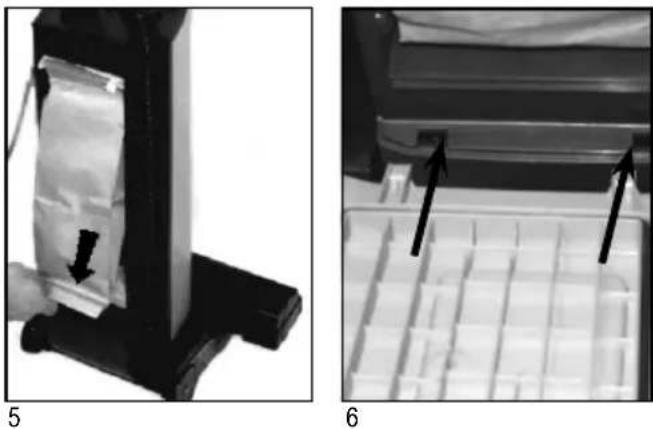

Two grayscale images showing a device with a bag being inserted, and a tray with internal compartments; no text or symbols present.

CHANGING OR CLEANING OF THE BRUSH

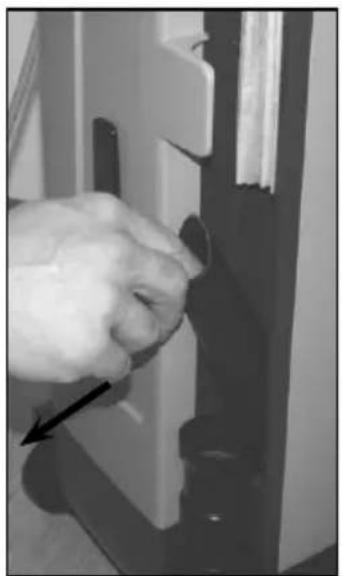

Close-up of a hand pointing to a dark object with an arrow, no visible text or symbols

2

Close-up of a hand holding a black object with an arrow pointing to it (no visible text or symbols)

3

1.	Unplug the power cord from the electrical outlet.

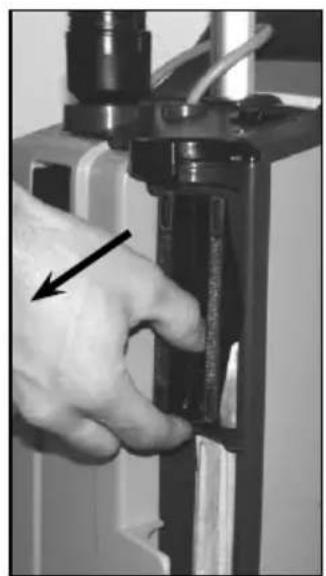

2.	Release the brush roller by unlocking the bearing block. Push the button backwards left towards the unlocking symbol at the brush housing.
3.	Grasp at the bearing block and pull it out from the brush housing.
4.	Remove the used brush.
5.	Replace the used brush roller with a new one, or clean and remove all debris from the present brush.
6.	Slide back the brush into the the fixed bearing block in the brush house.
7.	Push the bearing block in its position. Lock it by turning clockwise.

Close-up of a hand pressing down on a mechanical component with visible teeth and ridges (no text or symbols)

4

Close-up of a hand holding a small object with an arrow pointing to it, no visible text or symbols

6

Hand pressing a button on a car door panel with an arrow indicating left motion (no text or symbols visible)

7

Always disconnect the power cord before performing any machine maintenance.

FILTERS - type of fi Iter may vary from different models

On these machines there are two different filters; one pre-filter before the vacuum motor and one exhaust filter.

There are two different types of exhaust filters available to these machines, HEPA-filter and a standard exhaust filter. The HEPA-filter (High Efficiency Particulate Air filter) offers better filtration capacity then the standard exhaust filter. The exhaust filters catches any dirt that may escape from the dust bag, or motor pre filter. Replace the motor pre filter every 5th time that the dust bag is changed (more often in very dusty applications). The exhaust filters are located at the front side of the machine just above the brush base. The HEPA filter can not be cleaned or washed clean. When the HEPA-filter is clogged it must be replaced. Replace the exhaust / HEPA filter 1-2 times per year depending on amount of use.

CHANGING THE HEPA-FILTER

Hand inserting a small component into a device panel (no visible text or symbols)

1

Hand inserting a grid into a device (no visible text or symbols)

2

1. Disconnect the power cord from the electrical outlet. Push the Filter Cover Latch (19) downwards so that the cover (18) is released. Remove the filter cover from cleaner.
2. Grasp at the fi Iter frame and remove the used and dirty HEPA-fi Iter
3. Grasp at the filter frame and then insert the new HEPA filter to the cleaner by pushing it in place. (Never touch the filter media of a HEPA-fi Iter! Doing so may cause a loss of performance of the HEPA-fi Iter).
4. Snap the Filter Cover back in place at the cleaner.

Hand inserting a card into a device (no visible text or symbols)

3

Close-up of a hand pressing down on a device panel with ventilation grilles (no visible text or symbols)

4

IMPORTANT!

Never operate the cleaner without the HEPA-Filter in place in the machine. Note! These machines are not designed for picking up hazardous - i.e. poisonous dust!

CHANGING THE EXHAUST FILTER

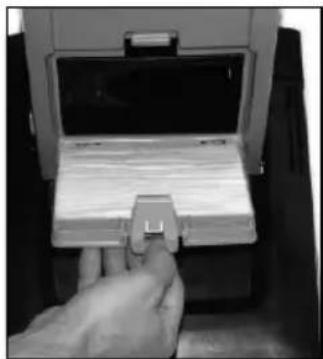

1. Disconnect the power cord from the electrical outlet. Push the Filter Cover Latch (19) downwards so that the Filter Cover (18) is released.
2. Remove the cover with the filter, from the cleaner.
3. Remove the used and dirty exhaust fi Iter.
4. Insert a new exhaust filter to the filter cover.
5. Snap the Filter Cover back in place on the cleaner.

IMPORTANT!

Never operate the machine without the Exhaust Filter in place at the machine.

Hand cleaning a small appliance with a lid and ventilation grille (no visible text or symbols)

1

Hand inserting a small electronic component into a device (no visible text or symbols)

2

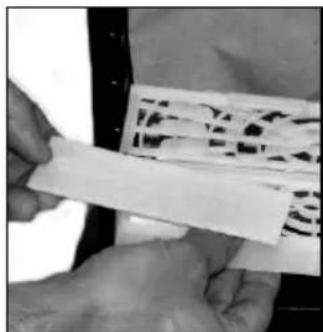

CLEANING OR CHANGING THE PRE FILTER

The pre filter catches any dirt spilled from the bag, before it can enter the vacuum motor. The filter is located below the bag.

Clean or replace motor pre filter every 5th time that the bag is changed. (more often in very dusty applications).

To clean/replace the Pre Filter.

1. Disconnect the power cord from the electrical outlet. Then push the Dust lid button (16) in and remove the dust lid (5).
   2 Grasp at the filter holder and pull the holder out from the Dust compartment.
2. Remove the dirty filter from the filter holder and replace with a new pre filter. The pre filter may also be washed. Wash it in warm water. Let the filter dry completely before putting it back into the filter holder.
3. This machine is also equipped with a deodorizer pad. It's located in the pre filter holder.

Replace it to a new deodorizer pad when the function begins to fade.

1. Put back the new/washed filter into the holder. Then put back the holder with filter in place in the bag housing.
2. Fit the two notches of the back cover to the two slots at the lower part of the bag housing, and push the back cover back in place at the housing.

IMPORTANT!

Never operate the machine without the pre-filter in place.

Close-up of a mechanical device with a clamped component and a handle, no visible text or symbols

1

Close-up of a hand holding a white cloth over a tray with papers inside an open container (no visible text or symbols)

2

Close-up of hands holding a white rectangular object with an arrow pointing upward (no visible text or symbols)

3

Close-up of hands holding a white rectangular object with a patterned surface (no visible text or symbols)

5

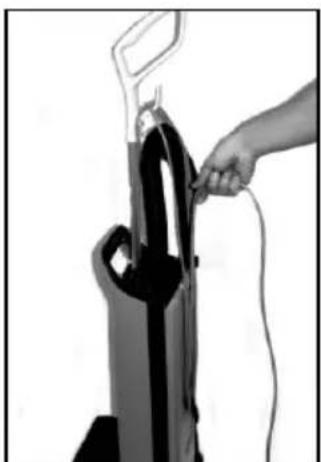

AFTER USING THE MACHINE

1.	Unplug the Power Cord from the electrical outlet.
2.	If the machine is not cleaning as expected and the “Restricted Airfl ow light” is not illuminated, open the dust housing to ensure that the dust bag is not full, replace it if necessary. See also separate instructions for replacing the dust bag. Clean the bag housing if necessary.
3.	Wind up the cord (starting from the machine inlet side).
4.	Store the cord on the hook at the Dust lid cover and the hook at the handle.
5.	Check the brush house. Remove any built-up carpet fi bers or debris from the brush and the brush housing.
6.	Store the machine indoors in a clean, dry place.

Hand inserting a black vacuum cleaner into a device, no visible text or symbols

3

Close-up of a coiled cable or wire device mounted on a stand (no visible text or symbols)

4

SOMMAIRE

Technical diagram of a two-tier vacuum cleaner with numbered parts for identification

IL EST INDISPENSABLE DE BIEN CONNAITRE L'APPAREIL

Close-up of a hand operating a vacuum cleaner with a black arrow indicating the motion (no text or symbols visible)

2

Close-up of a white mechanical device with black and white connectors, no visible text or symbols

3

Two circular safety signs with pictograms: one without a diagonal line and another with a device mounted on a vehicle.

IMPORTANT!

Diagram showing three steps of cable installation: wire being inserted, holding a switch, and connecting to a plug.

Two circular signs with pictograms: one showing a hand holding a car, the other showing a car with a film strip.

IMPORTANT!

Black and white photo of a vacuum cleaner on a wooden floor, no visible text or symbols

Position Position Point influrure inférieure

Close-up of a hand operating a mechanical device with a black arrow pointing to the handle (no visible text or symbols)

1

Person using a leg bench on a wooden floor, no visible text or symbols

2

UTILISATION DU TUBE (EN OPTION)

Prohibition sign with crossed-out hand and device diagram, indicating no liability or prohibition

IMPORTANT!

Close-up of a hand inserting a component into a mechanical device (no visible text or symbols)

1

Close-up of a hand inserting a component into a door panel (no visible text or symbols)

2

UTILISATION DES OUTILS (EN OPTION)

Close-up of a person's seat with patterned fabric and a black handle (no visible text or symbols)

3

Close-up of a black pen tip on a white surface (no text or symbols visible)

3

Prohibition sign with crossed-out hand and device diagram, indicating no liability or prohibition

IMPORTANT!

Two-step diagram showing hands operating a device with cable and a tire, no text or symbols present

Two-panel black-and-white photo showing hands operating a mechanical device with a tool, no visible text or symbols

Two grayscale images showing a device with a plastic bag inside and a tray with internal compartments, labeled 5 and 6 (no text or symbols on the devices themselves)

REEMPLACEMENT OU NETTOYAGE DE LA BROSSE

Close-up of a hand pressing a button on a dark surface, with an arrow pointing to the button (no text or symbols visible)

2

Close-up of a hand holding a dark object with a black arrow pointing to it (no visible text or symbols)

3

Close-up of a hand pressing down on a metallic component (no visible text or symbols)

4

Close-up of a hand holding a black object with an arrow pointing to it (no visible text or symbols)

6

Hand pressing a button on a car door, with an arrow indicating the button (no text or symbols visible)

7

REPLACEMENT DU FILTRE HEPA

Hand inserting a small component into a device (no visible text or symbols)

1

Hand inserting a grid into a device (no visible text or symbols)

2

Hand holding a pen at a digital display counter (no visible text or symbols)

3

Close-up of a hand pressing down on a wall-mounted device (no visible text or symbols)

4

REPLACEMENT DU FILTRE D'ÉVACUATION

Hand holding a small object on a device panel, no visible text or symbols

1

Hand inserting a card into a device (no visible text or symbols)

2

NETTOYAGE OU REMPLACEMENT DU PRÉFILTRE

Close-up of a mechanical device with a handle and cable, no visible text or symbols

1

Close-up of a gloved hand placing a white sheet on a tray inside a 3D printer (no visible text or symbols)

2

Close-up of hands holding a white rectangular object with an arrow pointing upward (no visible text or symbols)

3

Close-up of hands holding a white strip with black patterned fabric (no visible text or symbols)

5

APRÈS UTILISATION

Hand operating a black vacuum cleaner with attached cable (no visible text or symbols)

3

Close-up of a coiled cable or wire component mounted on a stand (no visible text or symbols)

4

ÍNDICE

Technical diagram of a two-wheeled vacuum cleaner with numbered parts for identification.

CONOZCA LA MÁQUINA

Close-up of a hand operating a vacuum cleaner with a black arrow indicating the handle (no text or symbols visible)

Close-up of a white mechanical device with attached black and white components, no visible text or symbols

White and black vacuum cleaner on a tiled floor (no visible text or symbols)

5

scender Des Flower Elev

6

INDICACINES LUMINOSAS PARA EL MOTOR DEL CEPILLO

Close-up of a hand operating a mechanical device with a textured grip (no visible text or symbols)

1

Person using a lever on a wooden floor, no visible text or symbols

2

Prohibition sign with crossed-out hand and device diagram, indicating no liability or prohibition

¡IMPORTANTE!

Close-up of a hand inserting a cable into a mechanical component (no visible text or symbols)

1

Close-up of a hand holding a small object, possibly a tool or component, with no visible text or symbols.

2

Close-up of a person wearing a dark-colored off-white patterned chair seat (no visible text or symbols)

3

Close-up of a black rod lying diagonally on a white surface (no text or symbols visible)

3

Prohibition sign with crossed-out hand and device diagram, indicating no liability or prohibition

¡IMPORTANTE!

Two-step diagram showing hands operating a device with a cable and a device inside, no text or symbols present.

Two-panel black-and-white photo showing hands operating a mechanical device with a tool, no visible text or symbols.

3, 4

Close-up of a hand operating a mechanical device with a cloth or paper inside (no visible text or symbols)

Close-up of a mechanical device with a black arrow pointing to a white rectangular component, no visible text or symbols.

Close-up of a mechanical component with two black arrows pointing to features, no visible text or symbols

CAMBIO DEL CEPILLO

Close-up of a hand pressing a button with an arrow, no visible text or symbols

2

Close-up of a hand holding a black object with an arrow pointing to it (no visible text or symbols)

3

Close-up of a hand pressing down on a metallic component (no visible text or symbols)

4

Close-up of a hand holding a black object with an arrow pointing to it (no visible text or symbols)

6

Hand pressing a button on a car door panel, with a black arrow indicating the action (no text or symbols visible)

7

Hand inserting a small component into a device panel (no visible text or symbols)

1

Hand inserting a grid into a device (no visible text or symbols)

2

Hand holding a device with a grid of buttons, next to an open control panel (no visible text or symbols)

3

Close-up of a hand pressing down on a wall-mounted device (no visible text or symbols)

4

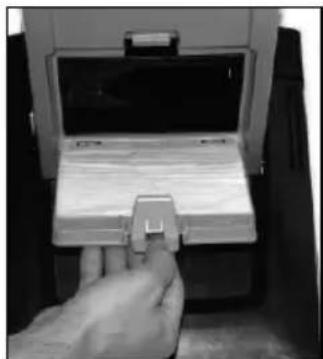

Hand placing a small object into a control panel with a gridded outlet (no visible text or symbols)

1

Hand inserting a small card into a device (no visible text or symbols)

2

Close-up of a mechanical device with a handle and clamped components (no visible text or symbols)

Close-up of hands holding a small white object with a black arrow symbol, possibly indicating a motion or movement (no text or symbols visible)

3

Close-up of a mechanical device with a white cloth partially visible inside, no text or symbols present.

2

Close-up of hands holding a white rectangular object with abstract patterns (no visible text or symbols)

5

¡IMPORTANTE!

Black-and-white photo of a hand inserting a cable into a black vacuum cleaner (no text or symbols visible)

3

Close-up of a coiled cable or wire device with no visible text or symbols

4

Blank white image with a small gray rectangle at the top left corner (no text or symbols)
