Scape - Headphones Fractal Design - Free user manual and instructions

Product Type	Gaming Audio Headset
Brand	Fractal Design
Model	Scape
Connectivity	Wired (3.5mm jack) and wireless (USB dongle)
Speaker Diameter	50 mm
Impedance	32 ohms
Frequency Response	20 Hz – 20 kHz
Sensitivity	98 dB
Microphone Type	Detachable omnidirectional microphone
Battery Life (Wireless)	Up to 30 hours
Battery Capacity	1000 mAh
Charging Time	Approximately 2 hours
Weight	320 g
Cable Length (Wired)	1.5 m
Headband Material	Stainless steel and memory foam
Ear Cushion Material	Faux leather and breathable fabric
Compatibility	PC, Mac, PlayStation, Xbox, Nintendo Switch, mobile devices
Box Contents	Scape headset, USB cable, 3.5mm audio cable, wireless USB dongle, detachable microphone, quick start guide
Warranty	24 months
Maintenance and Cleaning	Wipe with a soft, dry cloth. Do not use harsh chemicals. The ear cushions are removable and can be washed with warm soapy water.
Safety	Warning: Avoid prolonged listening at high volume to prevent hearing damage. Do not use while driving or in hazardous environments.
Spare Parts and Repairability	Ear cushions, cables, and microphone are replaceable. Contact Fractal Design support for spare parts.

Frequently Asked Questions - Scape Fractal Design

How do I connect the Scape headset to my PC?

You have two options: use the 3.5mm audio cable for a wired connection, or insert the wireless USB dongle into a USB port on your PC for a wireless connection. The headset automatically switches to wireless mode when the dongle is detected.

How do I charge the Scape headset?

Use the included USB cable to connect the headset to a standard USB charger (5V/1A) or a computer USB port. The LED indicator shows charging status: red while charging, green when fully charged. Allow approximately 2 hours for a full charge.

The microphone is not working, what should I do?

Check that the detachable microphone is properly inserted into the dedicated jack on the headset. Make sure the audio/mic cable is securely connected to your device. On PC, check sound settings and select the headset as the default input device. If the problem persists, try another device.

What is the wireless range of the headset?

The maximum range is about 10 meters in direct line of sight. Walls and other obstacles may reduce range. For optimal performance, keep the dongle nearby and unobstructed.

Can I use the Scape headset with a PlayStation console?

Yes, the headset is compatible with PlayStation 4 and 5. For wireless connection, plug the USB dongle into the console. You can also use the 3.5mm audio cable on the controller. Microphone and audio will work properly.

Is the headset compatible with Xbox?

Yes, the Scape headset works with Xbox One, Xbox Series X|S, and Xbox 360 via the 3.5mm audio cable connected to the controller. Note that the wireless USB dongle is not compatible with Xbox consoles due to system limitations.

How do I clean the ear cushions?

The ear cushions are removable. Gently remove them and wash with warm water and mild soap. Rinse thoroughly and air dry before replacing. Avoid using solvents or putting them in a dryer.

What should I do if the headset does not turn on?

Make sure the battery is charged. Plug the headset into the charger for at least 15 minutes, then try turning it on. If the LED does not light up, try a different USB cable or power source. If the problem persists, contact Fractal Design support.

How do I reset the Scape headset?

To reset the headset, press and hold the power button for about 10 seconds until the LEDs flash or the headset turns off. Release and turn on normally. This procedure can resolve minor connection or sync issues.

Does the warranty cover accidental damage?

The 24-month limited warranty covers hardware and manufacturing defects. It does not cover damage caused by misuse, neglect, unauthorized repair, or acts of nature such as lightning or flooding. See the documentation for full terms.

USER MANUAL Scape Fractal Design

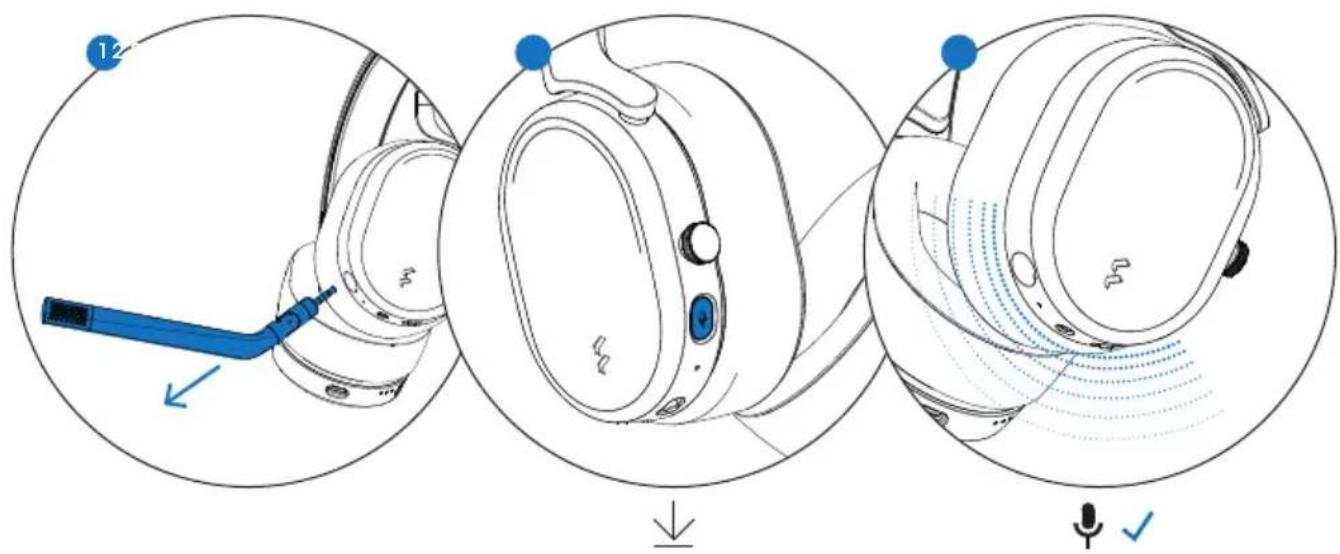

Omnidirectional microphone mode

Omnidirektonaler Mikrofonmodus/全向麦克风模式/全向麦克风模式/Omnidirektionell mikrofonlage/正龍町営馬元三/全方向性マイクモーテフ /Modeo microfono omnidirecional/ Tryb mikrofonu dockolnego/Rezim vsesmeroveho mikrofonu /Modalita microfono omnidirezionale/ Mode omnidirectionnel du microphone

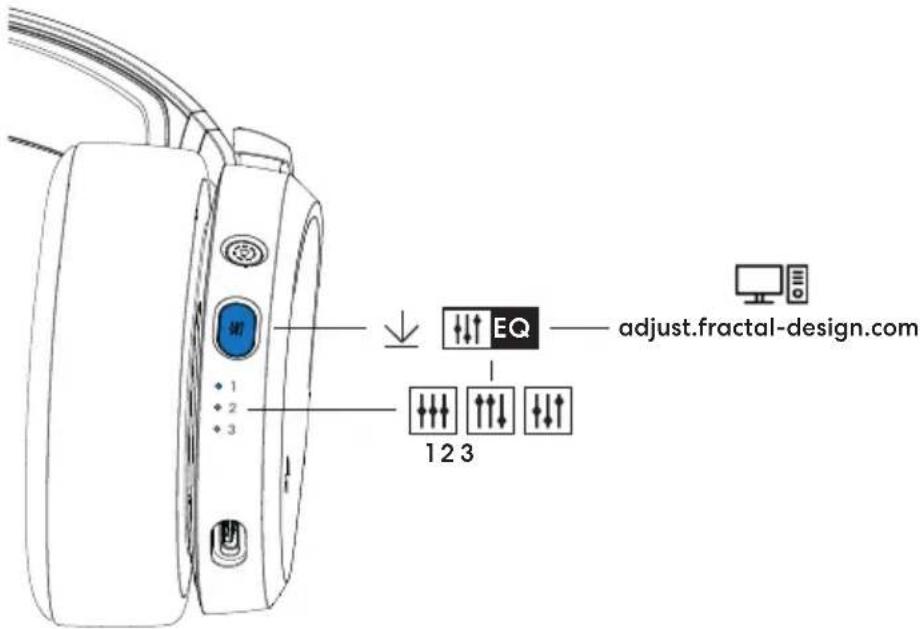

Select EQ mode

EQ-Modus auswahlen/選擇EQ模式/選擇EQ模式/Vajj EQ-lage/EQモーツiek/EO一の選挙/SeLECTIONar Modo EQ/Wybierztryb EQ/Vyberte reZim EQ/Seleziona modalita EQ/Selectionner le mode EQ

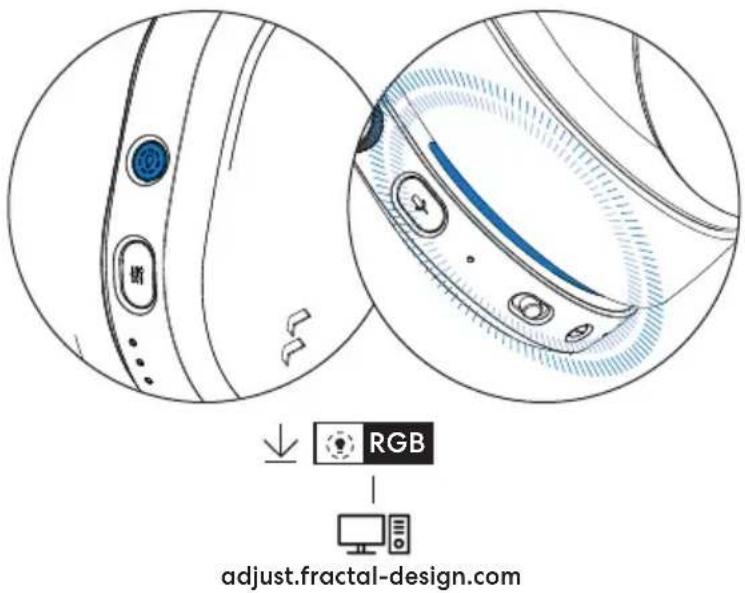

Light array - On/Off

Beleuchtung-Ein/Aus/燈光排列-開/關/灯光控制-开/关/Belysning-Pa/Av/拉電三包電-封/打/拉卜艾-才/才/

Luces de efectos - Encendido/Apagado / Matryca swietina - Wlqcz/Wyqcz/Svetei matice - Zap/Yyp / Matrice luminosa - Acceso/Spento / Bandeau lumineux - Activé/Désactivé

Power button - On/Off

Power-Taste-Ein/Aus/電源按鈕-開/關/电源按鈕-开/关/Strömknapp-Pa/Av/PrnKnB-列F/電源bokan-才/才

Boton de encendido - Encendido/Apagado / Przycisk zasiaria - Wlqcz/Wyqcz / Tlačitko napajeni - Zap/Vyp / Pulsante di accensione - Acceso/Spento / Bouton d'alimentation - Active/Désactivé

Power button - Battery status

Troubleshooting: Dongle re-pairing

Europe - EU Declaration of Conformity

Fractal Design AB hereby declares that this equipment is in compliance with RED 2014/53/EU, Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, Ecodesign Directive 2009/125/EC, RoHS 2.0 (2011/65/EC & 2015/863/EU) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals - (EC) 1907/2006). Compliance with these directives is assessed using applicable European Harmonised Standards.

Radio frequency bands and maximum power levels (select products only) RadioTechnology Maximum Transmit Power EIRP

2.4 GHz 100mW Wireless charging: 100-300kHz (at 10m) 42dBuA

The point of contact for EU regulatory matters is Fractal address:

VICTOR HASSELBLADS GATA 16 A
421 31 Västra Frölunda
Gothenburg
SWEDEN

The full text of the EU declaration of conformity is available at the following internet address: fractal-design.com/Scape_DoC_EU

UK Declaration of Conformity

Fractal Design AB hereby declares that this equipment is in compliance with Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety) Regulations 2016, Radio Equipment Regulations 2017 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations

Radio frequency bands and maximum power levels (select products only) RadioTechnology Maximum Transmit Power EIRP

2.4 GHz 100mW

Wireless charging: 100-300kHz (at 10m) 42dBuA

The point of contact for UK regulatory matters is Fractal address:

Authorized Rep Compliance Ltd.

ARC House, Thurnham, Lancaster, LA2 ODT

UK

The full text of the UK declaration of conformity is available at the following internet address:

fractal-design.com/Scope_DoC_UK

Taiwan regulatory

Headset RoHS Table Stand RoHS Table

Headset RoHS Table Stand RoHS Table

Industry Canada statement

This device complies with ISED's licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Radiation Exposure Statement:

The product complly with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Product FCC ID:

Headset:2BDPAFDHSSCAI

Dongle: 2BDPAFSDNGLE1

Radiation Exposure Statement:

The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.

The label is permanently affixed on the interior of the earcup. The earcup cover can be opened without special tools. The power delivered by the charger must be between min 0.3 Watts required by the radio equipment, and max 5 Watts in order to achieve the maximum charging speed

The point of contact for EU regulatory matters is Fractal

address:

VICTOR HASSELBLADS GATA 16 A

The point of contact for UK regulatory matters is

Fractal address:

Authorized Rep Compliance Ltd.

ARC House, Thurnham, Lancaster, LA2 ODT

UK

CCAJ24LP183OT1

020-240049

R-R-FDN-FDSDNGLE1

Limited Warranty and Limitations of Liability

This product is guaranteed for twenty-four (24) months from the date of delivery to end-user, against defects in materials and/or workmanship. Within this limited warranty period, the product will either be repaired or replaced at Fractal Design's discretion. Warranty claims must be returned to the agent who sold the product, shipping prepaid.

The warranty does not cover:

• Products which have been used for rental purposes, misused, handled carelessly or applied in such a way that is not in accordance with its stated intended use.
• Products damaged from an Act of Nature including, but not limited to, lightning, fire, flood and earthquake.
• Products whose serial number have been tampered with or removed.
• Damage caused by external electrical fault or use of third party accessories, parts or components.
• Damage caused by unauthorized repair.
• Failure resulting from normal wear and tear, including reduction in battery capacity over time.
• Discoloration of textiles and surface materials due to soiling or stains
• Any data or information stored on the device.

Fractal Design's maximum liability is limited to the current market value of the product (depreciated value, excluding shipping, handling, and other fees). Fractal Design shall not be liable for any other damage or loss, including but not limited to loss of profit, revenue, or data, or incidental or consequential damage, even if Fractal Design has been advised of the possibility of such damages.
