Performance 463218225 - Gas barbecue Char-Broil - Free user manual and instructions

Product type	Gas barbecue
Brand	Char-Broil
Model	Performance 463218225
Number of main burners	5
Side burner	Yes, with electronic ignition
Fuel type	Propane (LPG) only, 20 lb (9 kg) bottle
Ignition system	Electronic ignition by AAA battery (1.5V) and match ignition
Burner material	Stainless steel
Lid and firebox material	Painted steel and porcelain
Cooking grids	Chrome-plated steel or porcelain (not specified)
Thermometer	Built into lid
Side shelves	Yes, with removable side burner
GearTrax system	Yes, for compatible accessories
Approx. dimensions (L x W x H)	140 x 70 x 115 cm
Approx. weight	45 kg
Limited warranty	5 years stainless steel burners, 2 years firebox/lid, 1 year other parts
Cooking type	Direct, indirect, rotisserie (motor optional)
Safety	Gas leak detection, overfill prevention device, emergency shut-off
Recommended cleaning	After each use, brushing and emptying the grease tray
Spare parts	Available through customer service and charbroil.com

Frequently Asked Questions - Performance 463218225 Char-Broil

How to light the Char-Broil Performance 463218225 barbecue?

Open the lid, turn the knobs to OFF, open the propane tank valve. Push and turn the ignition burner knob to HIGH, then press the electronic ignition button. If no ignition within 5 seconds, turn off the gas, wait 5 minutes and try again.

What is the recommended gas tank capacity?

Use a 20 lb (9 kg) propane tank with a Type 1 valve. Max dimensions: diameter 12 in (30.5 cm), height 18 in (45.7 cm).

Can I use this barbecue with natural gas?

No, this model is designed for propane only. A conversion kit (sold separately) is required for natural gas.

How to clean the barbecue after use?

Let it cool, brush the grates with a wire brush, empty the grease tray. For a deep clean, remove the burners and clean the venturi tubes with a pipe cleaner.

What to do in case of a gas leak?

Immediately close the tank valve and knobs. Extinguish any flames, open the lid. If the odor persists, move away and call the fire department. Do not use the barbecue until the leak is repaired.

Can I use the barbecue on a balcony?

Check local regulations. In apartments, use it only on the ground floor, at least 3 ft (1 m) from walls, never on an enclosed balcony or under an overhang.

How to maintain the ignition system?

Check the AAA battery (1.5V) and replace if necessary. Clean the electrode with rubbing alcohol. If the spark is weak or absent, consult the troubleshooting section of the manual.

Where to find spare parts for this model?

Contact Char-Broil customer service (number in manual) or visit charbroil.com. Have the serial number and model ready to order.

How to prevent grease fires?

Clean the barbecue regularly, especially the grease tray. Avoid excessive fat on meats. Do not close the lid in case of a grease fire: turn off the gas and let the fire burn out.

What is the recommended cooking temperature for steaks?

Preheat to high heat (250-300°C). Sear steaks for 2-3 minutes per side for medium-rare (internal temperature 63°C). Use a meat thermometer to check.

USER MANUAL Performance 463218225 Char-Broil

Line drawing of a portable electric grill with six wheels and a mounted dish (no text or symbols)

FOR OUTDOOR USE ONLY

POUR USAGE EN MILIEU EXTÉRIEUR UNIQUEMENT ESTE JUEGO SÓLO SE PUEDE USAR EXTERIORS

TOOLS REQUIRED FOR ASSEMBLY:

• Screwdriver (not provided)
• 7/16" Combination wrench (not provided)
• Caster pin (provided)

OUTILS REQUIS POUR L'ASSEMBLAGE:

Limited Warranty ...... 11

Parts Diagram....32

Parts List....33

Hardware List 36

Assembly....37-51

Grilling Guide 52-55

Troubleshooting....64-65

Registration Card 71

THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER ASSEMBLY AND SAFE USE OF THE APPLIANCE.

READ AND FOLLOW ALL WARNIONS AND INSTRUCTIONS BEFORE ASSEMBLING AND USING THE APPLIANCE.

FOLLOW ALL WARNINGS AND INSTRUCTIONS WHEN USING THE APPLIANCE.

INSTALLER/ASSEMBLER:

Leave this manual with consumer.

CONSUMER:

Keep this manual for future reference.

IMPORTANT SAFETY INFORMATION

SAFETY SYMBOLS

The symbols and boxes shown below explain what each heading means. Read and follow all of the messages found throughout the manual.

CAUTION

CAUTION: Indicates a potentially hazardous situation or unsafe practice which, if not avoided, may result in minor or moderate injury.

WARNING

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

DANGER

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

DANGER

If you smell gas:

1. Shut off gas to the appliance
2. Extinguish any open flame.
3. Open lid.
4. If oduor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

WARNING

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
3. Minimum ambient operating temperature: 0^ F ( -18^ C).

FOR YOUR SAFETY - INSTALLING YOUR GRILL

CAUTION

For residential use only. Do not use for commercial cooking.

Read and follow all safety statements, assembly instructions, and use and care directions before attempting to assemble and cook.

Some parts may contain sharp edges. Wear protective gloves if necessary.

Grease Fires

• Putting out grease fires by closing the lid is not possible. Grills are well ventilated for safety reasons.
• Do not use water on a grease fire. Personal injury may result. If a grease fire develops, turn knobs and LP tank off.
• If grill has not been regularly cleaned, a grease fire can occur that may damage the product. Pay close attention while preheating or burning off food residue to insure that a grease fire does not develop.
• The best way to prevent grease fires is regular cleaning of the grill following instructions on General Grill Cleaning and Cleaning The Burner Assembly.

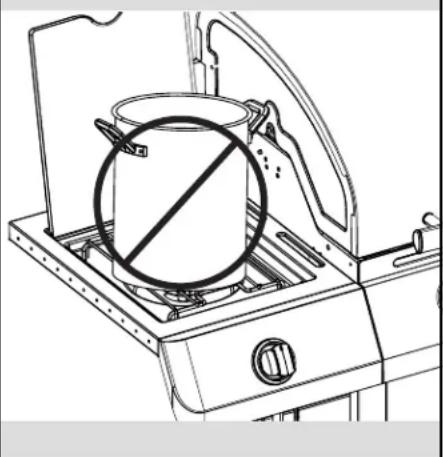

Using pots larger than 6 quarts in capacity could exceed weight limit of the side burner shelf or side shelf, resulting in failure of grill cart components.

Line drawing of a portable stove with a circular kiln and a crossed-out pan, no text or symbols present

WARNING

Failure to follow all manufacturer's instructions could result in serious personal injury and/or property damage.

Do not attempt to repair or alter the hose/valve/regulator for any "assumed" defect. Any modification to this assembly will void your warranty and create the risk of a gas leak and fire. Use only authorized replacement parts supplied by manufacturer.

Do not cover grates with aluminum foil or any other material. This will block burner ventilation and create a potentially dangerous condition resulting in property damage and/or personal injury.

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

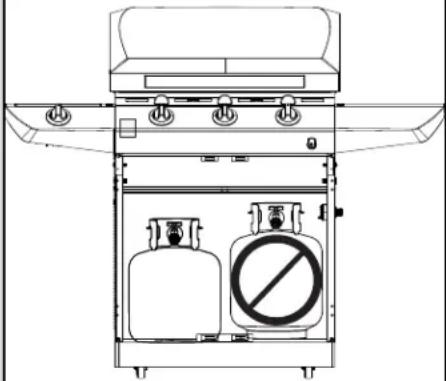

OUTDOOR

• An appliance is considered to be outdoors if installed with shelter no more inclusive than with walls on three sides, but with no overhead cover; all openings must be permanently open; sliding doors, garage doors, windows, or screened openings are not considered as permanent openings;
• An appliance is considered to be outdoors if installed with shelter no more inclusive than within a partial enclosure that includes an overhead cover and no more than two sidewalls. The sidewalls may be parallel, as in a breezeway, or at right angles to each other; all openings must be permanently open; sliding doors, garage doors, windows, or screened openings are not considered as permanent openings; or
• An appliance is considered to be outdoors if installed with shelter no more inclusive than within a partial enclosure that includes an overhead cover and three sidewalls, as long as 30% or more of the horizontal periphery of the enclosure is permanently open. All openings must be permanently open; sliding doors, garage doors, windows, or screened openings are not considered as permanent openings.

If during operation the flames go out (You smell gas or cannot see the flame)

1. Turn the burner controls OFF
2. Open lid.
3. Wait 5 minutes and repeat the lighting procedure.

If the burner goes out, gas will continue to flow out of the burner and could accidentally ignite with risk of injury.

- NEVER store a spare LP cylinder under or near the appliance or in an enclosed area.

Technical line drawing of a gas stove with two gas cylinders and a prohibition symbol (no text or labels)

• Never fill a cylinder beyond 80% full.
• An over filled or improperly stored cylinder is a hazard due to possible gas release from the safety relief valve. This could cause an intense fire with risk of property damage, serious injury or death.
• If you see, smell or hear gas escaping, immediately get away from the LP cylinder/appliance and call your fire department.

If the information above is not follow exactly, a fire causing death or serious injury could occur.

USE AND CARE

Installation Safety Precautions

• Use grill, as purchased, only with LP (propane) gas and the regulator/valve assembly supplied. If your grill is Dual Fuel ready, a conversion kit must be purchased for use with natural gas.
• Grill installation must conform with local codes, or in their absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/ NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.
• All electrical accessories (such as rotisserie) must be electrically grounded in accordance with local codes, or National Electrical Code, ANSI / NFPA 70 or Canadian Electrical Code, CSA C22.1. Keep any electrical cords and/or fuel supply hoses away from any hot surfaces.
• This grill is safety certified for use in the United States and/or Canada only. Do not modify for use in any other location. Modification will result in a safety hazard.

LP Cylinder Removal, Transport and Storage

• Turn OFF all control knobs and LP cylinder valve. Turn coupling nut counterclockwise by hand only - do not use tools to disconnect. Loosen cylinder screw beneath bottom shelf or disconnect other retention means, then lift LP cylinder up and and out of cart. Install safety cap onto LP cylinder valve. Always use cap and strap supplied with valve. Failure to use safety cap as directed may result in serious personal injury and/or property damage.
• A disconnected LP cylinder in storage or being transported must have a safety cap installed (as shown). Do not store an LP cylinder in enclosed spaces such as a carport, garage, porch, covered patio or other building. Never leave an LP cylinder inside a vehicle which may become overheated by the sun.
• Cylinder shall be restored outdoors out of the reach of children and shall not be stored in a building, garage, or any other enclosed area.

LP Cylinder Valve

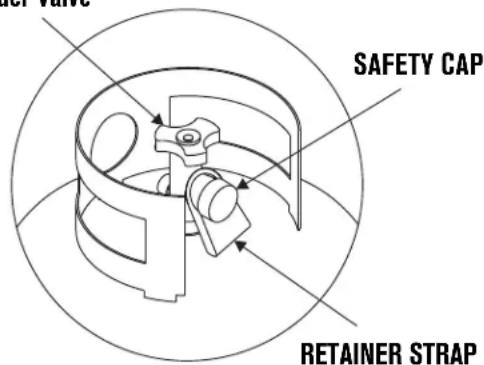

SAFETY CAP RETAINER STRAP

LP Cylinder

• The LP cylinder used with your grill must meet the following requirements:
• Use LP cylinders only with these required measurements: 12" (30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum.
• LP cylinders must be constructed and marked in accordance with specifications for LP cylinders of the U.S. Department of Transportation (DOT) or for Canada, CAN/CSA-B339, cylinders, spheres and tubes for transportation of dangerous goods, Transport Canada (TC). See LP cylinder collar for marking.

- LP cylinder valve must have:

• Type 1 outlet compatible with regulator or grill.
• Safety relief valve.
• UL listed Overfill Protection Device (OPD). This OPD safety feature is identified by a unique triangular hand wheel. Use only LP cylinders equipped with this type of valve.

- LP cylinder must be upright for vapor withdrawal and include collar to protect LP cylinder valve. Always keep LP cylinders in upright position during use, transit or storage.

OPD Hand Wheel

Line drawing of a gas cylinder with a handle and valve (no text or symbols)

LP cylinder in upright position for vapor withdrawal

LP (Liquefied Petroleum Gas)

• LP gas is nontoxic, odorless and colorless when produced. For Your Safety, LP gas has been given an odor (similar to rotten cabbage) so that it can be smelled.
• LP gas is highly flammable and may ignite unexpectedly when mixed with air.

LP Cylinder Filling

- Use only licensed and experienced dealers.

- LP dealer must purge new cylinder before filling.

- Dealer should NEVER fill LP cylinder more than 80% of LP cylinder volume. Volume of propane in cylinder will vary by temperature.

- A frosty regulator indicates gas overfill. Immediately close LP cylinder valve and call local LP gas dealer for assistance.

- Do not release liquid propane (LP) gas into the atmosphere. This is a hazardous practice.

- To remove gas from LP cylinder, contact an LP dealer or call a local fire department for assistance. Check the telephone directory under "Gas Companies" for nearest certified LP dealers.

USE AND CARE

LP Cylinder Exchange

• Many retailers that sell grills offer you the option of replacing your empty LP cylinder through an exchange service. Use only those reputable exchange companies that inspect, precision fill, test and certify their cylinders. Exchange your cylinder only for an OPD safety feature-equipped cylinder as described in the “LP Cylinder” section of this manual.
• Always keep new and exchanged LP cylinders in upright position during use, transit or storage.
• Leak test new and exchanged LP cylinders BEFORE connecting to grill.
• Place safety cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of safety cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.

LP Cylinder Leak Test

For your safety

• Leak test must be repeated each time LP cylinder is exchanged or refilled.
• Do not smoke during leak test.
• Do not use an open flame to check for gas leaks.
• Grill must be leak tested outdoors in a well-ventilated area, away from ignition sources such as gas fired or electrical appliances. During leak test, keep grill away from open flames or sparks.
• Use a clean paintbrush and a 50/50 mild soap and water solution. Brush soapy solution onto areas indicated by arrows in figure below.
• Do not use household cleaning agents. Damage to gas train components can result.

Line drawing of a gas cylinder with attached valve and side connectors (no text or symbols)

WARNING

If "growing" bubbles appear, do not use or move the LP cylinder. Contact an LP gas supplier or your fire department!

DANGER

- Do not insert any tool or foreign object into the valve outlet or safety relief valve. You may damage the valve and cause a leak. Leaking propane may result in explosion, fire, severe personal injury, or death.

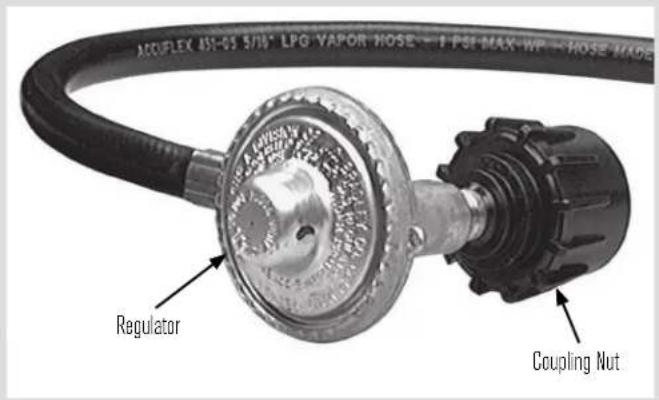

Connecting Regulator to the LP Cylinder

1. LP cylinder must be properly secured onto grill. (Refer to assembly section.)
2. Turn all control knobs to the OFF position.
3. Turn LP cylinder OFF by turning hand-wheel clockwise to a full stop.
4. Remove the safety cap from LP cylinder valve. Always use cap and strap if supplied with valve.

Do not use a POL transport plug (plastic part with external threads)! It will defeat the safety feature of the valve.

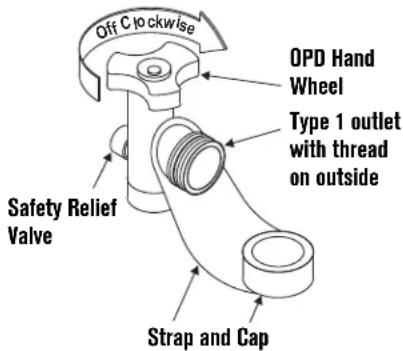

Off C clockwise OPD Hand Wheel Type 1 outlet with thread on outside Safety Relief Valve Strap and Cap

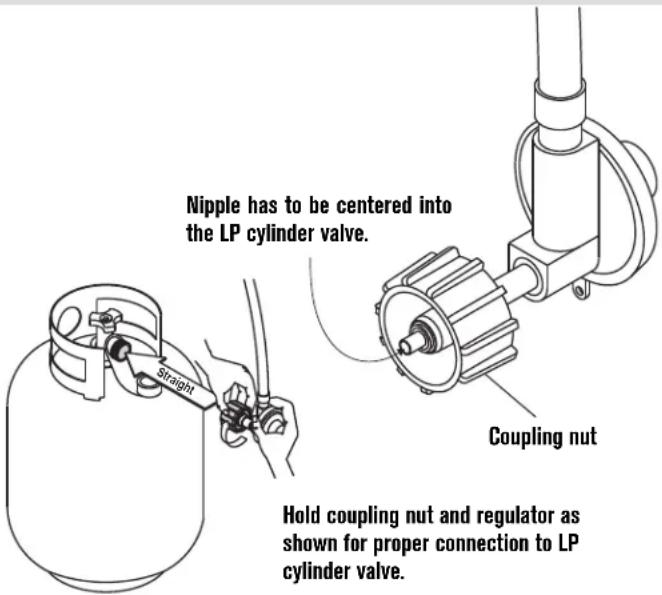

1. Hold regulator and insert nipple into LP cylinder valve. Hand-tighten the coupling nut, holding regulator in a straight line with LP cylinder valve so as not to cross-thread the connection.

Nipple has to be centered into the LP cylinder valve. Straight Coupling nut Hold coupling nut and regulator as shown for proper connection to LP cylinder valve.

1. Turn the coupling nut clockwise and tighten to a full stop. The regulator will seal on the back-check feature in the LP cylinder valve, resulting in some resistance. An additional one-half to three-quarters turn is required to complete the connection. Tighten by hand only – do not use tools.

NOTE:

If you cannot complete the connection, disconnect regulator and repeat steps 5 and 6. If you are still unable to complete the connection, do not use this regulator!

USE AND CARE

WARNING

• Do not use grill until leak-tested.
• If a leak is detected at any time, STOP! Turn off gas at source and correct leak.
• If you cannot stop a gas leak by closing the LP cylinder valve leave area and call your fire department!
• Outdoor gas appliance is not intended to be installed in or on a boat.
• Outdoor gas appliance is not intended to be installed in or on an RV.
• Never attempt to attach this grill to the self-contained LP gas system of a camper trailer or motor home.
• CHOKING HAZARD-Small parts. Not for children under 3 years.

Leak Testing Valves, Hose and Regulator

1. Turn all grill control knobs to OFF.
2. Be sure regulator is tightly connected to LP cylinder.
3. Completely open LP cylinder valve by turning hand wheel counterclockwise. If you hear a rushing sound, turn gas off immediately. There is a major leak at the connection. Correct before proceeding.

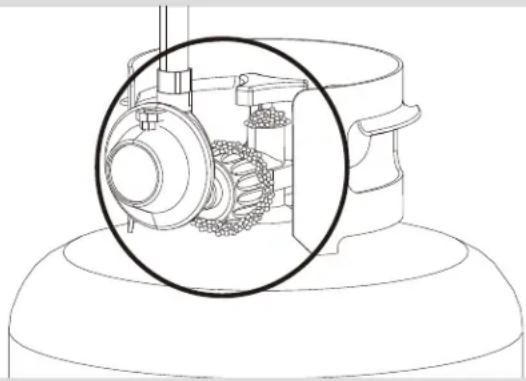

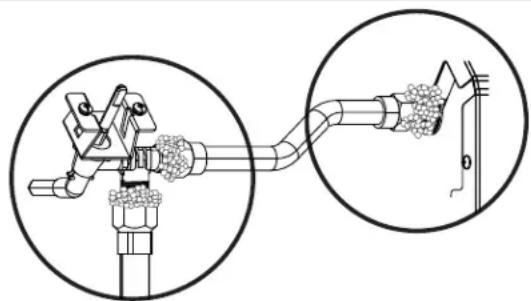

4. Brush soapy solution onto areas circled below, or other similar fittings on your grill.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical diagram of a mechanical device with two circular insets showing close-ups of a pipe and granular material (no text or symbols)

NOTE: Sideburner shelf fascia and other parts not shown for clarity.
NOTE: Your grill may NOT be equipped with a sideburner.

1. If "growing" bubbles appear, there is a leak. Close LP cylinder valve immediately and retighten connections. If leaks cannot be stopped do not try to repair. Call for replacement parts.
2. Always close LP cylinder valve after performing leak test by turning hand wheel clockwise.

Safety Tips

• Before opening LP cylinder valve, check the coupling nut for tightness.
• When grill is not in use, turn off all control knobs and LP cylinder valve.
• Never move grill while in operation or still hot.

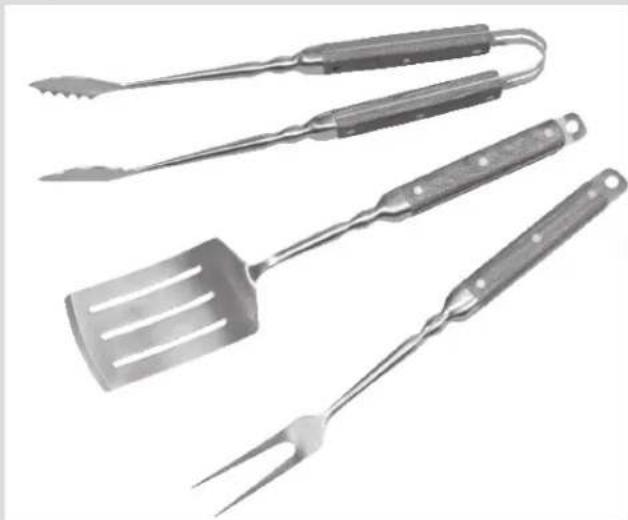

• Some surfaces will be hot during use. Use long-handled barbecue utensils and oven mitts to avoid burns and splatters.

- Maximum load for sideburner and side shelf is 10 lbs.

- The grease tray or cup must be installed during use and emptied after each use. Do not remove grease tray or cup until grill has completely cooled.

- Clean grill often, preferably after each cookout. If a bristle brush is used to clean any of the grill cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to grilling. It is not recommended to clean cooking surfaces while grill is hot.

- If you notice grease or other hot material dripping from grill onto valve, hose or regulator, turn off gas supply at once. Determine the cause, correct it, then clean and inspect valve, hose and regulator before continuing. Perform a leak test.

- Keep ventilation openings in cylinder enclosure (grill cart) free and clear of debris.

- Do not store objects or materials inside the grill cart enclosure that would block the flow of combustion air to the underside of either the control panel or the firebox bowl.

- The regulator may make a humming or whistling noise during operation. This will not affect safety or use of grill.

- If you have a grill problem see the "Troubleshooting" Section.

- If the regulator frosts, turn off grill and LP cylinder valve immediately. This indicates a problem with the cylinder and it should not be used on any product. Return to supplier!

Battery

a. Size of battery/ type/ designation: AAA
b. Nominal Voltage: 1.5v
c. Number of battery required: 1 PC
d. Battery included or not: Yes

Non-rechargeable batteries are not to be recharged.

Batteries are to be inserted with the correct polarity.

Exhausted batteries are to be removed from the product.

Do not dispose of the batteries in fire. Batteries may explode or leak.

Do not swallow the battery.

USE AND CARE

WARNING

LP GAS CYLINDER RUBBER SEAL INSPECTION.

• Inspect the LP gas cylinder valve rubber seal for cracks, wear or deterioration prior to each use. A damaged rubber seal can cause a gas leak, possibly resulting in an explosion, fire, or severe bodily harm.
• It is recommended that you inspect the rubber seal each time the LP gas cylinder is connected to the appliance, each time it has been refilled, or if it has not been used for more than 60 days.
• DO NOT use a LP gas cylinder with a damaged rubber seal. The rubber seal CANNOT be repaired or replaced. Purchase a new cylinder or exchange the cylinder. You should inspect the seal before accepting a new or exchanged cylinder. DO NOT insert tools or foreign objects into the cylinder valve opening as this could damage the rubber seal.
• The leak check procedure outlined in the product guide/assembly manual MUST be followed each time the LP gas cylinder is connected to the appliance. Consult the product guide/assembly manual for the proper procedure and locations for leak checking.

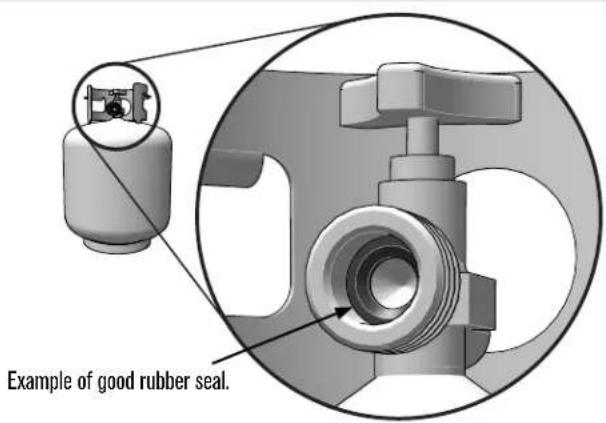

Example of good rubber seal.

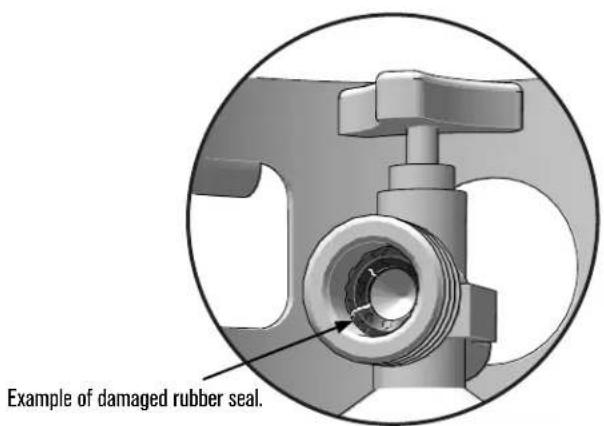

Example of damaged rubber seal.

WARNING

For Safe Use of Your Grill and to Avoid Serious Injury:

• Do not let children operate or play near grill.
• Keep grill area clear and free from materials that burn.
• Keep appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
• Do not block holes in sides or back of grill. Not obstructing the flow of combustion and ventilation air.
• Check burner flames regularly.
• Use grill only in well-ventilated space. NEVER use in enclosed space such as carport, garage, porch, covered patio, or under an overhead structure of any kind.
• Do not use charcoal or ceramic briquets in a gas grill.
• Do not cover grates with aluminum foil or any other material. This will block burner ventilation and create a potentially dangerous condition resulting in property damage and/or personal injury.

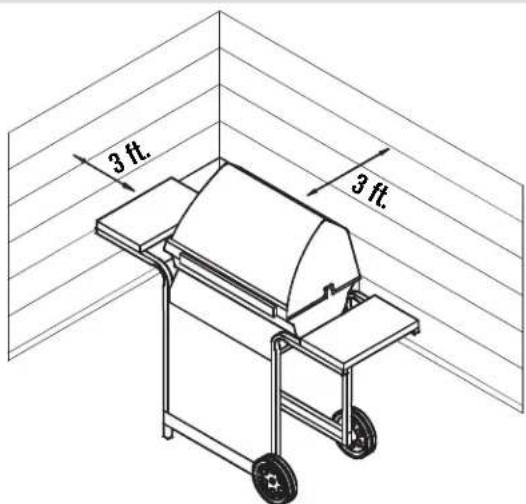

• Use grill at least 3 ft. from any wall or surface. Maintain 10 ft. clearance to objects that can catch fire or sources of ignition such as pilot lights on water heaters, live electrical appliances, etc.

3 ft. 3 ft.

• NEVER attempt to light or re-light burner with lid closed. A buildup of non-ignited gas inside a closed grill is hazardous.
• Never operate grill with LP cylinder out of correct position specified in assembly instructions.
• Always close LP cylinder valve and remove coupling nut before moving LP cylinder from specified operation position.
• Apartment Dwellers:
  Check with management to learn the requirements and fire codes for using an LP gas grill in your apartment complex. If allowed, use outside on the ground floor with a three (3) foot clearance from walls or rails. Do not use on or under balconies.

USE AND CARE

Ignitor Lighting

• Do not lean over grill while lighting.
1. Turn gas burner control valves to O (off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. To ignite, push and turn IGNITION BURNER knob to 🧑HIGH. Immediately, push and hold ELECTRONIC IGNITOR button until the burner lights.
5. If ignition does NOT occur in 5 seconds, turn the burner controls off O, wait 5 minutes and repeat the lighting procedure.
6. To ignite remaining burners, push and turn knob to the 🔊 HIGH position starting with the burners closest to the IGNITION BURNER first.

WARNING

Turn controls and gas source or tank OFF when not in use.

CAUTION

If ignition does NOT occur in 5 seconds, turn the burner controls ☐ off, wait 5 minutes and repeat the lighting procedure. If the burner does not ignite with the valve open, gas will continue to flow out of the burner and could accidentally ignite with risk of injury.

Match-Lighting

• Do not lean over grill while lighting.
1. Turn gas burner control valves to ○ (off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.

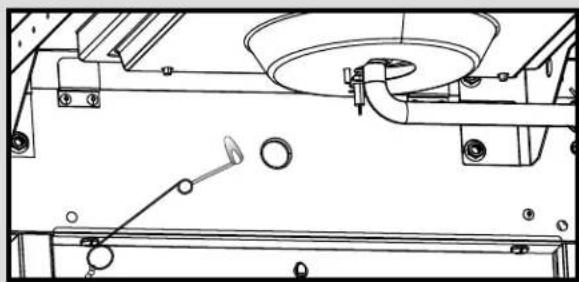

4. Place match into match holder (hanging from side panel of grill). Light match; then light burner by placing match through the match light hole on side of grill. Immediately push in and turn burner knob to the 🔊 HIGH position. Be sure burner lights and stays lit.
5. Light adjacent burners in sequence by pushing knobs in and turning to the HIGH position.

Technical line drawing of a mechanical assembly with no visible text or symbols

CAUTION

• Putting out grease fires by closing the lid is not possible. Grills are well ventilated for safety reasons.
• Do not use water on a grease fire. Personal injury may result. If a grease fire develops, turn knobs and LP cylinder off.
• Do not leave grill unattended while preheating or burning off food residue on HI. If grill has not been regularly cleaned, a grease fire can occur that may damage the product.

NOTE: Your grill may NOT be equipped with a Sideburner! Sideburner Ignitor Lighting

• Do not lean over grill while lighting.
1. Turn gas burner control valves to O (off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. Turn sideburner knob to the 🔊 HIGH position, push and hold ELECTRONIC IGNITOR button.
5. If sideburner does NOT light within 5 seconds, turn knob to ○ off, wait 5 minutes, then repeat lighting procedure.

Sideburner Match Lighting

• Do not lean over grill while lighting.
1. Turn gas burner control valves to O (off).
2. Open lid during lighting or re-lighting.
3. Turn ON gas at LP cylinder.
4. Place lit match near burner. Immediately turn sideburner knob to the ⏻ HIGH position. Be sure burner lights and stays lit.

Technical line drawing of a mechanical or electrical component with internal structure and mounting holes (no text or symbols)

USE AND CARE

Burner Flame Check

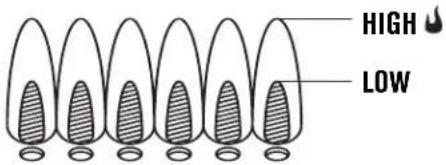

- Remove cooking grates and heat tents. Light burners, rotate knobs from HIGH to LOW. You should see a smaller flame in LOW position than seen on HIGH. Perform burner flame check on side burner, also. Always check flame prior to each use. If only low flame is seen refer to "Sudden drop or low flame" in the Troubleshooting Section.

HIGH LOW

Turning Grill Off

- Turn all knobs to the ○ off position. Turn LP cylinder off by turning handwheel clockwise to a full stop.

Ignitor Check

- Turn gas off at LP cylinder. Press and hold electronic ignitor button. "Click" should be heard and spark seen each time in each collector box or between burner and electrode. See "Troubleshooting" if no click or spark.

Valve Check

- Important: Make sure gas is off at LP cylinder before checking valves. Knobs lock in off position. To check valves, first push in knobs and release, knobs should spring back. If knobs do not spring back, replace valve assembly before using grill. Turn knobs to LOW position then turn back to off position. Valves should turn smoothly.

Hose Check

- Before each use, check to see if hoses are cut or worn or kinked. Replace damaged hoses before using grill. Use only valve/hose/regulator specified by manufacturer.

Storing Your Grill

• Clean cooking grates.
• Store in dry location.
• When LP cylinder is connected to grill, store outdoors in a well-ventilated space and out of reach of children.
• Cover grill if stored outdoors. Choose from a variety of grill covers offered by Char-Broil at charbroil.com.
• Store grill indoors ONLY if LP cylinder is turned off and disconnected, removed from grill and stored outdoors.
• If the outdoor cooking gas appliance is not in use, the gas shall be turned of at the supply cylinder(s). An outdoor cooking gas appliance indoors may be stored only if the cylinder(s) is (are) disconnected and removed from the outdoor cooking gas appliance.
• When removing grill from storage, follow "Cleaning the Burner Assembly" instructions before starting grill.

CAUTION

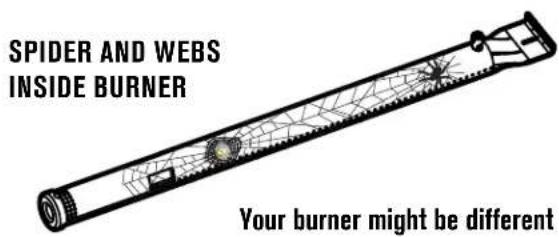

SPIDER ALERT!

SPIDER AND WEBS INSIDE BURNER Your burner might be different

Checking and cleaning burner/venturi tubes for insects and insect nests. A clogged tube can lead to a fire beneath the grill.

If your grill is getting hard to light or the flame is weak, check and clean the venturis and burners.

Spiders or small insects are known to create "flashback" problems by building nests and laying eggs in the grill's venturi or burner, obstructing the flow of gas. The back-up gas can ignite behind the control panel. This flashback can damage your grill and cause injury. To prevent flashbacks and ensure good performance the burner and venturi tube assembly should be removed and cleaned when ever the grill has been idle for an extended period of time.

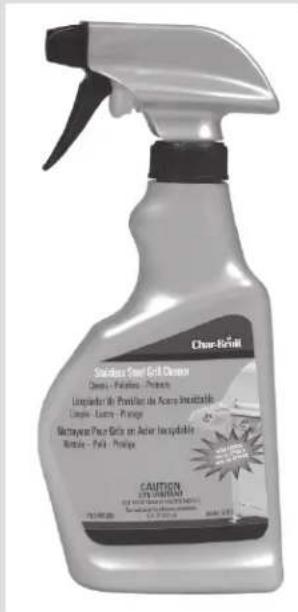

General Grill Cleaning

• Do not mistake brown or black accumulation of grease and smoke for paint. Interiors of gas grills are not painted at the factory (and should never be painted). Apply a strong solution of detergent and water or use a grill cleaner with scrub brush on insides of grill lid and bottom. Rinse and allow to completely air dry. Do not apply a caustic grill/oven cleaner to painted surfaces.
• Plastic parts: Wash with warm soapy water and wipe dry.
• Do not use citrisol, abrasive cleaners, degreasers or a concentrated grill cleaner on plastic parts. Damage to and failure of parts can result.
• Porcelain surfaces: Because of glass-like composition, most residue can be wiped away with baking soda/water solution or specially formulated cleaner. Use nonabrasive scouring powder for stubborn stains.
• Painted surfaces: Wash with mild detergent or nonabrasive cleaner and warm soapy water. Wipe dry with a soft nonabrasive cloth.
• Stainless steel surfaces: To maintain your grill's high quality appearance, wash with mild detergent and warm soapy water and wipe dry with a soft cloth after each use. Baked-on grease deposits may require the use of an abrasive plastic cleaning pad. Use only in direction of brushed finish to avoid damage. Do not use abrasive pad on areas with graphics.
• Cooking surfaces: If a bristle brush is used to clean any of the grill cooking surfaces, ensure no loose bristles remain on cooking surfaces prior to grilling. It is NOT recommended to clean cooking surfaces while grill is hot.

USE AND CARE

Cleaning the Burner Assembly

Follow these instructions to clean and/or replace parts of burner assembly or if you have trouble igniting grill.

1. Turn gas off at control knobs and LP cylinder.
2. Remove cooking grates and heat tents.
3. Remove carryover tubes and hardware securing burners.

4. Detach electrode from burner. NOTE: Removal/Detachment method will depend on the burner configuration. See different configurations in illustrations below.

5. Carefully lift each burner up and away from valve openings. We suggest three ways to clean the burner tubes. Use the one easiest for you. (A) Bend a stiff wire (a light weight coat hanger works well) into a small hook. Run the hook through each burner tube several times.

(B) Use a narrow bottle brush with a flexible handle (do not use a brass wire brush). Run the brush through each burner tube several times.
(C) Wear eye protection: Use an air hose to force air into the burner tube and out the burner ports. Check each port to make sure air comes out each hole.

1. Wire brush entire outer surface of burner to remove food residue and dirt.

2. Clean any blocked ports with a stiff wire such as an open paper clip.

3. Check burner for damage due to normal wear and corrosion, some holes may become enlarged. If any large cracks or holes are found, replace burner.

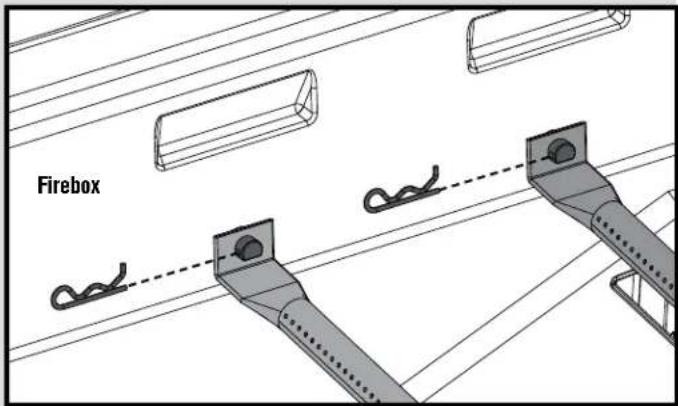

VERY IMPORTANT: Burner tubes must reengage valve openings. See illustrations at right.

Correct burner-to-valve engagement

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Attach electrode to burner.
2. Carefully replace burners.
3. Attach burners to brackets on firebox.
4. Reposition carryover tubes and attach to burners. Replace heat tents and cooking grates.
5. Before cooking again on grill, perform a "Leak Test" and "Burner Flame Check".

Firebox

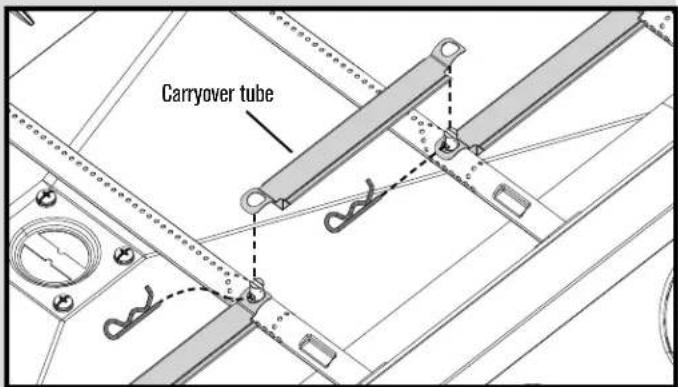

Carryover tube

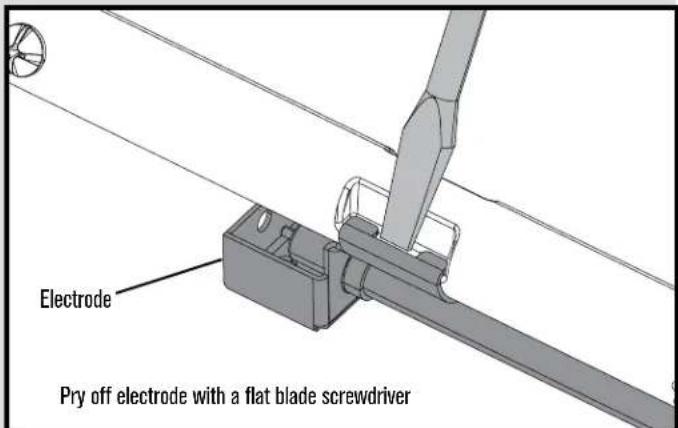

Electrode Pry off electrode with a flat blade screwdriver

LIMITED WARRANTY

This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*. The manufacturer reserves the right to require that defective parts be returned, postage and or freight pre-paid by the consumer for review and examination.

SCOPE OF COVERAGE PERIOD OF COVERAGE TYPE OF FAILURE COVERAGE

Stainless Burner 5 years from date of purchase* PERFORATION, MANUFACTURING,		AND MATERIAL DEFECTS ONLY
Firebox and Lid 2 years from date of purchase*
All Other Parts 1 year from date of purchase*

*Note: A dated sales receipt WILL be required for warranty service.

The original consumer-purchaser will be responsible for all shipping charges for parts replaced under the terms of this limited warranty.

This limited warranty is applicable in the United States and Canada only, is only available to the original owner of the product and is not transferable. Manufacturer requires proof of your date of purchase. Therefore, you should retain your sales slip or invoice. Registering your product is not a substitute for proof of purchase and the manufacturer is not responsible for or required to retain proof of purchase records.

This limited warranty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or discoloring by heat, abrasive and chemical cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the discoloration of stainless steel surfaces. Paint is not warranted and will require touch up. RUST is not considered a manufacturing or materials defect.

This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage.

ITEMS MANUFACTURER WILL NOT PAY FOR:

1. Shipping cost, standard or expedited, for warranty and replacement parts.
2. Service calls to your home.
3. Repairs when your product is used for other than normal, single-family household or residential use.
4. Damage, failures, or operating difficulties resulting from accident, alteration, careless handling, misuse, abuse, fire, flood, acts of God, improper installation or maintenance, installation not in accordance with electrical or plumbing codes, or use of products not approved by the manufacturer.
5. Any food loss due to product failures or operating difficulties.
6. Replacement parts or repair labor costs for units operated outside the United States or Canada.
7. Pickup and delivery of your product.
8. Repairs to parts or systems resulting from unauthorized modifications made to the product.
9. The removal and/or reinstallation of your product.

DISCLAIMER OF IMPLIED WARRANTIES and LIMITATION OF REMEDIES

Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. In the event of parts availability issues, the manufacturer reserves the right to substitute like or similar parts that are equally functional.

Manufacturer will not be responsible for any consequential or incidental damages arising from the breach of either this limited warranty or any applicable implied warranty, or for failure or damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration, replacement of parts by anyone other than Manufacturer, misuse, transportation, commercial use, abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper installation or installation not in accordance with local codes or printed manufacturer instructions.

THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET FORTH IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING UNDER THE LAWS OF ANY STATE, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, IS HEREBY LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.

Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies in addition to or inconsistent with those stated above. Manufacturer's maximum liability, in any event, shall not exceed the purchase price of the product paid by the original consumer.

NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions may not apply to you. This limited warranty gives you specific legal rights as set forth herein. You may also have other rights which vary from state to state. In the state of California only, if refinishing or replacement of the product is not commercially practicable, the retailer selling this product or the Manufacturer will refund the purchase price paid for the product, less the amount directly attributable to use by the original consumer-purchaser prior to discovery of the nonconformity. In addition, in the state of California only, you may take the product to the retail establishment selling this product in order to obtain performance under this limited warranty.

If you wish to obtain performance of any obligation under this limited warranty, you should

write to:

Consumer Relations

P. O. Box 1240

Columbus, GA 31904-1240

Consumer returns will not be accepted unless a valid Return Authorization is first acquired. Authorized returns are clearly marked on the outside of the package with an RA number and the package is shipped freight/postage pre-paid. Consumer returns that do not meet these standards will be refused.

TABLE DES MATIÈRES

Line drawing of a portable stove burner with a circular kiln and a diagonal line indicating no heating (no text or symbols)

AVERTISSEMENT

If during operation the flames go out (You smell gas or cannot see the flame)

Technical line drawing of a portable gas stove with two gas cylinders and a prohibition symbol (no text or labels)

Line drawing of a cylindrical gas cylinder with a side-mounted valve (no text or symbols)

Line drawing of a gas cylinder with internal components and directional arrows indicating flow or movement (no text or symbols)

AVERTISSEMENT

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

Diagram of a mechanical device with two circular insets showing a close-up view of a granular material being inserted into a pipe (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

ATTENTION

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a portable stove with a circular kiln and diagonal line indicating no heating (no text or symbols)

GRO ADVERTENCIA

Technical line drawing of a portable stove or gas stove with no visible text or symbols

Line drawing of a gas cylinder with attached valve (no text or symbols)

Technical line drawing of a cylindrical gas cylinder with internal bands and directional arrows (no text or symbols)

ADVERTENCIA

Technical line drawing of a mechanical assembly with a magnified circular detail (no text or symbols)

Diagram of a mechanical device with a close-up view showing internal components and a labeled dimension 'b' (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

ADVERTENCIA

Exploded view diagram of household appliances with numbered parts for identification

PARTS LIST

Key Qty Description
1 1 TOP LID
2 1 LID HANDLE
3 2 RUBBER BUMPER, LID STOP
4 2 RUBBER BUMPER, LID FRONT
5 1 TEMPERATURE GAUGE
6 1 LOGO PLATE
7 1 TOP LID HARDWARE
8 5 TUBE BURNER BRACE
9 1 WARMING RACK
10 1 12" PERFORMANCE GRIDDLE
11 2 COOKING GRATE T180
12 1 COOKING GRATE T120
13 1 TUBE BURNER w/ ELECTRODE
14 4 TUBE BURNER
15 5 HEAT TENT
16 1 SIDEBURNER LID
17 1 SIDEBURNER
18 1 SIDEBURNER DRIP PAN
19 1 SIDEBURNER ELECTRODE WIRE
20 1 SIDEBURNER GRATE
21 4 CARRYOVER TUBE
22 1 SIDEBURNER SHELF FASCIA
23 1 CONTROL KNOB, SIDEBURNER
24 1 BEZEL, SIDEBURNER CONTROL KNOB
25 1 SIDEBURNER SHELF
26 1 SIDEBURNER SHELF SUPPORT BRACE
27 1 FIREBOX
28 1 HOSE VALVE REGULATOR ASSY
29 1 CONTROL PANEL
30 5 BEZEL, MAIN BURNER CONTROL KNOB
31 5 CONTROL KNOB, MAIN BURNER
32 1 RIGHT SIDE SHELF
33 1 RIGHT SHELF FASCIA
34 3 TOOL HOOK
35 1 GREASE CUP

Key Qty Description

36 1 ELECTRONIC IGNITION BUTTON

37 1 ELECTRONIC IGNITION MODULE

38 1 RIGHT SIDE SHELF SUPPORT BRACE

39 2 GREASE CUP BRACKET

40 1 TANK HEAT SHIELD

41 1 LEFT CART PANEL

42 1 FRONT DOOR BRACE

43 1 FRONT CART PANEL

44 1 REAR CART PANEL

45 1 REAR BRACE

46 1 STORAGE SHELF

47 1 TANK RETAINING SCREW

48 1 BOTTOM SHELF

49 1 MATCH HOLDER

50 1 MIDDLE PANEL

51 2 RIGHT CART PANEL

52 1 TANK EXCLUSION WIRE

53 1 DOOR

54 2 CASTER, LOCKING

55 2 WHEEL CAP

56 2 WHEEL

57 1 DOOR HANDLE

58 1 MAGNET ASSEMBLY

59 1 DOOR HINGE

60 1 DOOR STOP

61 2 WHEEL AXLE

62 1 DOOR SPRING PIN

Not Pictured

... 1 PRODUCT GUIDE

... 1 HARDWARE PACK

NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from those on your particular grill model. However, the method of assembly remains the same.

LISTE DES PIÈCES

No Qté Description
1 1 COUVERCLE SUPÉRIEUR
2 1 POIGNÉE DU COUVERCLE
3 2 BUTOIR EN CAOUTCHOUIC, BUTÉE DU COUVERCLE
4 2 BUTOIR EN CAOUTCHOUIC, AVANT DU COUVERCLE
5 1 SONDE DE TEMPÉRATURE
6 1 PLAQUE DE LOGO
7 1 FERRURES POUR COUVERCLE SUPÉRIEUR
8 5 RENFORT DE BRÛLEUR À TUBE
9 1 GRILLE-RÉCHAUD
10 1 GRILLE DE QUISSON HAUTE PERFORMANCE DE 12 po
11 2 GRILLE DE QUISSON T180
12 1 GRILLE DE QUISSON T120
13 1 BRÛLEUR À TUBE AVEC ÉLECTRODE
14 4 BRÛLEUR À TUBE
15 5 PLAQUE DE RECOUVREMENT
16 1 COUVERCLE DU BRÛLEUR LATÉRAL
17 1 BRÛLEUR LATÉRAL
18 1 PLATEAU RAMASSE-GOUTTES DU BRÛLEUR LATÉRAL
19 1 FIL D'ÉLECTRODE DU BRÛLEUR LATÉRAL
20 1 GRILLE DU BRÛLEUR LATÉRAL
21 4 TUBE DE RÉPARTITION
22 1 BORDURE DE TABLETTE DU BRÛLEUR LATÉRAL
23 1 BOUTON DE RÉGLAGE, BRÛLEUR LATÉRAL
24	1	ENJOLIVEUR, BOUTON DE RÉGLAGE DU BRÛLEUR LATÉRAL
25 1 TABLETTE DU BRÛLEUR LATÉRAL
26	1	PATTE DE SUPPORT DE LA TABLETTE DU BRÛLEUR LATÉRAL
27 1 FOYER
28 1 ASSEMBLAGE DU TUYAU/ROBINET/RÉGULATEUR
29 1 PANNEAU DE COMMANDE
30	5	ENJOLIVEUR, BOUTON DE RÉGLAGE DU BRÛLEUR PRINCIPAL
31 5 BOUTON DE RÉGLAGE, BRÛLEUR PRINCIPAL
32 1 TABLETTE LATÉRALE DROITE

No Qté Description

33 1 BORDURE DE LA TABLETTE DE DROITE

34 3 CROCHET POUR OUTILS

35 1 RÉCIPIENT À GRAISSE

36 1 BOUTON D'ALLUMAGE ÉLECTRONIQUE

37 1 MODULE D'ALLUMAGE ÉLECTRONIQUE

38 1 PATTE DE SUPPORT DE LA TABLETTE DE DROITE

39 2 SUPPORT DU RÉCIPIENT À GRAISSE

40 1 ÉCRAN THERMIQUE POUR BOUTEILLE

41 1 PANNEAU GAUCHE DU CHARIOT

42 1 SUPPORT DE LA PORTE AVANT

43 1 PANNEAU AVANT DU CHARIOT

44 1 PANNEAU ARRIÈRE DU CHARIOT

45 1 SUPPORT ARRIÈRE

46 1 TABLETTE DE RANGEMENT

47 1 VIS DE RÊTENTION DE LA BOUTEILLE

48 1 TABLETTE INFÉRIEURE

49 1 PORTE-ALLUMETTES

50 1 PANNEAU CENTRAL

51 2 PANNEAU DROIT DU CHARIOT

52 1 FIL D'EXCLUSION DE BOUTEILLE

53 1 PORTE

54 2 ROULETTE, À BLOCAGE

55 2 CHAPEAU DE ROUE

56 2 ROUE

57 1 POIGNÉE DE PORTE

58 1 ENSEMBLE D'AIMANTS

59 1 CHARNIÈRE DE PORTE

60 1 BUTÉE DE PORTE

61 2 ESSIEU

62 1 GOUPILLE-RESSORT DE PORTE

N'apparaît pas sur l'image

... 1 GUIDE DU PRODUIT

... 1 TROUSSE DE QUINCAILLERIE

1ST #41 3RD 2ND #43 #44

4

Jx 6

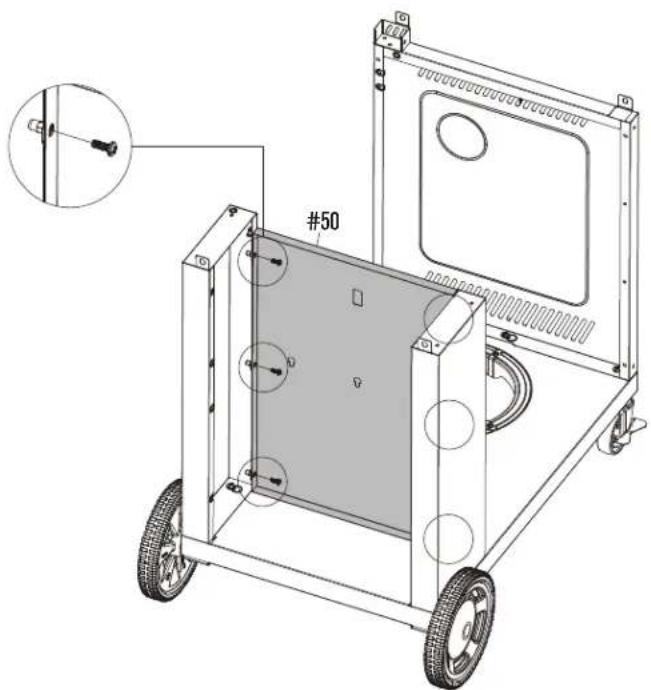

#50

CB ^

ASSEMBLY / ASSEMBLAGE / ASAMBLEA

5

Jx 4

N×1

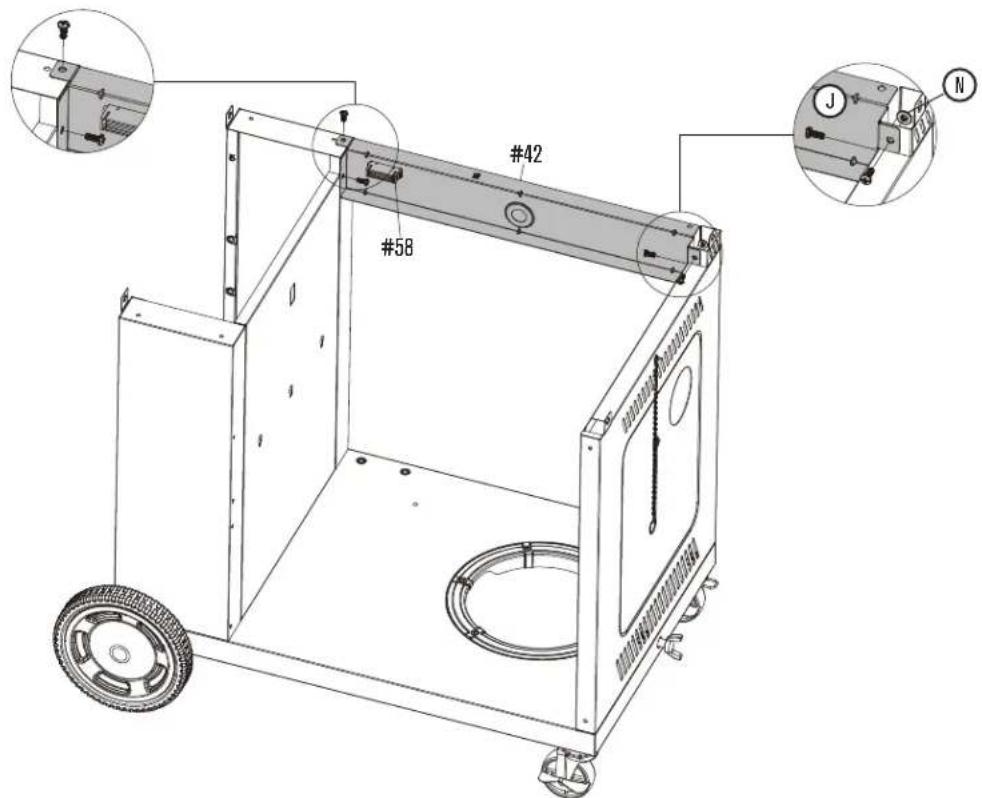

#42 #58 J N

6

Gx 4

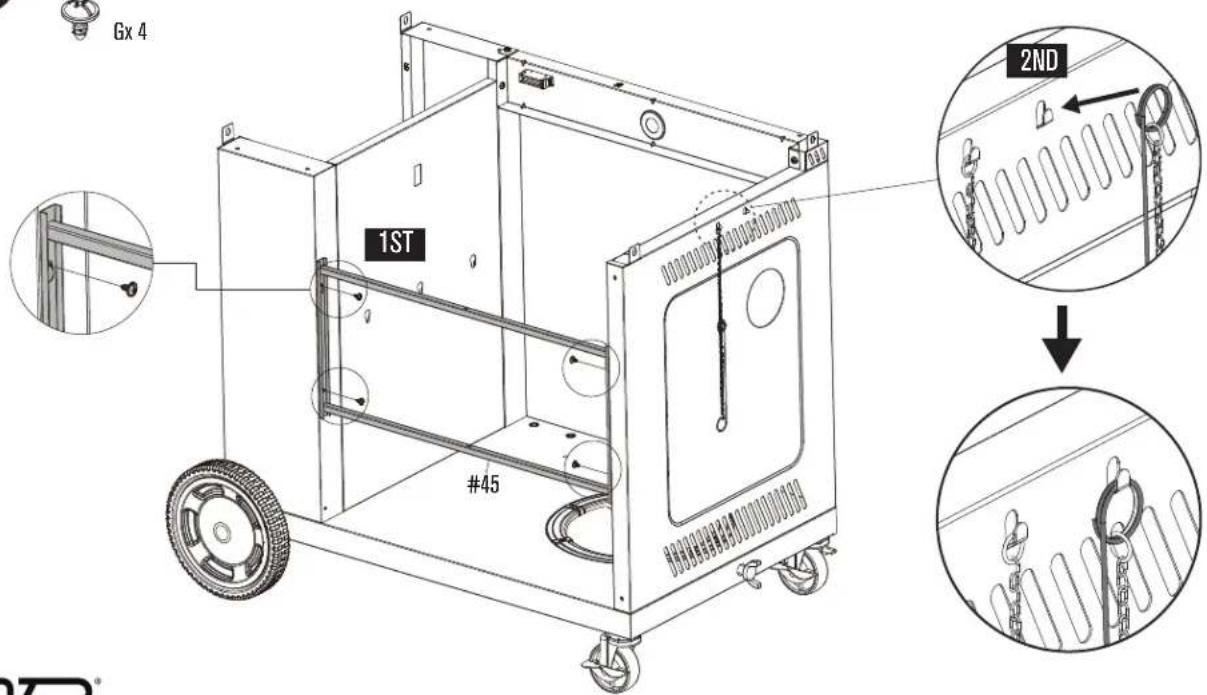

Gx 4 1ST #45 2ND

CB ^

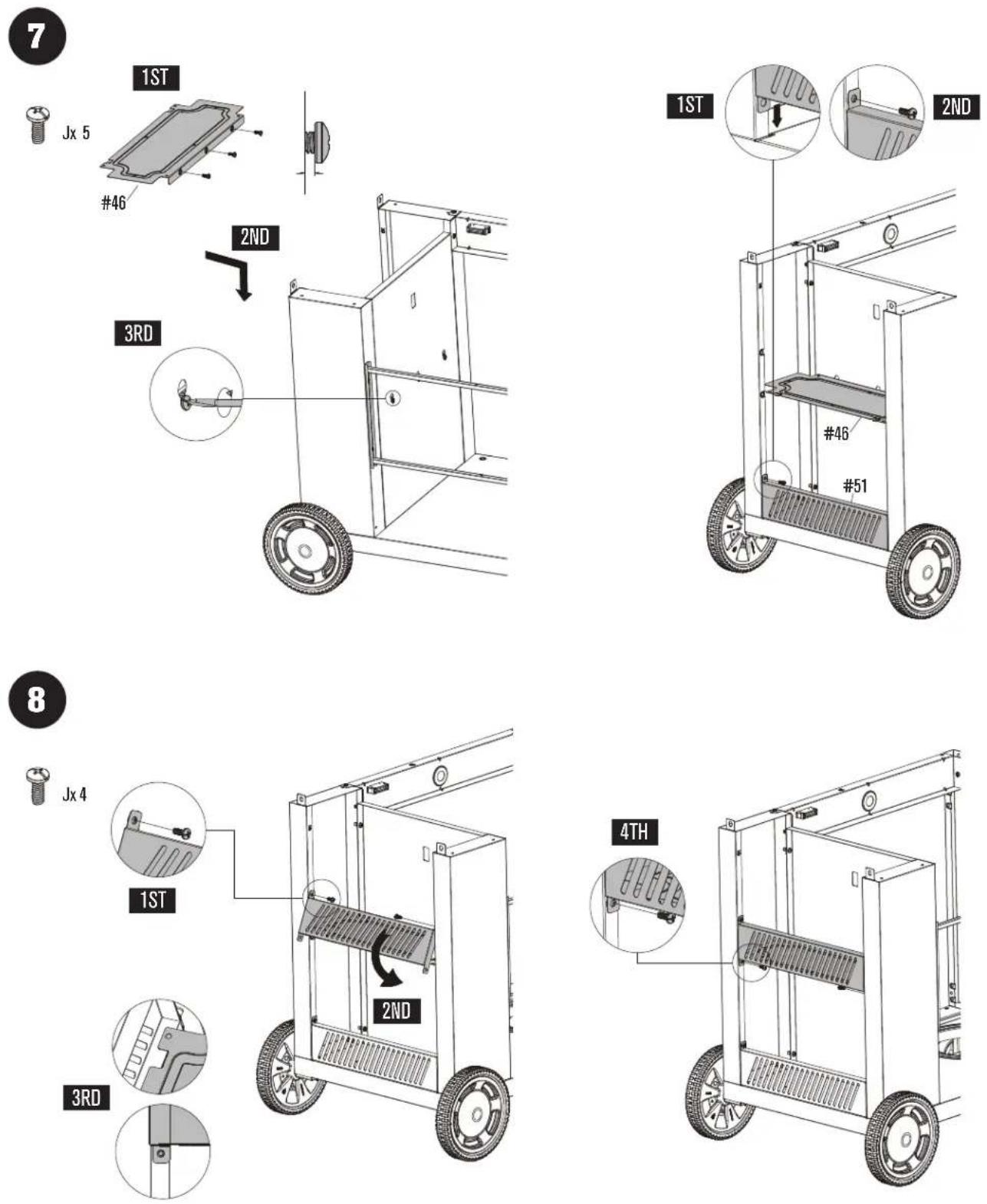

ASSEMBLY / ASSEMBLAGE / ASAMBLEA

CB ^

ASSEMBLY / ASSEMBLAGE / ASAMBLEA

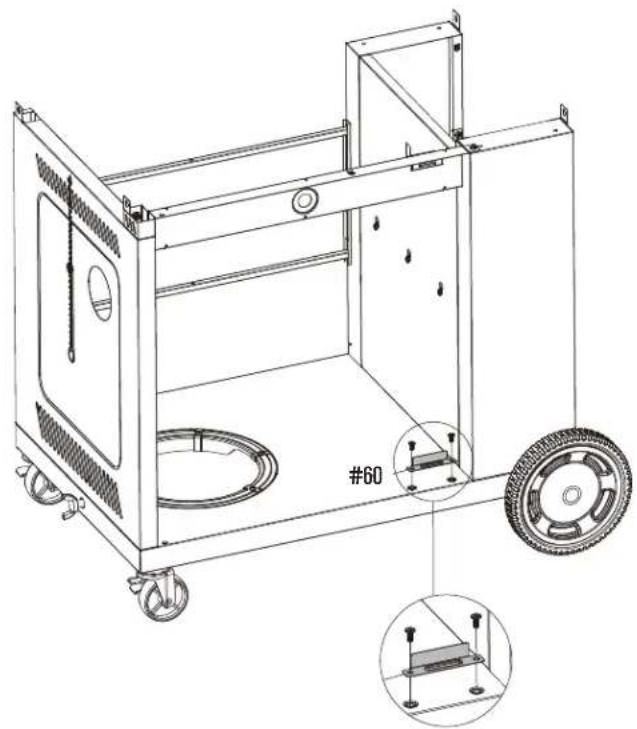

9

Px 2

Technical line drawing of a wheeled cart with wheels and a numbered component, showing internal components and mounting details (no text or symbols)

10

G x1

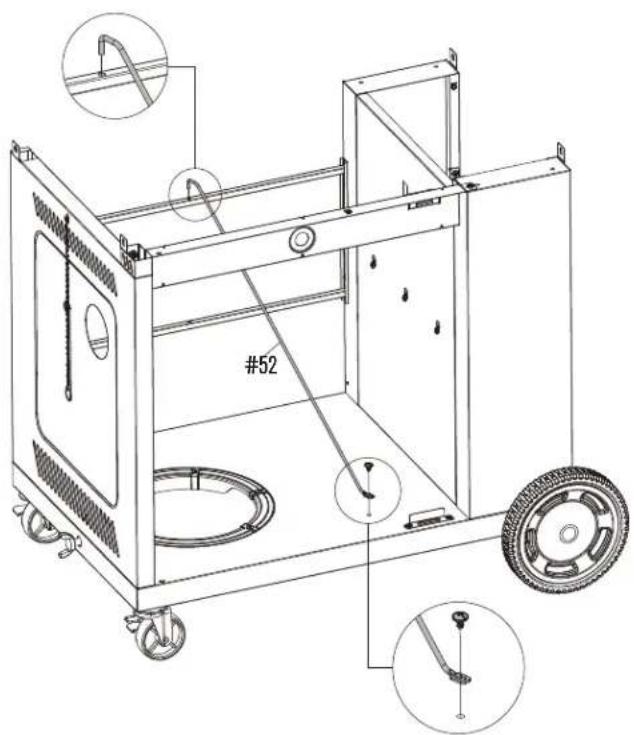

#52

CB ^

ASSEMBLY / ASSEMBLAGE / ASAMBLEA

11

Px2

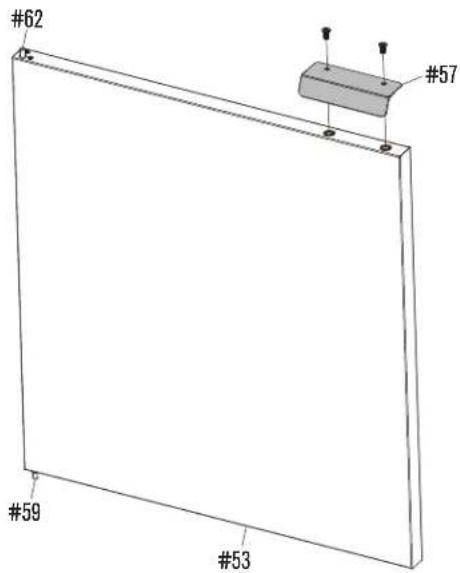

#62 #57 #59 #53

12

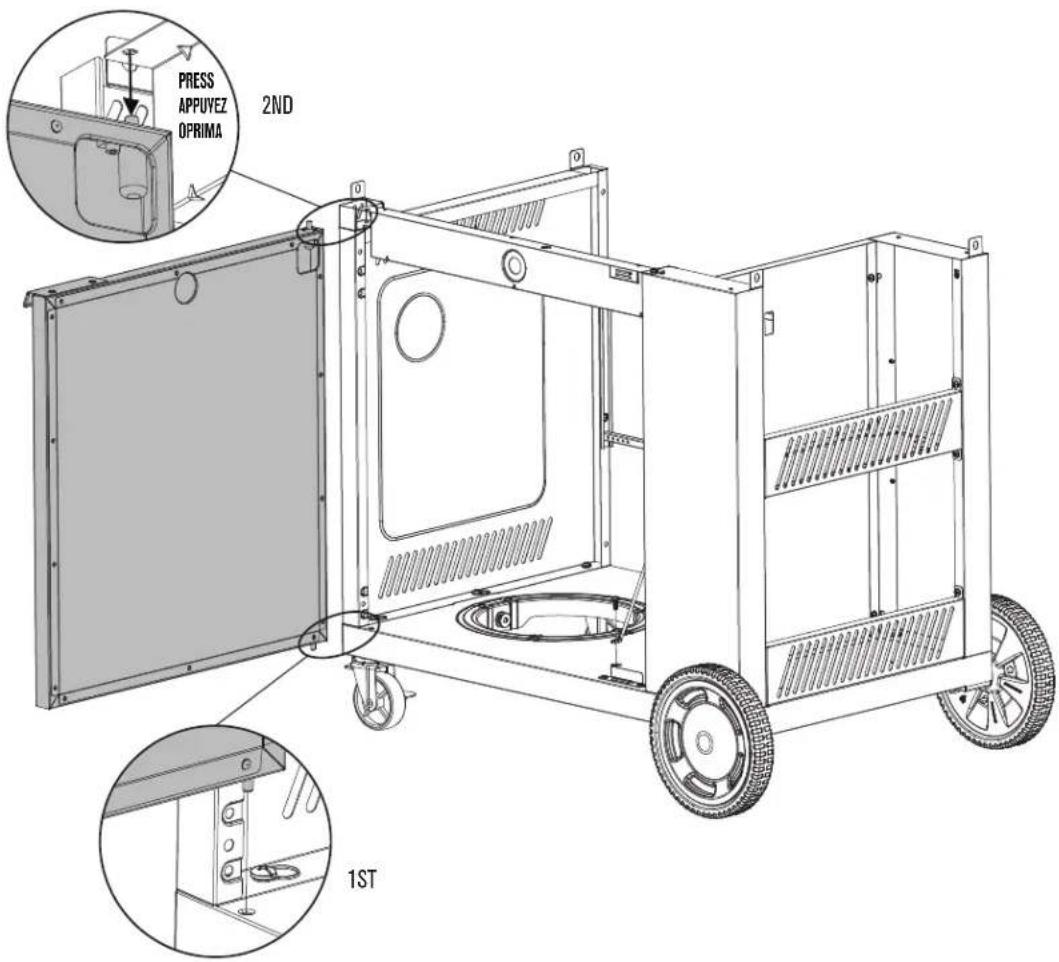

PRESS APPUYEZ OPRIMA 2ND 1ST

CB ^

ASSEMBLY / ASSEMBLAGE / ASAMBLEA

13

Fx 4

Two human figures with a plus sign, no text or symbols present

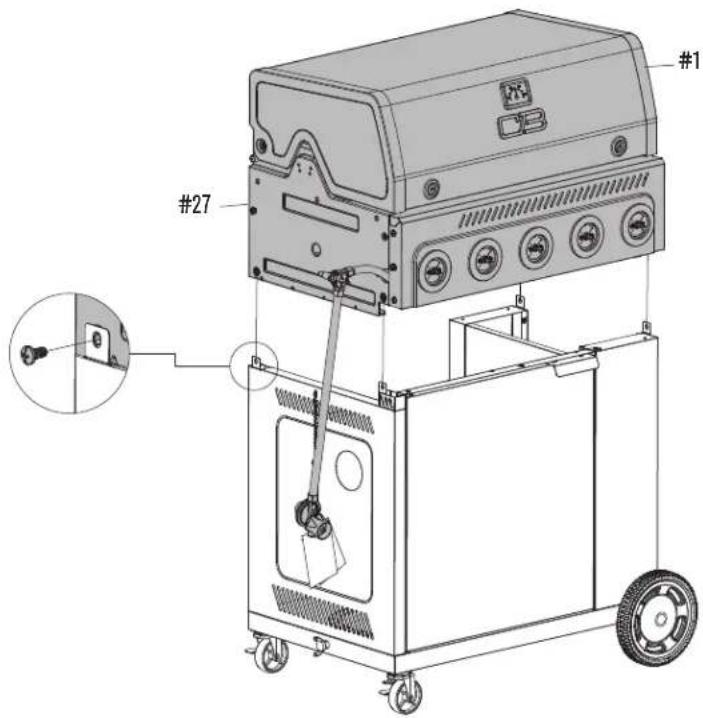

#1 #27 #27

14

H×2

Q×4

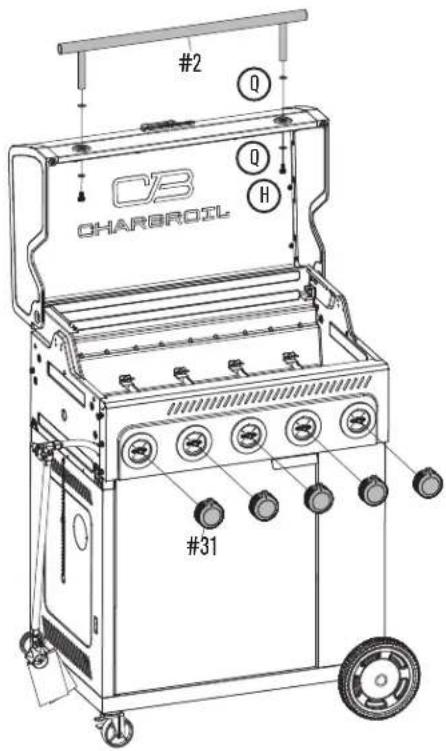

#2 Q Q H #31

CB ^

ASSEMBLY / ASSEMBLAGE / ASAMBLEA

15

J×4

L x 3

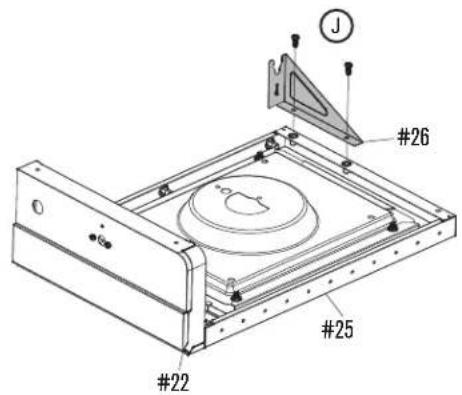

#26 #25 #22

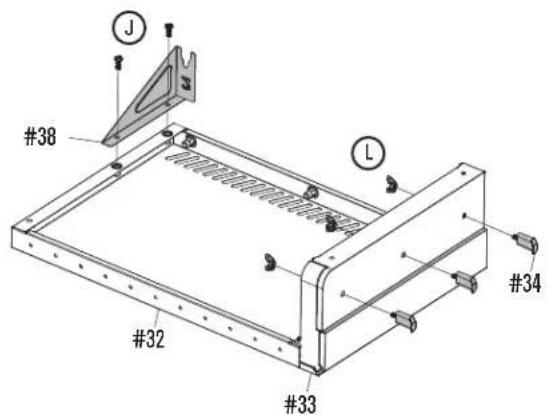

#38 #32 #33 #34 #38 L

16

Fx 3

K×3

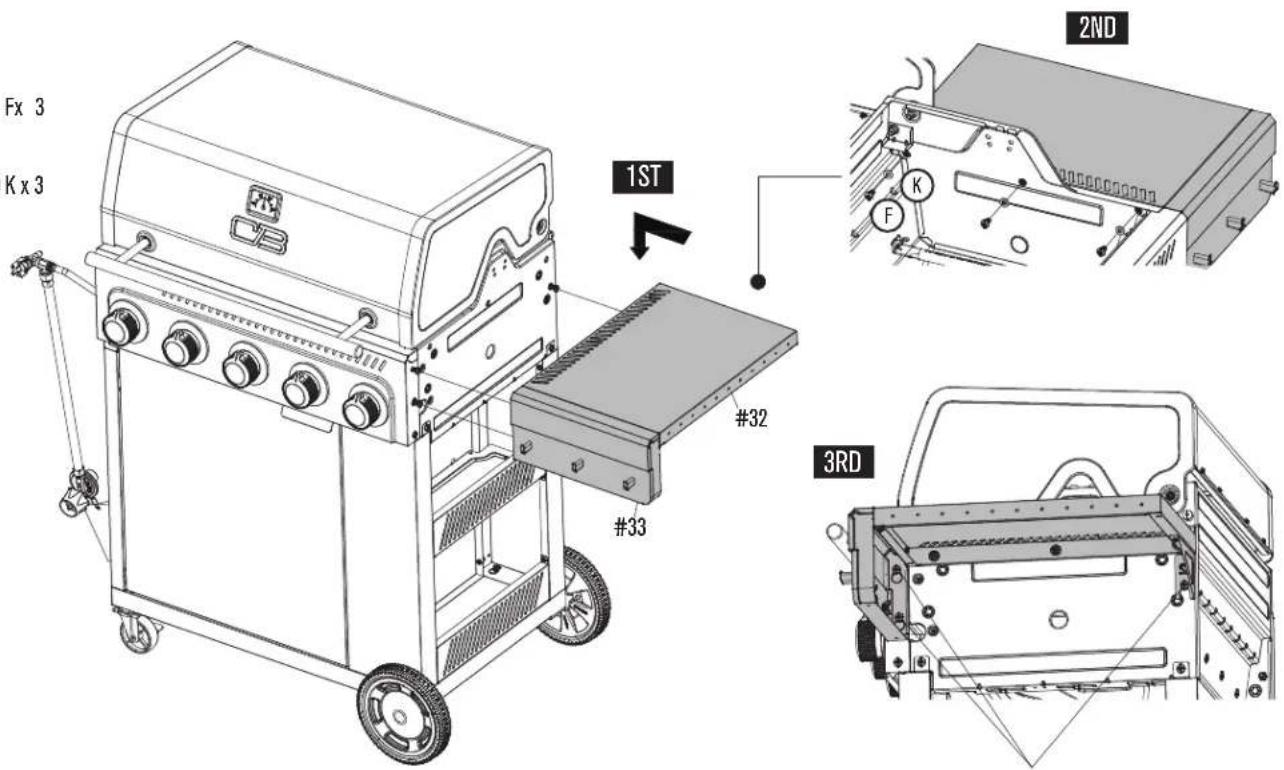

Fx 3 K x 3 1ST #32 #33 2ND 3RD

Tighten the screws
Serrez les vis
Apriete los tornillos

CB ^

ASSEMBLY / ASSEMBLAGE / ASAMBLEA

17

Fx 3

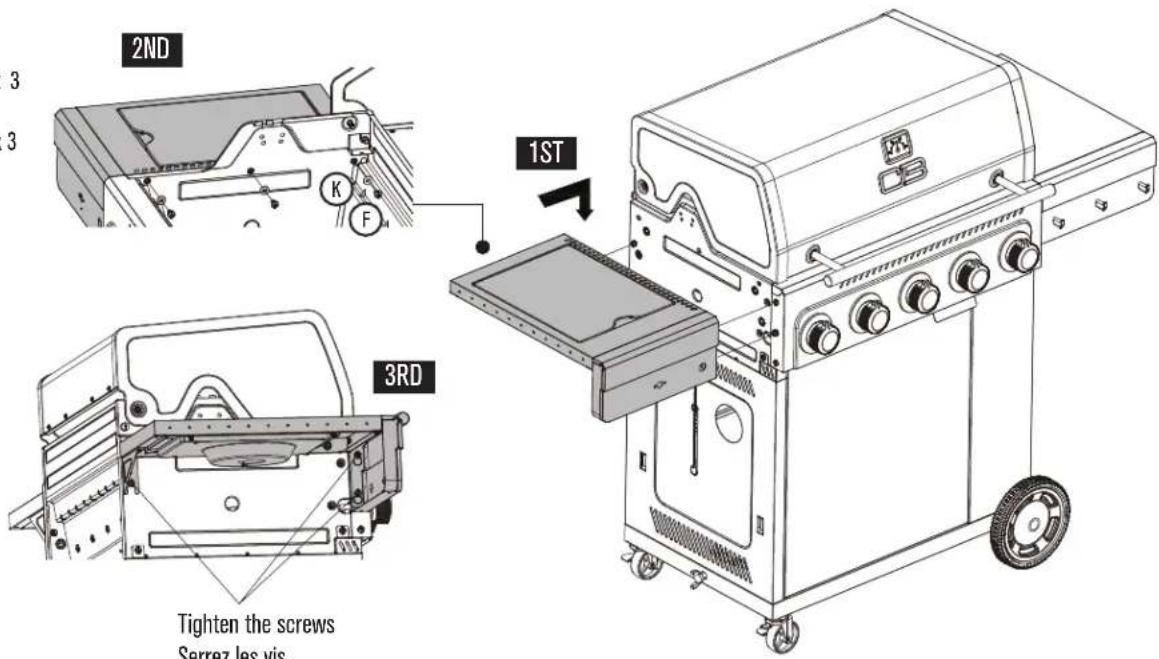

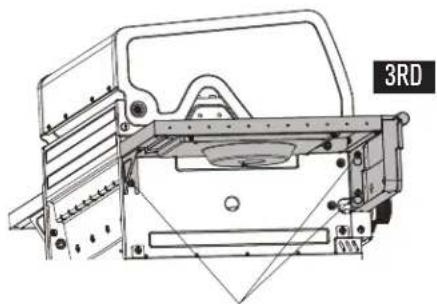

2ND 3 3 K F 1ST 3RD Tighten the screws Serrez les vis

Technical line drawing of a mechanical assembly with no visible text or symbols

Tighten the screws
Serrez les vis
Apriete los tornillos

18

Technical diagram of a mechanical assembly with labeled components and a 1ST label (no readable text or symbols beyond labels)

13

Mechanical assembly diagram showing three connected components with no visible text or symbols

36 #37

Mechanical assembly diagram showing a shaft connected to a housing with a bolt and nut (no text or symbols)

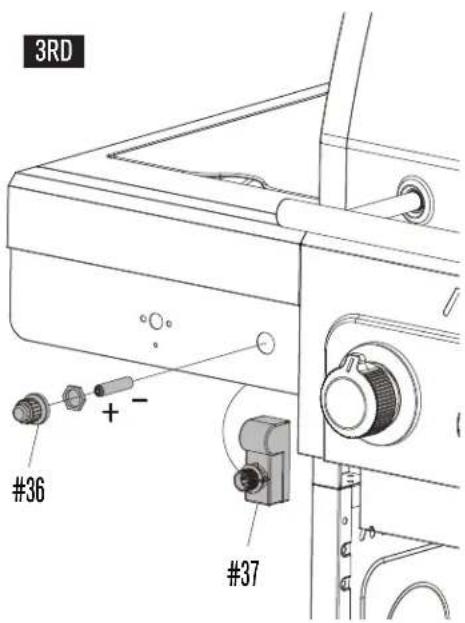

3RD #36 + - #37

CB ^

ASSEMBLY / ASSEMBLAGE / ASAMBLEA

19

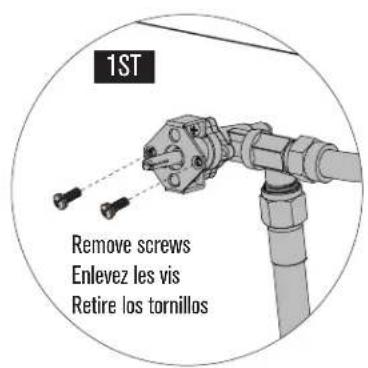

1ST Remove screws Enlevez les vis Retire los tornillos

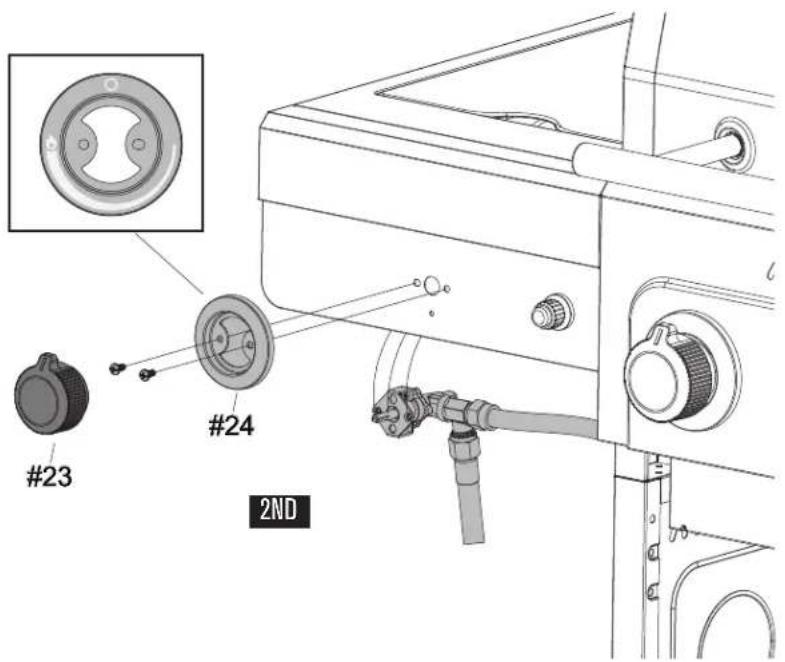

#23 #24 2ND

20

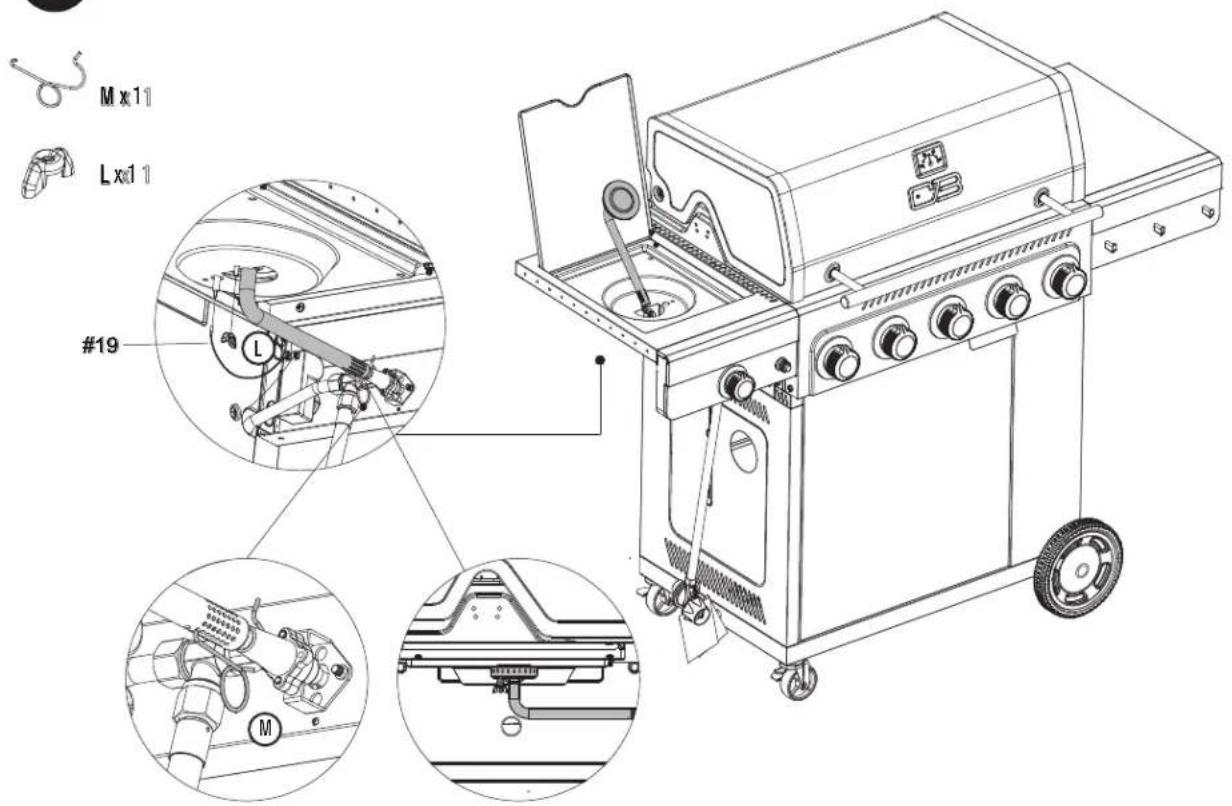

M x11 L x1 1 #19 M

CB ^

ASSEMBLY / ASSEMBLAGE / ASAMBLEA

21

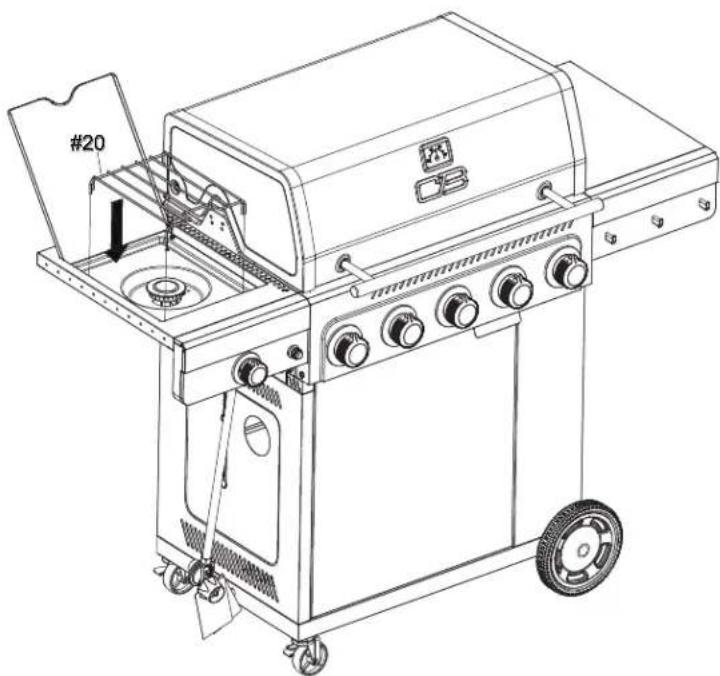

#20

22

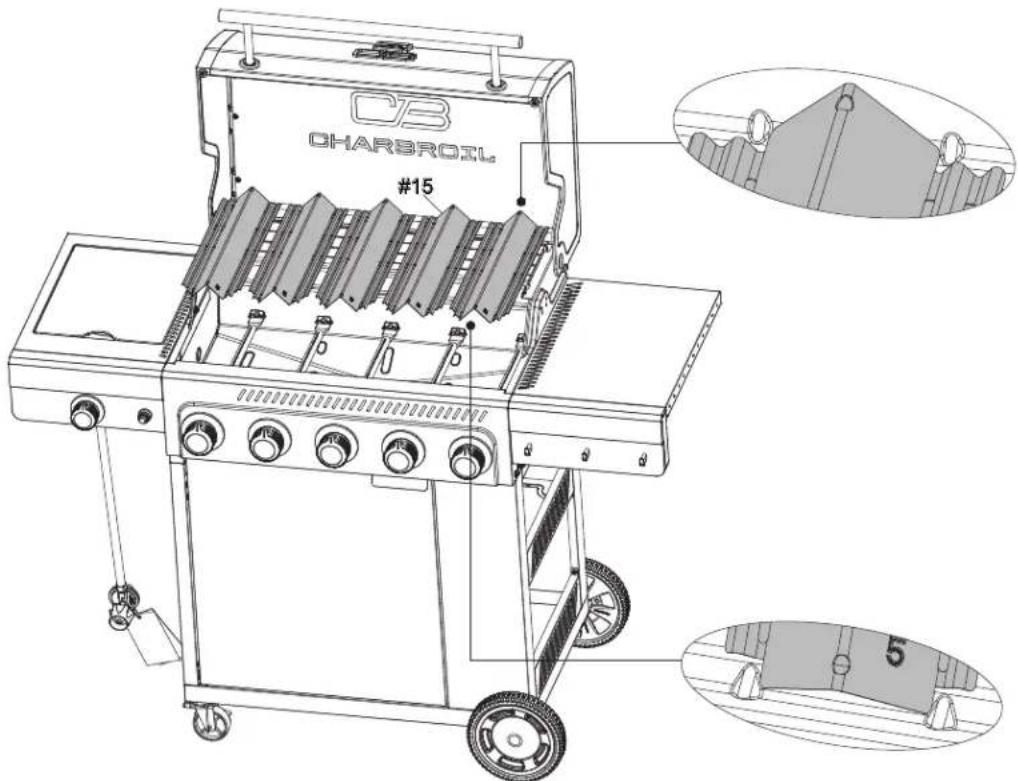

CHARSROTL #15 5

CB ^

ASSEMBLY / ASSEMBLAGE / ASAMBLEA

23

Cooking Option #1

Technical line drawing of a vehicle rear view showing a door, wheel, and side panel (no text or symbols)

Proper griddle placement and storage

Technical line drawing of a mechanical assembly with mounting bracket and support components (no text or symbols)

39

CB ^

ASSEMBLY / ASSEMBLAGE / ASAMBLEA

27

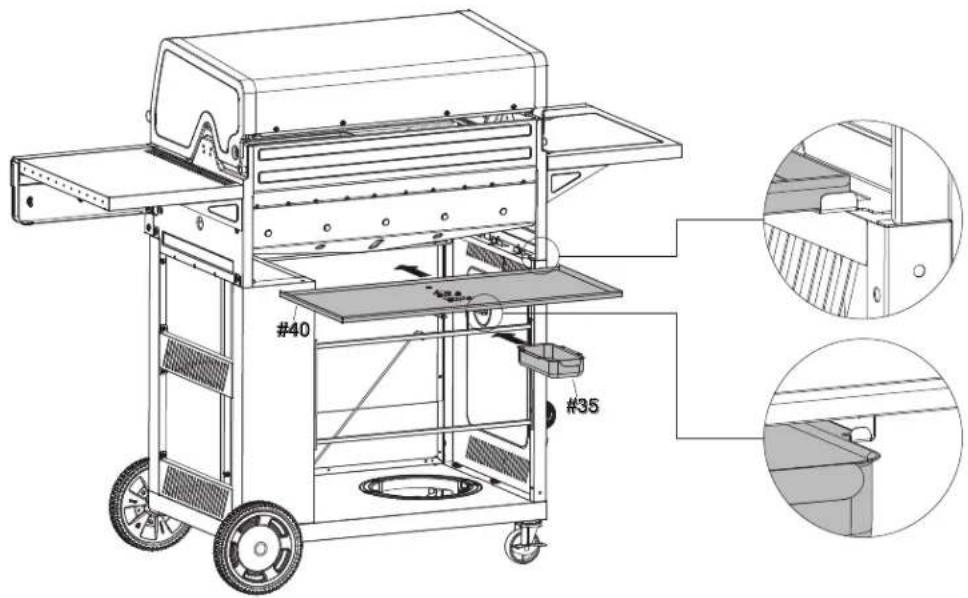

#40 #35

CAUTION/ ATTENTION/ ADVERTENCIA

Failure to install grease cup will cause hot grease to drip from bottom of grill with risk of fire or property damage.

2ND 3RD 1ST

CAUTION/ ATTENTION/ ADVERTENCIA

Cylinder valve must face to front of cart once tank is attached. Failure to install cylinder correctly may allow gas hose to be damaged in operation, resulting in the risk of fire.

GRILLING GUIDE - Getting Started

First Time Use

Read your Assembly Manual and ensure the grill is put together properly. Remove all Point-of-Purchase advertising material from all grill surfaces before first use. We recommend operating your grill on its highest setting for 15-20 minutes prior to your first use. This aids in removing the oils used during manufacturing.

Lava Rock / Briquettes

This gas grill has been designed, engineered, and tested to be used with heat tents to provide more even heating, improve the cleaning process, and reduce flare-ups. The addition of after market lava rocks, charcoal, or briquettes of any type will cause poor combustion and increase the likelihood of a grease fire, and is not recommended. Using briquettes, lava rock, or charcoal in this grill will void your warranty. For extra smoke flavor, we recommend using a smoker box with wood chips.

Black and white photo of grilled meat on a metal rack with a diagonal line overlay (no text or symbols)

Temperature

The temperature gauge in the hood of your new grill measures air temperature. The air temperature inside your grill will never be as hot as the temperature at the cocking surface. This gauge is calibrated to give a close indication of the grate temperature.

Note: Since 1995, all regulators (the part that attaches to the gas tank to regulate the flow of gas) have included a safety feature that restricts gas flow in the event of a gas leak. You can inadvertently activate this safety feature without having a gas leak. This typically occurs when you turn on the gas using the grill control knob before you turn on the LP tank valve. If the gas regulator safety feature activates, the grill will only reach temperatures between 250°F and 300°F even with all burners on the high setting.

BOCUPLEX 451-95 S/16 LPG VAPOR HOSE - I PSI-MAX-WP - HOSE VAPOR Regulator Coupling Nut

If your grill is not getting hotter than 250^ F to 300^ F these steps should be taken first to reset the gas regulator safety device:

1. Open the grill lid.
2. Turn off all knobs on the control panel in front.
3. Turn off the tank knob.
4. Disconnect the regulator from the LP tank.
5. Wait 30 seconds.
6. Reconnect the regulator to the LP tank.
7. Slowly open the LP tank knob all the way. Do not put excessive force on the valve at the full open position to avoid damaging the valve.
8. Turn on the appropriate control knob and light the grill per the instructions.

An illustration of this process is included in this Product Guide. See Troubleshooting section for additional information.

Pre-Heating Your Grill

Just like your home oven, your grill should be pre-heated to provide optimum performance. Pre-heat the grill on high for 10-15 minutes – longer if weather conditions require. Please refer to the lighting instructions inside the Product Guide if you have questions about how to light your grill. A match-light chain and hole is provided for your convenience.

Outdoor grilling is really quite simple. You'll succeed with burgers, dogs, or steaks usually on your very first try. With experience, you will learn how to work with your grill, creating more imaginative meals all the time. This knowledge makes up the art of grilling. Before you start grilling, organize your food according to cooking technique and required cooking time, and optimize the use of your grilling area.

Direct Cooking

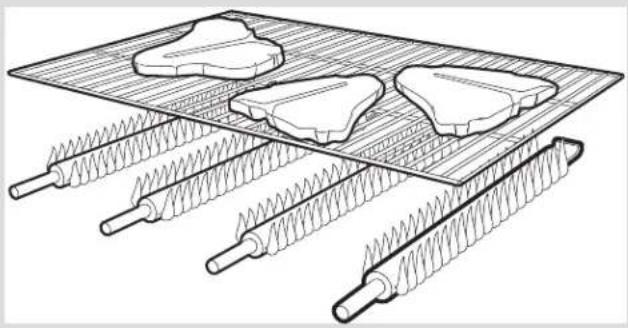

Direct cooking involves grilling your meat directly over high heat. It is perfect for searing steaks, chops, and other smaller pieces of meat and vegetables that quickly make their way to the table.

Technical line drawing of a mechanical assembly with multiple spring-loaded components and internal cavities (no text or symbols)

GRILLING GUIDE - Getting Started

Indirect Cooking

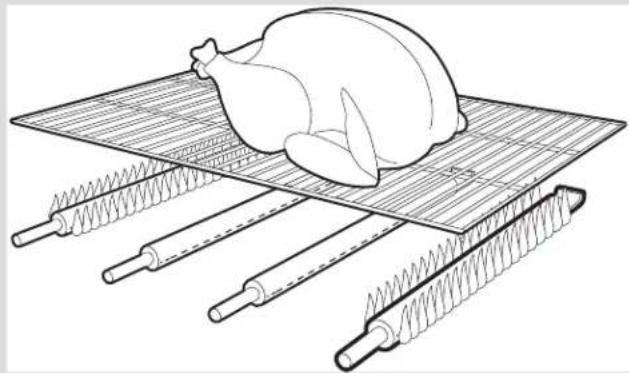

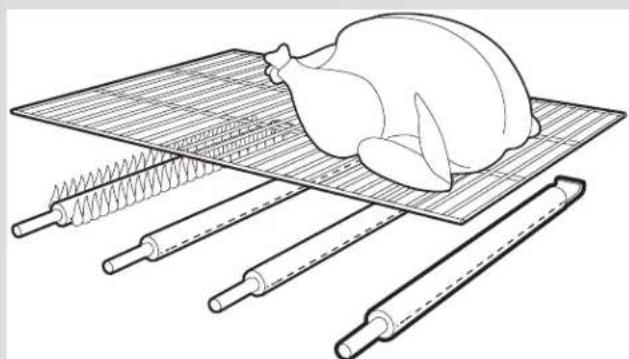

Indirect cooking utilizes select burners to circulate heat throughout the grill, without direct contact between the meat and the flame. The meat is placed over the burner that is 'off'. This method is generally used to slow cook large cuts of meat and poultry. A pan can be placed underneath the meat to catch grease and food drippings, and helps minimize clean-up.

Line drawing of a roasted chicken placed on a bamboo mat with coiled sticks (no text or symbols)

Line drawing of a roasted chicken placed on a bamboo mat with four rolled dough sticks (no text or symbols)

Rotisserie Cooking

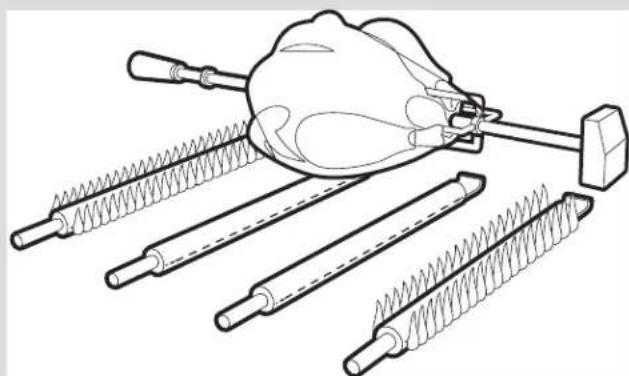

Rotisserie cooking is best for 'round' meat, such as large roasts, whole poultry, and pork. It generally requires an accessory motor and spit rod that allows the meat to be turned at a constant speed. Rotisserie cooking is best done in front of a special rotisserie burner, or utilizing an indirect cooking burner arrangement. A pan can be placed underneath the meat to catch grease and food drippings, and helps minimize clean-up.

Line drawing of a mechanical device with multiple spring-loaded components and a central spherical object (no text or symbols)

Line drawing of a medical procedure setup with a surgical instrument and multiple tubes (no text or symbols)

Food Safety

Food safety is a very important part of enjoying the outdoor cooking experience. To keep food safe from harmful bacteria, follow these four basic steps:

Clean: Wash hands, utensils, and surfaces with hot soapy water before and after handling raw meat.

Separate: Separate raw meats from ready-to-eat foods to avoid cross contamination. Use a clean platter and utensils when removing cooked foods.

Cook: Cook meat and poultry thoroughly to kill bacteria. Use a thermometer to ensure proper internal food temperatures.

Chill: Refrigerate prepared foods and leftovers promptly.

Cooking on your new grill is a hands-on experience, and it is recommended to remain outside with your grill while cooking. Grilling can be affected by many external conditions. In cold weather, you will need more heat to reach an ideal cooking temperature, and grilling may take longer. The meat's internal temperature and thickness can also affect cooking times. Cold and thicker meats will take longer to cook.

Internal Meat Temperatures

Meat cooked on a grill often browns very fast on the outside. Therefore, use a meat thermometer to ensure it has reached safe internal temperatures.

USDA Recommended Safe MinimumInternal Temperatures
Beef, Veal, Lamb, Steak, Roasts, & Whole Pork(with a 3 minute rest time)	145°F
Fish 145°F
Beef, Veal, Lamb, and Pork - Ground 160°F
Egg Dishes 160°F
Turkey, Chicken & Duck Whole, Pieces & Ground 165°F

Please refer to the USDA for complete, up-to-date information. Our internal temperature chart is based on USDA standards for meat doneness. Check it out at www.isitdoneyet.gov

GRILLING GUIDE - Tips & Tricks

Sauces

Sauces containing sugars and fats can cause flare-ups, and your food may burn. In general, apply these sauces during the final 5 minutes of cooking. Keep in mind, use of excessive sauces or glazes will also require extra cleaning afterwards.

Marinades and Rubs

To enhance the flavor of grilled foods, a liquid marinade or dry rub can be used prior to cooking. Meat can be either soaked or injected with liquid marinade up to 24 hours prior to grilling. Dry rubs can be applied directly to the meat immediately before grilling.

Black-and-white photo of glass jars containing various food items including tomatoes, beans, and a glass jar (no visible text or labels)

Wood Chips

For extra smoke flavor when grilling, try adding wood chips. Place smoke box or pan on top of the cooking grate above the flame. Turn grill on high until the wood starts to smoke. Reduce heat to desired temperature for cooking, and place food on cooking grate as desired. Close lid to retain more smoke. Hardwood varieties that work particularly well with grilled foods include Alder, Apple, Cherry, Hickory, Mesquite, and Pecan.

Pile of dried, sliced plant material with smoke in the background (no text or symbols visible)

Skewers

Metal skewers should be flat, with long handles. Round skewers allow food to roll when turned, so it may not cook as evenly. Use metal skewers when cooking meat kabobs. Wooden skewers should be soaked in water for an hour before use, and are best used for quick cooking foods such as vegetables and fruits.

Black-and-white photo of a plated dish featuring sliced meat and garnish, with a knife inserted (no visible text or symbols)

Utensils

Use tongs or a spatula to handle the food instead of a fork, and don't turn the food too often. Piercing the food with a fork will release juices that you want in the meat, and may cause flare-ups.

Three stainless steel kitchen utensils with handles and cutlery, arranged diagonally (no text or symbols visible)

GRILLING GUIDE - Cleaning Your Grill

Why Clean?

We've all heard the saying 'An ounce of prevention is worth a pound of cure'. This is great advice when it comes to keeping your grill clean.

Routine Care

Periodic cleaning of this grill is necessary, as grill fires can occur when grease and food debris collect in the bottom of the grill. After each use, remove any remaining food particles from the cooking grate and inside of the grill using a grill brush. Do this after the grill has cooled down. This grill is not designed to be 'burned off' by closing the lid and turning the burners on High for an extended time. The excessive heat generated can cause leftover grease to catch fire, and can cause permanent damage to your grill.

General Cleaning

Plastic parts: Wash with warm soapy water and wipe dry. Do not use abrasive cleaners, degreasers or a concentrated grill cleaner on plastic parts. Damage to and failure of parts can result.

Porcelain surfaces: Because of glass-like composition, most residue can be wiped away with baking soda/water solution or glass cleaner. Use non-abrasive scouring powder for stubborn stains.

Painted surfaces: Wash with mild detergent or non-abrasive cleaner and warm water. Wipe dry with a soft non-abrasive cloth.

Stainless steel surfaces: Stainless steel can rust under certain conditions. This can be caused by environmental conditions such as chlorine or salt water, or improper cleaning tools such as wire or steel wool. It can also discolor due to heat, chemicals, or grease build-up. To maintain your grill's high quality appearance, wash with mild detergent and warm water, or use a stainless steel grill cleaner. Baked-on grease deposits may require the use of an abrasive plastic cleaning pad. Use only in direction of brushed finish to avoid damage. Do not use abrasive pad on areas with graphics.

Cooking surfaces: Ensure no loose bristles remain on cooking surfaces prior to grilling. It is not recommended to clean cooking surfaces while grill is hot.

Stainless Steel Grill Dish Chour - Pelleau - Provent Lignardier de Protien de Acres Insectable Coupe - Lucey - Prove Mactoyear Pure Gris en Acter Insectable Bursie - Poly - Prove Chour-Revill CAUTION STATION DUCT 2017/06/20 2017/06/21 2017/06/22 2017/06/23 2017/06/24 2017/06/25 2017/06/26 2017/06/27 2017/06/28 2017/06/29 2017/06/30 2017/06/31 2017/06/32 2017/06/33 2017/06/34 2017/06/35 2017/06/36 2017/06/37 2017/06/38 2017/06/39 2017/06/40 2017/06/41 2017/06/42 2017/06/43 2017/06/44 2017/06/45 2017/06/46 2017/06/47 2017/06/48 2017/06/49 2017/06/50 2017/06/51 2017/06/52 2017/06/53 2017/06/54 2017/06/55 2017/06/56 2017/06/57 2017/06/58 2017/06/59 2017/06/60 2017/06/61 2017/06/62 2017/06/63 2017/06/64 2017/06/65 2017/06/66 2017/06/67 2017/06/68 2017/06/69 2017/06/70 2017/06/71 2017/06/72 2017/06/73 2017/06/74 2017/06/75 2017/06/76 2017/06/77 2017/06/78 2017/06/79 2017/06/80 2017/06/81 2017/06/82 2017/06/83 2017/06/84 2017/06/85 2017/06/86 2017/06/87 2017/06/88 2017/06/89 2017/06/90 2017/06/91 2017/06/92 2017/06/93 2017/06/94 2017/06/95 2017/06/96 2017/06/97 2017/06/98 2017/06/99 2017/06/1

Storing Your Grill

• Clean cooking grates.
• Store grill in dry location.
• When LP cylinder is connected to grill, store outdoors in a well ventilated space and out of reach of children.
• Cover grill if stored outdoors. Choose from a variety of grill covers offered by Char-Broil at charbroil.com.
• Store grill indoors ONLY if LP cylinder is turned off, disconnected, and removed from grill. Never store LP cylinder indoors.
• When removing grill from storage, follow the 'Clearing the Burner Assembly' instructions in the Use and Care section of the Product Guide.

Critters

Spiders like to make their homes in the venturi tubes of grills. These must be inspected and cleaned regularly to ensure there are no blockages. Refer to the Use and Care portion of this Product Guide for complete information.

GEARTRAX™

The Char-Broil® grill is equipped with Gear Trax™, which allow for the easy mounting of our unique line of Gear Trax accessories. Please visit charbroil.com for a complete list of Gear Trax accessories. *Available on most models.

Black and white photo of food items on a metal grater with a circular prohibition symbol (no text or symbols)

Température

Technical line drawing of a mechanical assembly with multiple rollers and flanges (no text or symbols)

Line drawing of a chicken placed on a bamboo mat with coiled sticks (no text or symbols)

Line drawing of a chicken placed on a bamboo mat with multiple rolled dough pieces (no text or symbols)

Illustration of a medical or surgical tool with multiple pressure sensors and a central device (no text or symbols)

Line drawing of a medical procedure setup with a surgical instrument and multiple tubes (no text or symbols)

Black-and-white photo of various glass jars containing various food items including a jar, glass jar with granular contents, and a glass jar filled with dark liquid (no visible text or labels)

Copeaux de bois

Pile of dried, sliced plant material with smoke in the background (no text or symbols visible)

Broches

Black-and-white photo of a plated dish featuring sliced meat and garnish, placed on a white plate (no text or symbols visible)

Ustensiles

Three stainless steel kitchen utensils including tongs, a flat plate, and a fork (no text or symbols visible)

Black and white photo of skewers with a diagonal line crossed out, showing various food items (no text or symbols)

Temperatura

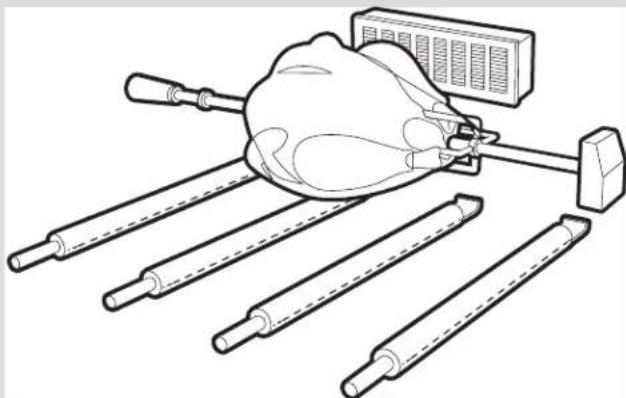

Technical line drawing of a mechanical assembly with multiple cylindrical components and spring-like elements (no text or symbols)

Line drawing of a roasted chicken placed on a bamboo mat with coiled sticks (no text or symbols)

Line drawing of a roasted chicken placed on a bamboo mat with multiple rolled dough pieces (no text or symbols)

Line drawing of a medical or surgical tool with multiple parallel rods and a central bulb (no text or symbols)

Line drawing of a medical procedure setup with a surgical instrument and multiple tubes (no text or symbols)

Black-and-white photo of various glass jars containing various food items including tomatoes, beans, and a glass jar (no visible text or labels)

Astillas de madera

Pile of dried, sliced plant material with smoke in the background (no text or symbols visible)

Brochetas

Black-and-white photo of a skewered meat dish on a white plate, garnished with sauce and a knife (no text or symbols visible)

Utensilios

Three stainless steel kitchen utensils including tongs, a spatula, and a fork (no text or symbols visible)

EMERGENCIES: If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department.

Emergencies Possible Cause Prevention/Solution
Gas leaking from cracked/cut/burned hose.	Damaged hose.	Turn off gas at LP cylinder or at source on natural gas systems. Discontinue use of product and replace valve/hose/regulator. Once valve/hose/regulator replaced conduct complete leak check per manual.
Gas leaking from LP cylinder. Gas leaking from LP cylinder valve.	Mechanical failure due to rusting or mishandling.Failure of cylinder valve from mishandling or mechanical failure.	Replace LP cylinder.Turn off LP cylinder valve. Return LP cylinder to gas supplier.
Gas leaking between LP cylinder and regulator connection.	Improper installation, connection not tight, and/or failure of rubber seal in cylinder valve.	Turn off LP cylinder valve. Remove regulator from cylinder and visually inspect rubber seal in cylinder valve for damage. If damage or cannot correct leak replace cylinder. See LP Cylinder Leak Test and Connecting Regulator to the LP Cylinder.
Fire coming through control panel.	Fire in burner tube section of burner due to blockage.	Turn off control knobs and LP cylinder valve. Leave lid open to allow flames to die down. After fire is cut and grill is cold, remove burner and inspect for spider nests or rust. See Natural Hazard and Cleaning the Burner Assembly pages.
Grease fire or continuous excessive flames above cooking surface.	Too much grease buildup in burner area.	Turn off control knobs and LP cylinder valve. Leave lid open to allow flames to die down. After cooling, clean food particles and excess grease from inside firebox area, grease tray, and other surfaces.

Troubleshooting

Problem Possible Cause Prevention/Solution
Burner(s) will not light using ignitor.(See Electronic Ignition Troubleshooting also)Continued on next page.	GAS ISSUES:Trying to light wrong burner.Burner not engaged with control valve.Obstruction in burner.No gas flow.Coupling nut and LP cylinder valve not fully connected.ELECTRICAL ISSUES:Electrode cracked or broken; “sparks at crack.”Electrode tip not in proper position.(Does not apply to SUREFIRE.)Wire and/or electrode covered with cooking residue.Wires are loose or disconnected.Wires are shorting (sparking) between ignitor and electrode.Dead battery.ELECTRONIC IGNITION:No spark, no ignition noise.No spark, some ignition noise.Sparks, but not at electrode or at full strength.	See instructions on control panel and in Use and Care section.Make sure valves are positioned inside of burner tubes.Ensure burner tubes are not obstructed with spider webs or other matter. See cleaning section of Use and Care.Make sure LP cylinder is not empty. If LP cylinder is not empty, refer to "Sudden drop in gas flow."Turn the coupling nut approximately one-half to three-quarters additional turn until solid stop. Tighten by hand only - do not use tools.Replace electrode(s).Main Burners:Tip of electrode should be pointing toward gas port opening on burner. The distance should be 1/8" to 1/4". Adjust if necessary.Sideburner:Tip of electrode should be pointing toward gas port opening on burner. the distance should be 1/8" to 3/16". Adjust if necessary.Clean wire and/or electrode with rubbing alcohol and clean swab.Reconnect wires or replace electrode/wire assembly.Replace ignitor wire/electrode assembly.Replace with a new alkaline battery.See Section I of Electronic Ignition System.See Section II of Electronic Ignition System.See Section III of Electronic Ignition System.
Burner(s) will not match light. • See	GAS ISSUES:Match will not reach.Improper method of match-lighting.	Use long-stem match (fireplace match).See "Match-Lighting" section of Use and Care.
Sudden drop in gas flow or low flame.	Out of gas.Excess flow valve tripped.Vapor lock at coupling nut/LP cylinder connection.	Check for gas in LP cylinder.Turn off knobs, wait 30 seconds and light grill. If flames are still low, turn off knobs and LP cylinder valve. Disconnect regulator. Reconnect regulator and leak-test. Turn on LP cylinder valve, wait 30 seconds and then light grill.Turn off knobs and LP cylinder valve. Disconnect coupling nut from cylinder. Reconnect and retry.
Flames blow out. High or gusting winds.Low on LP gas.Excess flow valve tripped.		Turn front of grill to face wind or increase flame height by turning gas valve to a higher position.Refill LP cylinder.Refer to “Sudden drop in gas flow” above.
Flare-up. Grease buildup.	Excessive fat in meat.Excessive cooking temperature.	Clean burners and inside of grill/firebox.Trim fat from meat before grilling.Adjust (lower) temperature accordingly.
Persistent grease fire.	Grease trapped by food buildup around burner system.	Turn knobs to OFF. Turn gas off at LP cylinder. Leave lid in position and let fire burn out. After grill cools, remove and clean all parts.
Flashback (fire in burner tube(s)).	Burner and/or burner tubes are blocked.	Turn knobs to OFF. Clean burner and/or burner tubes. See burner cleaning section of Use and Care.
One burner does not light from other burner(s).	Grease buildup or food particles in end(s) of carryover tube(s).	Clean carry-over tube(s) with wire brush.

Troubleshooting - Electronic Ignition

Problem (Ignition) Possible Cause Check Procedure		Prevention/Solution
SECTION INo sparks appear at any electrodes when Electronic Ignition Button is pressed; no noise can be heard from spark module.	Battery not installed properly.Dead battery.Button assembly not installed properly.Faulty spark module.	Check battery orientation.Has battery been used previously?Check to insure threads are properly engaged. Button should travel up and down without binding.If no sparks are generated with new battery and good wire connections, module is faulty.	Install battery (make sure that "+" and "-" connectors are oriented correctly, with "+" on cap end.)Replace battery with new alkaline battery.Unscrew button cap assembly and reinstall, making sure threads are aligned and engaged fully.Replace spark module assembly.
SECTION IINo sparks appear at any electrodes when Electronic Ignition Button is pressed; noise can be heard from spark module.	Output lead connections not connected.	Are output connections on and tight?	Remove and reconnect all output connections at module and electrodes.
SECTION IIISparks are present but not at all electrodes and/or not at full strength	Output lead connections not connected.Arcing to grill away from burner(s).Weak battery.Electrodes are wet.Electrodes cracked or broken "sparks at crack".	Are output connections on and tight?If possible, observe grill in dark location. Operate ignition system and look for arcing between output wires and grill frame.All sparks present but weak or at slow rate.Has moisture accumulated on electrode and/or in burner ports?Inspect electrodes for cracks.	Remove and reconnect all output connections at module and electrodes.If sparks are observed other than from burner(s), wire insulation may be damaged. Replace wires.Replace battery with a new alkaline battery.Use paper towel to remove moisture.Replace cracked or broken electrodes.

Two convenient ways to register your product:

www.charbroil.com/product-registration/

Please fill out this card and attached a copy of your sales receipt. Return it within 10 days of purchase for warranty service. Proof of purchase will be required. The warranty is not transferable.

If you prefer not to receive special offers and promotions from Char-Broil, please check here: □

*5. Attach copy of your sales receipt here.

Mail to: | Envoyer à: | Correo a:

Char-Broil Warranty Registration

P.O. Box 1240

Columbus, Ga 31902-1240

Grill Purchased: Assembled?

Boxed?

Thank you for completing this questionnaire | Merci d'avoir rempli ce questionnaire. | Gracias por completar este cuestionario

CZB®

CHARBROIL

©2024 Char-Broil, LLC. Columbus, GA, 31904. Printed in Vietnam. Imprimé en Vietnam. Impreso en Vietnam.

©2024 Assembly instructions. ©2024 Assemblée des instructions. ©2024 Instrucciones de ensamblado.

The product associated with this guide was manufactured in Vietnam. Le produit associé à ce guide a été fabriqué en Vietnam. Tel producto asociado con esta guía ha sido fabricado en Vietnam.
