IV. UTILISATION

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. This device may be used by children 8 years of age or older, and those with reduced physical, sensory or mental capacity or lack of experience or knowledge, if they are properly supervised or if instructions for the safe use of the device have been given to them and the risks involved have been apprehended.
2. Children should not play with the device.
3. Cleaning and maintenance by the user should not be done by children.
4. Children under 3 years of age should be kept at a distance unless they are under continuous surveillance.
5. Children between the ages of 3 and 8 years old must only start or stop the appliance, provided that the appliance has been placed or installed in a normal position and that these children are supervised or have received instructions on how to use the device safely and understand the potential dangers.
6. Children between 3 and 8 years old must not plug in, adjust, clean or perform user maintenance.
7. CAUTION - Parts of this product can become very hot and cause burns. Special attention

must be paid to the presence of children and vulnerable people.

1. CAUTION: To prevent overheating, do not cover the heater.

2. Do not use this heater with a timer, a timer, a separate remote control system, or any other device that automatically turns on the heater, as there is a risk of fire if the appliance is covered or placed incorrectly.

3. Do not use this heater near a bath, shower or pool.

4. The heater must not be placed directly under a power outlet.

5. CAUTION: It is dangerous to install the unit near curtains and other combustible materials.

6. If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid a hazard.

7. The product must be installed in a compliant electrical network, respecting the national rules of installation.

8. This device is intended for indoor use. Do not use this device for any purpose other than that provided by the manufacturer.

9. Must not be immersed.

10. Use this product in a well ventilated and ventilated room.

11. Never attempt to disassemble the control buttons, to introduce objects into the ventilation

grille. The manufacturer could not be held responsible.

1. Do not leave this product unattended while operating. If not in use, always make sure the product is in the "Off" position and unplug it from the outlet.

2. WARNING: To avoid overheating, do not cover the heater.

This symbol means that you must not cover the appliance

1. Care must be taken when using by or near children or elderly people.

2. Do not put the cable under a carpet or any heavy object and do not cover.

3. Keep it out of the way points to avoid any incident. Do not use on unstable surfaces.

4. To prevent fire or shock hazard, do not expose this apparatus to rain or moisture and do not open it. The device contains electrical parts that could electrocute or burn you.

5. Do not place this product near flammable textiles, surfaces or liquids to prevent fire. Keep it well away from all sources at risk and keep at a safe distance (whether from the front, back or sides). Do not use this device in places such as garages, warehouses ... where dangerous or flammable products are stored (paints, petrol, alcohols ...)

6. Do not put the unit under or near an electrical outlet.

7. This product is hot when it works. To avoid personal injury or burns, do not touch it directly and use gloves or other means.

8. The unit should not be placed directly under a power outlet.
9. Before any operation, check that the voltage of the device corresponds to the voltage of your electrical network (wall socket of 230 volts). To avoid any risk of electric shock, connect the appliance by fitting the plugs correctly into the jacks provided for this purpose.
10. Do not use an extension cord with the appliance.
11. As long as the unit is connected to the mains (wall socket), it is not disconnected from the power source even if it is turned off. The appliance must be completely unplugged before cleaning, service, maintenance or even moving from one place to another.
12. The unit can not be wall mounted and used as a fixture.
13. For detailed information on how to attach the feet to the heater, refer to "Feet mounting" section.

Warning: Connect the device correctly and do not leave it within the reach of children unattended.

GROUNDING

This unit must be plugged into a grounded outlet. This unit is equipped with an electrical outlet on the ground. It must be plugged into a properly installed wall outlet with a grounding plug.

WARNING: Improper use of the grounding plug may result in the risk of electric shock.

Notes: If you have any questions about the grounding or the electrical connection, please consult qualified personnel.

In the event of a short circuit, grounding reduces the risk of electric shock by allowing current to be discharged through the earth wire.

Line drawing of a plug with two terminals and a side socket (no text or symbols)

Information on the meaning of the conformity marking

The CE marking indicates that the product meets the main requirements of European Directives 2014/35 / EC (Low Voltage), 2014/30 / EC (Electromagnetic compatibility), 2011/65 / EU (Reduction of the use of certain hazardous substances in EEE).

SUMMARY

I. IMPORTANT SAFETY TIPS....16
II. DESCRIPTION OF THE DEVICE 22

1. Product Description: 22
2. Technical specifications: 22
3. Packaging content: 22
4. Information requirements for electric space heaters: 23

III. INSTALLATION....24

1. Unpacking and disposal of packaging elements: 24
2. Foot mounting: 24

IV. USE OF INSTRUCTIONS.... 25

1. Precautions for use: 25
2. Getting started: 25
3. Thermostat function: 25
4. Frost protection function: 26
5. Maintenance and cleaning: 26

V. GUARANTEES 27

VI. DISPOSAL....28

II. DESCRIPTION OF THE DEVICE

1. Product Description:

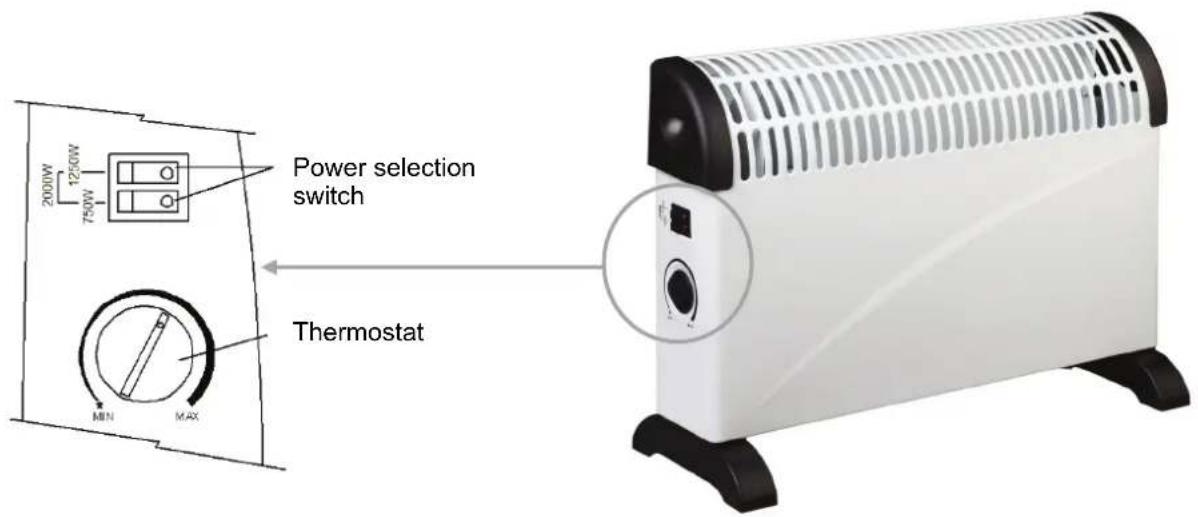

200W 125W 75W Power selection switch Min MAX Thermostat

2. Technical specifications:

Designation:	Electric Convector
Mark OCEANIC
Reference: OCEACV130S6
Models:	DL01-D Stand
Voltage:	220-240V~ 50-60Hz
Power (mode I) 750 W
Power (mode II)	1 250 W
Power (I + II mode)	2 000 W

3. Packaging content:

• An electric heater
• 2 plastic feet
• 1 bag of screws
• A user guide

4. Information requirements for electric space heaters:

Model identifier(s): OCEACV130S6
Item	Symbol	Value	Unit	Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1,8-2,0	kW	manual heat charge control, with integrated thermostat	no
Minimum heat output (indicative)	P_min 0,75 kW			manual heat charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	P_max,c	2,0	kW	electronic heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption				fan assisted heat output	no
At nominal heat output	el_max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A	kW	single stage heat output and no room temperature control	no
In standby mode	el_SB	N/A	kW	two or more manual stages, no room temperature control	no
				with mechanic thermostat room temperature control	yes
				with electronic room temperature control	no
				electronic room temperature control plus day timer	no
				electronic room temperature control plus week timer	no
				Other control options (multiple selections possible)
				room temperature control, with presence detection	no
				room temperature control, with open window detection	no
				with distance control option	no
				with adaptive start control	no
				with working time limitation	no
				with black bulb sensor	no
Contact details	SCHNEIDER CONSUMER GROUP12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

III. INSTALLATION

1. Unpacking and disposal of packaging elements:

Your product must be unpacked and handled with care, to avoid any risk of deformation or shock.

Make sure that all plastic parts do not touch the product.

Packaging materials

- The packing box is recyclable.

- Materials marked with the symbol △ are recyclable

PE <= polyethylene; > PS <= polystyrene; PP = polypropylene; ...

This means that they can be recycled by disposing of them in appropriate collection containers.

- The other packing elements (adhesive, fasteners ...) must be thrown away with household waste.

2. Foot mounting:

Before plugging in your product, first install the feet:

• Put your convector flat or on its side on a flat surface covered with a soft cloth so as not to damage the surface of the product.
• Fix the feet under the base by inserting the screws in the axis as shown in the figure below, then straighten your convector.

Technical line drawing of a mechanical component with a screwdriver and a striped panel (no text or symbols)

IV. USE OF INSTRUCTIONS

1. Precautions for use:

• Before using this unit, make sure it is installed on a flat, stable surface.
• Place the radiator at least 90 cm away from the wall, furniture or curtains.
• Check that the voltage indicated on the rating plate of the appliance corresponds to the voltage of your electrical installation.
• Always cool the radiator before moving it. It must be handled by holding it by the handles.

Attention :

• Make sure the feet are properly assembled before operating the unit.
• Never fix the convector to the wall.
• This product can only be used in well isolated premises or occasionally.

2. Getting started:

Before connecting the power cord to a wall outlet, make sure that the thermostat control and power selection switches are in the "Off" position.

• Connect your heater to a wall outlet.
• Switch on the radiator by pressing one or both switches according to the desired power. 3 operating modes are available:
• Switch on the switch (I) to operate the radiator in 750 W
• Switch on the switch (II) to operate the radiator in 1250 W
• Switch on the switches (I + II) to operate the heater in 2000 W

The power switches turn on when the heater is running.

3. Thermostat function:

The room temperature can be adjusted using the thermostat.

Turn the thermostat knob clockwise to increase the temperature, or counterclockwise to decrease it until the desired temperature is reached.

After reaching the desired temperature, to maintain the room temperature: Turn the thermostat knob counterclockwise until the indicator light goes out. The desired temperature will be kept constant by the function of the thermostat.

If the appliance is not in use, put both switches on "Off" and the thermostat knob on "MIN." and then unplug the unit.

Remark:

- The heater has a protection system against overheating.

ATTENTION :

Never cover or place objects on the radiator while it is running.

4. Frost protection function:

The function "Frost free" keeps the room at a temperature close to 5 °C, thus preventing frost formation.

To activate this function, keep the thermostat knob on "Min" while keeping one of the switches in the "On" position.

5. Maintenance and cleaning:

• Before any maintenance operation, always unplug the appliance from the electrical outlet.
• To clean the outer surface of the unit, use a slightly damp cloth. Then dry with a soft, dry cloth before reuse.
• Do not use any detergent, chemical or wax to make the appliance shine as they may react to heat and cause discoloration or fire if the products are flammable.
• When the unit is not used for a period of time, make sure it is unplugged from the outlet. Clean it as previously mentioned. Ideally, store it in its carton packaging.

V. GUARANTEES

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or unauthorized repair;
(4) improper maintenance, improper use concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

VI. DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

• This logo affixed to the product means that it is a device whose treatment as waste falls within the scope of Directive 2012/19 / EU, on Waste Electrical and Electronic Equipment (WEEE).

• The presence of hazardous substances in electrical and electronic equipment can have potential effects on the environment and human health in the reprocessing cycle of this product.

• Thus, at the end of the life of this appliance, it must not be disposed of with unsorted municipal waste.

• As a final consumer, your role is paramount in the cycle of reuse, recycling and other forms of recovery of this electrical and electronic equipment. Recovery and collection systems are made available to you by local authorities (waste disposal centers) and distributors.
• You have the obligation to use the selective collection systems available to you.

oceanic

OCEACV130S6_IM_FR_032020_V1.1 www.oceanic.eu
