Product type	Vacuum cleaner
Brand	Numatic
Model	CVD570
Protection class	Class II
Usage	Dry and wet
Power cord length	10 m
Cable cross-section	1.00 mm² or 1.50 mm²
Filtration system	Filter bag and filter
Instructions	Read before use
Maintenance	Regular cleaning of filters, emptying the container
Safety	Floating valve for wet mode
Applications	Indoor, commercial use (hotels, schools, hospitals...)
Do not use	In the rain, for hot ashes or cigarette butts
Recommended personal protection	Hearing protection, safety shoes, gloves, goggles
Recycling	Compliant with WEEE directive 2012/19/EU
Warranty	Void if using deodorizers in the filter
Serial number	Indicated on the machine (year/week)

Frequently Asked Questions - CVD570 Numatic

How to use the vacuum cleaner in dry mode?

Make sure a filter bag and a filter are correctly installed. Plug in the appliance and use the appropriate accessories. Empty the dust container regularly.

How to use the vacuum cleaner in wet mode?

Remove the filter bag and ensure the floating valve works correctly. Vacuum the liquid. If foam comes out of the exhaust opening, stop immediately and check the float.

What to do if the vacuum cleaner stops working?

Stop the appliance and unplug it. Check that the floor tool, wands, and hoses are not blocked. Check the filter bag and filter. In wet mode, check if the floating valve has activated.

How to maintain the filters?

Clean the filters regularly before each use. Check their condition and replace them if necessary. Keep the diffuser filter clean if applicable.

Can I vacuum hot ashes or cigarette butts?

No, never vacuum hot ashes or lit cigarette butts. This could damage the appliance or cause a fire.

Can I use deodorizers in the filter?

No, never place foreign objects such as deodorizers, capsules, or scented beads in the top filter. This would damage the machine and void the warranty.

How to clean the machine?

Unplug the appliance before any cleaning. Do not use a steam or high-pressure cleaner. Never immerse the machine in water. Wipe the exterior with a damp cloth.

What to do in case of liquid spillage?

Stop the machine immediately. Let the liquid drain through the exhaust opening. Check the float and empty the container. Then restart.

What is the supply voltage?

The vacuum cleaner operates on mains power with a 10 m power cord. Typical voltage is 230 V (AC). Check the label on the machine.

Can I use the vacuum cleaner outdoors?

No, this machine is for indoor use only. Never use it in the rain. Always store it indoors.

USER MANUAL CVD570 Numatic

Line drawing of a vacuum cleaner with coiled hose and wheels (no text or symbols)

Original Instructions

CAUTION, Read instructions before using the machine.

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of three vertical bars with three horizontal bars below, no text or symbols present.

Technical line drawing of a vehicle chassis with front and side views (no text or symbols)

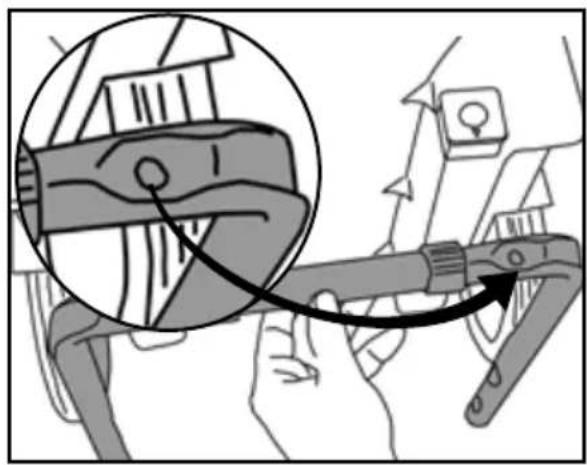

Diagram showing a mechanical device with a magnified inset highlighting a component (no text or symbols present)

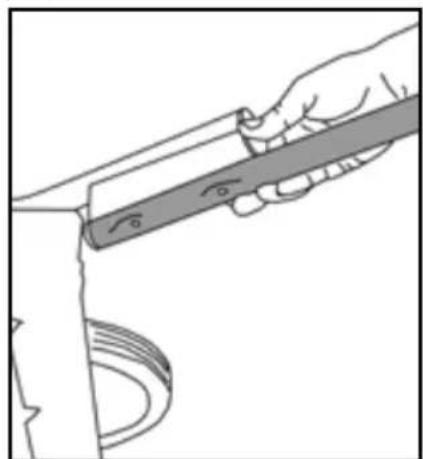

Line drawing of a hand holding a tool over a surface, no text or symbols present

Technical line drawing of a mechanical device with wheels and internal components (no text or symbols)

Line drawing of a car seatbelt mechanism with hand holding key (no text or symbols)

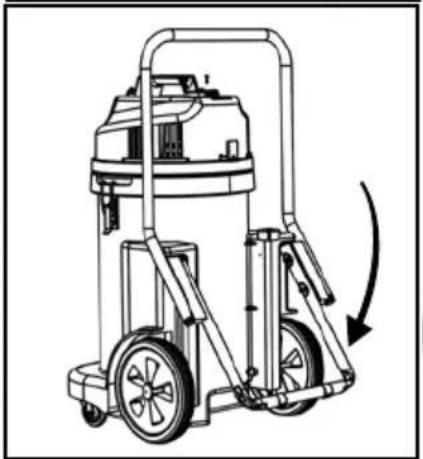

Line drawing of a vacuum cleaner with wheels and a curved arrow indicating rotation (no text or symbols)

Line drawing of a mechanical device with wheels and a curved arrow indicating rotation (no text or symbols)

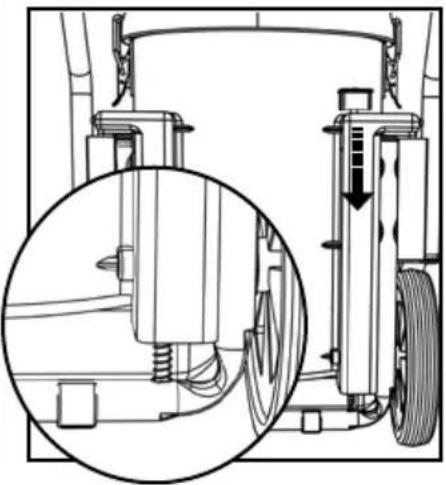

Technical diagram of a vehicle suspension system with a magnified inset showing internal components (no text or labels)

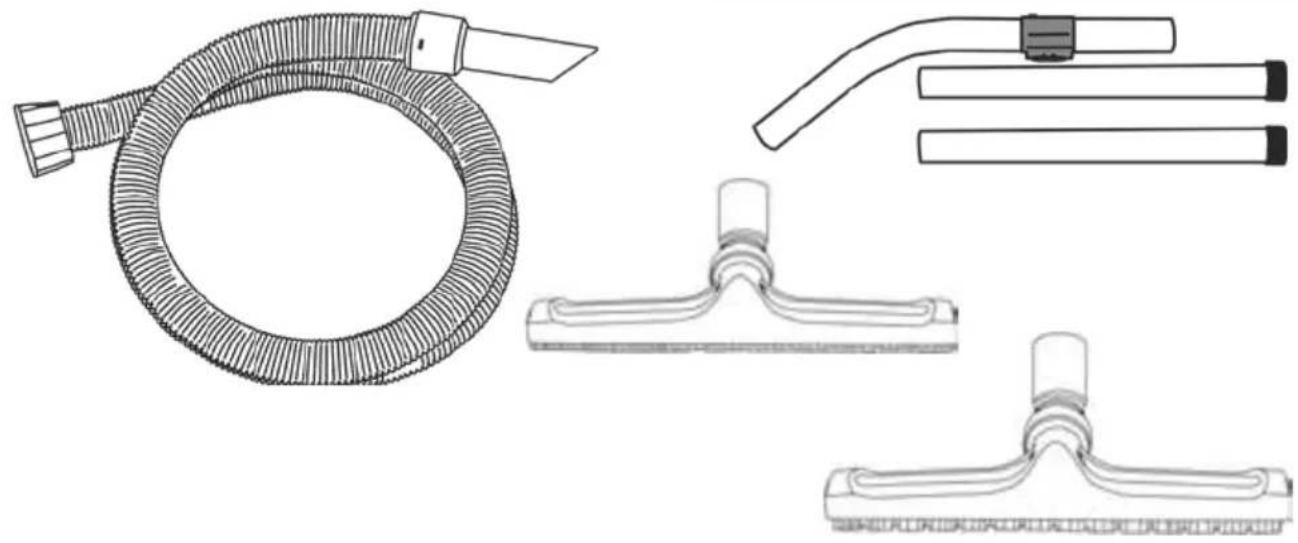

Technical line drawings of four different mechanical or electrical components: a coiled hose, a clamp, a bracket, and a terminal block (no text or symbols present)

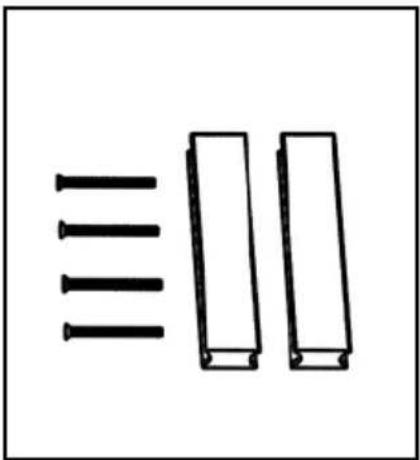

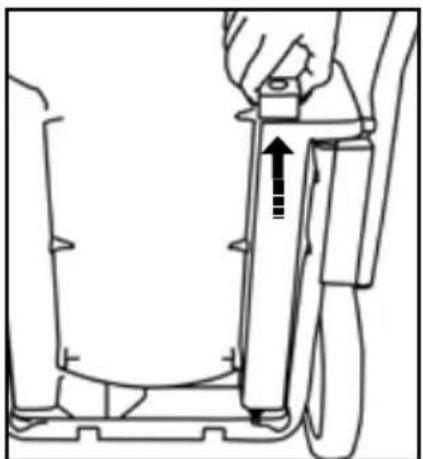

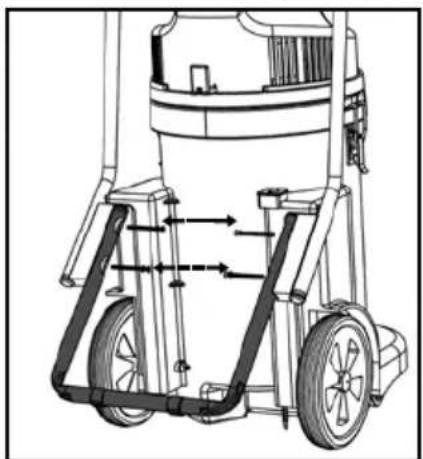

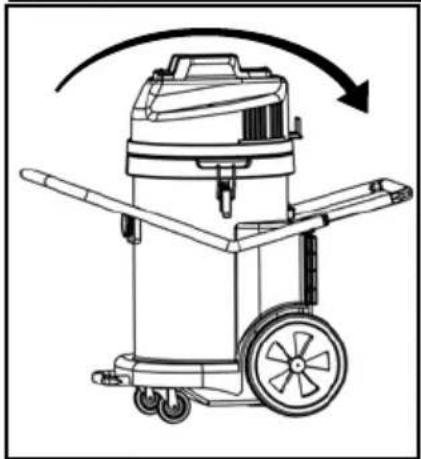

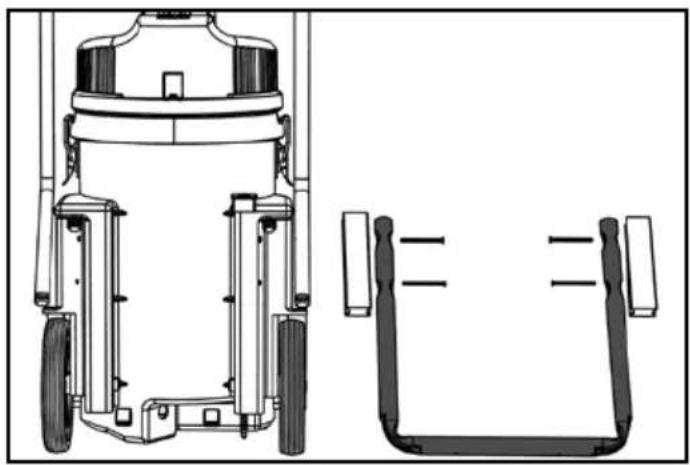

Assembling the machine / Montage der Maschine / Montage de la machine

Illustration showing a vacuum cleaner's cleaning process with labeled steps and component details

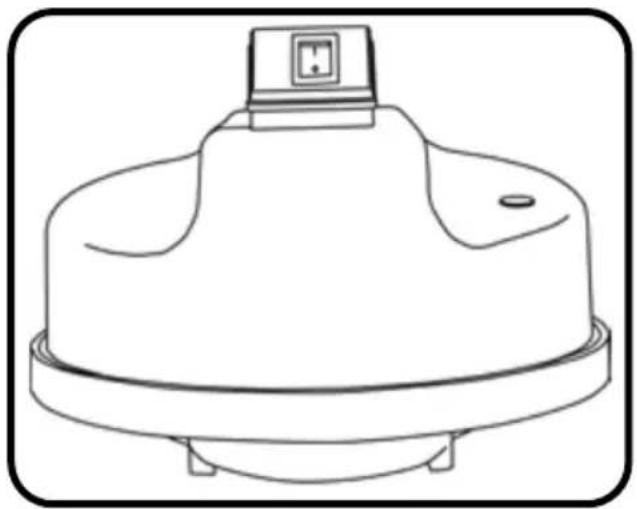

On / Off

Line drawing of a mechanical component with a top-mounted knob and base plate (no text or symbols)

-Warning!

You must make sure all waste material has been emptied from machine after use. Make sure all filters are clean before every use.

Exploded view diagram of a cleaning or dust cleaning machine, showing internal components and mounting structure (no text or labels)

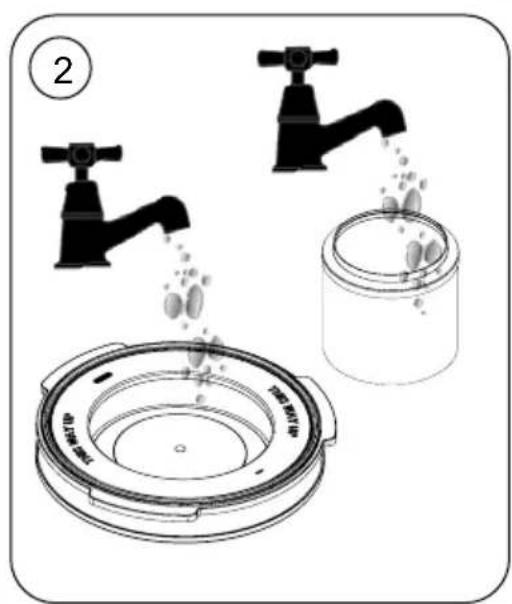

2 POT 100%

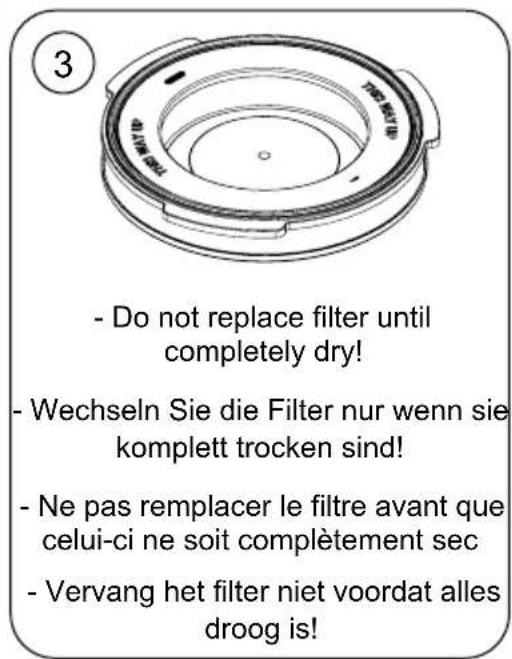

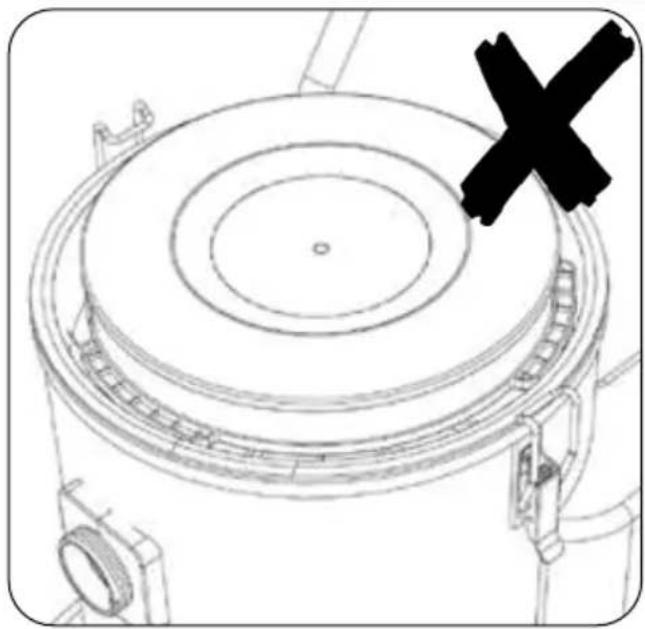

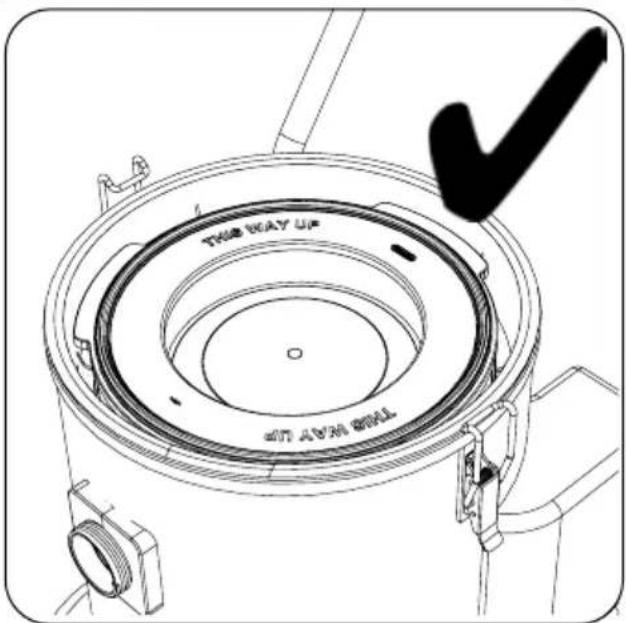

- Do not replace filter until completely dry! - Wechseln Sie die Filter nur wenn sie komplett trocken sind! - Ne pas remplacer le filtre avant que celui-ci ne soit complètement sec - Vervang het filter niet voordat alles droog is!

Technical line drawing of a circular mechanical component with concentric rings and mounting brackets (no text or symbols)

THE WAY UP #7 AVN 801

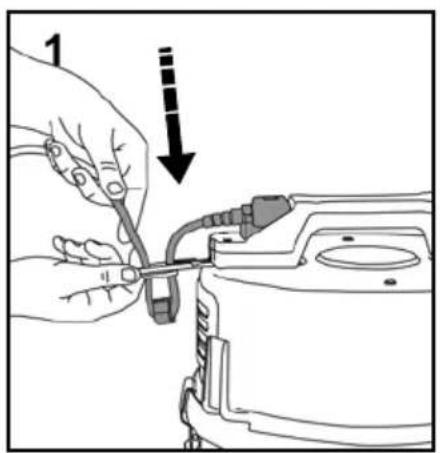

1

2

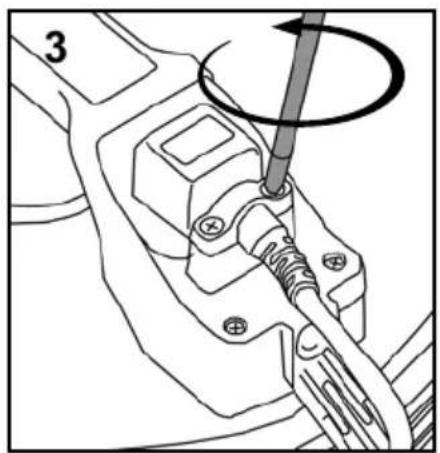

Technical line drawing of a mechanical component with a screwdriver and a curved arrow indicating rotation (no text or symbols)

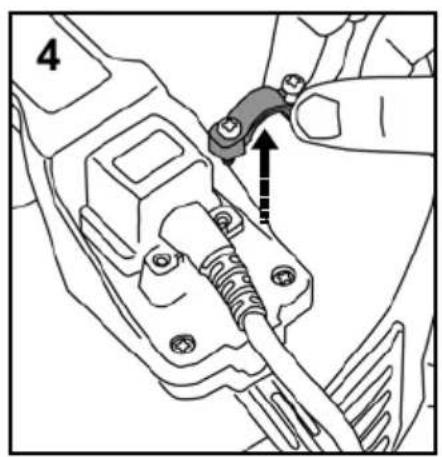

Technical line drawing of a mechanical component with a hand adjusting a clip (no text or symbols)

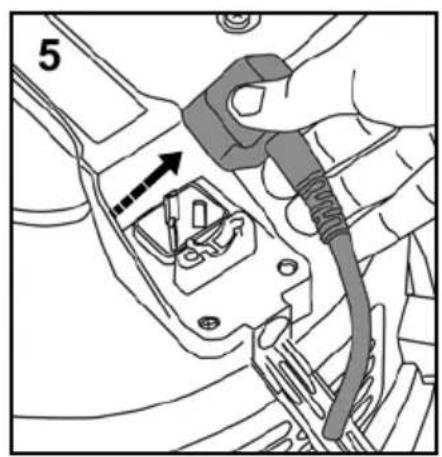

5

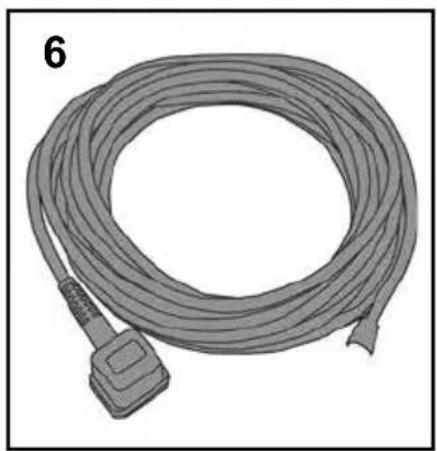

Coiled electrical cable with a terminal connector, no text or symbols visible

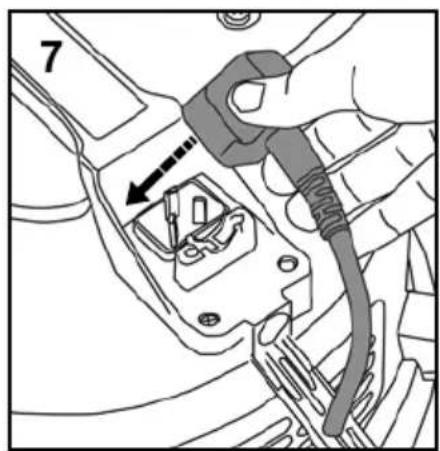

7

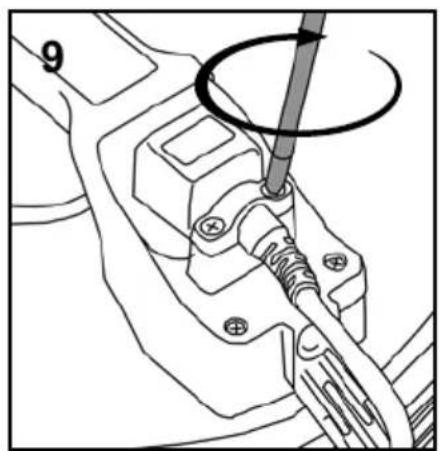

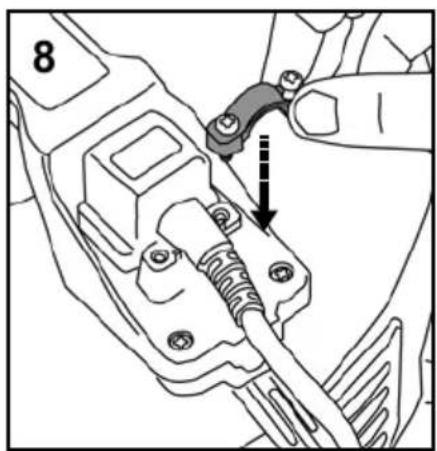

Mechanical assembly diagram showing a hand holding a tool with a bracket and cable, no text or symbols present

Technical line drawing of a mechanical component with a tool and circular motion indicator (no text or symbols)

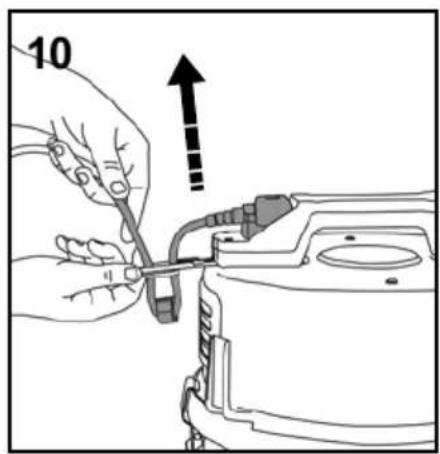

10

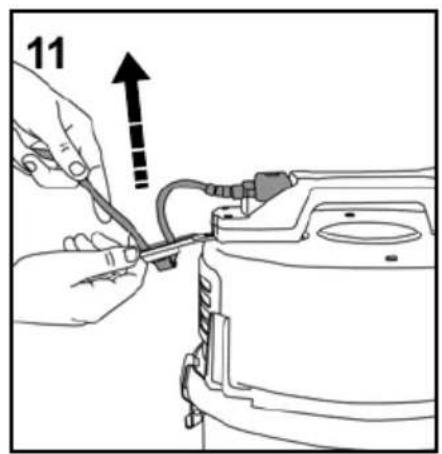

11

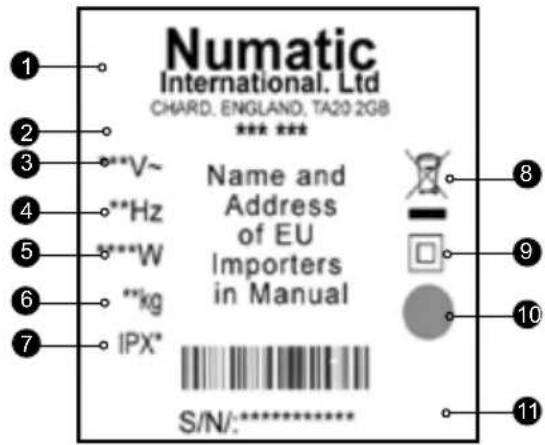

1	company Name & Address
2	Model
3	oltage/Alternating Current
4	frequency
5	rated Input Power
6	/eight
7	gress Protection
8	WEEE Logo
9	rotection Class 2 Symbol
10	Approval Mark
11	Machine yr/wk Serial Number

(EN) About your machine

Numatic International. Ltd CHARD. ENGLAND. TA20 2GB *** *** ** **V~ **Hz ****W **kg IPX* Name and Address of EU Importers in Manual S/N:***** 1 2 3 4 5 6 7 8 9 10 11

Daily

Keep the machine clean, including hoses and tubes.

Ensure the bag and fi iter are fi tted, (Dry use).

Empty dust bag if required.

Clean and check fl oat safety valve for signs of damage.

Regularly examine the power cord.

Check fi Iters are clean.

Weekly - as daily and:-

Check for any worn or damaged parts and replace immediately.

MAINTENANCE

WEEE Legislation (Waste, Electrical and Electronic Equipment)

Vacuum cleaner, accessories and packaging should be sorted for environmentally - friendly recycling.

(Only for EU Countries)

Do not dispose of vacuum cleaner into household waste! According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its incorporation into national law.

Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmentally - friendly manner.

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

PPE (personal protective equipment). That may be required for certain operations.

Ear Protection Safety Footwear Head Protection		ction Safety Gloves
Eye Protection Protective Clothing		Dust / Allergens Protection	Hi Viz Jacket Cauton Floor Sign

NOTE: A risk assessment should be conducted to determine which PPE should be worn.

Safety Critical Components

Mains leads:

HO5VV-F x 10 m x 2 Core x 1.00mm²

HO5VV-F x 10 m x 2 Core x 1.50mm ^4

Warning

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines.

As with all electrical equipment, care and attention must be exercised at all times during use,

in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

The machine shall be disconnected from the mains power by removing the plug from the power supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function.

This machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge.

Children being supervised are NOT to play with the machine.

This appliance is intended to be assembled, cleaned and maintained by an adult.

This machine is not a toy.

This machine is not suitable for picking up hazardous or explosive dust. Contact your local distributor if you require a machine capable of performing these tasks.

Caution

If foam/liquid comes out of machine exhaust, switch off immediately.

Allow the accumulated liquid to drain out through the machine exhaust, check the float assembly to ensure correct operation, empty the container if full of liquid, reassemble the machine.

Immediately upon start up there will be a certain amount of liquid issuing from the machine exhaust which will be the residue of liquid still within the power head. This will be quickly discharged after which the machine should function normally.

Liquid ejected from the machine could be hazardous as a result of its temperature, pressure or chemical content.

Ensure that the fi ltration system fi tted to the machine is suitable for the material being collected.

This machine is for indoor use only.

This machine shall be stored indoors only.

When moving from one place to another, consider the weight of the machine.

Notes

You must ensure that the fi ltration system fi tted to the machine is suitable for the material being collected.

This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 Stability and Mechanical Hazards.

The primary use for this machine is commercial, for example in hotels, schools, hospitals, factories, shops and offices.

If the vacuum cleaner stops working, remove the plug from the power supply before investigating where the fault lies.

The vacuum cleaner should be inspected after use for damage.

The power light will illuminate, when your machine is connected to a suitable power supply (where fitted).

Do

• Use a bag and fi Iter at all times when using 'dry'.
- Keep your machine clean.
- Keep fi Iters clean.
• Regularly clean the water level limiting float safety valve and examine for signs of damage or correct operation.
- Keep hoses and tubes clear.
- Replace any worn or damaged parts immediately.
• Regularly examine the power cord, if damage is found, the power cord must be replaced by a special cord available from Numatic or its service agents.

Don't

• Use steam cleaners or pressure washers to clean the machine or use the machine in the rain.
• Immerse in water for cleaning.
- Allow any inexperienced repairs. Call the experts.
• Use wet if float valve is not functioning or fitted.
• Use to suck up hot ashes, or lighted cigarette ends.
• Run the machine over the power cable during operation as a hazard may occur.
• Pull on the cable to unplug the machine from the power supply.
• Walk over-wet carpets, upholstery or fabrics.
• Walk on clean carpets until fully dry.
• Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.
• Under any circumstances place foreign objects including (but not limited to) air fresheners, air freshener capsules or scented beads of any type into the top filter of the machine. Doing so can be dangerous and risk damage to the machine and may invalidate the machine warranty.

Dry Mode maintenance/fault fi nding

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies. If the vacuum cleaner will not pick up any debris from the surface, switch off and remove the plug from the wall, inspect the floor tool, wands and hose for blockages, if no blockages are found, the dust bag may be full if the dust bag is not full the filter may be blocked.

Wet mode

If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating were the fault lies. If the vacuum cleaner has a blockage and will not pick up liquid, switch off and remove the plug from the wall, has the float valve operated, this will shut off the suction and the pitch of the vacuum motor will change.

Remove the power head and empty the liquid out of the container, if the container is empty, check that the floor tool wands and hose are not blocked.

Flush the system with clean water after use.

After use always inspect the machine for damage.
