USER MANUAL OCEACWC8LCD OCEANIC

Illustration of a black 3D refrigerator with circular components and a label reading 'oceanic' (no other text or symbols)

Réf:OCEACWC8LCD (CW-25FD1)

oceanic

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES

Technical diagram of a two-part enclosure with numbered components and labeled parts

Technical line drawing of a mechanical or electrical component with internal structure and mounting brackets (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the device and keep them for future use.

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• WARNING: Risk of child entrapment.
• Before disposing of your used wine cellar:

Remove its doors and leave the shelves in place so that a child cannot easily climb into the unit.

• Never allow children to use, play with or climb into the unit.
• Never clean the components of the unit with flammable liquids.
• Do not store or use gasoline or any other flammable liquids or gases near this or any other appliance. Vapors present a risk of fire or explosion.
• To clean your wine cellar, do not use abrasive cleaners or solvents
• Leave 10cm of free space at the back of the unit to allow for ventilation of the cooling system.
• In order to store your wines at a stable temperature, avoid leaving the door open for too long.
• Do not install your wine cellar near a heat source and avoid direct sunlight.
  • Install your cellar on a flat, clean and stable floor.
• Do not install any other electrical equipment on your cellar.
• To ensure your safety, do not place your cellar in damp places.
• This device is a category 10 electrical semiconductor refrigeration device. The design temperature is 17^ C, the temperature recommended by the manufacturer in application with implementing regulation 643/2009.
• Do not store perishable food in this appliance as the indoor temperature may not be cold enough for proper storage.
• This appliance is intended to be used in household and similar applications but not in the following cases:

- kitchen areas reserved for staff in stores, offices and other professional environments;

• farms and customer use of hotels, motels and other residential environments;
• environments such as guest rooms;
• catering and other similar applications except retail.

- This device is designed for use inside a house or apartment. It is essential that the temperature of the room in which it is used is not lower than 16^ C or higher than 32^ C for optimal use.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

- This device may be used by children 8 years of age or older and by persons with reduced physical, sensory or mental abilities or lack of experience or knowledge, if they are properly supervised, experience or knowledge, if they are properly supervised or instructions on the safe use of the device have been given to them and the risks involved have been addressed.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- To avoid contamination of food, please respect the following instructions:

- Opening the door for a long period can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- If the refrigerating appliance is left empty for a long period, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

By purchasing this wine cellar, you own a device that combines unique advantages:

• The thermoelectric cooling system is extremely discreet, unlike conventional appliances with much noisier compressors.
• No circulating gas: no risk of pollution or leaking.
  ♦ Less vibration: to preserve the quality of the wines.
• Small size, taking up less space.

WARNING: Do not use this product in a place where children can touch it and do not leave children to use it alone.

Disposal of waste

To avoid any harm to the environment or human health caused by the uncontrolled disposal of electrical waste, recycle the device responsibly to promote the reuse of material resources. Disposal must be done safely at public collection points provided for this purpose.

Older refrigerators may contain CFCs that destroy the ozone layer; contact your nearest waste treatment center for more details on proper disposal procedures.

INSTALLATION INSTRUCTIONS

Before putting your wine cellar into service

• Remove all inner and outer packaging components.
• Check that none of the following parts are missing:

■ 3 removable shelves
■ 1 operating manual

- Before connecting your device to a power supply, allow it to stand upright for about 2 hours. This reduces the risk of malfunction of the refrigeration system due to handling during transport.

- Clean the inner surfaces of the unit with a soft cloth and warm water.

- Place your unit on a floor strong enough to support the weight of the fully filled unit.

● Make sure the unit is level by adjusting the front feet underneath the unit. Make sure that the cellar rests on its feet in a stable manner.

- Install the appliance away from direct sunlight and heat sources (radiator, hot plate, etc.). Direct sunlight can damage the unit's coating and heat can increase its power consumption. If the ambient temperature is extremely cold or hot, this may prevent the unit from operating properly.

● The unit is not designed to be installed in a basement or cellar.

● This unit is designed exclusively for indoor use.

Caution: Make sure that the unit is kept away from any substance that may cause combustion.

- Check that the water tank is in place before connecting the unit.

CLEANING AND MAINTENANCE

Cleaning your wine cellar

● Unplug your wine cellar and take out all the bottles.
- Clean the outside of the unit with hot water and a mild detergent.
- Remove the water tank at the bottom of the unit, then wash it.

Moving your wine cellar

• Remove all bottles and disconnect the wine cellar.
• Tape all loose parts inside your wine cellar.
  ● Turn the feet to adjust their height to the minimum to avoid damage.
  ● Tighten the door to keep it closed.
• Be sure to keep the wine cellar upright during transport.

PRODUCT DESCRIPTION

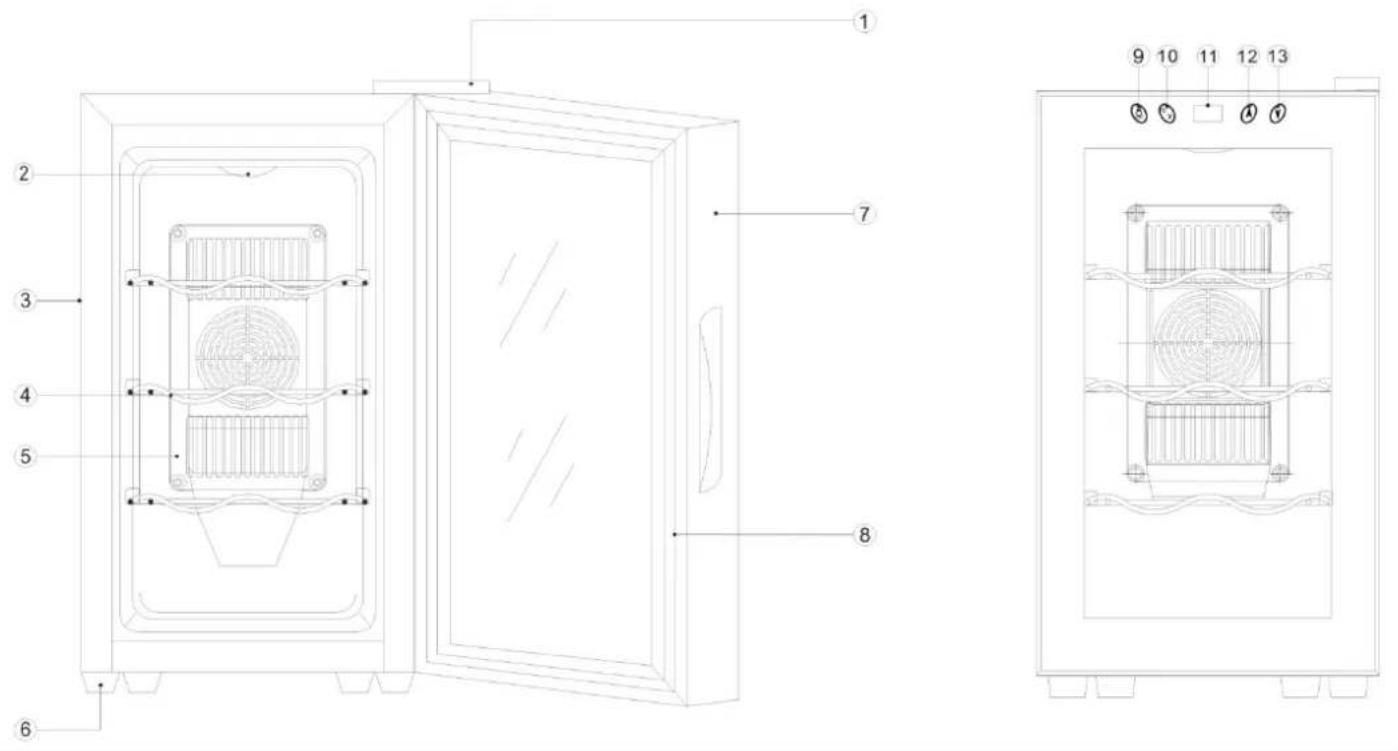

Technical diagram of a two-part enclosure with numbered components and labeled parts

1	Upper hinge
2	Lighting
3	Body
4	Shelf
5	Cooling fan mask
6	Feet
7	Glass door
8	Door gasket
9	Lighting switch
10	Temperature selector switch
11	Temperature display
12	Temperature up switch
13	Temperature down switch

TECHNICAL SPECIFICATIONS

Model OCEACWC8LCD
Model No. CW-25FD1
Capacity 8 bottles 75cl
Category	10
Voltage	220-240V~
Power consumption	70W (32°C)
Frequency	50Hz
Weight	9Kg
Dimensions(W x H x D)	260x 505x470mm
Energy class A	+
Energy consumption of 103kWh per year, calculated on the basis of the result obtained for 24 hours under standardized test conditions. Actual energy consumption depends on the operating conditions and location of the unit.
Storage volume 23l
Coldest storage temperature	8°C
Design temperature	17°C
Climate class SN, N
This unit is designed for use at an ambient temperature between +16°C and +32°C
Noise emissions	36 dB

ENERG Y IJA ENERGIE - ENEPUEIA IE IA oceanic Réf: OCEACWC8LCD Modèle: CW-25FD1 A++ A++ A+ A B C D A+ ENERGIA - ENERGIA ENERGEIA - ENERGIJA ENERGY - ENERGIE - ENERGI 103 kWh/annum 23 L - L 36 dB 2010/1060

"This device is intended for wine storage."

USE YOUR WINE CELLAR

The temperature setting allows you to adjust it according to your needs:

Setting temperature before tasting red wines: Temperature recommended 16-17°C.

If the ambient temperature is higher or lower than the recommended temperatures, this will have a negative impact on its performance. For example, placing the unit in an extremely cold or hot place can cause variations in the internal temperature of the unit.

The internal temperature may vary depending on the location of the bottles, at the top, middle or bottom.

Adjustment may be necessary depending on the ambient temperature.

Do not hesitate to leave a thermometer inside the cellar in order to carry out regular monitoring.

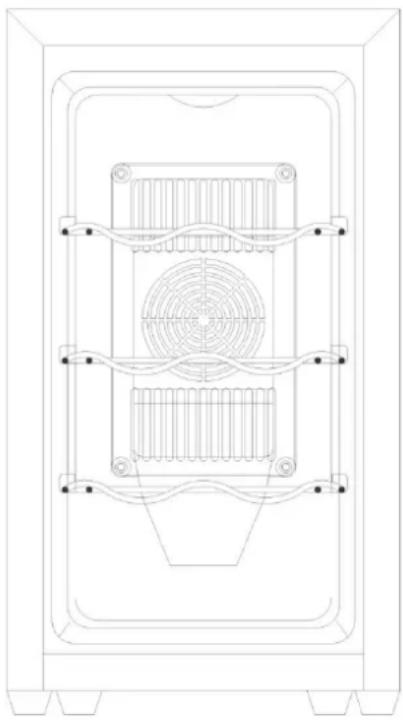

This wine cellar is designed for the maximum storage of 8 standard size (75cl) bottles of wine.

Temperature setting:

● The keys <▲> and <▼> allow you to increase or decrease the temperature in increments of 1°C (the temperature range is 8\~18°C)
- The button<图标> allows you to switch the interior lighting on and off.

Technical line drawing of a mechanical or electrical component with internal structure and mounting brackets (no text or symbols)

To minimize energy consumption, be sure to respect the filling capacity of your wine cellar—8"Bordeaux 75cl" size. The combination of drawers, baskets and shelves that result in the most efficient use of energy for the appliance.

BREAKDOWNS AND SOLUTIONS

Some malfunctions can be easily resolved. Before calling customer service or a repairer, please consult the following table:

PROBLEM POSSIBLE CAUSES & SOLUTIONS
The wine cellar does not work.	Not connected.The circuit-breaker is tripped or the fuse is damaged.Check if the outlet is powered by connecting another electrical device.
The wine cellar is not cold enough.	Check the temperature setting.High ambient temperature may require setting the wine cellar to a colder temperature.The door is being opened too often.The door is not completely closed.The door seal is not properly positioned.Not enough space around the wine cellar to allow ventilation.
The device operates Continuously.	The room temperature is higher than the maximum supported.A large number of bottles inside the wine cellar.The door is being opened too often.The door is not completely closed.Temperature control is not calibrated correctly.The door seal is not properly positioned.
The light doesn't work.	The wine cellar is not plugged in.The circuit-breaker has been tripped or a fuse is damaged.The LED lighting is out of order.The light button is set to "OFF".
Vibration. Check to make sure the wine cellar is level.
The wine cellar seems to be making too much noise.	The wine cellar is not level, or a foot is incorrectly adjusted.
The door does not close properly.	The wine cellar is not level.The shelves are out of position and blocking the door closure.
Water under the device.	Water is being collected incorrectly in the water tank on the back of the unit.Check that the water tank is in place.Empty the water tank.
Disposal of the device
	To avoid any harm to the environment or human health caused by improper disposal of electrical waste, recycle the device responsibly to promote the reuse of material resources. Disposal must be done safely at public collection points provided for this purpose.Older refrigerators may contain CFCs that destroy the ozone layer; contact your nearest waste treatment center for more details on proper disposal. The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection-service.

IMPORTED BY

OCEANIC

A.M.C.

120-126 Quai de Bacalan

123 quai Jules Guesde, CS11584

94400, VITRY SUR SEINE, 33 00 Bordeaux

France

LOT #: A.M.C.072019

oceanic

www.oceanic.eu

CE
