USER MANUAL SG3.0RS-S Sungrow

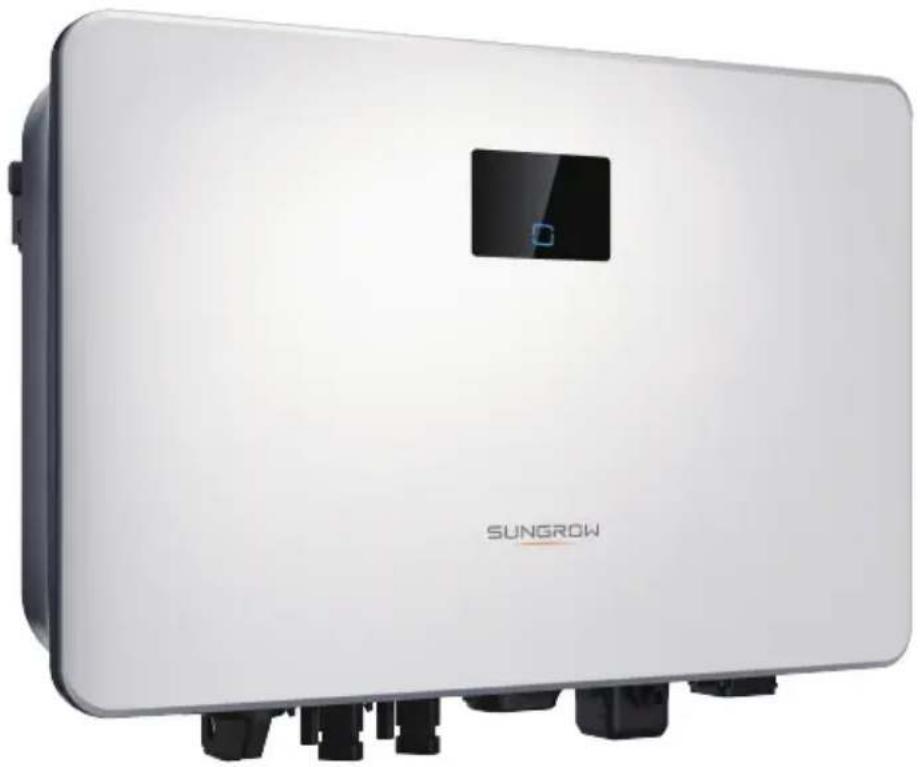

1-Phase PV Grid-Connected Inverter
Quick Installation Guide
SG2.0RS-S / SG2.5RS-S / SG3.0RS-S
SG3.0RS / SG3.6RS / SG4.0RS
SG5.0RS / SG6.0RS
EN
- Contents may be periodically updated or revised due to product development. The information in this guide is subject to change without notice. In no case shall this guide substitute for the user manual or related notes on the device.
- Make sure to read over, fully understand and strictly follow the detailed instructions of the user manual and other related regulations before installing the equipment. The user manual can be downloaded by visiting the website at http://support.sunrowpower.com/; or it can be obtained by scanning the QR code on the side of the equipment or the back cover of this guide.
- All installations must be performed by qualified personnel who should have training for installation and commissioning of electrical system, as well as dealing with hazards, have knowledge of the manual and of the local regulations and directives..
- Before installation, check that the package contents are intact and complete compared to the packing list. Contact SUNGROW or the distributor in case of any damaged or missing components.
- The cable used must be intact and well insulated. Operation personnel must wear proper personal protective equipment (PPE) all the time.
Any violation could result in personal death or injury or device damage, and will void the warranty.
Safety
The inverter has been designed and tested strictly according to international safety regulations. Read all safety instructions carefully prior to any work and observe them at all times when working on or with the inverter. Incorrect operation or work may cause:
- injury or death to the operator or a third party;
- damage to the inverter and other properties.
Please follow the safety instructions related to the PV strings and the utility grid.
DANGER

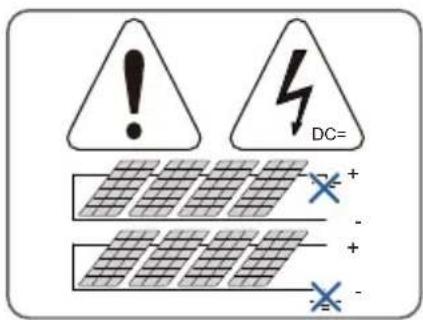

Lethal voltage!

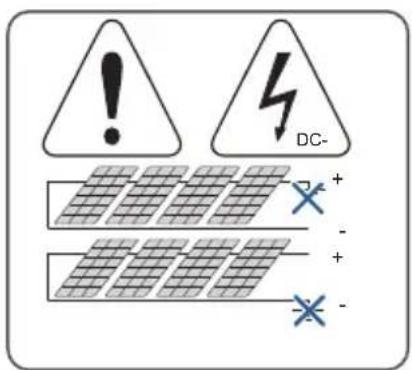

PV strings will produce electrical power when exposed to sunlight and can cause a lethal voltage and an electric shock.
- Only qualified personnel can perform the wiring of the PV panels.
NOTICE
Danger to life from electric shock due to lethal voltage!
- All electrical connections must be in accordance with local and national standards.
- Only with the permission of the utility grid, the inverter can be connected to the utility grid.
Inverter
The icons on the inverter body are as follows.
| ! | Disconnect the inverter from all the external power sources before maintenance! | ! | Burn danger due to hot surface that may exceed 60 °C. |
| ! | Read the user manual before maintenance! | ! | RCM mark of conformity. |
| ! | Danger to life due to high voltages! Only qualified personnel can open and maintain the inverter. | ! | Danger to life due to high voltages! Do not touch live parts for 10 minutes after disconnection from the power sources. Only qualified personnel can open and service the inverter. |
| TÜV SDD TUV mark of conformity. | CE CE mark of conformity. EU/EEA Importer. |
| Do not dispose of the inverter together with household waste. | The inverter does not have a transformer. |
| Additional grounding point. UKCA mark of conformity. | UKCA |
| RoHS labeling The product complies with the requirements of the applicable EU directives. |
- Users may also attach other warning signs as per the requirements of the local standards or installation specifications.
Security Declaration
For details on the product's network security vulnerability response process and vulnerability disclosure, please scan the QR code on the right or visit the following website: https://en.sungrowpower.com/security-vulnerability-management
For more information on network security, please refer to the user manual of the communication module or the Data Logger that comes with the product.
EU Declaration of Conformity
within the scope of the EU directives:
Low Voltage Directive 2014/35/EU (LVD)
Electromagnetic compatibility Directive 2014/30/EU (EMC)
- Restriction of the use of certain hazardous substances 2011/65/EU and 2015/863/EU (RoHS)
The manufacturer Sungrow Power Supply Co., Ltd, China hereby confirms that the product SG2.0-6.0RS complies with the essential requirements and other relevant provisions of Directives 2014/35/EU, 2014/30/EU, 2011/65/EU, 2015/863/EU. The full EU Declaration of Conformity can be found at https://support.sungrowpower.com/PdfDetail?id=1696727963297832962. - The communication module that comes with the inverter and the technical parameters of wireless communication are listed in the table below. The model of the communication module actually delivered shall prevail. The EU Declaration of Conformity for the communication module can be found at support.sungrowpower.com.
WiNet-S/WiNet-S2:
| Technologie radio WLANI 802.11b/g/n20/n40 | ||
| Radio spectrum | 802.11b/g/n802.11n40 | 2412 MHz ~ 2472 MHz2422 MHz ~ 2462 MHz |
| Maximum transmitted power ≤ 20 dBm | ||
- Technical parameters listed above apply to EU countries only.
Manufacturer:
Sungrow Power Supply Co., Ltd.
No 1699. Xiyou Road, Hefei 230088.P.R China
For EU only
EU/EEA Importer:
Danger to life from electric shocks due to live voltage
Do not open the enclosure at any time. Unauthorized opening will void warranty and warranty claims and in most cases terminate the operating license.
- When the enclosure lid is removed, live components can be touched which can result in death or serious injury due to electric shock.
Lethal danger from electric shock due to possibly damaged inverter
- Only operate the inverter when it is technically faultless and in a safe state.
- Operating a damaged inverter can lead to hazardous situations that can result in death or serious injuries due to electric shock.
WARNING
Risk of inverter damage or personal injury
- Do not connect or disconnect the PV and AC connectors when the inverter is running.
Wait at least 10 minutes for the internal capacitors to discharge after all electric devices are removed and the inverter is powered off. - Ensure that there is no voltage or current before connecting or disconnecting the PV and AC connectors.
WARNING
All the warning labels and nameplate on the inverter body:
must be clearly visible; and
- must not be removed, covered or pasted.
CAUTION
Risk of burns due to hot components!
- Do not touch any hot parts (such as the heat sinks) during operation. Only the DC switch and the LCD panel can safely be touched at any time.
NOTICE
Only qualified personnel can perform the country setting. Unauthorized alteration may cause a breach of the type-certificat. marking.
Risk of inverter damage due to electrostatic discharge (ESD)!
By touching the electronic components, you may damage the inverter. For inverter handling, be sure to:
- avoid any unnecessary touching; and
- wear a grounding wristband before touching any connectors.
DE
Sungrow Power Supply Co., Ltd.
Nr. 1699. Xiyou Road, Hefei 230088.P.R.China
Nur fur die EU
Sungrow Power Supply Co., Ltd.
No 1699. Xiyou Road, Hefei 230088. R. P. Cinese
Solo per l'UE
Importatore UE/SEE: Sungrow Deutschland GmbH
Sungrow Power Supply Co., Ltd.
No 1699. Xiyou Road, Hefei 230088.P.R.China
Sungrow Power Supply Co., Ltd.
No 1699. Xiyou Road, Hefei 230088.P.R.China
Alleen voor de EU
Sungrow Power Supply Co., Ltd.
No 1699. Xiyou Road, Hefei 230088. ChRL
Tylko na eksport do UE
- PV strings will produce electrical power when exposed to sunlight and can cause a lethal voltage and an electric shock.
- Only qualified personnel can perform the wiring of the PV panels.
ADVERTÉNCIA
Perigo mortal causado porCHOque eltrico devido a tensao letal!
Maximum transmitted power ≤ 20 dBm
- Technical parameters listed above apply to EU countries only.
Fabricante:
Sungrow Power Supply Co., Ltd.
No 1699. Xiyou Road, Hefei 230088.P.R.China
Apenas para a UE
Importador UE/EEE: Sungrow Deutschland GmbH
Balanstraße 59, 81541 München, Alemania
PERIGO
Perigo mortal causado por choques electrolycos devido a tensao de alimentacao
Sungrow Power Supply Co., Ltd.
No 1699. Xiyou Road, Hefei 230088.P.R.China
Sólo para la UE
Importador UE/EEE: Sungrow Deutschland GmbH
Balanstraße 59, 81541 München, Alemania
PELIGRO
Read the user manual before maintenance!
ONaCHOCTb OXORA n3-3a ropueH NOBepxHOCTN, TEMNEPAtpa KOtopoM MoKET ppeBbIaTb 60^
3HAK COOTBETCTBUN RCM.
DONJXHbI YeTKO YHTaTbCra
HeIb3a ydaTb, 3aKpbBaTb nJIn 3aKnEeBaTb.
BHUMAHNE
Onachoctb noJyueHnOxKOrOB OT npIKoCHOBHeHn K TOpRyHM KOMNoHEHTam!
3aPepaaetc npKacatbca KtopyM qactm pa6oTaOeero yctpoiCTBa (Hanpimep, KaDnataopam). B JIObo Momet BpeMeH MoXHO 6eONaCHO npKacatbca ToIbKO K BBIKUqAteHNO NOCTOHNHO TOKa NKK-NAHeH.
3AMEUAHNE
I3MeHeHn HAcTpoek dIe CtpaHbI 3KcNpyatauyn yCtpoiCTBa MOrY T BInONHrTbcra NCKJIOHTeJIbHO KBAINΦHIpOBaHHbIM cneuaHnCTom. HecaHKUOHpOBaHHoe I3MeHeHne KOHCTpykun MoXe npBecTu K HapyuHmO MapKnPOBKn cepTnФnKaTa Tnna.
OnachocTb nobpeKdEHHHBeptopa 3neKtpoctaTnueckm pa3pdoM (3CP)!
Kacahne 3JKeTPOHHbIX KOMNoHHeHTOB MOKe T npBecTN K NOBpeXeHnIO INHBeptopa. Pp np a6oTe C INHBeptopom Heo6xOIMOC6IIOaTb cJeDyUOme npabina:
He npikacatbck K yctpoNCTBy 6e3 Heo6xOIMOCn;
HaDeBaTb 3a3eMnIouIy6paCneT, npExJe Yem npKacatbCk KaKIM-JI6o pa3beMaM.

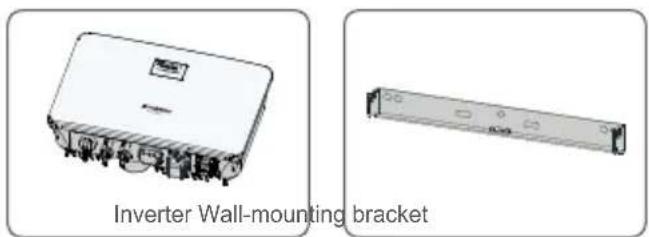

Scope of Delivery / Lieferumfang / Contenuto della fornitura / Contenu de la livraison / Leveringsomvang / Zakres dostawy / Åmbito de entrega / Contenido suministrado / Escopo da entrega / Contenido suministrado / Ⓞběm noctabkn
- The Scope of Delivery may vary due to model, sales region, or local regulatory requirements. The actual packing list should be referred to for specific configurations.
- Use appropriate mounting hardware for wall type.
- The image shown here is for reference only. The actual product received may differ.

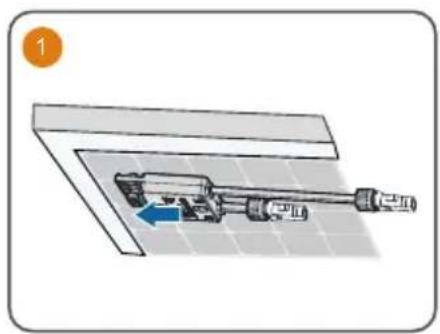

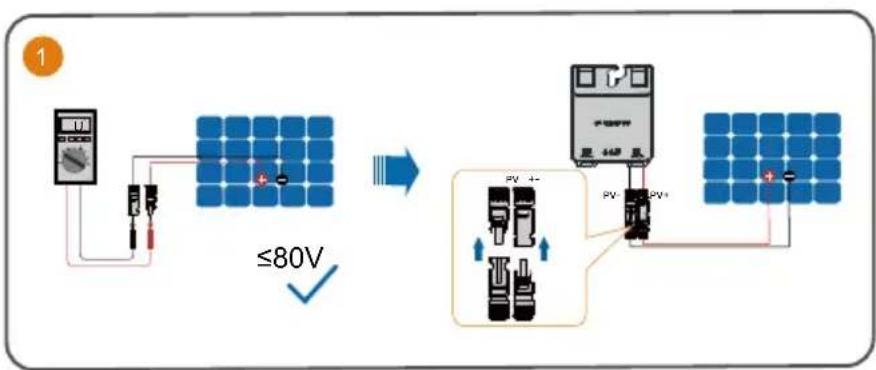

Optimizer:

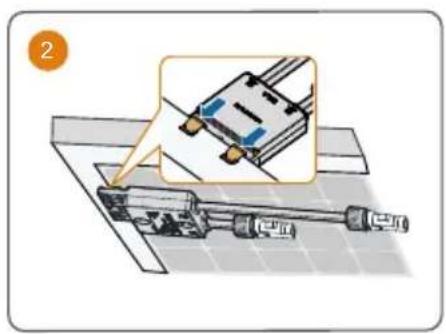

- Please ensure that the optimizer is installed facing the back of the module. Otherwise, the clip may be damaged.
- Do not forcibly bend the clips when installing the optimizer by clips. Otherwise, the clip may be damaged.
- Do not clamp the optimizer into holes in the module frame during installation. Otherwise, the optimizer cannot be removed or the clips may be damaged.
It is recommended to install optimizers on the same side of modules.
- Do not clamp and remove the optimizer multiple times. Otherwise, the clip may become loose, affecting normal use.

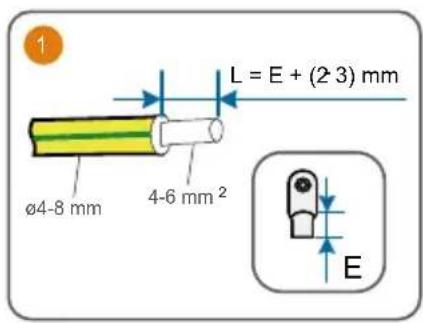

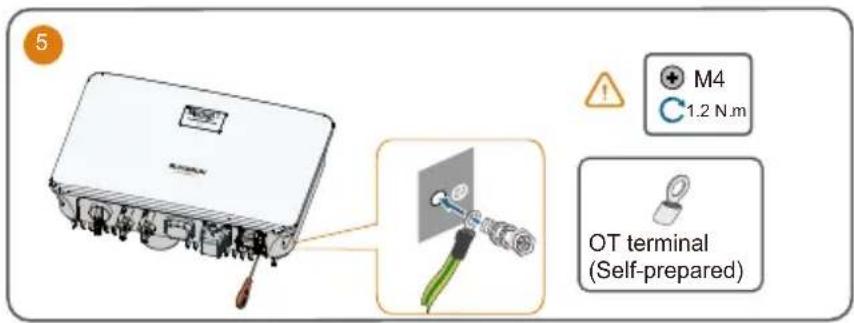

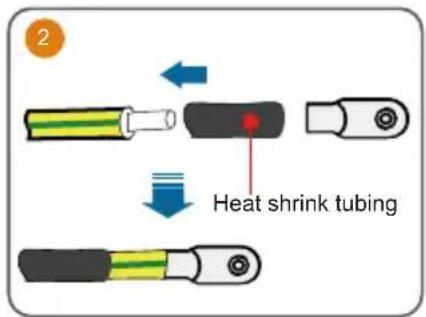

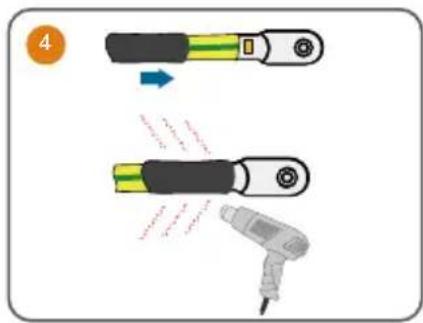

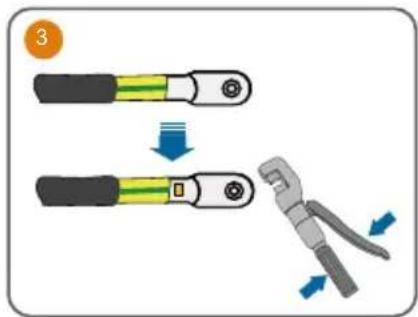

PE / Erdung / messa a terra / Mise à la terre / Aarding / PE / EP / Puesta a tierra / PE / Puesta a tierra / 3a3eMJIeHne

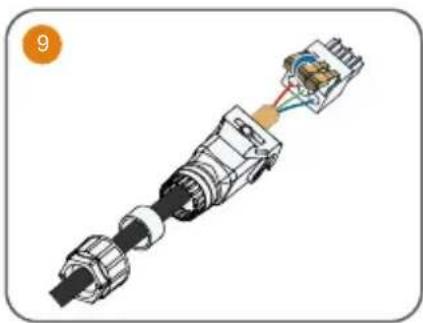

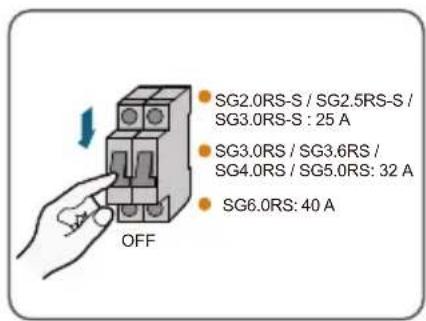

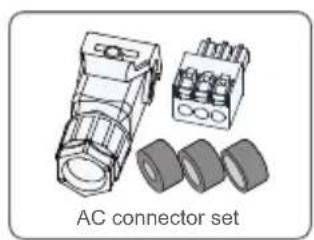

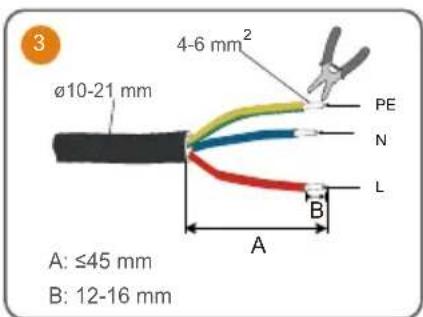

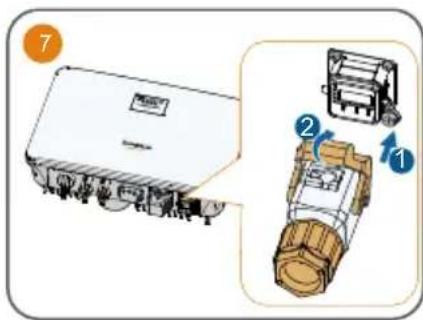

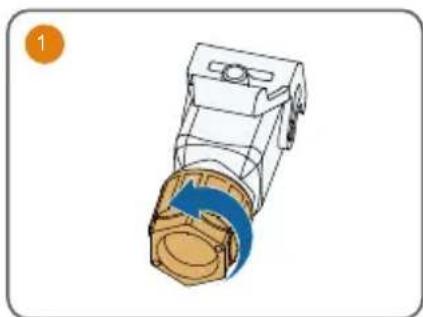

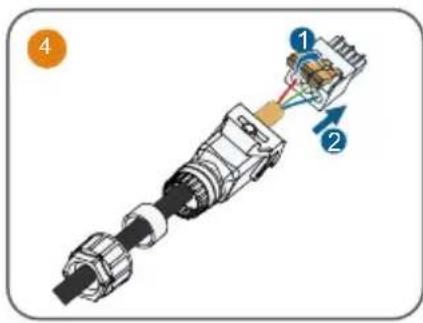

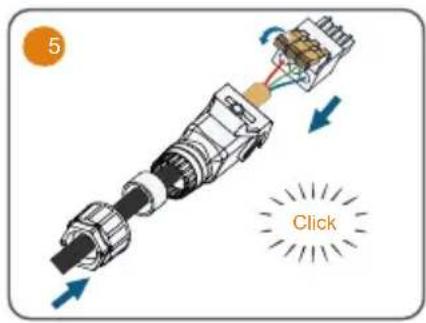

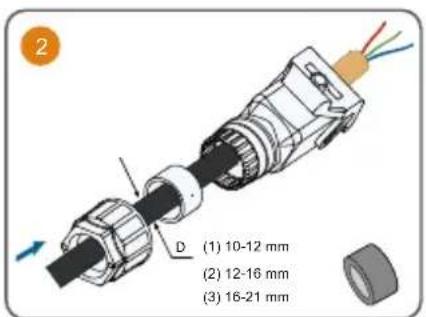

AC
It is recommended to use heavy duty conduits when run cables through Cavity walls, or lay out cables with corresponding conduits.
A RCD is not required if either of these two installation methods is adopted according to the local standard AS3000-2018. (For "AU" and "NZ")

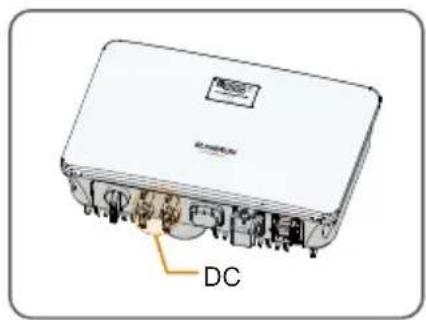

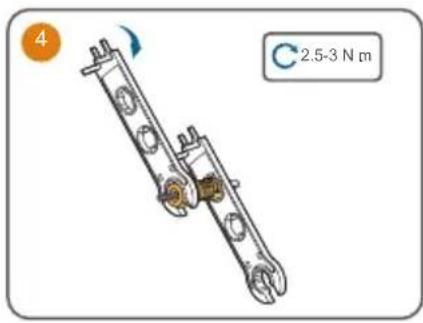

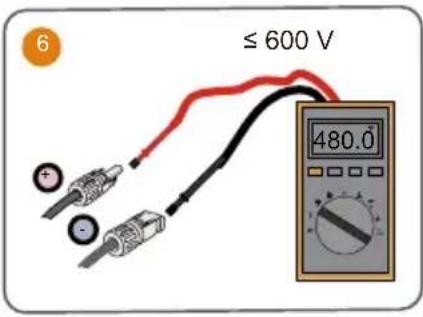

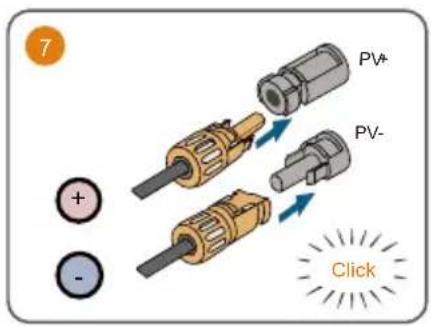

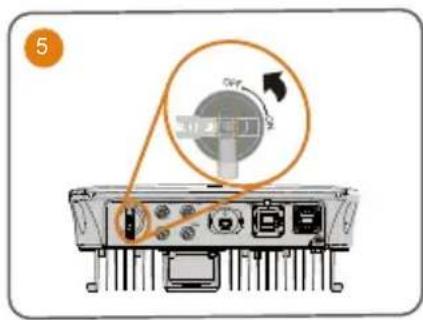

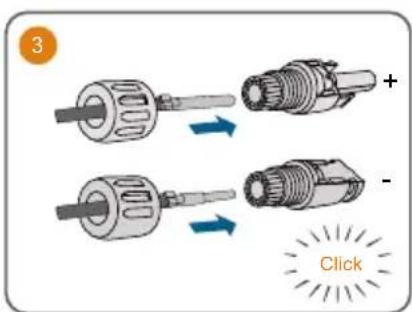

DC
It is recommended to use heavy duty conduits when run cables through Cavity walls, or lay out cables with corresponding conduits.
A RCD is not required if either of these two installation methods is adopted according to the local standard AS3000-2018. (For "AU" and "NZ")

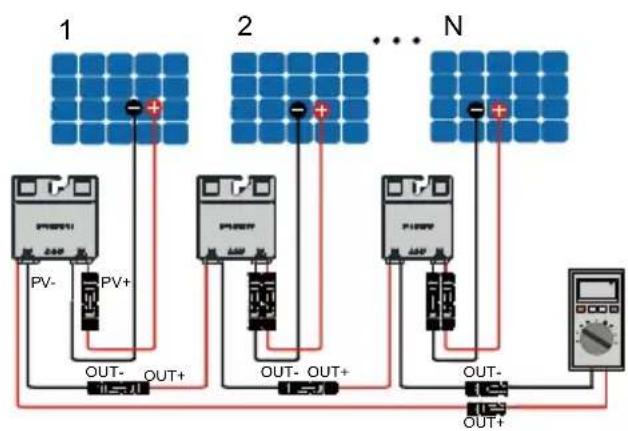

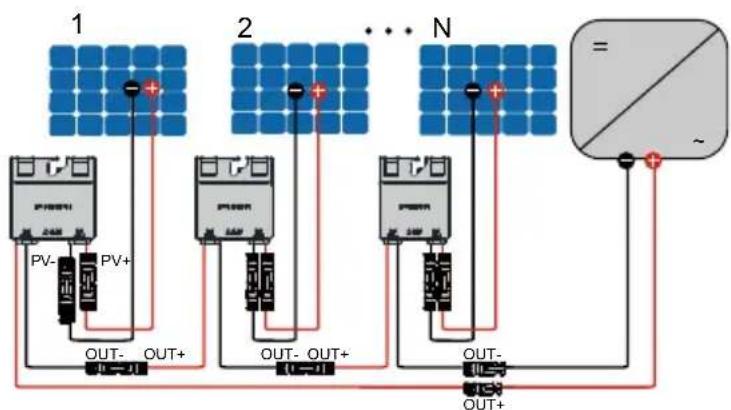

Optimizer
3

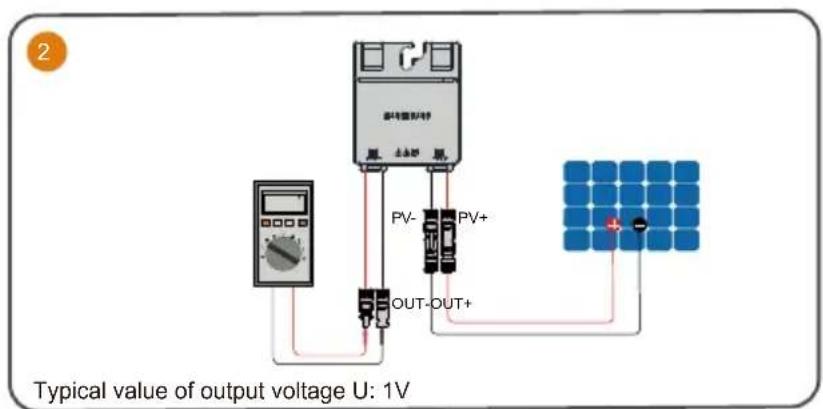

Typical value of output voltage V: 1V^
4

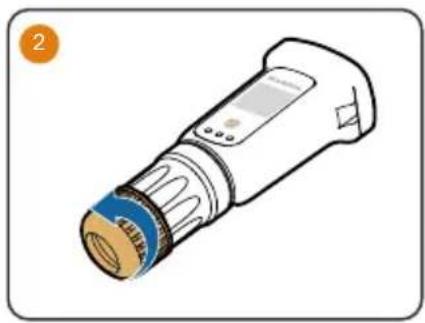

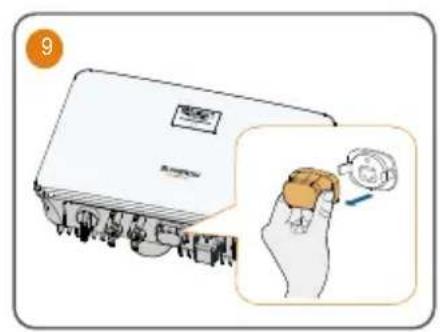

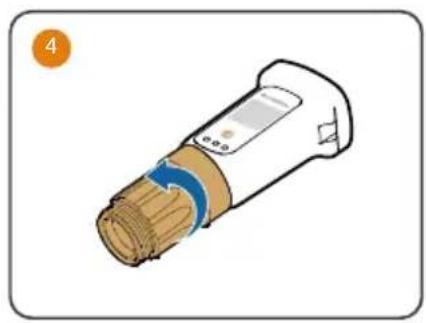

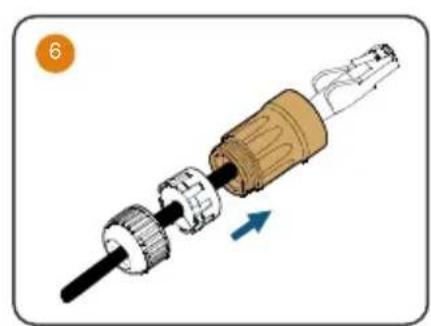

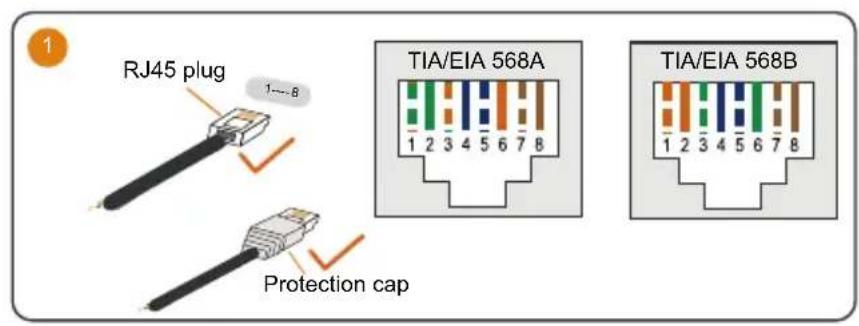

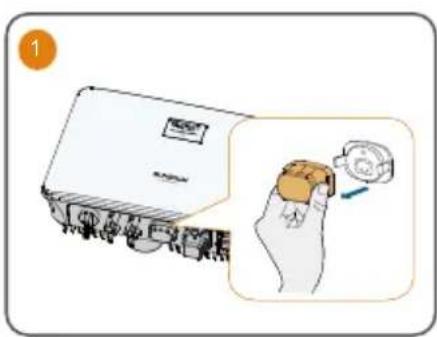

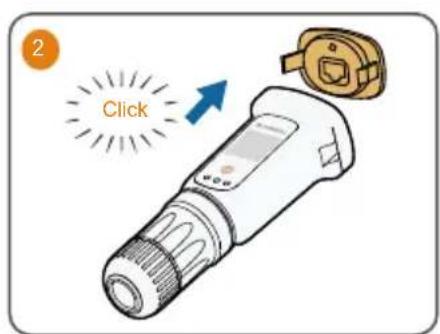

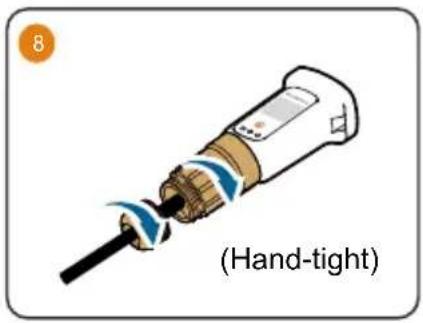

WLAN

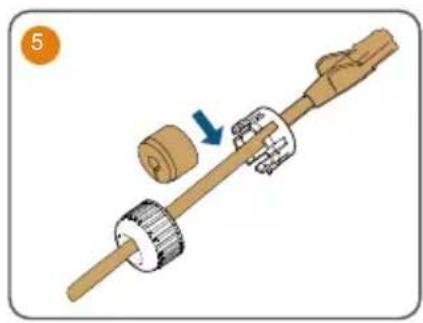

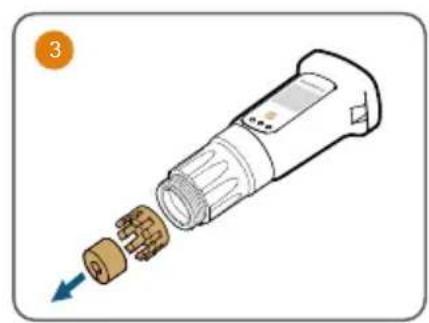

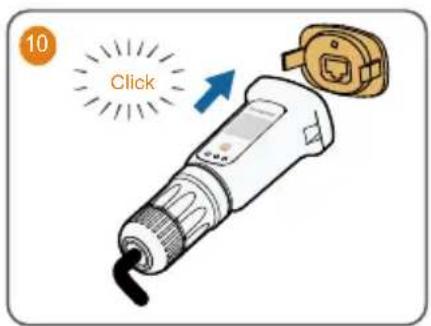

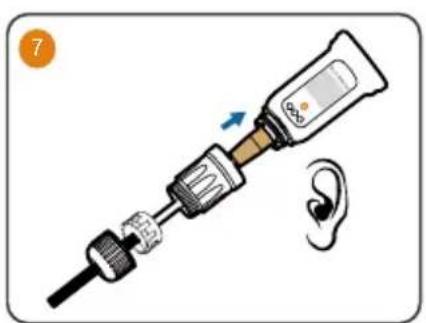

Ethernet

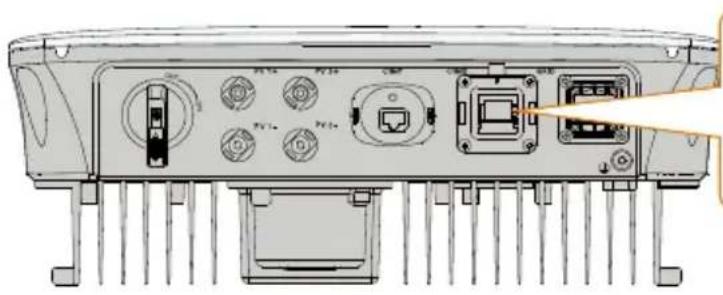

COM2
| RS485 | Meter | DRM | RSD |
| A1 | A2 | R | RSD-1 |
| B1 | B2 | C | RSD-2 |

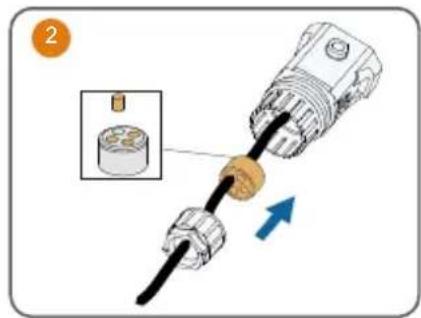

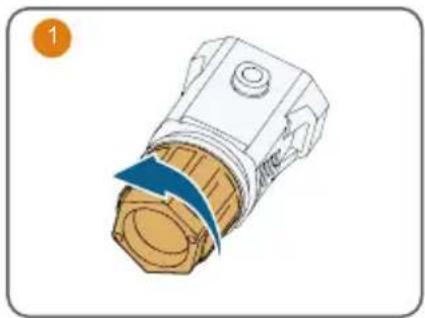

Label.Description
RS485-1 (A1, B1) Reserved
Meter (B2, A2) Smart energy meter interface
RS485-3 (B3, A3) For external Demand Response Enabling Device ("AU"/"NZ")
Meter (B2, A2) Reserved
The connection procedure for meter and DRM are the same. Take meter connection as an example.

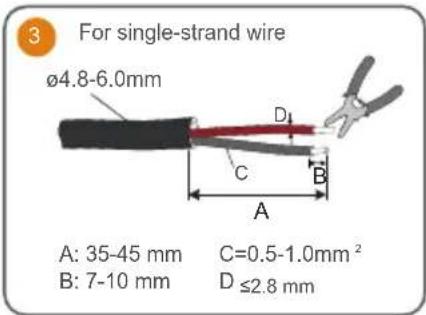

For multi-core multi-strand wire
A:35-45mm C=0.5-1.0mm
B=E+(2-3)mm D≤2.8mm
For meter
For DRM

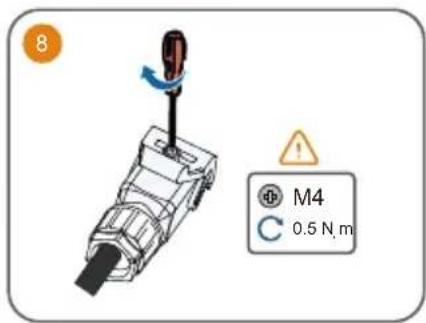

M4
0.5 N m
33 mm

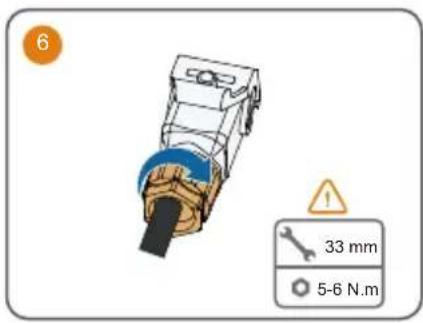

5-6 N m

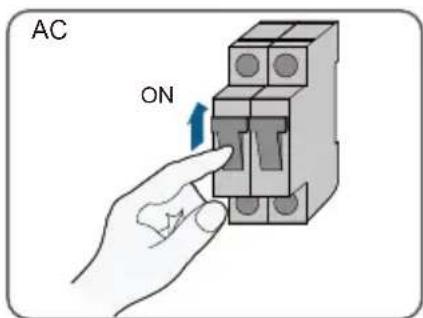

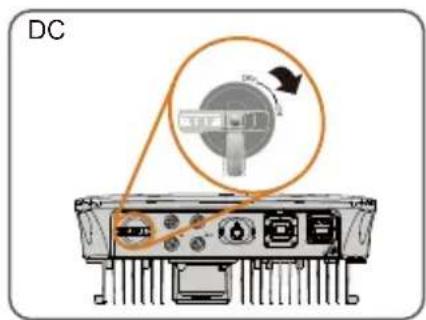

Power on / Ein / Accensione / Allumer / Schakel in / Włącznik / Ligação / Encendido / Ligar / Encendido / Encendido / Béklioquenque nityania

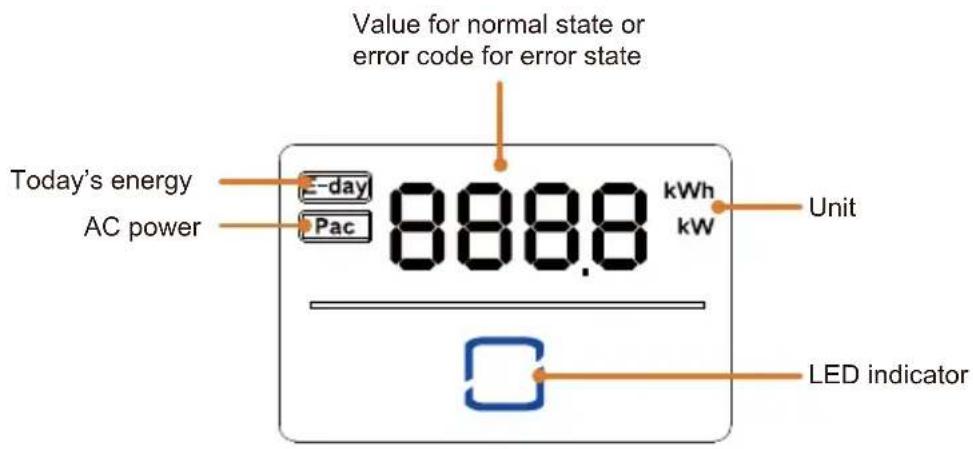

LED panel / LED-Panel / Pannello LED / écran LED / LED-schem / panel LED / Paine led / Panel led / Paine LED / Panel LED / XXK-naheь
In normal state, the E-day and Pac information will be displayed alternately. Also you can touch the LED indicator to switch the information.
In error state, touch the LED indicator to view multiple error codes.
If there is no operation for 5 minutes, the display screen will be off. Touch the LED indicator to activate it.
LED indicator LED state Definition
ON The inverter is normally running.
Flashing The inverter is at standby or startup state (not feeding power into the gird).
ON A system fault has occurred.
OFF Both the AC and DC sides are powered down.
More information in the QR code or at http://support.sungrowpower.com/
