USER MANUAL DFC6020NA DE DIETRICH

FR GUIDE D'UTILISATION

EN GUIDE TO INSTALLATION

Réfrigérateur

Refrigerator

Ref: DFC6020NA

De Dietrich

CHÈRE CLIENTE, CHER CLIENT,

Two identical diagrams showing checkmark and cross symbols inside vertical bars, likely indicating approval or rejection status.

Mode Super congélation

E / E / @ ★

Diagram showing a hand pressing a button on a device panel with labeled ports and symbols

Diagram showing a hand placing a component into a shelf, and a close-up of a mechanical component with upward arrows (no text or symbols)

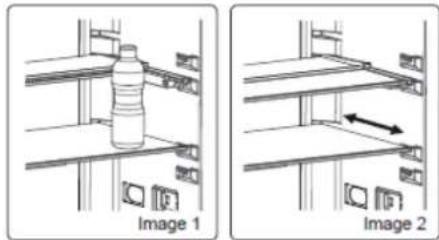

Demi-clayette rabattable

Image 1 Image 2

Maxi Fresh Preserver

Diagram showing a device with a fan and a battery, no text or symbols present

PureBeam +

PureBeam +

Twist Ice

Interventions France

BFC S/N: 14 13 00001 Service: BFC Model:002-363-1 Total power output: 370V Voltage: 50kW, 10A Internal power: 1GB Resistor: 1000Ω, NC 228-2497 St. No. Max 110W / EASA Data Type: 25/08/2017 R N Ty M R Fridge/Freeder Chemicals: MRT Functional water Inc. Energy capacity: 1kW/Hz System Component CE

Discovering De Dietrich products is experiencing unique emotions that only valuable objects can produce.

The appeal is immediate at first glance. The quality of the design is illustrated by the timeless aesthetics and the meticulous finishes that make each object elegant and refined in perfect harmony with each other.

Then comes the urge to touch. De Dietrich design is based on robust and prestigious materials; authenticity is favored.

By combining the most advanced technology with noble materials, De Dietrich ensures the creation of high quality products at the service of the culinary art, a passion shared by all kitchen lovers.

We wish you a lot of satisfaction in using this new appliance and will be happy to receive your suggestions and answer your questions. We invite you to express them to our customer service or on our website.

We invite you to register your product on www.de-dietrich.com to enjoy the benefits of the brand.

Thank you for your confidence.

De Dietrich

Find out all the information on the brand on:

www.de-dietrich.com

Important: Before switching on your appliance, please read this user guide carefully in order to familiarise yourself more quickly with its operation.

This appliance complies with the European directives.

SAFETY GUIDELINES

For your safety and in order to use your appliance correctly, carefully read these instructions (including the warnings and useful advice), before installation and first use.

To avoid damaging the appliance and unnecessary injury, it is important that the persons who use the appliance fully understand how it works and the safety instructions.

Always keep these instructions close to the appliance so that they can accompany it in the event of resale or a change of house. In this way, the appliance will continue to function optimally and any risk of injury will be avoided.

The manufacturer shall not be held liable in the event of misuse of the appliance.

GENERAL SAFETY AND WARNINGS

This appliance is exclusively intended for domestic use in private households. It may only be used in a roofed, enclosed and heated environment such as a kitchen or any other room fulfilling these conditions. Its use on shared or professional premises such as in an office or workshop break room, a camp site building, or a hotel, etc., does not comply with the use defined by the manufacturer.

WARNING! Keep your appliance away from any source of flame during installation, servicing and use. The symbol in the margin which is found on the rear of your appliance, means that there are inflammable materials in this area.

The refrigerating and insulating agents used in this appliance contain inflammable gases.

When transporting, installing and servicing the appliance, make sure that none of the components of the cooling circuit are damaged. If the cooling circuit is damaged:

√ Avoid naked flames and all sources of inflammation.
√ Ventilate the room in which the appliance is installed.

Installation safety

• Your appliance must be installed and, if necessary, secured and used in accordance with the instructions in this manual in order to avoid any risks due to poor installation.
• Maintain clear of obstruction ventilation openings in the appliance enclosure or in the built-in structure.
• It is dangerous to change the composition of this model in any way whatsoever.
• Ensure that the power cord is not trapped or damaged when you position your appliance.
• Any damage to the power cord may result in a short circuit and/or electrocution.
• If the power cord is damaged, it should be replaced by the manufacturer, its after-sales service department or a similarly qualified person, so as to avoid danger.
• Do not place multiple plugs or portable power supply units behind the appliance.
• For models fitted with a water dispenser or an ice compartment, only fill or connect using a supply of drinking water.

Safety of vulnerable persons

- This appliance may be used by children aged 8 years or more and by people with physical, sensual or metal deficits and lacking experience or knowledge of the device provided that they are correctly supervised or have been provided with instructions regarding the safe use of the appliance and provided that the risks present have been fully

understood.

● Children must not play with the appliance.
● Children must not clean and maintain the appliance without supervision.
● Children aged 3 to 8 are allowed to load and unload refrigeration appliances.
- Keep all the packaging materials out of the reach of children, as they can cause suffocation.

Safety of use

• Do not damage the refrigerating circuit.
• Do not use any mechanical or other means, other than those recommended by the manufacturer, to speed up the defrosting process.
• Do not use any electric appliances inside the compartment for food, unless they are of a type recommended by the manufacturer.
• Do not store any explosive substances, such as aerosols containing inflammable propellant gases, inside the appliance.

Food safety

To avoid contaminating food, follow the instructions below:

● Leaving the door open for long periods of time may significantly raise the temperature in the appliance compartments.
- Regularly clean any surfaces that may come into contact with food and accessible drain systems.
- Clean water containers if they have not been used for 48 hours. Properly rinse the water distribution system connected to a fresh water network if no water has been drawn off for five days.
- Store raw meat and fish in the appropriate refrigerator compartments so that the latter products are not in contact with other food and do not drip onto other food.
- The "two star" compartments for frozen foods are suitable for storing food that is already frozen, for storing or making ice cream and ice cubes.
- The "one, two and three star" compartments are not suitable for freezing fresh foods.

- If the refrigerator remains empty for an extended period of time, switch it off, defrost it, clean it, dry it and leave the door open to prevent any mould from forming inside the appliance.

This symbol indicates that this product should not be treated as household waste.

Only dispose of the appliance in certified collection centres.

Your appliance contains a large amount of recyclable material. It is marked with this label to indicate the used appliances must be disposed of in certified collection points.

Contact your town hall or your retailer for the used appliance collection points closest to your home. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive on Waste Electrical and Electronic Equipment.

This appliance's packing materials are also recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.

In accordance with the most recent legislative provisions applying to the protection and respect for the environment, your appliance does not contain any CFCs, but a refrigerant called R600a. The exact type of coolant gas used in your appliance is clearly shown on the ID plate inside the fridge part of your appliance, at the foot of the left-hand side panel. R600a is a non-polluting gas that does not harm the ozone layer and hardly contributes to the greenhouse effect at all.

Used appliances must be immediately made unusable.

Disconnect the power cord and cut it as close to the appliance as possible. Inhibit the closing mechanism of the door or, even better, detach the door, so that children or pets cannot remain enclosed inside the appliance when playing.

To access the data on your model, stored in the product database in line with regulation (EU) 2019/2016 and data relating to energy labelling, please connect to the dedicated website at https://eprel.ec.europa.eu/

Find the reference of your appliance on the website by entering the service reference shown on the ID plate on your appliance.

Another way to access this information is to flash the QR code found on the energy label on your product.

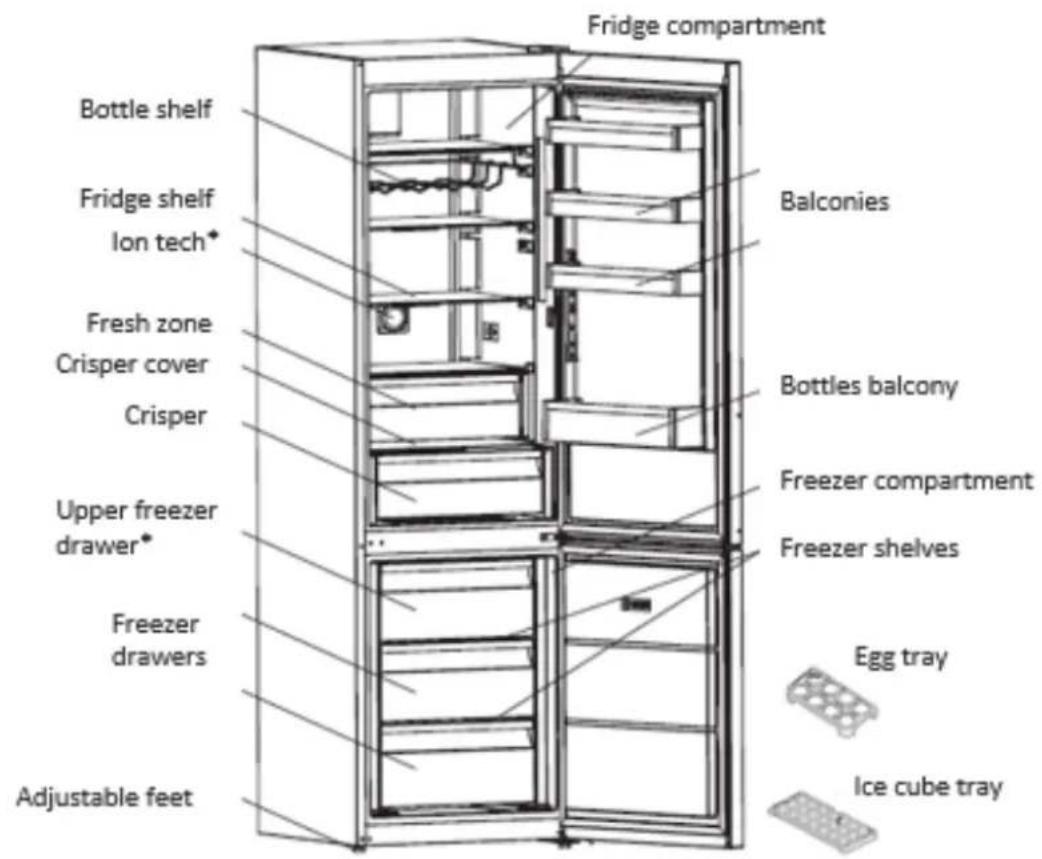

Layout and presentation of your appliance

- Your appliance was designed and tested to optimise its energy use.

- The proposed layout represents the ideal solution for achieving ideal energy consumption and optimum food storage.

Fridge compartment Bottle shelf Fridge shelf Ion tech* Fresh zone Crisper cover Crisper Upper freezer drawer* Freezer drawers Adjustable feet Balconies Bottles balcony Freezer compartment Freezer shelves Egg tray Ice cube tray

*This illustration is only for hinting, the detail please check your appliance.

You can only keep your food in good condition and optimise your energy consumption by following the instructions in this installation and user guide.

Energy-saving measures

In order to reduce the power consumption of your appliance:

• Install it in a suitable location (see "Installing your appliance").
- Leave the doors open for the shortest time possible.
- Never put hot food in the fridge or the freezer, and in particular soups and other preparations that release a lot of steam.
- Check that your appliance is working correctly and do not allow too much ice to accumulate in the freezer (defrost when the ice is more than 5-6 mm thick). Clean the condenser on a regular basis.
- Regularly check the door seals and make sure that the doors can be closed properly. If this is not the case, contact after-sales service.
- Do not adjust the temperature too low.

Storing food

Here are some rules you should follow:

• Maintain the cold chain and select "Booster" mode at least 6 hours before coming home with groceries (if your model has it).
• Clean the refrigerator part at least once a month (see Care and cleaning)
• Keep home-made food in the refrigerator after first taking care to leave it to cool.
• Make sure that your appliance is set to the recommended temperatures shown below. The temperatures for every compartment are recommended to optimise storing food and avoid any waste.

Area	Type of compartment	Recommended temperature
Fresh food compartments	Fresh food compartment (refrigerator)	+4°C
Frozen food compartments	0 star compartment (depending on model)	0°C
	1 star compartment (depending on model)	-6°C
	2 star compartment (depending on model)	-12°C
	3 star compartment (depending on model)	-18°C
	4 star freezer drawers/shelves (depending on model)	-18°C

- Place the food in the locations recommended in the tables below.

Fresh food compartments

Refrigerator compartments	Type of food
Refrigerator door and door racks	Jams, drinks, eggs, condiments.Do not place perishable fresh food in these areas
Crisper	Lettuce, fruit, vegetables, herbsDo not put bananas, onions, potatoes or garlic in the refrigerator.
Lower shelf	Raw meat, fish, highly perishable food.
Intermediate shelf	Milk products
Top shelf	Cold cuts, prepared meals, meals to reheat

Frozen food compartments (compartments available depending on model)

Freezer compartments	Logos & Markings	Type of food
0 star compartment		To store sorbet for a few hours and make ice cubes.This compartment is not suitable for freezing fresh food.
1 star compartment		To store frozen products for a few hours and make ice cubes.This compartment is not suitable for freezing fresh food.
2 star compartment		To store frozen products for a few days, make ice cream and ice cubes.This compartment is not suitable for freezing fresh food.
3 star compartment		To store frozen products for a few weeks/months and make ice cubes.This compartment is not suitable for freezing fresh food.
4 star freezer drawers/shelves	[XX8T]	To freeze food and store:- Meat, fish (lower drawer/shelf).- Vegetables, chips (intermediate drawer/shelf).- Ice cream, fruit, ready-made dishes (upper drawer/shelf)

Care before installation

Before installing the appliance and connecting it to the power, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Never use detergents or abrasive cleaners, they will damage the inside coating.

When using the appliance for the first time or after a period of non-use, before putting the food in the compartment let the appliance run at least two hours on the higher settings.

Location

Warning! Never expose the appliance to a naked flame.

• Install the appliance in a dry and well ventilated place.
- The appliance should be located far from heat sources like radiators, boilers, sunlight, etc.

- Your appliance is designed to function optimally at a given ambient temperature. In this case, it is said to be designed for a particular "climate class". The climate class is clearly shown on the ID plate (see the "Contact" chapter). The refrigerator may not maintain satisfactory inside temperatures if it operates outside of the temperature limits set for the "climate class" it is designed for. Ensure that the chosen location is compliant with these temperature limits:

Class	Ambient temperature
SN	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 32°C
SN-ST	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 38°C
SN-T	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 43°C
N	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 32°C
ST	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 38°C
T	This refrigeration appliance is designed for use at ambient temperatures between 16°C and 43°C

• Based on the above, avoid locating your appliance on balconies, verandas, terraces, in garages, etc. Excessively high temperature in summer and excessively low temperatures in winter can prevent it from functioning properly and therefore properly conserving food.
• Appliance levelling is achieved by adjusting one or more adjustable feet located under the unit (refer to the "Levelling the appliance" section).

If your appliance is fitted with casters, then remember that they should only be used for short movements. Do not move the appliance over long distances on its casters.

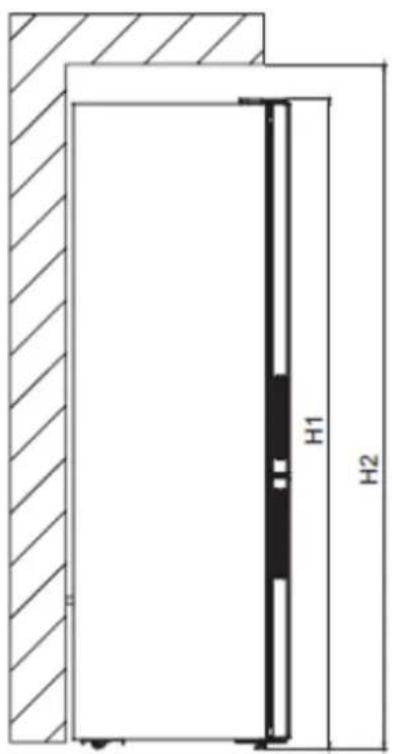

Space requirements

• Select a location that is not directly exposed to sunlight.
• Select a location that is large enough for the refrigerator doors to open easily.
• Allow a safe distance to the right, left, back and top of the unit when installing. This will optimize the performance of the product, reduce your energy consumption and therefore limit your electricity bill (see drawing below).
  • Make sure that the air can circulate freely at the back of the unit.

H1 H2

D1 W1

D2 W2

Overall dimensions 1

H1	mm	2010
W1	mm	595
D1	mm	650

^1 the height, width and depth of the appliance without the handle.

Space required in use ^2
H2	mm	2160
W2	mm	695
D2	mm	744,1

^2 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air.

Technical drawing of a mechanical assembly with hatched areas and dimension label W3 (no text or symbols beyond basic geometry)

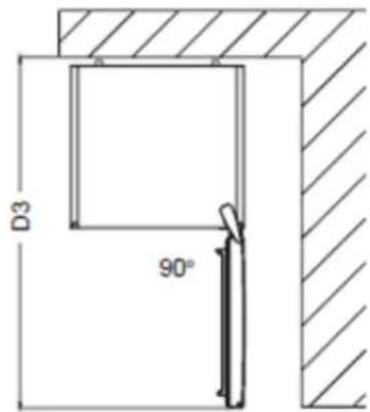

D3 90°

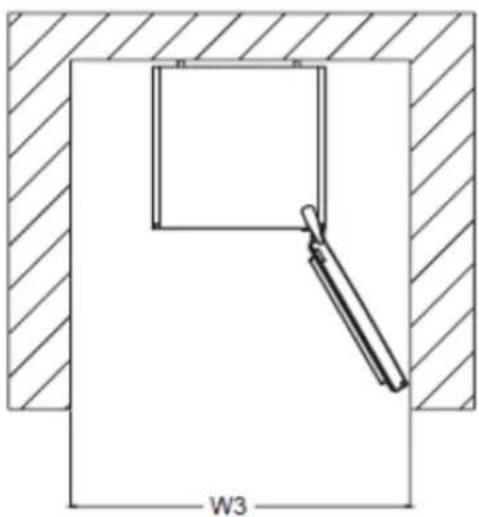

Overall space required in use3
W3	mm	981,6
D3	mm	1243,5
3the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air, plus the space necessary to allow door opening to the minimum angle permitting removal of all internal equipment.

Levelling the appliance

Choose a place to install the refrigerator on a flat surface.

Two identical diagrams showing checkmark and cross symbols inside vertical bars, likely indicating selection or confirmation.

If the appliance is not level, the doors will not be correctly aligned and compartment sealing will not be ensured.

To level the appliance laterally, adjust the two adjustable feet on the front of the product.

Once the appliance is installed, ensure that it is slightly inclined rearwards. In this way, it will be easier to close the door. If necessary, adjust the setting of the adjustable feet.

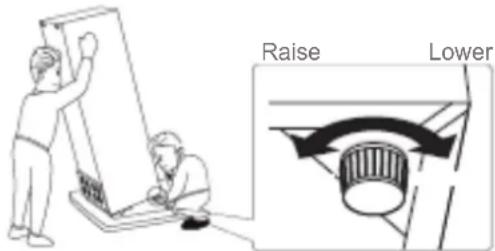

Procedure for adjusting the feet at the front of the product

Raise Lower

Electrical connections

Warning! It must be possible to unplug the appliance from the mains power, so the plug must remain easy to access after installation.

• The electric connections must meet the applicable standards and be capable of withstanding the maximum power shown on the ID plate.
• The power plug must be easily accessible and out of the reach of children.
• For your safety this appliance must be earthed. If the power plug is not earthed, consult a qualified electrician to connect your appliance in line with applicable regulations.
• Do not use extensions, adapters or multiple plugs.
• Do not place multiple plugs or portable power supply units behind the appliance.

The manufacturer declines all liability if the above-mentioned safety precautions are not complied with. If in doubt, refer to your reseller.

"COLD AREA" indicator

The sign opposite can be found in your fridge.

It clearly shows the coldest zone of your appliance, where the temperature is lower than or equal to +4°C.

A temperature gauge in this zone allows you to check the settings of your fridge.

Adjust the thermostat

Temperature correct

Warning!

If the door of the fridge is left open for too long, the temperature inside the fridge will rise. Check the temperature gauge within 30 seconds after opening the door to make sure that the reading is correct.

Temperature setting

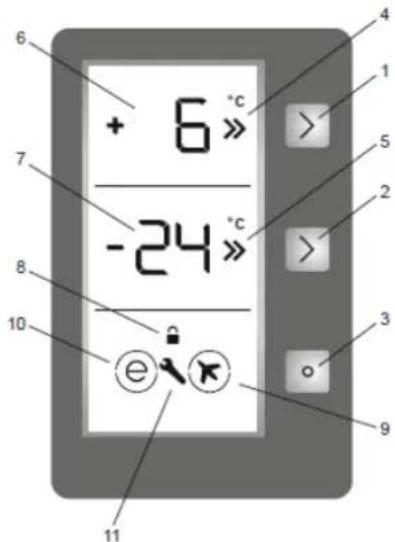

Control Panel

+ 6 °C -24 °C e 9

When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

Using the Control Panel

1. Refrigerator setting button. Press it to change the refrigerator temperature: 8, 6, 5, 4, 2°C; and to activate the Super cooling mode.
2. Freezer setting button. Press it to change the freezer temperature: -16, -18, -20, -22, -24°C; and to activate the Super freezing mode.
3. Setting button to activate Eco and Vacation modes.
4. Refrigerator temperature display
5. Freezer temperature display

6. Fridge temperature or Super cooling indicator "SC" is displayed here

7. Freezer temperature or Super freezing indicator "SF" is displayed here

8. Child lock indicator
9. Vacation mode indicator
10. Eco mode indicator
11. Alarm light: lights up when there is a problem with the sensors or the cold production.

Cooler temperature settings

+ 6° -24°

• The initial temperature of the refrigerator is +4°C.
- Press the refrigerator button once. When this key is pressed for the first time, the last set value appears on the display.
- Each time the key is pressed, a lower temperature is set. (+8°C, +6°C, +5°C, +4°C, +2°C, and Super cooling)

Freezer temperature settings

+ 6° -24°

• The initial freezer temperature value is -18^ .
• Press the freezer setting button once. When the key is pressed for the first time, the display will show the last set value.
• Each time the key is pressed, a lower temperature is set (-16°C, -18°C, -20°C, -22°C, -24°C and Super freezing).

Super freezing mode

This mode allows you to freeze fresh cooked food faster, and is also useful when a large quantity of food is inserted at the same time, after fresh or frozen food purchase for example.

It is necessary to activate this mode 24 hours before placing the food or, if not done, at least 3 hours before. After 24 hours, the appliance automatically returns to the previous setting.

+ 6 ° SF e ↗

- Scroll through the different temperatures until "SF" appears on the display, which corresponds to the Super freezing mode.

- A beep will sound twice, "SF" will remain on the display, the mode is set.

During this mode:

• It is possible to adjust the temperature of the refrigerator. In this case, the Super freezing mode remains active.
• It is not possible to select the Eco and Vacation modes.
• It can be deactivated in the same way as it was selected, but it must be kept active for at least 24 hours.

Super cool mode

This mode allows to cool and store a large quantity of food in the fridge compartment, and to quickly cool drinks.

50 ° -24°

• Scroll through the different temperatures until "SC" appears on the display, which corresponds to the Super Cool mode.
• A beep will sound twice, "SC" will remain on the display, the mode is set.

During this mode:

• It is possible to adjust the temperature of the freezer. In this case, the Super cooling mode remains active.
• It is not possible to select the Eco and Vacation modes.
• To cancel the mode, follow the same procedure as when it was selected.

Eco mode

Energy savings. During periods of less frequent use (door opening) or absence from home, such as a holiday, Eco program can provide optimum temperature whilst saving power.

E E E

• Press the Mode button until a circle appears around the Eco indicator. The circle flashes three times and a beep sounds twice, the mode is set.
• The refrigerator and freezer temperature indicators will display "E".
• The circle around the Eco indicator and the "E" will remain on the display until the mode is over.

During this mode:

• The refrigerator and freezer temperatures can be adjusted.
• Super cooling and Super freezing modes can be selected but cancel the Eco mode.

• Vacation mode can be selected after cancelling Eco mode.
- To cancel, press the Mode button again. When Eco mode is canceled, the preset values are kept.

Holiday mode

This mode should be activated when the appliance will not be used for a long period of time. This allows your refrigerator to operate more economically. The refrigerator must be completely empty when the Vacation mode is activated.

Diagram showing a hand pressing a button on a digital display with 'H' and 'e' symbols, likely indicating a function or control.

• Press the Mode button until a circle appears around the Vacation indicator. The circle flashes three times and a beep sounds twice, the mode is set.
  • The freezer temperature indicator will display "H".
• The circle around the Vacation indicator and the "H" will remain on the display until the mode is over.

During this mode:

• The refrigerator and freezer temperatures can be set.
• Super cooling and Super freezing modes can be selected but cancel the Vacation mode.
• Eco mode can be selected after Vacation mode has been cancelled.
• To cancel, press the Mode button again. When Vacation mode is cancelled, the preset values are kept.

Drink cool mode

This mode is used to cool drinks within an adjustable time frame.

05° dc° e ↗

• Press the Freezer button for 3 seconds.
• "dc" appears on the display of the freezer section and "05" flashes on the display of the refrigerator section.
• Press the Refrigerator key to set the time (05 - 10 - 15 - 20 - 25 - 30 minutes). If no key is pressed within 2 seconds, the time is set.
• The countdown starts from the selected time, minute by minute. The remaining time flashes on the display.
• A beep sound when the time is up.
• To cancel and/or turn off this mode, press the freezer setting button again for 3 seconds.

During this mode:

• Set the time according to the temperature of the bottles before placing them in the appliance. For example, the time is set to "5 minutes" initially. After this time, if the bottles are not cool enough, it is possible to set another 5 or 10 minutes.
• Check the temperature of the bottles regularly. Remove the bottles from the appliance when they are cool enough, as they may explode if left in the appliance for too long when the mode is activated.

Screen saving mode

This mode saves energy by switching off all control panel lighting when the panel is left inactive.

+ 6° -24°

• The Screen saver mode is automatically activated after 30 seconds.
- Press any key to turn the screen back on.
- If you do not cancel the Screen saver mode or press any key for 30 seconds, the control panel remains off.

To disable the Screen saving mode:

• Press any key to activate them, then press and hold the mode key for 3 seconds.
• A signal sounds, the mode is set.
• To reactivate the screen saver mode, press and hold the mode button again for 3 seconds.

Child lock function

This function locks the display buttons so that the settings cannot be changed.

• Press the freezer and refrigerator setting buttons simultaneously for 3 seconds.
  • To deactivate the function, do the same operation.

Door open alarm

- When the refrigerator door is left open for too long, the door open alarm will start. After 2 minutes, the internal light flashes and a beep sound. They turn off when the door is closed.

Daily use

Your refrigerator compartment is equipped with shelves, door racks and drawers with various logos to help you store your food in the right place.

Using the shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

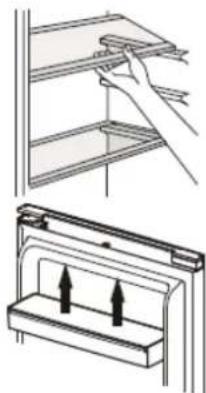

Positioning the small door trays

The small door trays can be removed to assist cleaning. To do this, progressively pull the door rack in the direction indicated by the arrows until you can remove it completely. After cleaning it, replace it in the desired location.

Diagram showing a hand placing a component above a shelf, and a close-up of a mechanical component with upward arrows (no text or symbols)

Foldable half shelf

The half shelf allows to have more storage space. Push the shelf towards the back of the appliance to slide it under the other shelf. Pull the shelf back towards you to return it to its original position.

Image 1 Image 2

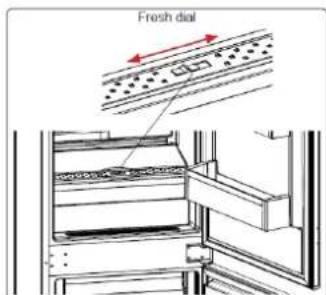

Fresh dial

If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air to go into the crisper and the humidity rate to be controlled, in order to increase the life of food within.

Fresh dial

Fresh zone

Storing food in the Fresh zone compartment of the refrigerator helps to prolong the freshness and flavor of the food. The Fresh zone is generally used to store fresh foods such as raw fish or meat.

Note: Do not put the food you want to freeze or the ice cube trays in the refrigerator compartment.

Maxi Fresh Preserver

Maxi Fresh Preserver technology helps to remove ethylene gas (a bioproduct released naturally from fresh foods) and unpleasant odors from the crisper. In this way, food stays fresh for a longer time.

- Maxi Fresh Preserver must be cleaned once a year. The filter should be cleaned during 2 hours at 65^ in a oven.

- To clean the filter, remove the back cover of the filter box by pulling it in the direction of the arrow.

• The filter should not be washed with water or any detergent.

Diagram showing a device with ventilation system and a separate box (no text or symbols)

PureBeam +

PureBeam + technology, with UV light and air filtration, eliminates viruses and bacteria in your refrigerator. This keeps your food in a consistently healthy environment.

PureBeam +

Twist Ice

This equipment makes it easier to make and remove ice cubes than a conventional ice cube tray.

• Pull the white drawer out of the Twist Ice
• Fill it with water to the level indicated
• Put back the white drawer in the Twist Ice
- When ice cubes are formed, turn the buttons to drop the ice cubes into the ice cube compartment
• Pull out the ice cube compartment to pick them up

Remark

- Do not fill the ice cube compartment with water to make ice cubes, as this may break it

Hints and Tips

• The refrigerator is a domestic appliance suited to short-term conservation of food products like fruit, vegetables, drinks, etc.
• Do not use it as a specialised appliance for storing products that require storage in line with strict temperature rules, like medicines, etc.
  • Cooked foods must be cooled to ambient temperature before they are placed in the refrigerator.
  • We recommend placing food in sealed containers before storing them in the fridge.
  • Never place food right next to the air outlet as this could impede the airflow and freeze the food.
• Never place volatile, inflammable or explosive liquids like solvents, alcohol, acetone or petrol in the fridge. There is an explosion hazard.
  • Never leave the door open longer than necessary.

Hints for refrigeration

• Meat (all types) must be wrapped in sealed polyethylene bags and placed on the glass shelf above the crisper.
  • For safety, store in this way only one or two days at the most.
  • Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer provided.
• Butter and cheese should be placed in special sealed containers, wrapped in aluminium foil or placed in a sealed bag.
  • Milk bottles should be capped and stored in the bottle rack in the door.
• To save energy, all of the door shelves and glass shelves should be fitted in their designed location.

Ice cubes

This appliance can accept one or more ice cube trays for making ice cubes.

Freezing tips

To help you optimise the freezing process, here are some important tips:

• The maximum amount of food that you can freeze every 24 hours can be found on the ID plate.
• The freezing process takes 24 hours. Do not add any more food to freeze during this time.
• Only freeze good quality, fresh and properly washed food.
• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.
• Wrap up the food in aluminium foil or polyethylene food wraps which are airtight.
• Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid raising their temperature.
• Iced products, if consumed immediately after removal from the freezer compartment, may cause frost burns to the skin.
  • We recommend labelling and dating each frozen package.
  • To obtain ice cubes faster, we recommend placing the ice cube trays in the top drawer.

Thawing food

Before eating, frozen or deep frozen food may be thawed in the refrigerator compartment or at ambient temperature, depending on the time available.

Some food may also be cooked directly when taken out of the freezer, while it is still frozen. In this case, cooking will take longer.

Important: In the event of accidental thawing, caused for example by a power break, quickly eat the thawed food. Never refreeze thawed food.

Warning! No thawed food may be replaced in the freezer. Place it in the refrigerator then eat it quickly.

Refreezing a thawed product encourages the spread of bacteria. This may become a health hazard if the bacteria that spreads are pathogens, as these may cause more or less serious food poisoning depending on the type of bacteria involved. If any doubt, cook the food involved.

Hints for the storage of frozen food

To guarantee optimum performance, comply with the following instructions:

• Ensure that frozen food has been stored correctly by the food retailer.
• Ensure that frozen food is quickly carried from the retailer to your freezer.
• Do not open the door too often or avoid leaving the door open longer than necessary.
• Once thawed, food will deteriorate rapidly and should never be refrozen.
• Do not exceed the storage states shown on the food.

Warning! Always unplug your appliance before any maintenance work. Never pull on the power cord, but only on the plug itself.

Cleaning

For hygiene reasons, regularly clean the appliance (sidewalls and interior and exterior accessories).

Important! Ethereal oils and organic solvents can damage plastic parts, e.g. lemon juice, butyric acid or acetic acid.

• Do not allow such substances to come into contact with appliance parts.
• Do not use any abrasive cleansers.
• Remove food from the appliance. Store it in a cool place and keep well covered.
• Clean the appliance and the interior accessories with a cloth and lukewarm water with a diluted white vinegar or bicarbonate of soda solution. Do not wash the accessories in a dishwasher.
  • After cleaning them, rinse surfaces with clear water and dry them.
  • After everything is dry, plug the appliance back into the plug.
• Make sure that no water enters the lamp housing and other electrical components.
• Clean the condenser with a brush at least twice a year. This will help you to save energy costs and increase productivity.

① Never clean the appliance with a steam cleaner.

Cleaning the drain

To stop the defrost water from running into the refrigerator, clean the drain at the back of the refrigerator part from time to time. To do this, use a cleaning product as shown in the diagram on the right.

Replacing the light

This product contains a light source whose the energy efficiency class is F.

The light inside the fridge uses a LED. To replace it, please contact your after sales service or an approved technician.

You will find all the information you need to contact our authorized technicians and our after-sales service in the “CONTACTS & INFORMATION” section.

Troubleshooting

Warning! If there is any anomaly, unplug your appliance. Only a qualified electrician or competent person may carry out troubleshooting.

If there is any anomaly during operation, check the following points before calling our approved after sales service or a qualified professional.

ERROR TYPE	MEANING	WHY	WHAT TO DO
E01	Sensor warning		Call Service for assistance as soon as possible.
E02	Sensor warning		Call Service for assistance as soon as possible.
E03	Sensor warning		Call Service for assistance as soon as possible.
E06	Sensor warning		Call Service for assistance as soon as possible.
E07	Sensor warning		Call Service for assistance as soon as possible.
E08 Low voltage warning	power supply to the device has dropped to below 170V.	- This is not a device failure, this error helps to prevent damages to the compressor.- The voltage needs to be increased back to required levels.If this warning continues, an authorised technician needs to be contacted.
E09 Freezer compartment is not cold enough	Likely to occur after long term power failure.	1. Set the freezer temperature to a colder value or set Super Freeze. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Remove any products which have thawed/defrosted during this error. They can be used within a short period of time.3. Do not add any fresh produce to the freezer compartment until the correct temperature has been reached and the error is no longer visible.If this warning continues an authorized technician needs to be contacted.
E10 Fridge compartment is	Likely to occur after: 1. Set the fridge temperature to a colder value or set Super cool. This should
	not cold enough	- Long term power failure.- Hot food has been left in the fridge.	remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Please empty the location at the front area of air duct channel holes and avoid putting food close to the sensor.If this warning continues, an authorised technician needs to be contacted.
E11 Fridge compartment is too cold		Various	1. Check if Super cool mode is activated2. Reduce the fridge compartment temperature3. Check if vents are clear and not cloggedIf this warning continues, an authorised technician needs to be contacted.
The appliance does not work		The appliance is switched off	Switch on the appliance
		The fuse has blown	Check the fuse, replace it if necessary.
		The plug is unplugged	Connect the plug.
		The plug is defective	Electrical malfunctions must be corrected by an electrician.
The appliance does not work well		The appliance is overloaded	Limit the storage of your food in the appliance
		The doors are not closed properly	Rearrange the inside of the appliance
		There is not enough space at the back and on the sides of the appliance	Move your appliance to reach the required space
Moisture build-up in the appliance		Packages are wet before being placed in the appliance	Packages must be dry before being placed in the appliance
		Refrigerator doors are opened frequently	Limit the opening of doors so that moisture from the room does not enter the appliance
Doors do not open or close properly		Food is preventing the doors from closing	Rearrange the inside of the appliance
		Compartments, shelves or drawers are not perfectly in place	Put them correctly in place
	Door seals are broken or bent	Check the seals, replace them if necessary
	The appliance is not level	Check if the appliance or the cabinet is level, adjust if necessary
Abnormal noises	The appliance is not level	Adjust the cabinet if it is not level
	The appliance is touching the wall or other objects	Move the appliance slightly
	A component, e.g. a pipe, on the back of the appliance is touching another part of the unit or the wall	If necessary, bend the component carefully to clear the space
Food is not cold enough The temperature is not set correctly		Please refer to the temperature setting section
		Open the door only when necessary
		Temporarily set the thermostat to a higher setting to cool the appliance
		Please refer to the installation location section
The unit is cooling too much	Thermostat is set too high	Temporarily set the thermostat to a lower position

Some noises may be heard during normal appliance operation (compressor operating cycle, automatic defrosting, circulation of the refrigerating gas through the appliance, etc.).

If you cannot find the cause of the anomaly, only call our approved after sales service or a qualified professional.

Customer Relations

For more information about our products or to contact us, please:

Visit our website: www.de-dietrich.com

Servicing and repairs

Any repairs to your appliance must be made by a qualified professional accredited to work on the brand.

When making contact, mention the complete reference of your appliance (model, type, serial number). This information is provided on the ID plate located at the bottom left of the refrigerator (above the shelf or behind the crisper).

BFC Fridge/Freener S/N: 14 13 80091 Service: BFC Model: BE2-343-1 Total power output: 376A Energy consumption: 10kW Temperature using time: 1.5h Balance: 10000/- 100g 120-340V St Rx Max 110W / LISA Data Type: 27/2020/7 BE2-343-1-5-40W/FEED/CECK Chelodecrisis - NBT Pressed circuit lines: 6kV Receiving capacity: 3 g/cm³/h System Compressor CE Rc So Ty M Se

Reference
Serial number
Type
Model
Service Reference

You can find a list of approved service centres on our website www.de-dietrich.com

This website also allows access to information on spare parts.

Original replacement parts

During servicing, ask for only original spare parts to be used.

The minimum length of time for making available spare parts listed in European Regulation 2019-2019-EU and accessible especially to the appliance user is 10 years under the terms set out in the above regulation.

Guarantee

Please contact your reseller to benefit from the guarantee. The manufacturer does not offer any commercial guarantee for the refrigeration appliance.
