USER MANUAL CDPM 95390XF CANDY

Spia Wi-Fi ( Pulsante "U WASH" Controllo scorta sale Transmission rate (over the air) Output level (Class1)

1-11 Mbps for 802.11b 6-54 Mbps for 802.11g -83 dBm typical 0 to +12 dBm (software configurable) FUNZIONI Thank you for choosing a Candy appliance; quality dishwashers which guarantee high performance and reliability. Candy manufacture a vast range of domestic appliances: washing machines, washer/dryers, cookers, microwave ovens, ovens and hobs, refrigerators and freezers. Ask your dealer for the catalogue with the complete range of Candy products. Please read this booklet carefully as it provides important information regarding the safe installation, use, and maintenance of the machine, together with some useful advice on how to achieve the best results from your dishwasher. For future reference please keep this instruction booklet in a safe place. Your new appliance is fully guaranteed by the manufacturer for 12 months against electrical/mechanical breakdown excluding: A. Any faults which occur due to bad installation or misuse of the machine. B. Any faults which occur due to repair of, or interference with, the machine by any person not authorised by the manufacturer to carry out service. C. Any faults which occur due to any parts which are fitted to the machine which are not the original manufacturers parts. D. Any faults arising from non-domestic use or unusual or abnormal use of the machine. E. Any faults arising from operation at incorrect voltage. F. Any faults arising from incorrect operation of the machine. The guarantee applies to Gt Britain and Northern Ireland only, and is an addition to your statutory rights.

AFTER SALES SERVICE

For service and repairs call your local engineer on our national telephone number: GIAS Service Tel: 08444 995599 Support Service (Eire 0818 200021)

"PROGRAMME SELECTION" button "DELAY START" button "START"/"RESET" button (start/cancelling programme)

DIGITAL DISPLAY "SALT EMPTY" light "RINSE AID EMPTY" light

"U WASH" lights "OPTION SELECTION" lights Wi-Fi light (

Programme guide DIMENSIONS With working top Without working top 60 x 85 x 60

Width x Height x Depth (cm) Depth with door open (cm) EN 50242 place load Capacity with pans and dishes Water supply pressure (MPa) See rating plate Fuse / Power input / Supply voltage Energy (kWh) Water (L) 2,07 INTENSIVE 1,46 UNIVERSAL 0,95 ECO 0,59

ULTRA RAPID 24'

Power consumption of the off-mode and of the left-on mode: 0,45 W / 0,45 W *Values are measured in a laboratory according to European Standard EN 50242 (consumption may vary according to conditions of usage).

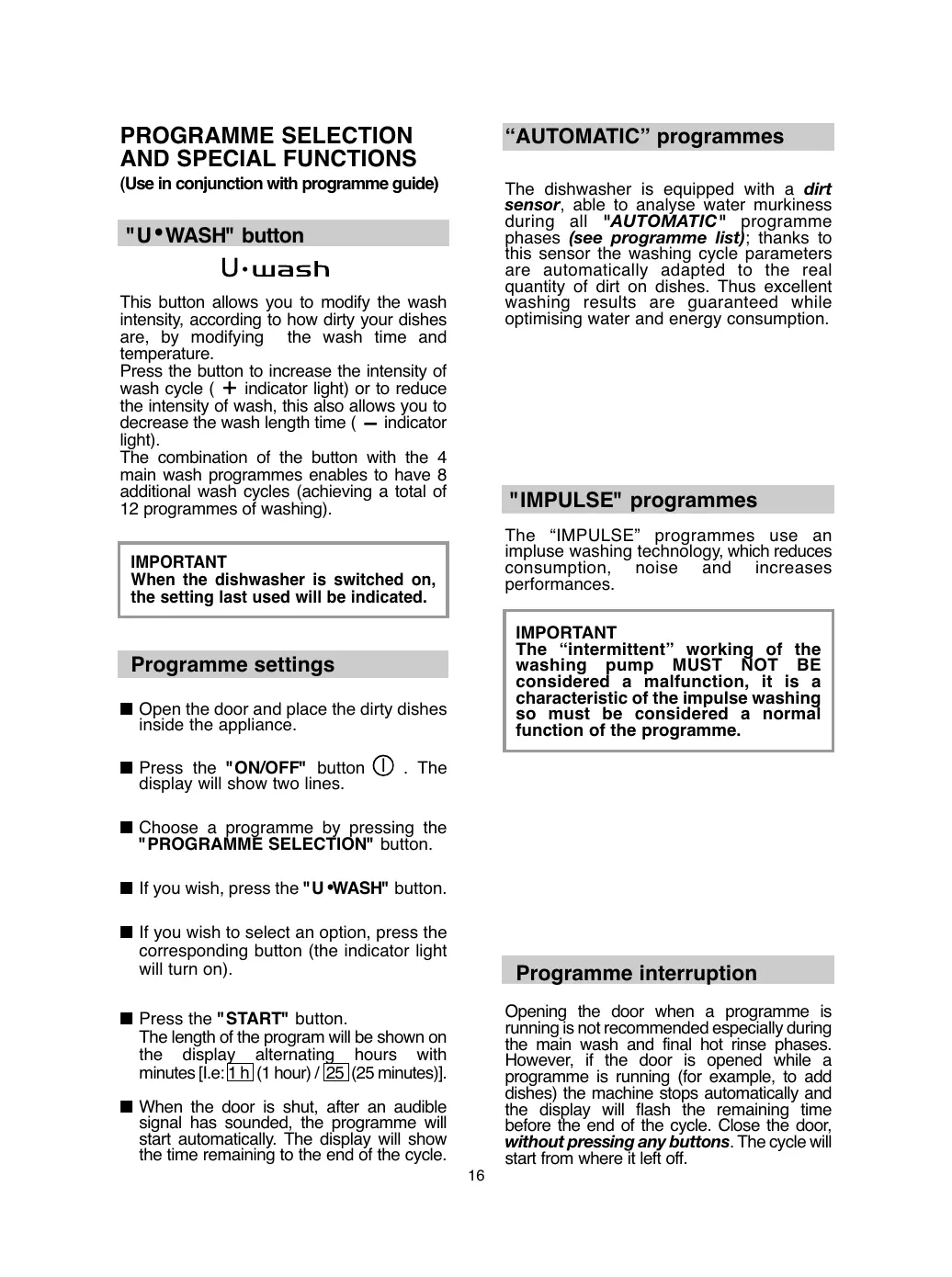

(Use in conjunction with programme guide) The dishwasher is equipped with a dirt sensor, able to analyse water murkiness during all "AUTOMATIC" programme phases (see programme list); thanks to this sensor the washing cycle parameters are automatically adapted to the real quantity of dirt on dishes. Thus excellent washing results are guaranteed while optimising water and energy consumption.

"U WASH" button This button allows you to modify the wash intensity, according to how dirty your dishes are, by modifying the wash time and temperature. Press the button to increase the intensity of wash cycle ( indicator light) or to reduce the intensity of wash, this also allows you to decrease the wash length time ( indicator light). The combination of the button with the 4 main wash programmes enables to have 8 additional wash cycles (achieving a total of 12 programmes of washing). "IMPULSE" programmes The “IMPULSE” programmes use an impluse washing technology, which reduces consumption, noise and increases performances. IMPORTANT When the dishwasher is switched on, the setting last used will be indicated. IMPORTANT The “intermittent” working of the washing pump MUST NOT BE considered a malfunction, it is a characteristic of the impulse washing so must be considered a normal function of the programme. Programme settings ■ Open the door and place the dirty dishes inside the appliance. ■ Press the "ON/OFF" button display will show two lines. . The ■ Choose a programme by pressing the "PROGRAMME SELECTION" button. ■ If you wish, press the "U•WASH" button. ■ If you wish to select an option, press the corresponding button (the indicator light will turn on). Programme interruption Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically and the display will flash the remaining time before the end of the cycle. Close the door, without pressing any buttons. The cycle will start from where it left off. ■ Press the "START" button. The length of the program will be shown on the display alternating hours with minutes [I.e: 1 h (1 hour) / 25 (25 minutes)]. ■ When the door is shut, after an audible signal has sounded, the programme will start automatically. The display will show the time remaining to the end of the cycle.

Programme end IMPORTANT A running program can be interrupted without opening the door by pressing the "ON/OFF" button. In this case, simply press the "ON/OFF" button again to restart the cycle from where it left off. A 5 second alarm will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended. The display and all the indicator lights will switch off. WARNING! If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished. ■ Hold the "RESET" button down for at least 5 seconds. "00" will appear on the display and some audible signals will sound. This button provides an energy and time saving of 25% on average (according to the select cycle) reducing the wash water temperature and the drying time during the final rinse. This programme is recommended for light soil washes, and for slightly wet dishes that are not fully dry, & improved drying results. We advise you to leave the door of the Dishwasher half-open at the end of the cycle, to allow for a natural circulation of air inside the dishwasher. ■ The running programme will be cancelled. The display will show two lines. "ALL IN 1" button Changing a running programme Proceed as follows to change or cancel a running program: This option optimises the use of "ALL in 1" ("3 in 1"/"4 in 1"/"5 in 1", ecc.) combined detergents. By pressing this button, the selected washing programme is modified to get best performance from combined detergents (furthermore, the salt and rinse aid shortage lights are de-activated). ■ At this point a new programme can be set. WARNING! Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser. WARNING! Once selected, this option keeps being on (light on) also for next washing cycles and it can be de-activate (light off) only by pressing the button once again. Programme operations Whilst a programme is running, the display shows the time remaining to the end of the cycle, which is automatically updated. If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off. IMPORTANT This option is recommended when using the ULTRA RAPID 24' program, the duration of which will be extended for about 15 minutes, allowing the detergent tablets to achieve a better performance.

Alarm mute for the PROGRAMME END Dishwasher start time can be set with this button, delaying start from 1 to 23 hours. The alarm for the programme end may be muted as follows: Proceed as follows to set a delayed start: IMPORTANT The dishwasher must ALWAYS be off before start of this procedure. ■ Press the "DELAY START" button ("00" will appear on the display). ■ Press the button again to increase the delay in hours (each time the button is pressed the delay is increased by 1 hour to a maximum of 23).

1. Hold down the "PROGRAMME

SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound). ■ To start the countdown, press the "START" button. The display will show the time remaining to the begin of the programme.

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 15 seconds (during this time 2 audible signals will sound). At the end of the countdown, the programme will automatically start and the length of the selected cycle will be shown in the display.

3. Release the button when the second

audible signal sounds ("b1" will appear on the display to indicate that the alarm is on). Proceed as follows to cancel a delayed start:

4. Press the same button again ("b0" will

appear on the display to indicate that the alarm is off). ■ Hold the "RESET" button down for at least 5 seconds. "00" will appear on the display and some audible signals will sound.

5. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new setting. ■ The delayed start and the selected programme will be cancelled. The display will show two lines. To turn the alarm on again, follow the same procedure. Simply-Fi ■ At this point, a new programme and option buttons must be set to start a new programme as indicated in the "PROGRAMME SETTINGS" section. For details on Wi-Fi settings, please refer to the appropriate section of this user manual and to the "Quick Guide" enclosed with this booklet.

Memorization of the last programme used

4. Press the same button again ("A1" will

appear on the display to indicate that the memorization is on). The last programme used can memorized by following the below:

5. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new setting. IMPORTANT The dishwasher must ALWAYS be off before start of this procedure. To disable the memorization, follow the same procedure. IMPORTANT This dishwasher is equipped with an anti-overflow safety device which will automatically discharge any excess water should a problem occur.

1. Hold down the "PROGRAMME

SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound). WARNING! To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher.

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 30 seconds (during this time, 3 audible signals will sound).

3. Release the button when the THIRD

audible signal sounds ("A0 " will appear on the display to indicate that the memorization is off). The dishwasher is able to signal a series of faults in the display.

AUTOMATIC FAULT SIGNALS

FAULTS CAUSE SOLUTION E2 appears on the display and the alarm sounds. No water (inlet hose closed). Turn off the dishwasher, open the inlet hose and reset the cycle. E3 appears on the display and the alarm sounds. The machine cannot drain water. Check if the drain tube is bent or if the siphon or filters are clogged. If the problem persists, contact Customer Service. E4 appears on the display and the alarm sounds. Water leak Check if the drain tube is bent or if the siphon or filters are clogged. If the problem persists, contact Customer Service. E5,E6,E7,Ef or EL appears on the display and the alarm sounds. Electronic control fault. Contact Customer Service. E8 or Ei appear on the display and the alarm sounds. The water heating element is not working correctly or the filter plate is clogged. Clean the filter plate. If the problem persists, contact Customer Service.

PROGRAMME GUIDE Wash with prewash For wash programmes with prewash, it is advisable to add a second dose of detergent (max. 10 g) directly in the machine.

/( ) = "AUTOMATIC" PROGRAMMES ARE OPTIMISED THANKS TO THE DIRT SENSOR THAT ADAPTS WASHING PARAMETERS TO DISH DIRT LEVELS. = is the program which allows you to access the functions. Hygienic 75°C An antibacterial cycle, intended for washing and sterilising dishes (even heavily stained ones) babies’ bottles etc. Intensive 75°C Once a day - for heavily soiled pans and any other items that have been left all day for washing. Intended for rapid washing of very dirty dishes. Universal+ 65-75°C Intended for everyday dishwashing. Two final rinses ensure a high level of hygiene and cleanliness. Universal 50-60°C Once a day - for normal soiled pans and any other items that have been left all day for washing. Daily 45-55°C Fast cycle, for “normally” dirty dishes - intended for frequent washes and normal loads. Quietest washing cycle. Ideal for functioning by night and for taking advantage of reduced energy fares. Programme for normally soiled tableware (the most efficient in terms of its combined energy and water consumption for that type of tableware). Programme standardised to EN 50242. Suitable for delicate crockery and glassware. Also for less soiled items excluding pans. Suitable for heavily soiled items that are to be washed straight after a meal (Max 8 place load). Quick wash for dishes which are to be washed immediately after the meal. Wash load of 6 persons. Refresh Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load.

65°C/ 75°C 75°C 140 YES YES YES 75°C 130 YES YES YES 65°C YES YES YES 115/ YES YES YES

"ALL IN 1" button Avarage duration in minutes Special function buttons available

N/A = OPTION NOT AVAILABLE

WITH HOT WATER THE TIME REMAINING UNTIL THE END OF THE PROGRAMME IS AUTOMATICALLY DISPLAYED WHILE THE PROGRAMME IS RUNNING. = "IMPULSE" programmes = "AUTOMATIC" programmes Hot rinse with rinse aid Second cold rinse First cold rinse Main wash Cold pre-wash Hot pre-wash Detergent for washing Detergent for soaking (Prewash) Check list AQUASTOP-SYSTEM The water-stop device protects against water damages caused by leaks on the fill hose which could develop due to natural ageing of the hose. In the water-stop system the leaking water fills the corrugated hose and activates a stop valve which cuts off the water supply to the machine. This fault is shown by a red sector on the window Would this occur, please refer to your Service Agent. If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from your Service Agent. Safety antitwist device (press and twist to remove the washer).

WATER SOFTENER UNIT

• The softener unit is set in the factory at level 4 (d4) as this satisfies the requirements of the majority of users. Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company. Regulate the setting of your water softener unit according to the degree of hardness of your water as follows: IMPORTANT The dishwasher must be ALWAYS off before start this procedure.

1. Hold down the "PROGRAMME

SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound). Regulating the water softener with electronic programmer The water softener can treat water with a hardness level of up to 90°fH (French grading) or 50°dH (German grading) through 8 settings.

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 5 seconds, UNTIL an audible signal sounds. The current water softener setting level will be shown on the display. °fH (French) °dH (German)

0-5 6-10 11-20 21-30 31-40 41-50 51-60 61-90 0-3 4-6 7-11 12-16 17-22 23-27 28-33 34-50 Water softener setting Level Water hardness Use of regenerating salt The settings are listed in the table below:

3. Press the same button again to select

the required water softener level: each time the button is pressed, the setting will increase by one level. When you have reached "d7", the display will go back to "d0".

4. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new setting. WARNING! If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning (STEP 1). DIGITAL DISPLAY “ON/OFF” button - MODEM SETTING: To activate the Wi-Fi capabilities of your dishwasher, you will need to link it to your internet router or hub. To establish a wireless connection, you will need to input the router/hub ID and password. The dishwasher will only be compatible with a modem that has the specifications shown in the table below. If it doesn’t, then you may not get a Wi-Fi signal. DISHWASHER ENROLMENT Terminology and tools - Wi-Fi SYSTEM: You can activate the remote control system of the dishwasher via Wi-Fi, this will allow you to control various aspects of the dishwasher’s operation. For example, selecting and starting a wash cycle or pausing a wash cycle that’s in progress. If the remote control system is disabled, then the Simply-Fi app will still allow you to track the progress of a wash cycle and see how much time is left until it completes. However you cannot control any of the dishwasher functions through Simply-Fi. Parameter Specifications Frequency 2,402 ~ 2,480 MHz Modulation - REGISTRATION PROCEDURE: This is the process by which the dishwasher is connected to a wireless router and enables communication with the Simply-Fi app. (for further information, please read the "Quick Guide"). Channel intervals 5 MHz Channels 1-14 Transmission rate (over the air) - ON/OFF BUTTON: If the dishwasher is switched off (via the “ON/OFF” button or disconnected from the mains supply, then functionality through the remote control system will not be available. To reactivate the Wi-Fi system, restore power to the dishwasher, select the P0 program and then press the "START/RESET" button. Receive sensitivity Output level (Class1) - RESET: To restore the Wi-Fi system to factory settings, you need to press two buttons simultaneously until display the message AP. On freestanding models, you should press the "SUPER ECO" and "ALL IN 1" buttons. On built-in models, you should press the "U • WASH" " " and " " buttons.

1-11 Mbps for 802.11b 6-54 Mbps for 802.11g -83 dBm typical 0 to +12 dBm (software configurable) FUNCTIONS - POWER CONTROL: The app is able to show the levels of energy consumption at various stages of the wash cycle, as well as providing daily and weekly energy reports. Furthermore, once the cost of the household electricity supply is determined, the app will suggest the best time to use the dishwasher. The Simply-Fi app allows you to manage the dishwasher from either indoors or outdoors. To comply with relevant standards, the door of the dishwasher needs to be closed to control the appliance remotely. If the door is not closed, then it will not be possible to start a wash cycle, but it is possible to use the Simply-Fi app. - DIAGNOSTICS: The app informs the user about any errors or problems that may occur during the wash cycle (e.g. failure to load / unload). The user will be provided with practical advice on how to solve the problem (e.g. make sure the filter is clean, add salt or rinse aid) before calling the Customer Care Department. Within the Simply-Fi app there are several different functions: - PROGRAMS/OPTIONS: Through the Menu you can select up to 12 programs and up to 4 options (depending on the wash cycle that is selected) and save them under "Favourites". The "Quick Start" function allows you to quickly access a list of previously selected wash cycles and quickly set the same one again. With this the Candy Hoover Group, declares that this appliance marked with 0051 complies with the essential requirements of the R&TTE Directive 1999/5/EC. To receive a copy of the declaration of conformity, please contact the manufacturer at: www.candy-group.com. Touche "MARCHE/ARRÊT" Touche "PROGRAMMES" Touche "DEPART DIFFERE" Touche "START"/"RESET" (départ/annulation programme)

Touche "U WASH" Touche option "SUPER ECO" Touche option "ALL IN 1"

Voyants "U WASH" Touche "U WASH" Touche “ALL IN 1” Touche “SUPER ECO” Fonctions facultatives

N/A = OPTION NON DISPONIBLE

= Programmes “IMPULSE” Touche “DEPART DIFFERE” Transmission rate (over the air) Output level (Class1)

1-11 Mbps for 802.11b 6-54 Mbps for 802.11g -83 dBm typical 0 to +12 dBm (software configurable) FONCTIONS Pilotos "U WASH"

Transmission rate (over the air) Output level (Class1)

1-11 Mbps for 802.11b 6-54 Mbps for 802.11g -83 dBm typical 0 to +12 dBm (software configurable) FUNCIONES Transmission rate (over the air) Output level (Class1)

1-11 Mbps for 802.11b 6-54 Mbps for 802.11g -83 dBm typical 0 to +12 dBm (software configurable) FUNÇÕES
