USER MANUAL DO91104 DOMO

Black and white photo of a black compact refrigerator with 'DOMO' branding on the front panel (no additional text or symbols visible)

DO91104

Two symbolic icons: a warning triangle with an exclamation mark and an open book with blank pages (no text or labels)

Read all instructions carefully - save this instruction manual for future reference.

NL Nederlands 3
FR Français 15
DE Deutsch 27
EN English 39

GARANTIE

Geachte klant,

Line drawing of a refrigerator with labeled components (A, B) and a magnified inset showing internal structure (no text or symbols beyond labels)

Simple line drawing of a closed book or folder (no text or symbols visible)

Technical line drawing of a computer chassis with labeled components (no text or symbols beyond labels)

Line drawing of a computer chassis with labeled ports (no text or symbols beyond labels C and D)

Line drawing of a refrigerator with labeled components A and B, shown in two views (no text or symbols beyond labels)

GEBRUIK

TEMPERATUURREGELING

APPARAAT VERPLAATSEN

Prohibition sign depicting a trash bin crossed with no signage, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a closed book or notebook (no text or symbols visible)

Technical line drawing of a computer chassis with labeled ports (D, C) and connectors (no text or symbols beyond labels)

Line drawing of a computer case with labeled components (no text or symbols beyond labels C and D)

Line drawing of a refrigerator with labeled components A and B, shown in two views (no text or symbols beyond labels)

UTILISATION

RÉGLAGE DE LA TEMPÉRATURE

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a closed book or folder (no text or symbols visible)

Line drawing of a computer chassis with labeled components (D, C) and ports (no text or symbols beyond labels)

Technical line drawing of a computer case with labeled components (no text or symbols beyond labels C and D)

Line drawing of a simple refrigerator with a lid and side-mounted buttons (no text or symbols)

Simple line drawing of a mechanical or architectural component with labeled part B, no text or symbols present

GEBRAUCH

TEMPERATURREGELUNG

Prohibition sign depicting a trash bin crossed out by a diagonal line, with a blank rectangular base below.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  · farm houses;

• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

· Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

· Make sure that children do not touch the cord or appliance.

- Your appliance uses isobutane (R600a) as a refrigerant. Despite the fact that R600a is an environmentally friendly and natural gas, it is highly flammable. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your refrigerator from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

▲ELECTRICAL WARNINGS

- Attention: This appliance cannot be used with an external timer or a separate remote control.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the cord hang on a hot surface or on the edge of a table or counter top.

- Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.

- It is prohibited to alter or modify the device and its specifications.

- When disposing of the appliance, remove the plug from the power socket, cut the power cord (as closely as possible to the appliance), and remove the door to prevent playing children getting an electrical shock or shutting themselves in the appliance.

- Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

⚠️INSTALLATION

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

· Always use the appliance on a steady, dry and level surface.

- Keep the cord away from sharp edges and hot parts or other heat sources.

- Keep the ventilation openings free of obstructions.

- Avoid long exposure to direct sunlight.

· Make sure that you have access to the plug of the appliance.

- Make sure the plug and cord are not crushed or damaged by the back of the appliance. This can cause short circuits and, as a result, overheating and fire.

· This is a heavy appliance. Be careful when moving it.

· This cooling unit is not intended for use as a built-in appliance.

- Do not place a power strip or other portable power supply behind the appliance.

- After installation, it is advisable to wait 24 hours before connecting the appliance to allow the oil to flow back in the compressor.

⚠ USE

• The freezing compartment is suitable for making and storing ice cubes. It is not suitable for freezing fresh food.
  · Do not use the appliance outdoors.
  · Only use the appliance for its intended use.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
• Do not use any other electrical appliance inside the refrigerator, unless they are approved for this purpose by the manufacturer.
• Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a flammable propellant.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Ensure the food in the appliance does not touch the back wall.
  · Follow the instructions below to prevent contamination of food:
• Keeping the door open for long periods may cause the temperature in the compartments of the appliance to rise considerably.
• Clean the surfaces that could come into contact with food regularly.
• If the appliance is left empty for longer periods, it should be turned off, defrosted and cleaned. Allow it to dry and leave the door ajar to prevent mould from growing in the appliance.

⚠ CLEANING AND MAINTENANCE

• Never immerse the appliance, the cord or the plug in water or any other liquid.
  · Do not place warm or hot objects on top of the appliance.
  · Do not clean the appliance with anything made of metal.

- Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation. - Do not use mechanical appliances or other means to speed up the defrosting process, unless approved by the manufacturer.

- WARNING! Never place this appliance on or in the neighbourhood of a gas or electric fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.

· Pay attention to the symbol 'Fire risk – flammable materials' located on the back of the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

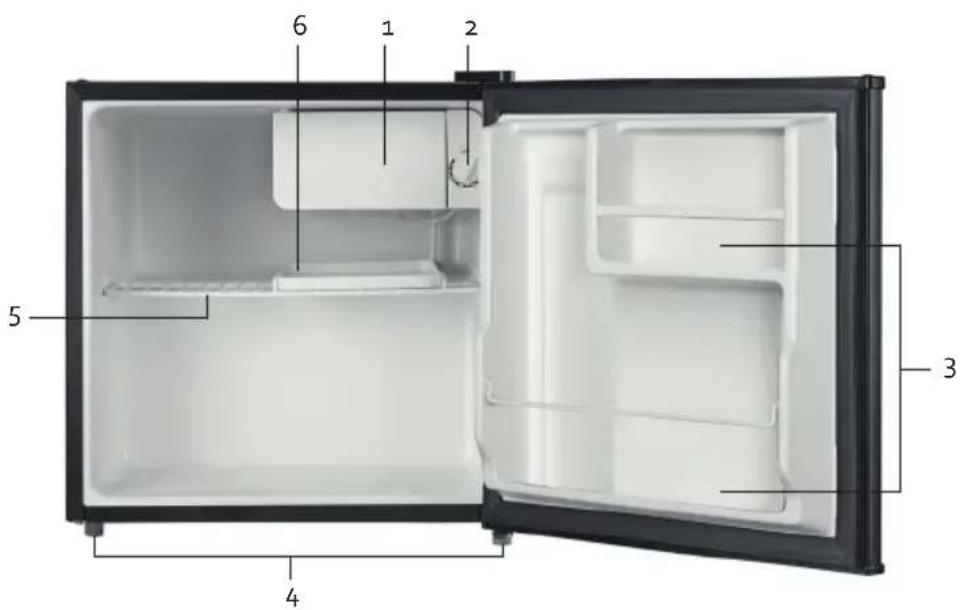

PARTS

1. Freezer compartment
2. Thermostat
3. Door racks
4. Adjustable feet
5. Shelf
6. Water collection tray

6 1 2 5 3 4

INSTALLATION

• Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth. Dry the appliance off well.

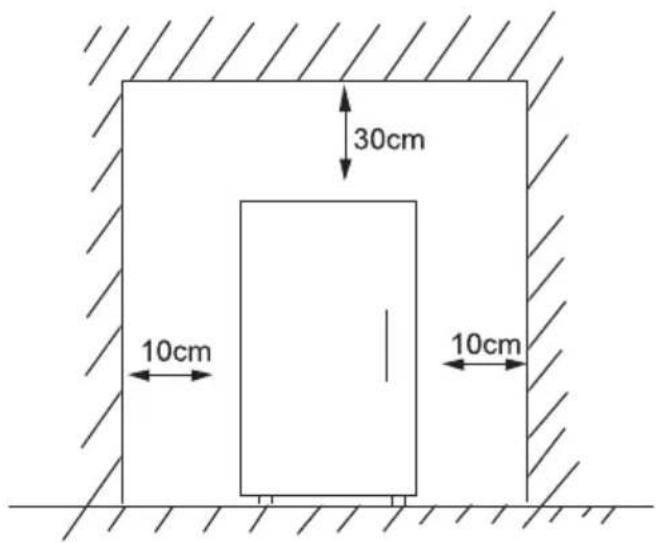

• Let air circulate freely around the cabinet.

30cm 10cm 10cm

10 cm

· Make sure there is sufficient space to open the door.
· This cooling unit is not intended for use as a built-in appliance.
- Select a place with a strong, level floor.

- Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat sources nearby will cause higher electricity consumption.

• Avoid very moist places. Too much moisture in the air will cause frost to form very quickly on the evaporator, and your refrigerator.
• Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.

· After installation, leave the fridge for 24 hours before turning it on. This way the refrigerant can settle.
- Allow the appliance to run empty for 8 hours so the compartment can cool to the appropriate temperature.

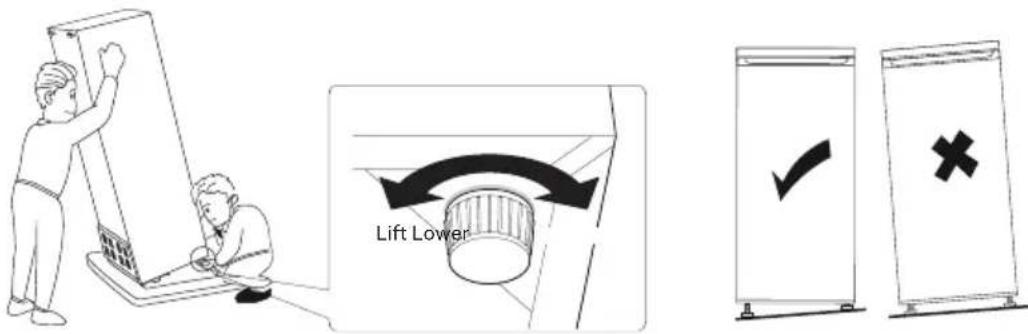

- One can level the appliance using the adjustable legs. The adjustable legs can be adjusted by screwing them in or out of the appliance.

Lift Lower

- The climate class indicates the minimum and maximum ambient temperature for the proper operation of an appliance. You can find the climate class on the type plate on the inside or back of the appliance.

· SN: Subnormal: ambient temperature between 10°C and 32°C
· N: Normal: ambient temperature between 16°C and 32°C
· ST: Subtropical: ambient temperature between 16°C and 38°C
· T: Tropical: ambient temperature between 16°C and 43°C

DOOR CONVERSION

If you need to hinge your door on the opposite side, it is recommended that you call your local authorised service agent to make this conversion or ask a technician.

Before you reverse the door, you should ensure the appliance is unplugged and empty. After reversing the door, leave the appliance alone for 8 hours before switching it on. This allows the coolant to set.

We recommend using a Phillips screwdriver, a flathead screwdriver, and masking tape (not supplied).

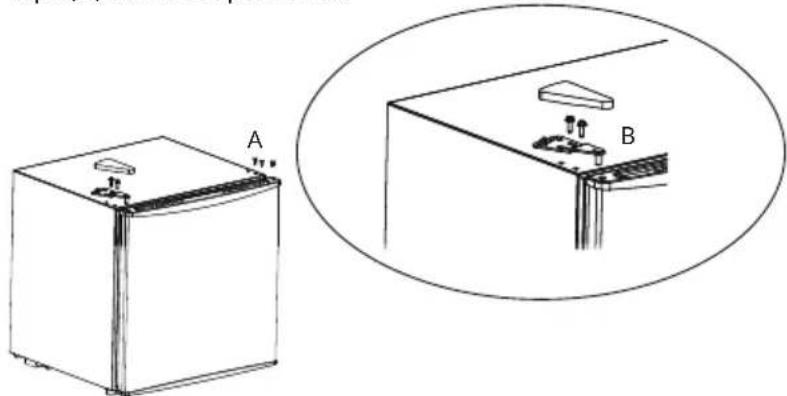

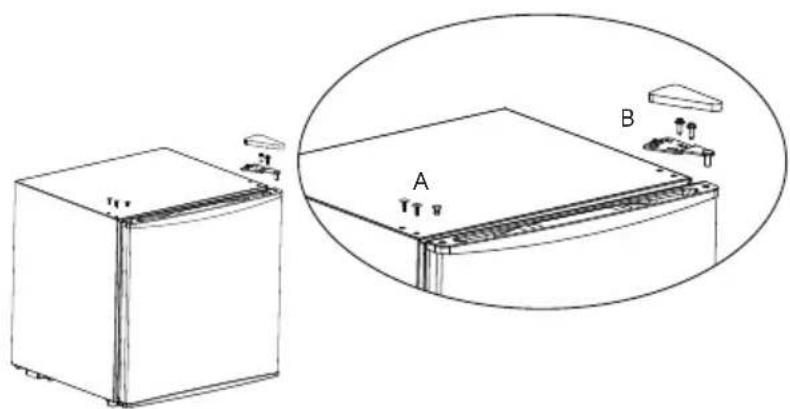

1. Remove the covers from the holes (A); two are on the fridge, one is on the door.

Line drawing of a refrigerator with labeled components (A, B) and an inset view showing internal components (no text or symbols present)

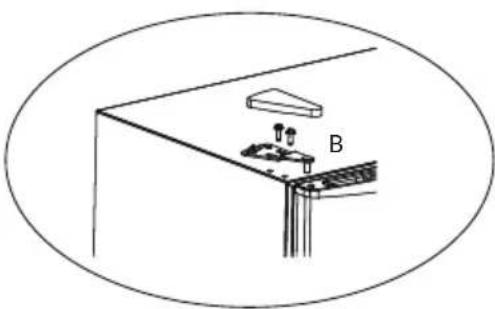

1. Dismantle the upper hinge cover and upper hinge fastening screws, and remove the upper hinge (B).

2. Remove the door, dismantle the stopper under the door, and then install the stopper on the other side.

Simple line drawing of a closed book or folder (no text or symbols visible)

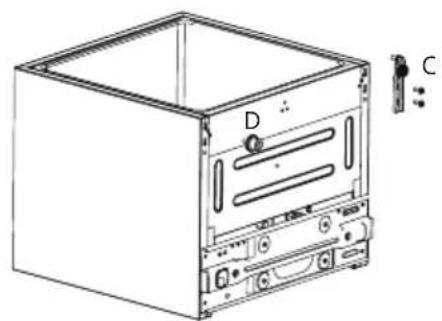

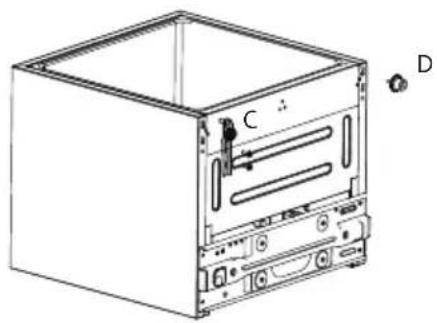

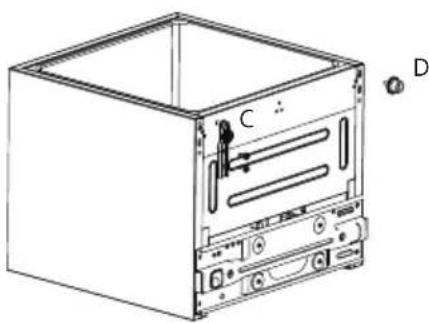

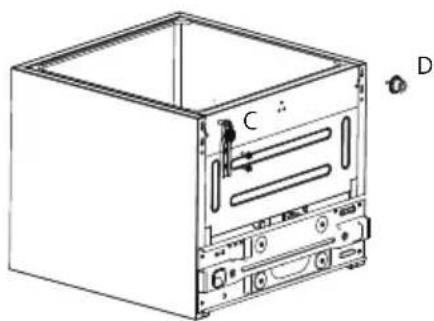

1. Dismantle the lower hinge (C) and the levelling foot (D). Attach the screws, hinge bracket, and levelling foot to the other side of the base.

Line drawing of a computer chassis with labeled components (D, C) and ports (no text or symbols beyond labels)

Line drawing of a computer chassis with labeled components (no text or symbols beyond labels)

1. Carefully put the door in place. Make sure that the door is aligned both horizontally and vertically so that the seals are closed on all sides before fully attaching the upper hinge. Put the hinge (B) back and screw firmly onto the top of the appliance. Put the cover plate back into place. Insert the cover caps (A) into the open holes.

Line drawing of a refrigerator with labeled components A and B, shown in two views (no text or symbols beyond labels)

USE

TEMPERATURE CONTROL

The fridge is controlled with a temperature control knob located inside the appliance.

Adjust the control knob as desired to suit your individual preference. The higher the number, the colder the temperature. Position 4 is the recommended position for normal use.

• In the OFF position the appliance does not operate (the cooling system is switched off), but power supply is not interrupted.
• The running time and temperature are affected by where the fridge is located, how often the door is opened and the temperature of the room the fridge is located in.

STORAGE GUIDE

The higher up in your appliance, the warmer. So whatever spoils fastest (fish, meat, etc.) is best put at the bottom. The door is the least cold because it opens regularly. For the best storage, set up your refrigerating appliance as follows:

Refrigerator compartment Type of food

Door rack · Food with natural preservatives such as jams, juices, drinks, spices, etc.· Do not store food with a limited shelf life here

Middle shelf · Fruits, herbs and vegetables· Do not store bananas, onions, potatoes and garlic in the refrigerator· Dairy and eggs

Top shelf Food that does not need to be cooked, such as ready-made meals, leftovers, spreads, etc.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Turn off the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the fridge to avoid any shock.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.

STORING FOOD IN THE FRIDGE

The fridge helps to extend the storage times of fresh perishable foods.

Fresh food care for best results:

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer.
• Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.
• Cool hot foods down before placing them in the fridge.
• Only use the freezer compartment to store ice cubes.

VACATION TIME

For short vacation periods, leave the control knobs at their usual settings. During longer absences:

• Remove all foods.
• Disconnect from electrical outlet.
• Clean the refrigerator thoroughly, including defrost pan.
  · Leave the door open to avoid possible formations of condensate, mould or odours.

POWER FAILURE

Most power failures are corrected within an hour or two and will not affect your refrigerator temperatures.

However, you should minimize the number of door openings while the power is off.

During power failures of longer duration, take steps to protect your food by putting dry ice on top of packages.

SOME IMPORTANT RULES FOR THE CORRECT USE OF THE REFRIGERATOR

• Never place hot foods in the refrigerator.
• Beverages should be stored in sealed containers.
• Foods to be stored for a long time should be wrapped in cellophane or polyethylene foil, or kept in glass containers.
• Never place spoiled foods in the cabinet.
• Don't overload the cabinet.
• Don't open the door unless necessary.
• Caution: please keep the products away from fire or similar glowing substances before you dispose of the refrigerator.
• Caution: Not for outer camping use (e.g. in a tent).
• Caution: For indoor use only.
• Caution: The appliance can not be used in public transportation.
• Keep all accessories, such as shelves, door racks, and drawers, in the appliance to minimise energy consumption.
• Please read the storage instructions on the food packaging. Always check the storage date.
• An empty fridge consumes more energy. After all, when the door is opened, warm air enters the space and needs to be cooled. More air enters when there are fewer products, meaning that more energy needs to be consumed to cool that air. So fill your fridge properly or choose a model sized for your needs.

CLEANING AND MAINTENANCE

• Do not use abrasive cleaning agents or solvents.
• Turn the appliance off. Disconnect the mains plug from the mains socket.
  · Take out the food and store in a cool location.
• Clean the appliance with a soft cloth, warm water and detergent.
• Wipe the door seal with clear water only and then wipe dry thoroughly.
  · After cleaning, put the plug in the socket and set the desired temperature.
• Put the food back into the appliance.

DEFROSTING THE REFRIGERATOR

You should defrost your appliance when an ice layer begins to form. Defrosting will take several hours. You can speed up the process by removing all frozen parts from your refrigerator and leaving the door ajar, a short period of time.

Important:

Close the door before the defrosting process is finished. The water collection tray should be placed directly under the freezer compartment to catch thaw water.

Note:

Never use sharp or pointed objects to remove ice from the refrigerator or freezer compartment. The refrigerator contains refrigerant gas. If the icebox is accidentally punctured, the appliance will stop working and the warranty will also be void. Do not operate the appliance when the refrigerator has been perforated.

TROUBLE SHOOTING

Frequently, a problem is minor and a service call may not be necessary, use this trouble shooting guide for a possible solution.

Problem Solution
The device is not working.	Check connection of power cord to power source.Check that the temperature controller is not in the OFF position.Plug in unit.Use proper voltage.
The refrigerator jumps up too often.	Is the door closed properly?Have you put hot food in the refrigerator, causing the appliance to work harder to cool?The door has been open too often or too long.The appliance is receiving the wrong voltage.The appliance is too close to a heat source or direct sunlight.
The inside temperature of the refrigerator is too hot.	Check that the refrigerator has power.Check that the plug is plugged in.The temperature setting is too low.The door has been left open too long or too often.The air supply is blocked.Check that the appliance is getting the correct voltage.The unit is too close to a heat source or the sun.
The freezer compartment is not cold enough.	The refrigerator door is not closed properly.The refrigerator door has been left open too long or too often.Check that the appliance is getting the correct voltage.Turn the thermostat knob to a higher number.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

WEBSHOP

NL

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of brown paper sheets with a circular inset showing a small object, no visible text or symbols

Close-up of two white plastic electrical connectors (no text or symbols visible)

White metal mixing bowl with black lid (no text or symbols visible)

Black and white photo of a clear glass coffee maker with lid (no text or symbols visible)
