23847 - Lamp Draper - Free user manual and instructions

Product type	Rechargeable LED lamp
Brand	Draper
Model	23847
Light sources	COB (wide lighting) and XPG spot (focused beam)
Power supply	Integrated rechargeable battery via USB-C port
Charging port	USB-C (cable included)
USB output	Yes (USB-A port to charge other devices)
Brightness adjustment	Multiple levels (dedicated button)
Color temperature adjustment (CCT)	Dedicated button
Charge indicators	Battery level display
Adjustable stand	Yes, allows orienting the lamp
Hanging hooks	2 integrated hooks
Magnets	2 magnets for attachment to metal surfaces
Weight (estimated)	Approximately 250 g
Dimensions (estimated)	Approximately 15 x 5 x 5 cm
Warranty	12 months
Maintenance	Clean with a soft, dry cloth. Do not use abrasive products.
Storage	In a dry place, away from high heat (max 50°C)
Safety	Do not look directly at the light source. Do not use while charging. Keep out of reach of children.
Repairability	Do not disassemble. No user-serviceable parts.

Frequently Asked Questions - 23847 Draper

How to charge the Draper 23847 lamp?

Use the provided USB-C cable and plug it into a standard USB charger (not included). The lamp must be turned off during charging.

Can I use the lamp while it is charging?

No, it is strictly forbidden to turn on the lamp while charging. This could damage the battery or pose a safety risk.

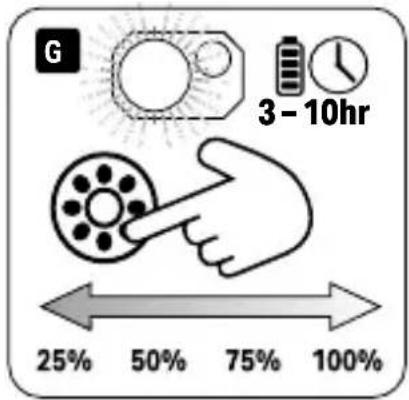

How to adjust the brightness of the lamp?

Press the brightness level button (mark 12) to cycle through the different intensity levels.

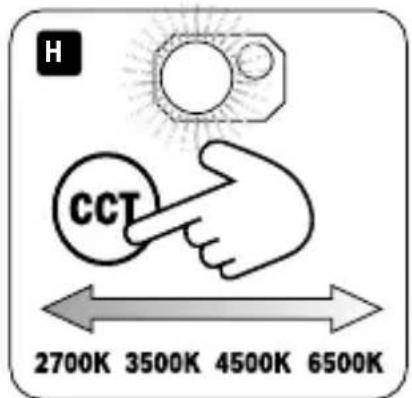

How to change the color temperature?

Use the CCT level button (mark 11) to toggle between color temperature settings (warm white, neutral white, cool white).

What to do if the lamp does not turn on?

Make sure the battery is charged. Plug it into the charger and wait a few minutes. If the problem persists, contact customer service under warranty.

Is the lamp waterproof?

No, the lamp is not waterproof. Avoid any contact with water or moisture. Use it only in a dry environment.

Can I replace the battery myself?

No, the battery is built-in and not user-replaceable. Any attempt to open it voids the warranty. For any issues, contact a professional.

How to clean the lamp?

Unplug the lamp and wipe it with a soft, dry cloth. Do not use solvents or abrasive products.

How to attach the lamp to a surface?

The lamp is equipped with two powerful magnets that allow it to be attached to any metal surface. It also has hanging hooks for hanging.

What is the battery lifespan?

The lithium-ion battery offers variable runtime depending on the lighting level used. Under normal use, it lasts several years before needing replacement (by a professional).

USER MANUAL 23847 Draper

DE WIEDERAUFLADBARE
ARBEITSLEUCHTE UND POWERBANK
ESRECARGABLE LINTERNA DE
TRABAJO Y CARGADOR DE BATERÍA
FR LAMPE DE TRAVAIL RECHARGEABLE
ET BLOC D'ALIMENTATION Instructions originales Version 1-04/2024
NLOPLAADBARE
WERKLAMP EN POWERBANK
PTRECARREGÁVEL
LUZ DE TRABALHO E POWERBANK

Hand pressing a button with a vertical bar, no text or symbols present

Simple line drawing of a device with two circles and a handle, no text or symbols present

EN

Health and Safety Information

Important: Read all the Health and Safety instructions before operating or maintaining this product, and retain for later use. Failure to read these instructions may result in injury or damage to the user or the product.

• DO NOT turn the light on when it is being charged.
• DO NOT shine the light directly into eyes.
• DO NOT allow children to use the light.
- DO NOT handle or move the light whilst it is being charged.
• DO NOT leave battery in a discharged state, recharge battery immediately.

WARNING! To reduce the risk of burns or fire:

• DO NOT attempt to open, disassemble, modify or service the light.
• DO NOT crush, puncture, short external contacts or dispose of in fire or water.
• DO NOT expose to temperatures above 50°C.
• DO NOT use this product if the casing is damaged in any way or if there is evidence of battery leakage.

Product Overview

1 Adjustable stand
2 COB light
3 XPG Spotlight
4 USB charging port
5 USB power output
6 USB port cover
7 ON/OFF button
8 Battery charging indicators
9 Brightness level indicators

10 CCT level indicators
11 CCT level button
12 Brightness level button
13 Hanging hook X 2
14 Magnet X 2
15 Type-C charging cable

Charging the Light

• Fully charge the light before initial use.
• Use the USB charging cable supplied.

Use as a Power Bank

- Use the USB power output port 5 to charge other portable devices.

Operating the COB Light

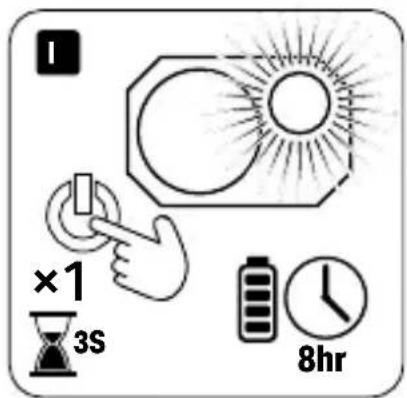

Operating the Spotlight

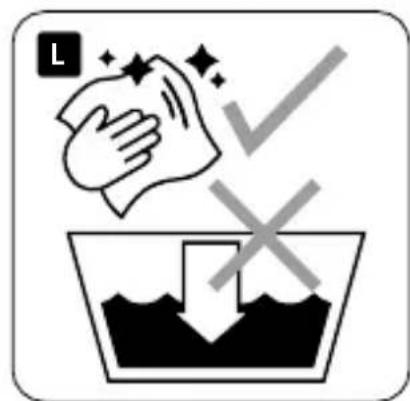

Maintenance and Storage

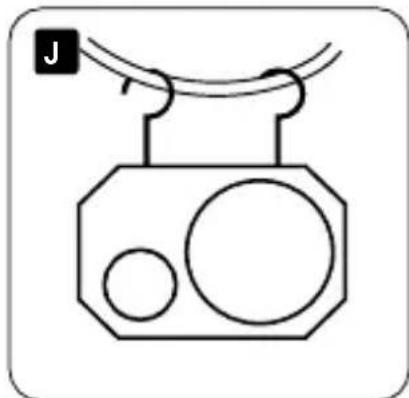

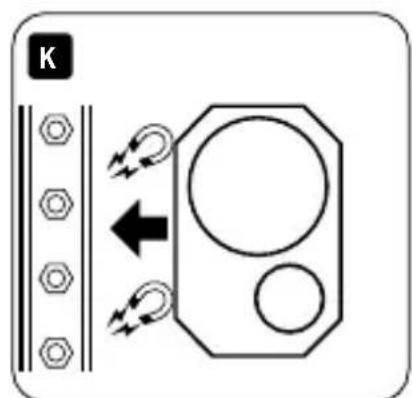

For storage the light can be suspended using the hooks 13 or attached to a magnetic surface using the magnets 14.

Warranty

Warranty period is 12 months from date of purchase.

Visit drapertools.com/warranty/ for more information.

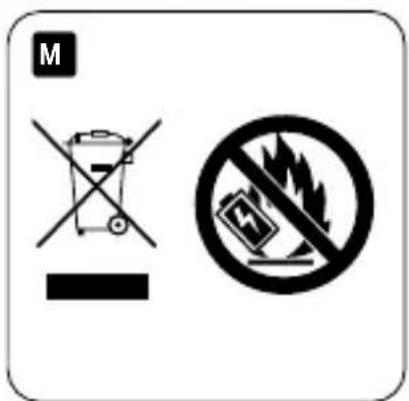

At the end of its working life, dispose of the product responsibly and in line with local Regulations. Recycle where possible.

DE

Draper Tools Limited Delta International BV

Hursley Road Oude Graaf 8

Chandler's Ford 6002 NL

Eastleigh

Weert

Hampshire

Netherlands

S053 1YF

UK

Website: drapertools.com

Email: [e-mail]

Product Helpline: [phone]

Telephone Sales Desk: [phone]

General Enquiries: [phone]

Please contact the Draper Tools Product Helpline for repair and servicing enquiries.
