Product type	Mixed gas and electric hob
Brand	CANDY
Model	CDI32
Dimensions (W x D x H)	Approximately 60 x 51 x 5 cm (standard estimate)
Weight	Approximately 12 kg (estimate)
Power supply	Gas (G20/G30/G31) and electric 220-240 V ~ 50/60 Hz
Number of burners	4 gas burners (including 1 triple crown)
Electric plates	Cast iron or ceramic glass plates (depending on version)
Main functions	Burners with safety valve, electric ignition, electric plates with thermostat, barbecue and deep fryer option
Cooking type	Gas and electric: simmering, boiling, frying, grilling
Surface material	Stainless steel and ceramic glass
Maintenance and cleaning	Clean after cooling with a sponge and soapy water; avoid abrasives and steam cleaners
Safety	Safety valve on burners, automatic shut-off in case of extinction, residual heat indicator on ceramic glass
Installation	Built-in in a 90°C resistant cabinet, gas and electric connection by a professional
Spare parts and repairability	Spare injectors, power cable, parts available from after-sales service
General information	Manual in French, 65 pages, for domestic use

Frequently Asked Questions - CDI32 CANDY

How to light a gas burner on the CANDY CDI32 hob?

Turn the burner knob to the maximum position, press and hold for about 4-5 seconds to allow gas to flow. The electric ignition activates automatically. If the burner does not light, wait one minute before trying again.

What to do if the burner flame is irregular or does not light?

Turn off the appliance and check that the burner and ignition electrode are clean. If the problem persists, contact after-sales service. Never use the appliance with an abnormal flame.

How to clean the ceramic glass hob?

Wait for the hob to cool down, then clean with a damp cloth and a special scraper (optional). Avoid abrasive products and steam cleaners. Remove spills of salt, sugar, or sand immediately to prevent scratches.

Is the CANDY CDI32 hob suitable for Wok pans?

Yes, use the special Wok grid (optional) on the triple crown burner. Never place Wok pans directly on the standard grid without an adapter.

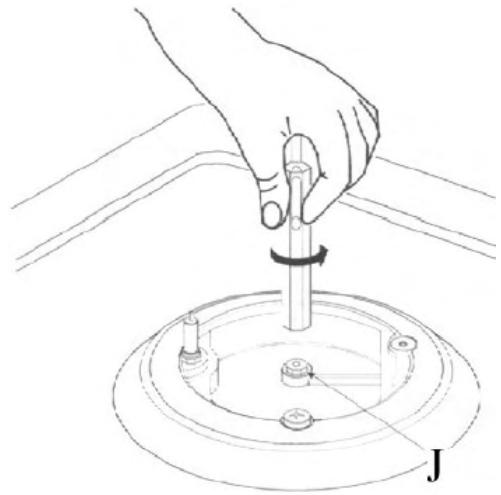

How to adjust the minimum flow of a burner?

After replacing the injectors (if necessary), light the burner on the minimum position. Use a screwdriver to adjust the adjustment screw: screw in to reduce the flame, unscrew to increase it. The flame should be small, homogeneous, and regular.

What does the residual heat indicator mean on the ceramic glass hob?

The indicator lights up when the cooking zone exceeds 70°C and turns off automatically below this temperature. It indicates that the surface is still hot: do not touch it and supervise children.

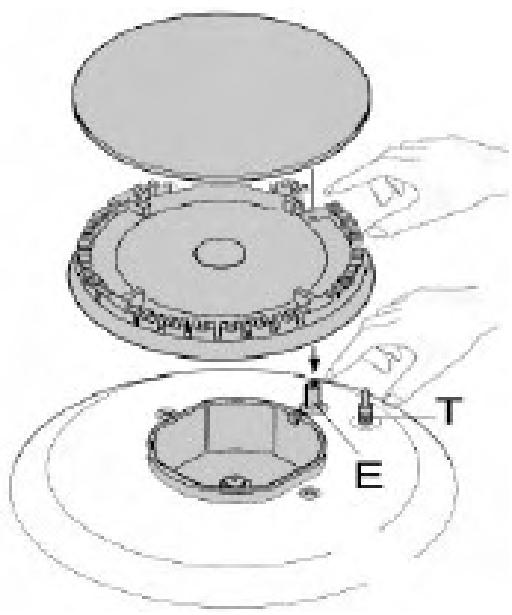

How to maintain the hob burners?

Disassemble the burners (two parts) and clean them with suitable products. Wipe carefully and reassemble. Regularly check the cleanliness of the ignition electrode and safety probe.

What types of gas are compatible with the CDI32 hob?

The hob can be adapted to natural gas (G20) or butane/propane gas (G30/G31). Refer to the injector table in the manual to choose the correct injectors for your gas.

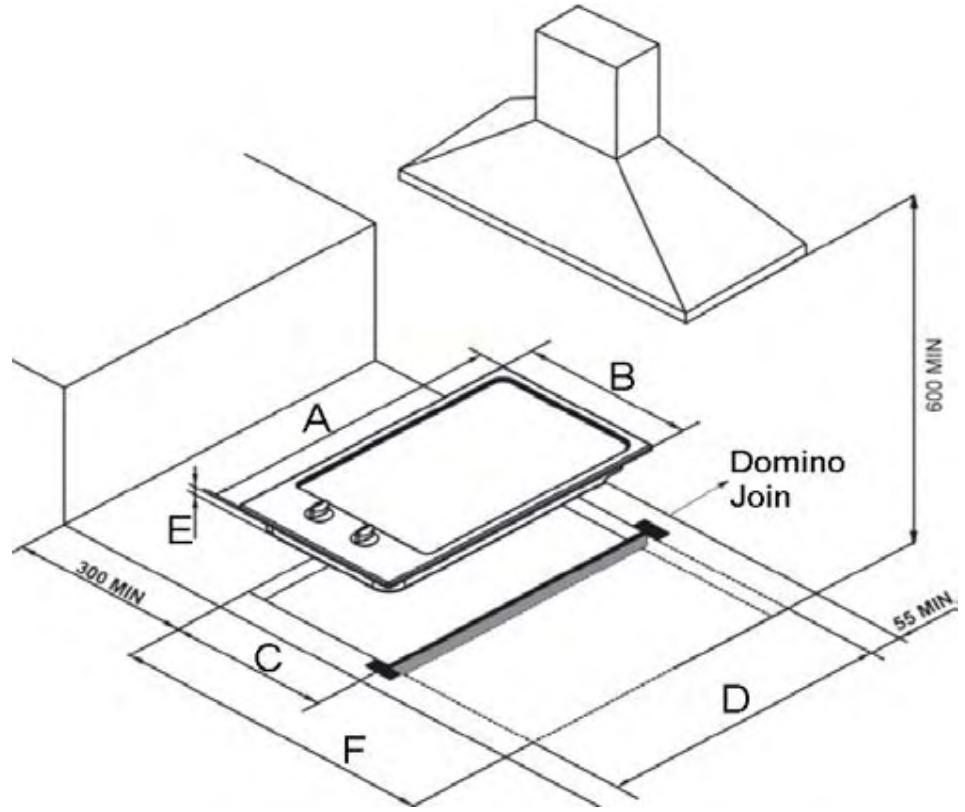

How to install the hob in a worktop?

Cut a hole to the dimensions indicated in the manual (fig.4-5). Place the sealing gasket, insert the hob, and secure it with the supplied brackets. Observe minimum distances from walls and ensure adequate ventilation.

What to do if the hob does not work?

First check that the plug is properly connected and the gas supply is open. If the problem persists, turn off the appliance, do not disassemble it, and contact after-sales service. Do not attempt to repair it yourself.

USER MANUAL CDI32 CANDY

MULTIPURPOSE BUILT-IN HOBS

MANUEL D'INSTRUCTIONS

TABLES DE CUISSON ENCASTRABLES

GEBRAUCHSANLEITUNG

EINBAUKOCHMULDEN

MANUAL DE INSTRUÇÕES

PLACAS DE COZINHA DE ENCASTRE

IT

GB

FR

DE

ES

PT

● 2009/142/CE: Apparecchi a gas

Type: (2)		W: (5)(6) V ~ Hz
Mod. (3)
Art. (4)
Ser. No. 00 00 0000		Pin:
	g/h: (9)

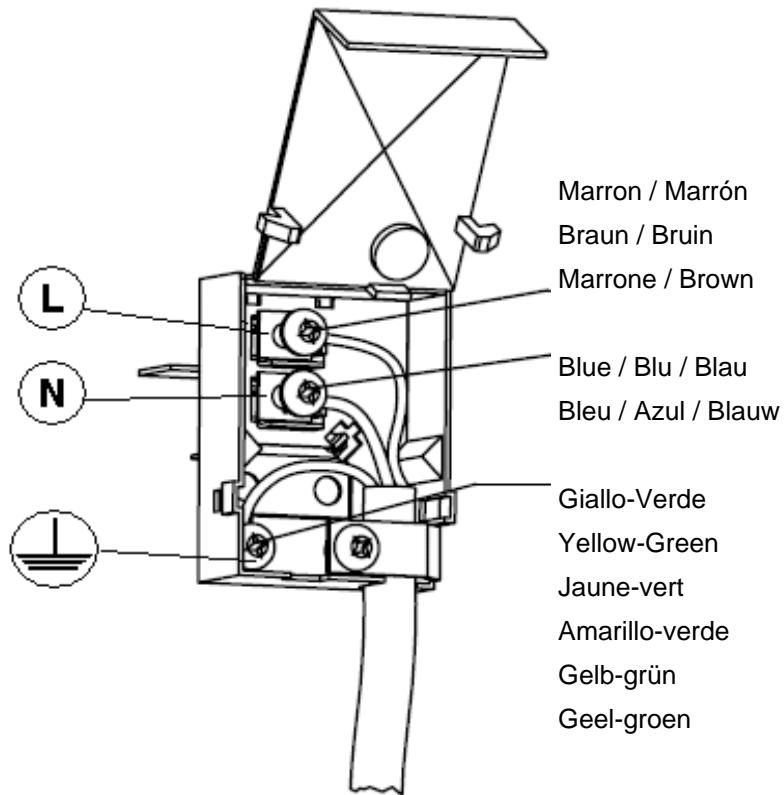

Legenda:

BLU	NEUTRO (N)
MARRONE	FASE (L)
GIALLO-VERDE	TERRA ( ⏚ )

Important warnings and tips for use

- IMPORTANT! This manual constitutes an integral part of the appliance. It must be kept intact and within easy reach during the entire life of the cooktop. Please carefully read this manual and all the instructions contained herein before using the appliance. Keep any spare parts supplied with the appliance. Installation and all gas/electric connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and in full compliance with current laws and safety regulations. This appliance is intended solely for domestic use and is designed for the following functions: cooking and reheating food. Any other use is considered as improper.

The manufacturer declines all liability resulting from poor installation, tampering, inexpert use and use for purposes other than those specifically stated.

- Check that the appliance has not been damaged during transport; Keep all packaging materials (plastic bags, polystyrene foam, nylon, etc.) away from children, as they are potentially dangerous.

- The packaging material is recyclable, and marked with the recycling symbol

Dispose of the appliance responsibly

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance

- Electrical safety can only be guaranteed if the product is connected to a suitable earth connection.

- After using the cooktop, ensure the indicator on the knob is turned to the "off" position.

- Should you decide not to use the appliance any longer, before scrapping it make it unusable in accordance accordance with current environmental health and safety laws, ensuring any parts which might constitute a danger to children are rendered harmless.

- Warning: in case of disassembly, maintenance and cleaning of the appliance, be careful.

Please use suitable prevention and protection equipment

- The label with technical specifications is placed under the bottom and in the manual. Do not remove it.

- Never place inflammable objects on the hob. FIRE HAZARD!

- When a cooking zone is turned off, it remains hot for a while. During this time avoid touching the hot zone.

- Do not use aluminium foil or plastic containers (the protective films are not suitable for this hob)

- If there is a drawer under the hob, it is advisable not to keep inflammable objects or spray cans in it.

- The power supply cable must never touch hot cooking zones, it might get damaged.

- The cooking zone and pan bottom must always be dry and clean.

- If you find cracks on the appliance; if the cooking zones are overheated; if the display or the knobs does not work or if the hob turn-off by itself: immediately turn-off the appliance and call the assistance service. In case of any malfunction, do not attempt to repair the hob by yourself, but contact the assistance service

- Do not cook with empty pan, especially if it is an enamelled or aluminium pan.

Pan bottoms and ceramic glass could be damaged. Use only stainless steel pots and pans

- Never place hot pans, frying pans, hard or poinjted objects on the control panel, knobs area or the frame

- Sugar and other food with high sugar content will damage the hob. Any spilt food must be removed immediately with a scraper for glass. Warning !!! The optional scraper for glass has a sharp blade.

- The following damages will not affect the correct functioning or the stability of the appliance:

The formation of gelatinous residues due to melted sugar or food with a high sugar content; Scratches due to salt, sugar or sand grains or rough pan bottoms; metal colour from pan stands.

- Only use warm water with a mild detergent. Do not use corrosive or abrasive products, as they could damage the surfaces. Warning: a steam cleaner is not to be used to clean the appliance.

- These instructions are valid only for those countries whose ID initials appear on the data plate found on the instructions handbook and on the appliance.

Declaration of Conformity

This appliance is in compliance with the following European Directives:

● 93/68/CE : General regulations

● 2006/95/CE : Concerning low tensions

● 2009/142/CE : Concerning gas appliances

● 89/336/CE : Electromagnetic compatibility

- CE Regulation n° 1935/2004: this appliance is suitable to come in contact with food products.

Warnings:

This appliance is designed to be built into a housing unit.

• The installation class is type 3 for gas and type Y for electric parts.
• Housing units must be designed to withstand temperatures of up to 90°C or over.
• For correct installation, refer to the relevant paragraph and reference drawings.

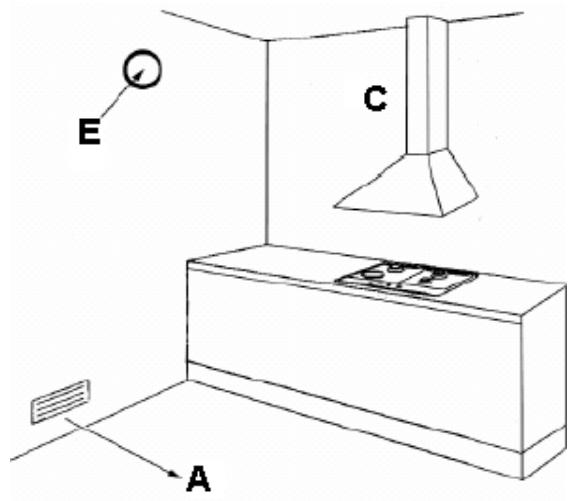

- The use of a gas cooking appliance produces heat and humidity in the room in which it is installed. Ensure the kitchen is well ventilated: keep natural ventilation openings open, or install a mechanical ventilation device (extractor hood with exhaust duct). In the case of intensive or prolonged use of the appliance it may be necessary to provide additional ventilation, for example, by opening a window, or more efficient ventilation, for example by increasing the hood speed.

This handbook is valid for several types of cooktop.

Refer to the data plate on the back in order to identify the model that corresponds to your appliance.

These informations, together with the instructions and the illustrations in the following paragraphs will show you the characteristics of your appliance.

An Example:

Legend:

(1) Trade Mark
(2) Corresponding model
(3) Technical code
(4) Customer code
(5) Power inputs
(6) Voltage and frequency data
(7) Country of target market and gas details
(8) Gas burners power
(9) Gas burners consumptions

USING THE COOKTOP

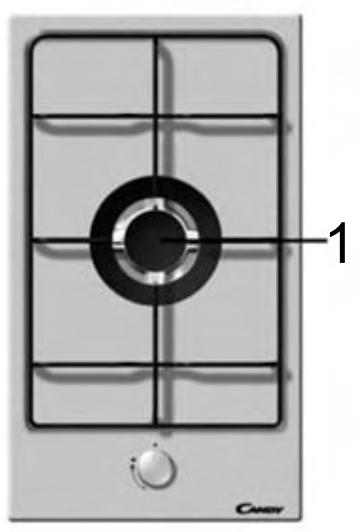

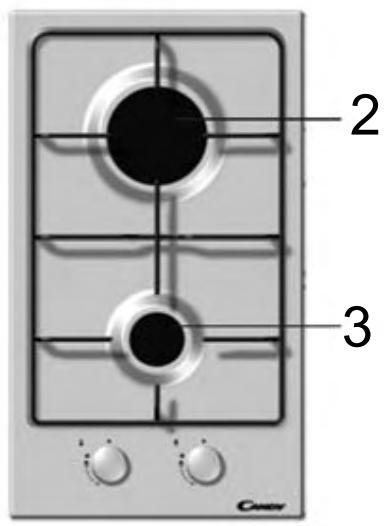

Gas burners

The delivery of gas to the burners is controlled by the knobs shown in fig.2 that in turn control the taps. The symbols, depending on the various versions, may be printed over or under the knobs.

By moving the indicator to coincide with the printed symbols, the following adjustment can be made:

● Tap closed, no gas delivery

Maximum capacity, maximum gas delivery

Minimum capacity, minimum gas delivery

Burners ignition

These models are equipped with safety valves which automatically shut off the gas delivery in the event the burner should, for any reason, go out. To relight the burner, turn the knob to position "tap closed" and repeat the ignition procedure following:

For ignite a burner, turn the gas tap knob to the maximum delivery position, then press and hold down it for about 4 ÷ 5 seconds.

Warnings:

- Once the burner is light on, adjust the flame by turning the knob to obtain the desired intensity. The setting must always be positioned between the maximum and minimum, and never

between the maximum setting and the off position.

• If the burner is difficult to light on, or if the flame is tall or irregular, turn off immediately turning the knob to "off" position and call Assistance Service.
• If the particular nature of the local gas supply makes it difficult to ignite the burners with the knob turned to the maximum setting, repeat the operation without a pan in position and with the knob turned to the minimum setting and without pan stands.
• Warning: The ignition device must not be used for more than 15 seconds. If after this length of time the burner does not light, or if it goes out again accidentally, wait 1 minute before trying to ignite it again

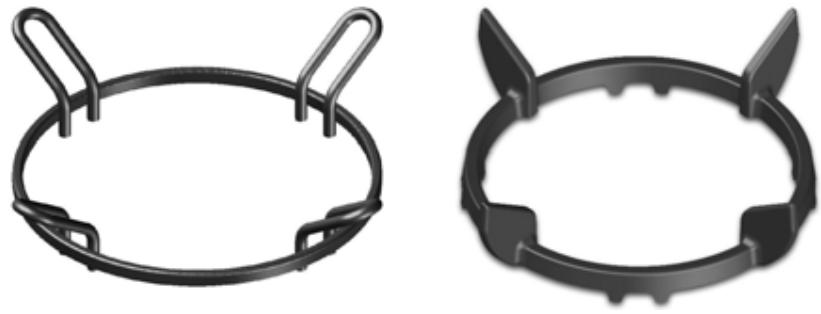

Grids

The panstand grids are designed to make the appliance easy and safe to use. Always check the panstand grids are properly positioned before using the appliance. Furthermore, always check the protective rubber feet are all present and correctly positioned.

◆ Grid for small pots or pans (optional - Fig.1A)

This is placed on top of the auxiliary burner grid (the smallest one) when pots or pans of reduced diameter are used, to avoid unbalancing.

◆ Special "WOK" support grid (optional - Fig.1B)

This is placed on top of the triple crown burner when using a “WOK” (concave bottom pan). In order to prevent serious malfunction of the burner, never use a wok without this special grid and never use the wok grid for flat bottomed pans

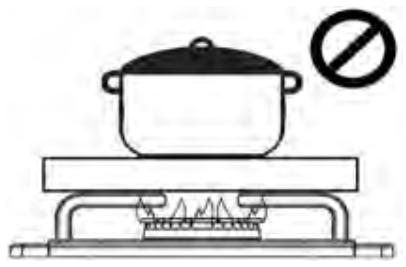

Choosing the right burner

The symbols stamped on the control panel (fig.2) near the knobs indicate which knob correspond to which burner. To choose the most suitable burner, take into account the diameter of the pan as well as the pan capacity (see table).

The diameter of the pan must be proportionate to the burner power in order to ensure high yield.

Pan diameter

Burner		∅ minimum	∅ maximum
A	Auxiliary	60 mm (with reducer)	140 mm
R	Rapid	200 mm	240 mm
TR	Triple-crown	240 mm	260 mm

Electric hotplates

Warnings:

• Never cook food directly on the electric hotplates; always use suitable pots or containers
• Absolutely do not leave the electric plates working without any pots on it.

These wrong use may cause overheating, damages to the appliance and fire hazard.

• Take all precautions possible to avoid spilling liquids onto the hotplate when it is hot.
• Do not use the appliance if the surface is broken or damaged; in case you find a crack on the appliance, disconnect immediately he electric supply and contact the After-Sales service.
• Bear in mind that the cooking zones remain hot for a relatively long time (about 30 min.), after switching off.
• Never clean with high-pressure water or steam-cleaning equipment.
• Do not put flammable materials (paper, plastic, etc...) on the cooking zones (plates or glass-ceramic)
• Do not allow heavy or sharp objects to fall on the glass-ceramic cook top.
• Do not stare at the halogen lamps on the cook top.
• Use flat bottomed pans only with a diameter large enough to cover the entire burner surface.

Switching on the hotplates:

To switch on the electric hotplate, turn the knob to the desired position.

Numbers 1 to 6 or 1 to 10 (fig.3), depending on whether the cooktop is fitted with a power switch or regulator, indicate the settings in progressing temperature (See Table).

When the electric hotplate is in operation an indicator LED on the control panel lights up.

Using the electric hotplates:

Once reached the heating required, adjust the power intensity, bearing in mind that the hotplate will continue to emit heat for several minutes after being switched off;

Depending on the food to cook, adjust the power intensity following the recommendations below:

Knob position		Cooking type
Switches figure 3/A	Regulators figure 3/B
0	0	Off
1	12	For melting (butter, chocolate, etc..)
2	34	For keeping food warm or reheating small amounts of liquids
3	56	Reheating larger quantities, whipping creams and sauces
4	78	To simmering, soups, pasta, risottos, continuation of steaming, cooking steaks and fries in general
5	89	Browning meats, roast potatoes, fried fish and for bringing large quantities of water to a boil
6	10	Fast frying, grilled steaks, etc.

Type of hotplates:

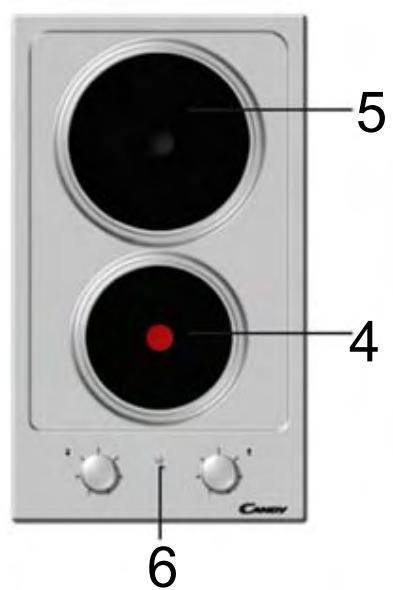

◆ solid plates (fig.17)

The cooktop may be equipped with a ∅145mm or a ∅180mm hotplate, conventional or rapid power.

The conventional hotplate is entirely black, while the rapid hotplate has a red dot in the centre.

Essentially, the rapid hotplate differs from the conventional one because it:

• offers greater power;
• reaches desired temperature more rapidly;

Some electric plates are equipped with a safety thermostat that reduces or disconnect power supply in case of overheating of the appliance (for example, if forgiven working).

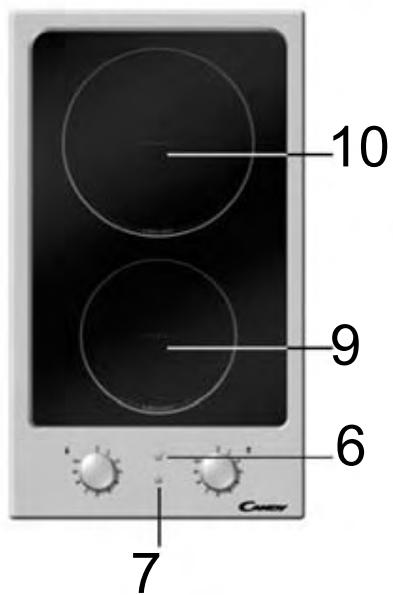

♦ glass-ceramic hotplates (fig.19)

The glass-ceramic cooktop permits rapid vertical transmission of heat from the heating element below the cooktop to the pots or pans placed on top of it. Heat does not spread horizontally, thus at a distance of just a few centimeters from the cooking zone, the glass remains relatively cool" to the touch. This appliance is equipped with a "residual heat" indicator that lights up if the temperature of the hob is above 70^ C, even when turned off.

Residual heat persists for a relatively long time after the cooking zone has been switched off.

Absolutely do not touch the cooking areas or leave flammable objects near it until the lamp is off.

The indicator lamp turn off automatically once the temperature of the cooking zone falls below 70^ C.

To start the extensible zone turn the knob over position "10" until a release is felt, then turn the knob back and choose any position between 1-10 (energy regulation)..

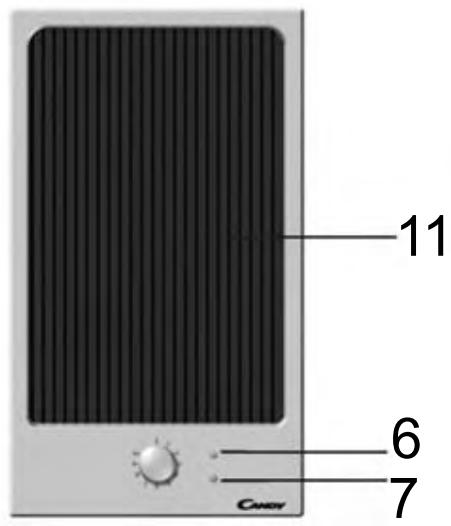

Glass-ceramic grill

Fig.18

This special grill glass has been projected for direct cooking on it (without pots or pans).

- Never use pots or pans, these could scratch the glass and damage the working;

• Aluminium film or papers are not suitable for this appliance;
• Do not use acid, toxic or corrosive cleaners, for safety health. Just use a damp cloth and warm water;

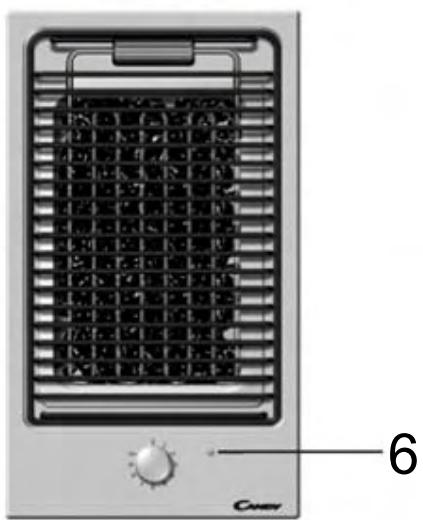

Barbecue

Fig.18

To turn on the element, turn the knob clockwise; this sets the relative thermostat, with settings from “1” to “10”. The pilot light turns on to show that the element is in operation.

It is normal for some types of lamp to show a little light even when the plates are not working.

Using the grid: Before using the grid, it is always advisable to check that it is firmly positioned and

correctly placed on the hob. Also check that the rubber pads it rests on are intact and properly in place.

Lava rock: Place the rock inside the tray provided and dispose of the bag.

Once it is in place, turn on the heating element.

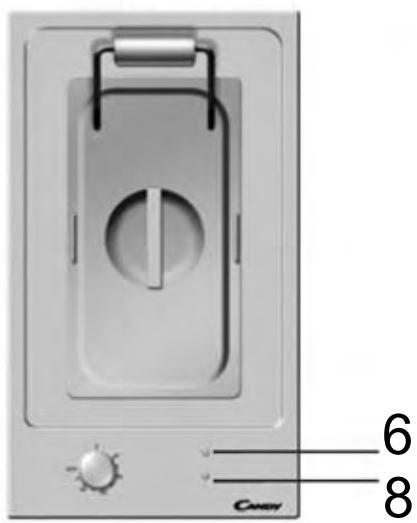

Fryer

Fig.20

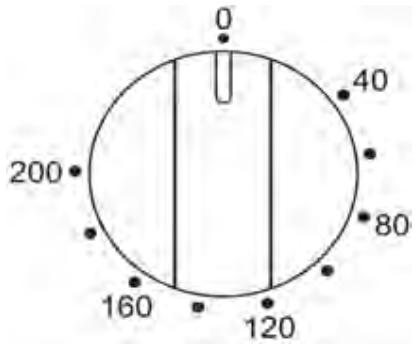

To set the cooking temperature, turn the knob clockwise, up to a maximum setting of 200^ C.

When the heating element comes on, two lights, one green and one red, light up.

The red light goes out when the selected temperature is reached.

It is normal for some types of lamp to show a little light even when the plates are not working.

Advice and warnings: Put the frying oil in the container provided before switching on the heating element.

After cooking, wait for the oil to cool before emptying the container. After cooking, turn knobs back to the “0” setting. If the regulator thermostat fails, a thermostat with manual reset will be activated; this must be reactivated by a skilled engineer.

INSTALLATION INSTRUCTIONS

Important!

• These instructions are intended for qualified technicians.
• The appliance must be installed correctly, in compliance with current laws.
• Before carrying out any operation on the appliance, it must be disconnected from the electric supply.

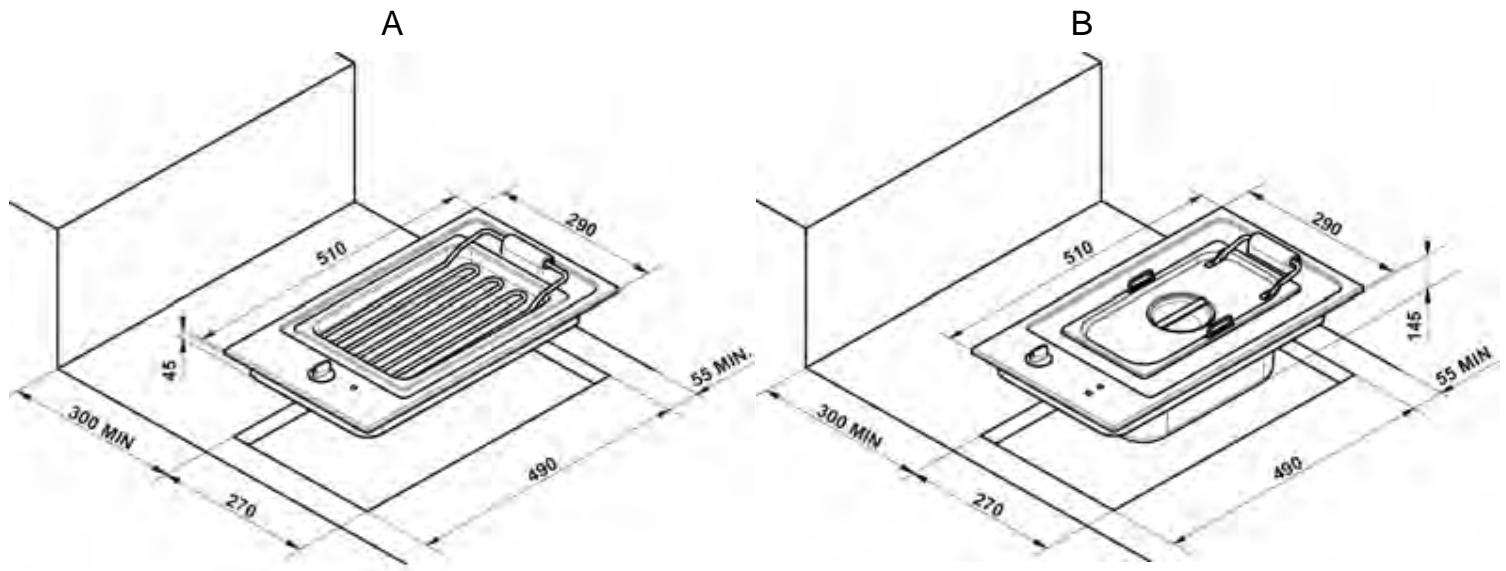

Fitting the appliance in the worktop

The cooktop may be fitted into any worktop, as long as it is heat resistant (minimum temperature of 90^ C). The dimensions of the hole to be made in the worktop and the minimum distances between rear and side walls and those above the appliance are shown in figure 4.

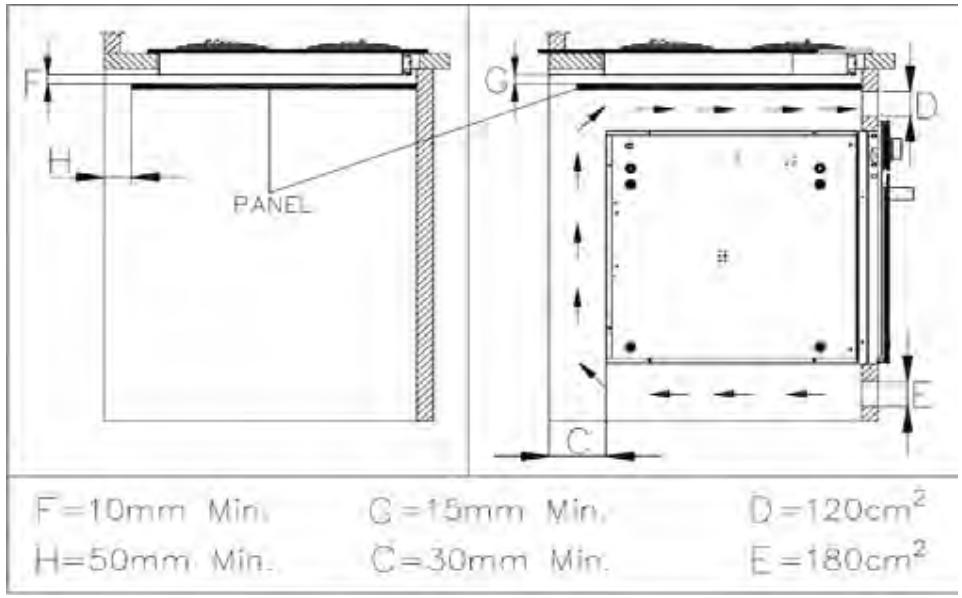

Isolation below (fig.6):

• If the cooktop is installed without an oven below it, a separator panel must be placed between the bottom of the cooktop and the housing below it, at a minimum distance of 10 mm.
• If the cooktop is installed over an oven, place a separator panel at a minimum distance of 15mm and follow the oven manufacturer's instructions, ensuring nonetheless sufficient aeration as specified in fig.6.

In any event, the electrical connection of the two appliances must be carried out separately, both for electrical safety and to facilitate removal.

It is advisable to use an oven equipped with an internal forced cooling system.

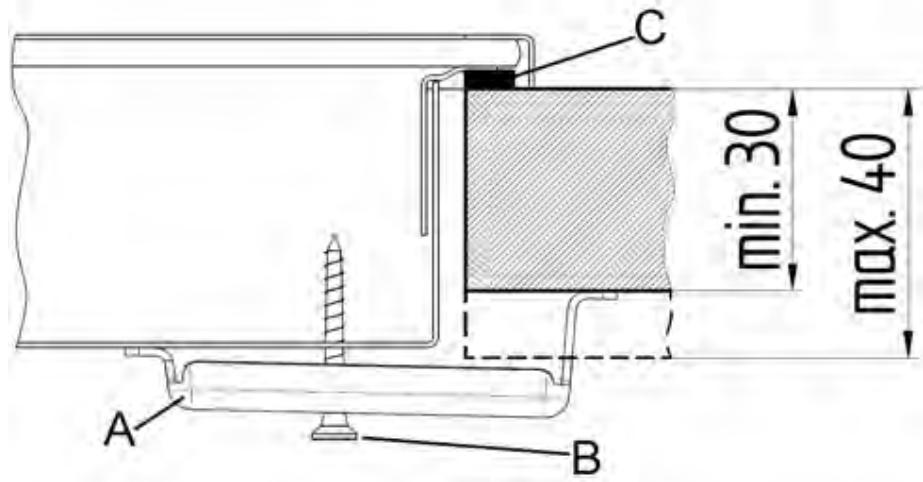

Fixing the cooktop (fig.7):

To fix the cooktop in the housing, proceed as follows:

- Position the special gasket supplied [C] along the outer perimeter of the worktop, following the diagram shown in fig.4, so that the ends of the gasket meet exactly without overlapping.

- Position the cooktop into the worktop, taking care to ensure it is placed exactly in the centre.

- Fix the cooktop to the worktop using the special brackets supplied [A], as shown in fig.7.

Correct installation of the sealing gasket ensures complete protection against infiltration of liquids.

Installation area and removal of combustion fumes

The appliance must be installed and operated in suitable areas, and in compliance with current laws.

The installation technician must observe current laws governing ventilation and removal of combustion fumes. Please remind that the air required for combustion is 2m^3/h per kW of power (gas) installed.

◆ Installation area

In the room where the gas appliance is installed, there must be a sufficient natural air supply to allow the gas to burn correctly (in conformity of currents laws).

The natural flow of air must take place through an opening made on an outside wall of the room and having a working section of at least 100 cm^2 (A). In the case of appliances without safety valves, this opening must have a minimum working section of 200 cm^2 (fig.8).

This opening must be made in such a way that it cannot be obstructed from inside or outside.

It should be positioned near floor level, preferably on the side opposite the fume exhaust devices.

If it is not possible to make the necessary openings, the air can be supplied from an adjacent, suitably ventilated room, as long as this room is not a bedroom, a dangerous area or a low-pressure area.

♦ Removal of combustion fumes

Combustion fumes produced by gas appliances must be removed by means of a hood connected directly either to an exhaust duct or to the outside (fig.8).

If a hood cannot be installed, an electric extractor fan must be fitted to the outside wall or the window.

This electric extractor fan must have a sufficient capacity to guarantee a change of air of the kitchen of at least 3-5 times its volume.

◆ Components shown in fig.8:

A Opening for air supply
C Hood for exhaust removal of combustion fumes
E Electric extractor fan for removal of combustion fumes

Connection to gas supply

Before installation, make sure the type and pressure of the local gas supply are compatible with the cooktop settings. To do this, check the data on the appliance data plate on the cooktop as well as on this handbook. The gas connection must be carried out by a qualified technician in compliance with local current laws. If using metal hoses, ensure these do not come into contact with any movable parts and are at no point crushed.

Carry out the connection in such a way as does not cause any stress whatsoever on the appliance.

The gas supply connector is threaded G ^1/2 " (fig.12).

For ISO R7 connections, the gasket is not required.

For ISO R228 connections, the washer supplied must be fitted.

After connection operations, check for leaks using a soapy solution.

Electrical connection

Before connecting the appliance to the electricity supply, check that the voltage corresponds to that on the data plate and that the power supply cable is suitable for the appliance load also stated on the data place.

If the appliance is connected directly to the mains, fit an all-pole disconnect switch with minimum contact gap of 3 mm, adequate for the appliance load and complying to regulations.

The plug used must support the power of work of the appliance.

Warnings:

• Do not use reducers, adapters or switches for connection to the mains, since these could overheat and cause burns.
• Earth connection is required by law (fig.10).

The manufacturer declines all liability resulting from failure to observe this regulation.

If the power cable must be replaced, use a cable having identical characteristics to the original supplied by the manufacturer, suitable for the load and temperature (type T90°C). This is available

from After-sales service. Furthermore, the end of the power cable to be connected to the appliance must have the Yellow-Green earth conductor 20 mm longer than the other conductors.

The cable must support the load of the appliance.

Refer to the table below for the size of the power cable

Cooktop type	Wire size
Only with gas burners	0,75 mm^2
With electric plate(s) <= 1000W	0,75 mm^2
With electric plate(s) >1000W	1,50 mm^2
Barbecue / Fryer	1,50 mm^2

Should it be necessary to replace the supply cord,

connect the wire in accordance with the following colours/codes:

BLUE NEUTRAL (N)

BROWN LIVE (L)

YELLOW-GREEN EARTH ( ⏚)

- Check wether there is a omnipolar switch available on the domestic line which is compliant with current standards laws.

Otherwise, place a device easily reachable between the appliance and the electricity line.

- If the cable result damaged, it must be quickly replaced with a new one by a qualified technician or call the After-Sales service.

ADJUSTMENT TO DIFFERENT TYPES OF GAS

If a different type of gas from the one indicated on the rating plate is used, the injectors must be replaced.

If spare injectors are not supplied with the appliance, they are available from the After-sales service.

For the choice of replacement injectors, refer to the injectors table at the end of this booklet.

The injectors are identified by their diameter, which is expressed in hundredths of mm, stamped on the body of the injector itself.

Replacing the injectors

• Remove the grids and burner caps from the cooktop
• Using a socket wrench, replace the injectors "J" (fig.9) with the suitable ones for the gas used
• Replace the burners

The burners do non require primary air adjustment.

Adjustment of minimum setting

After replacing the injectors, light the burner and remove the knob. Turn the tap to the minimum setting and insert a screwdriver in the rod: tighten to reduce the flame, loosen to increase the flame (fig.9)

For gas G30/G31, tighten the adjustment screw fully

The flame must result small, uniform and regular all around the burner crown.

Check that:

• quickly turn the knob from max. to min. position of gas power, the flame doesn't go over
• for burners with a safety device, the flame have to licks the thermocouple
• leaving the burner alight for a few minutes, it doesn't go over

CLEANING AND MAINTENANCE

To maintain the cooktop in optimum condition, clean it regularly after each use, allowing it to cool before cleaning.

• Never use abrasive or sharp substances or materials to clean the surfaces
• Never clean the appliance with high pressure water or steam cleaning equipment

- Do not use flammable or alcoholic cleaners

Enamelled parts:

All enamelled parts should be cleaned with a sponge and soapy water or specific detergents.

Never use abrasive cleaning products. Dry thoroughly after cleaning.

Stainless steel top:

The stainless steel top should be cleaned with a damp cloth and proprietary detergents commercially available. After rinsing, dry preferably with a chamois leather.

Grids:

The enamelled panstand grids of the cooktop are dishwasher safe.

Stainless steel panstand grids may take on a bluish tinge on parts around the burners as a result of the high temperatures. This effect can be reduced by using commercially available steel wool pads.

Burners:

The burners, comprising two parts, can be removed and cleaned using suitable detergents.

After cleaning, dry the burners thoroughly and reposition them carefully in their seats.

In models with electric ignition, always check that the electrode “E” (fig.11) is clean.

In models with safety device, clean the probe “T” (fig.11) in order to allow regular operation of the safety valve. Both the electrode and probe must be cleaned with care.

Upon completion of cleaning, replace the burners accurately in their seats.

To prevent damaging the electric ignition, avoid using it when the burners are not in place.

Electric hotplates:

The electric hotplates should be cleaned when they are only slightly warm.

Clean with a damp cloth, then finish off with a cloth dampened with mineral oil.

In the glass-ceramic hobs never use abrasive cleaners, could damage the glass surface.

Use only neutral and not-flammabke detergents.

Ceramic hob

The electric plates must be cleaned when they are just slightly warm. Clean with a damp rag and finish with a "scraper" (optional).

Maintenance

The appliances do not require any particular maintenance, nonetheless it is advisable to have them checked at least once every two years.

If the knobs become difficult to turn, or if there is a smell of gas, shut the gas supply tap and call After-sales service. Faulty taps must be replaced along with their gasket.

Glass lid

If the hob has a glass lid, the following precautions must be adopted:

• Never place hot pans on the lid when closed.
• Remove any liquid spills before opening the lid.
• The lid may break if heated;

Turn off all burners and electric plates and wait for them to cool before closing it.

After-sales service

Before calling in the After-Sales Service

If the hob fails to operate, we advise you to:

• Check that the plug is correctly inserted into the power socket.
• Check that the flow of gas is normal

If you are unable to find the cause of the problem;

switch the appliance off, do not tamper with it and call in the After-Sales Service.

● 93/68/CEE: Normes Générales

● 2006/95/CE: Basse tension

Type: (2)		W: (5)(6) V ~ Hz
Mod. (3)
Art. (4)
Ser. No. 00 00 0000		Pin:
	g/h: (9)
=57

Type: (2)		W: (5)(6) V ~ Hz
Mod. (3)
Art. (4)
Ser. No. 00 00 0000	Pin:

Legenda:

Abstract geometric star-like shape with interlocking curved lines (no text or symbols)

Fig-Abb-Rys-Ábra-Obr-Pnc. 1/B

Two black plastic fan-shaped enclosures with handles, shown from different angles (no text or symbols)

Fig-Abb-Rys-Ábra-Obr-Puc. 2

Close-up of a metallic control knob with a star and dotted trail, no text or symbols visible.

Fig-Abb-Rys-Ábra-Obr-Puc. 3

A 0 1 6 2 5 3 4

0 1 2 3 4 5 6 7 8 9 10

Fig-Abb-Rys-Ábra-Obr-Pnc. 4

300 MIN A B E C F D 600 MIN Domino Join 55 MIN

A
B

C
D
E

CDG31SPX	510	290	270	490	45
CDB30X	510	290	270	490	45
CDE32X	510	290	270	490	45
CDE32XDE	510	290	270	490	45
CDF30X	510	290	270	490	145
CDG32SPX	510	290	270	490	45
CDH32X	510	290	270	490	45
CDVG30X	510	290	270	490	45

F = ( N x B ) -20mm

Numero di piani da affiancareNumber of hobs to combineNombre de tables de cuisson a mettre côte a côteNúmero de encimeras a aparearNúmero de placas a pôr lado a ladoAnzal nebeneinander anzuordnender kochmulden

Fig-Abb-Rys-Ábra-Obr-Pnc. 5

A 510 290 45 300 MIN 270 490 55 MIN. B 510 290 45 300 MIN 270 490 55 MIN.

Fig-Abb-Rys-Ábra-Obr-Pics. 6

Without oven

F H PANEL G D C E F=10mm Min. C=15mm Min. D=120cm² H=50mm Min. C=30mm Min. E=180cm²

Fig-Abb-Rys-Ábra-Obr-Puc.7

A B C min. 30 max. 40

Fig-Abb-Rys-Ábra-Obr-Puc.8

E C A

Fig-Abb-Rys-Ábra-Obr-Puc.9

Line drawing of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

Fig-Abb-Rys-Ábra-Obr-Puc.10

Marron / Marrón Braun / Bruin Marrone / Brown Blue / Blu / Blau Bleu / Azul / Blauw Giallo-Verde Yellow-Green Jaune-vert Amarillo-verde Gelb-grün Geel-groen

Fig-Abb-Rys-Ábra-Obr-Puc.11

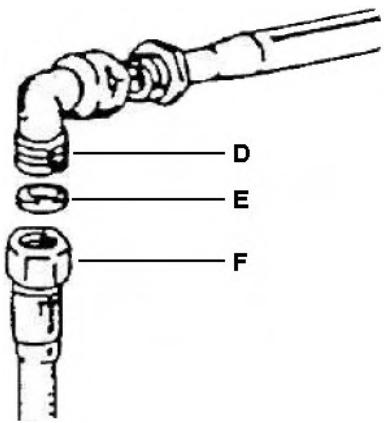

Technical diagram showing a mechanical assembly with labeled components T and E, including a hand operating the component.

D E F

Fig-Abb-Rys-Ábra-Obr-Puc. 12

D:
E:
F:

ITGBFRDEESPT	Raccordo	Guarnizione	Tubo rigido o tubo flessibile
	Union	Gasket	Pipe or hose
	Raccord	Joint	Tuyau rigide ou flexible
	Gewindeanschluss	Dichtung	Starres Rohr oder Metallschlauch
	Empalme de gas	Anillo	Tubo flexibile
	Conexão	Vedante	Tubo rígido e tubo flexível

Fig-Abb-Rys-Ábra-Obr-Puc. 13

Fryer – Friggitrice – Friteuse – Fritadeira – Freidora – Einbaufritteuse - Friteuse

Knob

Mandos

Manopola

Drehknöpfen

Bouton

Knoppen

Manípulo

knoflících

0 40 200 80 160 120

Technical line drawing of a mechanical assembly with internal components and a close-up view of a component (no text or symbols)

Fig-Abb-Rys-Ábra-Obr-Puc. 14

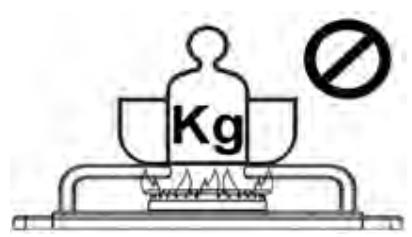

Simple line drawing of a cooking pot on a gas stove with a prohibition symbol (no text or labels)

Simple line drawing of a cooking pot on a stove with a prohibition symbol (no text or labels)

Simple line drawing of a cooking pan on a stand with a prohibition symbol (no text or labels)

Kg

Simple line drawing of a cooking pot on a gas stove with a prohibition symbol (no text or labels)

Simple line drawing of a gas stove with a prohibition symbol (no text or labels)

Simple line drawing of a cooking pot with a horizontal base and a prohibition symbol (no text or labels)

Simple line drawing of a laboratory balance scale with a checkmark indicating the right pan (no text or symbols on the scale itself)

Simple line drawing of a cooking pot on a gas stove with a checkmark indicating cooking step (no text or symbols)

Fig-Abb.15 CDG31SPX

Top-down view of a gas stove burner with a circular vent and control panel (no text or symbols)

Fig-Abb.16 CDG32SPX

2 3 Crew

Fig-Abb.17 CDE32X CDE32XDE

5 4 6 Caser

Fig-Abb.18 CDVG30X

11 6 7

Fig-Abb.19 CDH32X

10 9 6 7 Gas key

Fig-Abb.20 CDF30X

6 8 CANRY

Fig-Abb.21 CDB30X

Front view of a portable air conditioner unit with grid and control knob (no visible text or symbols)

Componenti illustrati in figura 15-21:

Components shown in fig.15-21:

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

EN The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
DE Dieses Produkt darf am Ende seiner Lebensdauer nich über den normalen Haushaltsabfall entsorgt werden, sondern muss an einem Sammelpunkt für das Recycling von elektrischen und elektronischen Geräten abgegeben werden. Das Symbol auf dem Produkt, der ebrauchsanleitung oder der Verpackung weist darauf hin. Die Werkstoffe sind gemäß ihrer Kennzeichnung wiederverwertbar. Mit der Wiederverwendung, der stofflichen Verwertung oder anderen Formen der Verwertung von Altgeräten leisten Sie einen wichtigen Beitrag zum Schutze unserer Umwelt. Bitte erfragen Sie bei der Gemeindeverwaltung die zuständige Entsorgungsstelle.
IT Il simbolo sul prodotto o sulla confezione indica che il prodotto non deve essere considerato come un normale rifiuto domestico, ma deve essere portato nel punto di raccolta appropriato per il riciclaggio di apparecchiature elettriche ed elettroniche. Provvedendo a smaltire questo prodotto in modo appropriato, si contribuisce a evitare potenziali conseguenze negative per l'ambiente e per la salute, che potrebbero derivare da uno smaltimento inadeguato del prodotto. Per informazioni più dettagliate sul riciclaggio di questo prodotto, contattare l'ufficio comunale, il servizio locale di smaltimento rifiuti o il negozio in cui è stato acquistato il prodotto.
FR Ce symbole figure sur le produit ou sur son emballage en application de la directive européenne 2002/96/CE sur les Déchets d'Équipement Électrique et Électronique (DEEE). Cette directive sert de règlement cadre à la reprise, au recyclage et à la valorisation des appareils usagés dans toute l'Europe. Ce produit doit donc faire l'objet d'une collecte sélective. Lorsque vous ne l'utiliserez plus, remettez-le à un service de ramassage spécialisé ou à une déchèterie qui traite les DEEE ; vous contribuerez ainsi à éviter des conséquences néfastes pour la santé et l'environnement. Pour tout renseignement sur la mise au rebut et le recyclage de ce produit, veuillez contacter la mairie ou le service de la propreté de votre commune, ou encore le magasin dans lequel vous l'avez acheté.
ES Este aparato lleva el marcado CE en conformidad con la Directiva 2002/96/EC del Parlamento Europeo y del Consejo sobre residuos de aparatos eléctricos y electrónicos (RAEE). La correcta eliminación de este producto evita consecuencias negativas para el medioambiente y la salud. El símbolo en el producto o en los documentos que se incluyen con el producto, indica que no se puede tratar como residuo doméstico. Es necesario entregarlo en un puntode recogida para reciclar aparatos eléctricos y electrónicos. Deséchelo con arreglo a las normas medioambientales para eliminación de residuos. Para obtener información más detallada sobre el tratamiento, recuperación y reciclaje de este producto, póngase en contacto con el ayuntamiento, con el servicio de eliminación de residuos urbanos o la tienda donde adquirió el producto.
PT O símbolo no produto ou na embalagem indica que este produto não pode ser tratado como lixo doméstico. Em vez disso, deve ser entregue ao centro de recolha selectiva para a reciclagem de equipamento eléctrico e electrónico. Ao garantir uma eliminação adequada deste produto, irá ajudar a evitar eventuais consequências negativas para o meio ambiente e para a saúde pública, que, de outra forma, poderiam ser provocadas por um tratamento incorrecto do produto. Para obter informações mais pormenorizadas sobre a reciclagem deste produto, contacte os serviços municipalizados locais, o centro de recolha selectiva da sua área de residência ou o estabelecimento onde adquiriu o produto.
UA Цей символ на виробі або на його упаковці позначає, що з ним не можна поводитися, як із побутовим сміттям. Замість цього його необхідно повернути до відповідного пункту збору для переробки електричного та електронного обладнання. Забезпечуючи належну переробку цього виробу, Видопомагаєте попередити потенційні негативні наслідки для навколишнього середовища та здоров'я людини, які могли би виникнути за умов неналежного позбавлення від цього виробу. Щоб отримати детальнішу інформацію стосовно переробки цього виробу, зверніться до свого місцевого офісу, Вашої служби утилізації або до магазина, де Ви придбали цей виріб.
NL Het symbool op het product of op de verpakking wijst erop dat dit product niet als huishoudafval mag worden behandeld. Het moet echter naar een plaats worden gebracht waar elektrische en elektronische apparatuur wordt gerecycled. Als u ervoor zorgt dat dit product op de correcte manier wordt verwijderd, voorkomt u mogelijk voor mens en milieu negatieve gevolgen die zich zouden kunnen voordoen in geval van verkeerde afvalbehandeling. Voor meer details in verband met het recyclen van dit product, neemt u het best contact op met de gemeentelijke instanties, het bedrijf of de dienst belast met de verwijdering van huishoudafval of de winkel waar u het product hebt gekocht.
RO Simbolul de pe produs sau de pe ambalaj indică faptul că produsul nu trebuie aruncat împreună cu gunoiul menajer. Trebuie predat la punctul de colectare corespunzător pentru reciclarea echipamentelor electrice și electronice. Asigurându-vă că ați eliminat în mod corect produsul, ajutați la evitarea potențialelor consecințe negative pentru mediul înconjurător și pentru sănătatea persoanelor, consecințe care ar putea deriva din aruncarea necorespunzătoare a acestui produs. Pentru mai multe informații detaliate despre reciclarea acestui produs, vă rugăm să contactați biroul local, serviciul pentru eliminarea deșeurilor sau magazinul de la care l-ați achiziționat.
SLO Simbol na izdelku ali njegovi embalaži označuje, da z izdelkom ni dovoljeno ravnati kot z običajnimi gospodinjskimi odpadki. Izdelek odpeljite na ustrezno zbirno mesto za predelavo električne in elektronske opreme. S pravilnim načinom odstranjevanja izdelka boste pomagali preprečiti morebitne negativne posledice in vplive na okolje in zdravje ljudi, ki bi se lahko pojavile v primeru nepravilnega odstranjevanja izdelka. Za podrobnejše informacije o odstranjevanju in predelavi izdelka se obrnite na pristojen mestni organ za odstranjevanje odpadkov, komunalno službo ali na trgovino, v kateri ste izdelek kupili.
PL Symbol na produkcie lub na opakowaniu oznacza, że tego produktu nie wolno traktować tak, jak innych odpadów domowych. Należy oddać go do właściwego punktu skupu surowców wtórnych zajmującego się złomowanym sprzętem elektrycznym i elektronicznym. Właściwa utylizacja i złomowanie pomaga w eliminacji niekorzystnego wpływu złomowanych produktów na środowisko naturalne oraz zdrowie. Aby uzyskać szczegółowe dane dotyczące możliwości recyklingu niniejszego urządzenia, należy skontaktować się z lokalnym urzędem miasta, służbami oczyszczania miasta lub sklepem, w którym produkt został zakupiony.
SK Symbol na výrobku alebo na jeho obale znamená, že s výrobkom sa nesmie zaobchádzať ako s domovým odpadom. Namiesto toho ho treba odovzdat' v zbernom stredisku na recykláciu elektrických alebo elektronických zariadení. Zabezpečte, že tento výrobok bude zlikvidovaný správnym postupom, aby ste predišli negatívnym vplyvom na životné prostredie a ľudské zdravie, čo by bolo spôsobené nesprávnym postupom pri jeho likvidácii. Podrobnejšie informácie o recyklácii tohto výrobku získate, ak zavoláte miestny úrad vo Vašom bydlisku, zberné suroviny alebo obchod, v ktorom ste výrobok kúpili.
CZ Symbol na výrobku nebo jeho balení udává, že tento výrobek nepatří do domácího odpadu. Je nutné odvézt ho do sběrného místa pro recyklaci elektrického a elektronického zařízení. Zajištěním správné likvidace tohoto výrobku pomůžete zabránit negativním důsledkům pro životní prostředí a lidské zdraví, které by jinak byly způsobeny nevhodnou likvidací tohoto výrobku. Podrobnější informace o recyklaci tohoto výrobku zjistíte u příslušného místního úřadu, služby pro likvidaci domovního odpadu nebo v obchodě, kde jste výrobek zakoupili.
SV Symbolen på produkten eller emballaget anger att produkten inte får hanteras som hushållsavfall. Den skall i stället lämnas in på uppsamlingsplats för återvinning av el- och elektronikkomponenter. Genom att säkerställa att produkten hanteras på rätt sätt bidrar du till att förebygga eventuellt negativa miljö- och hälsoeffekter som kan uppstå om produkten kasseras som vanligt avfall. För ytterligare upplysningar om återvinning bör du kontakta lokala myndigheter eller sophämtningstjänst eller affären där du köpte varan

NO Symbolet på produktet eller på emballasjen viser at dette produktet ikke må behandles som husholdningsavfall. Det skal derimot bringes til et mottak for resirkulering av elektrisk og elektronisk utstyr. Ved å sørge for korrekt avhending av apparatet, vil du bidra til å forebygge de negative konsekvenser for miljø og helse som gal håndtering kan medføre. For nærmere informasjon om resirkulering av dette produktet, vennligst kontakt kommunen, renovasjonsselskapet eller forretningen der du anskaffet det.
DK Elektrisk og elektronisk udstyr indeholder materialer, komponenter og stoffer, der kann være skadelige for menneskers sundhed og for miljøet, hvis kasseret elektrisk og elektronisk udstyr ikke håndteres korrekt. Elektrisk og elektronisk udstyr er mærket med nedenstående overkrydsede skraldespand. De symboliserer, at elektrisk og elektronisk udstyr ikke må bortskaffes sammen med usorteret husholdningsaffald, men skal indsamles særskilt. Alle kommuner har etableret indsamlingsordninger, hvor elektrisk og elektronisk udstyr gratis kann afleveres af borgerne på genbrugsstationer og andre indsamlingssteder eller bliver afhentet direkte fra husholdningerne. Nærmere information kann fås hos kommunens tekniske forvaltning
FI Symboli joka on merkitty tuotteeseen tai sen pakkaukseen, osoittaa, että tätä tuotetta ei saa käsitellä talousjätteenä. Tuote on sen sijaan luovutettava sopivaan sähkö- ja elektroniikkalaitteiden kierrätyksestä huolehtivaan keräyspisteeseen. Tämän tuotteen asianmukaisen hävittämisen varmistamisella autetaan estämään sen mahdolliset ympäristöön ja terveyteen kohdistuvat haittavaikutukset, joita voi aiheutua muussa tapauksessa tämän tuotteen epäasianmukaisesta jätekäsittelystä. Tarkempia tietoja tämän tuotteen kierrättämisestä saa paikallisesta kunnantoimistosta, talousjätehuoltopalvelusta tai liikkeestä, josta tuote on ostettu
GR To σύμβολο στο προϊόν ή επάνω στη συσκευασία του υποδεικνύει ότι δεν πρέπει να μ εταχειρίζεστε το προϊόν αυτό ως οικιακό απόρριμμα. Αντιθέτως θα πρέπει να παραδίδεται στο κατάλληλο σημείο συλλογής για την ανακύκλωση ηλεκτρικού και ηλεκτρονικού εξοπλισμού. Εξασφαλίζοντας ότι το προϊόν αυτό διατίθεται σωστά, συμβάλλετε στην αποτροπή ενδεχόμενων αρνητικών συνεπειών για το περιβάλλον και την ανθρώπινη υγεία, οι οποίες θα μπορούσαν διαφορετικά να προκληθούν από ακατάλληλο χειρισμό απόρριψης του προϊόντος αυτού. Για λεπτομερέστερες πληροφορίες σχετικά με την ανακύκλωση του προϊόντος αυτού, επικοινωνήστε με το δημαρχείο της περιοχής σας, την τοπική σας υπηρεσία αποκομιδής οικιακών απορριμμάτων ή με το κατάστημα όπου αγοράσατε το προϊόν.
EE Tootel või selle pakendil asuv sümbol näitab, et seda toodet ei tohi kohelda majapidamisjäätmetena. Selle asemel tuleb toode anda vastavasse elektri- ja elektroonikaseadmete taastöötlemiseks kogumise punkti. Toote õige utiliseerimise kindlustamisega aitate ära hoida võimalikke negatiivseid tagajärgi keskkonnale ja inimtervisele, mida võiks vastasel juhul põhjustada selle toote ebaõige käitlemine. Lisainfo saamiseks selle toote taastöötlemise kohta võtke ühendust kohaliku linnavalitsuse, oma majapidamisjäätmete utiliseerimisteenuse või kauplusega, kust te toote ostsite.
HR Simbol na proizvodu ili na njegovoj ambalaži označuje da se s tim proizvodom ne smije postupiti kao s otpadom iz domaćinstva. Umjesto toga bita uručen prikladnim sabirnim točkama za recikliranje elektroničkih i električkih aparata. Ispravnim odvoženjem ovog proizvoda spriječit ćete potencijalne negativne posljedice na okoliš i zdravlje ljudi, koje bi inače mogli ugroziti neodgovarajućim rukovanjem otpada ovog proizvoda. Za detaljnije informacije o recikliranju ovog proizvoda molimo Vas da kontaktirate Vaš lokalni gradski ured, uslugu za odvoženje otpada iz domaćinstva ili trgovinu u kojoj ste kupili proizvod.
HU A terméken vagy a csomagoláson található szimbólum azt jelzi, hogy a termék nem kezelhető háztartási hulladékként. Ehelyett a terméket el kell szállítani az elektromos és elektronikai készülékek újrahasznosítására szakosodott megfelelő begyűjtő helyre. Azzal, hogy gondoskodik ezen termék helyes hulladékba helyezéséről, segít megelőzni azokat, a környezetre és az emberi egészségre gyakorolt potenciális kedvezőtlen következményeket, amelyeket ellenkező esetben a termék nem megfelelő hulladékkezelése okozhatna. Ha részletesebb tájékoztatásra van szüksége a termék újrahasznosítására vonatkozóan, kérjük, lépjen kapcsolatba a helyi önkormányzattal, a háztartási hulladékok kezelését végző szolgálattal vagy azzal a bolttal, ahol a terméket vásárolta.
LT Šis ant produkto arba jo pakuotės esantis simbolis nurodo, kad su šiuo produktu negalima elgtis kaip su buitinėmis šiukšlėmis. Jį reikia perduoti atitinkam surinkimo punktui, kad elektros ir elektronikos įranga būtų perdirbta. Tinkamai išmesdami šį produktą, jūs prisidėsite prie apsaugos nuo galimo neigiamo poveikio aplinkai ir žmonių sveikatai, kurį gali sukelti netinkamas šio produkto išmetimas. Dėl iššamesnės informacijos apie šio produkto išmetimą, prašom kreiptis į savo miesto valdžios įstaigą, buitinių šiukšlių išmetimo tarnybą arba parduotuvę, kurioje pirkote šį produktą.
LV Simbols uz produkta vai tā iepakojuma norāda, ka šo produktu nedrīkst izmest saimniecības atkritumos. Tas jānodod attiecīgos elektrisko un elektronisko iekārtu savākšanas punktos pārstrādāšanai. Nodrošinot pareizu atbrīvošanos no šī produkta, jūs palīdzēsiet izvairīties no potenciālām negatīvām sekām apkārtējai videi un cilvēka veselībai, kuras iespējams izraisīt, nepareizi izmetot atkritumos šo produktu. Lai iegūtu detalizētāku informāciju par atbrīvošanos no šī produkta, lūdzu sazinieties ar jūsu pilsētas domi, saimniecības atkritumu savākšanas dienestu vai veikalu, kurā jūs iegādājāties šo produktu
YU Ova je oprema označena u skladu s evropskom smernicom 2002/96/EG o otpadnoj električnoj i elektronskoj opremi (waste electrical and electronic equipment - WEEE). Smernica opredeljuje zahteve za sabiranje i rukovanje otpadnom električnom i elektronskom opremom, koji su na snazi u celokupnoj Evropskoj Uniji.
MK Ovoj aparat e oзначен според европскиот пропис 2002/96/E3 за електро и електронски апарати (waste electrical and electronic equipment - WEEE). Прописот ја дава рамката за враćање и искористување на старите апарати, важечко ширум Европа.
SQ Ky aparat përmban shënjën e aparaturave elektrike dhe elektroteknike sipas Udhëzimit 2002/96/EG (waste electrical and electronic equipment - WEEE). Udhëzimi jep kuadrin ligjor për te drejtën e kthimit mbrapsht të aparaturave të përdorura në të gjithë BE.
TK Bu cihaz Avrupa'n n 2002/96/EC Art k Elektrik ve Elektronik Donan mlar (WEEE) talimatlar yla i°aretlenmi°. Bu yönerge Avrupa'n n Art k Elektrik ve Elektronik Donan mlar geri verme ve yeniden kullan l r durumuna getirme geni° geçirlilik çerçevesidir.
UA Такий символ на виробі та на його упаковці показує, що цей продукт або його упаковка не можуть бути викинуті подібно звичайному сміттю. Замість цього його треба передати на пункт утилізації приладів для переробки електричного або електронного обладнання. Забезпечуючи правильну утилізацію приладу, ви допоможете запобігти небезпечному впливу на природу та здоров'я людей, який може виникнути, якщо не дотримуватись вимог щодо утилізації подібних виробів. За більш детальною інформацією щодо переробки цього приладу звертайтесь до місцевого представництва, служби по утилізації відпрацьованих побутових приладів або до магазину, де ви придбали цей прилад.
UA Цей символ на виробі або на його упаковці позначає, що з ним не можна поводитися, як із побутовим сміттям. Замість цього його необхідно повернути до відповідного пункту збору для переробки електричного та електронного обладнання. Забезпечуючи належну переробку цього виробу, Видопомагаєте попередити потенційні негативні наслідки для навколишнього середовища та здоров'я людини, які могли би виникнути за умов неналежного позбавлення від цього виробу. Щоб отримати детальнішу інформацію стосовно переробки цього виробу, зверніться до свого місцевого офісу, Вашої служби утилізації або до магазина, де Ви придбали цей виріб.
RUS Символ на изделии или на его упаковке указывает, что оно не подлежит утилизации в качестве бытовых отходов. Вместо этого его следует сдать в соответствующий пункт приемки электронного и электрооборудования для последующей утилизации. Соблюдая правила утилизации изделия, Вы можете предотвратить причинение окружающей среде и здоровью людей потенциального ущерба, который возможен, в противном случае, вследствие неподобающего обращения с подобными отходами. За более подробной информацией об утилизации этого изделия просьба обращаться к местным властям, в службу по вывозу и утилизации отходов или в магазин, в котором Вы приобрели изделие.
BG Символът върху продукта или опаковката му показва, че този продукт не трябва да се третира като домакинските отпадъци. Вместо това, той трябва да се предаде в специализиран пункт за рециклиране на електрическо и електронно оборудване. Като се погрижите този продукт да бъде изхвърлен по подходящ начин, вие ще помогнете за предотвратяване на възможните негативни последствия за околната среда и човешкото здраве, които иначе биха могли да бъдат предизвикани от неправилното изхвърляне като отпадък на този продукт. За по- подробна информация за рециклиране на този продукт се обърнете към местната градска управа, службата за вторични суровини или магазина, откъдето сте закупили продукта.

ONLY FOR ARGENTINA

"Candy Electrodomésticos Argentina S.A."
