Product type	Air fryer
Brand	Sogo
Model	SS-10915
Power supply	AC 220-240 V, 1800 W, 50-60 Hz
Capacity	8 L
Basket material	Ceramic-coated basket, removable rack
Cooking temperature	80 to 200 °C (dehydration: 30-80 °C, keep warm: 65-95 °C)
Timer	1 to 60 minutes (dehydration: 1-24 h, keep warm: 1 min-8 h)
Number of preset programs	12 (air fry, fries, chicken wings, bacon, fish, vegetables, baking, steak, pizza, dehydration, shrimp, keep warm)
Display	Digital LED with menu icons
Automatic reminder function	Audible signal and "SHA" display to shake halfway through cooking
Automatic shut-off	Yes, when the basket is removed or at the end of time
Exterior material	Heat-resistant plastic
Cleaning	Basket, rack and tongs washable with soapy water; housing wiped with a damp cloth
Included accessories	Frying basket, removable rack, serving tongs
Power cord length	Short, approximately 80 cm (estimate)
Country of manufacture	China
After-sales service	www.sogosat.com, [e-mail], [phone]

Frequently Asked Questions - SS-10915 Sogo

How to clean the Sogo SS-10915 air fryer?

Unplug the appliance and let it cool. Clean the basket, rack and tongs with hot water, mild detergent and a non-abrasive sponge. The outer housing should be wiped with a damp cloth. Never immerse the appliance in water.

Why does white smoke come from the appliance?

White smoke may appear when cooking fatty foods (e.g., bacon) or if the basket still contains grease residues. Clean the basket after each use and avoid overfilling.

How to make crispy fries in the Air Fryer?

For crispy fries, use firm potatoes, rinse and dry them well before adding a little oil. Cut them into thin sticks and shake the basket halfway through cooking.

Can I use oil in this fryer?

Yes, but in very small quantities. The fryer works by circulating hot air, allowing cooking with little or no oil. Add one to two tablespoons of oil for a crispy result.

How to use the preset programs?

Press the Power button, then select one of the 12 menu icons (e.g., FRIES). The screen will display the default temperature and time. You can adjust these settings with the +/- buttons and start cooking with the Play/Pause button.

What does the 'SHA' message on the screen mean?

The 'SHA' (shake) message appears halfway through cooking to remind you to stir or turn the food. A beep sounds 5 times. Remove the basket, shake the food, then replace it to continue cooking.

What to do if the fryer does not turn on?

Check that the cord is properly plugged into a wall outlet. Press the Power button once. If the screen remains off, try another outlet or check the circuit breaker.

Can I cook frozen food in the fryer?

Yes, you can cook frozen food (e.g., frozen fries). Increase the cooking time by a few minutes and shake halfway for even cooking.

How to adjust the temperature manually?

Press the temperature control button (temperature icon). The icon will flash. Use the + or - buttons to adjust the temperature in 5°C increments. The range is 80 to 200°C depending on the mode.

Where to find spare parts for the fryer?

Spare parts (basket, rack, tongs) can be ordered from Sogo's after-sales service via www.sogosat.com or by email at [e-mail].

USER MANUAL SS-10915 Sogo

ES Instructions for use

FR Mode d'emploi

Download your manual

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

• Always read the instruction book carefully before using. - This manual can be downloaded from our web page www.sogo.es - Keep these instructions for future reference.

2. Symbol definitions

GENERAL PRECAUTIONS

1

1- Important information and useful hints on use 2- Warning against dangerous situations in terms of life and property 3- Warning against fire risk 4- Warning against hot surfaces 5- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors. • Always place the appliance on a flat and even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.

- The appliances are not intended to be operated by means of an external timer or separate remote-control system.

- This appliance is intended to be used in household and similar applications such as

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses and by clients in hotels, motels and other residential type environments;

- Bed and breakfast type environments;

- Catering and similar non-retail applications.

- Avoid spillage on the connector

II. Restrictions on use to avoid personal injury

- Do not let the appliance operate unattended.

- Do not place or operate this appliance near water sources.

- Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.

- Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.

- Neither immerse the housing, which contains electrical components and the heating elements, in water nor rinse it under the tap.

- Never use accessories that are not recommended by the manufacturer.

- The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock, or injury to persons.

- When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.

- To avoid electric shock, make sure your hands are dry before plugging or unplugging.

- Do not use the device with wet hands, on damp floors, or when the atmosphere is humid; there is a risk of electric shock.

- While using the appliance, make sure that the power cord must not be caught or crushed.

- Do not let the motor unit, cord, or plug get wet to protect against the risk of electric shock.

- Be careful while handling electrical appliances, as the surface of the heating element is subject to residual heat after use. Any misuse may cause potential injury to the user and may damage the appliance.

- Do not touch the outer surface of the appliance as it can get very hot during operation. Instead, use the handle or mitts.

III. ⚠️ Product use restrictions due to poor condition or breakdown

- Never immerse the appliance or the plug in water or any other liquid. In

the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord being damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. △! Restrictions on use when used with children and elders

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not allow the children to use the appliance without supervision.

V. IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. Instructions to follow while using the device

• Do not place the appliance against a wall or against any other appliance. Leave at least 10 cm free space from all sides before placing the appliance. After cooking, frying basket and inner pot should not be placed directly on the countertop to avoid burning the countertop. Always put the ingredients to be fried in the basket, to prevent them from coming into contact with the heating elements.

Do not cover the air inlet and the air outlet openings while the appliance is operating.

Do not fill the pan with oil as this may cause a fire hazard.

Extreme caution must be taken when moving an appliance containing hot oil or other hot liquids.

Never touch the internal part of the appliance while in use.

The temperature of accessible surfaces may be high when the appliance is operating.

Do not place anything on top of the appliance to prevent any type of burn caused by hot surfaces.

During air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings.

Also be careful of hot steam and air when you remove the pan from the appliance.

Immediately unplug the appliance if you see dark smoke coming out of it. Wait for the smoke emission to stop before you remove the pan from the appliance.

WARNING: Do not touch hot surfaces.

- WARNING: This equipment shall be used with CAUTION as this electrical appliance contains a heating function. Surface of this appliance is also different from other functional surfaces which can produce high temperatures. Since temperatures are differently perceived by different persons, the equipment must be touched only at intended handles and gripping surfaces with the help of heat protectors like gloves or similar type of clothing. Otherwise, let it cool down for sufficient time before touching the hot surfaces.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which come in contact with food.

Introduction

This electric air fryer provides an easy and healthy way of preparing your favourite dishes. The best part of using the air fryer is that you can prepare as many types of fried dishes and have them without worry or being conscious about consuming fatty foods, as it does not consume oil at all or if it consumes oil, then only a very little quantity. By using hot rapid air circulation, it is able to make numerous dishes. The best part is that the air fryer heats food in all directions and most of the ingredients do not need any oil.

4. TECHNICAL SPECIFICATIONS

Voltaje Power	Frequency Capacity
AC 220-240V 1800	W 50-60Hz 8L

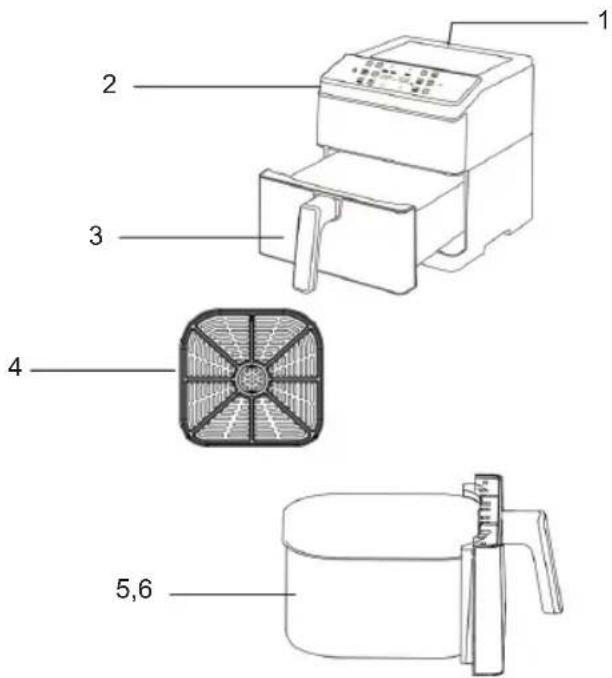

5. PARTS DESCRIPTION

1. Air Intake Vent
2. Control Panel
3. Basket Handle
4. Removable Grill
5. Frying Basket
6. PPG Fusion Ceramic Coated Basket

Food Tongs: This air fryer has been provided with food tongs for user safety, which help us to remove the food without touching the food and hot frying basket to avoid any scalding.

6. PREPARATION FOR USE

BEFORE FIRST USE

1. Remove all the packaging material.
2. Remove the glue, labels, and stickers stuck on the product.
3. Clean the frying basket and the frying grill thoroughly with warm water, a soft detergent, and a non-abrasive sponge.
4. Clean the inside and outside of the product with a warm, damp cloth.
5. This air fryer uses 360° hot air circulation technology, which helps users cook food in a short time without using oil, or using only a very small amount.

Note: Do not clean the air fryer housing with detergent and water; just clean it with a damp cloth. Do not pour oil or fat directly into the air fryer, as it might cause burns, risk to the user's life, and damage the air fryer.

7. INSTRUCTION FOR USE

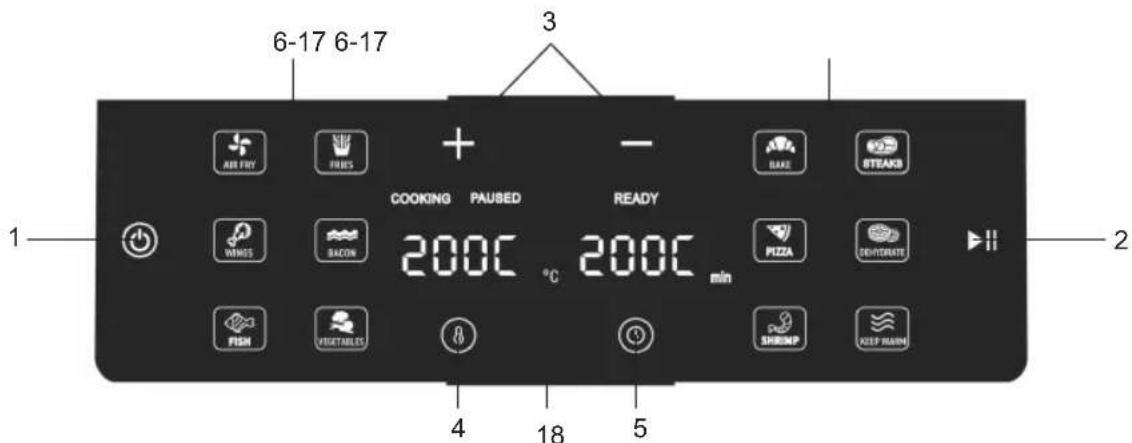

USING THE DIGITAL CONTROL PANEL

1. Power Button: Once the unit is plugged in, the Power Button will light up and the screen enters sleeping mode. By pressing the Power Button once, it activates the touch control panel and all menu functions illuminate, including the digital display, and the first menu function starts blinking. The digital display shows the default time and temperature of the first menu function. To stop the cooking process directly and switch off the appliance, press this button again and the unit will turn off.
2. Play/Pause Button: With the help of this button, we can start the cooking function and pause at any time while cooking food. To start the cooking process, press this button and the unit immediately starts cooking with the first menu function. While the air fryer is in working mode, pressing this button stops the cooking process.
3. Minus and Plus buttons: This air fryer model has "+" and "-" buttons. With the help of these buttons, we can change the time and temperature values of all menu functions at any time.
4. Temperature Control Button: There is a single button to control and change the temperature value. Once this button is pressed, the temperature icon starts flashing. Then, using the "+" and "-" buttons, the cooking temperature can be raised or lowered in 5°C intervals. The temperature can be changed depending on the menu function. The temperature can be changed from 80°C to 200°C, except for the dehydration function, which ranges from 30–80°C, and the keep warm function, which ranges from 65–95°C. Note: The temperature can be changed in all menu functions. By long pressing or pressing it for a long duration, it can be changed rapidly.
5. Time Control Button: There is a single button to control and change the time value. Once this button is pressed, the time icon starts flashing. Then, using the "+" and "-" buttons, the cooking time can be raised or lowered in 1-minute intervals. The time can be changed depending on the menu function. The cooking time can be changed from 1 to 60 minutes, except for the dehydration function, which ranges from 1 hour to 24 hours, and the keep warm function, which ranges from 1 minute to 8 hours.

Note: The time can be changed in all menu functions. By long pressing or pressing it for a long duration, it can be changed rapidly.

6-17. Pre-set Menu Functions Buttons: There are 12 pre-set menu functions in this air fryer. After turning on the air fryer, the default menu function "AIR FRY" starts flashing. The digital display shows the default time and temperature for the "AIR FRY" function. By pressing the play and pause button, we can start cooking the food. To cook the food with some other menu function, we need to press that menu function button. After pressing that menu function, the icon will start flashing and the digital display will show the time and temperature for that menu function. In the same way, we can select any menu function and cook the food as per our needs.

1. LED Digital Display: While pressing the power button, the digital display activates and shows the default time and temperature of the menu functions. When cooking starts, the time unit of the menu function begins reverse counting during the entire cooking process. The digital display keeps showing the temperature and remaining time during the cooking process.

Menu functions, temperature and time setting

No.	Menu function Default	time Time Range		Default temperature (°C)	Temperature range (°C)
1	Air fry 20 min 1 – 60 min 2	200 80-200°C
2	French Fries 20 min 1 – 60 min 200 80-200°C
3	Chicken Wings 25 min 1 – 60 min 185 80-200°C
4	Bacon 12 min 1 – 60 min 190 80-200°C
5	Fish	15 min 1 – 60 min 180 80-200°C
6	Vegetables	15 min 1 – 60 min 160 80-200°C
7	Bake	25 min 1 – 60 min 160 80-200°C
8	Steak 15 min 1 – 60 min 180 80-200°C
9	Pizza	15 min 1 – 60 min 180 80-200°C
10	Dehydrate	8 H	1H – 24 H	55	30-80°C
11	Shrimp	20 min	1 – 60 min	160	80-200°C
12	Keep warm	30 min	1 min – 8 H	95	65-95°C

HOW TO OPERATE THE AIR FRYER

1. Place the appliance on a dry, stable and heat-resistant surface.
2. Since the appliance becomes hot during use, make sure that it is not too close to any other appliances and keep it at a distance of 20 cm from the wall.
3. Prepare the food for cooking.
4. Plug the power cord into the socket. A BEEP sound indicates the Air Fryer is turned on. Immediately after turning on the appliance, the unit enters standby state. In standby mode, the "Power" light remains illuminated. NOTE: At this time, only the "Power" button can operate.
5. Press the "Power" button to enter working mode. By default, the first menu function activates and starts flashing. The digital display shows the time and temperature of this function. All menu functions remain illuminated. To cook food using the first menu function, press the play/pause button and the unit starts cooking. To cook food using a menu function other than the default, press that "Menu function Icon" and the icon starts blinking; the digital display then shows the time and temperature of the selected menu function. After selecting the corresponding menu function, press the Time/Temperature buttons to adjust the time and temperature using the "+" / "-" buttons. Once the menu function setting is complete, press the "Play/Pause" button to start the cooking process.

NOTE: A. When we remove the frying basket during any menu function operation, the fan and motor stop working, the LED screen panel and the menu icon disappear, and the cooking time countdown stops. Once we place the air fryer basket back, the cooking process resumes for the remaining cooking time.

B. The air fryer basket needs to be placed back within 10 minutes to keep the cooking function continuing. Once 10 minutes pass and we don't place the frying basket back, the cooking function needs to be reset again.

C. During the cooking process, we can press the "Power" button to stop cooking (the air fryer stops working and the fan continues working for a few seconds). To end the cooking process, press the power button for a few seconds and the air fryer will switch off.

D. After suspending any menu function, with the help of the Play/Pause button, we can replace it with any other menu function. If within the next minute we don't select any menu function, the air fryer starts cooking again with the same menu function.

E. When we start cooking with any menu function, the digital display shows the "COOKING" icon. In case we pause the menu function, the digital display shows "PAUSED". Once any menu function reaches the end of its cooking time, "READY" appears on the screen and a beep sound will be heard. The fan will continue to work for 30 seconds and the air fryer will enter standby mode.

1. Remove the air fryer basket and place it down on a heat-resistant surface. Do not place it on the air fryer.
2. Turn off the device using the "Power/Start-Stop" button and pull the mains plug out of the plug socket.
3. Remove the food from the frying basket.
4. Allow the basket and rack to cool down and clean them as mentioned in the cleaning and maintenance process.

Shaking the food halfway through the process

To get the most out of your air fryer and the best results, it is always recommended to shake or turn upside down the food halfway through the process to get an evenly cooked final result. But most of the time it is not easy to remember to stop the air fryer, shake the food, and start again.

Auto reminder function to shake the food halfway through the process.

This model of air fryer has an “auto reminder” function, which reminds you with a beep signal of 5 times and a control panel flashing “SHA” for about 20 seconds to shake or stir the food.

Functioning of the auto reminder function

The automatic reminder function is pre-established on the fryer in both pre-set and personalized menus. Assuming a 12-minute menu has been set. During the first half of the time (6 minutes), it will do the normal cooking, and when half (6 minutes) of the time remains, the display will show “SHA”, it will begin to flash for about 20 seconds and a beep sound comes for 5 times to remind you that you can shake or stir the food. This is the time to remove the basket from the fryer. Once removed, the process will stop and the front panel will turn off. Stir the food and place the air fryer basket back into its position, and the air fryer activates automatically in order to complete the cooking process where it had left off. And in case you don’t want to stir the food, after 20 seconds, until the cooking process was suspended, the fryer starts working until the completion of the cooking procedure.

Note: Preheat the air fryer for 5 minutes before preparing any type of dish. The above default data are for reference only; the user can adjust the desired temperature and time as required.

Tips

• Smaller size ingredients usually require a slightly shorter preparation time than large size ingredients.
• A larger amount of ingredients only requires a slightly longer preparation time compared to a smaller amount of ingredients.
• Shaking smaller ingredients halfway through the preparation time optimizes the end result and can prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you added the oil.
• Do not prepare extremely greasy ingredients such as sausages in the air fryer.
• Snacks that can be prepared in an oven can also be prepared in the air fryer.
• The optimal amount for preparing crispy fries is 500 grams. Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than homemade dough.
• Place a baking tin or oven dish in the air fryer basket if you want to bake a cake or quiche, or if you want to fry fragile or filled ingredients.
• Before using the device, make sure that the device and the outsides of the frying baskets are clean and dry.
• Do not use the device longer than 4 hours without a break.
• Do not leave the device switched on when it is empty.
• Do not place food that is still wrapped in cling film or plastic bags into the device.
• Make sure that the food does not come into contact with the heating elements.
• Do not overfill the drawer so that the hot air can circulate optimally inside the cooking chamber. Fill it no more than 1/3 full.
• Make sure that foodstuffs containing oil and fats are not overheated. There are possibilities of ignition.
• Always place the hot frying baskets on a heat-resistant surface after use.

8. CLEANING AND MAINTENANCE

Cleaning

1. Clean the appliance after every use.
2. The pan and the non-stick coating basket: do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.
3. Remove the mains plug from the wall socket and let the appliance cool down. Note: Pull out the basket to let the air fryer cool down more quickly.
4. After cooking, frying basket should not be placed directly on the countertop to avoid burning the countertop.
5. Wipe the outside of the appliance with a moist cloth.
6. Clean the frying basket, grill, and tongs with warm water, some cleaning liquid, and a non-abrasive sponge.
7. You can use degreasing liquid to remove any remaining dirt. Tip: If dirt is stuck to the basket, fill the basket with hot water and some cleaning liquid. Place the frying grill into the basket and let them soak for a few minutes.
8. After a few minutes, when the grease and dirt come out, wash it with soap and a non-abrasive sponge.
9. Clean the inside of the appliance with hot water and a non-abrasive sponge.
10. Clean the heating element with a cleaning brush to remove any food residues.

Storage

1. Unplug the appliance and let it cool down.
2. Make sure all parts are clean and dry.
3. Store in a cool and dry place.
4. TROUBLESHOOTING

Problem Possible cause Solution
The Air fryer does not work	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not set the timer.	Set the time to the required preparation time to switch on the appliance.
The ingredients fried with the air fryer are not done.	The amount of ingredients is much more in the basket compare to the basket size.	Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly.
	The set temperature is too low.	Set the temperature to the required temperature setting (See section ‘settings’ in chapter ‘Using the appliance’).
	The preparation time is too short.	Set the time to the required preparation time (see section ‘Settings’ in chapter’ Using the appliance’).
The ingredients are half fried or unevenly fried in the air fryer.	Certain types of ingredients need to be shaken halfway through the preparation time.	Ingredients that lie on top or across each other (e.g., fries) need to be shaken halfway through the preparation time. See section ‘Settings’ in chapter ‘Using the appliance’.
Fried snacks are not crispy when they come out of the air fryer.	You used a type of snacks meant to be prepared in a traditional deep fryer.	Use oven snacks or lightly brush some oil on to the snacks for a crispier result.
I cannot slide the pan into the appliance properly.	There are too much ingredients in the basket.	Do not fill the basket beyond the MAX indication even try to fill Little less
	The basket is not placed in the pan correctly.	Push the basket down into the pan until you hear a click.
White smoke comes out of the appliance.	You are preparing greasy ingredients.	When you fry greasy ingredients in the air fryer, a large amount of oil will leak into the pan. The oil produces white smoke and the pan may heat up more than usual. This does not affect the appliance or the end result
	The pan still contains grease residues from previous use.	White smoke is caused by grease heating up in the pan. make sure you clean the pan properly after each use.
French fries are fried unevenly in the air fryer.	You did not use the right potato type.	Use fresh potatoes and make sure they stay firm during frying.
	You did not rinse the potato sticks properly before you fried them.	Rinse the potato sticks properly to remove the starch from outside of the sticks.
French fries are not crispy when they come out of the air fryer.	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure you dry the potato sticks properly before you add the oil.
		Cut the potato sticks smaller for a crispier result.
		Add slightly more oil for a crispier result.

Menu functions, temperature and time setting

No.	Menü-Funktion	Voreingestellte Zeit Zeitbereich		Vorgegebene Temperatur (°C)	Temperaturbereich (°C)
1	Frittieren 20 min 1 – 60 min		200 80-200°C
2	Pommes frites 20 min 1 – 60 min		200 80-200°C
3	Chicken Wings 25 min 1 – 60 min		185 80-200°C
4	Speck		12 min 1 – 60 min	190 80-200°C
5	Fisch		15 min 1 – 60 min	180 80-200°C
6	Gemüse 15 min		1 – 60 min	160 80-200°C
7	Backen 25 min		1 – 60 min	160 80-200°C
8	Steak		15 min 1 – 60 min	180 80-200°C
9	Pizza		15 min 1 – 60 min	180 80-200°C
10	Dehydrieren		8 H	1H – 24 H	55
11	Shrimps 20 min		1 – 60 min	160 80-200°C
12	Warmhalten		30 min	1 min – 8 H	95

HOW TO USE THE AIR FRYER

Menu functions, temperature and time setting

No.	Funzione menu Tempo	predefinito	Intervallo di tempo	Temperatura predefinita (°C)	Intervallo di temperatura (°C)
1	Friggere ad aria 20 min 1 –	60 min 200 80-200°C
2	Patate fritte 20 min 1 – 60	min 200 80-200°C
3	Ali di pollo	25 min 1 – 60	min 185 80-200°C
4	Pancetta	12 min 1 – 60	min 190 80-200°C
5	Pesce	15 min 1 – 60	min 180 80-200°C
6	Verdure	15 min 1 – 60	min 160 80-200°C
7	Informate	25 min 1 – 60	min 160 80-200°C
8	Bistecca	15 min 1 – 60	min 180 80-200°C
9	Pizza	15 min 1 – 60	min 180 80-200°C
10	Disidratare	8 H	1H – 24 H	55	30-80°C
11	Gamberi	20 min	1 – 60 min	160	80-200°C
12	Mantenere in caldo	30 min	1 min – 8 H	95	65-95°C

HOW TO USE THE AIR FRYER

DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
