Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Accessories

Check the accessories and literature in accordance with this list:

Ice cube tray

Egg tray

Energy lable

Warranty card

Safety Warning Manual

Screw

Cover

Sponge block

Slide guide

Slide asm.

Fixed plate

Hinge cover

Fixed plate II

Bottom fixed plate

Top fixed plate

Simple line drawing of a rectangular object with no text or symbols

Bottom cover
Bottom side cover

Simple diagonal line drawing with no text or symbols

Seal strip

Seal sponge

Bottom hinge cover

WARNING - Important Safety information

NOTICE - General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Before switching on the appliance for the first time read the following safety hints!:

WARNING!

Before first use

▶ Make sure there is no transport damage.

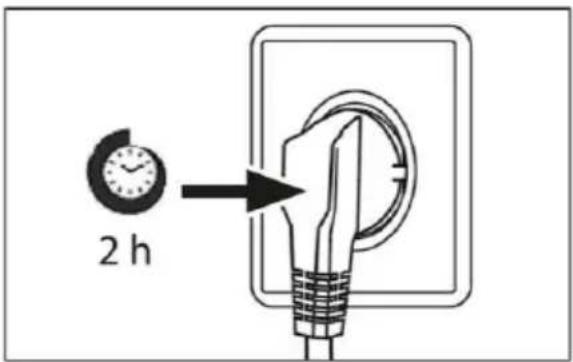

▶ Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
▶ Handle the appliance always with at least two persons because it is heavy.
Remove all packaging materials, keep them out of children's reach and dispose them in an environmentally friendly manner.

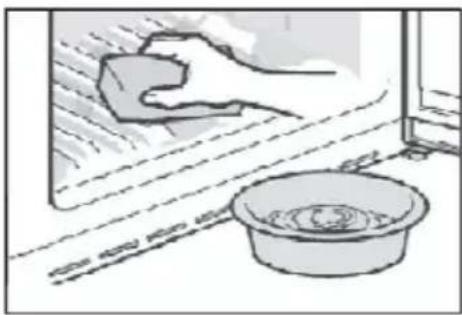

▶ Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it.

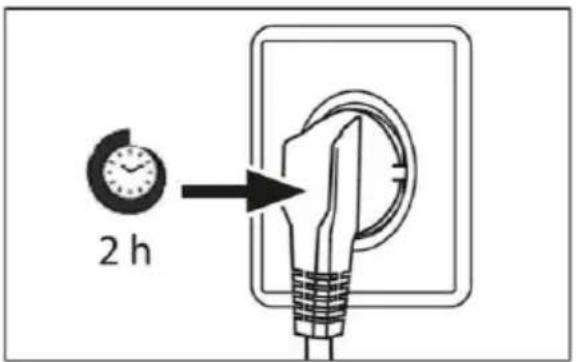

▶ After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION.
▶ Precool the compartments at high settings before loading with food. The function Power- Freeze helps to cool down the compartments quickly.
The refrigerator temperature and freezer temperature are automatically set to 5^ C and -18^ C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.

Installation

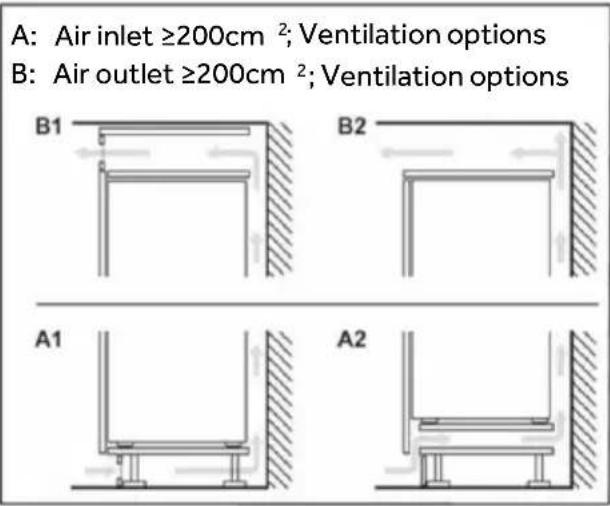

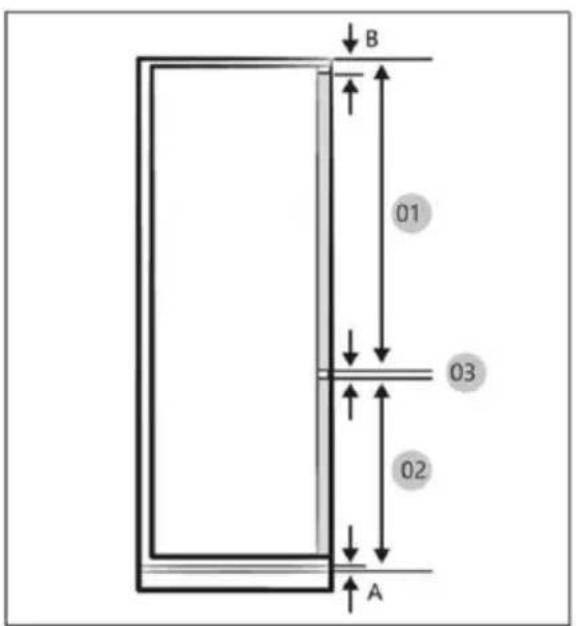

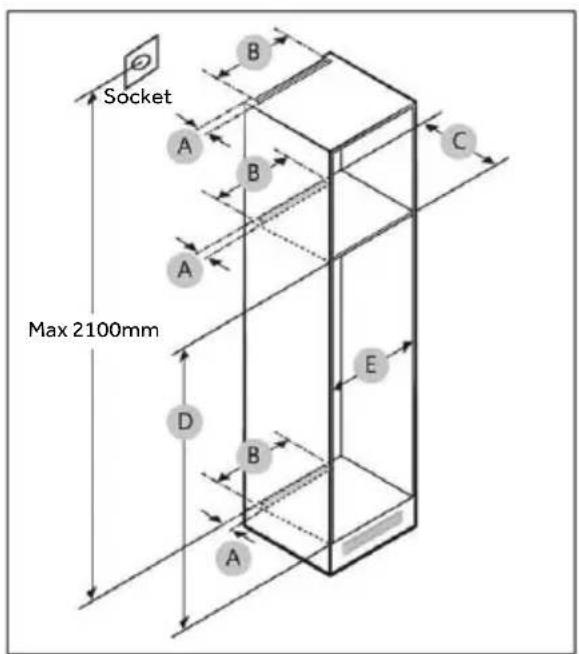

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.
▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
▶ Install and level the appliance in an area suitable for its size and use.

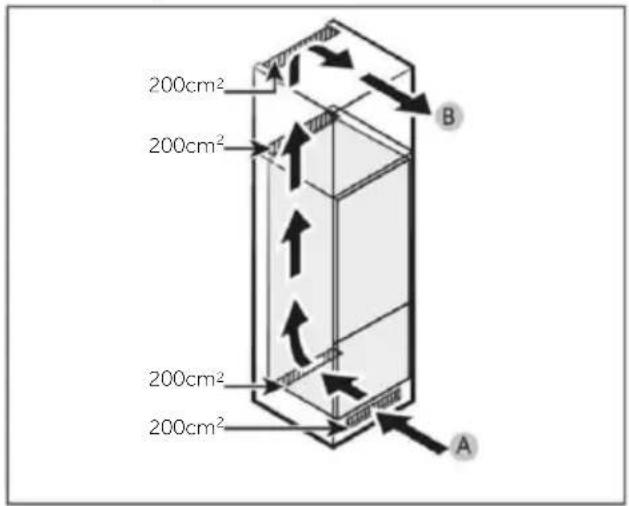

▶ Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.
▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
▶ Do not use multi-plug adapters and extension cables.
▶ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

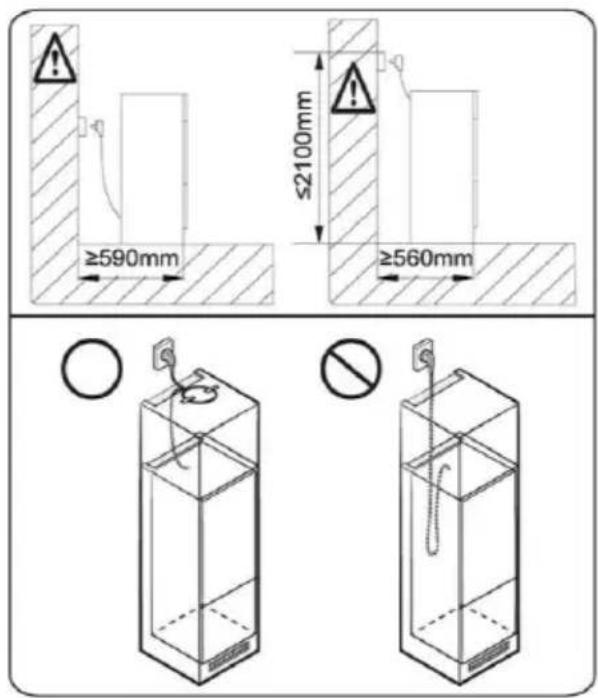

▶ Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.

WARNING!

▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.

Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

▶ Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

▶ Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances.

▶ Keep away children under 3 years of age from the appliance unless they are constantly supervised.

▶ Children shall not play with the appliance.

If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.

▶ Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.

▶ Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.

▶ Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple.

▶ Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.

WARNING!

▶ Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
▶ Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶ Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
▶ Check the condition of food if a warming in the freezer has taken place.
▶ Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
▶ Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!
▶ Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance/ cleaning
▶ Make sure children are supervised if they carry out cleaning and maintenance.
▶ Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

WARNING!

▶ Hold the plug, not the cable, when unplugging the appliance.
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶ Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
▶ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶ Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives or € UK CA

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards and UK standards, which provide for CE or UKCA marking.

NOTICE

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

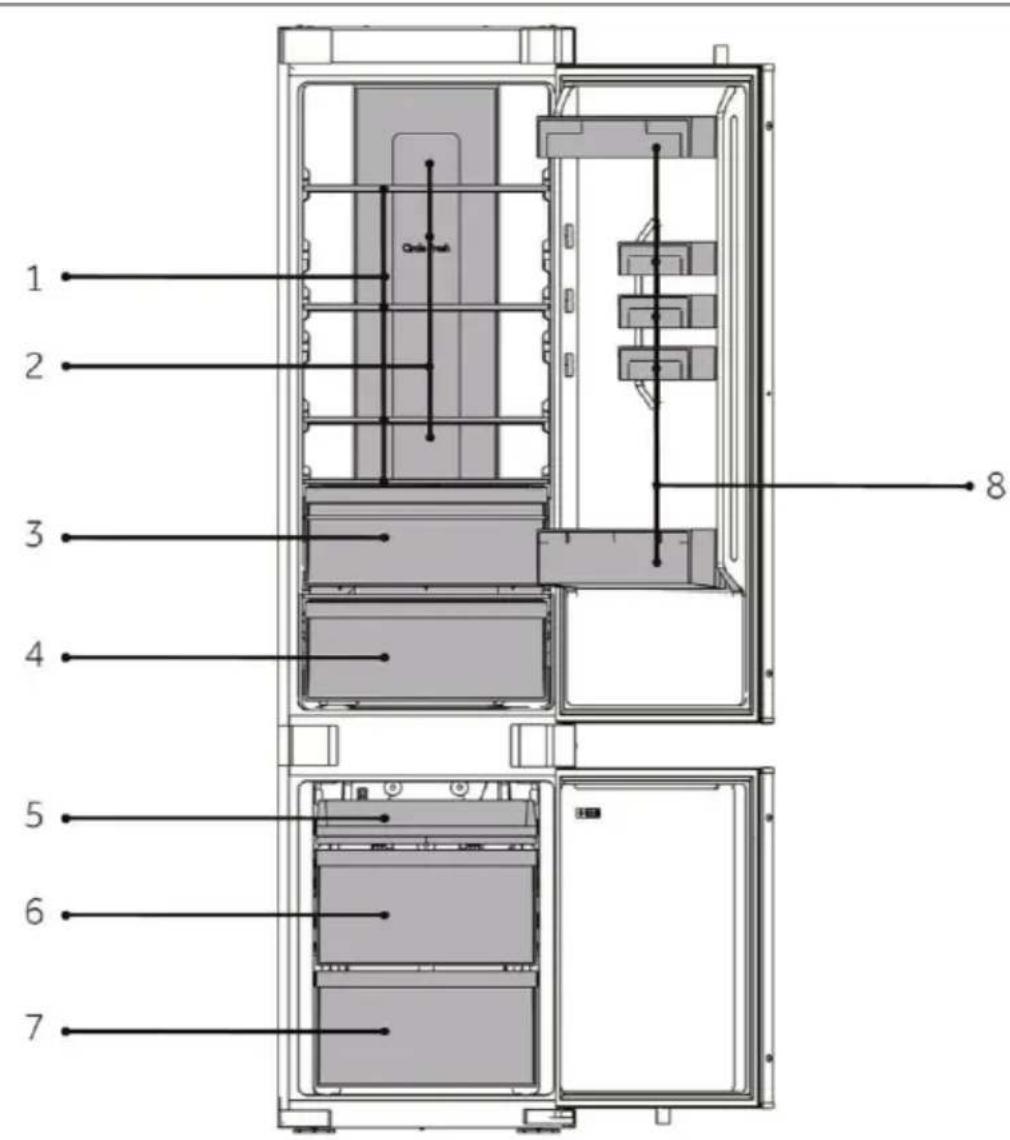

1 2 3 4 5 6 7 8

A: Refrigerating chamber

1 Ordinary shelves
2 Refrigerated air duct
3 Humidity Zone drawer
4 Fresh Box drawer
8 Bottle holder

B: Freezing chamber

5 Upper freezer tray
6 Middle freezer drawer
7 Lower freezer drawer

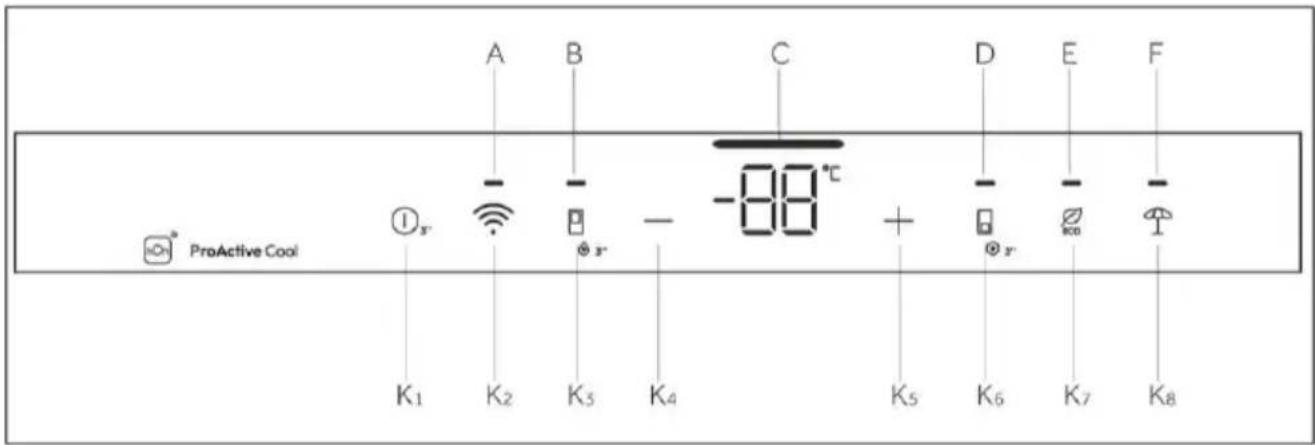

Control panel

ProActive Cool A B C D E F ① s' - - - - - - K1 K2 K3 K4 - - - + @ y' K5 K6 K7 K8

Indicators:

A Wi-Fi function

B Refrigerated temperature zone

C Temperature display

D Freezing temperature zone

E ECO function

F Holiday function

Buttons:

K1 Standby button

K2 Wi-Fi setting button

K3 Refrigeration temperature zone selection button

K4 Temperature adjustment button "-"

K5 Temperature adjustment button "+"

K6 Freeze temperature zone selection button

K7 ECO button

K8 Holiday function button

Sensor keys

The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger.

Switch on /off the appliance

The appliance is in operation as soon as it is connected to the power supply.

When the refrigerator is first powered on, the indicator lights on from left to right. The fridge temperature and freezer temperature are automatically set to 5^ C and -18^ C respectively.

NOTICE

When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.

Empty the appliance before switching off. To switch off the appliance, pull the power cord out off the power socket.

Standby function

Standby button is used to switch between OFF (pause working status) and ON (normal working modes).

Enter the standby state: when the display board is lit, press the button "K1" (Standby button) for 3 seconds, the buzzer rings once. The standby icon lights up and enters the standby state.

NOTICE

Standby mode is not power down, and the refrigerator is still powered on at this time.

Exit standby mode: Under the standby mode, keep touching the standby button for 3 seconds to restart the control screen, refrigeration lighting, cooling and other functions, accompanied by a prompt sound. The refrigerator will return the set temperature and function before and enter normal working mode.

Adjust the temperature

The indoor temperatures are influenced by the following factors:

Ambient temperature, Frequency of door opening, Amount of stored foods installation of the appliance.

Wi-Fi function

Wi-Fi matching: When the refrigerator is powered on at the first time, it will automatically enter network configuration mode, and the Wi-Fi function icon will flash quickly, and if there was no network matching operation, it would automatically exit after 30 minutes.

Manually enter Wi-Fi matching mode: When the display board is lit, while the Wi-Fi function icon is on, keep pressing the Wi-Fi matching key for 3 seconds to enter the mode. During this time, the Wi-Fi function icon will flash quickly showing that it is under Wi-Fi matching mode. If there is no network matching operation, it will automatically exit after 30 minutes.

IN APP PAIRING PROCEDURE

Step 1 • Download the hOn app on the stores.

GET IT ON Google Play

Download on the App Store

EXPLORE IT ON AppGallery

Step 2 Create an account on the hOn app or log in if you already have an account.

Welcome! Sign to the order to your home GCPM YOU Post, save in Candy! CAN online checkout to products YOUCHO

Step 3 Follow pairing instructions in the hOn-App.

hOn App hOn

NOTICE

Under Wi-Fi matching mode, you should follow the app's instructions to complete network configuration. If you need to change the Wi-Fi environment, you need to enter the mode again. If the WiFi function icon stays on, it indicates that the network has been connected successfully.

Adjust the refrigeration temperature

When the display board is lit, press the button "K3" (Refrigeration temperature zone selection). The indicator "B" (refrigeration indicator) illuminates, and then here comes the temperature setting mode of the fridge.

Press the button "K4" (Temperature adjustment button "-" every time, the set temperature of the fridge will be reduced by 1. The fridge temtemperature will display in the sequence of "9°C -> 8°C -> 7°C -> 6°C -> 5°C -> 4°C" -> 3°C -> 2°C -> 1°C".

Press the button "K5" (Temperature adjustment button "+") every time, the set temperature of the fridge will be increased by 1. The fridge temperature will display in the sequence of "1°C -> 2°C -> 3°C -> 4°C -> 5°C > 6°C -> 7°C -> 8°C -> 9°C".

NOTICE

After setting the temperature, if there is no operation within 3 seconds, the system will be automatically determined and save the set temperature.

Adjust the Freeze temperature

When the display board is lit, press the button "K6" (Freezing temperature zone selection). The indicator "D" (refrigeration indicator) illuminates, and then here comes the temperature setting mode of the fridge.

Press the button "K4" (Temperature adjustment button "-") every time, the set temperature of the fridge will be reduced by 1. The fridge temtemperature will display in the sequence of "-14°C -> -15°C -> -16°C -> -17°C -> -18°C -> -19°C" -> -20°C -> -21°C -> -22°C -> -23°C -> -24°C".

Press the button "K5" (Temperature adjustment button "+") every time, the set temperature of the fridge will be increased by 1. The fridge temperature will display in the sequence of "-24°C -> -23°C -> -22°C -> -21°C -> -20°C -> -19°C -> -18°C -> -17°C -> -16°C -> -15°C -> -14°C".

Super Cool function

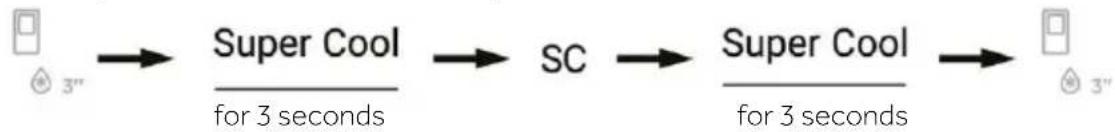

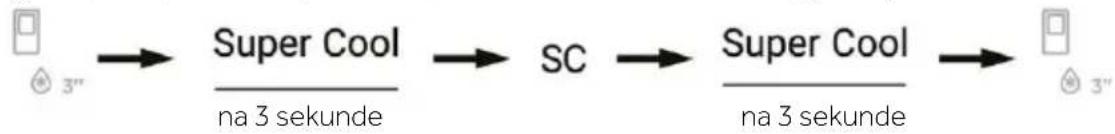

1. When the display board is lit, press the button "K3" (Super Cool selector) for 3 seconds, the buzzer rings once, the temperature display icon shows "SC", and then the Super Cool function will be turned on.
2. When the temperature display icon shows "SC", press the button "K3"(Super Cool selector) for 3 seconds, the buzzer rings once, the temperature display icon goes off, and then the Super Cool function will be turned off.
3. After the Super Cool function is turned on, the refrigerator will automatically turn off the function when it reaches the set temperature. If you want to exit manually, you can press the button "K3" (Super Cool selector) for 3 seconds to turn it off.

NOTICE

This function will be automatically goes off after 6 hours.

Super Freeze function

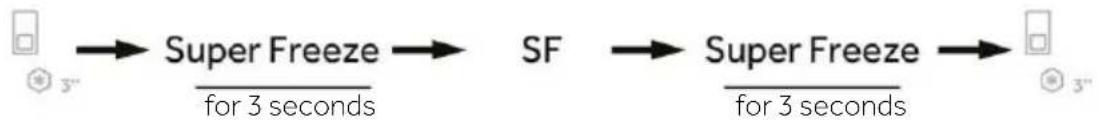

1. When the display board is lit, press the button "K6"(Freeze temperature zone selection) for 3 seconds, the buzzer rings once, the temperature display icon shows "SF", and then the Super Freeze function will be turned on.
2. When the temperature display icon shows "SF", press the button "K6" (Freeze temperature zone selection) for 3 seconds, the buzzer rings once, the temperature display icon goes off, and then the Super Freeze function will be turned off.
3. After the Super Freeze function is turned on, the refrigerator will automatically turn off the function when it reaches the set temperature. If you want to exit manually, you can press the button "K6" (Freeze temperature zone selection) for 3 seconds to turn it off.

NOTICE

1. Under Super Freeze state, the freezer temperature cannot be adjusted. If either button "K4" (Temperature adjustment button "-" or button "K5" (Temperature adjustment button "+") is pressed to adjust the temperature of freezer, the indicator "D" (freezing temperature zone) will be issued a prompt to indicate that this operation cannot be carried out.
2. Super Freeze function is designed to keep nutrition value of frozen food, it will be freeze food in the shortest time. If large quantities of frozen food are to be frozen at one time. Meanwhile, Super Freeze function should be set 24h in advance to make the freezer own relatively low temperature and put food in. At this time, the freezing speed of the freezer is improved, food can be frozen quickly, the nutrition of food is effectively kept, and the storage becomes quite convenient.
3. The Super Freeze function will automatically seitch off after 50 hours, The appliance is then operated at the previously set temperature.

Holiday function

1. When the display board is lit, press the button "K8" (Holiday function button), the buzzer rings once, the indicator "F" (Holiday function) illuminates, and then the Holiday function will be turned on.
2. When the display board is lit, press the button "K8" (Holiday function button), the buzzer rings once, the indicator "F" (Holiday function) goes off, and then the Holiday function will be turned off.

NOTICE

The Holiday function is mainly used for short-term travel and other life scenes, and the fridge room must be emptied when use the holiday function.

In the Holiday function, the temperature of the fridge room will be higher (about 17^ C) please pay attention to empty the food in the fridge room to avoid food deterioration.

ECO function

When the display board is lit, lightly touch the ECO function button, and the ECO function icon will light up, the refrigerator is under the mode already; If you need to exit the mode, you could use the same operation lightly touching the ECO function button.

Under ECO mode, the refrigerator and freezer will operate automatically at 5^ C and -18^ C.

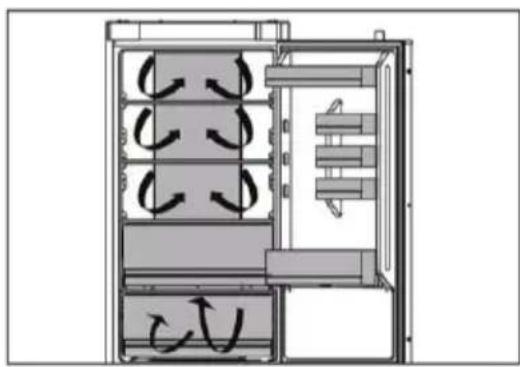

Humidity Zone drawer

In this compartment the humidity level is higher than fridge compartment. It is controlled automatinally by the system and is suitable to store friuits, vegetable, salsads, etc.

NOTICE

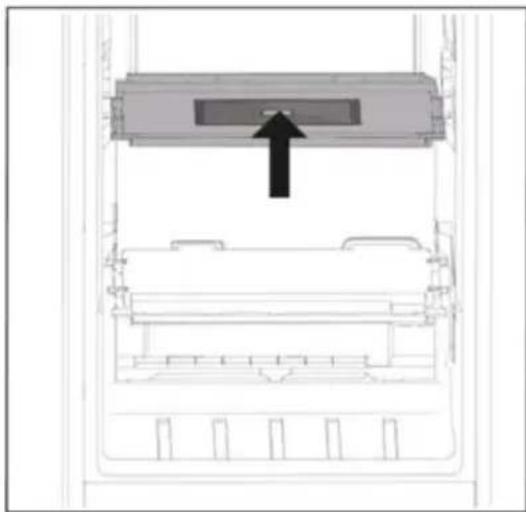

1. Do not remove the plastic cover inside the zone.
2. They maintain the humidity.
3. Clod-sensitive fruits like pineapple, avocado, bananas, graperfruits are not recommended to be stored in the drawer.

Technical diagram of a mechanical assembly with an arrow indicating a component (no text or symbols present)

Technical diagram of a multi-chamber HVAC unit with directional arrows indicating airflow or movement (no text or labels)

Multi-air-flow

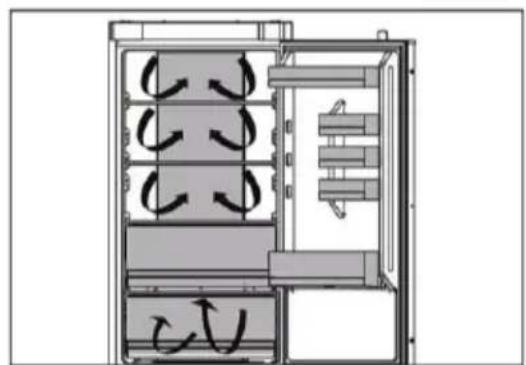

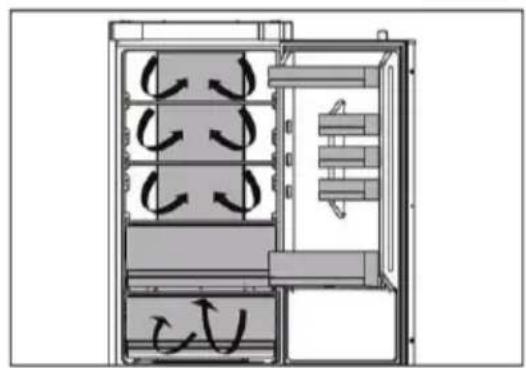

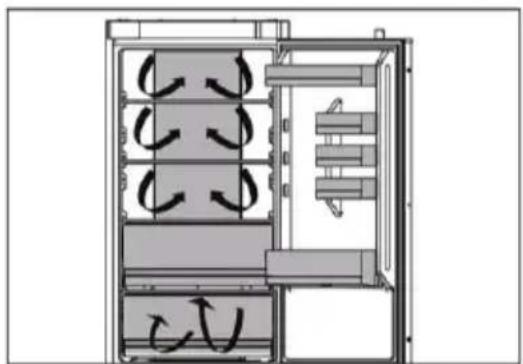

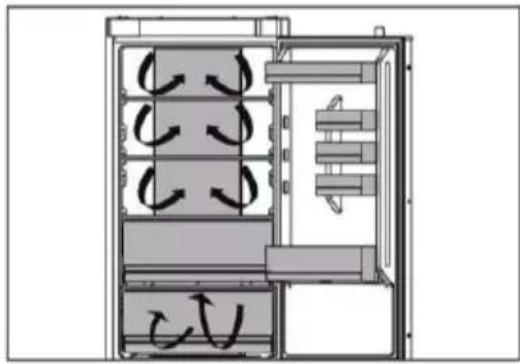

1. The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Adjustable shelves

1. The height of the shelves can be adjusted to fit your storage needs.

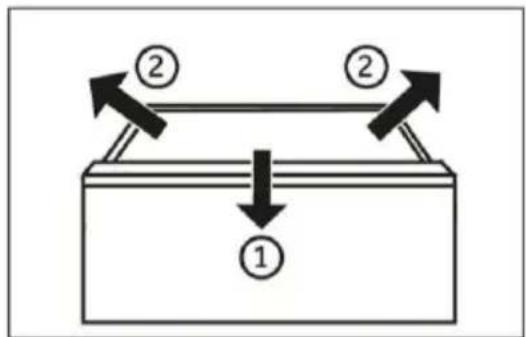

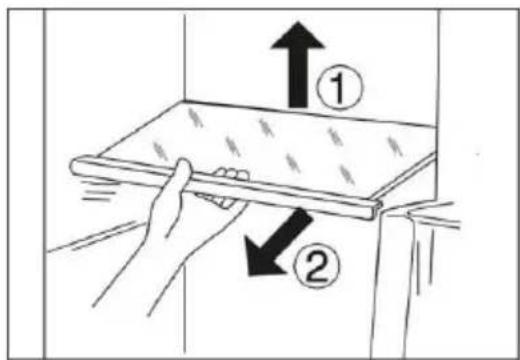

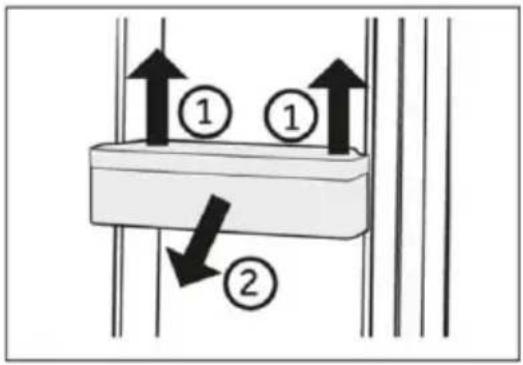

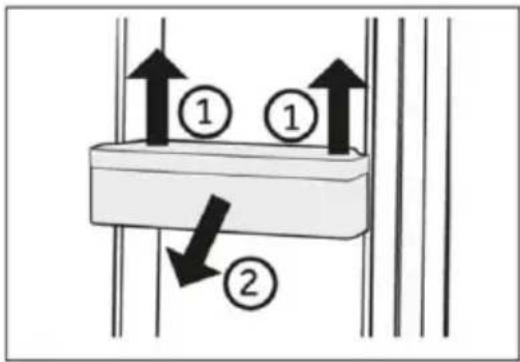

2. To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②.
3. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides

NOTICE

Ensure that all ends of a shelf are level.

Removable door racks/bottle holder

1. The door racks can be removed for cleaning:
2. Place hands on each side of the rack, lift it upwards ① and pull it out ②.
3. In order to insert the door rack, the above steps are carried out in reverse order.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, possibly indicating movement or force directions.

NOTICE

When the appliance is switched on, it may take up to 12 hours for the correct temperatures to be reached.

Removable drawer

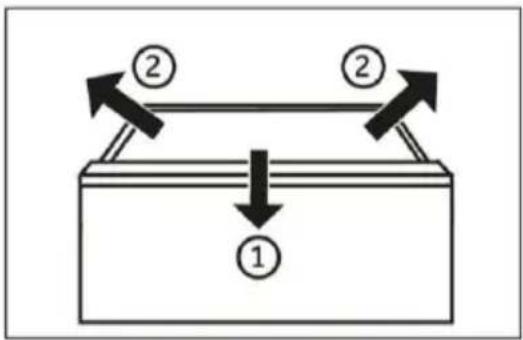

To remove the drawer out, pull out to the maximum extent ①, lift and remove ②.

In order to insert the drawer, the above steps are carried out in reverse order.

① ② ②

The Light

The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliances other settings.

Energy saving tips

▶ Make sure the appliance is properly ventilated (see INSTALLATION).
▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
▶ Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶ Functions like super Freeze consume more energy.
▶ Allow warm food to cool down before placing it in the appliance.
▶ Open the appliance door as little and as briefly as possible.
▶ Do not overfill the appliance to avoid obstructing the air flow.
▶ Avoid air within the food packaging.
▶ Keep door seals clean so that the door always closes correctly.
▶ Defreeze frozen food in the fridge storage compartment.
The most energy-saving configuration requires the appliance keep drawers, food box and shelves on factory-fresh condition, and food should be places as far as possible without blocking the air outlet of the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

WARNING!

▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
▶ Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.
▶ In case of heating check the condition of frozen goods.

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

▶ Always keep the door gasket clean.
▶ Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent.
▶ 1. Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

▶ 2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge.
3. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge.
▶ 4. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service
▶ Rinse and dry with soft cloth.
▶ Do not clean any of the parts of the appliance in a dishwasher.
▶ Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

Replacing the LED-lamps

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamps adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Parameters of the lamps:

Refrigerator compartment: 12 V max 2W

Refrigerator compartment: 12 V max 5W

Non-use for a longer period

If you do not use the appliance for a long time, AND you do not want to use the Holiday-function:

Take out the food.

Unplug the power cord.

Clean the appliance as described above.

Keep the doors open to prevent the creation of bad odours inside.

NOTICE

Turn the appliance off only if strictly necessary.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45° to avoid damaging the refrigerating system.

WARNING!

▶ Do not lift the appliance by its handles.
▶ Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem	Possible Cause	Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.The appliance is in the defrosting cycle	Connect the mains plug.This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.	The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the freezer compartment is too low.The door gasket is dirty, worn, cracked or mismatched.The required air circulation is not guaranteed.	In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located or a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.Clean the door/drawer gasket or replace them by the customer service.Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or smells.	The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator.	Clean the inside of the refrigerator.Wrap the food thoroughly..
It is not cold enough inside the appliance.	The temperature is set too high.Too warm goods has been stored.Too much food has been stored at one time.The goods are too close to each other.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.	Reset the temperature.Always cool down goods before storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door/drawer.Do not open the door/drawer too frequently.
It is too cold inside the appliance.	The temperature is set too low.The Super Freeze/ Super Cool function is activated or is running too long.	Reset the temperature.Switch off the Super Freeze/ Super Cool function
Moisture formation on the inside of the refrigerator compartment.	The climate is too warm and too damp.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.Food containers or liquids are left open.	Increase the temperature.Close the door/drawer.Do not open the door/drawer too frequently.Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	The climate is too warm and too damp.The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the humidity decreases.Ensure that he door/drawer is tightly shut.
Display light work, but do not feel cool.	It is in the demo mode.	Please note what condition it is in, if it is in Demo mode, exit it.Exit: Open the refrigerator door, press the second button on the right for 8S within 12 hours of power-on.
Strong ice and frost in the freezer compartment.	The goods were not adequately packaged.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.The door/drawer gasket is dirty, worn, cracked or mismatched.Something on the inside prevents the door/drawer to close properly.	Always pack the goods well.Close the door/drawer.Do not open the door/drawer too frequently.Clean the door/drawer gasket or replace them by new ones.Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.
The sides of the cabinet and door strip get warm.	-	This is normal.
The appliance makes abnormal sounds.	The appliance is not located on level ground.The appliance touches some object around it.	Adjust the feet to level the appliance.Remove objects around the appliance.
A slight sound is to be heard similar to that of flowing water.	-	This is normal.
You will hear an alarm beep.	The fridge storage compartment door is open.	Close the door.
You will hear a faint hum.	The anti-condensation system is working	This prevents condensation and is normal
The interior lighting or cooling system does not work.	Mains plug is not connected in the mains socket.The power supply is not intact.The LED-lamp is out of order.	Connect the mains plug.Check the electrical supply to the room. Call the local electricity company!Please call the service for changing the lamp.

To contact the technical assistance, visit our website: https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶ Open the door/drawer as few times as possible.
▶ Do not put additional food into the appliance during a power interruption.
If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment.
▶ An inspection of the goods is required immediately after the interruption.
As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.
Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.
▶ Take the appliance out of the packaging.
▶ Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10^ C and 43^ C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

Space requirement

Required space when door is opened (Without cabinet door panel)

01 02 03 04

05 06 07

Model
01*	10 (Min.) / 30 (Recommended)
02	95°(Recommended)
03	43
04	583
05	515
06	-3
07	1060

* 01: From cabinet to rear of product.

(unit: mm)

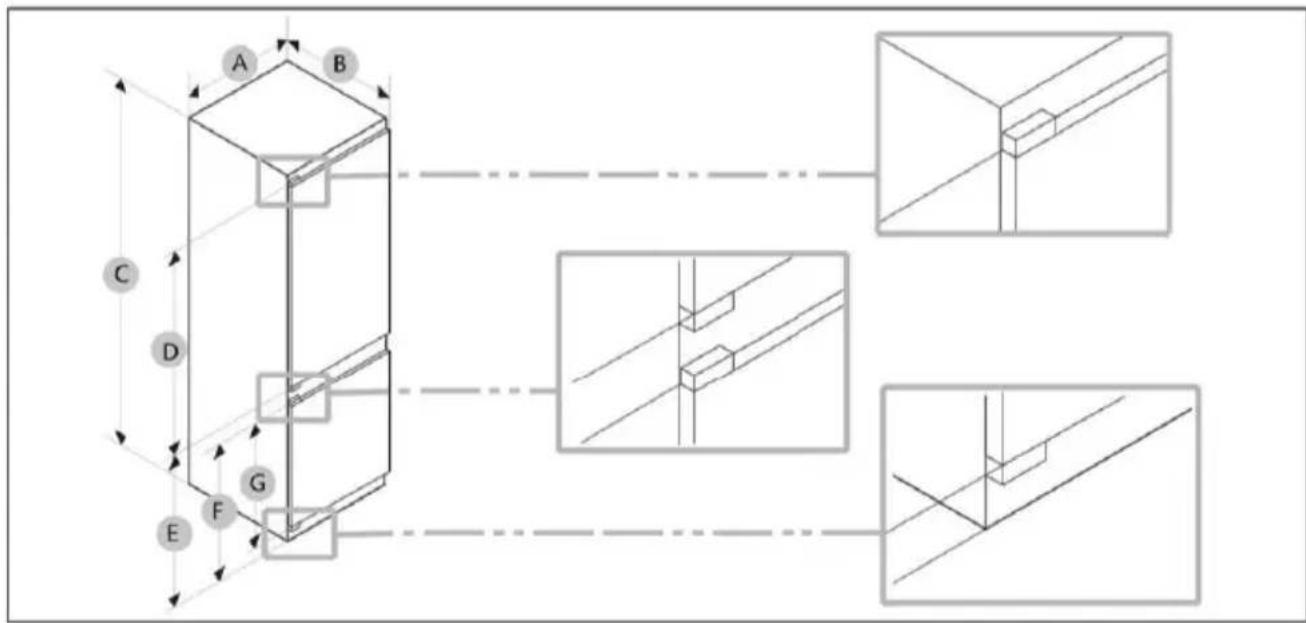

Product dimention

A B C D E F G

Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)
	540±2	550±2	1935±2	1133	745	662	618

NOTICE

• The specified energy consumption is based on the condition of a 10 mm gap from cabinet to rear of product. The product will work properly even with a gap which is less than 10 mm, however it consumes slightly more energy.
  • We recommend using a cabinet that is 18mm thick with hinges less than 20mm thick.
• The measurements in the above table may differ, depending on the measuring method.
• For built-in installation, see the Installation Guide.

Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

200cm² 200cm² 200cm² 200cm² 200cm² A B

A: Air inlet ≥200cm²; Ventilation options B: Air outlet ≥200cm²; Ventilation options B1 B2 A1 A2

Cabinet dimension

Socket Max 2100mm A B C D E B A

CAUTION!

Any product failure due to the following is not covered by the Warranty.

1. Improper site conditions or incorrect cabinet sizes.
2. Defective cabinet.
3. Mistakes by the installer or the user.

Clearance

See the pictures and tables below for space requirements for installation.

Model		A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Remark
	Min.	50	400	560	1941	560	Hinge: 17mm
	Recommend			580	1943	562
	Max.			-	1945	568

NOTICE

• If the width of a cabinet is larger than 568mm, the gasket (between the refrigerator and the cabinet) can become loose.
• If the cabinet is higher than the maximum dimension (1945 mm), you must use other finishing materials to fill the gap.

B 01 03 02 A

NOTICE

To install a cabinet requiring a 4 mm gap (03) see the cabinet reference table below.

A Lower edge of the front panel above the air ventilation
B Front panel overhang

(unit: mm)

Model
01	Min. 1191+BMax. 1269+B
02	Min. 662+AMax. 740+A
03	4 mm (fridge and freezer cabinet door panel gap)

Consideration for socket outlet location and required space

≥590mm ≤2100mm ≥560mm

NOTICE

If you install the refrigerator in a cabinet with a 560 mm depth, make sure the power cord is arranged on a side of the refrigerator before plugging into a power socket. If the power cord is in the rear of the refrigerator, it could decrease the energy efficiency.

Waiting time

2 h

To the maintenance-free lubrication oil is local in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.
▶ the power socket is earthed and no multi-plug or extension.
▶ the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Product fiche according to regulation EU No. 2019/2016

Brand
Model name/identifier
Category of the model	Refrigerator freezer
Energy efficiency class	E	D
Annual energy consumption (kWh/year) (1)	229
Total volume(L)	284
Volume refrigerator(L)	211
Volume freezer(L)	73
Volume chiller section(L)	/
Volume auto ice maker(L)	/
Star rating	4
Temperature of other compartments>14°C	Non applicable
Frost-free system	Yes
Freezing capacity(kg/24h)	6
Climate rating (2)	SN/N/ST/T
Noise emission class and airborne acoustical noise emissions(db(A)re1pW)	B(35)
Temperature rise time(h)	8
Ice making capacity	/
Type of appliance	Built-in
Model name	Energy efficiency class
	E
	D
	E

Explanations:

- Yes, featured

(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance.
(2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C

Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C

Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C

Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Voltage / Frequency	220-240V ~/ 50Hz
Input current (A)	1.3
Main fuse (A)	16
Coolant	R600a
Dimensions (H/W/D in mm)	1935/540/555

We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLESHOOTING.

If you cannot find a solution there, please contact

▶ your local dealer or
▶ our European Call Service-Center (see listed phone numbers below) or
▶ the Service & Support area at www.haier.com where you can activate the service
▶ claim and also find FAQs.

To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.

Model

Serial No.

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country*	Phone number	Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES)	902 509 123
Haier Germany (DE)	0180 5 39 39 99	• 14 Ct/Min Landline• max 42 Ct/Min Mobile
Haier Austria (AT)	0820 001 205	• 14,53 Ct/Min Landline• max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

*For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

*Duration of the guarantee of the refrigerating appliance:

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

*The period of spare parts for the repair of the appliance:

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.

41 Информация за безопасност

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a diagonal line with rounded ends, no text or symbols present

Долен капак

Долен страничен капак

Simple line drawing of a diagonal line with no text or symbols

Уплътнителна лента

Уплътнителна гъба

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign or to enter the app home iOS GETUP You have a Card? Get out all your app NOT ON YOU OK

hOn App hOn

ЗАБЕЛЕЖКА

Diagram of a device interior showing a rectangular component with an arrow pointing to it, no text or symbols present.

Diagram of a refrigerator interior showing airflow patterns with arrows indicating movement (no text or labels)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Регулируеми рафтове

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a mechanical or fluid system concept.

ЗАБЕЛЕЖКА

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Technical diagram showing a 3D structural assembly with labeled components A through G and dimension arrows, alongside three orthographic views of a rectangular structure.

≥590mm ≤2100mm ≥560mm

ЗАБЕЛЕЖКА

Westgate House, Westgate, Ealing

London, W5 1YY

Technical line drawing of a mechanical component or bracket (no text or symbols)

Dolní pevná deska

Horní pevná deska

Simple line drawing of a diagonal line with rounded ends, no text or symbols present

Dolní kryt

Dolní boční kryt

Simple line drawing of a diagonal line on a plain background (no text or symbols)

Těsnicí pás

Houbovité těsnění

Dolní kryt závěsu

POSTUP PÁROVÁNÍ S APLIKACÍ

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the order to your home GCPM YOU Post, save in Candy! CAN online checkout to products YOUCHO

hOn App hOn

UPOZORNĚNÍ

Technical diagram of a mechanical assembly with an arrow indicating a component (no text or symbols present)

Technical diagram of a multi-chamber HVAC unit with directional arrows indicating airflow or movement (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Nastavitelné police

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, possibly indicating movement or force directions.

UPOZORNĚNÍ

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

A B C D E F G

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

UPOZORNĚNÍ

≥590mm ≤2100mm ≥560mm

UPOZORNĚNÍ

Westgate House, Westgate, Ealing

London, W5 1YY

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Fast bundplade

Fast toplade

Simple line drawing of a diagonal line with rounded ends, no text or symbols present

Bunddæksel

Bundsidedæksel

Simple diagonal line drawing with no text or symbols

Tætningsliste

Tætningsskum

FREMGANGSMÅDE VED PARRING I APP

Trin 1 • Download hOn-appen i App-store eller Google Play.

GET IT ON Google Play

Download on the App Store

EXPLORE IT ON AppGallery

Trin 2: Opret en konto i hOn-appen eller log ind, hvis du allerede har en konto.

Welcome! Sign to the order for your home GOOR IMPORT Post, save in Candy! CAN online checkout or product IMPORT

hOn App hOn

BEMÆRK

Technical diagram of a mechanical assembly with an arrow indicating a component (no text or symbols present)

Technical diagram of a multi-chamber HVAC unit with directional arrows indicating airflow or movement (no text or labels)

Multi-luftstrømning

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Justerbare hylder

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, possibly indicating movement or force directions.

BEMÆRK

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

A B C D E F G

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

BEMÆRK

≥590mm ≤2100mm ≥560mm

BEMÆRK

Westgate House, Westgate, Ealing

London, W5 1YY

Technical line drawing of a mechanical component with no visible text or symbols

Untere feste Platte

Obere feste Platte

Simple line drawing of two parallel rectangular shapes with no text or symbols

Untere Abdeckung

Simple diagonal line drawing with no text or symbols

Dichtungsstreifen

Dichtungsschwamm

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to location for your home GOOR SINOP Post, launch/Cardif/ CAB: currently allowed or preferred BY2003

hOn App hOn

HINWEIS

Diagram of a device interior showing a rectangular component with an arrow pointing to it, no text or symbols present.

Diagram of a refrigerator interior showing airflow patterns with no text or symbols

Mehrfach-Luftstrom

Diagram showing two hands holding a tablet with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, possibly indicating movement or force directions.

HINWEIS

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

A B C D E F G

Modell	A (mm)	B (mm)	C (mm)	T (mm)	E (mm)	F (mm)	G (mm)
	540 ±2	550 ±2	1935 ±2	1133	745	662	618

HINWEIS

≥590mm ≤2100mm ≥560mm

HINWEIS

Westgate House, Westgate, Ealing

London, W5 1YY

Simple line drawing of a diagonal line with rounded ends, no text or symbols present

Κάτω κάλυμμα

Simple line drawing of a long rectangular object with no text or symbols

Λωρίδα σφράγισης

Σφουγγάρι σφράγισης

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to listen for your own iOS Disney# Post, wireless CardiY iOS currently available as product BY2003

hOn App hOn

ΕΙΔΟΠΟΙΗΣΗ

Diagram of a device interior showing a rectangular component with an arrow pointing to it, no text or symbols present.

Technical diagram of a multi-chamber refrigerator with airflow indicators (no text or symbols)

Πολλαπλή ροή αέρα

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement, possibly illustrating a physics or engineering concept.

Ρυθμιζόμενα ράφια

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a mechanical or structural assembly.

ΕΙΔΟΠΟΙΗΣΗ

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

A B C D E F G

Μοντέλο	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)
	540±2	550±2	1935±2	1133	745	662	618

ΕΙΔΟΠΟΙΗΣΗ

≥590mm ≤2100mm ≥560mm

ΕΙΔΟΠΟΙΗΣΗ

Westgate House, Westgate, Ealing

Λονδίνο, W5 1YY

Simple line drawing of a diagonal line with no text or symbols

Tapa inferior

Tapa lateral inferior

Simple diagonal line drawing with no text, numbers, or symbols

Tira de sellado

Esponja de sellado

Tapa inferior de la bisagra

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the server for your weather 登录 SMTP Post, session C: email CIR: remote-to-choose user email © INVESCO

hOn App hOn

AVISO

Diagram of a device interior showing a rectangular component with an arrow pointing to it, no text or symbols present.

Technical diagram of a multi-chamber refrigerator with airflow indicators (no text or labels)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement, possibly illustrating a physics or engineering concept.

Estantes ajustables

Diagram showing two labeled arrows (① and ②) pointing upward and downward on a rectangular object, likely illustrating a mechanical or fluid system concept.

AVISO

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

A B C D E F G

Modelo	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

AVISO

≥590mm ≤2100mm ≥560mm

AVISO

Westgate House, Westgate, Ealing

Londres, W5 1YY

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Alumine fikseeritud plaat

Simple line drawing of a diagonal line on a plain background (no text or symbols)

Tihendiriba

Tihendkäsn

Alumine hingekate

HOIATUS – oluline ohutusteave

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the order to your home iOS Android Post, save in Candy! iOS currently has a product My Documents

hOn App hOn

MÄRKUS

Diagram of a device interior showing a central component with an arrow pointing to it, no text or symbols present.

Technical diagram of a multi-chamber HVAC unit with airflow arrows indicating circulation (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled arrows (① and ②) pointing upward and downward on a rectangular object, likely illustrating a mechanical or fluid system.

MÄRKUS

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

A B C D E F G

Mudel	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

MÄRKUS

≥590mm ≤2100mm ≥560mm

MÄRKUS

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Kiinteä alalevy

Kiinteä ylälevy

Simple line drawing of a diagonal line with two rectangular ends, no text or symbols present

Pohjan suojus

Pohjan sivun suojus

Simple line drawing of a diagonal line on a plain background (no text or symbols)

Tiivistysnauha

Tiivistesieni

Alasaranan suojus

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the order to your home GCPM YOU Post, save in Candy! CAN online checkout to products YOUCHO

hOn App hOn

HUOMAUTUS

Technical diagram of a mechanical assembly with an arrow indicating a component (no text or symbols present)

Technical diagram of a multi-chamber HVAC unit with airflow arrows indicating circulation (no text or labels)

Moni-ilmavirtaus

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Säädettävät hyllyt

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a mechanical or fluid system.

HUOMAUTUS

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

A B C D E F G

Malli	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540 ± 2	550 ± 2	1935 ± 2	1133	745	662	618

HUOMAUTUS

≥590mm ≤2100mm ≥560mm

HUOMAUTUS

Westgate House, Westgate, Ealing

London, W5 1YY

Technical line drawing of a mechanical component with no visible text or symbols

Pure geometric line drawing of a diagonal line with no text or symbols

Cache inférieur

Simple diagonal line drawing with no text, numbers, or symbols

Bande d'étanchéité

Mousse d'étanchéité

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to location for your home GOOR DOORUP Post, wireless Carder USB: wireless/unknown or products BY2003

hOn App hOn

INFORMATION

Diagram of a device interior showing a rectangular component with an arrow pointing to it, no text or symbols present.

Technical diagram of a multi-chamber refrigerator with airflow indicators (no text or symbols)

Flux multi-air

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement, possibly illustrating a physics or engineering concept.

Clayettes réglables

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a mechanical or fluid system concept.

INFORMATION

Illustration of a hand cleaning a window with a washing machine in the foreground (no text or symbols)

A B C D E F G

Modèle	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

INFORMATION

Westgate House, Westgate, Ealing

Londres, W5 1YY

Simple line drawing of a diagonal line with rounded ends, no text or symbols present

Donji poklopac

Simple diagonal line drawing with no text or symbols

Brtvena traka

Brtvena spužva

Poklopac donje šarke

UPOZORENJE - važne informacije u vezi sigurnosti

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the order to your home UGM YOU Post, save in Candy! CAN online checkout to products YOUCHO

hOn App hOn

OBAVIJEST

Diagram of a mechanical device with internal components and an upward arrow indicating motion (no text or symbols)

Technical diagram of a multi-chamber HVAC unit with airflow arrows indicating circulation (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Podesive police

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a mechanical or fluid system.

OBAVIJEST

Kad je uređaj uključen, može proći i do 12 sati dok se ne postignu odgovarajuće temperature.

Uklonjiva ladica

Prilikom uklanjanja ladice, izvucite je do samog kraja ①, podignite i izvadite ②.

Prilikom ponovnog postavljanja ladice provedite opisane korake obrnutim redoslijedom.

① ② ②

Svjetlo

Illustration of a hand cleaning a window with a basin nearby (no text or symbols)

▶ Brtva vrata uvijek mora biti čista.
▶ Očistite unutrašnjost i kućište uređaja spužvom navlaženom toplom vodom i neutralnim deterdžentom.
1. Očistite unutrašnjost i vanjske površine hladnjaka, uključujući brtve vrata, police na vratima, staklene police, kutije i tako dalje. Koristite mekani ručnik ili spužvu natopljenu toplom vodom (možete dodati neutralni deterdžent u toplu vodu).

A B C D E F G

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540 ± 2	550 ± 2	1935 ± 2	1133	745	662	618

OBAVIJEST

• Navedena potrošnja energije temelji se na razmaku od 10 mm između ormarića i stražnjeg dijela proizvoda. Proizvod će ispravno raditi čak i ako je razmak manji od 10 mm, ali trošit će nešto više energije.
• Preporučujemo da koristite ormarić debljine 18 mm sa šarkama debljine manje od 20 mm.
• Mjerenja u gornjoj tablici mogu se razlikovati, ovisno o metodi.
• Upute za ugradbenu verziju potražite u Vodič za ugradnju.

≥590mm ≤2100mm ≥560mm

OBAVIJEST

Westgate House, Westgate, Ealing

London, W5 1YY

Pure technical line drawing of a mechanical component or housing (no text or symbols)

Simple line drawing of a diagonal line with rounded ends, no text or symbols present

Alsó burkolat

Alsó oldalburkolat

Simple diagonal line drawing with no text or symbols

Tömitöcsik

Tömitőszivacs

Alsó zsanérfedél

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign at the start for your home? GOOR MAKE Post, search Cada! GOOR [e-mail]/puting GOOR#2

hOn App hOn

MEGJEGYZÉS

Diagram of a device interior showing a top panel with an arrow pointing to a central component (no text or symbols present)

Technical diagram of a multi-chamber refrigerator with airflow indicators (no text or symbols)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Állítható polcok

Diagram showing two labeled arrows (① and ②) pointing upward and downward on a rectangular object, likely illustrating a mechanical or fluid system.

MEGJEGYZÉS

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

A B C D E F G

Modell	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

MEGJEGYZÉS

≥590mm ≤2100mm ≥560mm

MEGJEGYZÉS

Westgate House, Westgate, Ealing

London, W5 1YY

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a diagonal line with rounded ends, no text or symbols present

Copertura inferiore

Simple diagonal line drawing with no text, numbers, or symbols

Striscia di tenuta

Spugna di tenuta

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to order for your home GOOR SUPPORT Post launch/Cardif/ CAB currently follows up products BUY/SURSD

hOn App hOn

AVVISO

Diagram of a device interior showing a rectangular component with an arrow pointing to it, no text or symbols present.

Diagram of a refrigerator interior showing airflow patterns with no text or symbols

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Ripiani regolabili

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a mechanical or fluid system concept.

AVVISO

Diagram showing two labeled components (① and ②) with directional arrows indicating movement or force, possibly representing a mechanical or electrical system.

Illuminazione

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

A B C D E F G

Modello	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

AVVISO

≥590mm ≤2100mm ≥560mm

AVVISO

Westgate House, Westgate, Ealing

London, W5 1YY

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple diagonal line drawing with no text or symbols

Sandarinimo juostelè

Sandarinimo porolonas

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the order to your home GCPM YOU Post, save in Candy! CAN online checkout to products YOUCHO

hOn App hOn

PASTABA

Technical diagram of a mechanical assembly with an arrow indicating a component (no text or symbols present)

Technical diagram of a multi-chamber HVAC unit with directional arrows indicating airflow or movement (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, possibly indicating movement or force directions.

PASTABA

Illustration of a hand cleaning a window with a basin nearby (no text or symbols)

A B C D E F G

Modelis	A (mm)	B (mm)	C (mm)	G (mm)	E (mm)	F (mm)	G(mm)
	540 ± 2	550 ± 2	1935 ± 2	1133	745	662	618

PASTABA

≥590mm ≤2100mm ≥560mm

PASTABA

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a rectangular object with no text or symbols

Apakšējais pārsegs

Simple diagonal line drawing with no text or symbols

Blivējuma sloksne

Blivējuma sūklis

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the order to your home GCPM YOU Post, save in Candy! CAN online checkout to products YOUCHO

hOn App hOn

PAZINOJUMS

Technical diagram of a mechanical assembly with an arrow indicating a component (no text or symbols present)

Technical diagram of a multi-chamber HVAC unit with directional arrows indicating airflow or movement (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Regulējami plaukti

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a mechanical or structural assembly.

PAZINOJUMS

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

A B C D E F G

Modelis	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

PAZINOJUMS

Ligzda Maks. 2100 mm

UZMANĪBU!

≥590mm ≤2100mm ≥560mm

PAZINOJUMS

Pure technical line drawing of a mechanical component or housing without any text, numbers, or symbols

Vaste plaat onder

Vaste plaat boven

Simple line drawing of a rectangular object with a curved top edge, resembling a tool or device (no text or symbols)

Bodemafdekking

Simple diagonal line drawing with no text, numbers, or symbols

Afdichtingsstrip

Afdichtingsspons

Onderste scharnierafdekking

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign at the start of your home GOOR MAKEUP Prog. search "GoOR" GOOR: check/stopover to purchase GOOR

hOn App hOn

LET OP

Diagram of a device interior showing a top panel with an arrow pointing to a central component (no text or symbols present)

Technical diagram of a refrigerator interior showing airflow patterns and door compartments (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Verstelbare planken

Diagram showing two labeled arrows (① and ②) pointing upward and downward on a rectangular object, possibly indicating movement or force directions.

LET OP

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

A B C D E F G

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

LET OP

≥590mm ≤2100mm ≥560mm

LET OP

Westgate House, Westgate, Ealing

Glidebryter- montering

Fast plate

Hengseldeksel

Fast plate II

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Nedre fast plate

∅vre fast plate

Simple line drawing of a diagonal line with no text or symbols

Bunndeksel

Nedre sidedeksel

Simple diagonal line drawing with no text or symbols

Forseglingslist

Forseglingssvamp

Nedre hengseldeksel

Download on the App Store

EXPLORE IT ON AppGallery

Trinn 2 Opprett en konto på hOn- appen, eller logg på hvis du allerede har en konto

Welcome! Sign to the order to your home GCPM YOU Post, save in Candy! CAN online checkout to products YOUCHO

hOn App hOn

OBS

Technical diagram of a mechanical assembly with an arrow indicating a component (no text or symbols present)

Technical diagram of a multi-chamber HVAC unit with directional arrows indicating airflow or movement (no text or labels)

Multi-luftstrøm

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Justerbare hyller

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a mechanical or fluid system.

OBS

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

A B C D E F G

Modell	A (mm)	B (mm)	C(mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

OBS

≥590mm ≤2100mm ≥560mm

OBS

Technical line drawing of a mechanical component with no visible text or symbols

Dolna płyta stała

Górna stała płyta

Simple line drawing of a stick with two sticks, no text or symbols present

Dolna ostona

Dolna osłona boczna

Simple diagonal line drawing with no text or symbols

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the server for your weather 登录 SMTP Post, session C: email CIR: send to account your email © INVESCO

hOn App hOn

UWAGA

Diagram of a device interior showing a top panel with an arrow pointing to a central component (no text or symbols present)

Technical diagram of a multi-chamber refrigerator with airflow indicators (no text or symbols)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Regulowane półki

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, possibly indicating movement or force directions.

UWAGA

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

A B C D E F G

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

UWAGA

≥590mm ≤2100mm ≥560mm

UWAGA

Westgate House, Westgate, Ealing

Londyn, W5 1YY

Pure technical line drawing of a mechanical component or housing without any text, numbers, or symbols

Placa fixa inferior

Placa fixa superior

Simple line drawing of a horizontal rectangular shape with a small rounded rectangle on top (no text or symbols)

Tampa inferior

Tampa lateral inferior

Simple diagonal line drawing with no text, numbers, or symbols

Tira de vedação

Esponja de selagem

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign at the start to your home SQL Server GETUP Get up search engine? SQL client accounts for purchase NOT USED

hOn App hOn

AVISO

Diagram of a device interior showing a rectangular component with an arrow pointing to it, no text or symbols present.

Technical diagram of a refrigerator interior showing airflow patterns and door compartments (no text or labels)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Diagram showing two labeled arrows (① and ②) pointing upward and downward on a rectangular object, likely illustrating a mechanical or fluid system.

AVISO

Illustration of a hand cleaning a window with a washing machine in the foreground (no text or symbols)

Substituir as lâmpadas LED

AVISO!

A B C D E F G

Modelo	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

AVISO

≥590mm ≤2100mm ≥560mm

AVISO

Westgate House, Westgate, Ealing

London, W5 1YY

Simple line drawing of a rectangular object with diagonal lines, no text or symbols present

Capac inferior

Capac lateral inferior

Simple diagonal line drawing with no text or symbols

Bandă de etanșare

Burete de etanşare

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the order for your home GOOR IMPORT Post, save in Candy! CAN online checkout or product IMPORT

hOn App hOn

OBSERVATIE

Sertarul Humidity Zone

Technical diagram of a mechanical assembly with an arrow indicating a component (no text or symbols present)

Technical diagram of a refrigerator interior showing airflow patterns and door compartments (no text or labels)

Flux de aer multiplu

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement.

Rafturi ajustabile

Diagram showing two labeled arrows (① and ②) pointing upward and downward on a mechanical or structural component, with directional arrows indicating movement.

OBSERVATIE

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

A B C D E F G

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

OBSERVATIE

≥590mm ≤2100mm ≥560mm

OBSERVATIE

Simple line drawing of a diagonal line with no text or symbols

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to your server for your home App SUPPORT Post, search in CANDI CIB: download to your product BYCOING

hOn App hOn

ПРИМЕЧАНИЕ

Diagram of a device interior showing a rectangular component with an arrow pointing to it, no text or symbols present.

Technical diagram of a multi-chamber refrigerator with airflow indicators (no text or symbols)

Мультипоток воздуха

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating direction or movement, possibly illustrating a physics or engineering concept.

Регулируемые полки

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a mechanical or fluid system.

ПРИМЕЧАНИЕ

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

A B C D E F G

≥590mm ≤2100mm ≥560mm

ПРИМЕЧАНИЕ

Westgate House, Westgate, Ealing

London, W5 1YY

Pure technical line drawing of a mechanical component or housing without any text, numbers, or symbols

Spodná pevná doska

Horná pevná doska

Simple line drawing of a rectangular object with no text or symbols

Spodný kryt

Spodný bočný kryt

Simple line drawing of a diagonal line on a plain background (no text or symbols)

Utesňovací průžok

Utesňovacia špongia

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the order for your home GOOR IMPORT Post, save in Candy! CAN online checkout or product IMPORT

Krok 3 Postupujte podla pokynov na párovanie v aplikácii hOn.

hOn App hOn

OZNÁMENIE

Technical diagram of a mechanical assembly with an arrow indicating a component (no text or symbols present)

Technical diagram of a multi-chamber air vent with directional arrows indicating airflow or circulation (no text or labels present)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a mechanical or fluid system concept.

OZNÁMENIE

Illustration of a hand cleaning a window with a basin nearby (no text or symbols)

Chladiaci priestor: 12 V max 2W

Chladiaci priestor: 12 V max 5W

A B C D E F G

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

OZNÁMENIE

≥590mm ≤2100mm ≥560mm

OZNÁMENIE

Westgate House, Westgate, Ealing

London, W5 1YY

Pure technical line drawing of a mechanical component or housing without any text, numbers, or symbols

Fiksna plošča

Pokrov tečaja

Fiksna plošča II

Simple line drawing of a diagonal line with no text or symbols

Simple diagonal line drawing with no text or symbols

Tesnilni trak

Tesnilna goba

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the order for your home GOOR IMPORT Post, save in Candy! CAN online checkout or product IMPORT

hOn App hOn

OPOZORILO

Predal Humidity Zone

Diagram of a device interior showing a top panel with an arrow pointing to a central component (no text or symbols present)

Technical diagram of a multi-chamber HVAC unit with airflow indicators (no text or labels)

Več pretokov zraka

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Nastavljive police

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, possibly indicating movement or force directions.

OPOZORILO

Illustration of a hand cleaning a window with a basin nearby (no text or symbols)

A B C D E F G

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

OPOZORILO

≥590mm ≤2100mm ≥560mm

OPOZORILO

Westgate House, Westgate, Ealing

London, W5 1YY

*Trajanje garancije hladilnega aparata:

Simple diagonal line drawing with no text or symbols

Shirit guarnicioni

Sfungjer guarnicioni

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the order for your home GOOR IMPORT Post, save in Candy! CAN online checkout or product IMPORT

hOn App hOn

NJOFTIM

Diagram of a device interior showing a top panel with an arrow pointing to a central component (no text or symbols present)

Technical diagram of a multi-chamber refrigerator with airflow indicators (no text or labels)

Multifluksi i ajrit

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled arrows (① and ②) pointing upward and downward on a rectangular object, likely illustrating a mechanical or fluid system.

NJOFTIM

Illustration of a hand cleaning a window with a basin nearby (no text or symbols)

A B C D E F G

Modeli	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)
	540±2	550±2	1935±2	1133	745	662	618

NJOFTIM

≥590mm ≤2100mm ≥560mm

NJOFTIM

Westgate House, Westgate, Ealing

London, W5 1YY

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Donja fiksna ploča

Gornja fiksna ploča

Simple line drawing of a diagonal line with no text or symbols

Donji poklopac

Simple diagonal line drawing with no text or symbols

Zaptivna traka

Zaptivni sunder

Poklopac šarke sa donje strane

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the order to your home GCPM YOU Post, save in Candy! CAN online checkout to products YOUCHO

1. korak Pratite uputstva za uparivanje u aplikaciji hOn.

hOn App hOn

NAPOMENA

U režimu Wi-Fi povezivanja treba da pratite uputstva aplikacije da biste dovršili konfiguraciju mreže. Ako treba da promenite Wi-Fi okruženje, morate ponovo da uđete u ovaj režim. Ako ikona Wi-Fi funkcije ostane uključena, to znači da je uređaj uspešno povezan na mrežu.

Podešavanje temperature frižidera

Kada displej svetli, pritisnite dugme „K3“ (izbor temperature zone frižidera). Indikator „B“ (indikator hlađenja) svetli, a zatim se pojavljuje režim podešavanja temperature frižidera.

Pritisnite dugme „K4“ (dugme za podešavanje temperature „-“) svaki put kada ga pritisnete podešena temperatura frižidera će se smanjiti za 1. Temperatura frižidera će se prikazivati unizu od „9°C ->8°C ->7°C ->6°C ->5°C ->4°C ->3°C ->2°C ->1°C“.

Pritisnite dugme „K5“ (dugme za podešavanje temperature „+“) svaki put kada ga pritisnete podešena temperatura frižidera će se povećati za 1. Temperatura frižidera će se prikazivati unizu od „1°C ->2°C ->3°C ->4°C ->5°C ->6°C ->7°C ->8°C ->9°C“.

NAPOMENA

Nakon podešavanja temperature, ako nema aktivnosti u roku od 3 sekundi, sistem će se automatski odrediti i sačuvati podešenu temperaturu.

Podešavanje temperature zamrzivača

Kada displej svetli, pritisnite dugme „K6“ (izbor temperature zone zamrzivača). Indikator „D“ (indikator hlađenja) svetli, a zatim se pojavljuje režim podešavanja temperature zamrzivača.

Pritisnite dugme „K4“ (dugme za podešavanje temperature „-“) svaki put kada ga pritisnete podešena temperatura zamrzivača će se smanjiti za 1. Temperatura zamrzivača će se prikazivati u redosledu od „-14 °C -> -15 °C -> -16 °C -> -17 °C -> -18 °C -> -19 °C -> -20 °C -> -21 °C -> -22 °C -> -23 °C -> -24°C“.

Pritisnite dugme „K5“ (dugme za podešavanje temperature „+”) svaki put kada ga pritisnete podešena temperatura zamrzivača će se povećati za 1. Temperatura zamrzivača će se prikazivati u redosledu od „-24°C -> -23°C -> -22°C -> -21°C -> -20°C -> -19°C -> -18°C -> -17°C -> -16°C -> -15°C -> -14°C“.

Funkcija Super Cool

1. Kada je displej svetli, pritisnite dugme „K3“ (birač Super Cool) na 3 sekunde, zvučni signal se oglašava jednom, ikona prikaza temperature prikazuje „SC“, a zatim će se uključiti funkcija Super Cool.
2. Kada ikona prikaza temperature prikaže „SC“, pritisnite dugme „K3“ (birač Super Cool) na 3 sekunde, zvučni signal se oglasava jednom, ikona prikaza temperature će se isključiti, a zatim će se isključiti i funkcija Super Cool.
3. Nakon uključivanja funkcije Super Cool, frižider će automatski isključiti funkciju kada dostigne podešenu temperaturu. Ako želite da izadete ručno, možete pritisnuti dugme „K3" (birač Super Cool) na 3 sekunde da biste ga isključili.

NAPOMENA

Technical diagram of a mechanical assembly with an arrow indicating a component (no text or symbols present)

Technical diagram of a multi-chamber HVAC unit with directional arrows indicating airflow or movement (no text or labels)

Višestruki protok vazduha

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Podesive police

1. Visina polica može se podesiti tako da odgovara vašim potrebama u pogledu čuvanja hrane.
2. Da biste premestili policu, prvo je uklonite podizanjem zadnje ivice ① i izvlačenjem ②.
3. Da biste je ponovo postavili, stavite je na držače sa obe strane i gurnite je što je moguće dublje dok se zadnji deo police ne učvrsti unutar bočnih ureza

NAPOMENA

Uverite se da su svi krajevi police ravni.

Demontažne police u vratima / držači za flaše

1. Nosači u vratima se mogu ukloniti radi čišćenja:
2. Stavite šake sa obe strane police, podignite je nagore ① i izvucite je ②.
3. Da biste vratili nosač u vratima, obavite gorenavedene korake obrnutim redosledom.

Diagram showing two labeled arrows (① and ②) pointing upward and downward on a rectangular object, likely illustrating a mechanical or fluid system.

NAPOMENA

Kada se uređaj uključi, može potrajati i do 12 sati da se postignu ispravne temperature.

Demontažna fioka

Da biste izvadili fioku, izvucite je u najvećoj moguć meri ①, podignite i uklonite ②.

Da biste ubacili fioku, obavite gorenavedene koral obrnutim redosledom.

① ② ②

Svetlo

Unutrašnja LED lampica se uključuje kada se otvore vrata. Na učinak svetla ne utiče nijedna postavka uređaja.

Saveti za uštedu energije

▶ Uverite se da uređaj ima ispravnu ventilaciju (pogledajte MONTAŽA).
▶ Ne montirajte uređaj na direktnoj sunčevoj svetlosti ili u blizini izvora toplote (npr. rerna, grejalica).
Izbegavajte nepotrebno nisku temperaturu u uređaju. Potrošnja energije se povećava što je niža temperatura podešena u uređaju.
▶ Funkcije poput Super Freeze troše više energije.
▶ Sačekajte da se topla hrana ohladi pre nego što je stavite u uređaj.
▶ Otvarajte vrata uređaja što je manje i što kraće moguće.
▶ Nemojte da prepunite uređaj kako bi se izbeglo ometanje protoka vazduha.
▶ Izbegavajte zadržavanje vazduha pri pakovanju hrane.
▶ Održavajte čistoću zaptivki vrata tako da se uvek zatvaraju ispravno.
▶ Odmrzavajte smrznutu hranu u frižideru.
Konfiguracija koja najviše štedi energiju zahteva da uređaj drži fioke, kutiju za hranu i police itd. u fabrički svežem stanju, a hranu treba postaviti što je dublje moguće bez blokiranja izlaza vazdušnog voda.

UPOZORENJE!

Išključite uređaj iz mrežnog napajanja pre čišćenja.

Čišćenje

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

▶ Uvek održavajte zaptivku vrata čistom.
▶ Očistite unutrašnjost i kućište uređaja sunderom natopljenim toplom vodom i neutralnom deterdžer
1. Oribajte unutrašnjost i spoljašnjost frižidera, uključujući zaptivku vrata, policu u vratima, staklene police, kutije itd. koristeći meku krpu ili sunder umočen u toplu vodu (možete da dodate neutralni deterdžent u toplu vodu).

1. Ako se prolije tečnost, uklonite sve zaprljane delove, direktno isperite pod tekućom vodom, osušite i vratite nazad u frižider.
2. Ako se prolije gusta tečnost (na primer, šlag, otopljeni sladoled), uklonite sve zaprljane delove, stavite u toplu vodu od oko 40 °C neko vreme, a zatim isperite pod tekućom vodom, osušite i vratite nazad u frižider.
3. U slučaju da se neki mali deo ili komponenta zaglavi unutar frižidera (između polica ili fioka), oslobodite ih malom četkom. Ako niste mogli da dođete do dela, obratite se servisnoj službi kompanije Haier
   ▶ Isperite i osušite mekom krpom.
   ▶ Nemojte da čistite nijedan deo uređaja u mašini za pranje sudova.
   ▶ Sačekajte najmanje 5 minuta pre ponovnog uključivanja uređaja, jer često uključivanje može oštetiti kompresor.

Odmrzavanje

Odmrzavanje frižidera i zamrzivača se vrši automatski, tako da ne morate to da radite ručno.

Zamena LED lampica

UPOZORENJE!

A B C D E F G

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

NAPOMENA

• Navedena potrošnja energije zasniva se na razmaku od 10 mm od ormarića do zadnjeg dela proizvoda. Proizvod će raditi ispravno čak i sa razmakom manjim od 10 mm, ali troši nešto više energije.
• Preporučujemo upotrebu ormarića debljine 18 mm sa šarkama debljine manje od 20 mm.
• Merenja u gornjoj tabeli mogu se razlikovati, u zavisnosti od metode merenja.
• Uputstva za ugradnu verziju u Vodiču za ugradnju.

Poprečni presek za ventilaciju

≥590mm ≤2100mm ≥560mm

NAPOMENA

Ako ugradite frižider u ormarić dubine 560 mm, uverite se da je kabl za napajanje postavljen na bočnoj strani frižidera pre nego što ga priključite u utičnicu. Ako je kabl za napajanje u zadnjem delu frižidera, to može smanjiti energetsku efikasnost.

Vreme čekanja

2 h

Ulje za podmazivanje koje ne zahteva održavar nalazi se u kapsuli kompresora. Ovo ulje može da prođe kroz zatvoreni sistem cevi tokom transporta na nagibu. Pre priključivanja uređaja na mrežno napajanje, morate da sačekate 2 sata tako da ulje otekne nazad u kapsulu.

Električna veza

Pre svakog spajanja, proverite sledeće:

napajanje, utičnica i osigurači su u skladu sa natpisnom pločicom,
▶ utičnica je uzemljena i nema više priključnica niti produžetka,
▶ utikač i utičnica su strogo usklađeni sa pravilima.

Priključite utikač u pravilno montiranu utičnicu za domaćinstvo.

UPOZORENJE!

Da bi se izbegli rizici, korisnička služba mora da zameni oštećeni mrežni kabl (pogledajte garantni list).

Tehnički podaci o proizvodu u skladu sa Uredbom EU br. 2019/2016

Marka
Naziv/identifikator modela
Kategorija modela	Frižider i zamrzivač
Klasa energetske efikasnosti	E	D
Godišnja potrošnja energije (kWh/godišnje) (1)	229
Ukupna zapremina (l)	284
Zapremina frižidera (l)	211
Zapremina zamrzivača (l)	73
Zapremina rashladnog odeljka (L)	/
Zapremina automatskog ledomata (L)	/
Ocena u zvezdicama	4
Temperatura ostalih odeljaka >14 °C	Nije primenljivo
Sistem bez mraza	Da
Kapacitet zamrzavanja (kg/24 h)	6
Klimatska ocena (2)	SN/N/ST/T
Klasa emisija buke i emisija akustične buke koje se prenose vazduhom (dB(A)re1pW)	B(35)
Vreme porasta temperature (h)	8
Kapacitet izrade leda	/
Tip uređaja	Ugradni
Naziv modela	Klasa energetske efikasnosti
	E
	D
	E

Objašnjenja:

• Da, deo opreme

(1) Na osnovu rezultata ispitivanja usklađenosti sa standardima tokom 24 sata. Stvarna potrošnja zavisi od upotrebe i lokacije uređaja.
(2) Klimatska ocena za SN: Ovaj uređaj je namenjen za upotrebu na temperaturi okruženja između +10 °C i +32 °C

Westgate House, Westgate, Ealing

London, W5 1YY

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Fast bottenplatta

Fast topplatta

Simple line drawing of a rectangular object with no text or symbols

Nedre skydd

Nedre sidoskydd

Simple diagonal line drawing with no text or symbols

Tätningslist

Skumtätning

Nedre gångjärnskåpa

WARNING - Viktig säkerhetsinformation

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the order for your home GOOR IMPORT Post, save in Candy! CAN online checkout or product IMPORT

hOn App hOn

OBS!

Technical diagram of a mechanical assembly with an arrow indicating a component (no text or symbols present)

Technical diagram of a multi-chamber HVAC unit with airflow arrows indicating circulation (no text or labels)

Flera luftflöden

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Justerbara hyllor

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a mechanical or fluid system.

OBS!

A B C D E F G

Modell	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

OBS!

≥590mm ≤2100mm ≥560mm

OBS!

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Alt sabit plaka

Üst sabit plaka

Simple line drawing of a rectangular object with no text or symbols

Alt kapak

Alt yan kapak

Simple line drawing of a diagonal line on a plain background (no text or symbols)

Conta şeridi

Conta süngeri

Alt menteşe kapağı

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign to the order to your home iGCM Status Post search Cated CRR identification required Status

hOn App hOn

AÇIKLAMA

Technical diagram of a mechanical assembly with an arrow indicating a component (no text or symbols present)

Technical diagram of a multi-chamber HVAC unit with directional arrows indicating airflow or movement (no text or labels)

Çoklu hava akışı

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a mechanical or fluid system.

AÇIKLAMA

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

A B C D E F G

Model	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
	540±2	550±2	1935±2	1133	745	662	618

AÇIKLAMA

≥590mm ≤2100mm ≥560mm

AÇIKLAMA

Westgate House, Westgate, Ealing

London, W5 1YY

Technical line drawing of a mechanical component with no visible text or symbols

Simple diagonal line drawing with no text, numbers, or symbols

Ущільнювальна смуга

Simple line drawing of a rectangular object with no text or symbols

Нижня кришка

Нижня бічна кришка

Ущільнювальна губка

Download on the App Store

EXPLORE IT ON AppGallery

Welcome! Sign in the order for your folder App Store IMPORT Post search Caddel Add content to access your products © 2013-05

hOn App hOn

ЗАУВАЖЕННЯ

Diagram of a device interior showing a rectangular component with an arrow pointing to it, no text or symbols present.

Technical diagram of a multi-chamber refrigerator with airflow indicators (no text or symbols)

Мультипотік повітря

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Регульовані полиці

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a rectangular object, likely illustrating a mechanical or fluid system.

ЗАУВАЖЕННЯ

Illustration of a hand cleaning a window with a cloth and a basin nearby (no text or symbols)

A B C D E F G

≥590mm ≤2100mm ≥560mm

ЗАУВАЖЕННЯ

Westgate House, Westgate, Ealing

London, W5 1YY

Westgate House, Westgate, Ealing

London, W5 1YY

≥590mm ≤2100mm ≥560mm

خطار

A B C D E F G

Illustration of a hand cleaning a wall with a soap block and a basin (no text or symbols)

Diagram of a mechanical device with an arrow indicating a component or assembly (no text or symbols present)

خطار

Technical diagram of a door with internal airflow patterns and structural components (no text or labels)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

خطار

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

لوحة ثابتة سفلية

لوحة ثابتة علوية

Simple line drawing of a diagonal line with rounded ends, no text or symbols present

الغطاء السفلي

Simple diagonal line drawing with no text or symbols

شريط الغلق

إسفنجة الغلق

غطاء الفصلة السفيلة

Abstract geometric composition with four overlapping gray shapes radiating from a central point (no text or symbols)

CANDY

2024 Version A
