USER MANUAL Phantom M-80 A Dali

DALI PHANTOM M Series

MANUAL

M-80 A

TABLE 1

ITEM	M-80 A
Speakers 1 pc
Grilles 1 pc
Cut-out template 1 pc
DALI logo badge -
Owner's manual 1 pc

FIGURE 1A

FIGURE 1C

Simple diagram showing a person falling into a pile with an upward arrow and a circular symbol above (no text or labels)

FIGURE 1B

FIGURE 2 FIGURE 3 FIGURE 4

Simple line drawing of a person sitting in a chair facing a wall-mounted device (no text or symbols)

Symmetrical geometric pattern with four petal-like shapes and four small square markers (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

FIGURE 5 FIGURE 6

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Technical diagram showing cross-sectional views of a mechanical component with labeled parts and annotations

FIGURE 7

Diagram of a person seated at a desk with two circular components, no text or symbols present

FIGURE 8

Diagram showing two electrical plug connections with X and ✓ symbols indicating correct and incorrect status.

FIGURE 9 FIGURE 10

OUT-OUT TEMPLATE OUT-OUT TEMPLATE

Warning symbol for a trash bin with crossed and uncorrected lines, indicating no waste or discharge.

TABLE 2 - TECHNICAL SPECIFICATIONS

PHANTOM M-80 A
Frequency range 48 - 27,000 Hz +3 dB
Sensitivity 86.5 dB @ 1 m for 2.83 Volt
Nominal impedance 6 ohm
Maximum SPL 106 dB
Crossover frequency 2,500 Hz
Crossover principle 2-way
Recommended amplifier power 50 - 250 Watt
High frequency driver 1 x 28 mm soft dome
High frequency diaphragm Soft woven fabric
Low/Mid frequency driver 1 x 7 inch
Low/Mid frequency diaphragm Wood fibre cone
Connection input Single wire
Enclosure type Open back
Other features	Normal/High+Normal/Mid+
Installation location In-ceiling
Recommended placement In-ceiling LCR and surround
Outer dimensions incl. grille (∅ x D)	∅ 289 x 138.5 mm∅ 11.38 x 5.46 inches
Outer dimensions excl. grille (∅ x D)	∅ 278 x 138 mm∅ 10.94 x 5.44 inches
Cut-out dimensions	∅ 261 mm∅ 10.28 inches
Mounting depth	134 mm5.28 inches
Recommended rear volume (backbox) 15-100 litres
Optimum rear volume	25 litres (PHANTOM UNIVELSAL 25 backbox
Ceiling/Wall thickness(total dog leg span)	6 - 52 mm0.24 - 2.05 inches
Weight incl. grille	2.8 kg6.16 lb
Shipping weight	3.9 kg8.58 lb
Finish	White
Accessories	ManualCut-out templateFront grille
Optional accessories	CLASSIC, SQUARE and DESIGN grillesPHANTOM UNIVERSAL 25 backboxPre-construction Kit

All technical specifications are subject to change without notice.

CONTENTS / INHALT / 目录 / CONTENU / CONTENIDO

ENGLISH 6

DEUTSCH 12

简体中文 19

FRANÇAIS 24

ESPAÑOL 32

CONTENTS

1.0 OWNER'S MANUAL 7
2.0 SAFETY PRECAUTIONS 7
3.0 UNPACKING/PARTS LIST 7
4.0 DALI PHANTOM K-SERIES - SETUP AND POSITIONING 7
5.0 CUT-OUT TEMPLATE 10
6.0 INSTALLATION 10
7.0 RUNNING-IN 11
8.0 MAGNETIC SHIELDING 11
9.0 MAINTENANCE 11
10.0 ENVIRONMENTAL INFORMATION AND DISPOSAL 11
11.0 TECHNICAL SPECIFICATIONS 11

1.0 OWNER'S MANUAL

Congratulations on your new loudspeakers. Please read this manual carefully before you unpack and install your new loudspeakers to get the most out of your purchase. You can find more information on our website: www.dali-speakers.com or by contacting your authorized DALI dealer.

2.0 SAFETY PRECAUTIONS

• Always follow all safety guidelines.
• DALI PHANTOM M-80 A is intended for indoor use.
- The loudspeaker must only be used indoors and never in extreme hot or cold temperatures.
• DALI PHANTOM M-80 A must not be exposed to direct sunlight.
- Power off the amplifier when connecting the speaker cables to the loudspeaker and the amplifier.
• DALI PHANTOM M-80 A must be installed by professionals.
- Always make sure that there are no installations such as gas pipes, ventilation, cables, etc. in the ceiling or wall at the mounting location.
- The ceiling must be able to support the loudspeaker's weight – see the technical specifications.
- If the loudspeakers are mounted in a ceiling or wall where there is a vapour barrier inside the wall, make sure not to pierce/damage the barrier.
- For extreme SPL performance we advise to low cut the signal in the amplifier or processor driving the loudspeaker.
- Extended use of loudspeakers at high volume levels may cause hearing damage. Do not raise the volume beyond comfortable levels.

3.0 UNPACKING/PARTS LIST

Be careful not to damage the contents when you unpack the parts. Check that all parts are contained in the cardboard box, see table 1. Keep the packaging materials if your loudspeakers should need to be relocated or serviced.

4.0 DALI PHANTOM M-80 A - SETUP AND POSITIONING

The PHANTOM M-80 A combines the best of DALI electro-acoustic design with angled directional dispersion to provide genuine high-end Hi-Fi performance where in-ceiling speakers are the preferred option.

With a DALI designed and SMC equipped 7 inch bass/mid driver, and a DALI designed 28 mm soft dome tweeter, the M-80 A is effectively a high-end DALI speaker for the ceiling.

The M-80 A is a perfect solution for high-end stereo and home theatre systems that demand discreet installation as well as extraordinary sound quality.

The DALI PHANTOM M-80 A is equally suited for stereo and home cinema systems where good sound quality is a high priority. DALI PHANTOM M-80 A is also suitable

in larger areas where high quality sound is desired. DALI recommends the use of a subwoofer together with DALI PHANTOM M-80 A to permit reproduction of the lowest frequencies and an overall enhancement of your sound system.

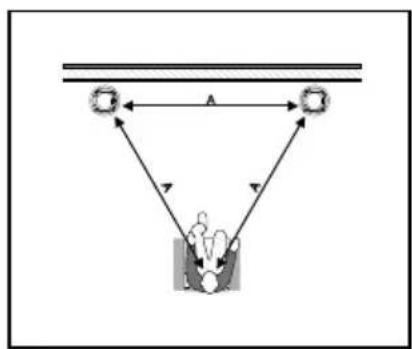

For stereo and home cinema we recommend that you position the loud speakers symmetrically around your favourite listening position to achieve optimum soundstage (see figure 1A + 1B + 1C). To avoid compromising clarity from the loudspeaker, it is also important, that you do not position the loudspeaker too far away from the listening position. We recommend that the greatest off axis listening angle is 45 degrees (measured between the centre axis of the loudspeaker and the listening position – see figure 2).

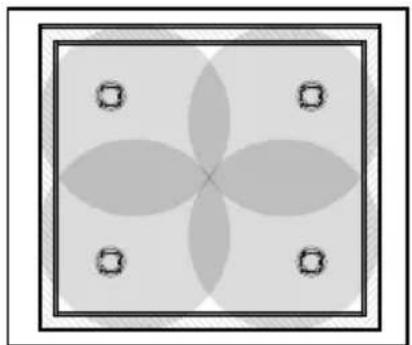

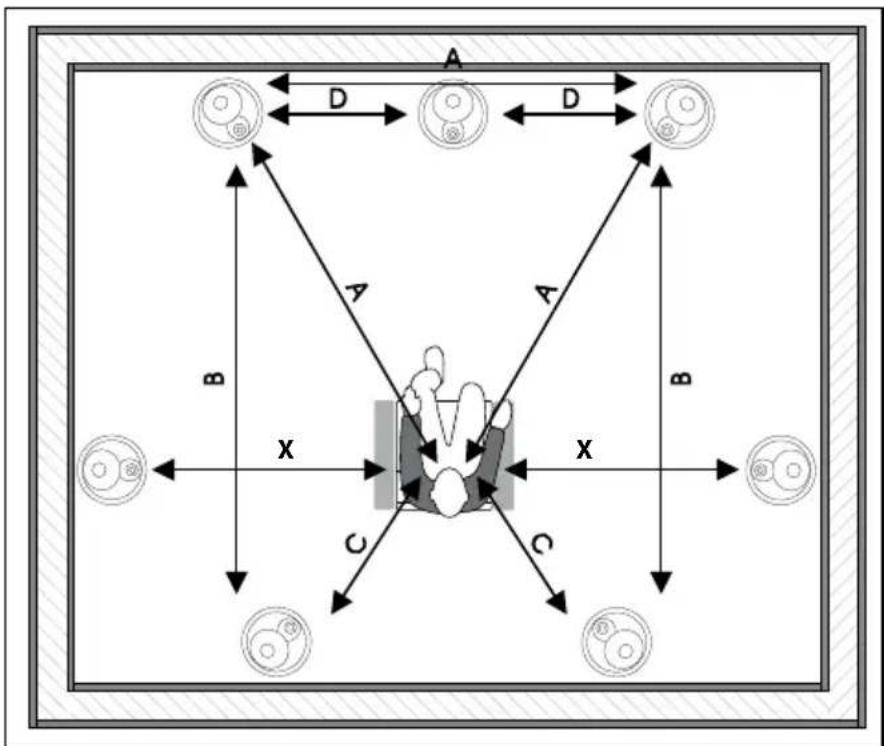

In a distributed sound system setup it is important, that the loudspeakers are positioned so that the main area of the room(s) is covered with sound (see chapter 4.4). To achieve an even sound coverage, the loudspeakers should be installed evenly in the room(s) (see figure 3).

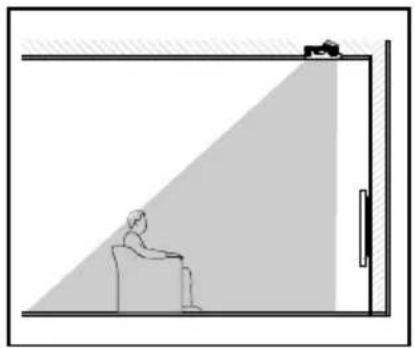

The PHANTOM M-80 A (angled) in-ceiling Hi-Fi speaker incorporates a 7 inch bass/midrange driver, angled at 25°, to provide sound radiation that is preferentially beamed in one direction. Preferential beaming enables M-80 A speaker placement that ensures optimum dispersion for the specific audio installation to maximise sound quality at the listening position. The M-80 A additionally incorporates compass style direction indicators further to configure dispersion to suit the installation.

Place the speaker in the desired spot and use the compass positioning guide to beam the sound into the main listening position.

Every room has its own distinctive acoustics, which influence the way we experience sound from a loudspeaker. The sound you hear consists of both direct sound from the loudspeakers and reflected sound from the floor, ceiling and walls. The latter will affect how you experience the sound. As a basic rule, try to avoid large, hard and reflective areas in the immediate vicinity of your loudspeakers as it will typically cause strong reflections, which might disturb the precision and spatial effect of the sound reproduction. Soft items such as carpets, curtains etc. might help if the sound is too bright.

Both the amount and quality of the deep bass depend on the size and shape of the room, and the position of the loudspeakers. Positioning the loudspeakers near a side or back wall will accentuate the bass. A corner location will accentuate it even more, but will also increase the reflections.

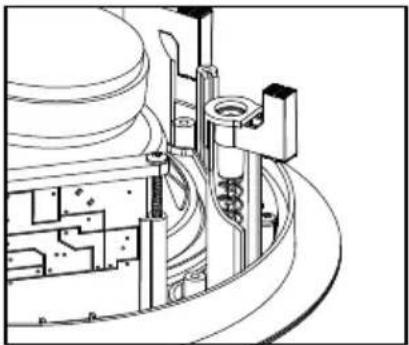

4.1 Mounting the dogleg brackets

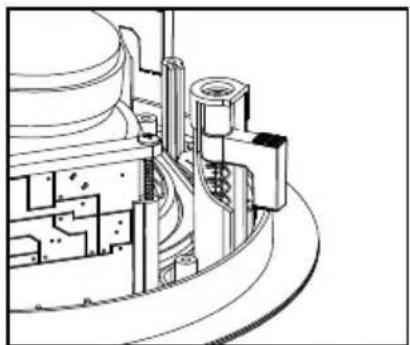

DALI PHANTOM M-80 A incorporates dogleg brackets for ceiling mounting. The brackets attach the loudspeaker firmly to the rear of the surface on which it is mounted. The dogleg brackets extend out at a 90-degree angle when the screws are tightened (see figure 4). The screws should be tightened so that the loudspeaker sits securely in place – but be careful not to over tighten the screws. To tighten the screws, use an appropriate bit. The bit should be used with a hand bit screwdriver or a drilling machine with build-in torque setting. If using a drilling machine, set the torque

to the minimum setting. The screws are appropriately tightened, when the gasket on the rear of the loudspeaker is compressed and the bezel of the loudspeaker is flush with the mounting surface.

If you need to remove the loudspeaker, loosen the screws approximately 5 to 20 turns counter clockwise and the brackets will loosen their grip. NOTE: do not unscrew more than 20 to 25 turns or the brackets may fall off the screws.

If you are mounting the loudspeaker in very thick wall material, it might be needed to dismount the dogleg brackets from the screws and afterwards mounting them upside down. Opposite mounting of the doglegs will make it possible to mount the loudspeaker in boards with up to 2.05"/ 52 mm thickness (see figure 5).

4.2 Grille

The front grille is fixed in place by the magnets incorporated into the front baffle of the DALI PHANTOM M-80 A.

NOTE: There is an optional square grille available for order.

NOTE: On the inside of the grille there is a piece of non-woven. The non-woven is on the grille to protect the drivers against dust and dirt. Therefore the non-woven must remain on the grille.

4.3 Adjustment of Switches

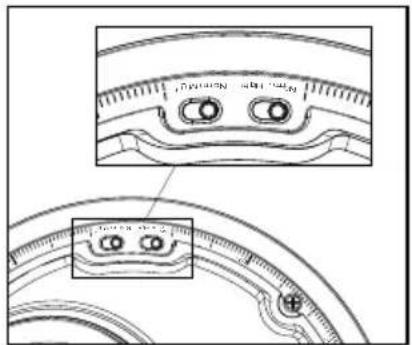

When the grille is removed from the loudspeaker, you will see the woofer and the tweeter and one or two switches (see figure 6). The switches can be used to adjust the sound from the loudspeaker to a custom setup. The switches can be operated independent of each other.

One switch can increase the tweeter level 3 dB if it is switched from the "Normal" setting to the "High+" setting.

The other switch can increase the midrange level by 3 dB when switched from the "Normal" setting to the "Mid+" setting.

4.4 Loudspeaker Rotation - Using the Compass

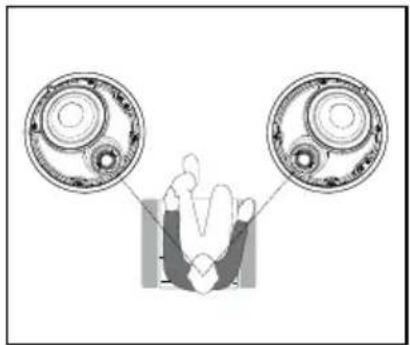

When the grille is removed you can see a compass ring round the edge of the loudspeaker bezel, which can be used to read out the rotation of the loudspeaker relatively to, for example, a fixed line on the ceiling. The M-80 A bezel compass markings make rotation for optimum sound dispersion simple. Aim the 0 degree compass marking on the speaker bezel, towards the main listening position, for optimum sound dispersion. The tweeter is slightly off-centre and should be positioned so it is closest to the main listening position (see figure 7).

4.5 Connection of Cables/Selection of Cables

Your choice of cables is a crucial element in your installation. Be aware that replacing cables after installation is a difficult task. Therefore, select quality cables from the beginning. Please consult your authorized DALI dealer for further advice on which cable to select.

When connecting the cable to the loudspeaker and the amplifier, it is important that the loudspeaker is connected in correct polarity. The red (+) loudspeaker terminal must be connected to the red (+) amplifier terminal. The black (-) loudspeaker terminal must be connected to the black (-) amplifier terminal. If the loudspeakers are not connected in correct polarity, the soundstage will typically be diffuse and the bass will be weak.

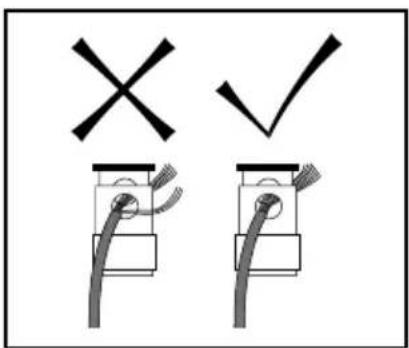

To insert the cable end into the spring loaded terminals of the loudspeaker, remove cable insulation so that approximately 12 " / 12 mm of bare wire is exposed. Press the top of the terminal down and insert the bare wire into the opening. When the wire is fully in place with no loose strands exposed, release the terminal. The cable is now connected. Please refer to figure 8 for correct cable connection.

5.0 CUT-OUT TEMPLATE

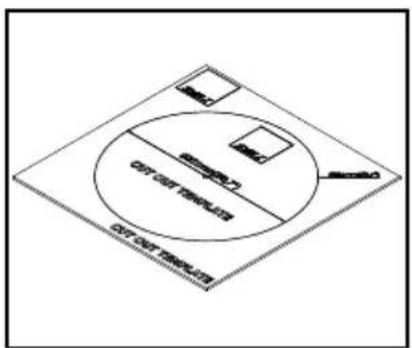

The enclosed cut-out template (see figure 9) can be used to initially visualize how your loudspeakers should be mounted and for marking where the cut-out should be made. Tape the template at the preferred mounting position, so that you can mark the necessary opening. The minimum mounting depth for the DALI PHANTOM M-80 A can be found in the Technical Specifications.

6.0 INSTALLATION

Please study and follow the safety guidelines found in chapter 2.0 of this manual! Use a trained professional to ensure that all safety requirements are met to prevent the loudspeaker from falling.

The following tools and items are necessary for proper installation:

• Tape measure
• Pencil and saw or knife
• Appropriate bit or screwdriver
• Tape
• Cut-out template

When the correct placement has been found, tape the mounting template to the surface. Outline the cut-out area with a pencil.

Remove the template and drill holes for insertion of saw or knife. Saw/cut carefully along the line marked with pencil.

When the hole for the loudspeaker is made, make sure that the loudspeaker cable is not hanging loose inside the ceiling/wall. It must be securely fastened to the inside of the ceiling/wall to prevent tension on the cable when the cable is connected with the terminals of the loudspeaker. If left unsupported, cable can gradually come loose, creating a poor electrical connection between wire and terminals (see figure 8 for correct fastening of the cable).

When the speaker cable is fastened and the hole for the loudspeaker is prepared, you are ready to connect the speaker cables. Connect cable to the terminals -

being careful to connect the amplifier's red (+) terminal to the loudspeaker's red (+) terminal and the amplifier's black (-) terminal to the loudspeaker's black (-) terminal. Please refer to chapter 4.5 of this manual.

When the cables are connected, turn on the system and listen to the loudspeakers before final mounting to make sure that all connections are correct. Insert the loudspeaker in the ceiling/wall opening and align the loudspeaker as described in chapter 4.4.

NOTE: Be careful not to touch the drivers during installation. When the loudspeaker is aligned, tighten the 4 screws in the loudspeaker brackets with an appropriate screwdriver or bit so that the loudspeaker is firmly mounted in place. Be careful to avoid over-tightening the screws and shredding the threads.

7.0 RUNNING-IN

You should expect the sound quality from your new loudspeakers to gradually improve during the first period of use. Nothing particular has to be done in order to run in the loudspeakers – but expect up to 100 hours of playback (depending on playback level) before full performance level is reached.

8.0 MAGNETIC SHIELDING

The loudspeaker drive units produce a magnetic field which may interfere with CRT televisions/monitors, hard drives, audio and video tapes as well as swipe cards etc. Therefore keep such items away from the loudspeakers to avoid damage. LCD and plasma televisions/monitors are not affected by magnetic fields.

9.0 MAINTENANCE

Cleaning the loudspeaker surfaces can be done with ordinary household cleaning agents. Avoid using products that are abrasive, or contain acid, alkali or anti-bacterial agents. Avoid using aerosols. Avoid using cleaning agents directly on the drive units and clean them with extreme care, particularly the tweeter. The grille may be cleaned using a vacuum cleaner or a normal clothes brush.

10.0 ENVIRONMENTAL INFORMATION AND DISPOSAL

DALI products are designed to meet the international directives concerning Restriction of Hazardous Substances (RoHS) and disposal of Waste Electrical and Electronic Equipment (WEEE). The waste symbol indicates that the loudspeakers meet the directives (see figure 10). The loudspeakers must be processed or recycled appropriately. Please consult your local waste authority for guidance.

11.0 TECHNICAL SPECIFICATIONS

In Table 2 (see page 4) you will find most common specifications for our loudspeakers. Please bear in mind, that the sound quality from a loudspeaker cannot be judged by technical specifications only. To compare the different loudspeakers, we recommend you to listen to the different loudspeakers in question.
