Product type	Oil-free fryer (Air fryer)
Brand	Tognana
Model	Iridea D2DFA02IRRO
Capacity	5.5 liters
Power	1500 W
Supply voltage	220-240 V ~ 50-60 Hz
Dimensions (L x W x H)	34.5 x 27.4 x 31.5 cm
Net weight	3.9 kg
Temperature range	80 °C to 200 °C (adjustable in 5 °C increments)
Timer	Up to 60 minutes (adjustable in 1 minute increments)
Preset programs	8 modes: frozen fries, fish, desserts, shrimp, steak, chicken, toast, chicken thighs
Display type	Digital screen with touch keys
Basket material	Non-stick coating, dishwasher-safe (max 55 °C)
Pause function	Yes
Interior light indicator	Yes, lights up during cooking
Overheat protection	Yes, automatic shut-off
Auto shut-off at end of cooking	Yes
Cleaning	Basket and grill dishwasher-safe (max 55 °C); exterior wiped with a damp cloth; heating element brushed
Included accessories	1 cooking grate, 1 user manual
Intended use	Cooking and reheating food – household use only
Warranty	2 years (Tognana standard warranty)

Frequently Asked Questions - Iridea D2DFA02IRRO Tognana

How to use the fryer for the first time?

Before first use, wash all removable parts (basket, grill) in hot soapy water or dishwasher (max 55 °C). Then run the appliance empty at 200 °C for 10-15 minutes to remove any manufacturing residues. This may produce smoke or odor, which is normal.

Do I need to add oil to the fryer?

No, the fryer works without oil. However, for a crispier result, you can brush or spray a little oil on the food (max 1/2 tablespoon). Never pour oil directly into the basket.

How to set the temperature and cooking time?

After turning on the appliance, press the +/- buttons for temperature (80-200 °C) and time (1-60 min) to adjust the settings. You can also choose a preset program by pressing the menu button. Then press Start/Pause to begin cooking.

Can I open the basket during cooking?

Yes, you can remove the basket at any time. The appliance will automatically pause. You can then shake the food (e.g., halfway through) or check the cooking. Replace the basket and press Start to resume.

Why is white smoke coming out of the appliance?

This is usually due to excess grease in the food or residues from previous cooking. Clean the basket and grill after each use. If smoke persists, check that you are not using too much oil.

How to clean the fryer?

Unplug the appliance and let it cool completely. Remove the basket and grill: they are dishwasher-safe (max 55 °C). Wipe the exterior with a damp cloth. The heating element can be brushed to remove residues. Never immerse the main unit in water.

Food is not cooking evenly, what should I do?

Make sure not to overcrowd the basket. Shake the food halfway through for even cooking. You can also reduce the quantity or slightly increase the cooking time.

Can I use aluminum foil or silicone molds?

Yes, you can use aluminum food foil of suitable size, but make sure it does not touch the heating element. Silicone molds or heat-resistant Pyrex dishes are also usable.

What if the appliance does not turn on?

Check that the plug is properly connected to a grounded outlet and that the basket is correctly inserted (a safety sensor requires it). Make sure the timer and temperature are set. If the problem persists, the appliance may have triggered overheat protection: turn it off, let it cool completely, and try again.

How to get crispy fries?

For homemade fries, cut potatoes into even sticks, rinse to remove starch, dry them well, then toss with a little oil (1/2 tablespoon). Preheat the fryer to 200 °C for 3 minutes, then cook the fries shaking halfway through. The ideal amount is about 500 g.

USER MANUAL Iridea D2DFA02IRRO Tognana

Cod. D2DFA02IRRO

Cod. D2DFA02IRVE

User manual - User manual - User manual User manual - User manual - User manual User manual - User manual - User manual

B

Bosnian

103

D

German 61

E

English 18

Spanish 46

F

French 31

H

Croatian 76

/

Italian 3

s

Serbian 117

Slovenian 89

Dear Customer,

Ingredients

Ingredients

Ingredients

Ingredients

- Fresh sausage

250 g

• Oil

1 teaspoon

Ingredients

- Fresh shrimp

300 g

• Oil

1 teaspoon

- Semolina flour

as needed

- Salt

as needed

Thank you for choosing our air fryer designed to cook and heat food for domestic consumption. Tognana Porcellane S.p.A. shall not be held liable for any damage that may be caused directly or indirectly to persons, property or pets as a result of failure to observe all the instructions set out in the operating Manual regarding installation, operation and maintenance of the appliance.

SYMBOLS USED IN THE MANUAL/ITEM AND THEIR MEANINGS

	This symbol indicates that the manual must be read carefully before use. Pay special attention to the safety precautions. Keep this manual in a safe place as it is an integral part of the product itself.
	HAZARD: this indicates a potential imminent hazard with a high level of risk which, if not prevented, is highly likely to result in severe injury or even loss of life
	WARNING: this indicates a potential hazard with a medium level of risk which, if not prevented, is highly likely to result in severe injury or loss of life
	CAUTION: this indicates a potential hazard with a low level of risk which, if not prevented, may result in minor or moderate injury.
	Class I: this symbol indicates that protection against electric shock does not rely on basic insulation alone but requires additional safety measures.
	CAUTION - HOT SURFACE!: This symbol indicates that the surface temperature of the area where the symbol is applied may reach dangerously high values. Therefore, direct contact of the surface with the skin and with heat-sensitive fabrics/materials must be avoided.
	IMPORTANT NOTE: this indicates useful information for the correct use of the item.
	This symbol on the item or on the packaging indicates that the appliance must be disposed of separately from other waste at the end of its life for proper treatment and recycling purposes.
	This symbol indicates that the device complies with the essential safety requirements of European Community regulations/directives.
	This symbol indicates that the MOCA (materials and objects intended for contact with food) are suitable for contact with food.

IMPORTANT NOTES ON CORRECT USE

1. This appliance is intended exclusively to heat and cook food for domestic consumption.
2. This appliance is intended for domestic use and similar applications, such as:

*staff kitchens of shops, offices, and other work environments;

*agritourisms;

*guests of hotels, pensions, and other residential type environments;

*bed and breakfast type environments.

1. This product is not a toy.
2. Do not leave parts of the packaging (plastic bags, polystyrene foam, etc.) within reach of children or non-self-sufficient persons, as these objects are potential sources of danger (e.g. risk of suffocation).
3. Use the product for the sole purpose for which it has been designed. The manufacturer is not liable for damage or injury caused by improper use.
4. Unauthorised repairs or changes shall void the warranty.
5. Do not use outdoors.
6. Never leave the appliance on unattended.
7. Do not position it above or near hot gas or electric burners, or in a heated oven.
8. Before use, place the appliance on a solid, flat, horizontal and non-flammable surface.
9. To manually turn the appliance off, press the off button.
10. Never put the appliance in the dishwasher.
11. Do not immerse the appliance in water or rinse it under running water as it contains electronic components and heating elements.
12. Use only original accessories and spare parts, or those recommended by the manufacturer.

HAZARD

ITEM

1. Before connecting the fryer to the power supply, check that the voltage indicated on the appliance matches your household voltage.
2. Connect the appliance to an earthed power socket. The manufacturer shall not be held liable for any accidents resulting from the electrical installation not being earthed.
3. The appliance can be used by children at least 8 years of age and by

persons with reduced physical, sensory or mental capabilities, or lacking experience or the necessary knowledge, provided they are supervised or have received instructions on how to safely use the appliance and understand the inherent dangers. Children must not play with the appliance. Cleaning and maintenance tasks intended to be carried out by the user must not be carried out by unsupervised children.

1. Supervise children to ensure they do not play with the appliance.
2. Do not insert metal objects into the slots of the appliance.
3. Do not cover the air intake and vent when the product is being used or is connected to the power socket.
4. Do not position the product against the wall or other objects: the clearance from the rear, middle, and upper sides of the product must be at least 10 cm. Do not lay objects on top of the product.
5. Do not add oil to the fryer as this may cause a fire hazard.
6. To avoid short circuits, do not insert foods that exceed the maximum level indicated inside the basket, or metal utensils.
7. Disconnect the appliance from the power socket when it is moved and when not in use.
8. Leave the appliance to cool before cleaning.
9. Improper use of the product may cause damage or injury.
10. To avoid electric shocks, do not submerge the body of the product in water or other liquids.
11. This appliance does not contain repairable parts. Do not try to repair it by yourself. Arrange for maintenance to be performed by a qualified service centre using only identical spare parts. This will ensure the continued safety of the product.
12. Do not use the appliance in very hot, humid or wet environments, or near inflammable materials (curtains, tablecloths, etc.).
13. Do not use if the appliance has been dropped or damaged in any way. Do not attempt to repair it yourself. Contact the retailer for repair/replacement, if under warranty, or call customer support.
14. If the product gives off black smoke, disconnect the power supply immediately. Wait for the product to stop giving off smoke before removing the basket from the fryer.

BURN HAZARD!

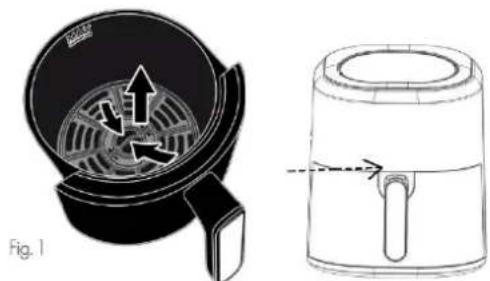

1. Do not touch the hot parts of the appliance to avoid burns (see Fig.1). Use handles, tongs or suitable protective devices to remove food from the basket.

1. This appliance can release heat, steam, or condensate during and after operation. The hands and face must be kept at a safe distance from the steam and air vents. Beware of hot steam and heat when removing the basket from the product to prevent the risk of burns, scalds or other injuries and damage to property.
2. When the appliance is in use and for a few minutes after the end of cooking, the temperature of the outer surface and air vent may be very high. Do not touch and do not move the appliance to avoid the risk of burns.
3. Appropriately sized baking paper or aluminium/tin foil can be used for the air fryer. Do not use excessively large sheets that touch the heating elements when in use.

PLUG AND CORD

1. The power cord must be connected to an AC power outlet (standard household current). Do not use other power outlets.
2. In case of incompatibility between the socket and plug of the appliance, have the socket replaced with a suitable type by qualified personnel. The use of adapters, power strips and/or extension cords is not recommended. Should their use become necessary, use only simple or multiple adaptors and extension cords that comply with current safety standards, taking care not to exceed the power limit marked on the adapter and/or extension cord.
3. Do not use the power cord if damaged.
4. Use only the power cord included in the packaging.
5. To avoid electric shocks, do not submerge the power cord complete with the base in water or other liquids.
6. The power cord must be used in a dry and clean place. Use of the appliance in wet or dirty environments may give rise to the risk of fire, electric shocks or electrocution.
7. Do not touch the power cord or plug with wet hands.
8. Do not let the cord hang over the counter.
9. Be careful not to pull or trip on the power cord. Keep the cord far from sources of heat, hot objects and open flames.
10. Disconnect the cord from the mains before cleaning and when it is not

in use. To disconnect the appliance, turn it off and then remove the plug from the wall socket. Do not pull on the cord, but rather grab the plug.

1. Always connect the plug to the appliance first, then connect the cord to the wall socket. Check that the cord is fully unwound.
2. The cord must not be twisted or wrapped around the appliance.
3. Do not use the appliance if the power cord is damaged. Do not attempt to repair it yourself. Contact the retailer for repair/replacement, if under warranty, or call customer support.
4. Do not use extension cords, power strips or timer devices.

PRODUCT CONFORMITY

The manufacturer Tognana Porcellane S.p.A. declares that the product Air Fryer 5.5L Mod. Iride complies with Directive 2014/30/EU of the European Parliament and of the Council, of 26th February 2014, on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

The manufacturer Tognana Porcellane S.p.A. declares that the product Air Fryer 5.5L Mod. Iride complies with Directive 2014/35/EU of the European Parliament and of the Council, of 26th February 2014, on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits.

The manufacturer Tognana Porcellane S.p.A. declares that the product Air Fryer 5.5L Mod. Iride complies with Directive 2009/125/EC of the European Parliament and of the Council, of 21st October 2009, on establishing a framework for the setting of ecodesign requirements for energy-related products

The manufacturer Tognana Porcellane S.p.A. declares that the product Air Fryer 5.5L Mod. Iride complies with Directive 2011/65/EU of the Parliament and of the Council, of 8th June 2011 and subsequent Commission Delegated Directive 2015/863, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

TECHNICAL DATA

• Power: 1500W
• Capacity: 5.5L
• Input voltage: 220-240Vac ~ 50-60Hz; 16A • Dimensions: 34.5 x 27.4 x 31.5 cm
• Net weight: 3900 g

ENERGY CONSUMPTION

Product information regarding energy consumption and the maximum time required to reach the applicable low-power mode.

Off mode	0.26 W
Maximum time required for the device to automatically reach the applicable low-power mode or condition.	0 minutes

1. Control panel
2. Cooking grate
3. Basket handle
4. Cooking basket with window
5. Air outlets
6. Main unit
7. Heating element

BEFORE FIRST USE

1. Extract the various components from the packaging, check that they are intact and complete, gently remove any protections and labels. The packaging includes:
2. No. 1 Air fryer • No. 1 Cooking grate • No. 1 User Manual
3. Check that all the parts are properly assembled and in position before use.
4. If the air fryer is being used for the first time, it is recommended to wash all removable parts that will come into contact with foodstuffs, following the instructions in the section, "CLEANING AND MAINTENANCE".
5. Operate the appliance at 200 °C without food for 10 - 15 minutes. The appliance may give off smoke and odours due to residue from the manufacturing process. This is normal and is not an indication of a defect or hazard.

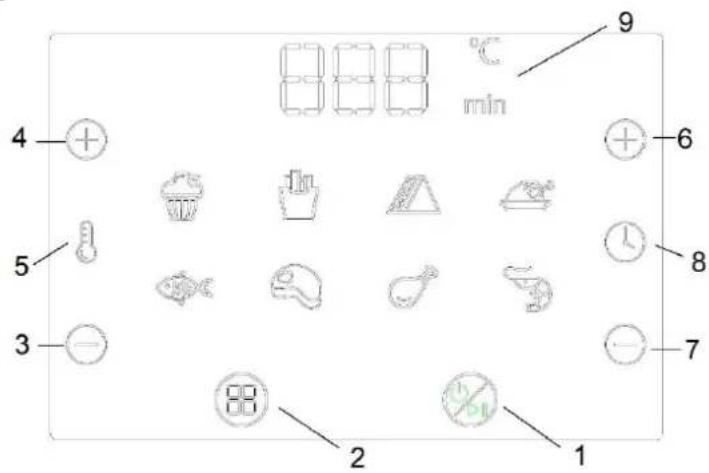

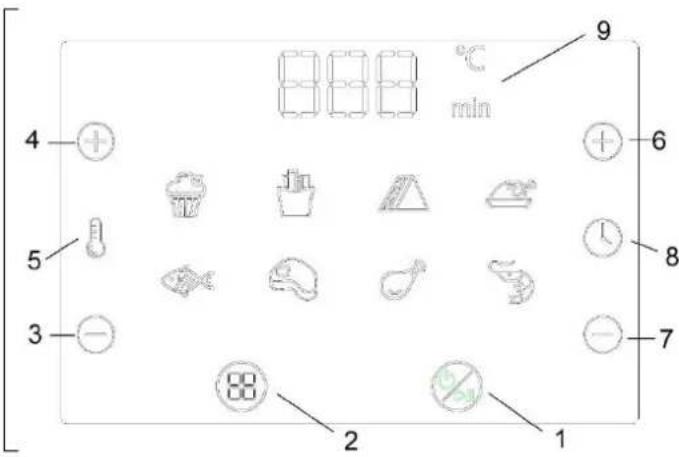

DESCRIPTION OF DISPLAY KEYS

1. On, off/stand-by, pause, start key
2. "Pre-set menu" key
3. Decrease temperature key
4. Increase temperature key
5. Temperature setting indicator
6. Increase time key
7. Decrease time key
8. Time setting indicator
9. Time/temperature display

INSTRUCTIONS FOR USE

1. Place the appliance on a flat, stable, heat-resistant and dry surface.
2. Insert the power plug in an earthed wall socket, an acoustic signal will be heard, the display will light up

for 1 second then return to STANDBY mode: all the lights will turn off except the "ON/OFF KEY"

1. Remove the basket and insert the ingredients in the cooking grate.
2. Fit the basket properly in its compartment.
3. Press the ON key 200°C and 15 min.
4. The time and temperature can now be manually adjusted using the Time adjustment +/- (C) and Temperature adjustment +/- (A) keys, or by selecting one of the menu functions.
5. Press the START/PAUSE key to start cooking.
6. During cooking, the internal light will be lit for the entire duration of the program.
7. At the end of cooking, the appliance will turn off.

DESCRIPTION OF KEYS

	On, off/stand-by, pause, start key: insert the plug in an earthed power socket and the display will show "8.88", the appliance is in standby mode. Press the ON key for 1 second, all the LEDs will turn on steadily; the fries LED and the START key LED will start to blink.
	Start key: The display shows the pre-set temperature and time (200°C - 15'). The cooking time and temperature can be adjusted at will, after which press the START/PAUSE button to start cooking.
	Temperature setting: once the desired cooking mode has been selected or the cooking process has been paused, press the temperature increase or decrease keys (4 and 3) to adjust the desired cooking temperature. Each press increases or decreases the temperature by 5 °C, otherwise the key can be held pressed to continually increase or decrease the temperature. The highest temperature is 200 °C, the lowest temperature is 80 °C.
	Time setting: once the desired cooking mode has been selected or the cooking process has been paused, press the time increase or decrease keys (6 and 7) to adjust the desired cooking time. Each press adjusts the time by 1 minute, otherwise the keys can be held pressed to continually adjust the time. The maximum settable time is 60 minutes.
	Pause key: if the PAUSE key is pressed during cooking, the appliance goes into pause mode and the LED starts to blink. Press the START key again to resume the cooking cycle from the start. Press the ON key again to cancel the cooking settings and place the appliance back in standby mode (no memory function). When the appliance is in use, the START key LED remains steadily lit; when the appliance is paused using the START button, the LED continues to blink.
	Pre-set menu key: press the PRE-SET MENU key to change the various operating modes. After selecting the desired operating mode, press the START key to start the appliance. The START/PAUSE button can be pressed to adjust the temperature and time once any operating mode has been selected.

PRE-SET MENU TABLE

SYMBOL	FOOD	PRE-SET COOKING TEMPERATURE	PRE-SET COOKING TIME
	Fries and frozen snacks	200°C	20 min
	Fish	160°C	20 min
	Desserts	180°C	30 min
	Prawns	180°C	20 min
	Steak	180°C	20 min
	Chicken	200°C	30 min
	Toast, Sandwiches, Omelettes	200°C	15 min
	Chicken legs	200°C	30 min

The “pre-set menu” table is indicative; the cooking time and temperature depend on the type of food and its consistency. Therefore, the pre-set values are for reference only.

Helpful tips

• Always heat the appliance for 3-5 minutes before starting the cooking process. - The cooking time and temperature can be adjusted at any time during use: in this case, the cooking cycle will restart from the beginning. - It may be necessary to check and shake certain foods halfway through the cooking time. Shaking small-sized foods improves the end result and avoids uneven cooking. Remove the basket from the main unit and shake it slightly. Place the basket back in the main unit to continue cooking.

CAUTION: The basket may be very hot. Always hold the basket by its handle.

• Cooking times in the air fryer are different from those of a normal oven.
• Smaller quantities of food require only slightly less preparation time compared to larger foods.
• The ideal quantity for crispy fries is 500 g.
• Do not prepare very fatty foods in the appliance. • To bake a cake/quiche or fry delicate or filled foods, place a baking tray or baking dish in the container.
• The appliance can also be used to heat food. Set the appliance to 150°C for no longer than 10 minutes and regularly check to make sure the food does not burn.

COOKING TIPS

Food	Cooking time (min)	Temperature °C	Shake	Notes
Potatoes and fried food
Thin frozen fries	12-16	200	Shake every 6 minutes
Thick frozen fries	12-20	200	Shake every 6 minutes
Homemade fries (8x8 mm)	18-25	180	Shake every 6 minutes	Add 1/2 tablespoon of oil
Homemade potato wedges	18-22	180	Shake every 6 minutes	Add 1/2 tablespoon of oil
Homemade diced potatoesPotatoes au gratin	12-1818-22	200180	Shake every 6 minutes	Add 1/2 tablespoon of oil
Meat and poultry
Steak	8-12	180
Pork chops	10-14	180
Hamburgers	7-14	180
Sticks	18-22	180
Chicken breast	10-15	180
Snacks
Spring rolls	8-10	200	Shake every 6 minutes	Pre-heated oven
Frozen chicken nuggets	6-10	200	Shake every 6 minutes	Pre-heated oven
Frozen fish fingers	6-10	200		Pre-heated oven
Frozen cheese snacks	10	200		Pre-heated oven
Stuffed vegetables	20	160		Pre-heated oven
Cakes
Cakes	20-25	160

Notes:

• Add 3 minutes of preparation time before starting to fry if the appliance is cold.
• Add maximum 1/2 tablespoon of oil. Larger quantities may compromise the integrity of the appliance.

CLEANING AND MAINTENANCE

Before cleaning, always disconnect the air fryer from the power socket and leave it to completely cool. Remove the cooking basket to allow more rapid cooling of the appliance.

The appliance must be cleaned after each use.

1. CLEANING

Cleaning the outside of the fryer

Clean the outside of the fryer with a soft cloth or slightly dampened sponge and dry with a cloth.

HAZARD! DO NOT PLACE IN THE DISHWASHER OR IMMERSE IN LIQUIDS.

Cleaning the basket and cooking grate

Clean the inside of the basket and the grate with warm water and a non-abrasive sponge. Otherwise, the non-stick coating will be damaged.

The grill and the basket can be washed in the dishwasher at a temperature not exceeding 55°C.

IMPORTANT NOTE: Do not use chemical cleaners, steel wool or abrasive cleaners for cleaning.

Cleaning the heating element

Clean with a brush to remove any food residue.

2. STORAGE

Leave the appliance to fully cool before stowing it or winding the power cord.

Check that all food residue has been removed from inside the appliance.

Check that all the parts are clean and dry before putting them away.

Never stow the appliance while it is still wet.

It is recommended to store the appliance in a dry, clean place far from moisture and dust.

Problem	Possible cause	Solution
The appliance is not working	The plug is not inserted.	Insert the plug in the power socket.
	The cooking basket is not inserted.	Insert the cooking basket correctly.
	The cooking time and temperature have not been selected.	Set the desired cooking time and temperature.
	The overheating protection has tripped.	Turn the appliance off and wait for it to fully cool before turning it on again.
The food is not well cooked.	There is an excessive amount of food.	Reduce the amount of food.
	The set temperature is too low.	Set a higher temperature.
	The set cooking time is too short.	Set a longer cooking time.
The food is not evenly cooked.	The food needs to be shaken halfway through cooking.	Shake the food and check the doneness.
The snacks are not crispy.	Snacks intended for cooking in an oil fryer have been used.	Use oven snacks or brush some oil over the snacks.
The cooking basket does not fit properly in the main unit.	Too much food in the basket.	Do not overfill the container.
White smoke is emitted and the outside of the appliance is hotter than usual.	Fatty food is being cooked.	This is a normal phenomenon that does not affect the appliance or the cooking result.
	The cooking basket contains fat residue from previous cooking.	Clean the basket after each use.
The fresh potatoes are unevenly cooked or are not crispy.	The potato sticks were not properly rinsed and dried before cooking.	Rinse the potato sticks well to remove any starch and dry them well.
	The potato sticks are too big.	Cut the sticks into smaller pieces.
	Not enough oil.	Add some oil.
The problem is not solved.		Contact your retailer or customer support.

RECIPE BOOK

1. Fries

Ingredients

• Potatoes 500 g • Oil 2 teaspoons
• Salt as desired
• Pepper as desired

a. Peel the potatoes and cut them into sticks. b. Immerse the potato sticks in salted water for at least 20 minutes and boil for 2 minutes, then dry the strips with paper towel. c. Mix the potato sticks with the oil. d. Pre-heat the fryer to 200°C for 3 minutes. e. Evenly arrange the potato fries on the grate inside the basket, insert the basket in the appliance and set the “fries” program or set the time and temperature depending on the size and number of potato fries, or until they turn golden brown.

f. At the end of cooking, place the potato sticks in a bowl, season with salt and pepper as desired and serve.

TIP: for better results, shake the basket with the potato sticks halfway through cooking.

2. Fried chicken wings

Ingredients

- Chicken wings

350 g

- Garlic

2 cloves

- Oil

2 teaspoons

- Salt

1 teaspoon

- Pepper

1 teaspoon

a. Pre-heat the fryer to 200°C for 3 minutes.

b. Mix the chicken wings with the oil, garlic, salt and pepper and leave to marinate for 20 minutes.

c. Evenly arrange the chicken wings on the grate inside the cooking basket, insert the basket in the appliance and set the "Fries and snacks" program or set the time and temperature depending on the size and number of chicken wings, or until they turn golden brown.

d. At the end of cooking, place the chicken wings in a bowl and serve.

TIP: for better results, shake the basket with the chicken wings halfway through cooking.

3. Beef steak

Ingredients

- Beef steak

350 g

- Garlic powder

1 teaspoon

- Oil

2 teaspoons

- Salt

1/2 teaspoon

- Pepper

1 teaspoon

- Soy sauce

As desired

a. Pre-heat the fryer to 200°C for 5 minutes.

b. Mix the steak with the oil, garlic, soy sauce, salt and pepper and leave to marinate for 20 minutes.

c. Place the steak on the grate inside the basket, insert the basket in the appliance and set the "Steaks" program or set the time and temperature depending on the size and number of steaks, or until they turn golden brown.

d. Halfway through cooking, turn the steak, reduce the temperature to 150 °C and cook for another 10 minutes or until golden brown.

TIP: for better results, turn the steak halfway through cooking.

4. Grilled sausage

Ingredients

- Fresh sausage

250 g

• Oil

1 teaspoon

a. Pre-heat the fryer to 200°C for 3 minutes.

b. Mix the sausages with the oil.

c. Evenly arrange the sausages on the grate inside the basket, insert the basket in the appliance and set the "Chicken legs" program or set the time and temperature depending on the size and number of sausages, or until they turn golden brown.

d. At the end of cooking, place the sausages in a bowl and serve.

TIP: for better results, shake the basket with the sausages halfway through cooking.

5. Fried prawns

Ingredients

- Fresh prawns

300 g

- Oil

1 teaspoon

- Semolina flour

to taste

- Salt

to taste

a. Clean the prawns, wash and dry them well with paper towel.

b. Take a bowl and place the prawns inside.

c. Season with a little oil and bread them with the semolina flour.

d. Pre-heat the fryer to 200°C for 3 minutes.

e. Spray some oil on the prawns.

f. Evenly arrange the prawns on the grate inside the basket, insert the basket in the appliance and set the "Fries" program or set the time and temperature depending on the size and number of prawns, or until they turn golden brown.

g. At the end of cooking, place the prawns in a bowl and serve.

TIP: for better results, shake the basket with the prawns halfway through

INFORMATION ON DISPOSAL

ITEM

Pursuant to Art. 26 of Legislative Decree No. 49 of 14 March 2014 “Implementation of Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)”, the crossed-out bin symbol indicates that this appliance is not to be considered municipal waste. Disposing of it must therefore be carried out by separate waste collection. Failure to dispose of the appliance as separate waste may constitute a potential hazard to the environment and human health. Said product can be returned to the distributor upon purchase of a new appliance.

Improper disposal of the appliance constitutes fraudulent conduct and is subject to sanctions by the Police Authority. For further information, contact the local administration responsible for environmental management.

PACKAGING

For information on how to correctly dispose of the packaging used to protect this product and its parts and/or accessories, follow the instructions in the packaging.

The Company Tognana Porcellane S.p.A. thanks its Customers for their choice and guarantees that its appliances are the result of the latest technologies and research.

This warranty applies only to small appliances marked with the "Tognana" brand and is valid as a conventional warranty pursuant to Article 135-quinquies of the Italian Consumer Code (Legislative Decree 206 of 6 September 2005). This warranty does not in any way affect the rights expressly provided for in favour of the consumer by the regulations on the sale of consumer movable goods, whether Italian or of the consumer's country of residence: the consumer can therefore always assert his rights against the retailer from which he purchased the appliance, under the conditions and within the terms provided for by these regulations.

Under this warranty, the appliance is covered by the conventional warranty for a period of two years from the date of purchase by the first user.

It is up to the consumer - through a delivery document issued by the retailer (or by Tognana Porcellane S.p.A. itself, in the case of a purchase made by the consumer directly in the online shop of the latter) or by another evidentiary document (for example, tax receipt, cash receipt or similar, purchase order, etc.), which shows the name of the retailer and the date on which the sale was made - to demonstrate that this warranty is still valid at the time of filing the complaint of defect of the appliance.

In the event of a defect in the appliance, pursuant to this warranty, the consumer may highlight this defect by contacting the appliance dealer or by contacting Tognana Porcellane S.p.A. directly at the e-mail address [e-mail], or at the telephone number [phone].

Tognana Porcellane S.p.A. guarantees the free repair or replacement of the appliance and/or its components that have defects due to ascertained causes of manufacture and/or malfunctions, directly or through affiliated service centres (check any contacts on the Tognana Porcellane S.p.A. website:

www.tognana.com). Tognana Porcellane S.p.A. reserves the right to completely replace the appliance, if repairability is impossible or too expensive, with another identical or similar appliance (or one that has functional and aesthetic characteristics similar to those of the purchased appliance), without the consumer being able, in this second hypothesis, to contest the choice made by Tognana Porcellane S.p.A.

The consumer, in the presentation of the complaint, in addition to specifying the defect found, also providing photographic documentation, if indispensable for the purpose of ascertaining the defect of the appliance, must communicate their personal data - name and surname, residence address, email and telephone number - for each subsequent contact. For the successful replacement or repair of the appliance, the consumer will in any case be required to follow the instructions provided in this regard by the employees of Tognana Porcellane S.p.A. or the service centre in charge.

All costs of repair and delivery of the replacement appliance or defect-free components will be entirely borne by Tognana Porcellane S.p.A., which will also bear the costs of returning the defective appliance or component, if expressly requested by the consumer.

It should be noted that, following the replacement or repair of the appliance, the effective date of this warranty remains that of the first purchase: therefore, the service performed under the warranty does not extend the period of its validity.

For the purposes of the effectiveness of this warranty, it is specified that: the appliance has been designed and built for exclusively domestic use, consequently terminating this warranty for any other different use. In addition, the appliance can never be considered defective if it has to be adapted or modified to comply with national or local safety and/or technical standards, in force in the consumer's country, if outside the European Union.

In any case, this warranty does not cover:

- parts subject to wear and tear, nor those that require periodic replacement and/or maintenance;

- negligence or carelessness in the use of the appliance (e.g. failure to comply with the operating instructions of the appliance);

- professional use of the appliance;

- defects due to incorrect installation, configuration, updating of software/BIOS/firmware not performed by authorized personnel Tognana Porcellane S.p.A;

- repairs or interventions carried out by personnel not authorised by Tognana Porcellane S.p.A.;

- manipulations of components of the appliance or, where applicable, of the software;

- other circumstances that, in any case, cannot be traced back to manufacturing defects in the appliance.

Tognana Porcellane S.p.A. declines all responsibility for any damage that may, directly or indirectly, result to people, property and pets as a result of failure to comply with all the requirements indicated in the specific instruction booklet and concerning especially the warnings regarding installation, use and maintenance of the device.

Further claims, in particular if they relate to claims, are excluded, unless the liability arises from express provision of law. At the end of the period of validity of this warranty, or for goods that are not covered by it, Tognana Porcellane S.p.A. remains available to the customer for any questions or information. Further information is available on the website: www.tognana.com.

Dear Customer,

PRODUCT CONFORMITY

Ingredients

Ingredients

Ingredients

Ingredients

- Fresh sausage

250 g

• Oil

1 teaspoon

Ingredients

PRODUCT CONFORMITY

Ingredients

Ingredients

Ingredients

Ingredients

- Fresh sausage

250 g

- Oil

1 teaspoon

a. Preheat the air fryer to 200°C for 3 minutes.

Ingredients

- Fresh prawns

300 g

- Oil

1 teaspoon

• Semolina flour

to taste

• Salt

to taste

Ingredients

Ingredients

Ingredients

Ingredients

Ingredients

Ingredients

• Potatoes 500 g • Oil 2 teaspoons
• Salt to taste
• Pepper to taste

a. Peel the potatoes and cut them into sticks. b. Soak the potato sticks in salted water for at least 20 minutes and cook for 2 minutes, then

Dry the meat with paper towels.

Ingredients

• Chicken wings 350 g - Garlic 2 cloves • Oil 2 teaspoons • Salt 1 teaspoon - Pepper 1 teaspoon

a. Preheat the air fryer to 200 °C for 3 minutes. b. Mix the wings with oil, garlic, salt, and pepper and let them marinate for 20 minutes. c. Place the chicken wings evenly on the rack inside the basket, insert the basket into the appliance, and set the "Fries and Snacks" program or set the time and temperature depending on the size and quantity of the wings. The wings are golden brown. d. At the end of cooking, place the wings in a dish and serve.

TIP: For best results, shake the basket with the wings halfway through cooking.

3. Beef Steak

Ingredients

• Beef steak 350 g - Garlic powder 1 teaspoon • Oil 2 teaspoons • Salt 1/2 teaspoon • Pepper 1 teaspoon - Soy sauce Optional

a. Preheat the air fryer to 200 °C for 5 minutes. b. Mix the steak with oil, garlic, soy sauce, salt, and pepper and let it marinate for 20 minutes. c. Place the steak on the rack in the basket, insert the basket into the appliance, and set the "Steak" program or set the time and temperature according to the size and quantity of the steaks or until they are browned. d. Halfway through cooking, turn the steak, reduce the temperature to 150 °C, and cook for another 10 minutes or until browned.

TIP: For best results, turn the steak halfway through the cooking time.

4. Grilled Sausage

Ingredients

• Fresh shrimp 300 g • Oil 1 teaspoon - Semolina flour as desired - Salt

a. Clean, wash, and dry the shrimp well with paper towels. b. Take a bowl and put the shrimp in it. c. Season with a little oil and coat them with semolina flour. d. Preheat the air fryer to 200 °C for 3 minutes. e. Spray a little oil on the shrimp. f. Place the shrimp evenly on the rack in the basket, insert the basket into the appliance, and set the "Fries" program or set the time and temperature depending on the size and quantity of the sausages or until the sausages are browned. g. Near the end of cooking, put the shrimp in a dish, salt them, and serve.

TIP: For best results, shake the shrimp basket halfway through cooking.

DISPOSAL INFORMATION

PRODUCT

In accordance with Article 26 of Legislative Decree No. 49 of March 14, 2014, "Implementing Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)", the presence of the crossed-out wheeled bin symbol indicates that this device must not be treated as municipal waste: its disposal must be carried out through separate collection. Disposal in a non-separated manner may cause potential harm to the environment and health. This product can be returned to the distributor upon purchase of a new device.

Improper disposal of the device constitutes fraud and is subject to sanctions by the Public Security Administration. For more information, you can contact the local authority responsible for environmental matters.

PACKAGING

IMPORTANT NOTICES FOR CORRECT USE

1. Control panel
2. Cooking grid
3. Basket handle
4. Cooking basket with window
5. Air outlet
6. Main unit
7. Heating element

BEFORE FIRST USE

Ingredients

• Potatoes 500 g - Oil 2 teaspoons • Salt to taste - Pepper to taste

a. Peel the potatoes and cut them into sticks. b. Soak the potato sticks in salted water for at least 20 minutes and cook for 2 minutes, then dry them with kitchen paper. c. Mix the potato sticks with oil. d. Preheat the fryer for 3 minutes at 200 °C. e. Spread the potato sticks evenly on the rack in the basket, place the basket in the appliance and set the "Fries" program or set the time and temperature according to the size and quantity of the fries, or until the fries are golden. f. At the end of cooking, transfer the potatoes to a bowl, season with salt and pepper to taste, and serve.

TIP: For best results, shake the frying basket halfway through cooking.

Ingredients

• Chicken 350 g wings 2 cloves of garlic - Garlic 2 teaspoons • Oil 1 teaspoon • Salt 1 teaspoon - Pepper

a. Preheat the fryer for 3 minutes at 200 °C. b. Mix the wings with oil, garlic, salt, and pepper, and let them marinate for 20 minutes. c. In the cooking basket, spread the chicken wings evenly on the rack inside the basket, place the basket in the appliance and set the "Fries and snacks" program or set the time and temperature according to the size and quantity of the wings. The wings should be golden brown. d. After cooking, transfer the wings to a bowl and serve.

TIP: For best results, shake the basket with the wings halfway through cooking.

3. Beef steak

Ingredients

• Beef steak 350 g - Garlic powder 1 teaspoon • Oil 2 teaspoons • Salt 1/2 teaspoon • Pepper 1 teaspoon - Soy sauce to taste

a. Preheat the fryer for 5 minutes at 200 °C.

b. Mix the steak with oil, garlic, soy sauce, salt, and pepper, and let it marinate for 20 minutes.

c. Place the steak on the rack in the basket, insert the basket into the appliance and set the "Steak" program or set the time and temperature according to the size and quantity of the steaks, or until they are golden brown.

d. Halfway through cooking, turn the steak, lower the temperature to 150 °C and cook for another 10 minutes or until the steak is golden brown.

Ingredients

• Fresh sausage 250 g • Oil 1 teaspoon

a. Preheat the fryer for 3 minutes at 200 °C.

b. Mix the sausages with the oil.

c. Spread the sausages evenly on the rack in the basket, place the basket in the appliance and set the "Chicken thighs" program or set the time and temperature according to the size and quantity of the sausages or until the sausages are golden brown.

d. After cooking, transfer the sausages to a bowl and serve.

TIP: For best results, shake the basket with the wings halfway through cooking.

5. Fried shrimp

Ingredients

1. This appliance may emit heat, steam, or condensation during and after operation. Keep hands and face away from steam and openings. Also be careful of hot steam and heat when removing the basket from the product to prevent the risk of burns or other injuries and property damage.
2. When the appliance is operating and for a few minutes after cooking is finished, the temperature of the external surface and air vents may be very high. Do not touch or move the appliance to avoid the risk of burns.
3. For the hot air fryer, you can use parchment paper or aluminum foil of appropriate size. Do not use oversized sheets to prevent contact with heating elements during operation.

CABLE AND PLUG

1. The power cable must be connected to an AC outlet (standard household current). Do not use other electrical outlets.
2. In case of incompatibility between the outlet and the plug on the device, a qualified professional must replace the outlet with another of the appropriate type. The use of adapters, multiple outlets, and/or extension cords is not recommended. If their use is necessary, use only one or more adapters and extension cords that comply with current safety standards, taking care not to exceed the power limit indicated on the adapter and/or extension cord.
3. Do not use the power cable if it is damaged.
4. Use only the power cable that is included in the packaging.
5. To avoid electric shock, do not immerse the power cable together with the base in water or other liquids.
6. The power cable must be used in a dry and clean place. Use in a humid or dirty environment may lead to accidents, electric shocks, or explosions.
7. Do not touch the power cable or plug with wet hands.
8. Do not allow the cable to hang over the work table.
9. Be careful not to pull the power cord or trip over it. Keep the cord away from heat sources, hot objects, or open flames.
10. Unplug the cord from the electrical outlet before cleaning and when not in use. To disconnect, turn off the appliance, then remove the plug from the outlet. Do not pull the cord; grasp the plug instead.
11. Always plug the plug into the appliance first, then connect the cord to the wall outlet. Make sure the cord is fully extended.
12. The cord must not be twisted or wrapped around the appliance.
13. Do not use the appliance if the power cord is damaged. Do not attempt to repair it yourself. Contact the retailer for repair/replacement if under warranty, or contact customer support.
14. Do not use extension cords, power strips, or devices with timers.

PRODUCT COMPLIANCE

The manufacturer Tognana Porcellane S.p.A. declares that the product Hot Air Fryer 5.5 L Mod. Iridea complies with Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

The manufacturer Tognana Porcellane S.p.A. declares that the product Hot Air Fryer 5.5 L Mod. Iridea complies with Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits.

The manufacturer Tognana Porcellane S.p.A. declares that the product Hot Air Fryer 5.5 L Mod. Iridea complies with Directive 2009/125/EC of the European Parliament and of the Council of 21 October 2009 establishing a framework for the setting of ecodesign requirements for energy-related products.

The manufacturer Tognana Porcellane S.p.A. declares that the product Hot Air Fryer 5.5 L Mod. Iridea complies with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 and subsequent Commission Delegated Directive 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

TECHNICAL SPECIFICATIONS

• Power: 1500 W
• Capacity: 5.5 L • Input voltage: 220-240 Vac ~ 50-60 Hz; 16 A • Dimensions: 34.5 x 27.4 x 31.5 cm
• Net weight: 3900 g

ENERGY CONSUMPTION

Ingredients

• Potatoes 500 g • Oil 2 tablespoons • Salt to taste - Pepper to taste

a. Peel the potatoes and cut them into sticks.

Ingredients

• Chicken wings 350 g - Garlic 2 cloves • Oil 2 tablespoons • Salt 1 tablespoon • Pepper 1 tablespoon

a. Preheat the air fryer to 200 °C for 3 minutes.

b. Mix the wings with oil, garlic, salt, and pepper and let them marinate for 20 minutes.

Ingredients

• Beef steak 350 g - Garlic powder 1 tablespoon • Oil 2 tablespoons • Salt 1/2 tablespoon • Pepper 1 tablespoon - Soy sauce to taste

a. Preheat the air fryer to 200 °C for 5 minutes.

b. Mix the steak with oil, garlic, soy sauce, salt, and pepper and let it marinate for 20 minutes.

c. Place the steak on the rack in the basket, insert the basket into the appliance, and set the "Steak" program or set the time and temperature according to the size and quantity of the steaks or until they are browned.

d. Halfway through cooking, turn the steak over, reduce the temperature to 150 °C, and cook for another 10 minutes or until it is browned.

TIP: For best results, turn the steak over halfway through the cooking time.

4. Grilled sausage

Ingredients

Ingredients

• Fresh shrimp 300 g • Oil 1 tablespoon - Semolina flour as desired • Salt to taste

a. Clean the shrimp, wash them, and dry them well with paper towels.

b. Take a bowl and put the shrimp in it.

c. Season with a little oil and coat them with semolina flour.

d. Preheat the air fryer to 200°C for 3 minutes.

1. This appliance may emit heat, steam, or condensation during and after operation. Keep hands and face away from steam and openings. Also be careful of hot steam and heat when removing the basket from the product to prevent the risk of burns or other injuries and property damage.
2. When the appliance is operating and for a few minutes after cooking is finished, the temperature of the external surface and air vents may be very high. Do not touch or move the appliance to avoid the risk of burns.
3. For the air fryer, you can use baking paper or aluminum foil/foil of appropriate size. Do not use overly large sheets to prevent contact with heating elements during operation.

CORD AND PLUG

DISPLAY KEY DESCRIPTION

1. On/off/standby, pause, start button
2. Preset menu button
3. Temperature decrease button
4. Temperature increase button
5. Set temperature indicator
6. Time increase button
7. Time decrease button
8. Set time indicator
9. Time/temperature display

INSTRUCTIONS FOR USE

Ingredients

• Potatoes 500 g • Oil 2 teaspoons
• Salt to taste • Pepper to taste

Ingredients

• Chicken wings 350 g
• Garlic 2 cloves • Oil 2 teaspoons • Salt 1 teaspoon • Pepper 1 teaspoon

a. Preheat the air fryer to 200 °C for 3 minutes.

b. Mix the wings with oil, garlic, salt, and pepper, and let them marinate for 20 minutes.

c. Evenly arrange the chicken wings on the rack inside the basket, place the basket in the appliance, and set the "Fries and Snacks" program. You can also adjust the time and temperature depending on the size and quantity of the wings, or cook until the wings turn golden brown.

Ingredients

• Beef steak 350 g - Garlic powder 1 teaspoon • Oil 2 teaspoons • Salt 1/2 teaspoon • Pepper 1 teaspoon - Soy sauce Optional

a. Preheat the air fryer to 200 °C for 5 minutes.

b. Mix the steak with oil, garlic, soy sauce, salt, and pepper, and let it marinate for 20 minutes.

c. Place the steak on the rack in the basket, insert the basket into the appliance, and set the "Steak" program. You can also adjust the time and temperature according to the size and quantity of the steaks, and cook until they are browned.

d. Halfway through cooking, turn the steak over, reduce the temperature to 150 °C, and cook for another 10 minutes or until browned.

TIP: For best results, turn the steak halfway through the cooking time.

4. Grilled sausage

Ingredients

• Fresh sausage 250 g • Oil 1 teaspoon

a. Preheat the air fryer to 200 °C for 3 minutes. b. Mix the sausages with oil. c. Evenly distribute the sausages on the rack in the basket, place the basket into the appliance, and set the program "Chicken Drumstick". You can also adjust the time and temperature depending on the size and quantity of the sausages, or until the sausages are browned. d. At the end of cooking, place the sausages in a dish and serve.

TIP: For best results, shake the basket with the wings halfway through cooking.

5. Fried Shrimp

Ingredients
