XOIL INSERT

MODEL XOIL3619KSE, XOIL4219KSE, XOIL4819KSE, XOIL3622KSE, XOIL42KSE, XOIL4822SE

I worked really hard on this manual - so please read it...

Xo

Xo

VENTILATION

When buying any XO appliance you can be confident you have chosen a high quality, innovative and stylish product from a company that cares about you!

If you require service or have questions, there are 2 ways to contact our ventilation experts;

Online @ https://xoappliance.com/priority-service-for-your-xo-product/ Or by phone [phone]

STOP

CONGRATULATIONS

on purchasing your XO. Before you proceed, take just a moment to register your XO at:

www.xoappliance.com/register-your-product/

Ensuring warranty coverage should you need service Providing ownership verification for insurance purposes Let's XO notify you in the event of product changes or recalls.

WHERE THINGS ARE

GETTING READY 5 - 11

Safety and Precautions

Planning Ductwork

Install Examples

Dimensions

THE INSTALL 12 - 16

Mounting Height

Cut Out Dimensions

Installing

Electrical Connections

MAINTENANCE 17 - 18

Filters

Cleaning

Light Replacement

OPERATING 19

The Push Button Controls

Synchronizing the Remote

PARTS & WARRANTY 20 - 21

PLEASE READ AND FOLLOW ALL SAFETY INSTRUCTIONS

It's for your own good... Honest.

SAFETY FIRST

■ IMPORTANT SAFETY INSTRUCTIONS

■ READ AND SAVE THESE INSTRUCTIONS

■ PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.

■ IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.

■ INSTALLER: Please leave these Instructions with this unit for the owner.

■ OWNER: Please retain these instructions for future reference.

■ Take care when using cleaning agents or detergents.

■ Suitable for use in household cooking area.

■ WARNING - To reduce the risk of fire or electric shock, do not use this fan with any Solid-State Speed Control Device.

■ CAUTION - To reduce risk of fire and to properly exhaust air, be sure to duct air outside – Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

■ CAUTION - For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

■ CAUTION - To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

■ CAUTION - Please read specification label on product for further information and requirements.

■ WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.

B. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

■ WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

A. Never leave surface units unattended at high settings. Boilovers cause smoking and

greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

B. Always turn hood ON when cooking with high heat.
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.
E. Keep fan, filters and grease laden surface clean.
F. Use high range setting on range only when necessary. Heat oil slowly on low to medium setting.
G. Don't leave range unattended when cooking.
H. Always use cookware and utensils appropriate for the type and amount off food being prepared.

■ WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

A. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
D. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.

^a Based on “kitchen firesafety tips” published by NFPA.

Proper maintenance of the Range Hood will assure proper performance of the unit.

■ INSTALLATION INSTRUCTIONS

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those pub

lished by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

D. Ducted fans must always be vented to the outdoors.

E. This unit must be grounded.

■ WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

■ WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY BE DANGEROUS.

A. Do not check filters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked flambè underneath the hood.
D. The use of an unprotected flame is dangerous for the filters and could cause fires.
E. Watch constantly the fried food in order to avoid the cooking oil flares up.
F. Before performing any maintenance operation, disconnect the hood from the electrical service.

■ The manufacturers will not accept any responsibility for possible damages, because of failure to observe the above instructions.

A FEW SIMPLE RULES TO PLAN YOUR DUCTWORK

THIS HOOD IS DESIGNED TO USE AN 8" ROUND DUCT - IT MAY BE TRANSITIONED TO A 4" X 14" RECTANGULAR DUCT

NEVER REDUCE DUCT SIZE. UNDERSIZED DUCTING SEVERELY RESTRICTS AIR FLOW AND HARMS PERFORMANCE.

(Example: the area of an 8" Duct is more than 75% larger than a 6" Duct)

KEEP DUCT RUNS AS SHORT AND STRAIGHT AS POSSIBLE.

AVOID USING FLEXIBLE METAL DUCTING IF RUN IS LONGER THAN 6'.

NEVER USE PLASTIC DUCTING.

USE SMOOTH BORE METAL DUCTING.

MINIMIZE THE NUMBER OF FITTINGS (see chart).

WHEN YOU MUST USE FITTINGS, TRY TO SEPARATE THEM WITH SECTIONS OF 4' OR MORE OF STRAIGHT DUCT.

ALWAYS FOLLOW THE MANUFACTURER'S GUIDELINES FOR THE COOKING EQUIPMENT YOU ARE VENTING.

IF MAKE UP AIR CONTROL DAMPERS ARE REQUIRED, POSITION THE SENSOR IN A STRAIGHT RUN OF DUCT IDEALLY WITH 4' OF STRAIGHT DUCT BETWEEN EACH SIDE OF THE SENSOR AND A DUCT FITTING. REMEMBER TO INCLUDE POWER AND CONTROL WIRING FOR THIS IN YOUR PLANS.

ADHERE TO ALL LOCAL BUILDING CODES AND ORDINANCES.

USE THE WORKSHEET THAT FOLLOWS TO HELP CALCULATE THE TOTAL EQUIVILENT FEET OF YOUR DUCT RUN.

TOTAL EQUIVILENT FEET SHOULD BE LESS THAN 100'.

ESTIMATING TOTAL EQUIVALENT FEET IN A DUCT

CAUSING AIR TO CHANGE DIRECTION CAUSES TURBULENCE AND RESTRICTS FLOW IN A SYSTEM.

IF USING FLEXIBLE METAL DUCT - INCREASE ALL MULTIPLIERS BY 50% (12 BECOMES 18 - ETC.)

THIS EASY TO USE WORKSHEET IS FOR 1000 CFM OR LESS.

UNDER "QTY USED" ENTER HOW OF EACH SECTION YOU WILL BE USING.

IN THE FIRST TWO ROWS - ENTER HOW MANY FEET OF EACH TYPE OF STRAIGHT DUCT

YOU WILL BE USING (I.E. FOR 20 FT ENTER 20, FOR 30FT ENTER 30).

ENTER THE NUMBER OF EACH TYPE OF TURN YOU ARE USING AND THE TYPE OF END CAP. MULTIPLY ACROSS EACH ROW THE "MULTIPLIER" x "QTY USED" TO GET THE EQUIVALENT FEET FOR THOSE COMPONENTS.

ADD UP ALL THE VALUES IN THE "EQUIVALENT FEET" COLUMN.

DUCT PIECE DESCRIPTION MULTIPLIER QTY USED				EQUIVALENT FEET
		1' of 8" Round Duct	1
		1' of 4" x 14" Rect. Duct	1
		8" 90 Degree Elbow	12
		8" 45 Degree Elbow	7
		4" x 14" 90 Degree	14
		4" x 14" 45 Degree	8
		4" x 14" x 8" Round	2
		4" x 14" x 8" 90 Degree	4
		8" Round Wall Cap w Damper	24
		4" x 14" Wall Cap w Damper	24
		8" Round Roof Cap	33
TOTAL EQUIVALENT FEET SHOULD BE LESS THAN 100

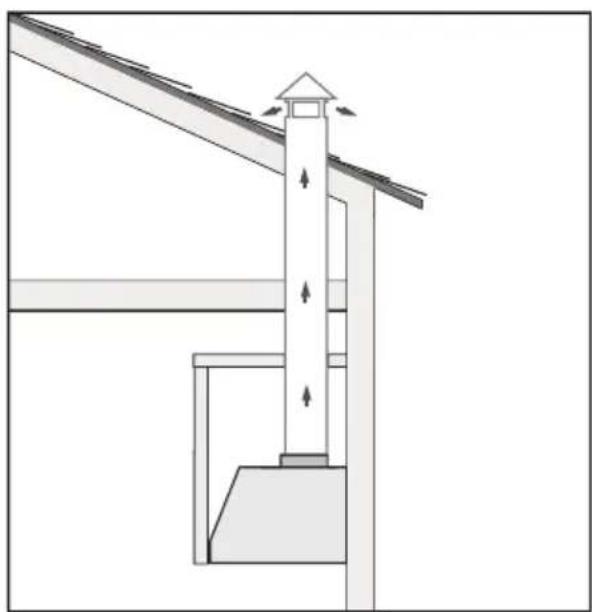

TYPICAL INSTALLATION EXAMPLES

VENTED

Technical diagram of a roof structure with structural elements and directional arrows indicating flow or movement (no text or symbols)

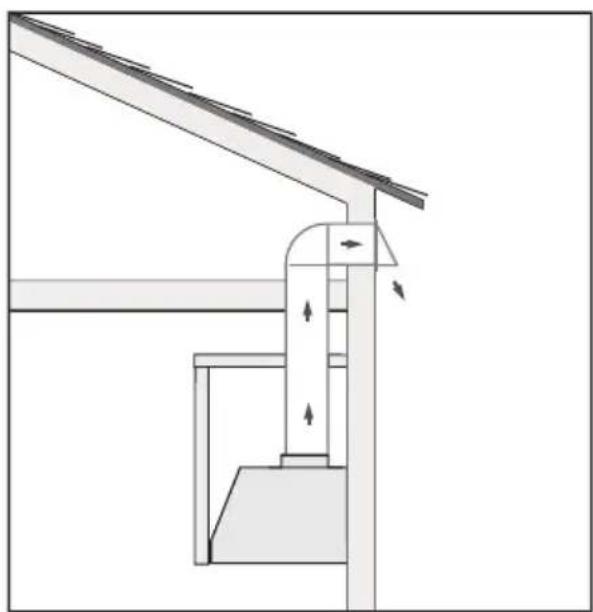

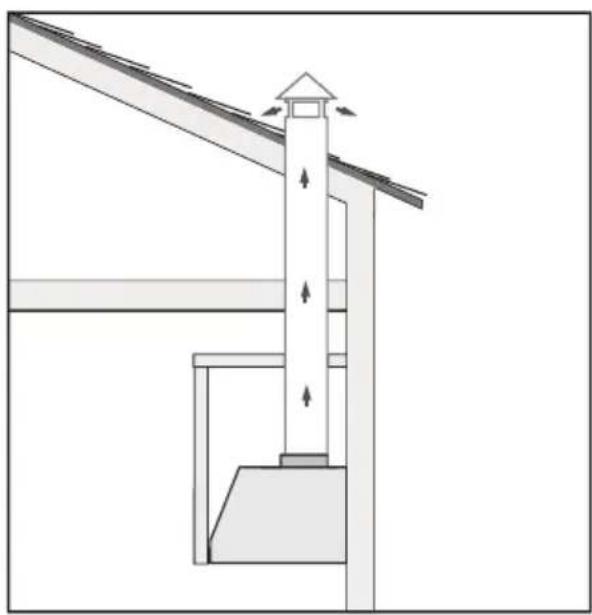

WALL EXHAUST ROOF EXHAUST

Architectural diagram showing a roof structure with a vertical column and directional arrows indicating airflow or force (no text or symbols)

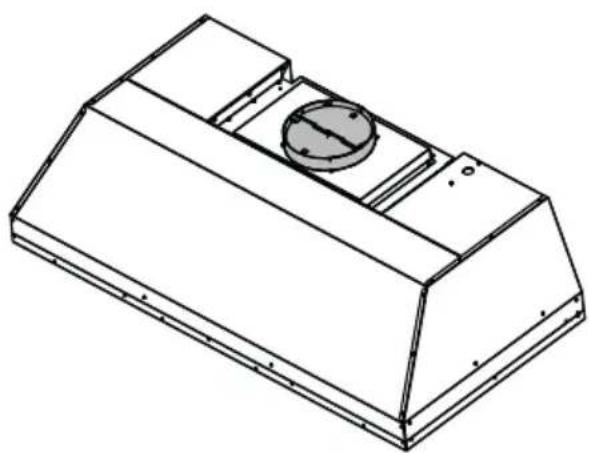

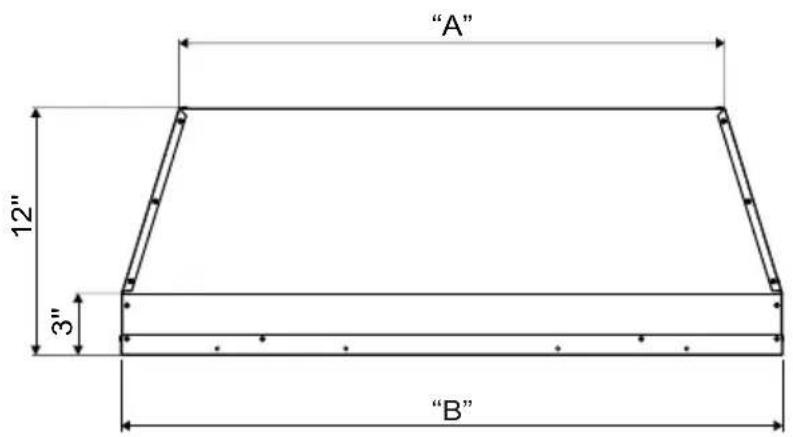

DIMENSIONS

Front of hood > Side of hood

"A" 12" 3" "B"

"C" "D"

MODEL A B C D
XOIL3619KSE	28-3/8" 34-3/8" 12" 19-1" /4"
XOIL4219KSE	34-5/16" 40-3/8" 12" 19-1" /4"
XOIL4819KSE	40-3/8" 46-3/8" 12" 19-1" /4"
XOIL3622KSE	28-3/8" 34-3/8" 15-1/4" 22-1/2"
XOIL4222KSE	34-5/16" 40-3/8" 15-1/4" 22-1/2"
XOIL4822KSE	40-3/8" 46-3/8" 15-1/4" 22-1/2"

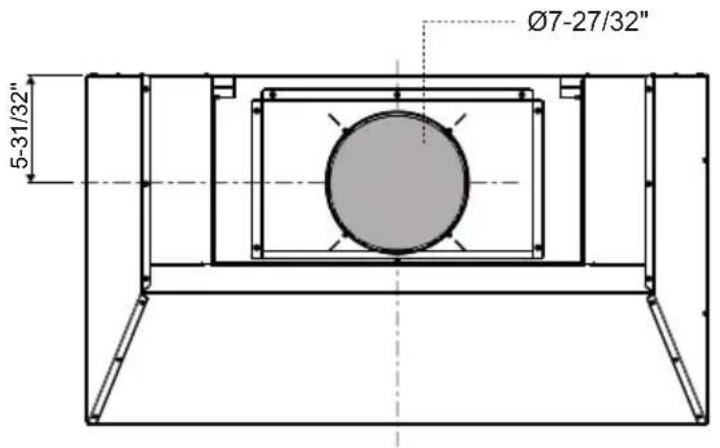

Top of hood

Ø7-27/32" 5-31/32"

Isometric line drawing of a mechanical housing or enclosure with a circular component on top (no text or symbols)

HIGHS AND LOWS

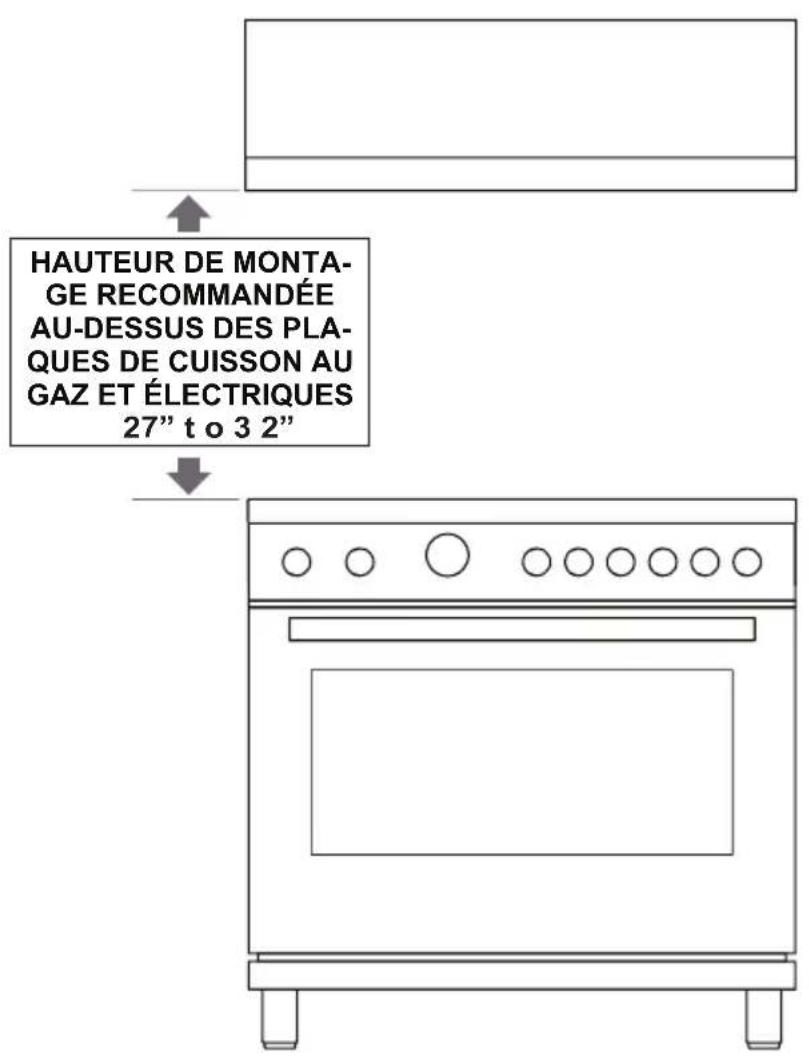

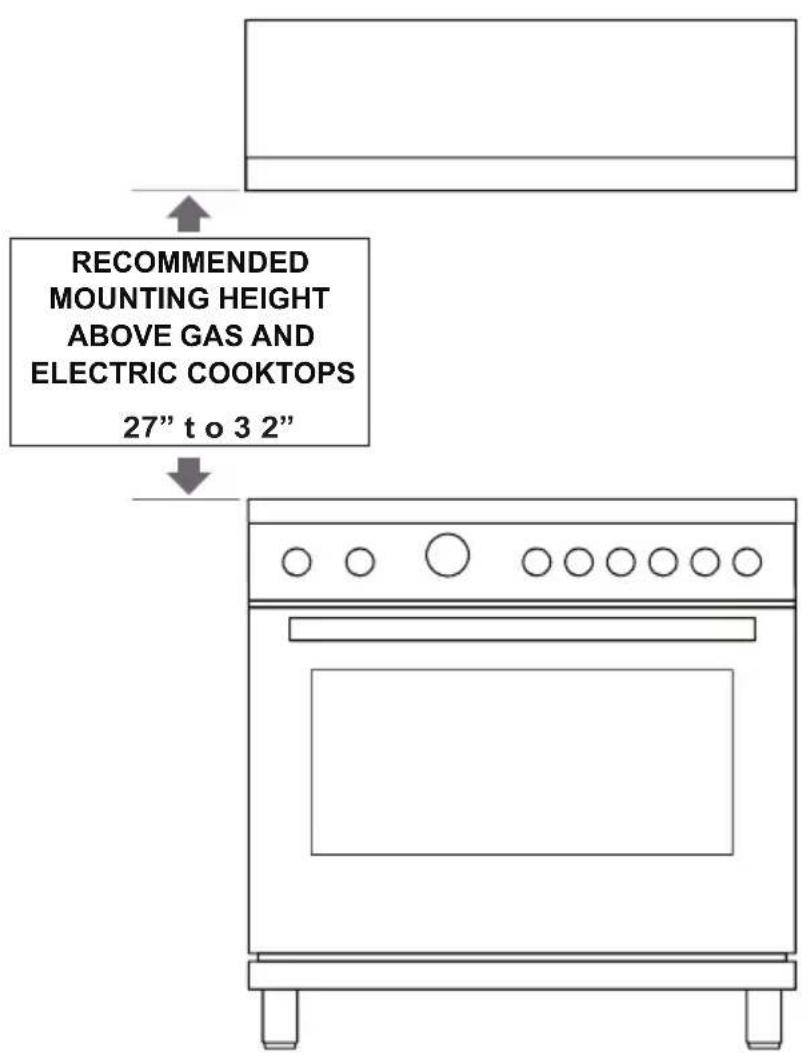

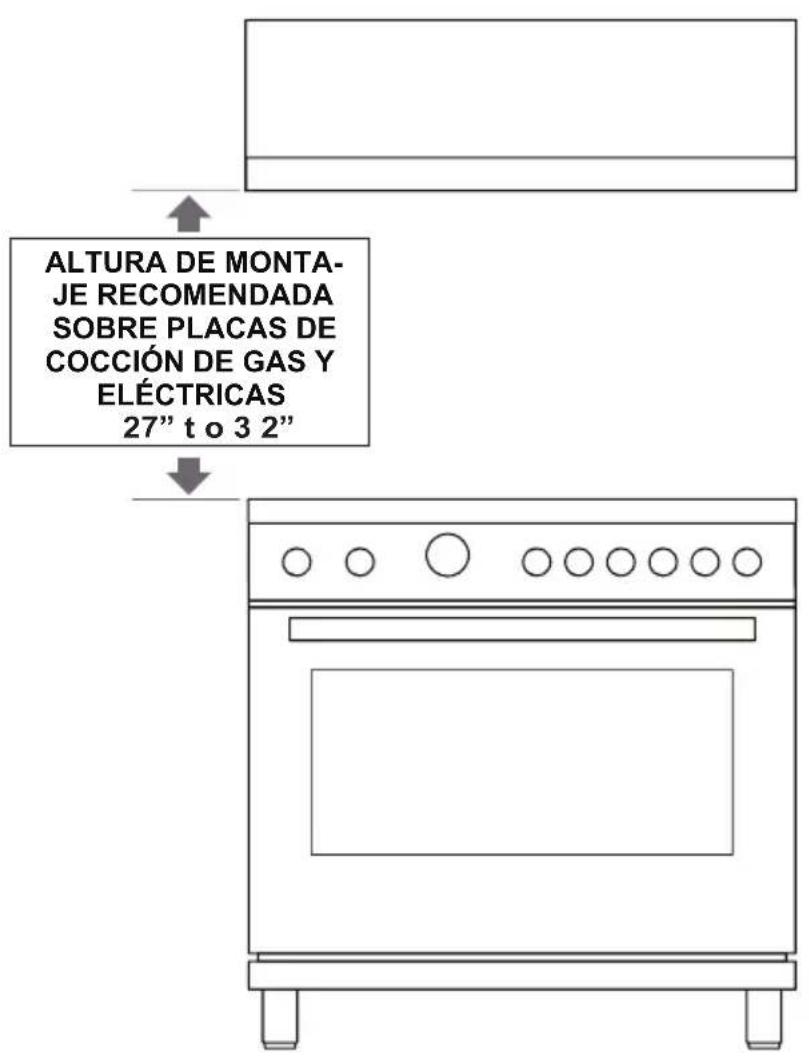

RECOMMENDED MOUNTING HEIGHT ABOVE GAS AND ELECTRIC COOKTOPS 27" t o 3 2"

All range hoods have a recommended range of installation height over the cooking surface.

It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its performance and efficiency.

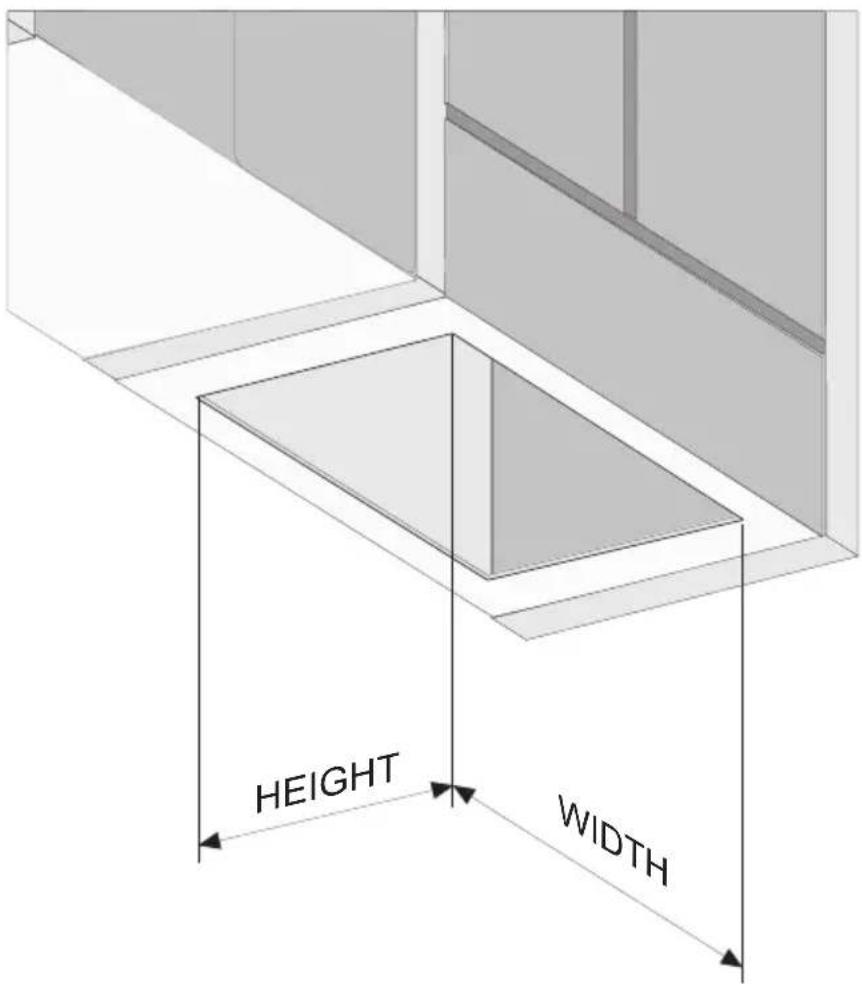

THE CUT OUT

HEIGHT WIDTH

MODEL

XOIL3619KSE

XOIL4219KSE

XOIL3622KSE

XOIL4222KSE

XOIL4822KSE

HEIGHT WIDTH

19-7/16" 34-1/2"

19-7/16" 40-1/2"

19-7/16" 46-1/2" XOIL4819KSE

22-5/8" 34-1/2"

22-5/8" 40-1/2"

22-5/8" 46-1/2"

To install the hood into a custom canopy or cabinet, refer to the cutout dimensions above for your particular model. Gap around the unit should be minimized (\~ 1/16") to ensure a snug fit.

INSTALLATION

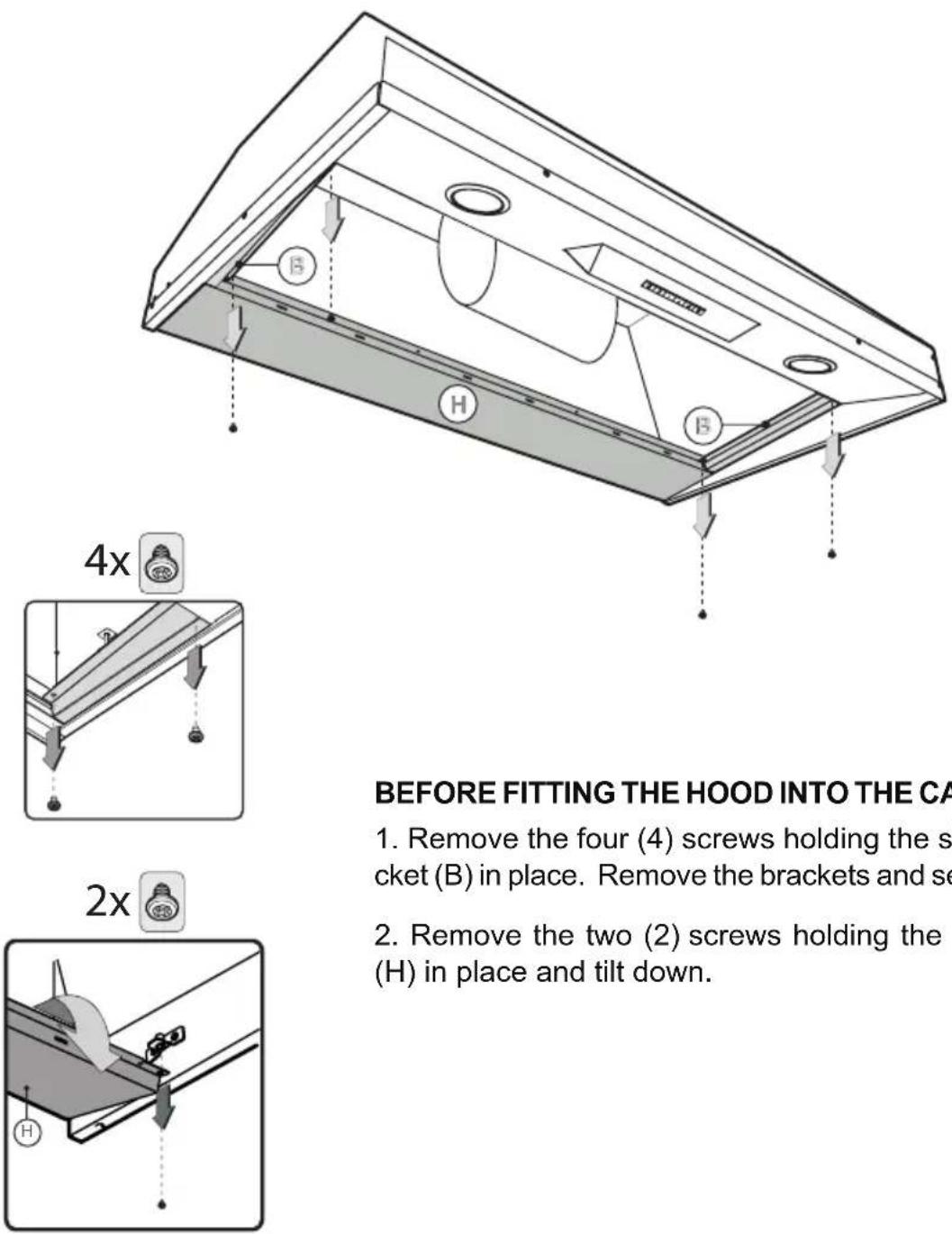

BEFORE FITTING THE HOOD INTO THE CABINET:

1. Remove the four (4) screws holding the side bracket (B) in place. Remove the brackets and set aside.
2. Remove the two (2) screws holding the bracket (H) in place and tilt down.

INSTALLATION CONTINUED

Technical diagram showing a ceiling structure with an open door and internal components, no text or symbols present.

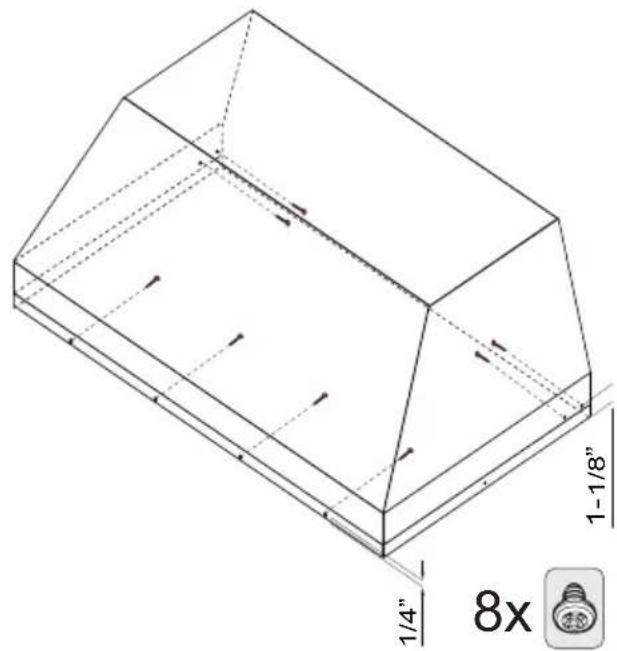

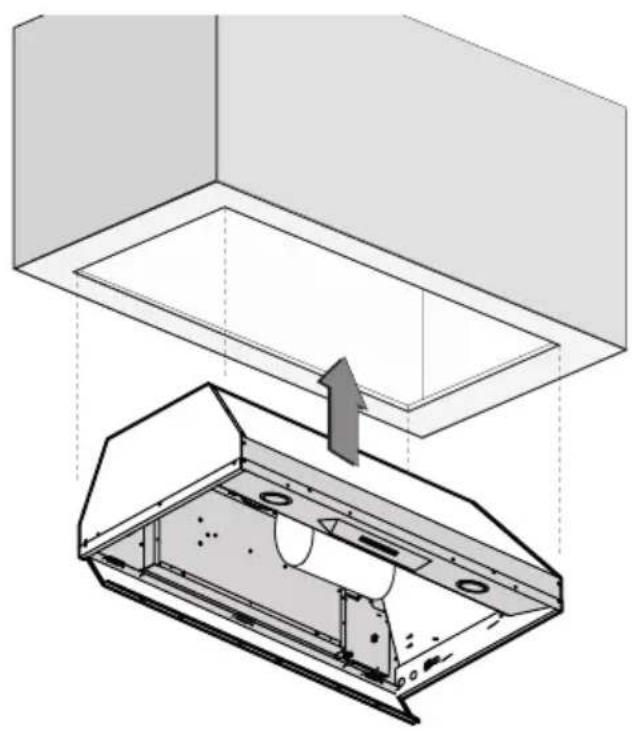

INSERT THE HOOD INTO THE CUTOUT

1-1/8" 1/4" 8x

FASTEN THE HOOD IN PLACE

Using four (4) screws along the inside front edge and four (4) screws in the back corners as shown

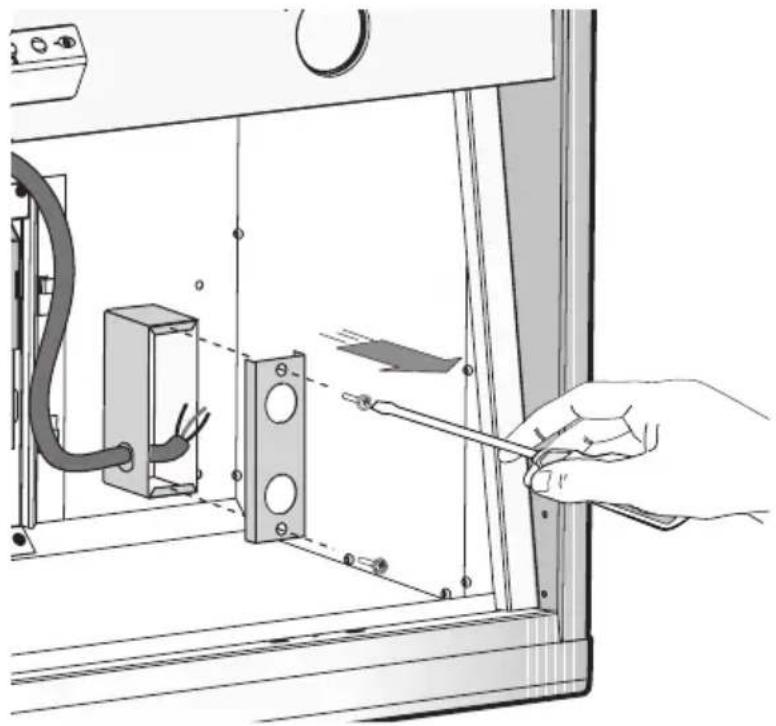

ELECTRICAL CONNECTION

1. Route the power cord to the junction box inside the hood.
2. Using listed conduit fittings and connectors, connect the power supply to the box and each line to the appropriate wire following this color convention:

BLACK = HOT LEG

WHITE = NEUTRAL

Polarity must be observed.

Unit must be properly grounded.

Use a double throw disconnect switch.

1. Replace the box cover
2. Replace the Anti-grease Baffles.

Illustration of a hand using a screwdriver to adjust or install an electrical outlet panel (no text or symbols visible)

All wiring must be in compliance with national electrical code, ANSI/NFPA 70-1999 and all local codes and regulations.

MAINTENANCE

Regular cleaning and maintenance is the key to long life and peak performance of any equipment.

ANTI-GREASE BAFFLE FILTERS: Your XO hood is equipped with stainless steel pro-style baffle filters designed to capture grease from cooking. The baffles are easily removed for cleaning either by soaking in a warm, mild dish detergent solution, rinsing thoroughly and drying - or - by washing in your dishwasher.

Illustration of a kitchen ventilation grille with a magnified close-up showing a hand holding a tool (no text or symbols present)

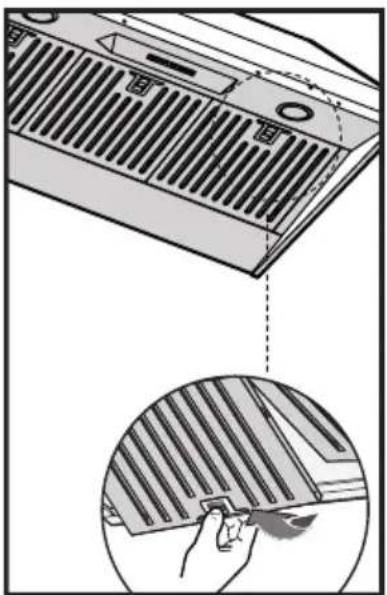

TO REMOVE THE BAFFLES:

1. Pull down on the release latch (shown left)
2. Lower the front edge of the baffle
3. Pull forward and remove
4. To replace, insert the rear of the baffle, holding the latch open, swing the front up into place and release the latch.

The importance of this simple process is essential for two reasons. First to help keep your kitchen clean and healthy, but it is also critical to minimize the risk of fire.

Baffle filters should be cleaned at least once every 2 months, more frequently depending on the type of cooking performed and the build up of grease.

CLEANING STAINLESS STEEL:

Do not use corrosive detergents, abrasive detergents or oven cleaners.

Do not use any product containing chlorine bleach or any product containing chloride.

Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.

Cleaning Stainless Steel Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser detergent. After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. Always rub lightly, with a clean cotton cloth or a micro fiber cloth and buff in the direction of the stainless steel grain.

Any painted surfaces should be cleaned with warm water and detergent only.

MAINTENANCE CONTINUED

Line drawing of a showerhead with a coiled cable and mesh grille (no text or symbols)

XOPSPK6602

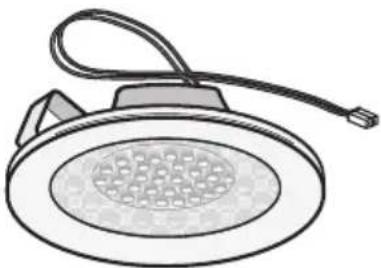

LED LIGHT REPLACEMENT

The LED light modules are held in place by spring clips which must be squeezed in before the lamp can be pushed down through the fascia.

Unplug the plastic molex connector.

Plug in the new fixture and snap back into place.

EASY TO OPERATE

Your XO range hood is controlled by these electronic push buttons which illuminate when activated.

BUTTON Controls the LED lights. There are three illumination levels.

Press the button Once for HIGH: Twice for MEDIUM: Three times for LOW: Four times for OFF.

BUTTON 0: Turns both the Blower and Lights On and Off

BUTTON 1: Blower motor operates on LOW speed.

BUTTON 2: Blower motor operates on MEDIUM speed.

BUTTON 3: Blower motor operates on HIGH speed.

POWER BOOST

Press and Hold BUTTON 3 for 2 seconds.

This will increase airflow to a fourth and even higher speed for 10 minutes.

When activated the button will blink to alert you it is running.

After 10 minutes the blower speed will return to its last setting.

To manually stop the POWER BOOST before 10 minutes has elapsed:

Press BUTTON 3 and it will revert to HIGH speed, or

Press BUTTON 0 to shut the blower off completely

NOTE: The POWER BOOST function will operate even when the hood is off.

BUTTON T: Activates and Deactivates the TIMER Function

Pressing BUTTON T (whether the blower is off or running) will cause the motor to run at LOW speed for 5 minutes before shutting off the blower and lights automatically.

While the TIMER is activated, you can change speed or engage POWER BOOST, the hood will still shut off after 5 minutes.

To manually turn the unit off before 5 minutes has elapsed:

Press BUTTON T or BUTTON 0.

OPTIONAL REMOTE CONTROL (purchased separately)

The remote control must be synchronized prior to use.

To synchronize the remote control with the hood follow these simple steps:

1. Standing near the hood, while it is not running, press and hold BUTTON ⚙️ on the hood for 4 seconds -the button should start to blink for 5 seconds.

2. When the button on the hood starts to blink, Press any button on the remote. The hood and remote are now synchronized.

3. If the synchronization fails for any reason, repeat steps 1 and 2.

Line drawing of a remote control device with no text or symbols

XOVREMOTE1

ACCESS PARTS & ACCESSORIES

Line drawings of three electronic devices: a rectangular panel with ribbed leads, a remote control with four buttons, and a circular device with a mesh head (no text or symbols)

FILTERS REPLACEMENT LIGHTS REMOTE CONTROLS DUCT COVERS REPLACEMENT SWITCHES BLOWER MOTORS FAN WHEELS

ALL OF THESE PARTS AND MORE ARE AVAILABLE, SIMPLY VISIT WWW.XOAPPLIANCE.COM and click on PARTS STORE OR CALL US AT 973-403-8900

WE'VE GOT YOUR BACK

90 DAY LOVE IT or LEAVE IT. For 90 Days all our products are backed by our unique Love it or Leave it Guarantee. TWO-YEAR PARTS & LABOR LIMITED WARRANTY. XO warrants to the original purchaser of every new XO ventilation unit, the cabinet and all parts thereof, to be free from defects in material or workmanship under normal and proper use and maintenance as specified by XO and upon proper installation and start-up in accordance with the instruction packet supplied with each XO unit. XO's obligation under this warranty is limited to a period of two (2) years from the date of original purchase.

WARRANTY CLAIMS. All claims for labor or parts must be made directly through XO. All claims should include: model number and serial number of cabinet, proof of purchase, and date of installation. In case of warranted compressor, the compressor model tag must be returned to XO along with the above listed information.

WHAT IS NOT COVERED BY THIS WARRANTY. XO's sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty. Open box, factory seconds, scratch and dent, floor models and commercial applications are excluded from these warranties.

WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the original purchaser/user at the original installation location. Any such assignment or transfer shall void the warranties herein made and shall void all warranties, express or implied, including any warranty or merchantability or fitness for a particular purpose.

IMPROPER USAGE. XO assumes no liability for parts or labor coverage for component failure or other damages resulting from improper usage or installation or failure to clean and/or maintain product as set forth in the warranty packet provided with the unit. ALTERATION OR NEGLECT. XO is not responsible for the repair or replacement of any parts that XO determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or act of God.

IMPROPER ELECTRICAL CONNECTIONS. XO is not responsible for the repair or replacement of failed or damaged components resulting from electrical power failure, high or low voltage, use of extension cords, or improper grounding of the unit.

YOUR RIGHTS UNDER STATE LAW. This warranty gives you specific legal rights and you may have other rights that vary from state to state. Some states do not allow the exclusion or limitation of consequential damages or a limitation on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you.

OUTSIDE U.S. This warranty does not apply to, and XO is not responsible for, any warranty claims made on products sold or used outside the 48 continental United States.

To obtain service:

Call 973-403-8900 | email [e-mail] | or submit a request on our website www.xoappliance.com

LOVE IT OR LEAVE IT

100% GUARANTEED

2 YEAR PARTS + LABOR WARRANTY

TO U T CE QUE VOUS DEVEZ SA VOIR SUR VOTRE

X□

XOIL INSERT

MODÈLE XOIL3619KSE, XOIL4219KSE, XOIL4819KSE, XOIL3622KSE, XOIL42KSE, XOIL4822SE

www.xoappliance.com/register-your-product/

L'INSCRIPTION VOUS AIDE EN -

Technical diagram of a roof structure with structural elements and directional arrows indicating flow or movement (no text or symbols)

ÉVENT D'ÉCHAPPEMENT MURAL

Diagram of a structural support structure with vertical column and upward arrows indicating force or movement (no text or symbols)

ÉVENT D'ÉCHAPPEMENT DE TOIT

DIMENSIONS

"A" 12" 3" "B"

"C" "D"

MODÈLE A B C D
XOIL3619KSE	28-3/8" 34-3/8" 12" 19-1	/4"
XOIL4219KSE	34-5/16" 40-3/8" 12" 19-1	/4"
XOIL4819KSE	40-3/8" 46-3/8" 12" 19-1	/4"
XOIL3622KSE	28-3/8" 34-3/8" 15-1/4"	22-1/2"
XOIL4222KSE	34-5/16" 40-3/8" 15-1/4"	22-1/2"
XOIL4822KSE	40-3/8" 46-3/8" 15-1/4"	22-1/2"

Haut de la hotte

Ø7-27/32" 5-31/32"

Isometric line drawing of a mechanical housing or enclosure with a circular component on top (no text or symbols)

HAUTS ET BAS

HAUTEUR DE MONTA- GE RECOMMANDÉE AU-DESSUS DES PLA- QUES DE CUISSON AU GAZ ET ÉLECTRIQUES 27" t o 3 2"

XOIL3619KSE 19-7/16" 34-1/2"

XOIL4219KSE 19-7/16" 40-1/2"

19-7/16" 46-1/2" XOIL4819KSE

XOIL3622KSE 22-5/8" 34-1/2"

XOIL4222KSE 22-5/8" 40-1/2"

XOIL4822KSE 22-5/8" 46-1/2"

Technical diagram showing a ceiling structure with an open enclosure and internal components, no text or symbols present.

INSÉREZ LA HOTTE DANS LA DÉ-COUPE

1-1/8" 1/4" 8x

FIXEZ LA HOTTE EN PLACE

Illustration of a hand using a screwdriver to adjust or install a wall-mounted electrical component (no text or symbols visible)

Illustration of a kitchen ventilation grille with a magnified inset showing a hand holding a tool (no text or symbols present)

Illustration of a ceiling-mounted device with a mesh grille and cable (no text or symbols)

XOPSPK6602

REPLACEMENT DE LA LUMIÈRE LED

Line drawing of a remote control device with four buttons and 'XQ' label (no text or symbols beyond basic markings)

XOVREMOTE1

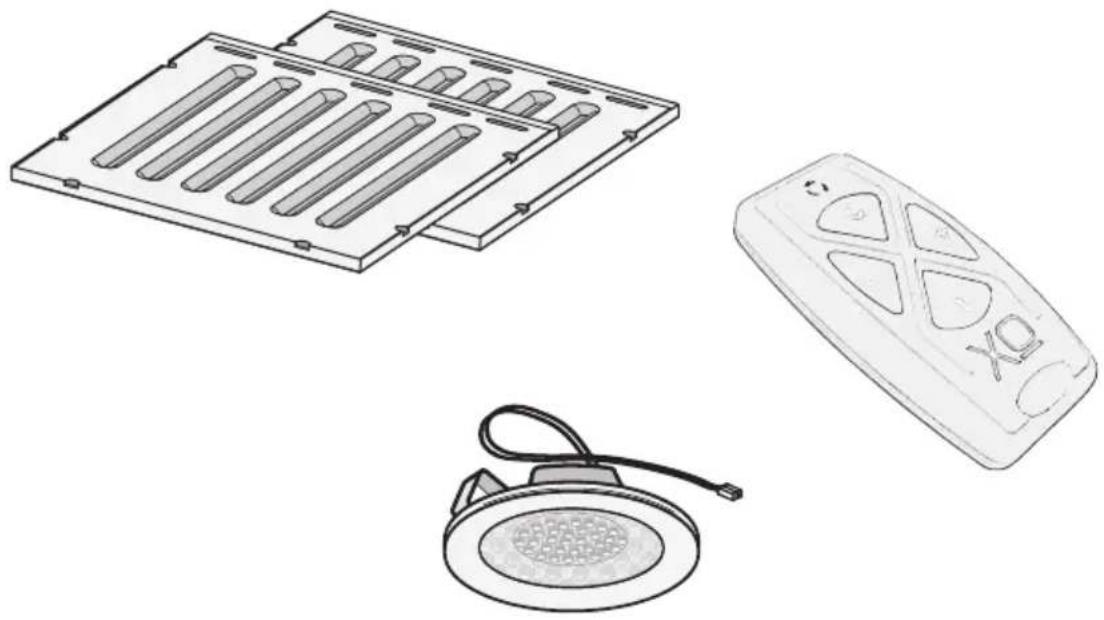

ACCESSOIRES ET PIÈCES D'ACCÈS

Illustration of three remote control devices: a plastic tray with rib bars, a remote control with four buttons and a circular base (no text or symbols)

FILTRES LUMIÈRES DE REMPLACEMENT TÉLÉCOMMANDES COUVERCLES DE CONDUITS INTERRUPTEURS DE REMPLACEMENT MOTEURS DE VENTILATEUR ROUES DE VENTILATEUR

TOUTES CES PIÈCES ET PLUS SONT DISPONIBLES, VISITEZ SIMPLEMENT WW.XOAPPLIANCE.COM et cliquez sur LE MAGASIN DE PIÈCES OU APPELEZ-NOUS AU 973-403-8900

ON COUURE VOS ARRIÈRES

2 YEAR PARTS + LABOR WARRANTY

TODO LO QUE NECESITAS S A B E R SOBRE TU

Xo

XOIL INSERT

MODELOXOIL3619KSE,XOIL4219KSE,XOIL4819KSE, XOIL3622KSE, XOIL42KSE, XOIL4822SE

Technical diagram of a structural support system with directional arrows indicating force or movement (no text or labels)

ESCAPE DE PARED ESCAPE DE TECHO

Diagram of a roof structure with a vertical column and upward arrows indicating airflow or force (no text or symbols)

DIMENSIONES

"A" 12" 3" "B" "C" "D"

MODELO A B C D
XOIL3619KSE	28-3/8" 34-3/8" 12" 19-1	/4"
XOIL4219KSE	34-5/16" 40-3/8" 12" 19-1	/4"
XOIL4819KSE	40-3/8" 46-3/8" 12" 19-1	/4"
XOIL3622KSE	28-3/8" 34-3/8" 15-1/4"	22-1/2"
XOIL4222KSE	34-5/16" 40-3/8" 15-1/4"	22-1/2"
XOIL4822KSE	40-3/8" 46-3/8" 15-1/4"	22-1/2"

Ø7-27/32" 5-31/32"

ALTOS Y BAJOS

XOIL3619KSE 19-7/16" 34-1/2"

XOIL4219KSE 19-7/16" 40-1/2"

19-7/16" 46-1/2"XOIL4819KSE

XOIL3622KSE 22-5/8" 34-1/2"

XOIL4222KSE 22-5/8" 40-1/2"

XOIL4822KSE 22-5/8" 46-1/2"

Technical diagram showing a ceiling structure with an open enclosure and internal components, no text or symbols present.

INSERTE LA CAMPANA EN EL RECORTE

1-1/8" 1/4" 8x

SUJETE LA CAMPANA EN SU LUGAR

Illustration of a hand using a screwdriver to adjust or install an electrical panel with a circuit breaker (no text or symbols visible)

Illustration of a kitchen ventilation grille with a magnified inset showing a hand holding a tool (no text or symbols present)

PARA QUITAR LOS DEFLECTORES:

Line drawing of a ceiling-mounted showerhead with a coiled cable and mesh grille (no text or symbols)

XOPSPK6602

Line drawing of a remote control device with no text or symbols

XOVREMOTE1

PIEZAS DE ACCESO Y ACCESORIOS

Illustration of three remote control devices: a plastic tray, a remote control with four buttons, and a circular fan with a cable (no text or symbols)

FILTROS

LUCES DE REPUESTO

MANDOS A DISTANCIA

2 YEAR PARTS + LABOR WARRANTY

Icon of a document with lines and a pencil, representing editing or writing (no text or symbols present)
