For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical

and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...). - Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
• The appliance is not to be used

by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning. - There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,

please contact your local city office, your household waste disposal service or the shop where you purchased the product.

- Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuel (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

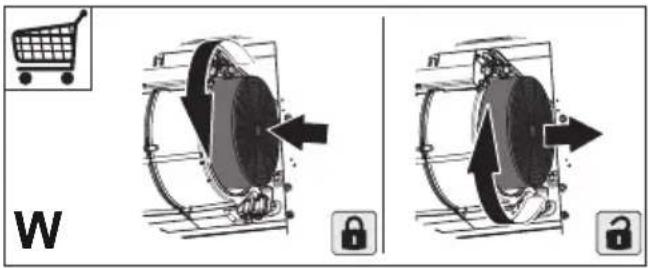

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4

months of operation, or more frequently for particularly heavy usage (W).

W

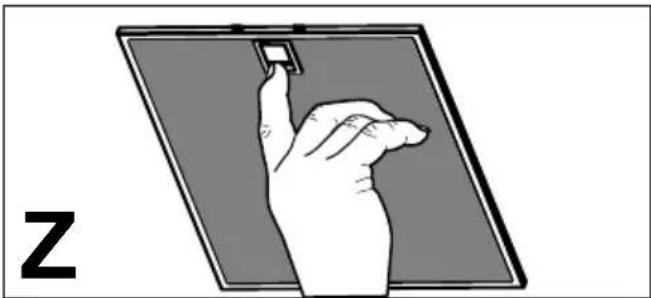

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

Diagram illustrating a hand pressing a button on a panel, with an arrow indicating leftward movement and a separate diagram showing rotation of the button.

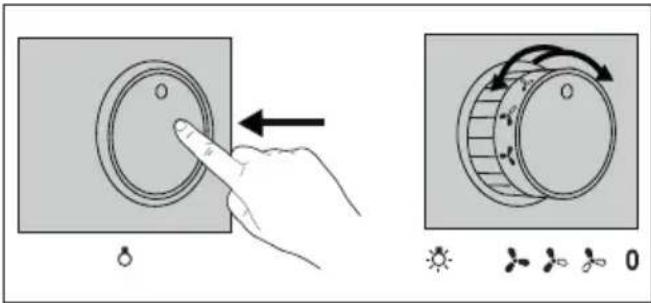

Lights - To turn the lights on, press the dial and release it so that it pops out of its housing. To turn the lights off, push the dial back inwards, returning it to the off position.

Motor Speed Adjustment - Press the dial and release it so that it pops out of its housing, then turn the dial to select one of the available suction speeds.

5. LIGHTING

- For replacement contact technical support ("To purchase contact technical support").

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

Diagram illustrating a rotary switch mechanism with labeled components and directional arrows

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

Diagram illustrating a rotary switch mechanism with labeled components and directional arrows

Illustration of a hand holding a small object on a flat surface, labeled 'Z' (no text or symbols on the diagram itself)

Diagram illustrating a hand pressing a circular button on a panel, with an arrow indicating leftward movement and a separate view showing the right-side rotation of a knob.

Illustration of a hand interacting with a small electronic device on a tablet screen (no text or symbols)

Diagram illustrating a hand pressing a circular component on a panel, with an arrow indicating the process and a separate view showing rotational motion.

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

Diagram illustrating the step-by-step transformation of a rotary knob to a circular dial, with directional arrows and component symbols below.

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

Diagram illustrating a hand pressing a circular button on a panel, with an arrow indicating the process and a separate view showing rotation of the knob.

Illustration of a hand holding a small electronic component on a screen, with letter 'Z' in the corner (no text or symbols on the diagram itself)

Diagram illustrating a hand pressing a button on a panel, with an arrow indicating leftward movement and a separate view showing the right-side rotation of the button.

Illustration of a hand holding a small square object on a tablet screen, with the letter 'Z' visible (no text or symbols on the diagram itself)

Diagram illustrating a hand pressing a circular button on a panel, with an arrow indicating the process and a separate view showing rotation of the knob.

Illustration of a hand interacting with a small electronic device on a tablet screen (no text or symbols)

Diagram illustrating a hand pressing a circular button on a panel, with an arrow indicating leftward movement and a separate view showing the right-side rotation of the knob.

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

Diagram illustrating the step-by-step change in a rotary knob with directional arrows and component symbols below.

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

Diagram illustrating a hand pressing a circular button on a panel, with an arrow indicating leftward motion and a separate view showing the circular dial with rotation arrows.

Illustration of a hand interacting with a small electronic device on a tablet screen (no text or symbols)

Diagram illustrating a hand pressing a circular button on a panel, with an arrow indicating leftward motion and a separate view showing the rotary knob with rotation arrows.

Illustration of a hand interacting with a small electronic device on a screen (no text or symbols)

Diagram illustrating a hand pressing a circular component on a panel, with directional arrows and a schematic of the device's rotation.

Illustration of a hand holding a small object on a tablet screen, with the letter 'Z' visible (no text or symbols on the diagram itself)

Diagram illustrating a hand pressing a circular button on a light bulb, with directional arrows indicating rotation or movement.

Luči: Da prižgete luči, pritisnite na gumb in ga spustite, tako da se dvigne iz svojega ležišča. Da ugasnete luči, ponovno pritisnite na gumb, tako da ostane v položaju ugasnjenega stikala.
