USER MANUAL DO546FR DOMO

Black DOMO air fryer with digital display and control buttons (no visible text or symbols on device body)

NL Handleiding Deli-fryer

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

Caution: The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

• Place the appliance on a flat, stable and heat-resistant surface.
• Do not place the appliance against a wall or other appliances. Always leave a free space of at least 30 cm around the appliance.
• Do not place anything on top of the appliance.
• Make sure that all ingredients stay in the basket, so that they do not come into contact with the heating elements.
• Do not cover the air inlet or outlet when the appliance is switched on.
• Never fill the frying pan with oil.
• Do not touch the inside of the appliance when it is in use.
• When the appliance is operating, hot steam may escape from the air inlet and/or outlet. Keep your hands and face at a safe distance. Also be careful when taking the frying pan out of the fryer. Hot steam or air may escape.
• When you see dark smoke coming from the appliance, immediately pull the plug out of the socket. Wait until the smoke development has stopped before removing the frying pan from the fryer.
• Let the appliance cool down for at least 30 minutes before moving or cleaning it.

- The equipment shall be touched only at intended handles and gripping surfaces, and use heat protection like gloves or similar. Surfaces other than intended gripping surfaces shall get sufficiently time to cool down before getting touched.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

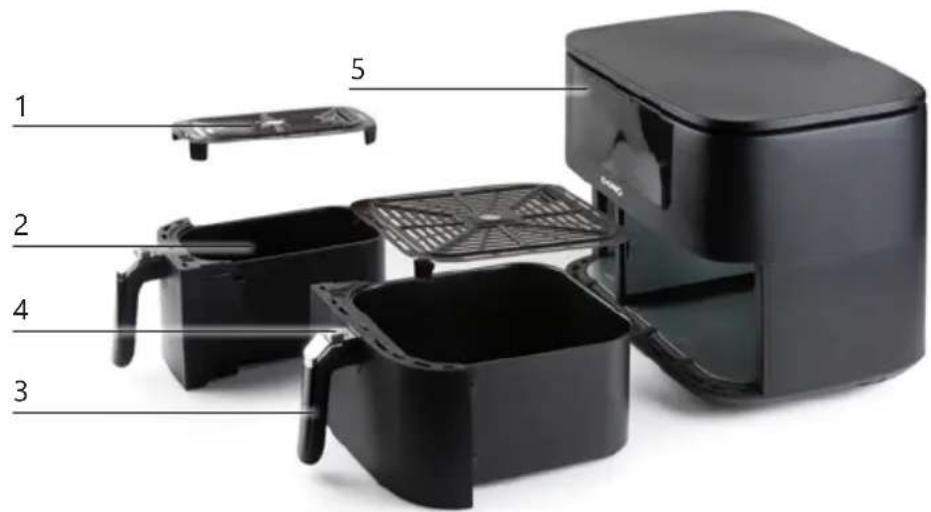

PARTS

1. Fryer grille
2. Frying pan
3. Handle
4. Fryer basket release
5. Control panel with display
6. Air inlet
7. Air outlet
8. Cord storage

CONTROL PANEL

1. On/Off button
2. Button for adjusting the left side
3. Button for adjusting the right side
4. Button to stop both ends at the same time
5. Button for setting both sides identically
6. Preheating programme
7. Start/pause button
8. Timer setting
9. Temperature setting
10. Decrease setting
11. Increase setting
12. Automatically set programs
13. Display

1 2 3 4 5

7 6 8

20 19 c c 16 17 18 21 15 10 12 14 13 11 9

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
  Caution: do not remove the rubber pads on the fryer grille. These are part of the device and hold the grille in place.
• Clean the fryers and the grilles with warm water, washing up liquid and a non-abrasive sponge.
• Wipe the inside and outside of the fryer clean with a soft cloth.
• Caution: you may not add any frying oil or fat in the frying pans.

USE

1. Place the appliance on a flat, stable and heat-resistant surface. Make sure that there is at least 30 cm of free space around the appliance.

2. Check that the grille is inserted in the fryer. Push the grille into place so that it sits level on the bottom. Do not place any oil or fat in the fryer.

3. Slide the frying pan with the empty grille inside the fryer. Make sure the side marked "L" is on the left and the side marked "R" is on the right.

⚠️Never use the frying pan without the grille inside.

1. Plug the power cord into a socket. A beep indicates that the device is in standby mode.

2. Press the release button on top of the handle to remove the fryer basket from the appliance. Remove the deep fryer from the device. Place the ingredients in the deep fryer with the roaster. Do not put too many ingredients in the appliance so that the ingredients do not touch the heating elements. Make sure that there is a minimum 2 cm distance between the ingredients and the heating elements.

3. Put the deep fryer with the filled roaster back in the device.

4. Press the on/off button to make the desired settings.

5. The display lights up. Now you have the following options:

6. Press 'L' or 'R' to set the left or right side. You can adjust both sides individually as required. Once one side is set, you can then set the other side. You can also choose to set just one side and not use the other.

7. Press L = R to set both sides identically.

8. Set the desired timer (up to 60 minutes) using the timer setting arrows. You can see which timer is selected on the display. Each press of the button will increase/decrease the time by 1 minute. You can also keep the button pressed to make the selection advance faster.

9. Set the desired temperature (80°C-200°C) using the temperature setting arrows. You can see which temperature is selected on the display. Each press of the button will increase/decrease the temperature by 5°C. You can also keep the button pressed to make the selection advance faster.

10. Press the start/pause button to start.
11. The motor in operation symbol will appear on the display. The motor in operation symbol remains visible on the display as long as the appliance is switched on. The set timer and temperature appear on the display.
    ⚠️ You can pause the appliance if you want to add/remove ingredients during use or if you want to adjust the temperature or timer. Press the start/pause button. Or press L or R first and then start/pause to pause only the left or right side. If you want the appliance to continue cooking, press this button again.
12. You can take the fryer basket out of the appliance in between to shake up the ingredients or to check how fried your food is. The appliance stops working automatically and will continue working (if the set time has not yet elapsed) when you slide the fryer basket back into the appliance.
13. At the end, a bell will ring to indicate that your food is ready. The unit then switches off automatically. You can also turn the device off earlier by pressing the start/pause button and then pressing the power button to turn the device off completely.
14. Remove the deep fryer from the appliance and place it on a heat-resistant holder. You can put the food in a bowl or take it out of the deep fryer with heat-resistant tongs that do not scratch the non-stick coating of the deep fryer.

STOPPING BOTH SIDES AT THE SAME TIME

Use this function to complete cooking in the two zones (with different cooking time and temperature) at the same time. Place food in both sides from the start.

1. Press left or right and set the desired temperature and timer.
2. Press the other side to adjust the desired settings there.
3. Press the button to stop both sides at the same time
4. Press start. The side with the longest cooking time will start in advance. The display shows 'HOLD' on the other side. This side starts up automatically when the timer reaches the point so both sides will end at the same time.
5. You can occasionally take a fryer basket out of the appliance to shake the ingredients or check the cooked results. The appliance stops working automatically and will continue working (if the set time has not yet elapsed) when you slide the fryer basket back into the appliance.
6. When finished, the appliance emits an audible signal and switches itself off automatically.

BUTTON FOR SETTING BOTH SIDES IDENTICALLY

Press this button if you want to use the appliance with the same setting for both sides. By pushing this button, you 'link' the sides to each other. If you do this, you can only choose your desired settings once. Now press the start button.

You can occasionally take a fryer basket out of the appliance to shake the ingredients or check the cooked results. 'OUT' appears on the display on the side where you remove the fryer basket from the appliance. The appliance stops working automatically and will continue working (if the set time has not yet elapsed) when you slide the fryer basket back into the appliance. The appliance initially stops working completely, including the side where the fryer basket is still inserted. Only after ±90 seconds does the side where the fryer basket is still present start working again.

PREHEATING PROGRAMME

If desired, you can also preheat the deli-fryer first using the preheat programme. This programme defaults to 200^ C for 5 minutes. If necessary, you can lower the temperature.

1. Press left, right, or L = R.
2. Then press the preheat programme.
3. Press start.
4. The appliance will switch itself off automatically when finished.

COMMENTS

• An acoustic signal is emitted for each setting you set on the device.
• You can adjust the set temperature or time at any time while the unit is in operation.
• Excess oil is collected in the deep fryer.
• If your food is not ready after the set time has elapsed, you can always switch the appliance back on for a few minutes.
  • After the appliance has been switched off, it will continue to run for a while to cool down. 'COOL' appears on the display. Then a beep sounds to indicate that the appliance is now completely off.
• There is no need to preheat the appliance. You can add three minutes to the desired baking time if necessary for frozen products.
• If you just want to warm something up in the device, you can set it to 150^ for 10 minutes.

AUTOMATIC PROGRAMS

The device has 6 automatically set programs. To set one of these, press left or right and select the desired programme. If desired, you can adjust the temperature or timer slightly in the selected programme using the accompanying buttons. Press the start/pause button to activate this program. The symbol of the selected programme remains lit on the display and the other programmes disappear. At the end, a bell will ring to indicate that your food is ready. The unit then switches off automatically.

french fries	chicken	fish	bake	vegetables	steak
20 min. 25 min. 10 min. 12 min. 16 min. 16 min.
200 °C 200 °C 180 °C 180 °C 160 °C 180 °C

These programmes are only given as an indication. The results depend on the size, shape and amount of the food.

IMPORTANT FRYING TIPS

• It is recommended to shake the fries every 5 minutes, so that they are baked evenly. This also applies to other, smaller snacks that cover each other when they are inserted in the grille.
• You can add a table spoon of oil for a crunchier result, for instance olive oil, sunflower oil or groundnut oil. Mix this oil well with the raw fries before placing the fries in the grille. Other ingredients can be sprayed with oil or coated with oil with a brush. Always make sure that there

is no excessive oil added in the grille or frying pan. Do not use too much oil. Then the fries will become less crisp and greasy.

- Put fresh, raw fries in water for 30 minutes before frying them, so that the starch of the potatoes is washed away. Dry them thoroughly afterwards.

- Do not cook very greasy foods in this fryer.

- When you are preparing greasy ingredients, white smoke might come out of the appliance. However, this does not affect the operation of the appliance or the end result. Also when the fryer is not properly cleaned, or if any oil is left behind in the frying pan, white smoke might develop.

- Snacks that can be cooked inside an oven can also be cooked inside this fryer.

- Smaller quantities are fried more evenly than larger quantities.

- Thinner fries will be crispier than thicker fries.

- Place a baking tin or oven tray on the grille if you want to make a cake or quiche, or fragile or stuffed ingredients.

- You can also use this fryer to reheat ingredients. Set the fryer to 150^ , for 10 minutes.

- Ingredients that need to be cooked at the same temperature can be placed inside the basket together and cooked together.

- Frozen products do not need to be thawed beforehand.

- You can use baking paper or aluminum foil or trays in the grille of the fryer, but do be very careful when you do this. Do not cover the whole bottom of the grille. The air should be able to circulate well through the appliance, the grille and the ingredients. Also, there should be enough food on the paper or foil, so that it stays in place. Otherwise, the strong air flow will cause the paper or foil to be sucked into the heating elements, which could cause fire. Make sure that the baking paper or aluminum foil is larger than the food itself. However, the paper or foil should not come out of the grille.

- Oven snacks always give the best, crispiest result. But also frozen snacks suitable for a regular fryer can be fried in this appliance.

BAKING TIMES AND TEMPERATURES

The table below holds a few guidelines for cooking and frying different ingredients. Caution: these are merely guidelines. The times also depend on the quantity and thickness of the food. Also always take into account the above mentioned frying tips.

Fries, fresh first 18 min. 140°C
	then 12 min. 180°C
Fries, frozen 12-20 min. 200°C
Potato wedges 18-22 min. 180°C
Croquettes 15 min. 185°C
Cheese croquettes, frozen 12 min. 180°C
Chicken nuggets, fish sticks and other snacks 6-10	min. 200°C
Chicken fillet	15 min. 200°C
Chicken schnitzel, frozen	12 min. 180°C
Steak	8-12 min. 180°C
Fish	10-15 min. 180°C
Mushrooms	3-4 min.	180°C
Spring rolls 8-13 min. 200°C
Drumsticks 15-20 min. 180°C
Meatballs 6 min. 180°C
Hamburger 6-10 min. 180°C
Satay 10 min. 190°C
Prawns 6 min. 180°C
Egg, boiled hard 12 min. 160°C
Egg, boiled soft 6-7 min. 160°C
Vegetables 15 min. 200°C
Vegetable fries - hard 10-13 min. 200°C
Vegetable fries - soft	7 min. 200°C
Apples	7 min.	180°C
Banana	7 min. 200°C
Puff pastry snacks	10 min. 180°C
Ready to bake bread rolls	7 min. 200°C
Cake	20 min. 165°C
Muffins	15-20 min. 160°C

CLEANING AND MAINTENANCE

• Clean the appliance after each use.
- Do not use any metal or abrasive cleaning products. These could damage the appliance.
• Unplug the appliance.
- Let the appliance cool down for at least 30 minutes before moving or cleaning it.
- Wipe the outside of the appliance clean with a damp cloth.
- Clean the frying pan and grille with warm water, some washing-up liquid and a non-abrasive sponge.
• The frying pan and the grille are dishwasher safe.
- Clean the inside of the appliance with warm water and a soft sponge.
- Clean the heating element with a brush to remove any food residues.
• Dry all parts thoroughly.

⚠️ Do not immerse unit, cord, or plug in water or other liquid.

⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The appliance does not work. • Insert the mains	plug into the wall socket. • Set the desired timer or temperature and then press the start/pause button.
The ingredients in the fryer are not cooked. • Place	fewer ingredients in the fryer. Smaller portions ensure a more even baking result. • Increase the timer or temperature.
The ingredients in the fryer are not cooked evenly.	• The recommendation is to shake the food regularly in the fryer or to turn the food.
The fried food is not crispy. • Only use preparations suitable for an oven or air fryer. • Coat the ingredients with oil for a crispier baking result. • Increase the temperature.
Smoke is coming out of the appliance during operation.	• You are using ingredients with too much oil or fat. Only use ingredients or preparations suitable for an oven or air fryer. • You used too much oil when preparing the food. Next time, use a bit less oil. • The appliance was not cleaned properly and/or there is too much oil remaining in the fryer. Clean the appliance and fryer basket thoroughly after each use.

SPECIFICATIONS

Model DO546FR
Voltage 220-240V~ 50-60Hz
Power 2850W
Energy consumption standby-mode after 1 minute 0,4W

GUIDELINES

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Prohibition sign for a trash bin with crossed and unbroken lines, indicating no waste or discharge.

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
