USER MANUAL Floorclean 80VO Pro Ulsonix

Labeled diagram of a mechanical assembly with numbered parts for identification

Line drawing of a vacuum cleaner with attached tubing and four hanging sensors (no text or symbols)

Close-up of a hand holding a vacuum cleaner with attached tubing (no visible text or symbols)

Cross-sectional diagram of a mechanical spring assembly (no text or labels)

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Wet and dry vacuum cleaner
Model	FLOORCLEAN 80VO PRO	FLOORCLEAN 100VO PRO
Supply voltage [V~] / frequency [Hz]	230V ~ -50Hz
Rated power [W].	2000	3000
Capacity [l]	80	100
IP code	IPX4
Dimensions [width x depth x height; mm]	600 x 560 x 840	600 x 560 x 1100
Weight [kg]	21.3	24.1

1. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly following the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product complies with applicable safety standards.
	Read the manual before use.
	Recyclable product.
	CAUTION! or WARNING! or REMEMBER! General warning sign.
	CAUTION! Risk of electric shock!

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury or death.

The term "device" or "product" in the warnings and the description of the instructions refers to Wet and dry vacuum cleaner

2.1. Electrical safety

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the device while exposed to direct rain, wet pavement, or while working in a damp environment. If water enters the device, there is an increased risk of damage to the unit and electric shock.
c) Do not touch the device with wet or damp hands.
d) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.
e) If you cannot avoid using the product in a wet environment, use a residual current device (RCD) to connect it to electrical mains. Using an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service department.
g) To avoid electric shock, do not immerse the cable, plug, or the device itself in water or other liquid. Do not use the appliance on wet surfaces.

2.2. Safety in the workplace

a) Keep the work area tidy and well-lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing, and use common sense when using the unit.
b) Do not use the unit in an explosive area, for example in the presence of flammable liquids, gases, or dust. The unit produces sparks that can ignite dust or fumes.
c) If you find any damage or irregularities in the operation of the product, immediately turn it off and report it to an authorized person.
d) If in doubt as to whether the device is working, contact the manufacturer's technical service.
e) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
f) In the event of a fire or fire, use only powder or snow (CO2) fire extinguishers to extinguish the live device.
g) Check the condition of the safety stickers regularly. Replace them if they are illegible.
h) Keep these instructions for use for future reference. If the product is to be handed over to a third party, hand it over with this user manual.
i) Keep packaging components and small installation parts out of the reach of children.
j) Keep the device away from children and animals.
k) When using this product together with other devices, also follow the other instructions for use.

Remember! Keep children and other bystanders safe while operating the appliance.

2.3. Personal safety

a) Do not operate this device if you are tired, ill, or under the influence of alcohol, drugs, or medication that could impair your ability to operate the device.

b) The device is not intended to be used by persons (including children) with reduced mental, sensory, or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
c) To prevent accidental start-up, make sure the switch is in the off position before connecting to a power source.
d) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations.
e) The product is not a toy. Children should be watched to ensure that they do not play with the appliance.

2.4. Safe use of the device

a) Do not overload the device. Use tools that are suitable for the application. A correctly selected product will do a better and safer job for which it was designed.
b) Do not use the device if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
c) Disconnect the device from the power supply before adjusting, cleaning, or servicing. This precaution reduces the risk of accidental start-up.
d) Keep the unit in good working condition. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, return the device for repair before use.
e) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
f) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
g) Do not leave the device switched on unattended.
h) Clean the device regularly to prevent permanent dirt build-up.
i) Do not obstruct the air inlet or outlet.
j) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
k) Do not tamper with the device to alter its performance or design.
I) Keep the unit away from sources of fire and heat.
m) Do not aspirate embers or flammable objects with the device, e.g.: cigarettes/petrol/ink/thinner, etc.
n) Do not aspirate sharp-edged objects such as screws, etc. with the device.
o) Do not use the device to suck in substances that can settle on the fabric filter, such as lime powder, graphite powder, etc.
p) Do not tilt the device when there is water in its container as this may damage the engine.
q) The device is not designed to pump out water!
r) Do not pull or lift the unit by pulling the hose as this may cause the unit to fall or damage the hose.
s) Always have a fabric filter installed when dry vacuuming!
t) It is forbidden to direct the suction inlet toward other people, children, and animals!
u) Caution! It is forbidden to direct the suction inlet toward body parts (ears, mouth, eyes, nose, reproductive organs, and other sensitive body parts)!

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. Caution and common sense are advised when using the product.

3. Instructions for use

The device is designed for dry and wet vacuuming.

The operator is responsible for any damage caused by misuse.

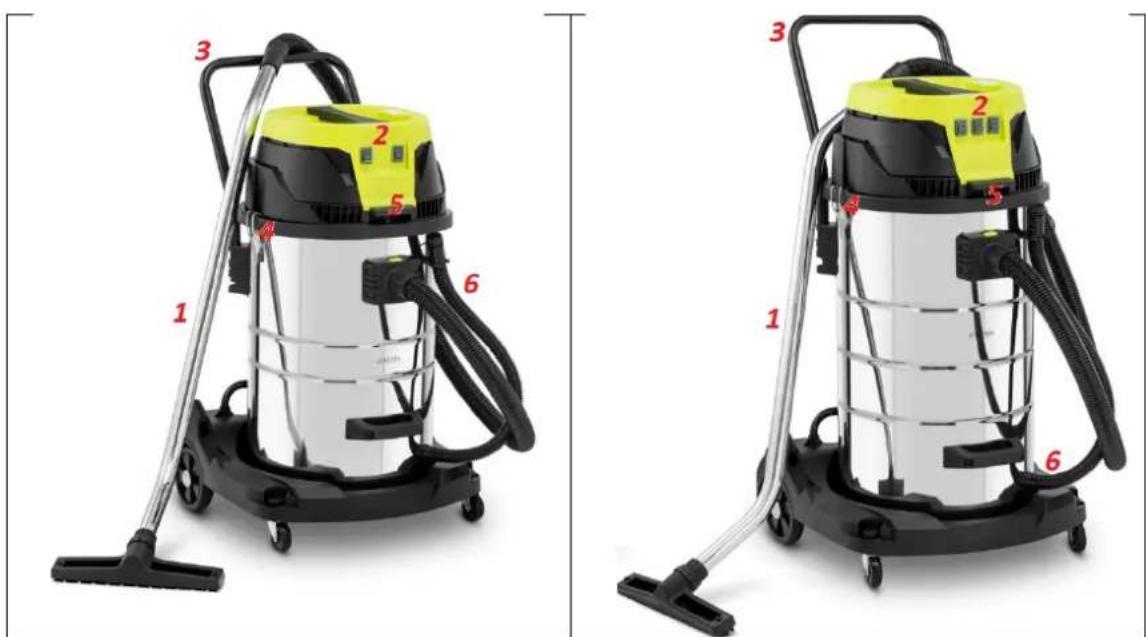

3.1. Product overview

FLOORCLEAN 80VO PRO

FLOORCLEAN 100VO PRO

Two identical photos of a vacuum cleaner with numbered parts, shown from different angles (no text or symbols visible)

1. Suction hose
2. Main ON/OFF switches
3. Handle
4. Clamp buckle
5. Filter dust shake button
6. Water drain pipe

3.2. Installation of the unit

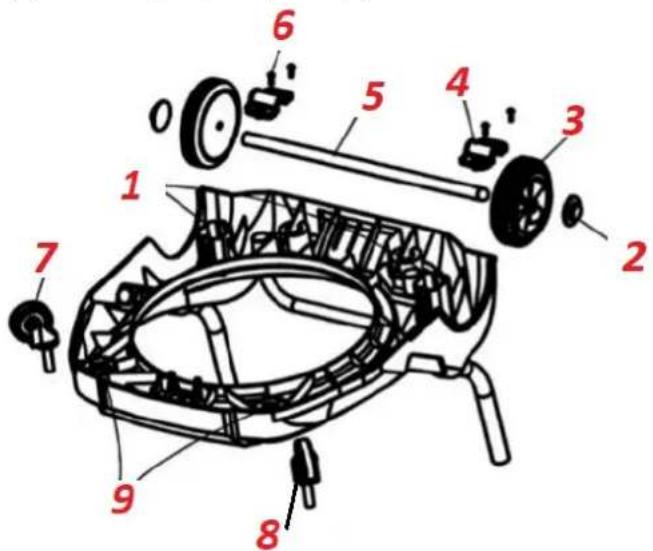

Mounting the wheels:

Put the wheels (3) on the axle (5), then fix the lids (2), and put the whole thing in place (1). Then tighten the fasteners (4) and (6).

Push the wheels (7) and (8) into the appropriate places (9).

Labeled diagram of a mechanical device with numbered parts for identification

3.3. Preparation for operation

Keep the appliance away from any hot surfaces. Always use the appliance on an even, stable, fireproof, and dry surface. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

Before starting work, make sure that:

• A filter is installed in the appliance.
  • The clips securing the head to the tank are tight.
• The wheels are fixed in the holes in the base of the unit.

3.4. Working with the device

Line drawing of a vacuum cleaner with attached circuit breakers and sensors (no text or symbols)

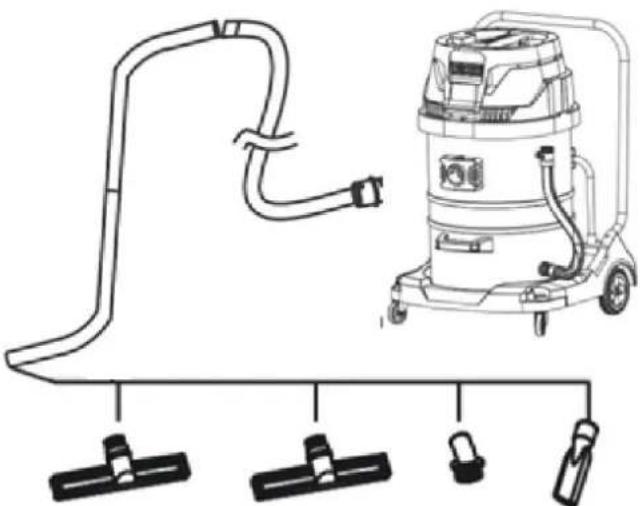

Connect the hose to the socket and equip it with a suitable fitting.

Connect the vacuum cleaner to the power supply.

Start the vacuum cleaner with the main ON / OFF switches setting the desired power level (2000W for FLOORCLEAN 80VO PRO, 3000W for FLOORCLEAN 100VO PRO).

Start vacuuming.

After finishing work with the vacuum cleaner, you should:

• Turn off the vacuum cleaner with the main ON/OFF switches.
- Disconnect the vacuum cleaner from the power supply.
- Disconnect the hose, tube, and tube end from the vacuum cleaner. Clean these items.
- Unfasten the clamps and remove the upper part of the vacuum cleaner.
- Remove, wash and dry the filter. Wash the filter with warm water.
- Clean the tank with a soft cloth.

When the suction power weakens, do the following to restore power:

Plug the suction opening with your hand or block the suction hose while the machine is running.

Press the dust-shake button approximately 5 times as shown:

Close-up of a hand holding a vacuum cleaner with attached tubing (no visible text or symbols)

Cross-sectional diagram of a mechanical spring assembly (no text or labels)

If the suction power does not return to normal after this operation, clean the filter and dust container.

3.5. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.
b) Use only non-corrosive cleaning agents for cleaning the surfaces.

c) Store the unit in a dry and cool place protected from moisture and direct sunlight.
d) Do not spray the unit with a stream of water or immerse it in water.
e) Perform regular inspections of the unit, checking technical fitness and any damages.
f) Use a soft, damp cloth for cleaning.
g) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) as they may damage the surface of the material from which the appliance is made.
h) Do not clean the unit with acidic substances, medical agents, thinners, fuel, oils, or other chemicals. It may cause damage to the device.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions, or packaging. The materials used in this appliance are recyclable according to their marking. By reusing, recycling, or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

Technical diagram of a mechanical assembly with numbered components for identification

Line drawing of a vacuum cleaner connected to four base stations (no text or symbols)

Close-up of a vacuum cleaner with handle and hose (no visible text or symbols)

Cross-sectional diagram of a mechanical spring assembly (no text or labels)

Technical diagram of a mechanical device with numbered components for identification

Line drawing of a vacuum cleaner with attached tubing and four clamps below (no text or symbols)

Close-up of a hand operating a vacuum cleaner with a black handle and hose (no visible text or symbols)

Cross-sectional diagram of a mechanical spring assembly (no text or labels)

Technical diagram of a mechanical assembly with numbered components for identification

Line drawing of a vacuum cleaner connected to four base stations (no text or symbols)

Close-up of a hand operating a vacuum cleaner with attached tubing (no visible text or symbols)

Cross-sectional diagram of a mechanical spring assembly (no text or labels)

Technical diagram of a mechanical device with numbered components for identification

Line drawing of a vacuum cleaner connected to four base stations (no text or symbols)

Close-up of a hand operating a vacuum cleaner with attached tubing (no visible text or symbols)

Cross-sectional diagram of a mechanical spring assembly (no text or labels)

Technical diagram of a mechanical assembly with numbered components for identification

Line drawing of a vacuum cleaner connected to four base stations (no text or symbols)

Close-up of a hand operating a vacuum cleaner with attached tubing (no visible text or symbols)

Cross-sectional diagram of a mechanical spring assembly (no text or labels)

Technical diagram of a mechanical assembly with numbered components for identification

Line drawing of a vacuum cleaner connected to four base stations (no text or symbols)

Close-up of a hand operating a vacuum cleaner with a black cover (no visible text or symbols)

Cross-sectional diagram of a mechanical spring assembly (no text or labels)

Labeled diagram of a mechanical device with numbered parts for identification

Line drawing of a vacuum cleaner with attached tubing and four clamps below (no text or symbols)

Close-up of a hand holding a vacuum cleaner with attached tubing (no visible text or symbols)

Cross-sectional diagram of a mechanical spring assembly (no text or labels)

For the disposal of the device please consider and act according to the national and local rules and regulations.
