USER MANUAL Vicenza Physa

Technical diagram of a mechanical device with numbered parts labeled 1 through 5

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Pedicure Chair
Model	PHYSA VICENZA WHITE 01
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	300
Max load [kg]	175
Work cycle 10%	2 minutes continuous operation / 18 minutes pause
Dimensions [width x depth x height; mm]	82 x 196 x 111
Weight [kg]	84.35

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.

(general warning sign)

ATTENTION! Hand crush hazard!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Pedicure Chair

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
c) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
d) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
e) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
f) Do not use in very humid environments or in the direct vicinity of water tanks.
g) Prevent the device from getting wet. Risk of electric shock!

2.2. Safety in the workplace

a) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
b) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
c) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
d) Children or unauthorised persons are forbidden to enter a work station. (A distraction may result in loss of control over the device).
e) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
f) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
g) Keep packaging elements and small assembly parts in a place not available to children.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
d) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
e) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.

b) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
c) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
d) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
e) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
f) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.
g) Do not move, adjust or rotate the device in the course of work.
h) Clean the device regularly to prevent stubborn grime from accumulating.
i) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
j) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
k) Do not overload the device.
I) Exceeding the maximum permissible user weight can damage the product.
m) Do not step on the device.
n) Regularly check that the screws on the device have not become loose. Tighten as needed.
o) Do not sit at the end of the chair. It may cause the device to tip over.
p) The weight must be distributed evenly over the seat to prevent it from tipping over.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The pedicure chair is intended for use during cosmetic procedures. The product has an electric position adjustment system. The product has an electric position adjustment system. This product is outside the scope of REGULATION (EU) 2017/745 for medical devices. It has not been designed as a medical device.

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

1. Backrest adjustment

2. Chair lifting

3. Seat adjustment

4. Left footrest adjustment

5. Right footrest adjustment

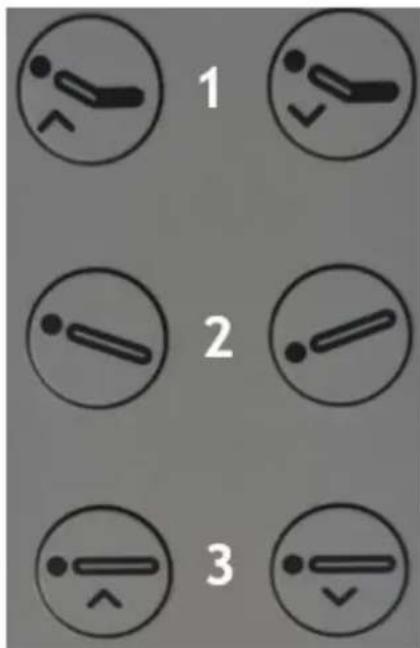

Pilot operation:

1 2 3

1 – Raising / lowering the backrest
2 - Tilting the chair backwards / forwards
3 – Raising / lowering the entire chair

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

3.3. Assembling the device

1. Unpack the package and check that all components are present and not damaged.
2. In order for the chair to be mounted firmly, it should be screwed to the floor.
3. If the chair stands on uneven ground, adjust the legs attached to the base of the device.
4. Connect the plug to the power supply.

3.4. Device use

1. Before use, make sure the chair plug is properly connected to the power source.
2. The height and arrangement of the device is controlled by a remote control. To start a given function, press and hold the button on the remote control. Releasing the button or pedal will hold the device in the set position.
3. The time of continuous operation of the device should be 2 minutes, and a break of at least 18 minutes.
4. When you have finished work, disconnect the plug from the socket.

3.5. Cleaning and maintenance

a) Always unplug the device before cleaning or putting it away.
b) Use only non-corrosive cleaners to clean the surface.
c) After cleaning the device, all parts should be dried completely before using it again.
d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
e) Do not spray the device with a water jet or submerge it in water.

f) Do not allow water to get inside the device through vents in the housing of the device.
g) Clean the vents with a brush and compressed air.
h) The device must be regularly inspected to check its technical efficiency and spot any damage.
i) Use a soft, damp cloth for cleaning.
j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

Technical diagram of a mechanical device with numbered parts labeled 1 through 5

Technical diagram of a mechanical device with numbered parts labeled 1 through 5

Technical diagram of a vehicle seat assembly with numbered parts labeled 1 to 5

Technical diagram of a vehicle seat assembly with numbered parts labeled 1 to 5

Technical diagram of a car seat assembly with numbered parts labeled 1 to 5

Technical diagram of a mechanical device with numbered parts labeled 1 through 5

Technical diagram of a car seat assembly with numbered parts labeled 1 to 5

APPARATETS PLACERING

Technical diagram of a mechanical device with numbered parts labeled 1 through 5

Technical diagram of a car seat assembly with numbered parts labeled 1 to 5

1. Rugleuningverstelling
2. Stoel tillen
3. Zitverstelling
4. Linker voetsteun verstelling
5. Afstelling rechtervoetsteun

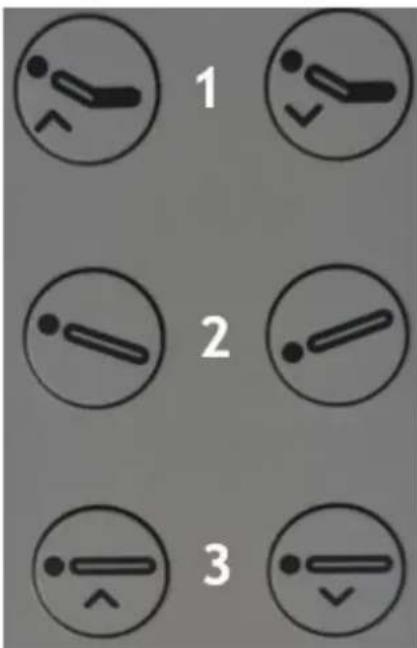

Pilootbediening:

1 2 3

1 – Rugleuning omhoog/omlaag zetten

PLAATS VAN HET APPARAAT

Technical diagram of a vehicle seat assembly with numbered parts labeled 1 to 5

Technical diagram of a car seat assembly with numbered parts labeled 1 to 5

APPARATENS PLACERING

Technical diagram of a vehicle seat assembly with numbered parts labeled 1 to 5

Technical diagram of a mechanical device with numbered parts labeled 1 through 5

Technical diagram of a car seat assembly with numbered parts labeled 1 to 5

Technical diagram of a mechanical device with numbered parts labeled 1 through 5

Technical diagram of a mechanical device with numbered parts labeled 1 through 5

1. Podešavanje naslona
2. Dizanje stolice
3. Podešavanje sjedala
4. Podešavanje oslonca za lijevu nogu
5. Podešavanje naslona za desnu nogu

Pilot rad:

1 2 3

1 – Podizanje/spuštanje naslona
2 – Naginjanje stolice unazad / naprijed
3 – Podizanje/spuštanje cijele stolice

3.2. Priprema za upotrebu

POLOŽAJ APARATA

Temperatura okoline ne smije biti viša od 40°C, a relativna vlažnost zraka manja od 85%. Osigurajte dobru ventilaciju u prostoriji u kojoj se uređaj koristi. Razmak između svake strane uređaja i zida ili drugih predmeta mora biti najmanje 10 cm. Uređaj uvijek treba koristiti postavljen na ravnu, stabilnu, čistu, vatrostalnu i suhu površinu, te biti izvan dohvata djece i osoba s ograničenim mentalnim i osjetilnim funkcijama. Postavite uređaj tako da uvijek imate pristup utikaču. Kabel za napajanje spojen na uređaj mora biti pravilno uzemljen i odgovarati tehničkim podacima na etiketi proizvoda.

3.3. Sastavljanje uređaja

1. Raspakirajte paket i provjerite jesu li sve komponente prisutne i nisu oštećene.
2. Kako bi stolica bila čvrsto pričvršćena, potrebno ju je pričvrstiti za pod.
3. Ako stolica stoji na neravnom terenu, namjestite noge pričvršćene za bazu uređaja.
4. Spojite utikač na napajanje.

Technical diagram of a car seat assembly with numbered parts labeled 1 to 5

Technical diagram of a vehicle seat assembly with numbered parts labeled 1 to 5

Technical diagram of a mechanical device with numbered parts labeled 1 through 5

For the disposal of the device please consider and act according to the national and local rules and regulations.
