Product type	Wireless charger for mobile phone
Brand	IKEA
Model	LIVBOJ 504.574.88
Wireless charging standard	Qi 1.2.4 BPP
Input voltage	5.0 V DC
Input current	2.0 A
Input connector type	USB Type-C
Transmission frequency	112 kHz - 148 kHz
Output power	33 dBμA/m at 3 m
Compatibility	Qi compatible devices
Indicator light	LED status (lit when charging, off when finished, flashes if error)
Operating temperature	0°C to 40°C
Storage temperature	-20°C to 25°C
Usage	Indoor only
Cleaning	Wipe with a damp cloth; do not immerse
Safety	Protection against temperature and overloads
Certification	Compliant with Qi 1.2.4 BPP standard
Minimum exposure distance	10 cm
Recycling	Sort according to local regulations (crossed-out wheelie bin symbol)

Frequently Asked Questions - LIVBOJ 504.574.88 IKEA

How to use the LIVBOJ charger?

Connect the USB cable to the adapter and the charger, then plug into a power outlet. Place your phone on the (+) sign of the charger for optimal charging. Make sure wireless charging is enabled in your phone's settings.

What does the LED indicator mean?

The LED lights up for 3 seconds when powered on. It stays lit during charging, turns off when charging is complete, and flashes in case of an error (e.g., misalignment or incompatible device).

My phone is not charging, what should I do?

Check that your phone is compatible with Qi technology and that wireless charging is enabled. Place it exactly on the (+) sign. Make sure the cable and adapter are working. If the battery is completely drained, wait a few minutes.

Can I use a different USB cable?

Yes, but the length and quality of the cable affect charging speed and performance. Preferably use a good quality, undamaged cable. A defective cable may damage the equipment or your phone.

The charger is heating up, is this normal?

Yes, it is completely normal for devices to heat up during charging. They will gradually cool down once charging is complete. If the heat is excessive, check that the environment is well ventilated and that the charger is not exposed to sunlight.

Which devices are compatible with the LIVBOJ charger?

All devices compatible with the Qi standard can be charged, including most recent smartphones, earphones, and smartwatches. Check that your device supports wireless charging.

How to clean the charger?

Unplug the charger before cleaning. Wipe it with a damp cloth. Never immerse the charger in water and do not use abrasive products.

Where can I find detailed technical specifications?

The specifications are indicated on the back of the charger. Also consult the instruction manual for complete information, including the transmission frequency (112-148 kHz) and output power.

Is the charger safe?

Yes, the charger has protection against temperature and overloads. It is certified compliant with the Qi standard. Use it only in a dry place and do not attempt to repair it yourself.

How to recycle the LIVBOJ charger?

The crossed-out wheelie bin symbol indicates that the product must be recycled in accordance with local regulations. Contact your IKEA store for more information on electronic waste sorting.

USER MANUAL LIVBOJ 504.574.88 IKEA

Design and Quality IKEA of Sweden

English 6

Deutsch 10

Français 14

Nederlands 18

Dansk 22

Íslenska 26

Norsk 30

Suomi 34

Svenska 38

Español 42

Portugues 46

Ελληνικά 50

Türkçe 54

عربي 58

Italiano 62

Charger features

- USB power adapter (5.0V, 2.0A) and USB Type-C cable not included.

- Wirelessly charges Qi-certified devices.

• Certified according to specification Qi 1.2.4 BPP.

• Temperature and power monitor for safety.

• LED status indicator.

Instructions for use

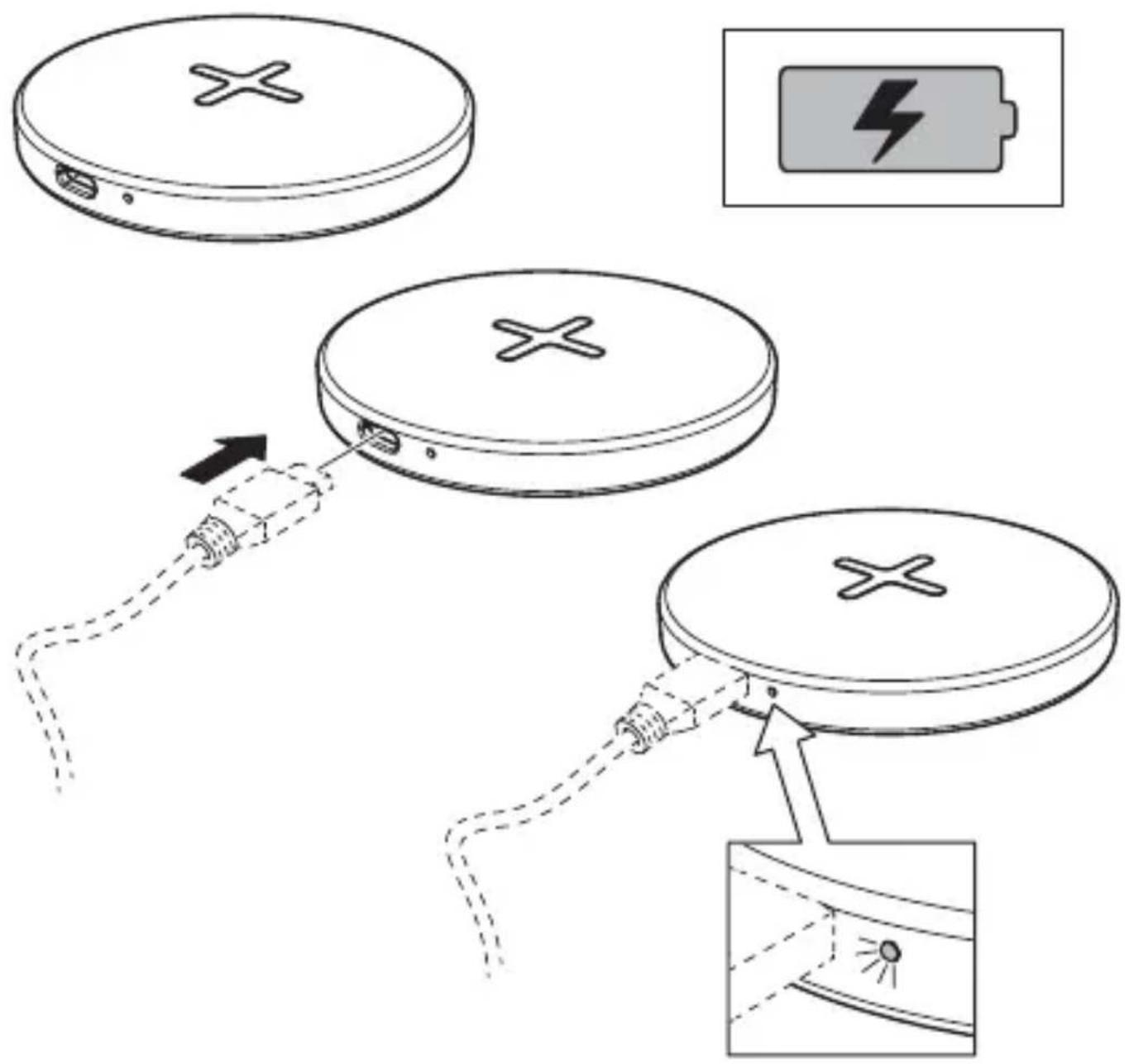

- Connect the USB cable to the power adapter and to LIVBOJ. Plug it into the wall socket.

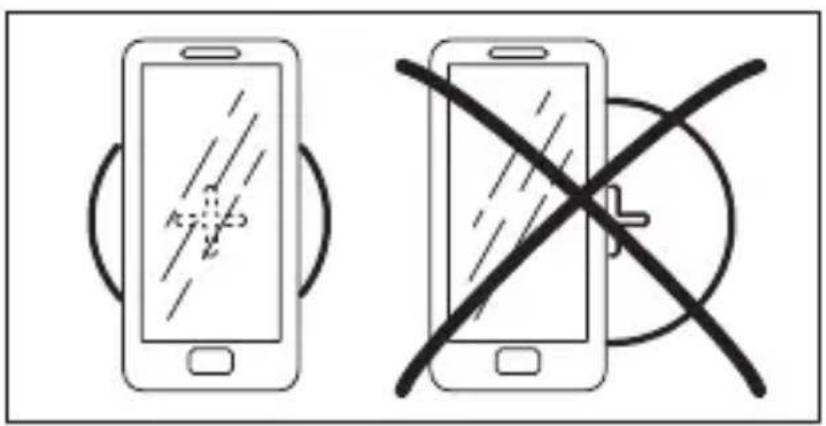

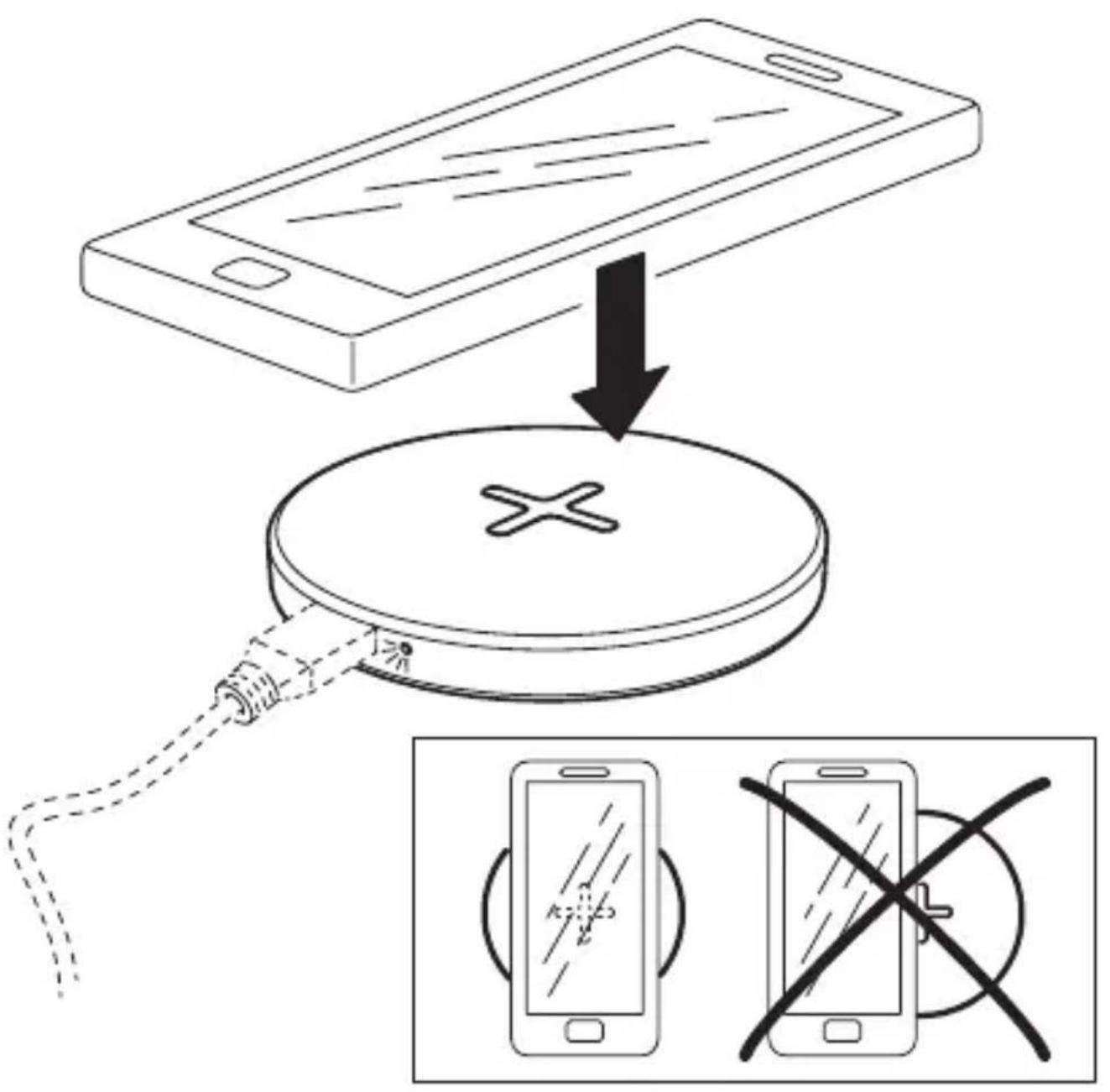

- For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.

- If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.
2. Charging: LED on.
3. Charging completed: LED off.
4. Error: LED flashes.

Good to know

• USB cable length and quality influences charging speed and performance.
  • Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
• Charger storage temperature: -20^ to 25^ .
• Charger operating temperature: 0^ to 40^ .
• Unplug the charger from the power source before cleaning and when it is not in use.
  • To clean the charger, wipe with a moist cloth.
• Never submerge the charger in water.

Recommended precautionary measures and technical data: see the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-certified.
• The wall socket must be located near the equipment and must be easily accessible.

• Only use in dry locations.

• Children should be supervised to ensure they do not play with the product.

• Never use a damage or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E2130

Input: 5.0V DC, 2.0A USB Type-C

Indoor use only

Operating frequency: 112 kHz - 148 kHz

Output power: 33 dBμA/m at 3m

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The ‘Qi’ symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
