Product Type	Wireless Phone Charger
Brand	IKEA
Model	LIVBOJ 404.470.51
Input Power	5.0 V DC, 2.0 A (USB Type-C)
Wireless Output Power	5 W (Qi BPP standard)
Charging Standard	Qi 1.2.4 BPP (Basic Power Profile)
Compatible Devices	Any Qi-compatible device (phone, earphones, etc.)
LED Indicator	LED: on for 3s at startup, constant during charging, off when charging complete, flashing in case of error
Operating Temperature	0 °C to 40 °C
Storage Temperature	-20 °C to 25 °C
Usage	Indoor only
Cleaning	Wipe with a damp cloth; never immerse
Safety	Do not repair yourself, use in a dry place, keep out of reach of children
Transmission Frequency	112 kHz - 148 kHz
RF Output Power	33 dBμA/m at 3 m
Minimum Exposure Distance	10 cm
Dimensions (approx)	Approx. 10 x 10 x 1 cm
Weight (approx)	Approx. 100 g
Cable Type Required	USB Type-C (not included)
Repairability	Not user-repairable; contact IKEA in case of failure
Recycling	Wheelie bin symbol: sort and recycle according to local regulations

Frequently Asked Questions - LIVBOJ 404.470.51 IKEA

How to use the LIVBOJ charger?

Connect the USB Type-C cable (not included) to a power adapter (5V, 2A) and to the charger, then plug the adapter into a socket. Place your Qi-compatible phone on the (+) symbol of the charger. Make sure the wireless charging function is enabled in your phone settings.

What do the LED indicators mean?

LED on for 3 seconds: power on. LED steady: charging in progress. LED off: charging complete. LED flashing: error (e.g., misalignment or incompatible device).

My phone does not charge, what to do?

Check if your phone is Qi-compatible and the charger is properly plugged in. Place the phone exactly on the (+) sign of the charger. Enable wireless charging in phone settings. If the battery is completely drained, wait a few minutes. If the problem persists, try another adapter or USB cable.

What is the charging speed?

The LIVBOJ provides 5 W output power (Qi Basic Power Profile). The speed depends on battery capacity, initial charge level, battery age, and ambient temperature. Charging is slower than with a fast wired charger.

Are all phones compatible?

Only devices compatible with Qi technology can be charged. Check your phone documentation to verify. Recent models from many manufacturers (Apple, Samsung, Google, etc.) are compatible.

Can I use a non-IKEA adapter or cable?

Yes, as long as it provides at least 5V and 2A via a USB Type-C port. Cable quality and length affect performance. Never use a damaged cable.

The charger heats up, is this normal?

Yes, it is normal for the charger and phone to heat up during charging. They cool down gradually after charging ends. If the temperature becomes excessive, unplug the charger and check it is not obstructed.

How to clean the charger?

Unplug the charger before cleaning. Wipe it with a damp cloth (not wet). Never immerse the charger in water and do not use harsh chemicals.

What to do if the charger is damaged?

Do not attempt to repair it yourself. Unplug it immediately and contact IKEA customer service. Opening the casing may cause electric shock.

Is the charger safe for overnight use?

Yes, the charger has temperature and charging control for added safety. The LED turns off when charging is complete. However, do not cover the charger and place it on a hard, flat surface.

USER MANUAL LIVBOJ 404.470.51 IKEA

Design and Quality IKEA of Sweden

English 6

German 10

French 14

Dutch 18

Danish 22

Icelandic 26

Norwegian 30

Finnish 34

Swedish 38

Spanish 42

Portuguese 46

Greek 50

Turkish 54

Arabic 58

Italian 62

Charger features

- USB power adapter (5.0V, 2.0A) and USB Type-C cable not included.

- Wirelessly charges Qi-certified devices.

• Certified according to specification Qi 1.2.4 BPP.

• Temperature and power monitor for safety.

- LED status indicator.

Instructions for use

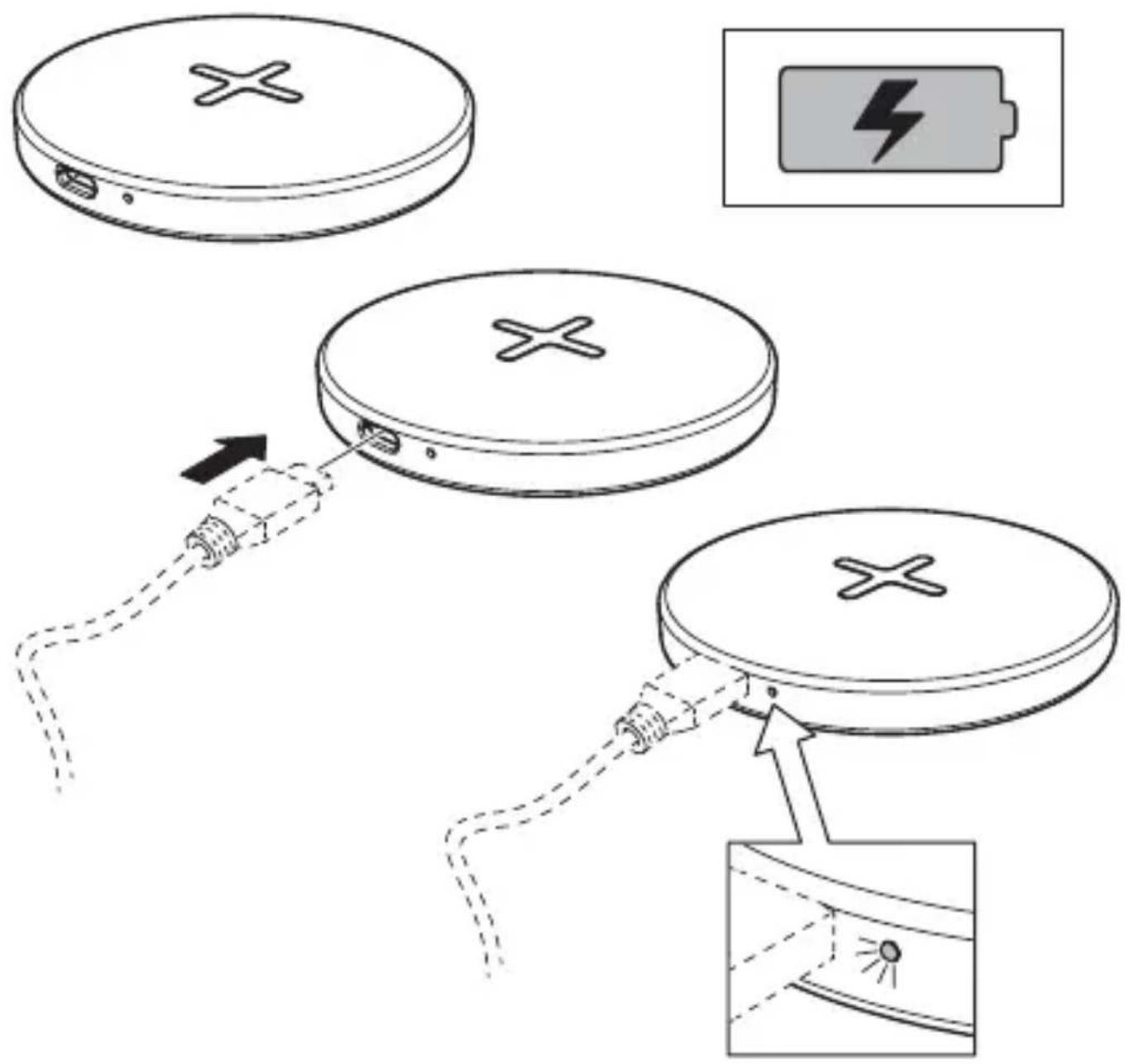

- Connect the USB cable to the power adapter and to LIVBOJ. Plug it into the wall socket.

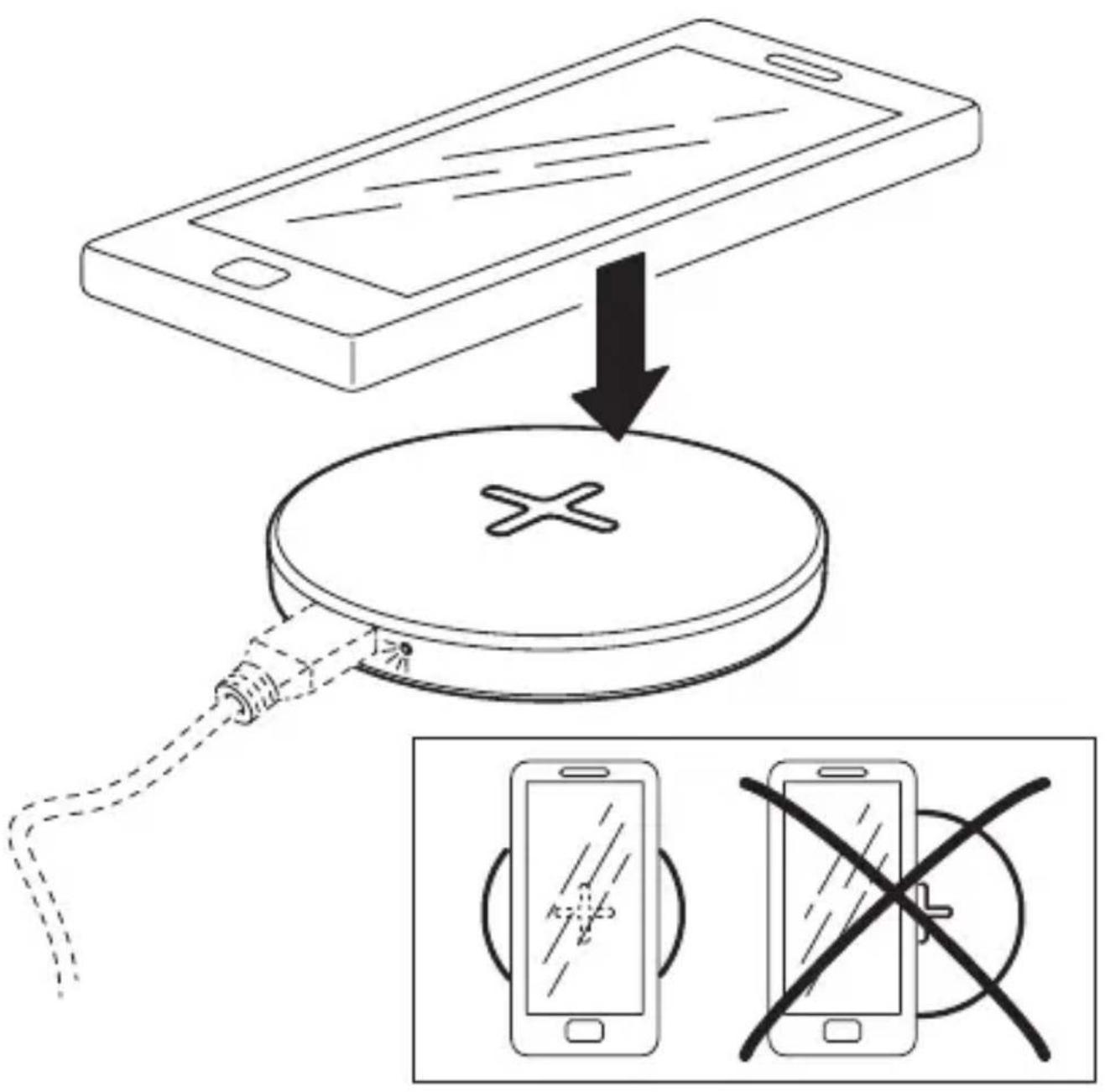

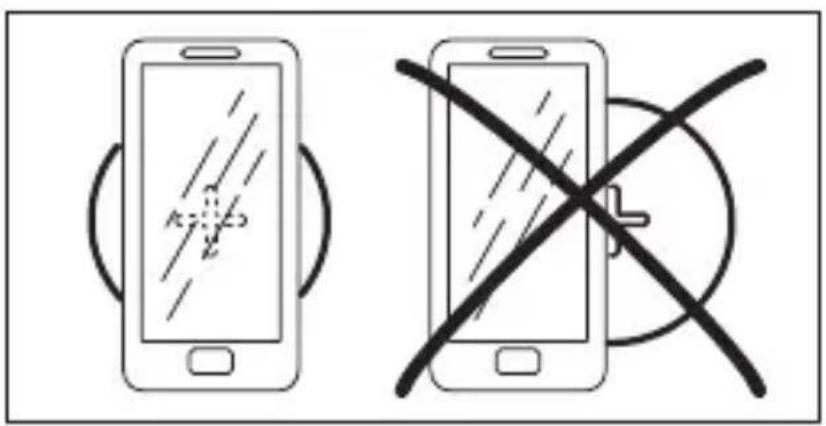

- For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.

- If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging when the battery symbol appears on your phone.

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.
2. Charging: LED on.
3. Charging completed: LED off.
4. Error: LED flashes.

Good to know

• USB cable length and quality influence charging speed and performance. Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
• Charging time may vary based on the device's battery capacity, charge level, the age of the battery, and the temperature in the surrounding area.
• Charger storage temperature: -20°C to 25°C.
• Charger operating temperature: 0°C to 40°C.
• Unplug the charger from the power source before cleaning and when it is not in use. To clean the charger, wipe with a moist cloth.
• Never submerge the charger in water.

Recommended precautionary measures and technical data: see the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-certified.
• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
• Children should be supervised to ensure they do not play with the product.
• Never use a damaged or faulty USB cable for charging, since this can damage the appliance and harm your device.

Product servicing

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E2130

Input: 5.0V DC, 2.0A USB Type-C

Indoor use only

Operating frequency: 112 kHz - 148 kHz

Output power: 33 dBμA/m at 3m

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The 'Qi' symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Producer: IKEA of Sweden AB

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

LED indicator (see images):
