USER MANUAL MOF30310S BEKO

Simple icon of a microwave oven with a steaming bowl (no text or symbols)

MOF 30310 S

EN - IT - CZ - PL - FR - RO

CONTENTS

ENGLISH	3-18
ITALIANO	19-37
ČESKY	38-56
POLSKI	57-77
FRANÇAIS	78-95
ROMÂNĂ	96-117

Please read this manual first!

Dear Customer,

Thank you for selecting a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the symbols

Following symbols are used in the various section of this user manual:

Important information and useful hints about usage.

Warnings for dangerous situations concerning the safety of life and property.

Warning for electric shock.

Warning for hot surfaces.

1 Important safety and environmental instructions

Important Safety Instructions Read Carefully And Keep For Future Reference

1.1 Safety warnings

This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty.

- Beko Microwave Ovens comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user.

- This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

• Farm houses
  — By clients in hotels, and other residential type environments;
• Bed and Breakfast type environments.

- It is not intended for industrial or laboratory use.

- Do not attempt to start the oven when its door is open; otherwise you may be exposed to harmful microwave energy. Safety locks should not be disabled or tampered with.

- The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

- Do not place any object between the front side and the door of the oven. Do not allow dirt or cleaning agent remnants to build up on the closure surfaces.

- Any service works involving removal of the cover that provides protection against exposure to

1 Important safety and environmental instructions

microwave energy must be performed by authorized persons/service. Any other approach is dangerous.

- Your product is intended for cooking, heating and defrost food at home. It must not be used for commercial purposes.

- Your oven is not designed to dry any living being.

- Do not use your appliance to dry clothes or kitchen towels.

- Do not use this appliance outdoors, bathrooms, humid environments or in places where the it can get wet.

- No responsibility or warranty claim shall be assumed for damages arising from misuse or improper handling of the appliance.

- Never attempt to dismantle the appliance. No warranty claims are accepted for damage caused by improper handling.

- Only use the original parts or parts recommended by the manufacturer.

- Do not leave this appliance unattended while it is in use.

- Always use the appliance on a stable, flat, clean dry, and non-slip surface.

- The appliance should not be operated with an external clock timer or separate remote control system.

- Before using the appliance for the first time, clean all parts. Please see the details given in the “Cleaning and Maintenance” section.

- Operate the appliance for its intended purpose only as described in this manual.

• Appliance becomes very hot while it is in use. Pay attention not to touch the hot parts inside the oven.

- Do not operate the oven empty.

- Cooking utensil may get hot due to the heat transferred from the heated food to the utensil. You may need oven gloves to hold the utensil.

1 Important safety and environmental instructions

• Utensils shall be checked to ensure that they are suitable for use in microwave ovens.
• Do not place the oven on stoves or other heat generating appliances. Otherwise, it may be damaged and the warranty becomes void.
• Steam may come out while opening the covers or the foil after cooking the food.
• The appliance and its accessible surfaces may be very hot when the appliance is in use.
• Door and outer glass may be very hot when the appliance is in use.
• Make sure that your mains power supply complies with the information supplied on the rating plate of the appliance.
• The only way to disconnect the appliance from the power supply is to remove the power plug from the power outlet.

• Use the appliance with a grounded outlet only.

• Never use the appliance if the power cable or the appliance itself is damaged.

• Do not use this appliance with an extension cord.
• Never touch the appliance or its plug with damp or wet hands.
• Place the appliance in a way so that the plug is always accessible.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame.
• Make sure that there is no danger that the power cable could be accidentally pulled or that someone could trip over it when the appliance is in use.
• Unplug the appliance before each cleaning and when the appliance is not in use.
• Do not pull the power cable of the appliance to disconnect it from its power supply and never wrap its power cable around the appliance.

1 Important safety and environmental instructions

• Do not immerse the appliance, power cable, or power plug in water or any other liquids. Do not hold it under running water.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• Remove the wire strings and/or metal handles of paper or plastic bags before placing bags to the oven.
• If smoke is observed, switch off or unplug the appliance if safe to do so and keep the door closed in order to stifle any flames.
• Do not use microwave oven for storage. Do not leave paper items, cooking material or food inside the oven when it is not being used.
  • The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
  • This appliance is a Group 2 Class B ISM equipment. Group 2

contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment.

• Class B equipment is suitable for use in domestic establishments and establishments directly connected to a low voltage power supply network.

- Do not use cooking oil in the oven. Hot oil may damage the components and materials of the oven, and it may even cause skin burns.

- Pierce food with thick crust such as potatoes, courgettes, apples and chestnuts.

• Appliance must be placed so that the rear side is facing the wall.

- Before moving the appliance, please secure the turntable to prevent damage.

• Eggs in their shell and whole hard-boiled eggs must not be

1 Important safety and environmental instructions

heated in microwave ovens since they may explode, even after microwave heating has ended.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

• The oven should be cleaned regularly and any food deposits removed.
• There should be min 20 cm free space above the top surface of the oven.

- Do not over-cook foods; otherwise, you may cause a fire.

- Do not use chemicals and steam assisted cleaners to clean the appliance.

- Extreme caution is advised when being used near children and persons who are restricted in their physical, sensory or mental abilities.

- This appliance can be used by the children who are at the age of 8 or over and by the people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, as long as they are supervised with regard to safe use of the product or they are instructed accordingly or understand the risks of using the product. Children should not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Danger of choking! Keep all the packaging materials away from children.

- Due to excessive heat that arises in grill and combination modes,

1 Important safety and environmental instructions

children should only be allowed to use these modes under supervision of an adult.

• Keep the product and its power cable so that they are inaccessible by children under 8 years old.
• Do not cook food directly on the glass tray. Put the food in / on appropriate kitchen utensils before placing them in the oven.
• Metallic containers for food and beverages are not allowed during microwave cooking. Otherwise, sparking may occur.
• This product is not designed to be built-in. Do not place the product in a cabinet or box while it is in use.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
  • The appliance shall not be cleaned with a steam cleaner.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your microwave oven

2.1 Overview

Technical diagram of a microwave oven with labeled components including door, inner casing, and wheels

Controls and parts

1. Control panel
2. Turntable support
3. Shaft
4. Glass tray
5. Oven door

2.2 Technical data

Rated voltage 230V~, 50Hz
Rated input (Microwave) 1440 W
Rated output (Microwave) 900 W
Microwave frequency 2450MHz
Glass tray diameter 315 mm
Capacity 30 L

Technical and design modification rights are reserved.

Markings on the appliance or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions.

2 Your microwave oven

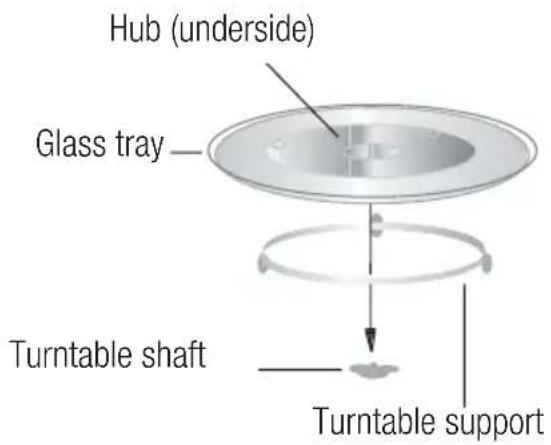

2.3 Installing the turntable

- Never place the glass tray upside down. The glass tray should never be restricted.

- Both glass tray and turntable support must always be used during cooking.

- All food and containers of food must always place on the glass tray for cooking.

- If glass tray or turntable support crack or break, contact your nearest authorized service center.

Hub (underside) Glass tray Turntable shaft Turntable support

3 Installation and connection

3.1 Installation

1. Make sure that all the packing materials are removed from the inside of the door.

WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

1. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
2. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
3. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
4. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
5. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
6. The socket must be readily accessible so that it can be easily unplugged in an emergency.
7. Do not use the oven outdoors.

3.2 Radio interference

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.

2. Reorient the receiving antenna of radio or television.

3. Relocate the microwave oven with respect to the receiver.

4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

3.3 Microwave cooking principles

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

3.4 Grounding instructions

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

3 Installation and connection

If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

Neither the manufacturer nor the dealer can accept any liability for damage to the ov or personal injury resulting from failure to observe the electrical connection procedure

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

3.5 Utensils guide

1. Microwave cannot penetrate metal. Only use utensils that are suitable for use in microwave oven. Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal elements which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends overcook.
5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be ca don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

Cookware Microwave Notes
Heat-Resistant glass Yes
Non heat-Resistant glass No
Heat-Resistant ceramics	Yes	Never use the ceramics which are decorated with metal rim or glazed
Heat-Resistant plastic Yes Can not be used for long time microwave cooking
Plastic film	Yes	It should not be used when cooking meat or chops as the over-temperature may do damage to the film
Grill rack No
Aluminum Foil & Foil Containers No

4 Operation

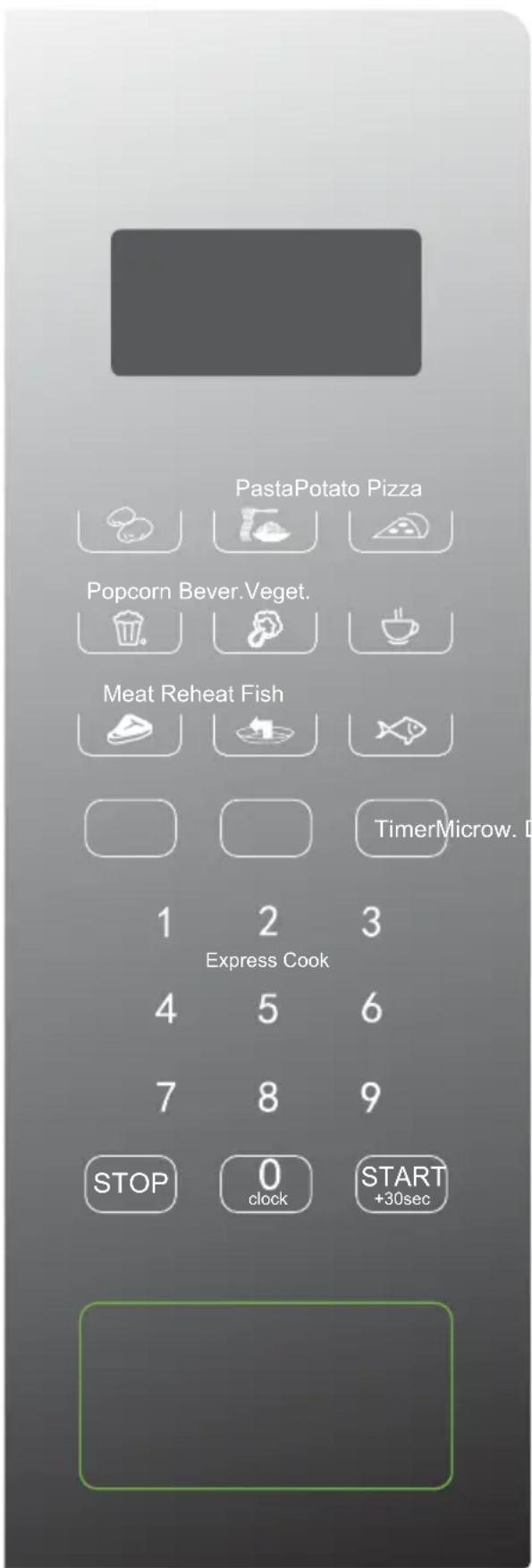

4.1 Control panel

PastaPotato Pizza Popcorn Bever.Veget. Meat Reheat Fish TimerMicrow. D 1 2 3 Express Cook 4 5 6 7 8 9 STOP 0 START clock +30sec

Before cooking

The display lit up when plugged in power supply, then enter the standby state and display shows 1:00.

4.2 Microwave function

There are five firepower levels, 100P, 80P, 50P, 30P and 10P, respectively.

1. Press the "Microw." button continuously and select the desired microwave power.
2. Press 0\~9 number buttons to input the cooking time, the maximum time that can be input is 99:99.
3. After entering the cooking time, press "START/+30s" button to start work.
4. An buzzing sound to notify completion of the operation.

HIGH 100% power output	(Applicable for quick and thorough cooking)
M.High 80% power output	(Applicable for medium express cooking)
Med 50% power output	(Applicable for steaming food)
M.Low 30% power output	(Applicable for defrosting food)
LOW 10% power output	(Applicable for keeping warm)

• The max time which can be set is 99 minutes and 99 seconds.
• If you turn the food during operation, press the START/+30s button once and the preset cooking procedure will continue.
• If you intend to remove the food before the preset time, you must press STOP button once to clear the preset procedure to avoid unintended operation of next time use.

4 Operation

• Never use the grill rack during microwave cooking.
• Never operate the oven empty.
• At the maximum microwave power, the oven will automatically lower the power after a certain time of cooking to lengthen the service life.

4.3 Defrost

There are two defrost mode, dEF1 and dEF2, respectively. dEF1 for defrost by weight and dEF2 for defrost by time.

1. Press "Defrost" button to select defrosting by weight or by time, the display screen displays "dEF1" or "dEF2".
2. Press 0\~9 number buttons to input the food weight or defrosting time.
3. The weight range of dEF1 can be set from 100g to 1500g and the maximum time that dEF2 can input is 99:99.
4. After entering, press the "START/+30s" button start to work.
5. An buzzing sound to notify completion of the operation.

The dEF1 defrost mode by weight will have beeping sound to prompt the food to be turned over during defrosting.

Below is some food defrosting time advice:

dEF1 For	defrosting, the weight range is from 100g to 1500g.
dEF2 For	defrosting, the maximum time is 99:99

• It is necessary to turn over the food during operation to obtain a uniform effect.
  • Usually defrosting will need a longer time than that cooking the food.

• If the food can be cut by knife, the defrosting process can be considered completed.
• Microwave penetrates around 4cm into most food.

Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.

4.4 Auto cooking

There are eight automatic menus, potato, pasta, pizza, vegetable, beverage, meat and fish respectively.

1. Select the desired menu.
2. Press the corresponding button which to be selected continuously to select the desired food weight, and the display shows the corresponding weight.
3. Press "START/+30s" button to start work.
4. An buzzing sound to notify completion of the operation.

Display Kind Method
A.1 Potato	The optional	weight are 250g, 500g and 750g.
A.2 Pasta	The optional	weight are 50g, 100g and 150g.
A.3 Pizza	The optional	weight are 200g and 400g.
A.4 Popcorn	The optional	weight is100g.
A.5 Vegetable	The optional	weight are 200g, 400g and 600g.
A.6 Beverage	The optional	weight are 1 cup, 2 cups or 3 cups, each one about 250ml.
A.7 Meat	The optional	weight are 200g, 400g and 600g.
A.8 Fish	The optional	weight are 200g, 400g and 600g.

4 Operation

• The temperature of food before cooking would be 20-25°C. Higher or lower temperature of the food before cooking would require increase or decrease of cooking time.
• The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result.

4.5 Timer

In standby mode, press this button to enter the setting interface, and the countdown function icon and "0:00" will be displayed on the display screen.

1. Press the 0 \~ 9 number buttons to input the time. The maximum time that can be input is 99:99.
2. After setting the time, press the "START/+ 30s" button to begins the countdown.
3. An buzzing sound to notify completion of the countdown.

4.6 Reheat

Reheat function is mainly to facilitate users to heat food according to the weight of food.

1. Press "Reheat" button continuously, select the appropriate weight of food, the weight range can be selected are 200g, 400g, 600g, 800g and 1000g.
2. After select the weight, press "START/+30s" button to start work, an buzzing sound to notify completion of the operation.

4.7 Express cooking

There're two ways of Express cooking.

- In standby mode, you can directly press the 1\~6 number buttons to start the microwave oven. The working time is 1\~6 minutes, that is, press 1 to work for 1 minute, press 2 to work for 2 minutes, and so on. After select the time, press

"START/+30s" button to start work, an buzzing sound to notify completion of the operation.

- In standby mode, after putting food in and closing the door, press the “START/+30s” button to start the microwave quickly. The default working time is 30 seconds. In the working process, press the “START/+30s” button once for 30 seconds. An buzzing sound to notify completion of the operation.

4.8 0/Clock

The clock function and "0" button are combined in one button. The clock is 24-hour system.

The operation of the clock function is as follows:

In standby mode, press "0/Clock" button for more than 3 seconds to enter the clock setting interface, press the 0 \~ 9 number buttons to input the clock time directly and press the "START/+30s" button to confirm the specified time and exit the clock setting mode.

4.9 Stop

In the process of cooking settings, can press "STOP" button to cancel the settings and return to standby state. In the process of microwave oven working, can press "STOP" button to pause. In the standby state, can press "STOP" button again to cancel the function and return to standby state.

4.10 START/+30s

After setting the cooking time or food weight, press "START/+30s" button to start microwave oven immediately.

In working state, can press "START/+30s" button to increase time, press one time to increase 30 seconds, but the menu mode and weight defrosting mode cannot adjust time.

In pause state, can press "START/+30s" button to continue the microwave oven before cooking mode.

4 Operation

4.11 Child lock

Use this feature to lock the control panel when you are cleaning or so that children can not use the oven unsupervised. All the buttons are rendered inoperable in this mode.

• Set lock: Hold STOP button about 3 seconds.
• Cancel lock: Hold STOP button about 3 seconds

5 Cleaning and care

5.1 Cleaning and care

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

WARNING: Never immerse the appliance or its power cable in water or in any other liquid.

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Wait for the appliance to completely cool down.
3. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
4. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
5. Wipe the both sides of the door and window, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.

6. A steam cleaner is not be used.

7. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.

8. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
9. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
10. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
11. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
12. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

5 Cleaning and care

1. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
2. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.
3. When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

5.2 Storage

• If you do not intend to use the appliance for a long time, please store it carefully.
• Please make sure that the appliance is unplugged, cooled down and totally dry.
• Store the appliance in a cool and dry place.
• Keep the appliance out of the reach of children.

5.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.

Diagram showing a mechanical assembly with labeled components and directional arrows, including 'au' text.

Blank gray rectangle with a light green border (no text or symbols)

4 Fonctionnement

Diagram of a mechanical assembly with a circular component and a downward arrow, no text or symbols present.

Ax disc turnant

Suport disc turnant

3.1 Instalare
