UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.

8-Ø10mm hole depth65mm 234mm Ø190mm hole 234mm 210mm 210mm

Technical line drawing of a mechanical component with directional arrows, labeled Fig.6 (no text or symbols on the diagram itself)

Fig.4 Fig.5

(3). Instalação

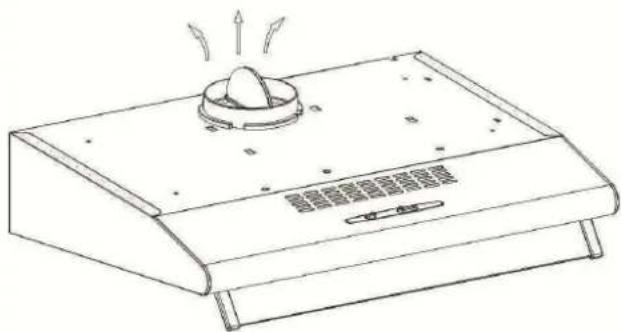

4 - Exaustor Tradicional

Exterior Interior

Line drawing of a kitchen air conditioner with a lid and heat exchanger (no text or symbols)

Line drawing of a kitchen appliance with a circular vent and directional arrows (no text or symbols)

MIN MED ALTA LUZ

FIG6A

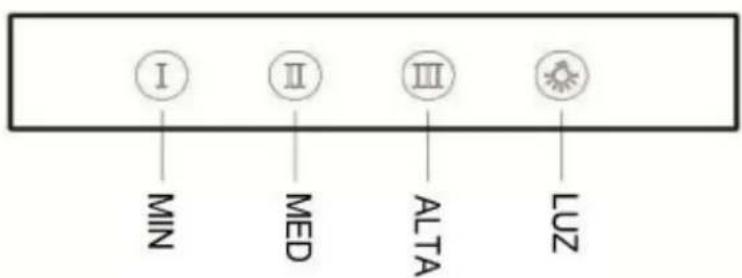

I MIN II MED III ALTA LUZ

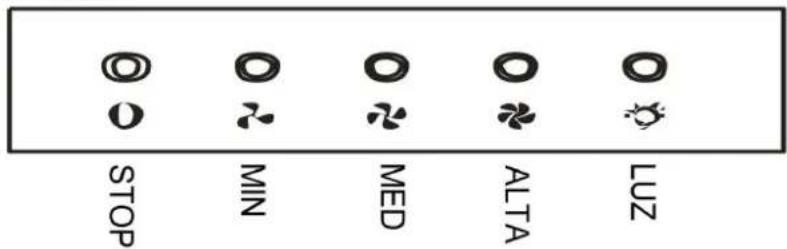

Botões

STOP MIN MED ALTA LUZ

FIG6C

Diagram of a conical container with internal grid pattern and directional arrows indicating flow or movement

Simple line drawing of a hat with a textured top and a flat base, no text or symbols present.

Simple line drawing of a hat and keyboard (no text or symbols)

(1).....Notice
(2)....Feature
(3)....Installation
(4)....Air education setting
(5).....Notice of installation
(6)....Safety Warning
(7).....Use
(8)....Maintenance
(9).....Abnormity and Solution
(10)...... Warranty card

(1) NOTICE

1. Thank you for choosing our cooker hood. Please read the instruction manual carefully before use.

2. The installation work must be undertaken by a qualified and competent fitter.

3. The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in the following text.

The cooker hood is used on 220/240v, 50Hz.

(2)FEATURE

1. The cooker hood uses high quality materials, and is made with a streamlined design.

2. Equipped with a large power low noise electric motor and centrifugal leaf, it produces strong suction, low noise, non stick grease filter and easy to clean.

3. With the isolated low voltage circuit board control, 12vDC input, the lights are therefore safer.

4. Special wind tunnel construction and oil collector design, free dirt will be absorbed in a second.

(3). Installation

Product one:

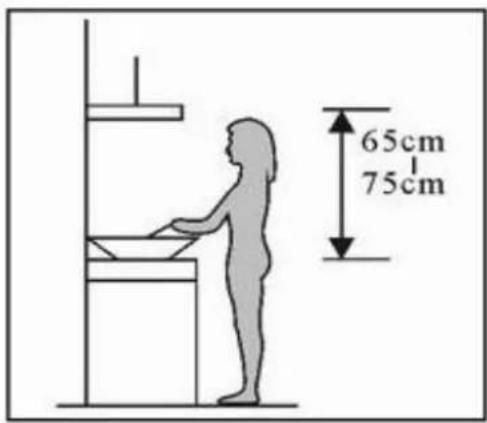

3.1 The cooker hood should be placed at a of 65-75cm(26-30inch)from the cooking surfac the best effect.See the Pic 1.

3.2 Install the hook on a suitable place one installation height is fixed, and keep it in line fixed position of the inside chimney bracket place of chimney.

3.3 Fix the outside chimney bracket on the chimney, and be sure that the inside chimney adjusted the height in in freely as well as extensible pipe. Afterwards, install the extensible pipe and chimney on the cooker hood. See I

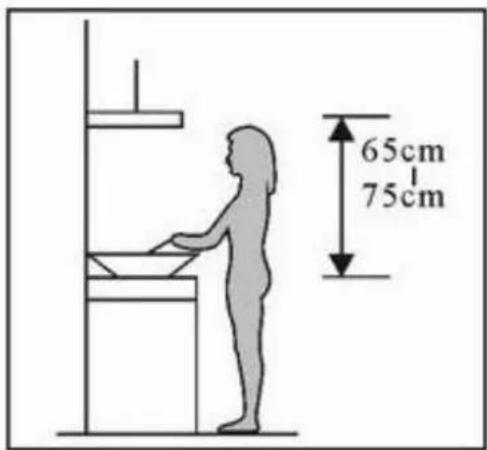

65cm 75cm

Pic1

3.4 Put the cooker hood on the hook.See Pic 4.

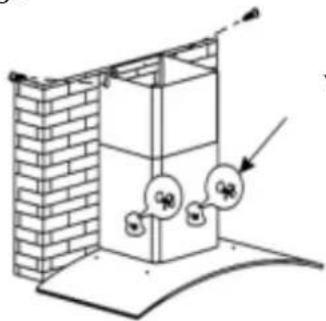

3.5 Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by screw, after adjusting the position, fix the body with safety screw, See Pic 5.

Note: The two safety vents are positioned on the back casing, with diameter of 6mm.

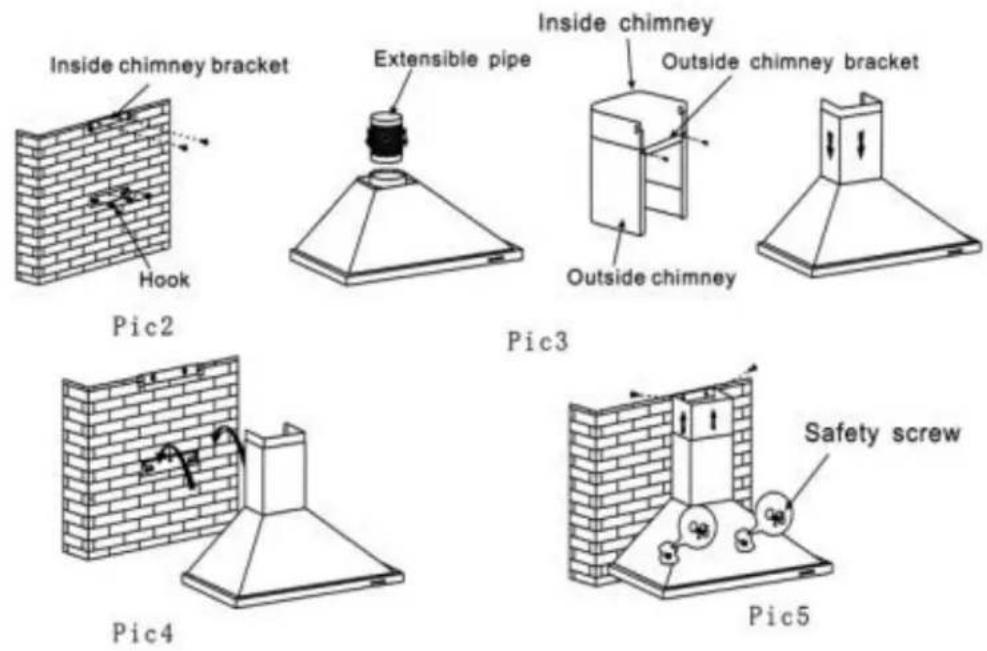

Inside chimney bracket Hook Pic2 Extensible pipe Inside chimney Outside chimney bracket Outside chimney Pic3 Pic4 Safety screw Pic5

(3). Installation Product two(glass canopy):

3.1 The cooker hood should be placed at a of 65-75cm(26-30inch) from the cooking surface the best effect. See the Pic. 1.
3.2 Install the hook on a suitable place one installation height is fixed, and keep it in line fixed position of the inside chimney bracket place of chimney.
3.3 Fix the extensible pipe according to the direction and way, and then put the cooker by the hook. See Pic 3.
3.4 Put the glass according to the lead dire way on the cooker hood, and then use the s fix the glass, also lead the extensible pipe on the room, meanwhile adjust the height of the chimney to the position of the inside chimney

65cm 75cm

Pic1

bracket and fix on it by screw, here should be sure the inside chimney can be flexed freely. See Pic 4.

3.5 Put the two chimneys together onto the cooker hood body, meanwhile adjust the height of the inside chimney into the suitable height, and fix the inside chimney to the inside chimney bracket by screw. Finally, fix the body with safety screw. See Pic 5.

Note: The two safety vents are positioned on the back casing, with diameter of 6mm.

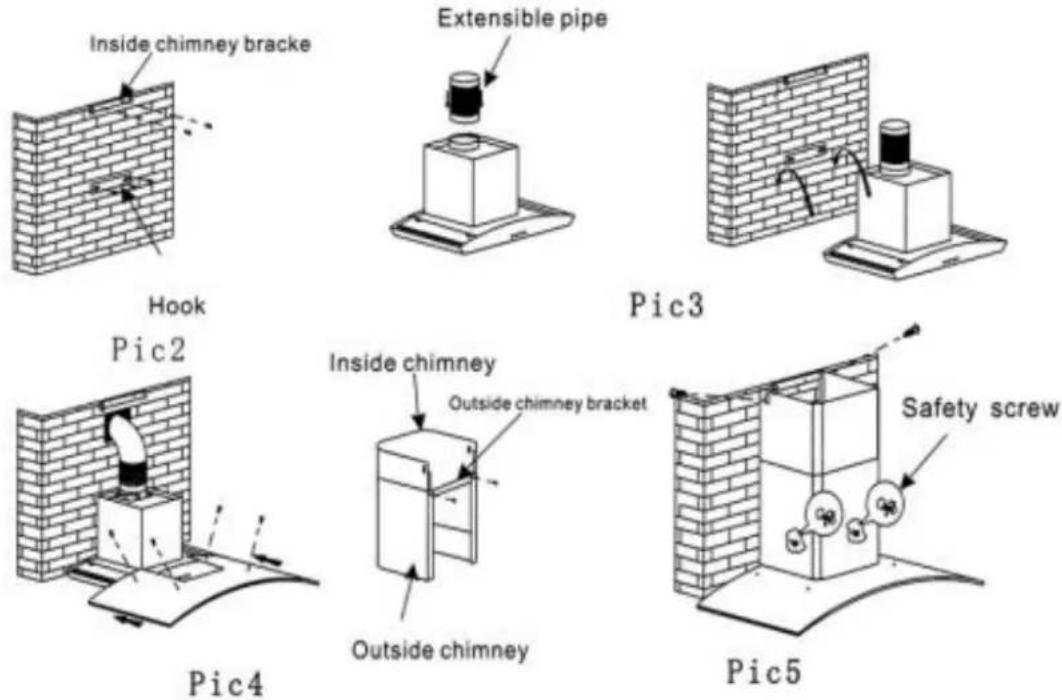

Inside chimney bracke Extensible pipe Hook Pic2 Pic3 Inside chimney Outside chimney bracket Outside chimney Pic4 Safety screw Pic5

(3). Installation

Product three( island):

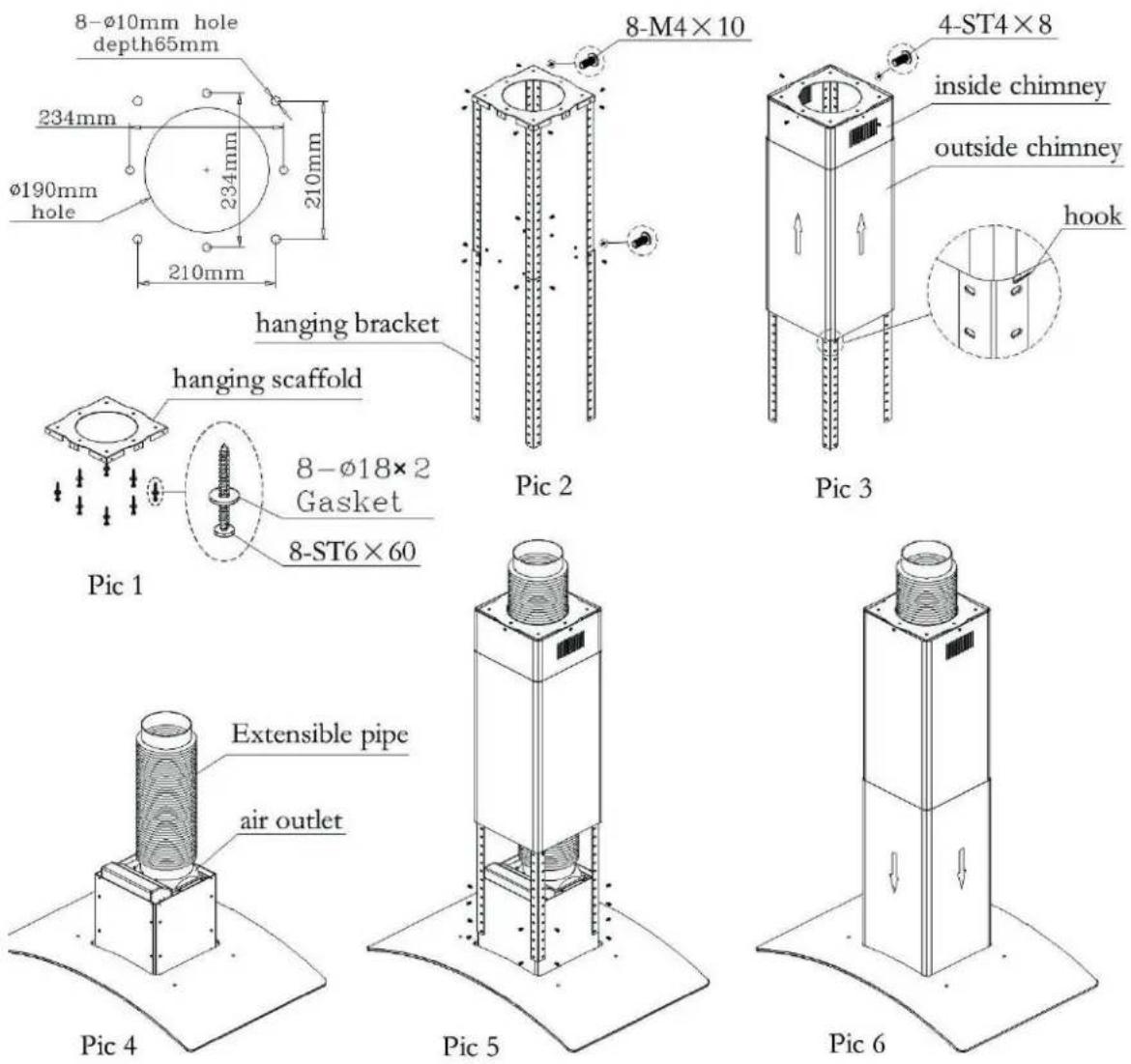

3.1 Make sure of installation position, fix the hanging scaffold at proper position, and check firmness and smoothness of installation. See the pic 1.
3.2 Adjst to proper height, joint the bracket, install on hanging scaffold. See the pic 2.
3.3 Fix inside chimney on hanging scaffold, enclose outside chimney on it at proper position, insert hook into bracket to fix outside chimney temporarily. See the pic 3.
3.4 Fix air outlet in the vent on hood's body, connect extensible pipe with air outlet. See the pic 4.
3.5 Extend the hose out off hanging scaffold, fix hood's body on bracket. See the pic5.
3.6 Detach the hook, move outside chimney downward till reaching hood's body. Pay attention not to strike the glass. See the pic 6.

(3). Installation

Product four(conventional type):

**install way one**

3.1 Place at a distance of 65-75cm from the cooking surface, drill 4 holes of 8mm and depth of 40mm.
3.2 Insert 4 swelling rubber plug into 4 holes.
3.3 Fix air outlet into the vent on top of the hood.
3.4 Open filters, keep the hood in line and tighten the screws.
3.5 Fix filters.

(3). Installation

Product four(conventional type):

**install way two**

3.1 Drill 4 holes ofΦ5mm andΦ130mm at the bottom of the hanging cupboard.
3.2 Fix air outlet into the vent on top of the hood.
3.3 Open filters, keep the hood in line, insert screws and swelling rubber plug, tighten the screws.
3.4 Fix filters.

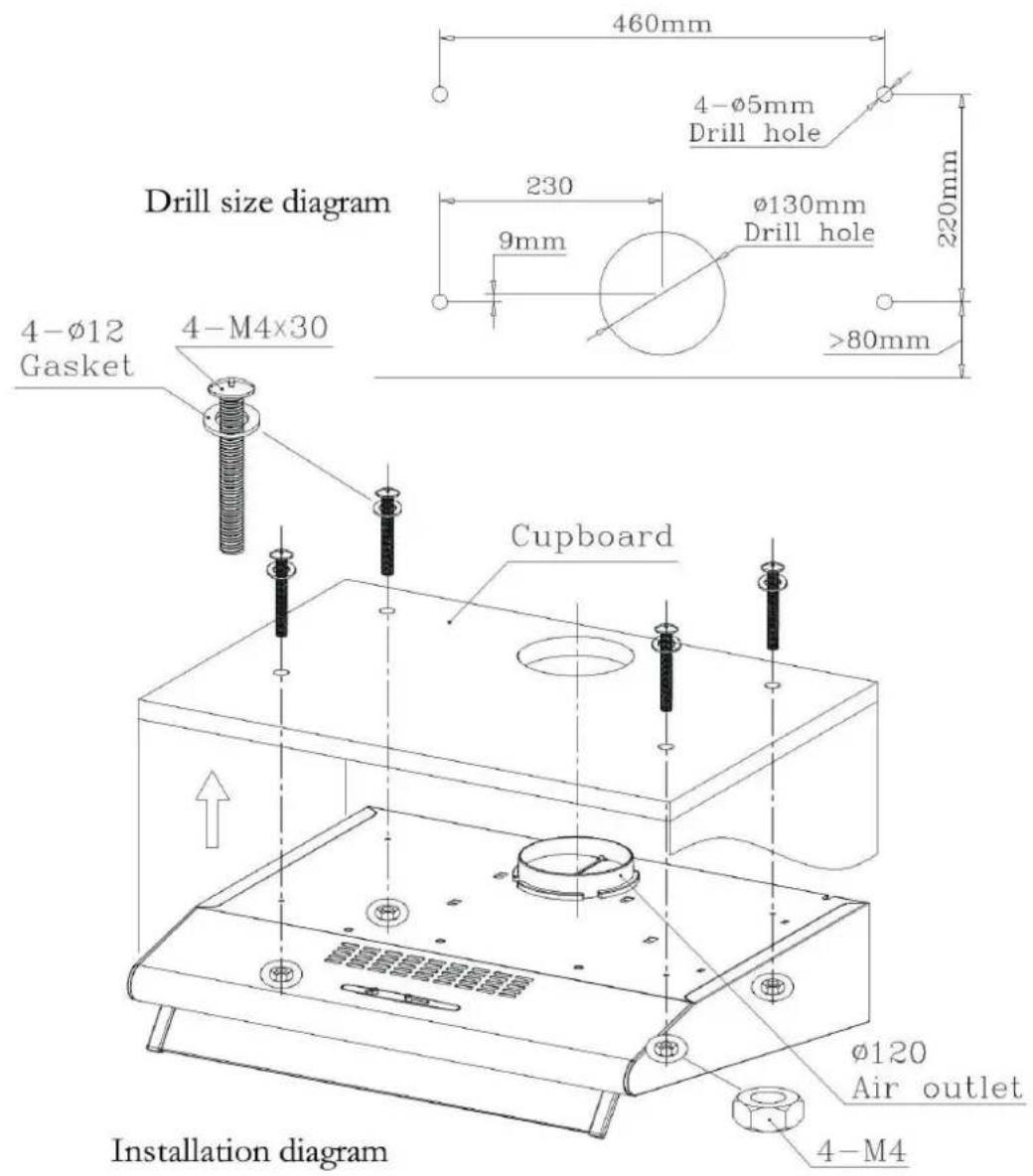

Drill size diagram 4-Ø12 Gasket 4-M4×30 Cupboard 4-Ø5mm Drill hole 230 9mm Ø130mm Drill hole >80mm 460mm 220mm Ø120 Air outlet 4-M4 Installation diagram

(3). Installation

Product five:

**install way one**

3.1 Place at a distance of 65-75cm from the cooking surface, drill 4 holes of 8mm and depth of 40mm.
3.2 Insert 4 swelling rubber plug into 4 holes.
3.3 Fix air outlet into the vent on top of the hood.
3.4 Open filters, keep the hood in line and tighten the screws.
3.5 Fix filters.

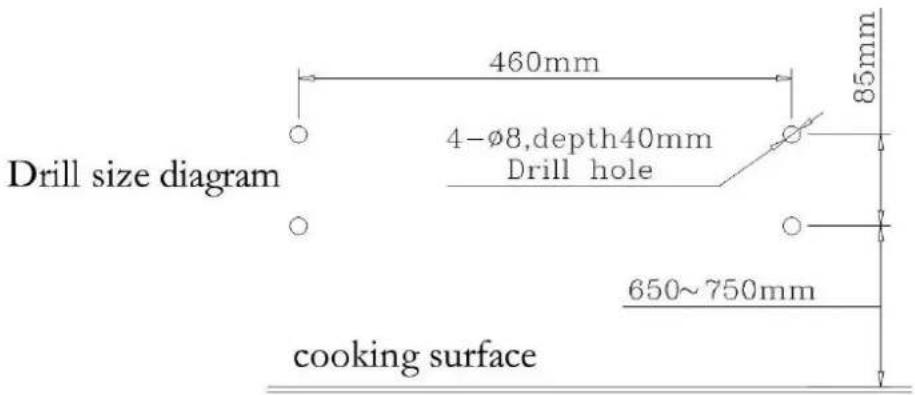

Drill size diagram 460mm 4-Ø8,depth40mm Drill hole 85mm 650~750mm cooking surface

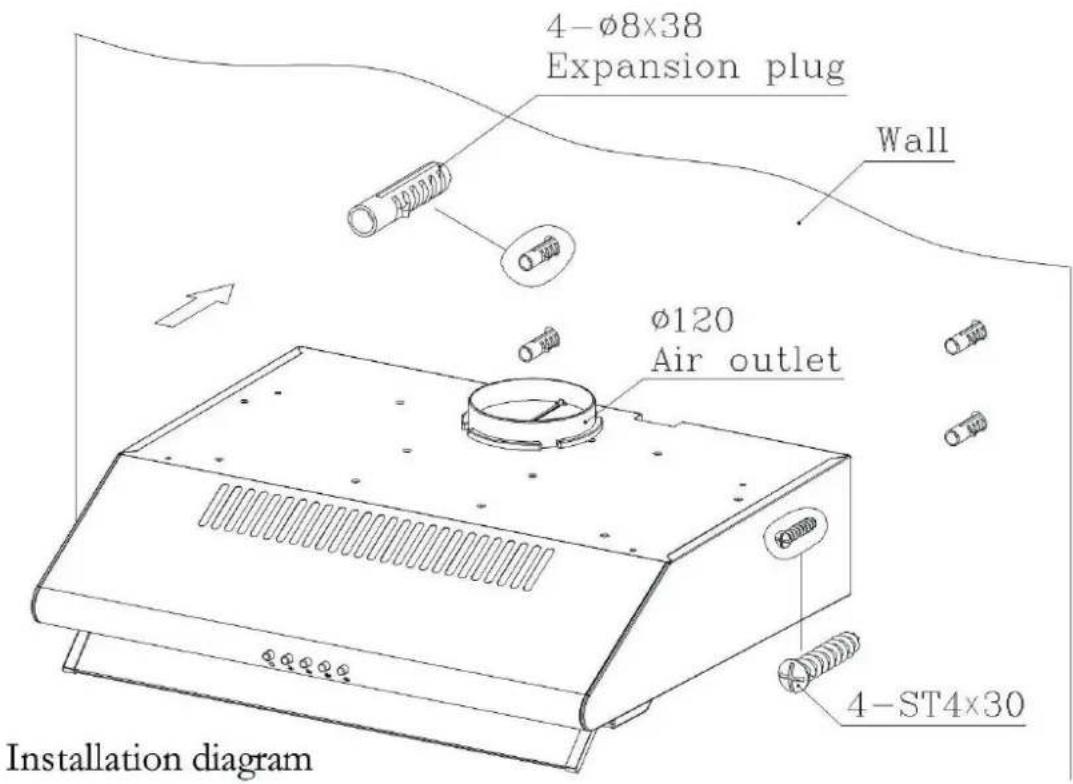

4-Ø8×38 Expansion plug Wall Ø120 Air outlet 4-ST4×30 Installation diagram

(3). Installation

Product five

**install way two**

3.1 Drill 4 holes of 5mm and 130mm at the bottom of the hanging cupboard.
3.2 Fix air outlet into the vent on top of the hood.
3.3 Open filters, keep the hood in line, insert screws and swelling rubber plug, tighten the screws.
3.4 Fix filters.

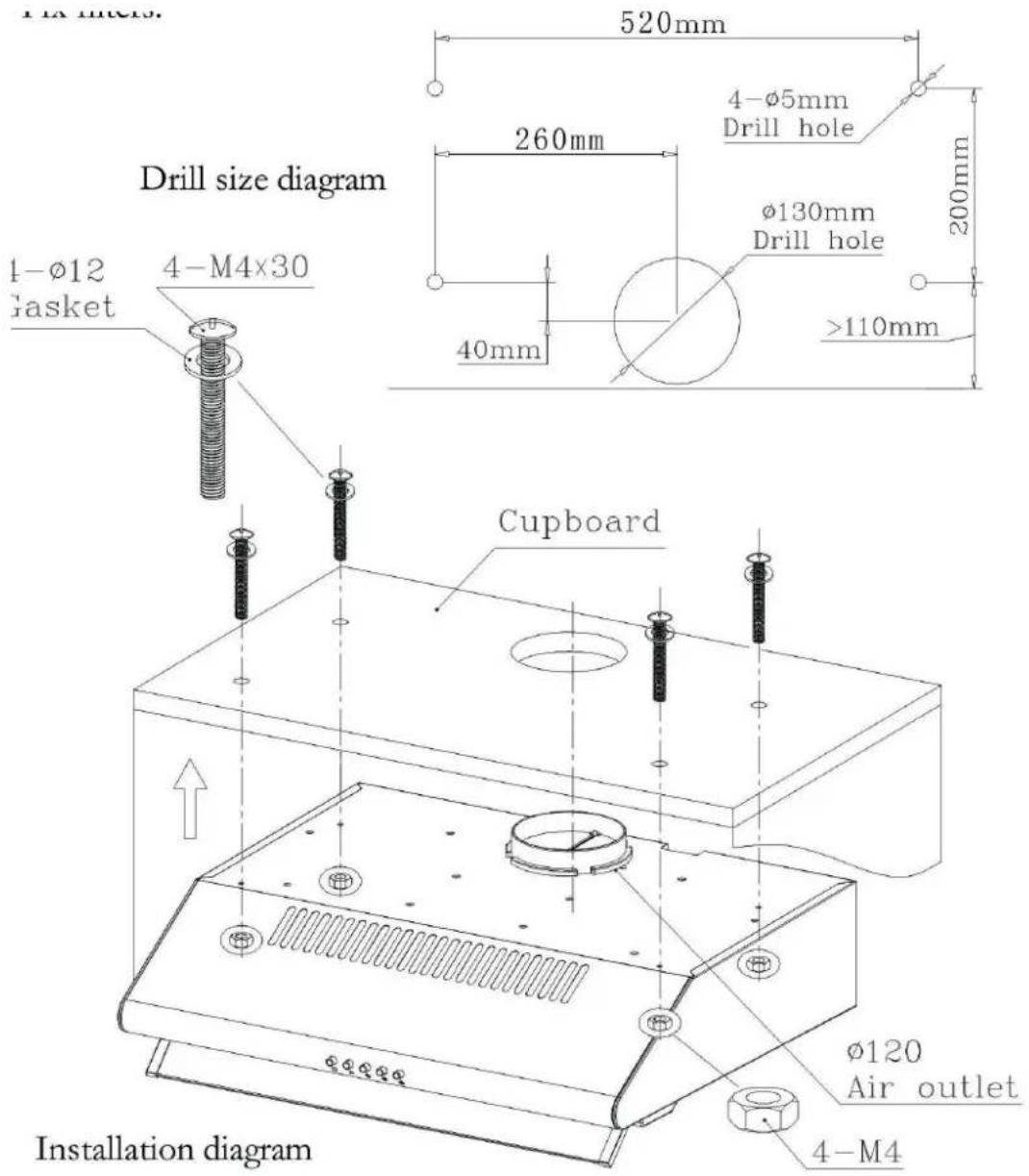

1× 4 mm Drill size diagram 520mm 260mm 4-Ø5mm Drill hole Ø130mm Drill hole >110mm 40mm 1-Ø12 Gasket 4-M4×30 Cupboard Ø120 Air outlet 4-M4 Installation diagram

(3). Installation

Product six

3.1 Drill 4 holeΦ5mm and Φ130mm at the bottom of the hanging cupboard.
3.2 Fix air outlet into the vent on top of the hood.
3.3 Open filters, keep the hood in line, insert screws and swelling rubber plug, tighten the screws.
3.4 Fix filters.

Drill size diagram

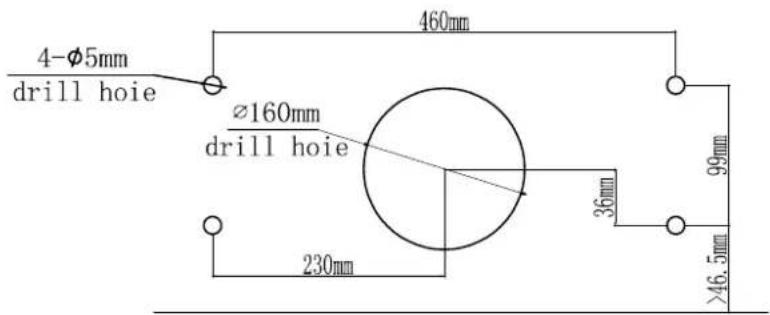

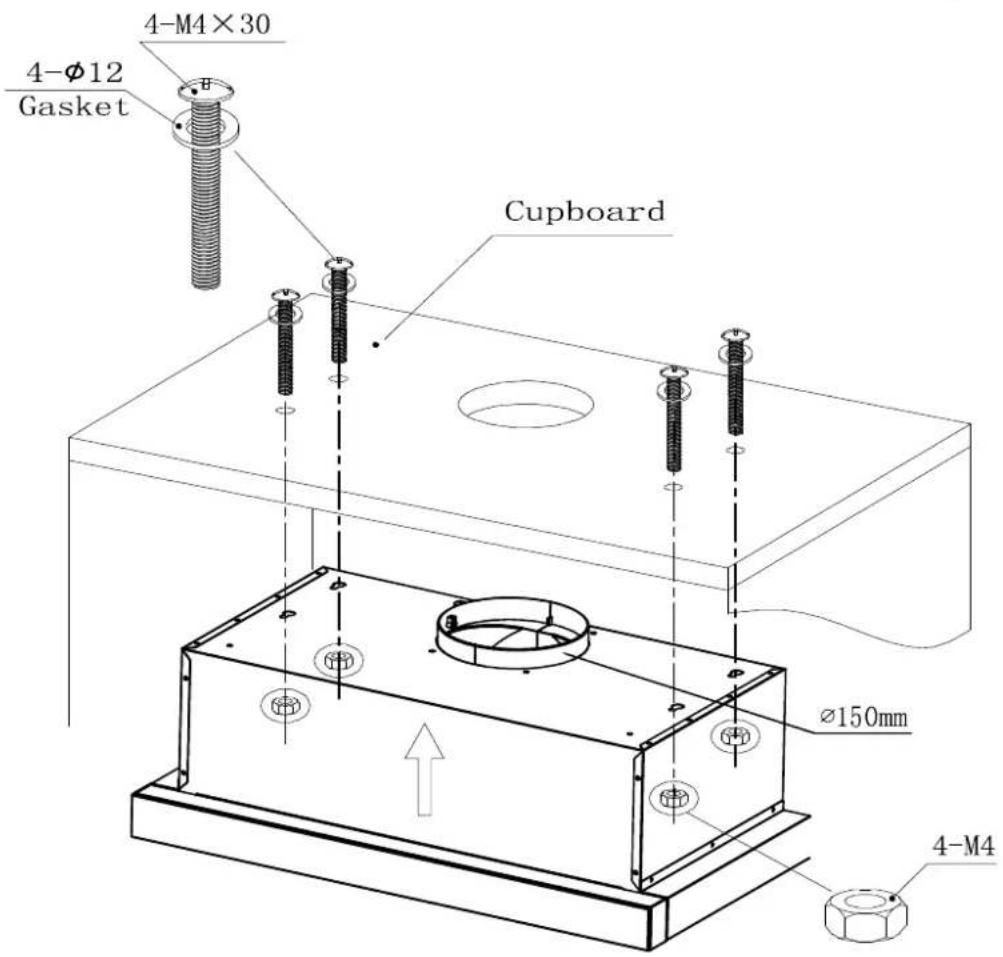

4-Φ5mm drill hoie Ø160mm drill hoie 230mm 460mm 99mm 36mm ≥46.5mm

4-M4×30 4-Φ12 Gasket Cupboard Ø150mm 4-M4

Installation diagram

(4). Air education setting

Product one:

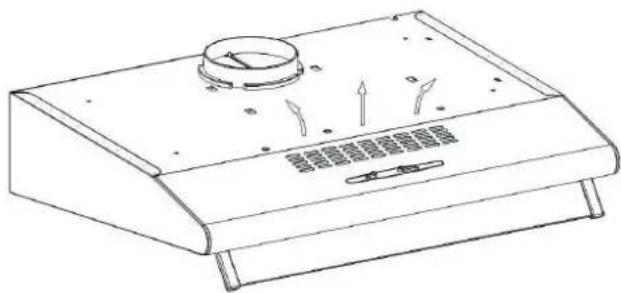

Blower Wind board button Outdoor Indoor

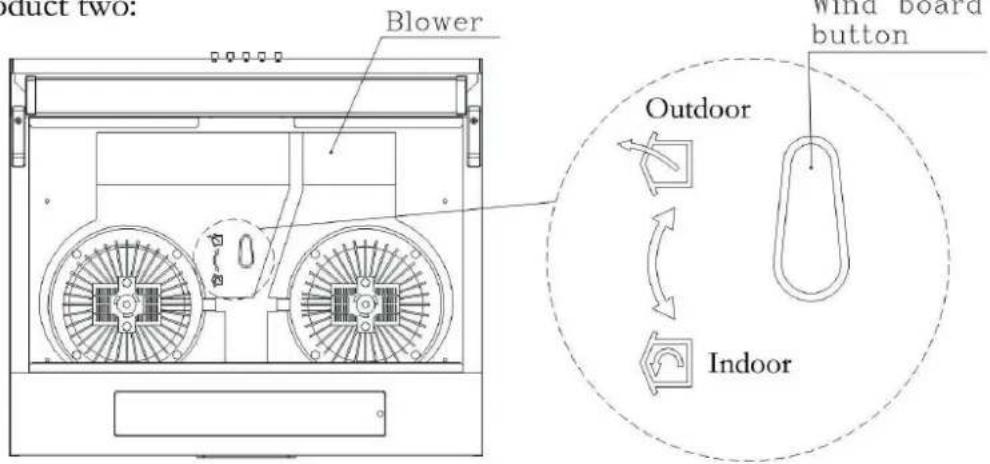

Product two:

Product two: Blower Wind Board button Outdoor Indoor

Line drawing of a kitchen fan with a lid and heat emission indicator (no text or symbols)

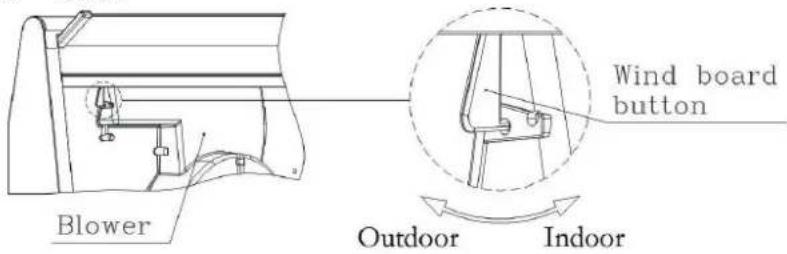

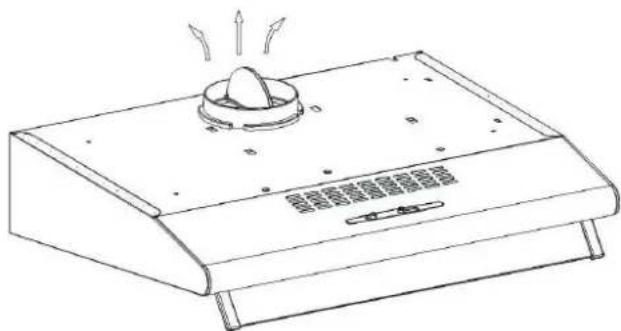

Setting one: Turn the adjuster to outdoor place, install the outlet, open the cooker hood, the smoke will be vented from the outside outlet.

空调器 空调器

Setting two: Turn the adjuster to indoor to indoor place, install the outlet cover, open the cooker hood, the smoker will be vented from inside vent.

---- Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

(5) NOTICE OF INSTALLATION

1. Before installation, please ensure the area is clean to avoid suction of the remaining bits of broken wood and dust.

2. It cannot share the same air ventilation tube with other appliance such as gas tube, warmer tube, and hot wind tube.

3. The bending of ventilation tube should 206, parallel or above the start point and should be connected to the external wall.

4. After installation, make sure that the extractor is level to avoid grease collection at one end.

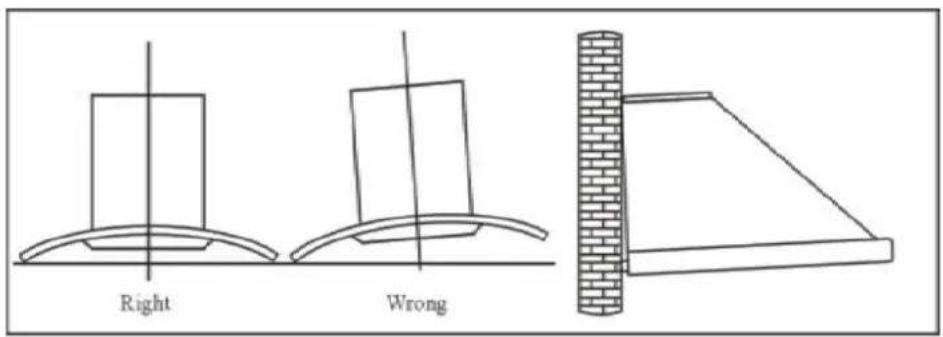

Right Wrong

Pic5

(6) SAFETY WARNING

• Never let the children operate the machine.
• The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.
• The cooker hood and its filter should be clean regularly in order to keep in good working condition.
• Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.
• Forbid the direct baking from the gas cooker.
• Please keep the kitchen room a good convection.
• Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels
• Regulations concerning the discharge of air have to be fulfilled.
• This appliance if not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person slide for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not flambé under the range hood.
• The range hood is not intended to be installed over a hob having more than four hob elements
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
• CAUTION: Accessible parts may become hot when used with cooking appliances.

Electrical Shock Hazard

• Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.
  ● Failure to follow these instructions can result in death, fire, or electrical shock.

(7) USE (Speed adjustment .See pictures)

Electronic Button

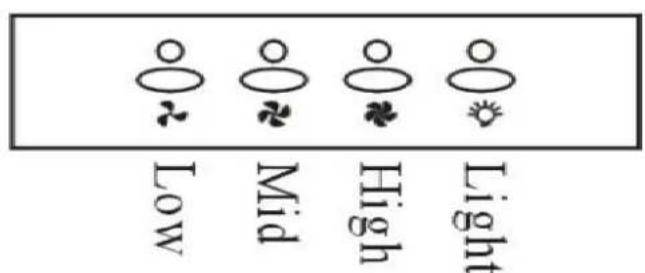

1. Turn on the power; the buzzer will buzz five times. The sound shows that the appliance is powered.
2. Push the low button, the indicating light 1 on, the buzzer will buzz once, and the motor runs at low speed. Push it again and the motor will stop.
3. Push the middle button, the indicating light 2 on, the buzzer will buzz once, and the motor runs at mid speed. Push it again and the motor will stop
4. Push the high button, the indicating light 3 on, the buzzer will buzz once, and motor runs on high speed. Push it again and the motor will stop
5. Push the light button; the indicating light 4 on, and the two lighting lamps will come on. Push it again and the lamps will turn off, with every push the buzzer will buzz one time.

Indicatorlight ① ② ③ ④

Low Mid High Light

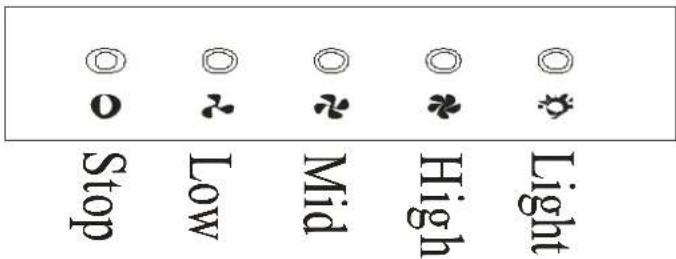

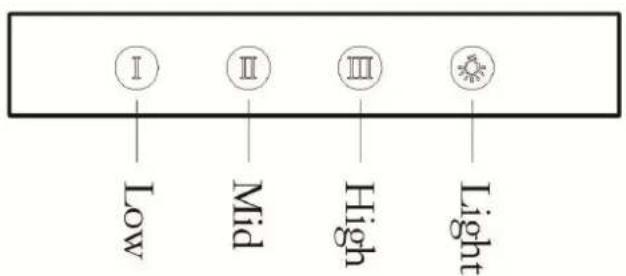

Pic6A

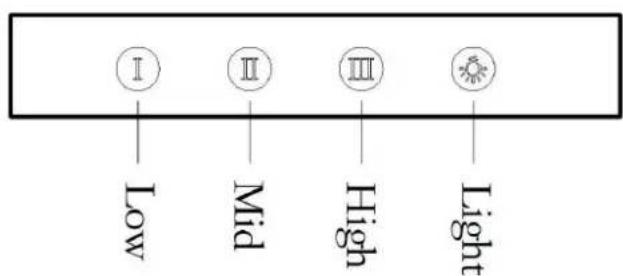

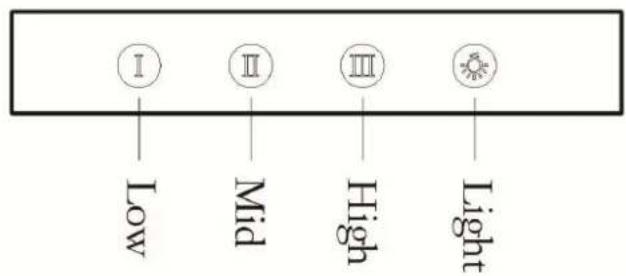

I Low II Mid III High Light

Push button

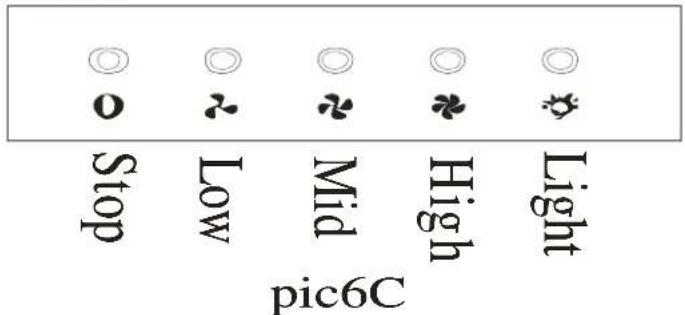

Stop Low Mid High Light

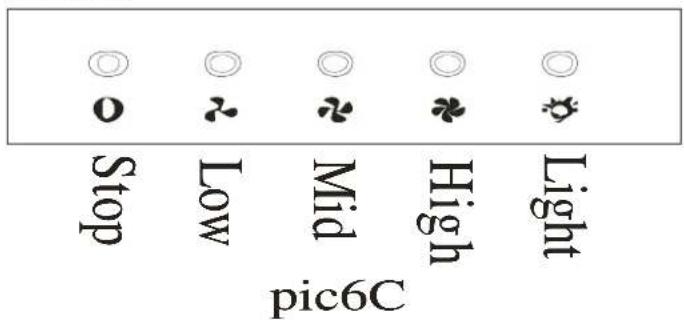

pic6C

1. Push stop button, and the motor will stop.
2. Push the Low button, the buzzer will buzz once, and the motor runs at low speed.
3. Push the high button, the buzzer will buzz once, and the motor runs at mid speed.
4. Push the High button, the buzzer will buzz once, and the motor runs at high speed.
5. Push the light button and the two lights will come on. Push it again and the light will turn off.

Push Slide Switch:

3 2 1 0 ② ① 1 0

1. "lighting" button

Used to connect or cut off the lighting lamp.

1. " three-range fan speed" sliding button

Used to set the low-range, medium range and high range rotation speed and ventilation of the fan.

The instruction is only suitable for slim hood.

Rocker Switch:

1. motor switch

1. lamp switch

1. motor switch is with a high and a low speed, the middle is stop button

2. lamp switch control the lamp on or off.

Touch control switch No. one:

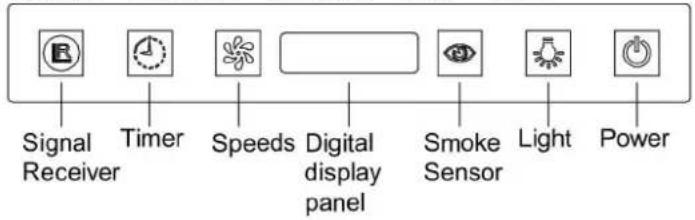

Signal Receiver Timer Speeds Digital display panel Smoke Sensor Light Power

Touch control switch No. two:

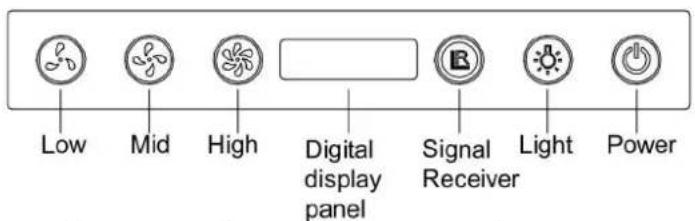

Low Mid High Digital display panel Signal Receiver Light Power

Touch control switch No. three:

Digital display panel

1. The signal receiver by remote control.
2. Timer, which can set from one minute to 60 minutes.
3. Speeds, which can be adjustable by sequence from high speed, to mid and to low until the motor stops running.
4. Smoke sensor which can detect the fumes and get the motor start to absorb the fumes by automatically when it's powered on.
5. Light on/off.
6. Power off.
7. Touch one time, it will time one minute to turn off the power, Touch twice successively, it will turn the power off directly.
8. ⊕ Speed adding from low to mid, and to high by sequence.
9. ⊖ Speed descending by sequence from high to mid, and to low until the power stops running.

(8) MAINTENANCE

8.1 The cleaning of the carbon grease filter mesh

The filter mesh is made of high-density stainless steel. Please do not use the corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below.

Method 1: Put the mesh into 40-50 c clean water, pour on detergent, and soak for 2-3 mins. Wear gloves and clean with a soft brush. Please do not apply too much pressure, as the mesh is delicate and will damage easy.

Method 2: If instructed to do so, it can be put into a dishwasher, se the temperature at around 60 degrees.

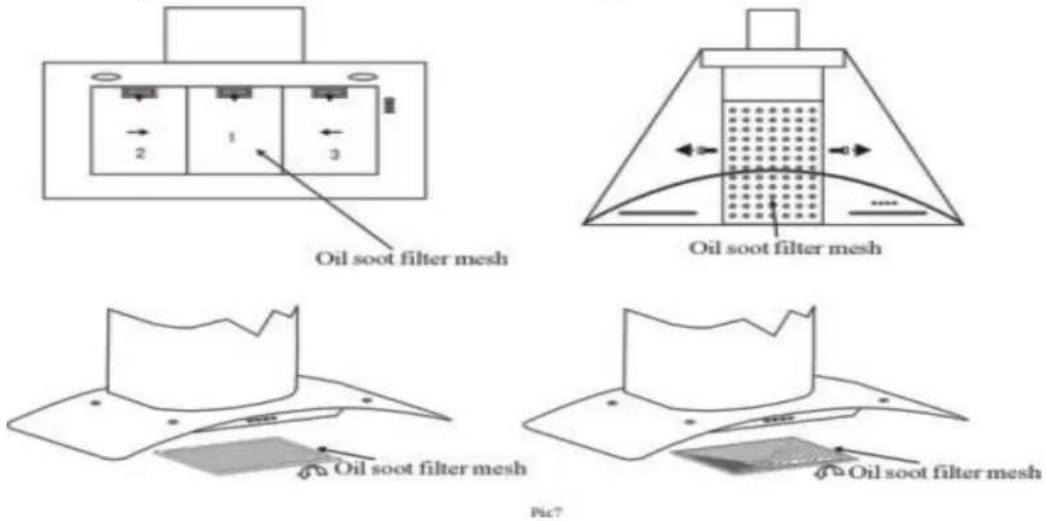

Oil soot filter mesh Oil soot filter mesh Oil soot filter mesh Oil soot filter mesh Oil soot filter mesh Pic?

8.2 Notice of cleaning cooker hood

A. To protect the main body from corrosion over a long period of time, the cooker hood should be cleaned with hot water plus non corrosive detergent every two months.

B. Please do not use abrasive detergent for it will damage the body.

C. Keep the motor and other spare parts free from water, as this will cause damage to the appliance.

D. Before cleaning the appliance please remember to cut off power

E. The carbon filter shouldn't be exposed to heat.

F. Please don't tear open the fixed bar around the carbon filter

G. If the plug or cord is damaged, please replace it with special soft cord.

(9). Abnormity and Solution

Fault	Cause Solution
Light on, but motor does not work	The leaf blocked Get rid of the blocking
	The capacitor damaged Replace capacitor
	The motor jammed bearing damaged		Replace motor
	The internal with of motor a bad smell from the motor		Replace motor
Light does not work, motor does not work	Beside the above mentioned, check the following:
	Light damaged Replace lights
	Power cord looses Connect the wires as per the electric gram
Oil leakage	One way valve and the air Take down the one way ventilation entrance are not valve and seal with glue tightly sealed
	Leakage from the connection of U-shaped section and cover	Take U-shaped section down and seal with soap or paint
Shake of the body	The leaf damaged and cause shake the leaf shaking
	The motor is not tightly hanged	Lock the motor tightly
	The body is not tightly hanged	Fixed the body tightly
Insufficient suction	The distance between the body and the gas top too	Readjust the distance long
	Too much ventilation from open doors or windows	Choose a new place and resemble the machine
The machine inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal
	The hanging screw not tight enough	Tighten the hanging screw and make it horizontal

(10.) Warranty Card

We will warrant this product free from defects in material and quality for one year from date of purchase. If any problems occur from correct usage, please contact the service department for under warranty service.

This warranty does not cover the following:

The filter mesh and bulb.

Commercial use.

Amendment of the date of manufacture on the rating plate.

After 24 months from date of purchase. Damaged caused to the body by usage of detergent sprayer. Pollution made to the led parts, glass parts and S/S parts. Incorrect installation, misuse, abuse or neglect.

Incorrectly fitted to insufficient or unsuitable power. Damage caused by foreign object.

Taken apart or serviced by unauthorized service engineers or replaced with other manufacture's components.

For commercial use the maintenance and free service should be discussed with our authorized agent.

Beyond the 24 months warranty period, the purchaser should pay for charge of components and call out.

In the event of a service call, please provide the warranty card and receipt of date of purchase.

Place of

purchase

Date of

purchase

Model

Shop

stamp.

Exhaustor

Low Mid High Light

Pic6A

I Low II Mid III High Light

Botones

Stop Low Mid High Light pic6C

Signal Receiver Timer Speeds Digital display panel Smoke Sensor Light Power

Low Mid High Digital display panel Signal Receiver Light Power

Diagram of a container with internal grid pattern and directional arrows, no text or symbols present

Diagram of a person standing on a brick wall next to a box, with no visible text or symbols

Fig.4

Conduit extensible

Simple line drawing of a mechanical component with a cylindrical top and base (no text or symbols)

Illustration of a brick wall with a mounted device and a separate brick block (no text or symbols)

Fig.3

Technical diagram showing a brick wall structure with two circular components labeled '90' and an arrow pointing to one component.

Correct Incorrect

Fig.5

(6) CONSIGNES DE SÉCURITÉ

Low Mid High Light

Pic6A

I Low II Mid III High Light

Boutons

Stop Low Mid High Light pic6C

Signal Receiver Timer Speeds Digital display panel Smoke Sensor Light Power

Low Mid High Digital display panel Signal Receiver Light Power

Diagram of a conical container with internal grid pattern and directional arrows, labeled with Chinese characters at the bottom.

Simple line drawing of a hat with a flat base and a small rectangular object, no text or symbols present.
