Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have received instructions concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 years are allowed to load and unload refrigerating appliances.
  • Children must not play with the product.
• Cleaning and user maintenance shall not be carried out by children unless they are supervised.
• A damaged power cord may only be replaced by an authorised service agent in order to avoid hazards.
• The product is designed for the storage of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

English

Safety Instructions

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the product, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this product.
• The light source (only LED) is only to be replaced by a recognized electrician/qualified person. *
• Follow the instructions in the chapter Cleaning and care.
• Warning: The refrigerant and insulation blowing gas are flammable. When disposing of the product, do so only at an authorized waste disposal center or contact the service agent.
• To avoid contamination of food, please respect the following instructions:
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

Safety Instructions

- Clean surfaces that can come in contact with food and accessible drainage systems on a regular basis.

- Store raw meat and fish in suitable containers in the refrigerator, so that it does not get into contact with other foods, or that fluids drip onto other foods.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould from developing within the appliance.

* Note to service technician/qualified persons: Dismantling instruction can be obtained from the free website www.koenic-online.com

English

Safety Instructions

1. Read this manual thoroughly before first use. It contains important information for your safety as well as for the use and maintenance of the equipment.
2. Do not place any objects on top of the product.
3. Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.
4. Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
5. The mains voltage must match the information on the rating label of the product.
6. Only unplugging from the power socket can separate the product completely from the mains.
7. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
8. Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
9. Only unplugging from the power socket by the plug itself. Do not pull on the cord.
10. Unplug the product ...
11. when the product is not being used,
12. in case of malfunctions,
13. before attaching / detaching accessories and
14. before cleaning the product.
15. Use this product in dry indoor areas only and never outdoors.
16. This product is not intended for commercial use. It is designed for household use only.
17. Make sure that electrical components, live parts and the power cord do not become wet.

18. Use accessories supplied with the device or recommended by the manufacturer only!

19. Do not cover the product while in use. Fire hazard!

20. Warning! When positioning the appliance, ensure the supply cord is not trapped or damaged.
21. Warning! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.
22. Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or if it's suspected to be defect.

Caution: Risk of fire!

Flammable materials.

Warning! During using, service and disposal of the appliance, please pay attention to the symbol which is located on the rear of the appliance (rear panel or compressor).

It's a risk of fire warning symbol. There are flammable materials in the refrigerant pipes and the compressor. Make sure to keep sources of fire away during usage, service and disposal.

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is suitable for refrigerating and freezing food and beverages only. Any other use may damage the device or cause injuries.

• This product is not intended to be used as a built-in appliance.
• This refrigerant appliance is intended to be used at ambient temperatures ranging from 10^ C to 43^ C.

The product is only intended to be used in private households and shall not be used for commercial purposes.

Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions.

Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Warranty and spare parts

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.

Delivery contents

1 x Fridge and freezer combination
1 x Egg holder for 6 eggs
1 x Ice cube maker
1 x User manual

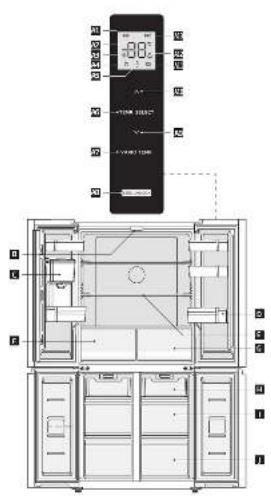

Controls and components

A Operation panel

A1 Refrigerating icon
A2 Temperature display icon
AB Super cool / freezing icon
A4 Fruit/vegetable icon
A5 Drink icon
A6 Temp. select
A7 Vario temp. select
A8 Lock/Unlock button
A9 Temperature down button
A10 Temperature up button
A11 Meat icon
A12 Lock/Unlock icon
A13 Freezer icon

B LED lighting
c Water dispenser
D Door tray
Glass Shelf
F Variable zone
G Fruit & Vegetables
H UP Freeze drawer
Middle Freeze drawer
J Down Freeze drawer

Accessories

1 x Egg holder for 6 eggs

1 x Ice cube maker

English

Installation

Fig. 1 Place the unit on a level and stable surface. Keep the minimum distances to all sides.
Fig. 2 Unevenness can be compensated with the adjustable front feet. Use a spirit level for correct positioning.
Fig. 3 The refrigerator and freezer are equipped with glass shelves and drawers, which, if desired can be removed by pulling them forward. The upper shelf can be inserted at different heights.

Warning

If the refrigerator has been stored or tipped sideways during transport or installation, it must stand upright for 12 hours before being connected to the mains.

Note:

There is a rubber buffer on the inside of each door that must not be removed.

Danger of suffocation

Keep the rubber buffers away from children!

Door adjustment

If the top or bottom edges of the refrigerator doors are not aligned, they can be adjusted with a spanner. Loosen the locking nut counterwise. Rotate the adjusting nut counterclockwise to adjust the height of the door. When the door is correctly aligned, tightened the locking nut clockwise.

Operation

Fig. 4 Plug the power plug into an appropriate mains socket outlet.

Note:

Allow the product to precool for about 2-3 hours before putting in the food.

Settings

Fig. 5 The control panel is locked in normal operation. Before adjusting the settings described below, press the lock/ unlock key 3SEC-UNLOCK for at least 3 seconds. The symbol 🏠 turns off and all keys are unlocked.

Freezer temperature setting

Fig. 6 Press the TEMP SELECT button until the indicator starts flashing. Press the TEMP SELECT button repeatedly until the desired temperature is shown. The temperature can be set from -24°C to -16°C in 1°C temperature steps.

Refrigerator temperature setting

Fig. 7 Press the TEMP SELECT button until the indicator starts flashing. Press the TEMP SELECT button repeatedly until the desired temperature is shown. The temperature can be set from +2°C to +8°C in 1°C temperature steps.

Variable Temperature Chamber Settings

To adjust the temperature setting of the chamber, press the Variable Temperature (VARIO TEMP) button. The adjustment range includes:

• Fruit/Vegetable: Ideal for storing various fruits and vegetables.
• Drink: Suitable for storing dry goods and beverages.
• Meat: Suitable for storing a small amount of meat for 1-2 days.

Mode Settings

Super Cooling Mode:

Set: Adjust the refrigeration room temperature to 2°C, then press the temperature down button to activate Super Cooling mode. In this mode, the refrigeration chamber temperature is automatically set to 2°C.

Exit: To exit Super Cooling mode, press the temperature up button or it will automatically exit after 6 hours. Upon exiting, the refrigerator temperature returns to the previously set temperature.

Super Freezing Mode:

Set: Adjust the freezing chamber temperature to -24^ , then press the temperature down button to activate Super Freezing mode. The freezing chamber temperature is automatically set to -24^ in this mode.

Exit: To exit Super Freezing mode, press the temperature up button or it will automatically exit after 40 hours. Upon exiting, the freezing chamber temperature returns to the previously set temperature.

Note:

• SUPER COOL is automatically deactivated after 6 hours.
• SUPER FREEZE is automatically deactivated after 40 hours.
• Switch on this function 5-6 hours before you put in fresh food for freezing. So the freezing time will be reduced which keeps a better food quality. The freezing time will be also slightly reduced when the function is activated just when food is stored in the freezer compartment.

Door Open Alarm

If fridge or freezer door keeps open for 120 seconds, periodical alarm will be arisen and repeat this cycle until the door is closed.

Storage during Power Outage

During a power failure, the current operating state will be locked and maintained until power is restored.

Fig. 9 Using the Water Dispenser

Note:

Before using the water dispenser, ensure to clean the water tank and water valve:

• Remove the small bottle holder above the water tank first, then lift the water tank firmly from both sides to remove it.
• Open the latch, remove the water tank cover and sealing ring, and wash them under running water. After washing, drain any remaining water, reposition the cover and sealing ring, ensuring they are securely locked.
• Remove the water valve component using a flat tool to open it, wash it under water, and reassemble it. Align the bottom of the water valve component with the unit's slot, press it down until it clicks securely into place.
• Insert the water tank into the water valve, aligning the sealing ring properly, and press it down securely.

Filling the Water Tank

• Ensure the water tank is stable and correctly positioned before filling it with water.
• Pour drinking water through the small lid into the water tank, then close the lid. If access for water filling is limited, remove the bottle holder above the water tank.
• Avoid using beverages other than drinking water, especially those containing grains, as they may cause blockages and damage.
• Do not fill the water tank directly with hot water, and avoid touching other parts of the unit during water filling to prevent leaks.

English

Using the Water Dispenser

Use a container that fits under the water dispenser. Position it correctly and press the lever to dispense water.

Energy saving tips

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).
• Ensure unobstructed air flow around the refrigerator and freezer.
• If an ice layer has built, defrost the unit. A thick ice layer affects the transmission of the cold, thus the energy consumption will be increased.
• When taking out food, only open the door shortly. A shorter door opening time causes less ice to deposit on the freezer walls.
• Select the temperature regulator setting according to the filling amount of the product.
• Use the provided drawers, baskets or shelves to store the food. If the energy of the product is used efficiently, the overall energy consumption can be minimized.
• It's advised not to remove all accessories, such as drawers, shelves balconies, as this might increase the energy consumption.

Cleaning and care

Warning

• Unplug the product before cleaning.
• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).
• Never use oil or grease on the door seal. This will make it porous over time.

• Do not use steam cleaning equipment. The steam may come in contact with electrical parts of the product, causing a short circuit.

• Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.

• Make sure that no water enters the product interior (e.g. at the control panel).
• Wipe the door seal with clean water only, and dry it thoroughly afterwards.
• Removable parts e.g. glass shelves, can be taken out for cleaning.

Decommissioning

If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Empty the product.
• Unplug the product.
• Clean the interior of the freezer compartment and let it dry.
• Carefully clean all the accessories (vegetable containers, door compartments, glass shelves, etc.)
• Let the door open to avoid the formation of unpleasant odors and mold.

Technical data

Voltage 220 - 240 V~
Frequency 50 Hz
Rated current 1.8 A
Energy Consumption kWh/year 235 kWh
Net capacity of refrigerator 301 L
Net capacity of freezer 169 L
Freezing capacity 13 kg / 24 h
Ambient temperature 10°C - 43°C
Measurement (H x W x D) 1775 x 833 x 653 mm
Width with door open 1400 mm

based on EN 62552: 2020

This product contains a light source of energy efficiency class G.

This product is intended to be used in climate classes from SN to T.

Climate class	Ambient temperature
SN +10 to	+32°C
N +16 to	+32°C
ST	+16 to +38°C
T	+16 to +43°C

Use the link https://eprel.ec.europa.eu/ to access the European product database (EPREL), in which more information about the product is saved. Type in the model identifier, which can be found on the panel of the product as well as on the energy label or simply scan the QR-code on the energy label to access the model information.

English

Troubleshooting

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt.

Problem Possible causes	Solution
Product does not work • Interrupted power supply • Check the power supply
Temperature in the compartments is not low enough.	• The door is not closed firmly or it is opened to often.	• Rearrange the food so that the door can be closed firmly.
	• The ambient temperature is lower than 10°C or higher than 43°C	• The product is intended to be operated in an ambient temperature of 10°C to 43°C
Water gathers in the lower part of the compartment	• The food comes in contact with the rear wall of the compartment	• Move away the food or container from the rear wall
The interior lamp doesn’t shine	• Lamp is defect • Contact service center

Error codes

Codes Cause

E1 Temperature sensor failure of refrigerating chamber

E2 Temperature sensor failure of freezing chamber

E3 Temperature sensor failure of variable temperature chamber

E4 Failure of defrosting sensor in refrigerating chamber

E5 Freezing defrost sensor detection circuit error

E6 Communication error

E7 Circulation of temperature detection circuit error

EH Moisture sensor error

When you find ERROR codes, please contact the customer service. The respective hotlines are noted in the provided warranty card.

Storage of food and beverages

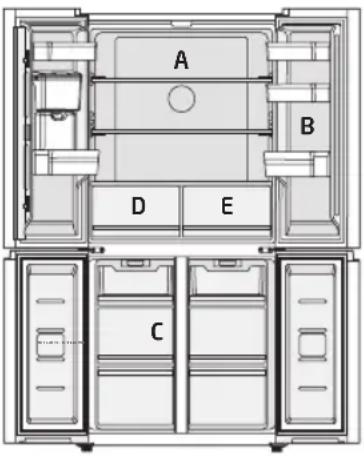

	Area	Recommended food and temperature setting
	A Fridge compartment (4°C) - Storage of food for daily consumption, delicacies, yogurt, sauces, pickled vegetables, desserts - Storage of meat, fish, sausages, fresh filled pasta, cooked foods, leftovers
	B Door shelf (4°C) Storage of drinks, milk, yogurt, eggs and butter
	C Freezer compartment (-18°C) Storage for frozen vegetables, chips, freeze fresh food.
	D Variable drawer (-1°C - 6°C) Storage of meat, drink, fruit
	E Fridge drawer (4°C) Storage of fresh vegetables and fruits

How to store food and beverages for best preservation over the longest period, in order to avoid food waste?

Fridge compartment

• Use containers made from recycled plastic, metal, aluminum and glass as well as plastic wrap to pack food.
• Liquids as well as foods that lead to odor formation or can easily spoil or that can transfer taste, should be covered.

• If only a small amount of food is to be stored, the use of the shelves above the fruit and vegetable compartment is recommended.

• Foods that give off a large amount of ethylene gas and those that are sensitive to them, such as fruits, vegetables and lettuce, must always be kept separately from one another or packaged in order not to shorten the storage time; For example, do not keep tomatoes with kiwi or cabbage together.

• Use the bottle holder to prevent bottles from tipping over.
• Do not store food too close to one another to allow sufficient air circulation.
• The recommended temperature setting for the fridge compartment is 4°C. If set, foodstuffs can be usually stored for a few days.

English

Recommendations when refrigerating food

• Store fresh and undamaged food. The quality and freshness will then be retained for longer.
• In the case of convenience products and bottled goods, do not exceed the sell-by date or use-by date specified by the manufacturer.
• To retain aroma, colour and freshness, pack or cover food well before placing it in the appliance. This will prevent flavours being transferred between foods and the plastic parts from becoming discoloured.
• Leave warm food and beverages to cool down before placing them in the refrigerator compartment.

Freezer

• Ideal for storing frozen food, preparing ice cubes and freezing fresh food.
• If you only store small amounts of food in the freezer, it is recommended to use the coldest area in the freezer (corresponds to the middle area).
• The recommended temperature for the freezer compartment is -18^ .
• The storage period specified on the packaging is decisive for commercially available frozen products.

Recommendations when freezing food

• Freeze larger quantities of food in the lower frozen food containers. This is where the food will freeze especially quickly and gently.
• Distribute food in the compartments or frozen food containers.
• Do not bring food which is to be frozen into contact with frozen food. If required, restack frozen food in the frozen food containers.
• Important for unrestricted air circulation in the appliance: push in frozen food containers up to the limit stop.
• Start the super freeze function 24 hours before placing food into the appliance.

Note: Storage of foods at the wrong temperature may lead to a quality loss or an increase of food waste.

Storage times and temperature

Note: Overlong storage or storage at inappropriate freezing temperature may cause a quality loss or spoiled foods, which causes food waste, is inedible and may cause food poisoning. The minimum temperature in most cases should be -18°C or colder. Follow the maximum recommended storage times below:

• Stew, ice cream, sausages, bread: 2-6 months.
  • Fish, shrimp, lamb, meat: 4-8 months.
  • Vegetables, fruits, poultry, beef: 6-12 months.
