Product Type	Built-in Column Refrigerator
Brand	Monogram
Model	ZIR301NBRII
Width	30 in (76 cm)
Height (estimate)	84 in (213 cm)
Depth (estimate)	24 in (61 cm)
Weight (estimate)	Approximately 160 kg
Electrical Supply	115 V AC, 60 Hz, 15-20 A
Refrigerant	R600a (isobutane, flammable)
Ice Maker	Automatic, 7 ice cubes/cycle, ~15 cycles/24h
Water Filter	XWF or XWFE, replace every 6 months
Air Filter	Replace every 6 months or if odor
Wi-Fi Connection	Yes (monogram.com/connect)
Door Alarm	Yes, adjustable (high/low/off)
Sabbath Mode	Yes, disables displays, alarms, and lights
Adjustable Temperature Drawer	Yes (32°F, 34°F, 38°F)
Humidity Control Drawer	Yes (More/Less slider)
Auto-Fill Pitcher	Yes (select models)
Interior Lighting	LED
Exterior Material	Stainless Steel
Installation Type	Built-in
Parts and Labor Warranty	2 years, 5 years sealed system, 6-12 years sealed system parts
Refrigerator Temperature Range	34°F to 42°F (1°C to 6°C)
Freezer Temperature Range	-6°F to +4°F (-21°C to -16°C)

Frequently Asked Questions - ZIR301NBRII Monogram

How to adjust the refrigerator/freezer temperature?

Use the (+) and (-) keys on the control panel to adjust the temperature. The refrigerator range is 34°F to 42°F (1°C to 6°C) and the freezer range is -6°F to +4°F (-21°C to -16°C). Allow 24 hours for the temperature to stabilize.

What to do if the ice maker is not producing ice?

Check that the ice maker switch is in the ON position on the control panel. Ensure the water supply is connected and pressure is between 40 and 120 psi. A new freezer may take 12 to 24 hours to produce ice. If the problem persists, check the water filter.

How to replace the water filter?

Open the compartment cover to 90°. Turn the filter 1/4 turn counterclockwise using the extraction tool. Pull it towards you. Insert the new filter aligning the blue arrow, turn 1/4 turn clockwise. Flush by running 2 gallons of water (8 L) via the pitcher or discard the first batch of ice cubes. Reset the counter by holding the + key for 3 seconds.

How to activate Sabbath Mode?

Press and hold the (+) and DOOR ALARM keys simultaneously until the display shows SABBATH MODE. In Sabbath Mode, displays, alarms, and lights are disabled, the ice maker and pitcher do not operate. The mode disables automatically after 96 hours or by repeating the same action.

Why is there frost on frozen foods?

Frost inside the packaging is normal. If frost is excessive, check that the door is firmly closed and nothing is blocking the closure. Avoid opening the door too frequently or for too long. Reduce the temperature if necessary.

How to clean stainless steel surfaces?

Use a soft cloth and mild detergent in hot water, or a Monogram-approved stainless steel cleaner. Do not use abrasive pads, acid-based cleaners, ammonia, or acetone. Dry with a soft cloth to avoid streaks.

How to deactivate the door alarm?

Press the DOOR ALARM key once: the OFF indicator lights up. To reactivate, press again. The alarm volume can be adjusted by holding the DOOR ALARM key until VOLUME HIGH/LOW/OFF appears.

What to do if the auto-fill pitcher does not work?

Check that the water supply is connected. Remove the pitcher and then reposition it correctly in the dispenser guide, ensuring it rests flat on the shelf. Filling may take up to 5 seconds before starting.

How to reset the water filter after replacement?

After installing the new filter, hold down the + key on the control panel for 3 seconds until the life indicator resets.

What is the warranty coverage for the refrigeration system?

The limited warranty covers the sealed refrigeration system (compressor, condenser, evaporator, tubing) for 5 years parts and labor, then from the 6th to the 12th year parts only. Travel and labor are your responsibility after 5 years.

USER MANUAL ZIR301NBRII Monogram

SOUTIEN AU CONSOMMATEUR....3

RENSEIGNEMENTS CONCERNANT LA SÉCURITÉ....4

COMMANDES....6

MACHINE À GLAÇONS AUTOMATIQUE (MODÈLES CONGÉLATEUR)....7

FILTRE À EAU 8

FILTRE À AIR (MODÈLES RÉFRIGÉRATEUR)....9

COMMUNICATION AVEC LES ÉLECTROMÉNAGERS....10

PICHET À REMPLISSAGE AUTOMATIQUE ....11

TIROIRS / ÉTAGÈRES / BACS 12

MODE SABBAT 14

ENTRETIEN ET NETTOYAGE....14

PRÉPARATIONN 16

DÉPANNAGE....17

FICHE TECHNIQUE DE PERFORMANCE ....20

GARANTIE LIMITÉE DE MONOGRAM....21

RENSEIGNEMENTS CONCERNANT LE MODÈLE

NUMÉROS DE MODÈLES

ZIF181, ZIF241, ZIF301 et ZIF361

Au Canada: Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx

SERVICE DE RÉPARATION

Architectural floor plan of a multi-level kitchen or storage unit with no visible text or labels

Mechanical assembly diagram showing a rotating component with directional arrow (no text or labels)

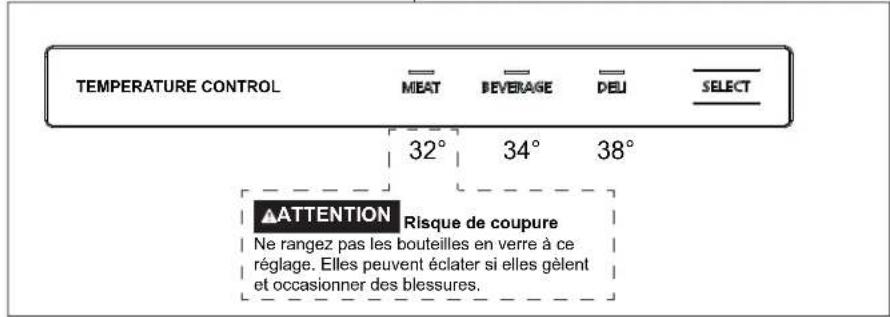

ATTENTION

Technical line drawing of a mechanical assembly with a cylindrical component and a magnified inset showing internal flow (no text or symbols)

Diagram of a door handle mechanism with a knob and scroll arrow (no text or symbols)

Line drawing of a hand holding a wrist with a finger, showing motion direction (no text or symbols)

Line drawing of a hand inserting a grid into a device (no text or symbols)

Hand inserting a grid into a device component (no text or symbols visible)

Illustration of a hand holding a wrist with a finger, showing a finger movement (no text or symbols)

Technical line drawing of a front panel with internal components and mounting brackets (no text or symbols)

Diagram showing two mechanical assembly steps with arrows indicating motion direction (no text or symbols)

BALCONNETS

Technical line drawing of a cabinet or rack assembly with an inset detail showing a wall-mounted door (no text or symbols present)

MODE SABBAT

Garant: GE Appliances, a Haier company, Louisville KY, 40225

Au Canada, Garant: MC Commercial, Burlington, ON, L7R 5B6

NOTES

NOTES

49-1000529 Rev. 3

03-24

Architectural floor plan of a multi-level kitchen or storage unit with no visible text or labels

Diagram of a mechanical device with a rotating shaft and housing (no text or symbols)

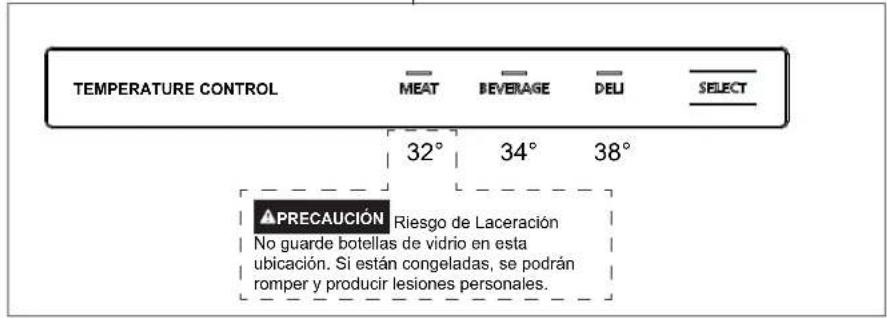

▲PRECAUCIÓN

AIR FILTER HOLD 3 SEC

Line drawing of a hand holding a wrist with an arrow indicating motion (no text or symbols)

Line drawing of a hand inserting a device into a device panel (no text or symbols)

Line drawing of hands inserting a card into a device (no text or symbols)

Line drawing of a hand holding a wrist with a finger, showing motion direction (no text or symbols)

RESET AIR FILTER HOLD 3 SEC

Architectural floor plan showing room layouts and storage compartments (no text or labels)

Technical line drawing of a mechanical or electrical component assembly (no text or symbols visible)

Drawers in the refrigerator will stop before coming all the way out, to help prevent contents from spilling onto floor.

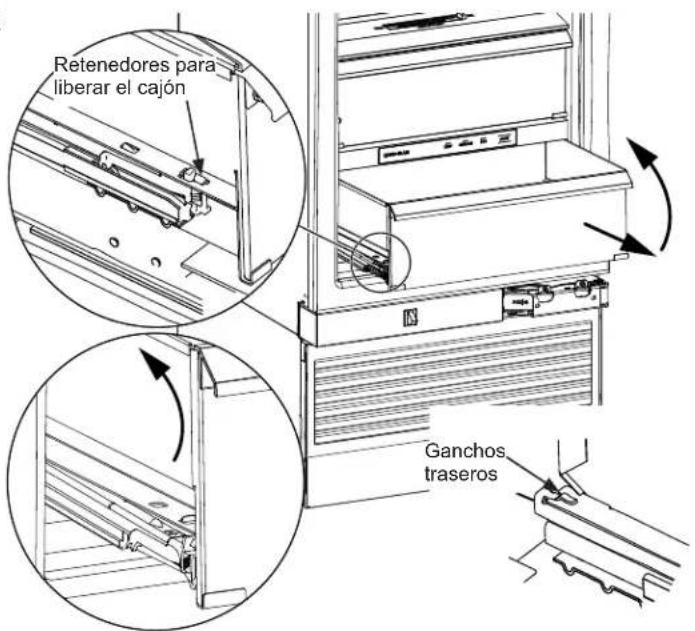

To remove a drawer: Pull the drawer out and press the snaps at the front of both sides to release the drawer. Lift the front of the drawer up while pulling forward to move the pan free of the back slide hooks.

To replace a drawer: Place the back of the pan under the hooks on the back of the slides. Rotate the drawer down until the front snaps are securing the front of the pan.

Technical line drawing showing two views of a mechanical assembly with arrows indicating direction (no text or symbols)

Technical line drawing of a cabinet or rack assembly with a magnified inset showing a door detail (no text or symbols)

MODO SABÁTICO
