Brand	Monogram
Model	ZIR361NBRII
Product Type	36-inch Built-In Column Refrigerator
Width	36 inches (91.4 cm)
Color	Stainless Steel (per manual finish)
Power Supply	115 V AC, 60 Hz, 15 or 20 A, grounded
Refrigerator Temperature Range	34 °F to 42 °F (1 °C to 6 °C)
Freezer Temperature Range	-6 °F to +4 °F (-21 °C to -16 °C)
Temperature Display	Digital, adjustable in °F or °C
Door Alarm	Yes, adjustable (high/low/off)
Sabbath Mode	Yes, can be turned on/off
Wi-Fi Connectivity	Yes, via mobile app
Water Filter	XWF or XWFE, replace every 6 months
Air Filter	Yes, replace every 6 months
Automatic Ice Maker	On select models (freezer)
Auto-fill Pitcher	On select models (refrigerator), dishwasher safe
Interior Lighting	LED (replacement by authorized service)
Shelves	Tempered glass, adjustable and removable
Drawers	Humidity-controlled drawer, adjustable temperature drawer
Maintenance	Clean interior with baking soda, exterior stainless steel with mild cleaner
Safety	Anti-tip, flammable refrigerant R600a, grounding required
Warranty	2 years parts and labor, 5 years sealed system, 6-12 years sealed system parts

Frequently Asked Questions - ZIR361NBRII Monogram

What is the ideal temperature for my Monogram ZIR361NBRII refrigerator?

The recommended refrigerator temperature is 37 °F (3 °C) and freezer temperature is 0 °F (-18 °C). You can adjust via the control panel.

How do I change the water filter?

The water filter (model XWF or XWFE) is located in the top compartment. Turn it 1/4 turn counterclockwise to remove, then install the new one by aligning the blue arrow. Flush 2 gallons of water after installation.

What should I do if the ice maker is not working?

Check that the ice maker switch is ON and the water supply is connected. Ice production may take 12-24 hours after installation. Make sure the ice bin is not too full.

How do I activate Sabbath Mode?

Press and hold the '+' and 'DOOR ALARM' keys simultaneously until 'SABBATH MODE' appears. The mode automatically deactivates after 96 hours or by repeating the same operation.

My refrigerator is making noise, is that normal?

Yes, gurgling, clicking, or ventilation sounds are normal. They come from the compressor, defrost, or water circulation. If the noise is unusual, check that the appliance is level.

How do I clean the inside of the refrigerator?

Use a solution of warm water and baking soda (1 tablespoon per liter). Rinse and dry. Do not wash plastic parts in the dishwasher, except for the pitcher and its lid.

What should I do if the door does not close properly?

Check that no packaging is blocking, the gasket is properly seated, and the appliance is level. If the problem persists, consult the installation instructions.

How do I reset the water filter indicator?

After changing the filter, press and hold the '+' key on the control panel for 3 seconds until the indicator resets.

Can I connect my refrigerator to my Wi-Fi network?

Yes, if your model is Wi-Fi equipped. Press the WI-FI key on the control panel and follow the Monogram app instructions. The information label is inside.

What is the warranty for the Monogram ZIR361NBRII?

Limited warranty of 2 years parts and labor, 5 years for the sealed refrigeration system, and 6-12 years for sealed system parts (labor not covered after 5 years).

USER MANUAL ZIR361NBRII Monogram

SOUTIEN AU CONSOMMATEUR....3

RENSEIGNEMENTS CONCERNANT LA SÉCURITÉ....4

COMMANDES....6

MACHINE À GLAÇONS AUTOMATIQUE (MODÈLES CONGÉLATEUR)....7

FILTRE À EAU 8

FILTRE À AIR (MODÈLES RÉFRIGÉRATEUR)....9

COMMUNICATION AVEC LES ÉLECTROMÉNAGERS....10

PICHET À REMPLISSAGE AUTOMATIQUE ....11

TIROIRS / ÉTAGÈRES / BACS 12

MODE SABBAT 14

ENTRETIEN ET NETTOYAGE....14

PRÉPARATIONN 16

DÉPANNAGE....17

FICHE TECHNIQUE DE PERFORMANCE ....20

GARANTIE LIMITÉE DE MONOGRAM....21

RENSEIGNEMENTS CONCERNANT LE MODÈLE

NUMÉROS DE MODÈLES

ZIF181, ZIF241, ZIF301 et ZIF361

Au Canada: Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx

SERVICE DE RÉPARATION

Architectural floor plan of a multi-level kitchen or storage unit with no visible text or labels

Diagram of a door lock mechanism showing clockwise rotation and valve assembly (no text or labels)

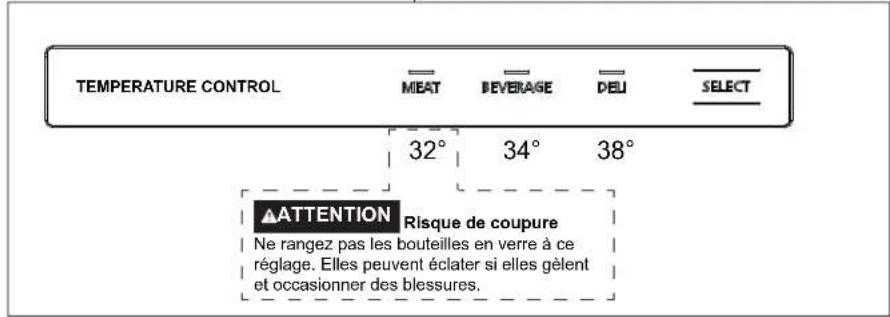

ATTENTION

Technical line drawing of a mechanical assembly with a cylindrical component and a magnified inset showing internal components (no text or symbols)

Diagram of a door handle mechanism with a knob and scroll arrow (no text or symbols)

Line drawing of a hand holding a wrist with a finger, showing motion direction (no text or symbols)

Line drawing of a hand inserting a grid into a device (no text or symbols)

Hand inserting a grid into a device component (no text or symbols visible)

Illustration of a hand holding a wrist with a finger, showing a finger movement (no text or symbols)

Technical line drawing of a front panel with internal components and mounting brackets (no text or symbols)

Diagram showing two mechanical assembly steps with arrows indicating motion direction (no text or symbols)

BALCONNETS

Technical line drawing of a cabinet or rack assembly with an inset detail showing a wall-mounted door (no text or symbols present)

MODE SABBAT

Garant: GE Appliances, a Haier company, Louisville KY, 40225

Au Canada, Garant: MC Commercial, Burlington, ON, L7R 5B6

NOTES

NOTES

49-1000529 Rev. 3

03-24

Diagram of a mechanical device with a rotating shaft and housing (no text or symbols)

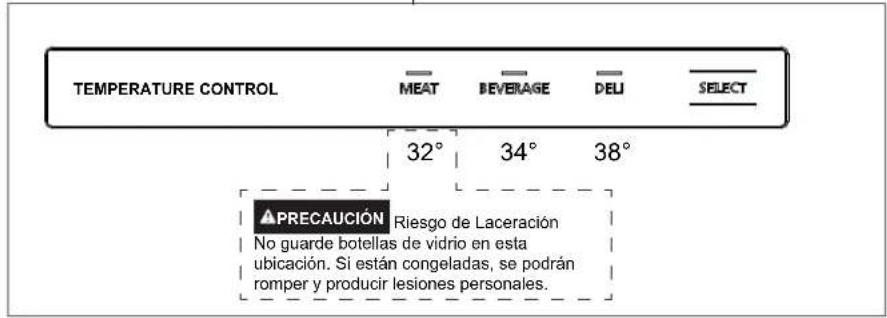

▲PRECAUCIÓN

AIR FILTER HOLD 3 SEC

Line drawing of a hand holding a wrist with an arrow indicating motion (no text or symbols)

Line drawing of a hand inserting a device into a device panel (no text or symbols)

Line drawing of hands inserting a card into a device (no text or symbols)

Line drawing of a hand holding a wrist with a finger, showing motion direction (no text or symbols)

RESET AIR FILTER HOLD 3 SEC

Architectural floor plan showing room layouts and storage areas (no text or labels)

Technical line drawing of a mechanical or electrical component assembly (no text or symbols visible)

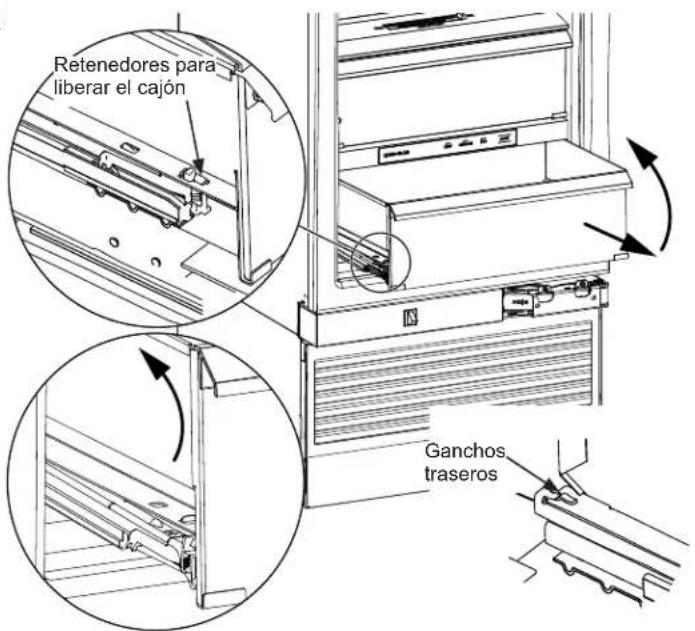

Drawers in the refrigerator will stop before coming all the way out, to help prevent contents from spilling onto floor.

To remove a drawer: Pull the drawer out and press the snaps at the front of both sides to release the drawer. Lift the front of the drawer up while pulling forward to move the pan free of the back slide hooks.

To replace a drawer: Place the back of the pan under the hooks on the back of the slides. Rotate the drawer down until the front snaps are securing the front of the pan.

Technical line drawing showing two views of a mechanical assembly with arrows indicating motion (no text or symbols)

Technical line drawing of a cabinet or rack assembly with a magnified inset showing a door detail (no text or symbols present)

MODO SABÁTICO
