USER MANUAL ZDT985SSNSS Monogram

Your new Monogram dishwasher makes an eloquent statement of style, convenience and kitchen planning flexibility. Whether you chose it for its purity of design, practical features or assiduous attention to detail—or for all of these reasons—you'll find that your Monogram dishwasher's superior blend of form and function will delight you for years to come.

The information on the following pages will help you operate and maintain your dishwasher properly.

If you have any other questions, visit our Website at: Monogram.com

Contents

Model and Serial Number Location . . . . . . 3 Problem Solver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-25

Appliance Registration 3 U.S.A. Warranty 26

Safety Instructions 4 - 5 Canada Warranty 27

Operating Instructions 6 – 12 Consumer Support 28

Control Panel and Operation ..... 6 - 9

Lighting Features 10

Water Temperature 10

Rinse Agent.....10

Dish Preparation Prior to Loading ..... 1 0

Detergents 12

Detergent Dispenser 12

Appliance Communication 13

Dishwasher Racks 14–20

Care and Cleaning 21, 22

Consumer Information

		Dishwasher
Before using your dishwasher	Read this manual carefully. It is intended to help you operate and maintain your new dishwasher properly.Keep it handy for answers to your questions.	If you don't understand something or need more help, there is a list of toll-free consumer service numbers included on the Consumer Services page in the back section of this manual.ORVisit our Website at: Monogram.com
Write down the model & serial numbers	You can locate your model and serial numbers on the tub wall just inside the door.	Before sending in the card, please write these numbers here:Model NumberSerial NumberUse these numbers in any correspondence or service calls concerning your dishwasher.
If you received a damaged dishwasher	Immediately contact the dealer (or builder) that sold you the dishwasher.
Save time & money	Before you request service, check the Problem Solver in the back of this manual.	It lists causes of minor operating problems that you can correct yourself.
If you need service	To obtain service, see the Consumer Services page in the back of this manual.We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are steps to follow for further help.For customers in the USA:FIRST, contact the people who serviced your appliance. Explain why you are not pleased.In most cases, this will solve the problem.NEXT, if you are still not pleased, contact us on our website, write all the details—including your phone number—or write to:Manager, Customer RelationsMonogramAppliance ParkLouisville, KY 40225	For customers in Canada:FIRST, contact the people who serviced your appliance. Explain why you are not pleased.In most cases, this will solve the problem.NEXT, if you are still not pleased, write all the details—including your phone number—to:Manager, Consumer RelationsMC COMMERCIAL INC.1 Factory Lane, Suite 310Moncton, N.B. E1C 9M3

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, electric shock, and to prevent property damage, personal injury, or death.

WARNING

PROPER INSTALLATION AND MAINTENANCE

This dishwasher must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet with your dishwasher, you can receive one by visiting our Website at Monogram.com. In Canada, visit Monogram.ca.

■ Connect the dishwasher/appliance to a grounded metal, permanent wiring system; or run an equipment-grounding conductor with the circuit conductors and connect to the equipment-grounding terminal or lead of the appliance.
- Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.
■ Dispose of discarded appliances and shipping or packing material properly.

• Do not attempt to repair or replace any part of your dishwasher unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
  ■ Use only cord kit WX09X70910 or hard-wire to building electrical. Failure to follow this instruction, could result in risk of fire and personal injury.
  ■ To minimize the possibility of electric shock, disconnect this appliance from the power supply before attempting any maintenance.

NOTE: Turning the dishwasher off does not disconnect the appliance from the power supply. We recommend having a qualified technician service your appliance.

WARNING

WHEN USING YOUR DISHWASHER, FOLLOW BASIC PRECAUTIONS, INCLUDING THE FOLLOWING:

■ Use this appliance only for its intended purpose as described in this Owner's Manual.
■ Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of reach of children. Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds.
- Locate sharp items so that they are not likely to damage the door seal.
- Load sharp knives with the handles up to reduce the risk of cut-type injuries.
- Do not wash plastic items unless marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
■ Do not touch the heating element during or immediately after use.

■ Detailed grounding instructions can be found in the "PREPARE ELECTRICAL WIRING" section of the Installation Instructions.
■ Do not operate your dishwasher unless all enclosure panels are properly in place.
■ Do not tamper with controls.
■ Do not abuse, sit on or stand on the door or dish rack of the dishwasher.
■ To reduce the risk of injury, do not allow children to play with, on or inside this appliance at any time.
- Do not store or use combustible materials including gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
■ Small parts, such as rack clips and filter retaining posts, can be a choke hazard to small children if removed from the dishwasher. Keep out of reach of small children.

IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING

WATER HEATER SAFETY

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two or more weeks. HYDROGEN GAS IS EXPLOSIVE.

If the hot water has not been used for two or more weeks, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke, use an open flame, or use the appliance during this process.

WARNING

RISK OF CHILD ENTRAPMENT

PROPER DISPOSAL OF THE DISHWASHER

Junked or abandoned dishwashers are dangerous...even if they will sit for "just a few days." If you are getting rid of your dishwasher, please follow the instructions below to help prevent accidents.

■ Do not allow children to play with, on, or inside this or any discarded appliance.
■ Take off the door of the washing compartment.

CAUTION

TO PREVENT MINOR INJURY AND PROPERTY DAMAGE

■ During or after wash cycle, contents may be hot to the touch. Use care before handling.
- Close supervision is necessary if this appliance is used by or near children. Do not allow children to play around the dishwasher when closing the door, closing the upper rack, or while vertically adjusting the upper rack due to the possibility of small fingers being pinched.

■ Non-Dishware Items: Do not wash items such as electronic air cleaner filters, furnace filters and paint brushes in your dishwasher. Damage to the dishwasher and discoloration or staining of the dishwasher may result.
- Load light-weight, plastic items so they do not become dislodged and drop to the bottom of the dishwasher—they might come into contact with the heating element and be damaged.

CAUTION

ELECTRICAL REQUIREMENTS

Be sure that the electrical connection and wire size are adequate and in conformance with the National Electric Code, ANSI/NFPA 70 – latest edition, and all local codes and ordinances.

This appliance must have:

■ 120V, 60Hz, AC-only, 15-ampere or 20-ampere, fused electrical supply.
■ Wiring must be 2 wire with ground and rated for 75°C (167°F).

■ If the electrical supply does not meet the above requirements, call a licensed electrician before proceeding.
It is recommended to have:
■ A circuit breaker or time-delay fuse.
■ A properly grounded individual branch circuit.

▲NOTICE

■ If your dishwasher is connected to a wall switch, ensure that the switch is on prior to use.
If you choose to turn the wall switch off between wash cycles, allow 5-10 seconds after turning the switch on before touching Start to allow the control to initialize.

■ Use only powder, Finish® Quantum® Automatic Dishwashing Detergent, liquid detergents or rinse agents recommended for use in a dishwasher and keep them out of the reach of children. Finish® Quantum® Automatic Dishwashing Detergent, and Finish® Jet-Dry® Rinse Aid rinse agents have been approved for use in all Monogram dishwashers.

READ AND SAVE THESE INSTRUCTIONS

Dishwasher

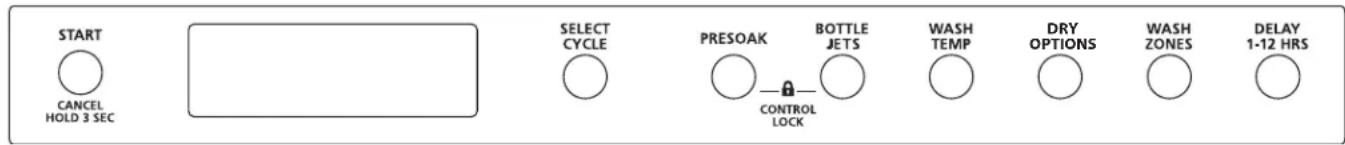

START CANCEL HOLD 3 SEC SELECT CYCLE PRESOAK BOTTLE JETS WASH TEMP DRY OPTIONS WASH ZONES DELAY 1-12 HRS

Throughout this manual, features and appearance may vary.

Control Settings

1 Load Dishwasher

For best dishwashing results, follow the loading guidelines found in the Loading the dishwasher section. No pre-rinsing of normal food soil is required. Scrape off hard soils, including bones, toothpicks, skins, and seeds. Remove leafy vegetables, meat trimmings, and excessive amounts of grease or oil.

2 Add Detergent

Add needed amount of detergent to the detergent dispenser. Use detergent such as Finish® Quantum® Automatic Dishwashing Detergent. See Dispensers section.

3 Add Rinse Agent

Add rinse agent such as Finish ^® Jet-Dry ^® Rinse Aid to the rinse agent dispenser. See Use a Rinse Agent in the Using the dishwasher section.

4

Select Cycle

Press the SELECT CYCLE pad for the desired wash cycle. Pressing the SELECT CYCLE pad will show various cycles in the display window. Press the pad until the desired cycle is shown.

NOTE: Actual cycle times vary based on soil level, water temperature, and options selected. The cycle may be selected with the door in the open position. The cycle will not start until the START pad is pushed and the door is closed within 4 seconds.

Auto Wash This cycle automatically senses the soil level and adjusts the wash cycle accordingly. *Time range: 1 hour 50 minutes - 2 hours 10 minutes.
Intense This cycle is meant for heavily soiled dishes, cookware, pots, or pans with dried-on or baked-on soils. Everyday dishes are safe to be used in this cycle.*Time: 2 hours 31 minutes.
Normal This cycle is meant for daily, regular, or typical use to completely wash a full load of normally soiled dishes and is designed to conserve both water and energy. *Time range: 1 hour 15 minutes - 1 hour 50 minutes. NOTE: Normal was used to rate the energy efficiency of this dishwasher.
Delicate This cycle is for light to medium soiled dishes. It is safe for china and crystal with no options selected. *Time: 55 minutes.
Rinse	For rinsing partial loads that will be washed later. Do not use detergent.Detergent is not dispensed during the rinse cycle. *Time: 16 minutes.
30 Min.Wash	This cycle was designed to wash loosely soiled dishes in 30 minutes. Heated dry will add 65-105 minutes. For better drying, select Power Dry or Max Dry.This will raise the final rinse temperature and extend the dry time. When the Clean light comes on, open the door, pull the racks out, and the dishes will “flash” dry in approximately five minutes.

Eco This cycle will efficiently wash dishes using about 2 gallons of water and .8 KWhr. Selecting Power Dry with this cycle adds an energy efficient 50 to 90 minute dry period. Drying is accomplished with an efficient 2 watt fan. *Time: 1 hour 3 minutes.

*Washing time only. Does not include drying time, Auto Hot Start, or options. NOTE: If the incoming water temperature is too low, the Auto Hot Start feature may add up to 11 minutes of additional time.

Control Settings

Select Options

The light by the selected pad will be lit to indicate which Option has been selected.

Normal Temp	This option is for normally soiled dishes, optimizes wash performance while conserving energy.
Boost Temp	This option increases the temperature to help clean heavily soiled dishes and will increase the cycle time by 20 to 50 minutes. Option may be turned On or Off during the wash cycle. This option will also improve dry performance on the Normal cycle.
Sanitize Temp	This option raises the water temperature in the final rinse to sanitize your dishware but may increase cycle time by 60 minutes. The cycle length will vary depending on the temperature of your inlet water.NOTE: This option is monitored for sanitization requirements. If the cycle is interrupted during or after the main wash portion or if the incoming water temperature is so low that adequate water heating cannot be achieved, the sanitizing conditions may not be met. In these cases, the Sanitized light will not illuminate at the end of the cycle. Utilizing this option will modify the cycle to meet the requirements of Section 6, NSF 184 for soil removal and sanitization efficacy.NOTE: NSF certified residential dishwashers are not intended for licensed food establishments.
Power Dry	Off - Shuts off the drying option. Dishes air dry naturally and energy is saved.Open the dishwasher door to speed drying.
	On -Turns on the option for faster drying. This option may extend the time to your wash cycle up to 85 minutes. This option is not available with the Rinse or 30 Min. Wash cycle.
	Max Dry -This option can be selected by pressing the Power Dry pad twice to illuminate the Max Dry light. It will add additional time to your drying option, further enhancing the dishwasher's performance for difficult to dry items.
Pre Soak	Use this option to improve wash performance with heavy or dried-on soils. This option is available on Intense, Auto Wash, and Normal cycles and may add up to 30 minutes to the cycle time.
Wash Zones	Selecting either the Upper or Lower Wash Zones will target dishwashing of just one rack. This will shorten the cycle time and conserve energy. This option should be used when dishes are placed in only one rack.
Bottle Jets	This option increases the time that the bottle jets are on and may add up to 23 minutes to the cycle time. Use this to wash difficult to clean, dishwasher safe baby bottles, sport bottles, tall coffee cups, etc. See use recommendations in the Loading the dishwasher section.
Delay Hours	Delays the start of a wash cycle up to 8 to 12 hours depending on model. Press DELAY HOURS, to select the number of hours, then press START one time and close door to begin countdown. The cycle will start once allotted time has expired.
Control Lock	You can lock the controls to prevent selections from being made. You can also lock the controls after you have started a cycle to prevent cycle changes. For example, children cannot accidentally start the dishwasher by pressing pads with this option selected.To LOCK the dishwasher control, press and hold both the Pre-Soak and Bottle Jets pads for 3 seconds. The Control Lock light will turn on to indicate the control is locked.To UNLOCK the dishwasher control, press and hold the Pre-Soak and Bottle Jets pads for 3 seconds. The Control Lock light will turn off to indicate the control is unlocked.

6 Start Dishwasher - Continued

Start	Open door to select the desired options. Press the START pad and close the door within 4 seconds to start the cycle or begin the DELAY HOURS countdown. The wash cycle will begin shortly after closing the door. The display will turn off if the door remains open for two minutes. To activate the display, close and open the door or press any pad.
Interrupt or Pause	To interrupt or pause a dish cycle, slowly open the door. Opening the door will cause the wash cycle to pause. The dishwasher will beep every minute to remind you to close the door. To restart or resume the cycle, press START, and close the door within 4 seconds.
Cancel	To cancel a wash cycle, press and hold the START pad for 3 seconds and close door. The dishwasher will drain, emit a beep sound, and the wash cycle light will turn OFF.

7 Cycle Indicator Lights and Sounds

Cycle Sanitized	Displayed at end of the cycle when Sanitize Temp has been selected and dishwasher has met requirements for sanitization. See Sanitize Temp, for complete description. Closing door or pressing any pad will turn off light.
Cycle Complete	Displayed when a wash cycle is complete. The light stays ON as a reminder that the dishes are clean. The light will turn off when the door is opened.
Low Rinse Aid	Displayed when rinse agent is low or empty. See Use a Rinse Agent section. To turn indicator off, press the Pre-Soak pad 7 times within 5 seconds. Repeat this process to turn the Low Rinse Aid indicator back on.
Cycle Status	The indicator light on the door front will change color to indicate the wash status. During the wash cycle, the indicator light will be amber. When the wash cycle is complete, the light will change to green.
Sounds The	dishwasher will emit a sound to indicate cycle completion, pad presses, and door ajar. To mute all sounds, press the Power Dry pad 5 times within 5 seconds. Repeat this process to turn sounds back on.
Sabbath/ Door Wake Up Mode	To turn this option ON/OFF, press and hold the START and WASH TEMP pads for 5 seconds, close the door and wait 3 minutes for the dishwasher to go into sleep mode. In the OFF mode, the control display, control sounds, and interior lights (on some models) will not respond to the door opening/closing. This mode can be used when observing certain religious holidays such as the Sabbath. To activate the control and interior lights (on some models), press any pad.

Using the Dishwasher

		Dishwasher
Lighting Features	Interior LightsThe interior LED lights provide better visibility for loading and unloading. Do not look directly into the LED lights. They turn on when the door is opened and turn off when the door is closed. The lights will turn off after 15 minutes if the door remains open. To turn the lights back on, close and open the door.	Do not attempt to replace the lights. If light replacement is necessary, please contact Monogram Preferred by calling 800-444-1845. In Canada, call 800-661-1616.
Water Temperature	The entering water must be at least 120°F (49°C) and not more than 150°F (66°C), for effective cleaning and to prevent dish damage.	Check the water temperature with a candy or meat thermometer. Turn on the hot water faucet nearest the dishwasher, place the thermometer in a glass and let the water run continuously into the glass until the temperature stops rising.
Recommended Dishwasher Products	Monogram recommends the following products for use in its dishwashers:For your manual detergent dispenser,Finish®Quantum®Powerball®is recommended. Powders, liquids, and gels may also be used but may not work as effectively.	For your rinse agent dispenser,Finish®Jet-Dry®Rinse Aid.

Use a Rinse Agent

Rinse agents, such as Finish® Jet-Dry® Rinse Aid are designed for great drying action and to protect against spots and film build-up on your dishes, glasses, flatware, cookware, and plastic.

Filling the Dispenser

The rinse agent dispenser holds 3.5 oz. (104 ml) of rinse agent. Under normal conditions, this will last approximately one month - depending on setting.

1 Make sure the dishwasher door is fully open.
2 Open the Rinse Agent dispenser door.
3 Slowly add rinse agent until the cup is full. You may need to pause several times to allow rinse aid to settle. NOTE: Indicator window does not light up.

Indicator window

4 Clean up any spilled rinse agent with a damp cloth to prevent foam from forming inside the dishwasher.
5 Close the Rinse Agent dispenser door.

Rinse Aid Setting

The amount of rinse agent released into the final wash can be adjusted. If water drops or hard water spots remain on dishes after the dry cycle, increase the setting.

Rinse agent adjuster

To adjust the setting

Open the Rinse Agent dispenser door; then turn the adjuster clockwise to increase the amount of rinse agent, counterclockwise to reduce the amount of rinse agent.

Clockwise to reduce water drops and hard water spots

Counterclockwise to reduce foaming

Leak Protection

If a leak is detected, the dishwasher will drain and the cycle will stop. The display will show "LEAK DETECTED". Call for service.

Detergent Dispenser

The detergent dispenser is located in the center of the dishwasher door. It has two compartments. The main wash compartment is found inside the detergent dispenser. To open, press the button on the side of the dispenser. The pre-wash compartment is on the lid of the detergent dispenser. Use the pre-wash compartment only when your water is extremely hard or when you have a heavy soiled load. The pre-wash compartment is not used when tablet or packet detergents are used.

NOTE: Do not load large items in the lower rack where they may block the wash jets from rinsing out the detergent dispenser.

Detergent Dispenser

You may use tablet, packet, powder, liquid or gel automatic dishwasher detergent. Make sure you use only detergents specifically labeled for use in automatic dishwashers. Never use liquid hand dish detergent in an automatic dishwasher. Sudsing and poor wash performance will result with the use of improper detergents.

Detergents should be stored in a dry location and in their original container to prevent loss of effectiveness. Place detergent in the cup just prior to starting the dishwasher and then close the cover. The cover will open during the wash cycle.

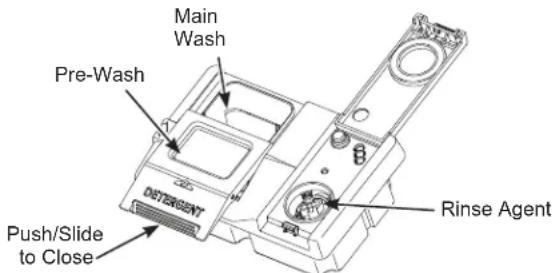

Filling the Detergent Dispenser

Monogram recommends using detergent in tablet or packet form. Independent testing has shown this form of detergent is very effective in the dishwasher. Finish® Quantum® Powerball® is an example of this type of detergent. Simply put a tablet or packet into the main wash compartment and close the detergent cup cover. Please notice that the tablet or packet must be placed in the main wash compartment of the detergent cup. If the tablet or packet is placed in the prewash compartment or tossed in the bottom of the dishwasher, the detergent will be flushed down the drain in a very short period of time and will thus be wasted. Wash performance will be very poor as a result. If you choose to use detergent in powder, liquid or gel form, the amount of detergent you use will be determined by the hardness of your water, the temperature of your water, and the food soil load inside the dishwasher. Contact your water company to get information about the hardness of the water in your area. Water hardness is measured in grains per gallon. Use this information and the table above to determine the amount of detergent to use. You may purchase a hard water test strip from Monogram. Call Monogram Preferred at 800-444-1845 and ask for part number WD01X10295. In Canada, call 800-661-1616.

Main Wash Pre-Wash DINTEAGENT Rinse Agent Push/Slide to Close

Use the table as a starting point and then adjust the amount of detergent you use. Use just enough to get good wash performance. Using just the right amount of detergent will provide great wash performance without wasting detergent or etching glassware.

Number of Grains/Gal.	Detergent Cup(s) to Fill
Less than 4 Fill	cup to 1/3 full
4 to 8 Fill cup	to 2/3 full
8 to 12 Fill cup	completely full
Greater than 12	Fill both main wash cup and pre wash cup

Using too much detergent with very soft and/or very hot water may cause a condition called etching on your glassware. Etching is a permanent cloudiness in your glassware. This condition is irreversible. However, using too little detergent will cause poor wash performance.

DO NOT USE HAND DISH DETERGENT

Diagram showing a bottle and a washing machine with equals sign, illustrating the equivalence between cleaning and cleaning.

NOTE: Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds. During operation, these suds will spill out of the dishwasher vents, covering the kitchen floor and making the floor wet.

Because so many detergent containers look alike, store the dishwasher detergent in a separate space from all other cleaners. Show anyone who may use the dishwasher the correct detergent and where it is stored.

While there will be no lasting damage to the dishwasher, your dishes will not get clean using a dishwashing detergent that is not formulated for automatic dishwashers.

Dishwasher

WiFi Connect (for customers in the United States)

Your dishwasher is Monogram WiFi Connect capable. A WiFi communication card is built into the product allowing it to communicate with your smartphone for remote monitoring, control and notifications.

Please visit http://www.monogram.com/use-and-care/how-to-guides/using-wifi.htm to connect your appliance, learn more about connected appliance features and learn what connected appliance app's will work with your smartphone.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
3. Reorient or relocate the receiving antenna.
4. Increase the separation between the equipment and receiver.
5. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
6. Consult the dealer or an experienced radio/television technician for help.

Labelling: Changes or modifications to this unit not expressly approved by the manufacturer could void the user's authority to operate the equipment.

Dishwasher

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

Upper Rack

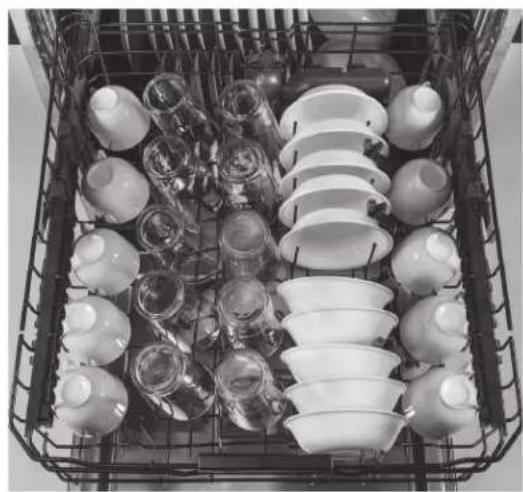

The upper rack is primarily for glasses, cups, and saucers. For best wash performance, tilt cup and glass openings toward the center of the rack. Other items such as pots, pans, and plates may be placed in the upper rack. This is also a secure place for dishwasher-safe plastic items. The upper rack can be used for odd sized utensils. Sauce pans, mixing bowls, and other similarly shaped items should be placed face down for best wash performance. The dishwasher has a hidden heater, so dishwasher safe plastic items can be placed in the lower rack.

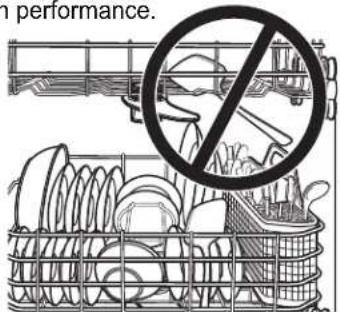

IMPORTANT: Ensure items in the upper rack do not interfere with the 3rd Rack (on some models) when loading and unloading.

IMPORTANT: Ensure that items do not protrude through the bottom of the rack or silverware basket where they will block the rotation of the middle spray arm. This could result in noise during operation and/or poor wash performance.

in performance.

Bottle Jets Clip Nozzle

The Bottle Jets system is the ideal location to position baby bottles, tall sports bottles, or other tall items with narrow openings. The Bottle Jets clips hold bottles with small openings in place so water jets are directed inside the bottles to clean hard to reach areas. Clips can be installed or removed by simply slipping the clip opening over the top of the nozzle.

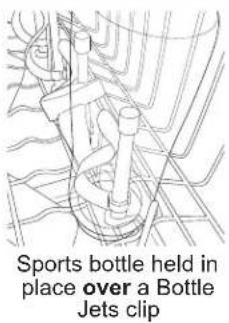

Sports bottle held in place over a Bottle Jets clip

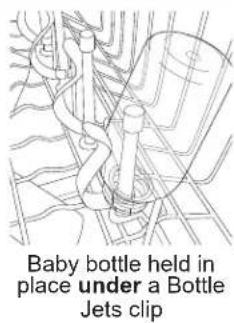

Baby bottle held in place under a Bottle Jets clip

Push Upper Rack

The upper rack allows 2" of adjustment up or down to accommodate large items. The upper rack may be lowered by pushing the long flaps on each side of the rack. This will allow you to lower the rack (see fig. Upper Rack). To raise the rack, lift up on the rack until the rack locks in place.

⚠️ CAUTION A loaded upper rack may be heavier than anticipated. To prevent minor injury or damage to the contents, do not raise or lower the upper rack after the rack is loaded.

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

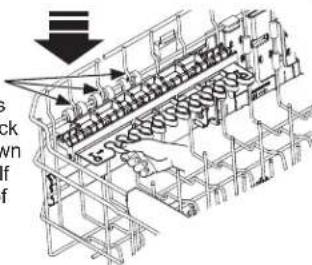

To add flexibility in loading, the utility shelf (on some models) may be placed in the up or down position. The shelf may also be used to secure stemware such as wine glasses. Because these stemware items come in various sizes, slowly push the rack in to ensure the items do not bump into the edges of the dishwasher, which may cause damage to the items.

Place the slots in the utility shelf clips over the vertical rack wires and push down to attach utility shelf onto second wire of rack

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or force

Pure technical line drawing of a structural framework with no text, numbers, or symbols

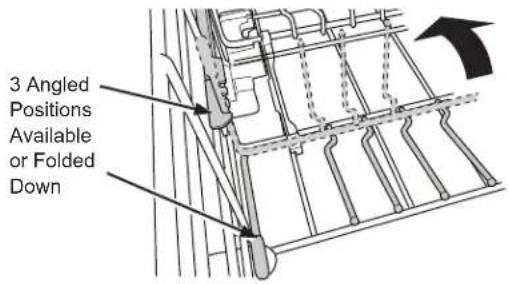

The fold down tines (on some models) provide flexibility for extra-large and hard-to-fit items. The tine rows can be adjusted to a vertical or lay-down position.

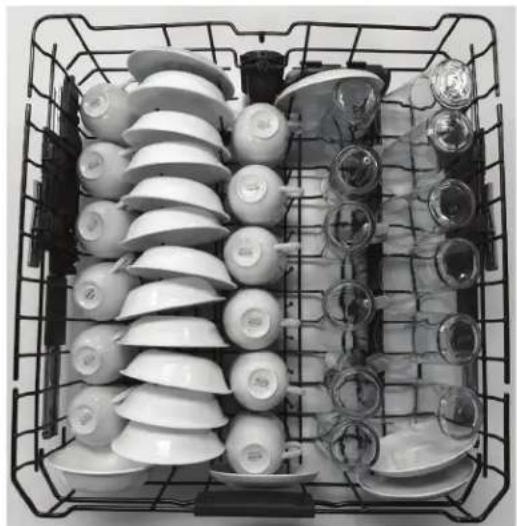

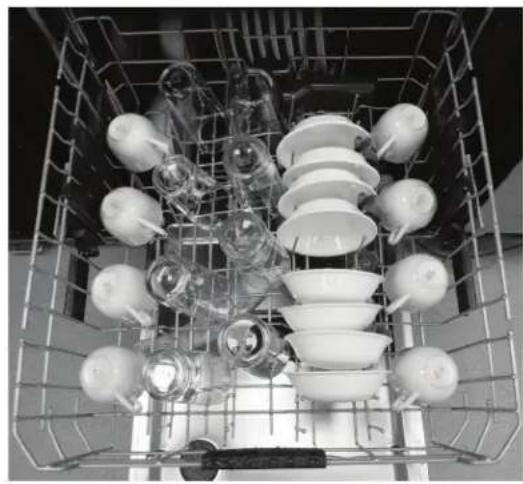

8 Place Settings - Upper Rack

Interior view of a multi-level kitchen sink with glassware and bowls arranged in a grid (no visible text or symbols)

10 Place Settings - Upper Rack

Top-down view of a multi-tiered kitchen appliance rack with various glassware and bowls (no text or symbols visible)

12 Place Settings - Upper Rack

Black-and-white photo of a multi-tiered kitchen appliance rack with multiple plates and cups (no visible text or labels)

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

Lower Rack

The lower rack is best used for plates, saucers and cookware items. Large items, such as broiler pans and baking racks should be placed along the sides of the rack. If necessary, oversized glasses and mugs can be placed in the lower rack to maximize loading flexibility. Plates, saucers and similar items should be placed between the tines in the direction that allows the item to remain secure in the rack.

NOTE: Do not load large items in the lower rack where they may block the wash jets from rinsing out the detergent dispenser.

The lower rack fold down tines can be adjusted to different upright angles or placed flat to provide flexibility for hard-to-fit or extra-large items.

3 Angled Positions Available or Folded Down

WARNING

The clips can be a choke hazard for small children if

removed from the dishwasher. Keep out of reach of children.

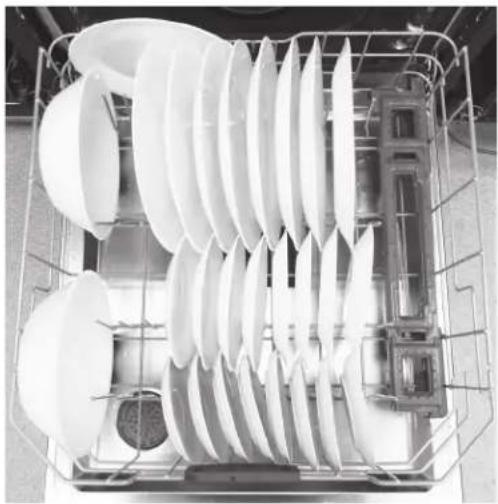

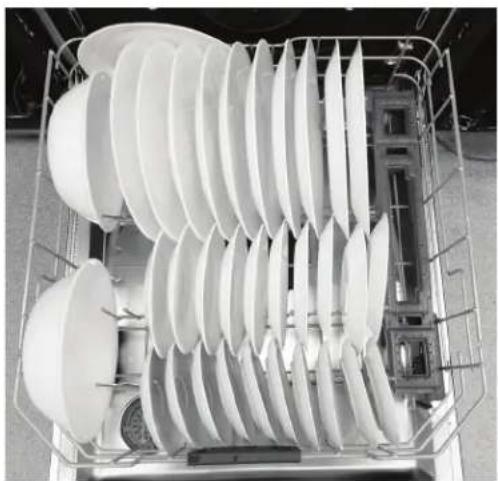

8 Place Settings - Lower Rack

Black-and-white photo of a kitchen appliance with multiple white plates arranged in a metal rack (no visible text or symbols)

10 Place Settings - Lower Rack

Black-and-white photo of a kitchen appliance with multiple white ceramic plates arranged in rows (no visible text or symbols)

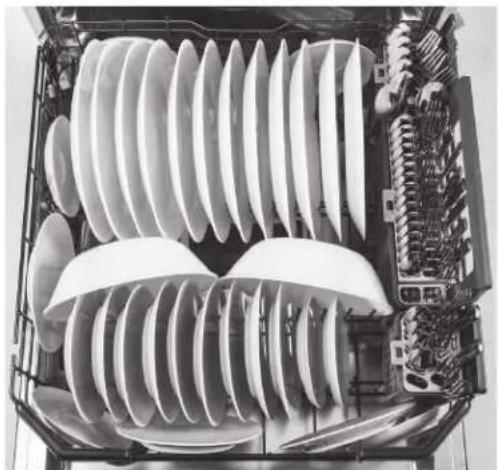

12 Place Settings - Lower Rack

Interior view of a multi-chamber kitchen appliance with multiple white plates and a rack-mounted unit (no visible text or symbols)

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

3rd Rack (Model ZDT925)

The 3rd rack is the recommended location for silverware and large utensils.

CAUTION

Take care when loading, unloading, or transporting

the silverware or utensil tray. The tray may contain sharp or heavy items. If items are dropped from the tray or the tray is dropped, injury could occur.

IMPORTANT NOTES:

■ Do not allow cutlery of different materials to touch each other in the 3rd rack. Doing so may cause discoloration of the cutlery.
■ The trays are only meant to be used with a Monogram 3rd rack dishwasher to hold silverware, cooking utensils, and other small items. Using the trays for any other purpose could result in damage to the trays or damage to anything interacting with the trays.
■ Ensure that the 3rd rack is fully closed before shutting the dishwasher door. Shutting the door with the rack partially extended could cause damage to the dishwasher.

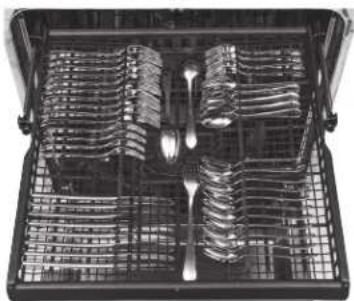

8 Place Settings

Open kitchen grater with metal plates and a spoon, no visible text or symbols

10 Place Settings 12 Place Settings

Interior view of a stainless steel kitchen grater with coiled insulation and mesh grating (no text or symbols visible)

Top-down view of a kitchen appliance with a white plate on a grid tray (no text or symbols visible)

The 3rd rack is also removable to allow extra large items to be placed in the upper rack:

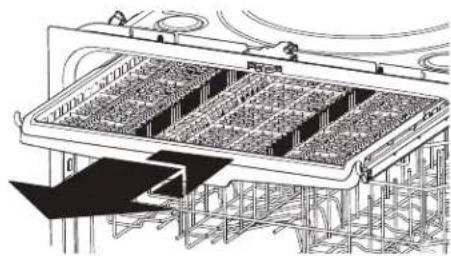

To remove the 3rd rack:

Architectural diagram of a multi-level building structure with grid layout and structural framework (no text or symbols)

1 With the rack fully extended, lift the front of the rack so that the rack roller wheels clear the retaining hook.
2 Continue to pull the rack until the remaining rack roller wheels clear the retaining hook.
3 Replace the rack by aligning the rack roller wheels on the retaining hook and rack rails – Ensure all roller wheels are located on top of the rack rails.

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

3rd Rack (Model ZDT985)

The 3rd rack is the recommended location for silverware and has 2 trays:

N Utensil Tray Silverware Tray

The utensil tray holds serving spoons, chop sticks, spatulas, cutlery, whisks, etc. Be sure not to overlap the utensil heads.

The silverware tray holds silverware individually in slots and is positioned by alternating the heads of the silverware.

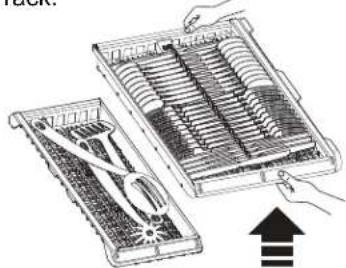

These trays may be removed to allow for easier loading and unloading, changing the side that the trays are on, or to create extra space for the upper rack.

To remove a tray, fully extend the 3rd rack, grasp both the front and back handles on one tray and gently lift the tray out of the rack. To replace the tray, grasp both handles and gently place it on the rack so that the deepest part is towards the center of the rack.

Illustration of a hand using scissors to cut the blade of an abacus (no text or symbols present)

CAUTION

Take care when loading, unloading, or transporting

the silverware or utensil trays. The trays may contain sharp or heavy items. If items are dropped from the trays or the trays are dropped, injury could occur.

IMPORTANT NOTES:

■ Do not allow cutlery of different materials to touch each other in the 3rd rack. Doing so may cause discoloration of the cutlery.
■ The trays are only meant to be used with a Monogram 3rd rack dishwasher to hold silverware, cooking utensils, and other small items. Using the trays for any other purpose could result in damage to the trays or damage to anything interacting with the trays.
■ Ensure that the 3rd rack is fully closed before shutting the dishwasher door. Shutting the door with the rack partially extended could cause damage to the dishwasher.

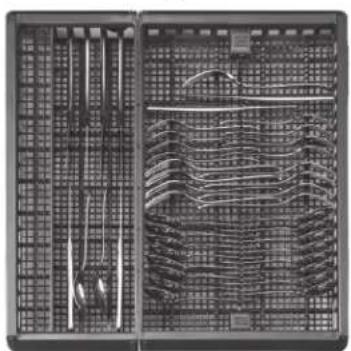

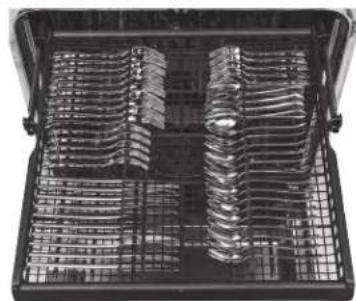

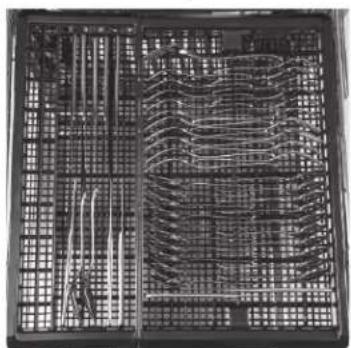

8 Place Settings

Two black-and-white photos of an electronic device with grid patterns and a coiled cable (no visible text or symbols)

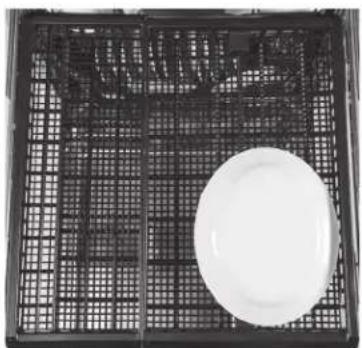

10 Place Settings 12 Place Settings

Close-up of a grid-patterned object with wavy, layered lines and small protrusions (no visible text or symbols)

Black plastic tray with a white plate placed on top, no text or symbols visible

*See Silverware Basket section on how to load silverware

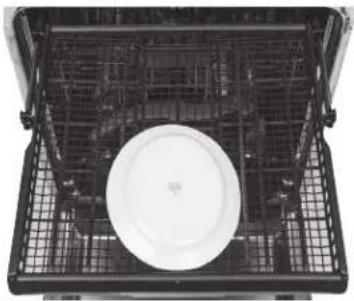

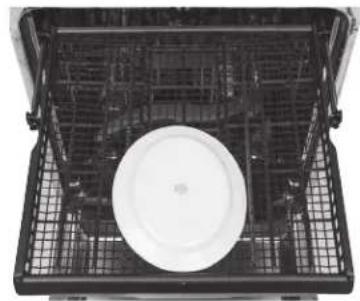

The 3rd rack is also removable to allow extra large items to be placed in the upper rack.

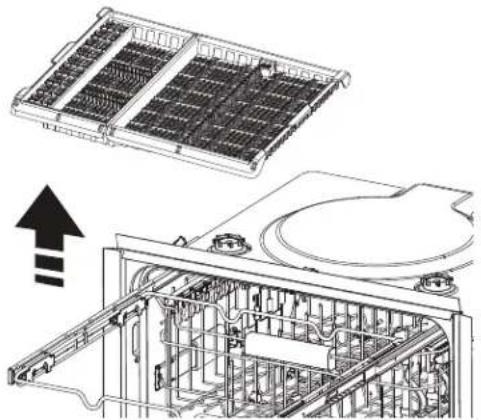

To remove the 3rd rack:

1 Remove the silverware and utensil trays. (See the IMPORTANT NOTES in this section.)

Technical line drawing of a mechanical assembly with internal components and an upward arrow indicating motion (no text or symbols)

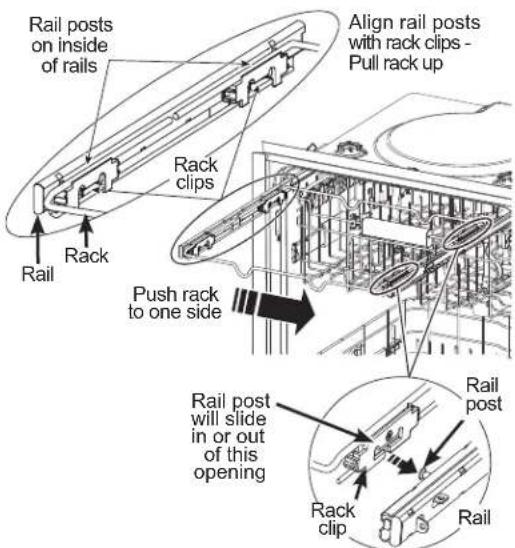

② Push the rack all the way to one side so that a gap between it and the side rail forms on the other side. Align the side rail posts with the center of the clips on the rack and lift straight up.

Rail posts on inside of rails Rail Rack Rail Rack clips Align rail posts with rack clips - Pull rack up Push rack to one side Rail post will slide in or out of this opening Rail post Rack clip Rail

3 Continuing to hold the rack in the lifted position, repeat on the other side.

4 Once the rack is removed, push the side rails all the way back into the dishwasher.

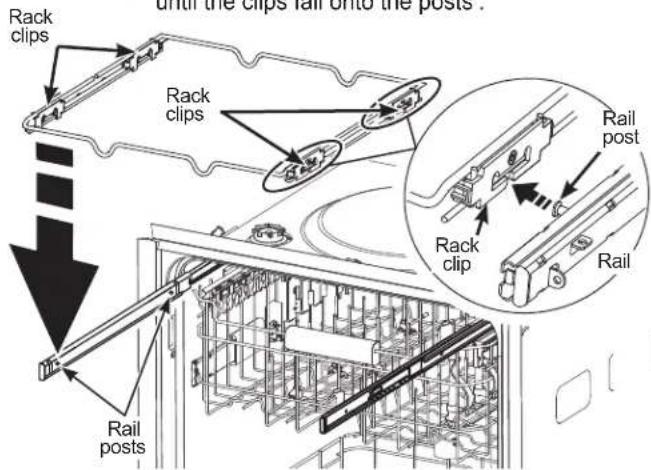

To replace the 3rd rack:

1 Extend both side rails fully out of the dishwasher.
2 Orient the rack so that its side clips are aligned and centered with the posts on the side rail and lower the clips onto the posts.
3 Move the rack to one side of the dishwasher until the clips fall onto the posts.

4 Continuing to hold the rack in the lifted position, repeat on the other side.
5 Once the rack is replaced, pull it all the way out to lock it in place in its side rails.

Rack clips Rack clips Rail posts Rail post Rail Rail

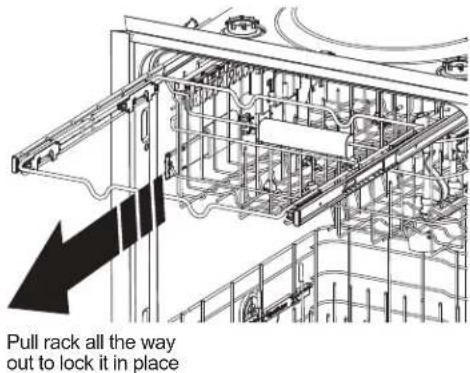

Pull rack all the way out to lock it in place

⑥ Replace the silverware and utensil trays.

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

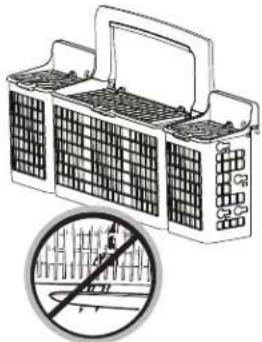

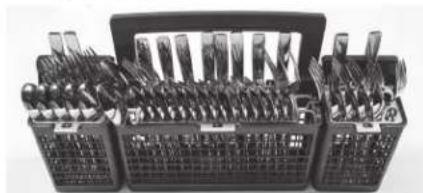

Silverware Basket

Place flatware in the removable silverware baskets. Sharp objects, such as forks and knives, may be placed with the handles facing up, in order to protect your hands. For the best wash performance, place other items such as spoons with the handles facing down. Avoid allowing items to nest together, which may keep them from being properly washed. When loading, distribute items evenly in the basket.

The silverware baskets may also be used for small items, such as measuring spoons, baby bottle nipples, plastic lids, or corn cob holders. The silverware basket covers can be closed to contain small items.

The silverware basket may be positioned by placing the hooks on the back of the basket over the top wire on the sides of the lower rack.

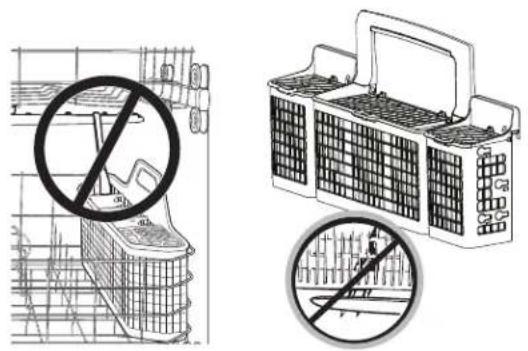

IMPORTANT: Do not load large or tall utensils where they may block the detergent dispenser, mid spray arm, or become trapped between the door and the gasket when the door is closed.

Technical diagrams showing no violations on a mechanical device and a grid-patterned air conditioner unit (no text or symbols present)

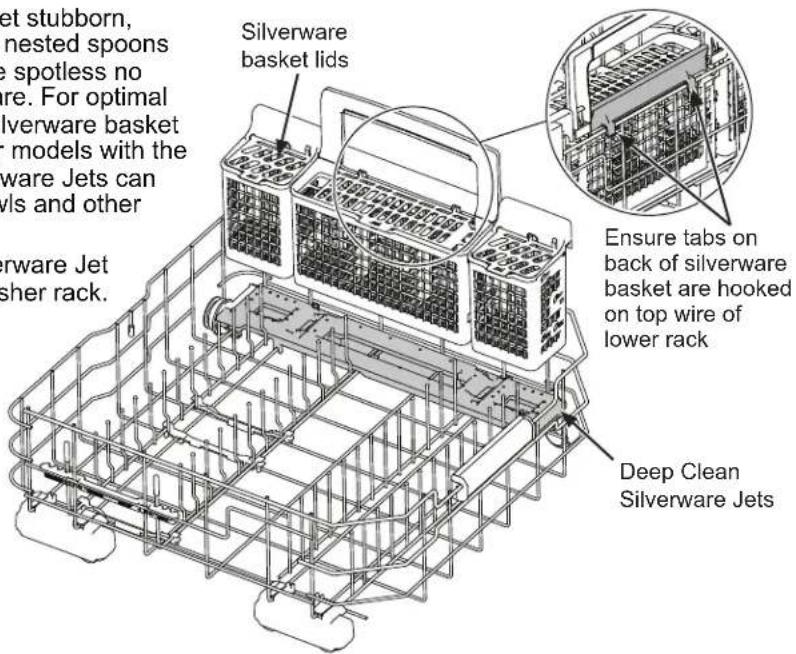

Deep Clean Silverware Jets

Deep Clean Silverware Jets target stubborn, stuck-on food and help separate nested spoons and forks to keep your silverware spotless no matter how you load the silverware. For optimal silverware cleaning, the use of silverware basket lids is always recommended. For models with the third rack, the Deep Clean Silverware Jets can also be used to clean mixing bowls and other cookware.

Do not remove Deep Clean Silverware Jet spray assembly from the dishwasher rack.

Jet stubborn, nested spoons e spotless no re. For optimal silverware basket or models with the ware Jets can vls and other erware Jet sher rack. Silverware basket lids Ensure tabs on back of silverware basket are hooked on top wire of lower rack Deep Clean Silverware Jets

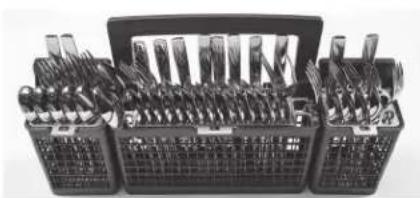

Silverware/flatware is loaded using the silverware basket lids. This ensures great wash performance of the silverware. Loading in this manner prevents nesting and makes sure all items are washed uniformly.

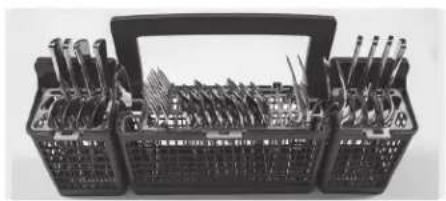

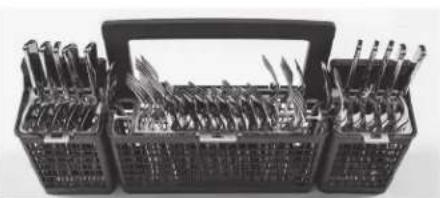

8 Place Settings 10 Place Settings

Black plastic toolbox containing various kitchen utensils arranged in a tray (no visible text or labels)

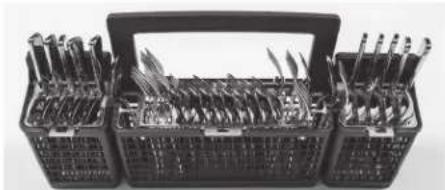

12 Place Settings

Black-and-white photo of a toolbox containing various kitchen utensils (no visible text or labels)

Black-and-white photo of a toolbox containing various metal tools arranged in rows (no visible text or labels)

Care and Cleaning

		Dishwasher
Exterior Door Panel	Before cleaning the front panel, make sure you know what type of panel you have. Refer to the last two letters of your model number. You can locate your model number on the left-hand tub wall just inside the door. If your model number ends with SS, then you have a Stainless Steel door panel. If your model number ends with II, then you have an Integrated door panel.Follow the instructions below for cleaning the door panel for your specific model.Stainless Steel Door Panel (model numbers ending in SS)For cleaning rust and tarnish, cleaners with oxalic acid such as Bar Keepers Friend Soft CleanserTM will remove rust, tarnish and small blemishes. Use only a liquid cleanser free of grit and rub in the direction of the brush lines with a damp soft sponge. Do not use appliance wax or polish on the stainless steel.For other blemishes and marks, use Stainless Steel Magic or a similar product using a clean soft cloth. Do not use appliance wax, polish, bleach or products containing chlorine on Stainless Steel. You can order Stainless Steel Magic # WX10X29 through Monogram Preferred by calling 800-444-1845. In Canada, call 800-661-1616.	Integrated Door Panel (model numbers ending in II)This is a custom installed door panel, and you will need to refer to the cabinet manufacturers recommendations for proper cleaning.
Control Panel	To clean the control panel, use a lightly dampened cloth. Then dry thoroughly.
Interior	To clean and de-odorize your dishwasher, use citric acid orFinish® Dishwasher Cleaner, a detergent additive. Finish® Dishwasher Cleanerwill break up mineral deposits, and remove hard water film and stains. You can order citric acid # WD35X151 through Monogram by calling 800-444-1845 or visitingMonogram.com. In Canada, call 800-661-1616. You can purchaseFinish® Dishwasher Cleanerat your local grocery store.
Stainless Steel Inner Door and Tub	The stainless steel used to make the dishwasher tub and inner door provides the highest reliability available in a Monogram dishwasher.If the dishwasher tub or inner door should be scratched or dented during normal use, they will not rust or corrode. These surface blemishes will not affect their function or durability.

Cleaning the Filters

Inspect and clean the filters periodically. This should be done every other month or more depending on usage. If there is a decrease in wash performance or dishes feel gritty, this is also an indication the filters need to be cleaned.

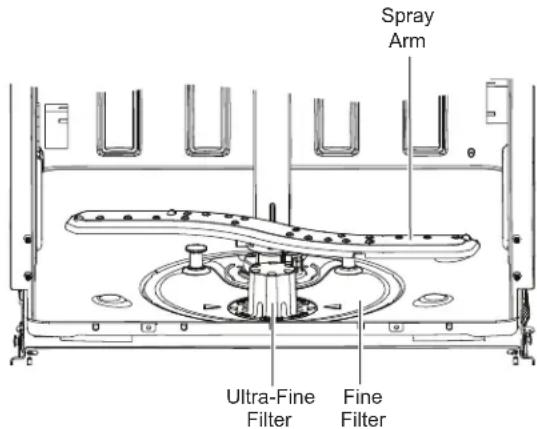

Spray Arm Ultra-Fine Filter Fine Filter

Ultra-Fine Filter

To clean the Ultra-Fine Filter, remove the bottom rack. Twist the Ultra-Fine Filter counterclockwise and lift to remove. Rinse filter with warm soapy water and use a sponge to carefully remove any stubborn particles. Scrubbing with scouring pads or brushes can damage the filter. Once cleaned, replace the Ultra-Fine Filter, and twist it clockwise to lock in place.

Fine Filter

To clean the Fine Filter (mesh plate), remove the bottom rack. Remove the Ultra-Fine Filter.

Twist each of the two retaining posts located toward the back bottom of the tub counterclockwise, and remove the Fine Filter. Rinse filter with warm soapy water. Scouring pads or brushes can scratch the filter surface but a soft brush or sponge may be needed to remove stubborn soils or calcium deposits caused by hard water. Once cleaned, replace the Fine Filter and the Ultra-Fine Filter. Twist the two retaining posts clockwise to lock in place.

WARNING

The retaining posts can be a choke hazard for small

children if removed from the dishwasher. Keep out of reach of children.

Protect Against Freezing

If your dishwasher is left in an unheated place during the winter, ask a service technician to:

1 Turn off electrical power to the dishwasher. Remove fuses or trip circuit breaker.
2 Turn off the water supply and disconnect the water inlet line from the water valve.

3 Drain water from the water inlet line and water valve. (Use a pan to catch the water.)
4 Reconnect the water inlet line to the water valve.

Does Your Dishwasher Have an Air Gap?

An air gap protects your dishwasher against water backing up into it if a drain clogs. The air gap is not a part of the dishwasher. It is not covered by your warranty. Not all plumbing codes require air gaps, so you may not have one.

Check the air gap any time your dishwasher isn't draining well.

The air gap is easy to clean.

1 Turn off the dishwasher and lift off the air gap cover.
2 Remove the plastic cap under the cover and clean with a toothpick.
3 Replace the cap and cover when the air gap is clean.

Dishwasher

Questions?
Use this problem solver

PROBLEM	POSSIBLE CAUSE WHAT TO DO
Start status indicator light flashing	The door was opened or the cycle was interrupted.	Press the START pad once and close the door within 4 seconds to start the dishwasher.Press the START pad a second time when the dishwasher is running only if you wish to cancel the cycle.
Dishwasher BEEPS once every minute	This is a reminder that your dishwasher door has been left open during operation. It will continue beeping until you press START and close the door.	Press START and close the door.
Display shows “LEAK DETECTED”	Possible leak is detected	Some models are equipped with leak detection and the cycle will be cancelled if a leak is detected. The display will show “LEAK DETECTED”. Call for service.
Beeping at the end of the cycle (on some models)	This is normal. The dishwasher will beep twice at the end of the cycle.	To turn off the double beep indicator (or re-activate it if it was previously turned off), press the DRY OPTIONS pad 5 times within 3 seconds. A triple beep will sound to indicate the end-of-cycle beep option has been turned on or off.
Dishes and flatware not clean	Ultra Fine or Fine filter is clogged	See the Care and cleaning section.
	Low inlet water temperature	Make sure inlet water temperature is correct (see the Using the dishwasher section). Turn on the hot water faucet nearest the dishwasher, let run until the water temperature stops rising. Then start the dishwasher and turn off the faucet. This ensures the entering water is hot. Select Boost Temp.
	Water pressure is temporarily low	Turn on a faucet. Is water coming out more slowly than usual? If so, wait until pressure is normal before using your dishwasher. Normal water pressure to the dishwasher should be 20-120 psi.
	Air gap or disposer is clogged	Clean the air gap or flush the disposer.
	Improper rack loading	Make sure large dishware does not block the detergent dispenser or the wash arms. See the Loading the dishwasher section.
	Poor performing detergent	Use a highly rated detergent such as Finish® Quantum® Automatic Dishwashing Detergent.
	Leak detected	Some models are equipped with leak detection and the cycle will be cancelled if a leak is detected. The display will show “LEAK DETECTED”. Call for service.
Spots and filming on glasses and flatware	Extremely hard water	Use rinse agents such as Finish® Jet-Dry® Rinse Aid to prevent spots and prevent new film buildup.If water is extremely hard, a softener may be required.
	Low inlet water temperature	Make sure water temperature is at least 120°F (49°C).
	Overloading or improper loading of the dishwasher	Load dishwasher as shown in the Loading Place Settings section.
	Old or damp powder detergent	Make sure detergent is fresh. Use a highly rated detergent such as Finish® Quantum® Automatic Dishwashing Detergent.
	Rinse agent dispenser empty	Refill with rinse agent such as Finish® Jet-Dry® Rinse Aid.
	Too little or low performing detergent	Make sure you use the proper amount of highly rated detergent.

Dishwasher

Questions?
Use this problem solver

PROBLEM	POSSIBLE CAUSE WHAT TO DO
Cloudiness on glassware	Combination of soft water and too much detergent	This is called etching and is permanent. To prevent this from happening, use less detergent if you have soft water. Wash glassware in the shortest cycle that will get it clean.
	Low performing phosphate free detergent	See A white film on glassware, dishware and the interior in this Troubleshooting section.
	Water temperature entering the dishwasher exceeds 150°F (66°C)	This could be etching. Lower the water heater temperature.
Suds in the tub	Wrong detergent•	Use only automatic dishwasher detergents to avoid sudsing.Finish®Automatic Dishwashing Detergents have been approved for use in all Monogram dishwashers.To remove suds from the tub, open the dishwasher and let suds dissipate. Open the door, press and hold START for 3 seconds, and close the door.
	Rinse agent was spilled	Always wipe up rinse agent spills immediately.
Detergent left in dispenser cups	Dishes or utensils are blocking the detergent cup	Reposition the dishes, so the water from the lower spray arm can flush the detergent cup. See Loading the dishwasher section.Reposition the tall utensils or heavy silverware that may be keeping the dispenser cup door from opening. See the Loading the dishwasher section.Don't place large bowls or pots directly under detergent dispenser.
Black or gray marks on dishes	Aluminum utensils have rubbed against dishes	Remove marks with a mild, abrasive cleaner.
Dishes don't dry	Low inlet water temperature •	Make sure inlet water temperature is at least 120°F.Select Power Dry or Max Dry.Use Boost Temp option.Select a higher cycle, such as Sanitize Temp or Intense.
	Rinse agent dispenser is empty •	Check the rinse agent dispenser and fill as required.
	Max Dry option was not selected	Select the Max Dry option to improve dry performance.
	Additional drying time is needed •	Allow the fan to run an additional 90 minutes after the Clean light appears. Note: If you open the door, this fan extension will be cancelled.
Control panel responded to inputs but dishwasher never filled with water	Door may not be completely closed	Make sure the door is firmly closed.
	Water valve may be turned off •	Make sure water valve (usually located under the sink) is turned on.
	Flood float may be stuck	Remove Ultra-Fine filter and lightly tap the piece under the ultra fine filter that looks like a salt shaker. Replace the filter.
Stained tub interior	White film on inside surface—hard water minerals	Monogram recommends Finish® Jet-Dry® Rinse Aid to help prevent hard water mineral deposits from forming.Run dishwasher with citric acid to remove mineral deposits. You can order citric acid #WD35X151 through Monogram by calling 800-444-1845 or visiting Monogram.com. In Canada, call 800-661-1616. Alternatively, purchase Finish® Dishwasher Cleaner and follow the directions on the label.
Dishwasher won't run	Fuse is blown or circuit breaker is tripped	Replace fuse or reset circuit breaker. Remove any other appliances from the circuit.
	Power is turned off	In some installations, the power to the dishwasher is provided through a wall switch, often located next to the disposer switch. Make sure it is on.
	Control panel is locked	Unlock control panel. See the Getting started section.
	Possible leak is detected	Models are equipped with leak detection and the cycle will be cancelled if a leak is detected. The display will show “LEAK DETECTED”. Call for service.
	Proper Start sequence was not followed	See the Using the dishwasher section.

Dishwasher

Questions?
Use this problem solver

PROBLEM	POSSIBLE CAUSE WHAT TO DO
Control panel lights go off when you're setting controls	Time too long between touching of selected pads	Each pad must be touched within 30 seconds of the others. To relight, touch any pad again or open the door and unlock (top control).
Water standing in the bottom of the tub	Air gap is clogged	Clean the air gap. See the Care and cleaning section.
	High drain loop or air gap not installed	Refer to the Installation Instructions for proper drain line installation.
Water won't pump out of the tub	Drain is clogged	If you have an air gap, clean it. See the Care and cleaning section.If the dishwasher drains into a disposer, run disposer clear.Check to see if your kitchen sink is draining well. If not, you may need a plumber.
Steam	This is normal	Warm, moist air comes through the vent during drying and when water is being pumped out. This is necessary for drying.
Cycle Sanitized light does not illuminate at end of cycle	The door was opened and the cycle was interrupted during final rinse	Do not interrupt the cycle by opening the door during the wash cycle.
	The incoming water temperature was too low	Raise the water heater temperature to between 120^ and 150^ .
Noise	Normal operating sounds:Detergent cup openingWater entering dishwasherThe motor stops and starts at various times during the cycleSpray arms start and stop at various timesDrain pump sounds during pump outDrain pump starts and stops several times during each drainMax Dry Fan	These are all normal. No action is required.
	Rattling dishes when the spray arm rotates	Make sure dishes are properly loaded. See the Loading the dishwasher section.
	Rattling silverware against door during wash	Tall utensils may be placed in the upper rack to avoid bumping against inner door during wash cycle.
A white film on glassware, dishware and the interior	This problem is likely caused by a low quality phosphate-free Dishwasher detergent	To remove the white film, run your dishes through a dishwasher cycle with citric acid. Use a WD35X151 citric acid kit found online. Otherwise, use Finish® Dishwasher Cleaner found at your local grocery store. Pour the citric acid in the detergent cup and close the cover. Place the filmed but otherwise clean glassware and dishware in the dishwasher. Leave silverware and other metal items out of the dishwasher. Turn the dishwasher on and let it run through a complete cycle without detergent. The glassware, dishware, and dishwasher should come out film free. Alternatively, a vinegar rinse may be used. Pour 1 cup of vinegar into dishwasher just after the detergent cup opens and let the dishwasher complete its cycle. This may be repeated several times a year as needed. The use of a rinse agent such as Finish® Jet-Dry® Rinse Aid may help minimize a repeat build up of film. Also, the use of a highly rated detergent such as Finish® Quantum® Automatic Dishwashing Detergent will help prevent film build-up.
Feel air on your legs when standing in front of the dishwasher during cycle	This is normal.	Do not interrupt the cycle. No action is required.

YOUR MONOGRAM DISHWASHER WARRANTY

Staple sales slip or cancelled check here. Proof of original purchase date is needed to obtain service under warranty.

WHAT IS COVERED

From the Date of the Original Purchase

Two Year

Any part of the dishwasher which fails due to a defect in materials or workmanship. During this limited two-year warranty, Monogram will also provide, free of charge, all labor and in-home service to replace the defective part.

Three to Five Years

The dishwasher rack and/or the electronic control module, if these should fail due to a defect in materials or workmanship. During this three to five year limited warranty, you will be responsible for any labor or in-home service costs.

Lifetime

The stainless steel tub or door liner, if it fails to contain water due to a defect in materials or workmanship. During this limited lifetime warranty, Monogram will also provide, free of charge, all labor and in-home service to replace the defective part.

This warranty is extended to the original purchaser and any succeeding owner for the products purchased for ordinary home use in the 48 mainland states, Hawaii or Washington, D.C. If the product is located in an area where service by a Monogram Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized Monogram Service location for service. In Alaska the warranty is the same except that it is LIMITED because you must pay to ship the product to the service shop or for the service technician's travel cost to your home.

All warranty service will be provided by our Factory Service Centers or by our authorized Customer Care ^® servicers during normal working hours.

Should your appliance need service, during warranty period or beyond, call Monogram Preferred at 800-444-1845. Please have serial number and model number available when calling for service.

WHAT IS NOT COVERED

• Service trips to your home to teach you how to use the product.
- Improper installation, delivery or maintenance.
- Replacement of house fuses or resetting of circuit breakers.
- Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
- Damage to the product caused by accident, fire, floods or acts of God.

• Incidental or consequential damage caused by possible defects with this appliance.
• Cleaning or servicing of the air gap device in the drain line.
• Damage caused after delivery, including damage from items dropped on the door.
• Product not accessible to provide required service.
• Damage to finish, such as surface rust, tarnish, or small blemishes not reported within 48 hours of delivery.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are in your state, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: GE Appliances, a Haier company

YOUR MONOGRAM DISHWASHER WARRANTY

Staple sales slip or cancelled check here. Proof of original purchase date is needed to obtain service under warranty.

WHAT IS COVERED

From the Date of the Original Purchase

Two Year

Any part of the dishwasher which fails due to a defect in materials or workmanship. During this limited two-year warranty, Monogram will also provide, free of charge, all labor and in-home service to replace the defective part.

Three to Five Years

The dishwasher rack, if it should rust, or the electronic control module, if it should fail due to a defect in materials or workmanship. During this three to five year limited warranty, you will be responsible for any labor or in-home service costs.

Lifetime

The stainless steel tub or door liner, if it fails to contain water due to a defect in materials or workmanship. During this limited lifetime warranty, Monogram will also provide, free of charge, all labor and in-home service to replace the defective part.

This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for ordinary home use in Canada. In-home warranty service will be provided in areas where it is available and deemed reasonable by Monogram to provide. Proof of original purchase date is needed to obtain service under the warranty.

All warranty service will be provided by our Factory Service Centers or by our authorized Customer Care ^® servicers during normal working hours.

Should your appliance need service, during warranty period or beyond, call Monogram Preferred at 888-880-3030. Please have serial number and model number available when calling for service.

WHAT IS NOT COVERED

• Service trips to your home to teach you how to use the product.
- Improper installation, delivery or maintenance.
- Replacement of house fuses or resetting of circuit breakers.
- Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
- Damage to the product caused by accident, fire, floods or acts of God.

• Incidental or consequential damage caused by possible defects with this appliance.
• Cleaning or servicing of the air gap device in the drain line.
• Damage caused after delivery, including damage from items dropped on the door.
• Product not accessible to provide required service.
• Damage to finish, such as surface rust, tarnish, or small blemishes not reported within 48 hours of delivery.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from province to province. To know what your legal rights are in your province, consult your local or provincial consumer affairs office.

Warrantor: MC COMMERCIAL INC., Burlington, ON, L7R 5B6.

Consumer Support

	Dishwasher
	With the purchase of your new Monogram appliance, receive the assurance that if you ever need information or assistance from Monogram, we will be there. All you have to do is call!
Register Your Appliance	Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.In the US:Monogram.comIn Canada:Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx
Schedule Service	Expert Monogram repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year.In the US:Monogram.comor call 800-444-1845 during normal business hours.In Canada:Monogram.caor call 888-880-3030
Extended Warranties	Purchase a Monogram extended warranty and learn about special discounts that are available while your warranty is still in effect.In the US:Monogram.comor call 800-444-1845 during normal business hours.In Canada:Monogram.caor call 800-290-9029
Remote Connectivity	For assistance with wireless network connectivity (for models with remote enable), visit our website atMonogram.comor call 800-444-1845 in the US only.
Parts and Accessories	Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day.In the US:Monogram.comor by phone at 800-444-1845 during normal business hours.Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel.Caution must be exercised, since improper servicing may cause unsafe operation.Customers in Canada should consult the nearest MC COMMERCIAL INC. service center, visit our website atMonogram.caor call 888-880-3030.

MONOGRAM

Diagram showing a bottle and a washing machine with an equals sign, illustrating the equivalence between cleaning and cleaning.

Illustration showing a crossed-out 'No' symbol over a grid of food items, indicating no food waste or consumption.

Pince Buse Jets de bouteille

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure technical line drawing of mechanical components without any text, numbers, or symbols

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating flow or movement.

Pure technical diagram of a structural grid with arrows indicating direction (no text or symbols)

Interior view of a kitchen appliance rack with multiple white kitchen utensils and glassware (no visible text or labels)

Top-down view of a multi-tiered kitchen appliance rack with glassware and bowls (no text or symbols visible)

Black-and-white photo of a multi-tiered kitchen appliance rack with multiple plates and dish holders (no visible text or labels)

Interior view of a kitchen appliance with multiple white ceramic plates arranged in a metal rack (no visible text or symbols)

Interior view of a kitchen appliance with multiple white plates arranged in rows (no visible text or symbols)

Interior view of a washing machine with multiple white plates and internal components (no visible text or symbols)

Open kitchen appliance with metal grilles and a fork, no visible text or symbols

Interior view of a metal grating tray with coiled glass panels (no text or symbols visible)

Top-down view of a kitchen appliance with a white plate on the backrest and black gridded metal tray (no text or symbols visible)

Architectural line drawing of a multi-level building structure with structural framework (no text or symbols)

Technical illustration of a mechanical device with internal components (no visible text or symbols)

Illustration of a mechanical device with tools and a rack, showing a hand operating the component (no text or symbols present)

8 couverts

Close-up of a grid-patterned electronic device with visible traces and components (no readable text or symbols)

Close-up of a grid-patterned object with wavy, layered lines and small protrusions (no visible text or symbols)

Top-down view of a black plastic crate containing a white plate, no text or symbols visible.

Technical illustration of an air conditioner unit showing internal components and a top-down view with an upward arrow (no text or symbols)

Technical line drawing of an internal mechanical assembly with no visible text or symbols

Safety warning symbol with crossed-out hand and gear mechanism, surrounded by construction materials

Illustration of a portable electric stove with grid panels and handle, accompanied by a prohibition symbol (no text or labels)

Technical line drawing of an industrial facility interior with structural framework (no text or symbols)

Black plastic toolbox containing various kitchen utensils arranged in a tray (no visible text or labels)

10 couverts

Black-and-white photo of a toolbox containing various kitchen utensils (no visible text or labels)

12 couverts

Black-and-white photo of a toolbox containing various kitchen utensils (no visible text or labels)

Coupure antirefoulement

If the hot water has not been used for two or more weeks, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke, use an open flame, or use the appliance during this process.

ADVERTENCIA

Diagram showing a plastic bottle and a washing machine with its equation to be equal

NO USE DETERGENTE PARA LAVADO MANUAL

Diagram showing a construction or safety hazard symbol (no text or labels present)

Sujetador Boquilla

Jets de Botellas

Pure mechanical diagram showing internal components without any text, numbers, or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Interior view of a multi-level kitchen appliance with glassware and kitchen utensils arranged in a grid (no visible text or symbols)

Top-down view of a multi-tiered kitchen appliance rack with glassware and bowls (no text or symbols visible)

Black-and-white photo of a multi-tiered kitchen appliance rack with multiple bowls and spoons (no visible text or labels)

Interior view of a stainless steel kitchen appliance with multiple white circular plates arranged in rows (no visible text or symbols)

Interior view of a kitchen appliance with multiple white ceramic plates arranged in rows (no visible text or labels)

Interior view of a washing machine with multiple white ceramic plates and internal components (no visible text or symbols)

Open kitchen utensil kit with metal plates and a fork, no visible text or symbols

Interior view of a stainless steel kitchen grater with coiled insulation (no text or symbols visible)

Top-down view of a kitchen appliance with a white plate on the front panel and empty compartments (no text or symbols visible)

Architectural line drawing of a multi-level building structure with structural framework (no text or symbols)

Illustration of a mechanical device with gears and a tray, labeled 'Bandeia para' (no other text or symbols)

Illustration showing a hand using a tool to cut a traditional abacus, with an upward arrow indicating the process.

Two black-and-white photos of a grid-patterned object with a spoon and wavy surface, no visible text or symbols.

Close-up of a grid-patterned mechanical or electrical component with coiled wires and traces (no visible text or symbols)

Top-down view of a black plastic tray with a white plate placed on it (no text or symbols visible)

Technical line drawing of a mechanical device showing internal components and assembly (no text or symbols)

Technical line drawing of an industrial or mechanical assembly with internal components and a downward arrow indicating motion (no text or symbols present)

Safety warning symbol with crossed-out hand and 'No' text, indicating no hazard or absence of a device.

Illustration of a portable electric vehicle chassis with grid panels and handle, accompanied by a magnified inset showing a crossed-out electrical circuit (no text or symbols present)

Technical line drawing of a mechanical assembly or structural component (no visible text or symbols)

Black-and-white photo of a toolbox containing various kitchen utensils (no visible text or labels)

Three black plastic tool baskets containing various kitchen utensils (no visible text or labels)

Black-and-white photo of a toolbox containing various kitchen utensils (no visible text or labels)

Cuidado y limpieza
