| Product type | Fridge-freezer combination |
| Brand | Koenic |
| Model | KDD 181 D NF IN CH |
| Dimensions (H x W x D) | 1905 x 910 x 690 mm |
| Depth with open door | 1062 mm |
| Net refrigerator capacity | 343 L |
| Net freezer capacity | 81 L |
| Net convertible zone capacity | 82 L |
| Freezing capacity | 13 kg/24 h |
| Energy consumption | 255 kWh/year |
| Voltage | 220 - 240 V~ |
| Frequency | 50 Hz |
| Rated current | 1.5 A |
| Climate class | SN, N, ST (10°C - 38°C) |
| Interior lighting | LED (class G) |
| Number of refrigerator shelves | 2 glass + 4 door balconies |
| Number of freezer drawers | 2 drawers + 1 shelf |
| Convertible zone | Yes (adjustable from -20°C to 5°C) |
| Zero-star compartment | Yes (approx. -3°C to 0°C) |
| Special functions | Super freeze, ECO mode, Holiday mode |
| Open door alarm | Yes (after 60 seconds) |
| Control panel | Digital with lock |
| Included accessories | Egg holder, ice cube tray, 3 gaskets, 4 quick freezing shelves |
| Cleaning and maintenance | Unplug before cleaning, avoid solvents and abrasives |
| Spare parts available | At least 7 years after sale (contact customer service) |
Frequently Asked Questions - KDD 181 D NF IN CH Koenic
User questions about KDD 181 D NF IN CH Koenic
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual KDD 181 D NF IN CH - Koenic and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KDD 181 D NF IN CH by Koenic.
USER MANUAL KDD 181 D NF IN CH Koenic
Get ready for compliments
Side by Side
(2019)3A5(N)
√ 1131.16 - 27
x = 4.15 + x - 2.3
ED Bedienungskaufung
24
图 10-15
图 Mode-2-01
图 152-640
■ Parousine interference
设 453102-196
图 10.4-2.6
图 10-10
Intron GmbH
H_1 ^c a ^c b
E:C3 Incentor
10.4% EFOV
WANQ:148-148
HJKC181DFNJKCO1BLDNFNOCH24015V08
Sicherheitshinweise
- This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have received instructions concerning use of the appliance in a safe way and understand the hazards involved.
- Children aged from 3 years are allowed to load and unload refrigerating appliances.
• Children must not play with the product. - Cleaning and user maintenance shall not be carried out by children unless they are supervised.
- A damaged power cord may only be replaced by an authorised service agent in order to avoid hazards.
- The product is designed for the storage of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
- Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
English
Safety Instructions
- Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Warning: Do not damage the refrigerant circuit.
- Warning: Do not use electrical appliances inside the food storage compartments of the product, unless they are of the type recommended by the manufacturer.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this product.
- The light source (only LED) is only to be replaced by a recognized electrician/qualified person. *
- Follow the instructions in the chapter Cleaning and care.
- Warning: The refrigerant and insulation blowing gas are flammable. When disposing of the product, do so only at an authorized waste disposal center or contact the service agent.
- To avoid contamination of food, please respect the following instructions:
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
Safety Instructions
- Clean surfaces that can come in contact with food and accessible drainage systems on a regular basis.
- Store raw meat and fish in suitable containers in the refrigerator, so that it does not get into contact with other foods, or that fluids drip onto other foods.
- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
- One-, two- and three-star compartments are not suitable for the freezing of fresh food.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould from developing within the appliance.
* Note to service technician/qualified persons: Dismantling instruction can be obtained from the free website www.koenic-online.com
English
Safety Instructions
- Read this manual thoroughly before first use. It contains important information for your safety as well as for the use and maintenance of the equipment.
- Do not place any objects on top of the product.
- Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.
- Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
- The mains voltage must match the information on the rating label of the product.
- Only unplugging from the power socket can separate the product completely from the mains.
- Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
- Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
- Only unplugging from the power socket by the plug itself. Do not pull on the cord.
- Unplug the product ...
- when the product is not being used,
- in case of malfunctions,
- before attaching / detaching accessories and
- before cleaning the product.
- Use this product in dry indoor areas only and never outdoors.
- This product is not intended for commercial use. It is designed for household use only.
- Make sure that electrical components, live parts and the power cord do not become wet.
-
Use accessories supplied with the device or recommended by the manufacturer only!
-
Do not cover the product while in use. Fire hazard!
- WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.
- WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.
Caution: Risk of fire!
Flammable materials.
WARNING! During using, service and disposal of the appliance, please pay attention to the symbol which is located on the rear of the appliance (rear panel or compressor).
It's a risk of fire warning symbol. There are flammable materials in the refrigerant pipes and the compressor. Make sure to keep sources of fire away during usage, service and disposal.
Congratulations!
Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.
Intended use
This product is suitable for refrigerating and freezing food and beverages only. Any other use may damage the device or cause injuries.
- This product is not intended to be used as a built-in appliance.
- This refrigerant appliance is intended to be used at ambient temperatures ranging from 10^ C to 38^ C.
The product is only intended to be used in private households and shall not be used for commercial purposes.
Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.
Before first time use
Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions.
Should you have any questions regarding proper disposal, contact your local waste management center.
Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.
After unpacking, please refer to chapter
Cleaning and care.
Warranty and spare parts
The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.
English
Delivery contents
1 x Fridge and freezer combination
1 x Egg holder for 8 eggs
1 x Ice cube tray
1 x User manual
3 x Washers
4 x Fast Freezing Food Plates

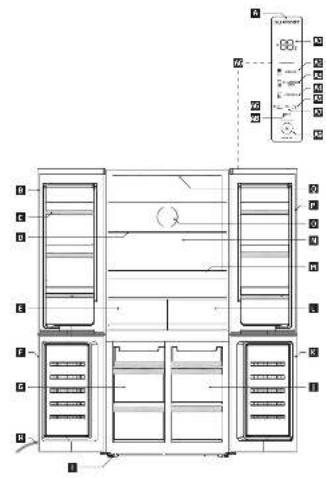

Controls and components
A Control panel with display
A1 Display refrigerator / freezer temperature
A2 FRIDGE temperature button
A3 CONVERTIBLE ZONE temperature button
A4 FREEZER temperature button
A5 Quick freeze mode indicator
A6 ECO mode indicator
A7 Holiday mode indicator
A8 MODE selection button
A9 Lock/unlock button LOCK 3s
B Refrigerator door with recessed grip, left
c Refrigerator door tray (6x)
D Refrigerator glass shelf (2x)
€ Vegetable compartment
F Freezer door with recessed grip
G Freezer compartment (1x tray, 2x drawers)
H Power cord with plug (not shown)
1 Adjustable feet, front
J Convertible compartment
K Convertible compartment door
Zero star compartment
M Grand crisper compartment
N Refrigerator compartment
o Antibacterial deodorizer
P Refrigerator door with recessed grip, right
Q Refrigerator lighting *
Accessories
1 x Egg holder for 8 eggs
1 x Ice cube tray
3 x Washers
4 x Fast Freezing Food Plates
20
Installation
Fig. 1 Place the unit on a level and stable surface. Keep the minimum distances to all sides.
Fig. 2 Unevenness can be compensated with the adjustable front feet. Use a spirit level for correct positioning.
Fig. 3 The refrigerator and freezer are equipped with glass shelves and drawers, which, if desired can be removed by pulling them forward. The upper shelf can be inserted at different heights.
Warning
If the refrigerator has been stored or tipped sideways during transport or installation, it must stand upright for 12 hours before being connected to the mains.
Note:
There is a rubber buffer on the inside of each door that must not be removed.
Danger of suffocation
Keep the rubber buffers away from children!
Door adjustment
If the top or bottom edges of the refrigerator doors are not aligned, they can be adjusted using one or more of the 3 slotted washers provided.
Push the lower hanging door up and slide a slotted washer onto the hinge pin just below the bottom edge of the door.
Operation
Fig. 4 Plug the power plug into an appropriate mains socket outlet.
Note:
Allow the product to precool for about 2-3 hours before putting in the food.
Settings
Fig. 5 The control panel is locked in normal operation. Before adjusting the settings described below, press the lock/ unlock key LOCK for at least 3 seconds. The symbol 📁 turns off and all keys are unlocked. All settings made are only activated after the automatic locking, 25s after the last interaction.
Freezer temperature setting
Fig. 6 Press the FREEZER button to set the freezer temperature from -14 to -22°C in 1°C temperature steps. After adjusting the setting the display remains unlocked for another 25 seconds. Note that the energy consumption increases, the lower the set temperature is.
Convertible temperature setting
Fig. 7 Press the CONVERTIBLE ZONE button to set the convertible zone temperature from -20 to 5°C in 1°C temperature steps as well as OFF. After adjusting the setting the display remains unlocked for another 25 seconds. Note that the energy consumption increases, the lower the set temperature is.
Refrigerator temperature setting
Fig. 8 Press the FRIDGE button to set the temperature of the refrigerator as well as OFF setting. After adjusting the setting the display remains unlocked for another 25 seconds. Note, that the energy consumption increases, the lower the set temperature is.
ECO, vacation and super freeze functions
Fig. 9 By pressing the MODE button, you can select three different functions as indicated by the symbol.
- ECO mode: In this mode the refrigerator and freezer compartments will automatically adjust according to the ambient temperature. Convertible compartment can be adjusted freely by operating the CONVERTIBLE ZONE button. The mode is active, until it is manually turned off.
- Vacation mode: In this mode, the freezer and convertible compartment remains individual adjustable and the refrigerator is set to 17 °C. When activating this mode ensure that no foodstuffs are left in the refrigerating compartment. The mode is active, until it is manually turned off.
- Super freeze mode: In this mode, only the freezer set temperature is switched to -25^ for 50 hours. Thereafter, the freezer operates at the preset temperature. The energy consumption of the product is increased, while the mode is activated.
Note:
Switch on this function 5-6 hours before you put in fresh food for freezing. So the freezing time will be reduced which keeps a better food quality. The freezing time will be also slightly reduced when the function is activated just when food is stored in the freezer compartment.
English
To turn off the auxiliary functions, unlock the control panel again as described in the
Settings section and press the MODE button repeatedly until none of the additional function icons light up. As a result, any additional function is deactivated and the device operates at the preset temperatures.
Door Open Alarm
If fridge or freezer door keeps open for 60 seconds, periodical alarm will be arisen and repeat this cycle until the door is closed.
Zero star compartment
The temperature of this compartment will automatically be maintained at around -3^ to 0^ .
Energy saving tips
- Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).
- Ensure unobstructed air flow around the refrigerator and freezer.
- If an ice layer has built, defrost the unit. A thick ice layer affects the transmission of the cold, thus the energy consumption will be increased.
- When taking out food, only open the door shortly. A shorter door opening time causes less ice to deposit on the freezer walls.
- Select the temperature regulator setting according to the filling amount of the product.
- Use the provided drawers, baskets or shelves to store the food. If the energy of the product is used efficiently, the overall energy consumption can be minimized.
- It's advised not to remove all accessories, such as drawers, shelves balconies, as this might increase the energy consumption.
Cleaning and care
Warning
- Unplug the product before cleaning.
- When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).
- Never use oil or grease on the door seal. This will make it porous over time.
-
Do not use steam cleaning equipment. The steam may come in contact with electrical parts of the product, causing a short circuit.
-
Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.
- Make sure that no water enters the product interior (e.g. at the control panel).
- Wipe the door seal with clean water only, and dry it thoroughly afterwards.
- Removable parts e.g. glass shelves, can be taken out for cleaning.
Decommissioning
If a longer break should occur during operation of the refrigerator, the following steps must be carried out:
- Empty the product.
- Unplug the product.
- Clean the interior of the freezer compartment and let it dry.
- Carefully clean all the accessories (vegetable containers, door compartments, glass shelves, etc.)
- Let the door open to avoid the formation of unpleasant odors and mold.
Technical data
| Voltage 220 - 240 V~ | |
| Frequency 50 Hz | |
| Rated current 1.5 A | |
| Energy Consumption kWh/year 255 kWh | |
| Net capacity of refrigerator 343 L | |
| Net capacity of freezer 81 L | |
| Net capacity of convertible 82 L | |
| Freezing capacity 13 kg/24 h | |
| Ambient temperature 10°C - 38°C | |
| Measurement (H x W x D) 1905 x | 910 x 690 mm |
| Depth with door open 1062 mm | |
based on EN 62552: 2020
This product contains a light source of energy efficiency class G.
This product is intended to be used in climate classes from SN to ST.
| Climate class | Ambient temperature |
| SN +10 to | +32 °C |
| N | +16 to +32 °C |
| ST | +16 to +38 °C |
Use the link https://eprel.ec.europa.eu/ to access the European product database (EPREL), in which more information about the product is saved. Type in the model identifier, which can be found on the panel of the product as well as on the energy label or simply scan the QR-code on the energy label to access the model information.
English
Troubleshooting
If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt.
| Problem Possible causes | Solution | |
| Product does not work • Interrupted power supply • Check the power supply | ||
| Temperature in the compartments is not low enough. | • The door is not closed firmly or it is opened to often. | • Rearrange the food so that the door can be closed firmly. |
| • The ambient temperature is lower than 10°C or higher than 38°C | • The product is intended to be operated in an ambient temperature of 10°C to 38°C | |
| Water gathers in the lower part of the compartment | • The food comes in contact with the rear wall of the compartment | • Move away the food or container from the rear wall |
| The interior lamp doesn’t shine | • Lamp is defect • Contact service center | |
Error codes
| Cause Codes | |
| Signal transmission between control board and main board. Probably defects of harness (wire and connectors), main board or control board | E0 |
| Temperature sensor of refrigerator compartment E1 | |
| Temperature sensor of freezer compartment E2 | |
| Defrost temperature sensor in freezer compartment E3 | |
| Defrost heater of the fuse connected with heater E5 | |
| PCI (lonizer) E8 | |
| Temperature sensor of zero-star compartment E10 | |
| Temperature sensor of convertible compartment E11 |
When you find ERROR codes, please contact the customer service. The respective hotlines are noted in the provided warranty card.
Storage of food and beverages

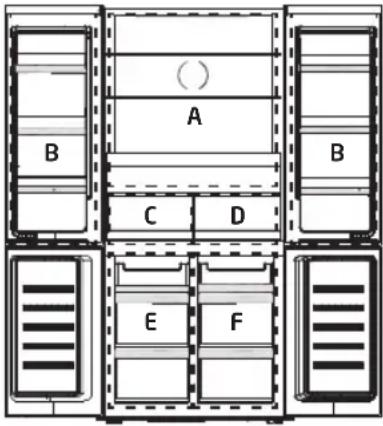

 | Area | Recommended food and temperature setting |
| A Fridge compartment (4°C) - Storage of food for daily consumption, delicacies, yogurt, sauces, pickled vegetables, desserts - Storage of meat, fish, sausages, fresh filled pasta, cooked foods, leftovers | ||
| B Door shelf (4°C) Storage of drinks, milk, yogurt, eggs and butter. | ||
| C Fruit and vegetable compartment (4°C) | ||
| D Zero star compartment (-3~0°C) | ||
| € 4* | Freezer (-18°C) Foods for long-term storage - Top drawer: Storage of frozen food and ice cream. - Middle drawers: storage for raw meat, poultry, fish. - Bottom drawers: storage for frozen vegetables, chips, freeze fresh food. | |
| F Convertible zone(5~-20°C) Wide range variable temperature | ||
How to store food and beverages for best preservation over the longest period, in order to avoid food waste?
Fridge compartment
- Use containers made from recycled plastic, metal, aluminum and glass as well as plastic wrap to pack food.
- Liquids as well as foods that lead to odor formation or can easily spoil or that can transfer taste, should be covered.
-
If only a small amount of food is to be stored, the use of the shelves above the fruit and vegetable compartment is recommended.
-
Foods that give off a large amount of ethylene gas and those that are sensitive to them, such as fruits, vegetables and lettuce, must always be kept separately from one another or packaged in order not to shorten the storage time; For example, do not keep tomatoes with kiwi or cabbage together.
- Use the bottle holder to prevent bottles from tipping over.
- Do not store food too close to one another to allow sufficient air circulation.
- The recommended temperature setting for the fridge compartment is 4°C. If set, foodstuffs can be usually stored for a few days.
English
Recommendations when refrigerating food
- Store fresh and undamaged food. The quality and freshness will then be retained for longer.
- In the case of convenience products and bottled goods, do not exceed the sell-by date or use-by date specified by the manufacturer.
- To retain aroma, colour and freshness, pack or cover food well before placing it in the appliance. This will prevent flavours being transferred between foods and the plastic parts from becoming discoloured.
- Leave warm food and beverages to cool down before placing them in the refrigerator compartment.
Freezer
- Ideal for storing frozen food, preparing ice cubes and freezing fresh food.
- If you only store small amounts of food in the freezer, it is recommended to use the coldest area in the freezer (corresponds to the middle area).
- The recommended temperature for the freezer compartment is -18^ .
- The storage period specified on the packaging is decisive for commercially available frozen products.
Recommendations when freezing food
- Freeze larger quantities of food in the lower frozen food containers. This is where the food will freeze especially quickly and gently.
- Distribute food in the compartments or frozen food containers.
- Do not bring food which is to be frozen into contact with frozen food. If required, restack frozen food in the frozen food containers.
- Important for unrestricted air circulation in the appliance: push in frozen food containers up to the limit stop.
- Start the super freeze function 24 hours before placing food into the appliance.
Note: Storage of foods at the wrong temperature may lead to a quality loss or an increase of food waste.
Storage times and temperature
Note: Overlong storage or storage at inappropriate freezing temperature may cause a quality loss or spoiled foods, which causes food waste, is inedible and may cause food poisoning. The minimum temperature in most cases should be -18°C or colder. Follow the maximum recommended storage times below:
- Stew, ice cream, sausages, bread: 2-6 months.
• Fish, shrimp, lamb, meat: 4-8 months.
• Vegetables, fruits, poultry, beef: 6-12 months.
