USER MANUAL RCBC-3V1 Royal Catering

Abstract white line drawing of a stylized lion or mythical creature on a dark blue background (no text or symbols)

DE	Produktname	KUTTER
EN	Product name	CUTTER
PL	Nazwa produktu	CUTTER WILK
CZ	Název výrobku	STOLNÍ KUTR
FR	Nom du produit	CUTTER DE TABLE
IT	Nome del prodotto	TRITATUTTO
ES	Nombre del producto	TRITURADORA DE ALIMENTOS
HU	Termék neve	KUTTER
DA	Produktnavn	BLENDER
FI	Tuotteen nimi	KUTTERI
NL	Productnaam	TAFELCUTTER
NO	Produktnavn	FOODPROSESSOR
SE	Produktnamn	MATBEREDARE
PT	Nome do produto	CORTADOR PARA CATERING
SK	Názov produktu	STOLOVÁ REZAČKA
DE	Modell	RCBC-3V1RCBC-5V1
EN	Product model
PL	Model produktu
CZ	Model výrobku
FR	Modèle
IT	Modello
ES	Modelo
HU	Modell
DA	Model
FI	Tuotteen malli
NL	Productmodel
NO	Produktmodell
SE	Produktmodell
PT	Modelo do produto
SK	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
FI	Valmistaja
NL	Producent
NO	Produsent
SE	Tillverkare
PT	Fabricante
SK	Výrobca
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse
FI	Valmistajan osoite
NL	Adres producent
NO	Produsentens adresse
SE	Tillverkarens adress
PT	Endereço do fabricante
SK	Adresa výrobcu

Exterior view of a Royal SVRANER robotic mixer with labeled parts (1, 2, 3), no visible text or symbols beyond labels.

Line drawing of a mechanical device with an inset showing a close-up of its top component (no text or symbols present)

Abb. 1

Technical line drawing of a mechanical device with two circular insets showing internal components (no text or symbols)

Abb. 2

Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

Abb. 3

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Abb. 4

3mm

Abb. 5

Line drawing of a mechanical device with no visible text or symbols

Abb. 6

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description Parameter value
Product name	Cutter
Model	RCBC-3V1	RCBC-5V1
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	735
Speed [rpm]	1500
Capacity [l]	3	5
Dimensions [width x depth x height; mm]	300 x 290 x 410	300 x 290 x 450
Weight [kg]	14.4	14.7

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE !

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Electric shock warning!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Cutter

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
f) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
g) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
h) Prevent the device from getting wet. Risk of electric shock!

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
c) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
d) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Children or unauthorised persons are forbidden to enter a work station. (A distraction may result in loss of control over the device).
g) Use the EMERGENCY STOP if there is a risk of injury or death, accident or damage.
h) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
i) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
j) Keep packaging elements and small assembly parts in a place not available to children.
k) Keep the device away from children and animals.
I) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.

b) The machine may be operated by physically fit persons who are able to handle the machine, are properly trained, who have reviewed this operating manual and have received training in occupational health and safety.
c) The machine is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the machine.
d) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
e) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
f) The use of correct and approved personal protective equipment reduces the risk of injury.
g) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
h) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
i) Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair may get caught in moving parts.
j) Remove all adjusting tools or spanners before turning the device on. A tool or spanner left in the revolving part of the device may cause injury.
k) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
I) Do not put your hands or other items inside the device while it is in use!

2.4. Safe device use

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.

b) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.

c) Make sure the plug is disconnected from the socket before attempting any adjustments, accessory replacements or before putting the device aside. Such precautions will reduce the risk of accidentally activating the device.

d) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.

e) Make sure the pressure line is disconnected before attempting any adjustments, accessory replacements or doing any work on the device. Such a preventive measure reduces the risk of an accident.

f) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.

g) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.

h) Keep the device out of the reach of children.

i) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.

j) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.

k) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.

I) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.

m) Do not move, adjust or rotate the device in the course of work.

n) Do not leave this appliance unattended while it is in use.

o) Clean the device regularly to prevent stubborn grime from accumulating.

p) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.

q) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
r) Keep the device away from sources of fire and heat.
s) Do not overload the device.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The device is intended for cutting, chopping, shredding (grinding) of meat, fishes, raw and cooked vegetables. The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

1 - Main ON/OFF switch
2 - Bowl
3 - Bowl cover

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

3.3. Assembling the device

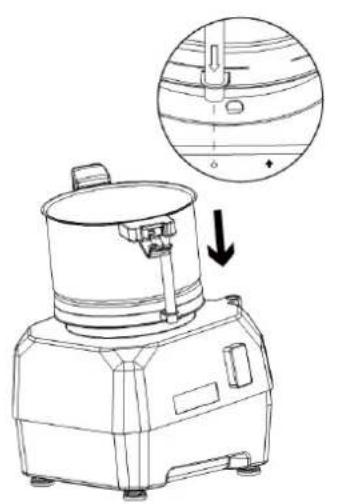

Place the bowl directly above the base, and the magnetic bar is aligned with the “•” position (Fig. 1). And then rotate the bowl counterclockwise to align the magnetic bar to the “↑” position. (Fig. 2).

Line drawing of a mechanical device with an inset showing a close-up of its top component (no text or symbols present)

Fig. 1

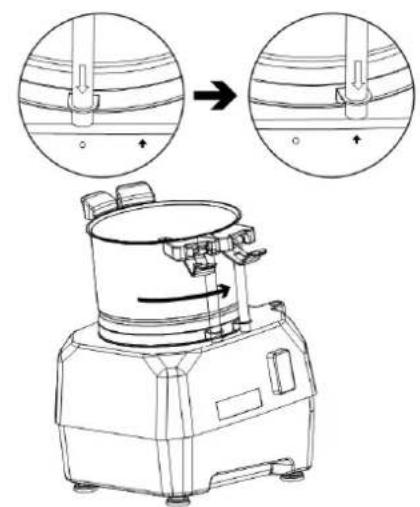

Technical line drawing of a mechanical device with two circular insets showing internal components (no text or symbols)

Fig. 2

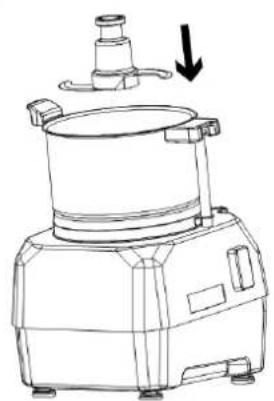

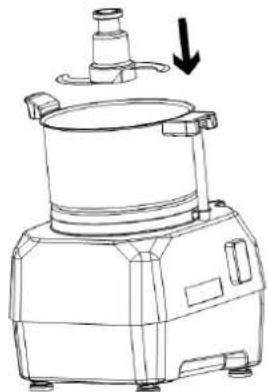

Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

Fig. 3

Press the slider block to the bottom and lock the fastener.

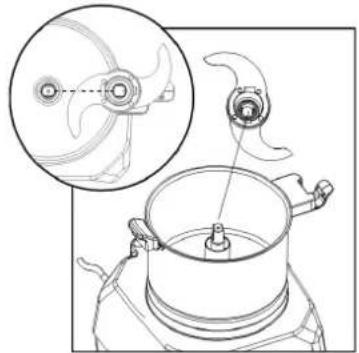

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Fig. 4

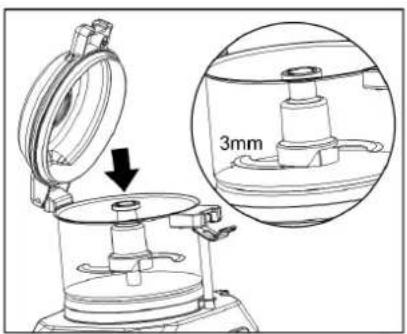

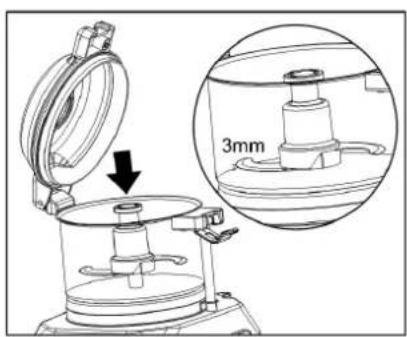

3mm

Fig. 5

Line drawing of a mechanical device with no visible text or symbols

Fig. 6

Safety micro switch

The appliance is equipped with two safety micro switches. These switches cut off the power supply if, during operation, the handle is lifted up beyond a certain distance or the cover is opened.

The machine will not be started if the cover closed only but the bowl is not in correct position.

Checking the direction of rotation

Before you start with the operation, you should make sure that the shaft is rotating in an anticlockwise direction. Otherwise, the blades will not run.

3.4. Device use

Plug the power plug into an electrical outlet.

Open the lid of the bowl.

Lift the lid and pour the food into the bowl, then close the lid. Or feed the food through the opening in the bowl lid.

Press the ON button. The indicator light in the ON button will light up and the appliance will start.

Warning! NEVER put food above 2/3 of the bowl. The recommended minimum volume is NOT lower than the blades level. Too little food will lead to vibration. If the food is too large, cut it into pieces of the correct size before serving.

The appliance must not run without load for more than 30 minutes.

When you have finished working, press the OFF button, unplug the appliance and clean it.

3.5. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.

- Wait for the rotating elements to stop.

b) Use only non-corrosive cleaners to clean the surface.
c) Use only mild, food-safe detergents to wash the device.
d) After cleaning the device, all parts should be dried completely before using it again.
e) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
f) Do not spray the device with a water jet or submerge it in water.
g) Do not allow water to get inside the device through vents in the housing of the device.
h) Clean the vents with a brush and compressed air.
i) The device must be regularly inspected to check its technical efficiency and spot any damage.
j) Use a soft, damp cloth for cleaning.
k) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
I) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

Exterior view of a Royal Cosmopolitan rice cooker with labeled parts (1, 2, 3), no visible text or symbols beyond labels.

Line drawing of a mechanical device with an inset showing a close-up view of a cylindrical component (no text or symbols)

Rys. 1

Technical line drawing of a mechanical device with two circular insets showing internal components (no text or symbols)

Rys. 2

Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

Rys. 3

Line drawing of a cooking pot with a fan inside, showing a close-up inset (no text or symbols)

Rys. 4

3mm

Rys. 5

Line drawing of a mechanical device with a cylindrical top and base (no text or symbols)

Rys. 6

Exterior view of a Royal RoYAL food blender with labeled parts (1, 2, 3) and a lock mechanism (no additional text or symbols)

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

obr. 4

3mm

obr. 5

Line drawing of a mechanical device with no visible text or symbols

obr. 6

Exterior view of a Royal SVRANER robotic mixer with labeled parts (1, 2, 3), no visible text or symbols beyond labels.

1 – Interrupteur principal ON/OFF
2 - Bol
3 - Couvercle du bol

Line drawing of a mechanical device with an inset showing a close-up of its top component (no text or symbols present)

fig. 1

Technical line drawing of a mechanical device with two circular insets showing internal components (no text or symbols)

fig. 2

Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

fig. 3

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

fig. 4

3mm

fig. 5

Line drawing of a mechanical device with no visible text or symbols

fig. 6

Exterior view of a Royal SVF 300 electric shaver machine (no signage or text visible on the device body)

Technical line drawing of a mechanical component with an inset showing a fan blade assembly (no text or symbols)

fig. 4

3mm

fig. 5

Line drawing of a mechanical device with no visible text or symbols

fig. 6

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Figura 4

3mm

Figura 5

Line drawing of a mechanical device with no visible text or symbols

Figura 6

Line drawing of a cooking pot with a fan inside, showing a close-up inset (no text or symbols)

1. ábra

3mm

1. ábra

Line drawing of a mechanical device with no visible text or symbols

1. ábra

Exterior view of a Royal RoYAL brand blender with labeled parts (1, 2, 3), no visible text or symbols beyond branding and labels.

1 - Hovedafbryder ON/OFF
2 - Skål
3 - Låg til skål

APPARATETS PLACERING

Line drawing of a mechanical device with an inset showing a close-up of its top component (no text or symbols present)

fig. 1

Technical line drawing of a mechanical device with two circular insets showing internal components (no text or symbols)

fig. 2

Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

fig. 3

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

fig. 4

3mm

fig. 5

Line drawing of a mechanical device with no visible text or symbols

fig. 6

Line drawing of a cooking pot with a side view showing a fan blade and handle (no text or symbols)

Kuva 4

3mm

Kuva 5

Line drawing of a mechanical device with no visible text or symbols

Kuva 6

Turvallinen mikrokytkin

Exterior view of a Royal SVRANER robotic mixer with labeled parts (1, 2, 3), no visible text or symbols beyond labels.

PLAATS VAN HET APPARAAT

Line drawing of a mechanical device with an inset showing a close-up of its top component (no text or symbols present)

figuur 1

Technical line drawing of a mechanical device with two circular insets showing internal components (no text or symbols)

Fig. 2

Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

Afb. 3

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Afb. 4

3mm

Afb. 5

Line drawing of a mechanical device with no visible text or symbols

Afb. 6

Exterior view of a Royal RoYAL brand blender with labeled parts (1, 2, 3), no readable text or symbols beyond branding and labels.

1 - Hoved PÅ/AV-bryter
2 - Skål
3 – Skåldeksel

Line drawing of a mechanical device with an inset showing a close-up of its top component (no text or symbols present)

Figur 1

Technical line drawing of a mechanical device with two circular insets showing internal components (no text or symbols)

Fig. 2

Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

Fig. 3

Line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Fig. 4

3mm

Fig. 5

Line drawing of a mechanical device with no visible text or symbols

Fig. 6

Sikkerhetsmikrobryter

Exterior view of a Royal Cosmetics mixing machine with labeled parts (1, 2, 3), no readable text or symbols beyond labels.

APPARATENS PLACERING

Line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols)

figur 1

Technical line drawing of a mechanical device with two circular insets showing internal components (no text or symbols)

Fig. 2

Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

Fig. 3

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Fig. 4

3mm

Fig. 5

Line drawing of a mechanical device with no visible text or symbols

Fig. 6

Line drawing of a cooking pot with a fan blade and a side view showing the blade (no text or symbols)

Figura 4

3mm

Figura 5

Line drawing of a mechanical device with no visible text or symbols

Figura 6

Microinterruptor de segurança

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Obr

3mm

Obr

Line drawing of a mechanical device with no visible text or symbols

Obr

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
