EN Caution: Risk of fire! Flammable materials. WARNING! During using, service and disposal of the appliance, please pay attention to the symbol which is located on the rear of the appliance (rear panel or compressor). It's the risk of fire warning symbol. There are flammable materials in the refrigerant pipes and the compressor. Keep sources of fire and open flames away during using, service and disposal.

ES Precaución: ¡Riesgo de incendio! Materiales inflamables. ¡ADVERTENCIA! Durante el uso, el mantenimiento y la eliminación del aparato, preste atención al símbolo que aparece en el lado izquierdo, que se encuentra en la parte posterior del aparato (panel trasero o compresor). Es la señal de advertencia de incendio. Los conductos de refrigerante y el compresor contienen materiales inflamables. En caso de incendio, aléjese del foco del fuego.
FR Attention : Risque d'incendie! Matériaux inflammables. AVERTISSEMENT ! Durant l'utilisation, l'entretien et la mise au rebut de l'appareil, merci de respecter le symbole figurant à gauche au dos de l'appareil (panneau arrière ou compresseur). C'est un symbole de risque d'incendie. Les tuyaux de réfrigérant et le compresseur contiennent des matériaux inflammables. Utilisez, faites l'entretien ou la mise au rebut de l'appareil en vous tenant éloigné de toute source de flamme.
HU Vigyázat! Tüzveszély! Gyúlékony anyagok. FIGYELEM! A készülék használata, karbantartása és ártalmatlanítása során, kérjük, figyeljen a bal oldalon elhelyezett piktogramra a készülék hátoldalán (hátfal vagy kompresszor). Ez a tüzveszély figyelmeztetés. A hűtőközeg-vezetékekben és a kompresszorban gyúlékony anyagok vannak. Kérjük, tartsa távol a készüléket tüzforrásoktól használat, karbantartás és ártalmatlanítás közben.
IT Attenzione: rischio di incendio! Materiali infiammabili. ATTENZIONE! Durante l'uso, la manutenzione e lo smaltimento dell'apparecchio, prestare attenzione al simbolo sul lato sinistro, che si trova sul retro dell'apparecchio (pannello posteriore o compressore. E' il simbolo di pericolo d'incendio. Ci sono materiali infiammabili nelle tubazioni del refrigerante e nel compressore. Per favore, stai lontano da una fonte d'incendio durante l'uso, la manutenzione e lo smaltimento.
NL Waarschuwing: Brandrisico! Brandbare materialen. WAARSCHUWING! Tijdens het gebruiken, onderhouden en afdanken van het apparaat, houd rekening met het symbool dat links op de achterkant van het apparaat is aangebracht (achterpaneel of compressor). Dit is het symbool voor brandgevaar. Er bevinden zich brandbare stoffen in de koelleidingen en compressor. Tijdens het gebruiken, onderhouden en afdanken van het apparaat, blijf uit de buurt van een vuurbron.
PL Ostrzeżenie: Ryzyko pożaru! Materiały palne. OSTRZEŻENIE! Podczas użytkowania, serwisowania i utylizacji urządzenia należy zwrócić uwagę na symbol znajdujący się z lewej strony z tyłu urządzenia (tylny panel lub sprężarka). To jest ostrzeżenia o ryzyku spowodowania pożaru. W przewodach czynnika chłodniczego i spreżarce znajdują się łatwopalne materiały. Proszę trzymać się z dala od źródła ognia podczas użytkowania, serwisu i utylizacji urządzenia.
PT Cuidado: risco de incêndio! Materiais inflamáveis. AVISO! Antes de utilizar, reparar e eliminar o aparelho, preste atenção ao símbolo do lado esquerdo, situado na traseira do aparelho (painel traseiro ou compressor). É o símbolo de aviso de risco de fogo. Existem materiais inflamáveis nos tubos de refrigerante e no compressor. Afaste-se de fontes de fogo durante a utilização, reparação e eliminação do aparelho.
TR İkaz: Yangın tehlikesi! Yanıcı maddeler. UYARI! Cihazın kullanımı, servisi ve tasarrufu sırasında, lütfen cihazın arka tarafından (arka panel veya kompresör) bulunan sol taraftaki sembole dikkat edin. Bu sembol, yangın uyarı sembolüdür. Soğutucu borularında ve kompresörde yanıcı maddeler bulunmaktadır. Lütfen kullanım, servis ve tasarruf sırasında yangın kaynağından uzakta olun.

Deutsch

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have are being supervised or have received instructions concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
  • Children must not play with the product.
• Cleaning and user maintenance must not be carried out by children unless they are supervised.
• A damaged power cord may only be replaced by an authorised service agent in order to avoid hazards.
• The product is designed for the storage of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
• Warning! Keep ventilation openings, in the appliance enclosure clear of obstruction.

Safety Instructions

• Warning! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning! Do not damage the refrigerant circuit.
• Warning! Do not use electrical appliances inside the food storage compartments of the product, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this product.
• The light source (LED) is only to be replaced by a recognized electrician/qualified person. *
• Follow the instructions in the chapter Cleaning and care.
• Warning! The refrigerant and insulation blowing gas are flammable. When disposing of the product, do so only at an authorized waste disposal center or contact the service agent.
• To avoid contamination of food, please observe the following instructions:
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean surfaces, that can come into contact with food, as well as accessible drainage systems, on a regular basis.

English

Safety Instructions

-Store raw meat and fish in suitable containers in the refrigerator, so that it does not come into contact with or drip onto other food.

-Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

-One-, two- and three-star compartments are not suitable for the freezing of fresh food.

-If the refrigerating appliance is left empty for long periods, remove all foods, switch it off, defrost, clean, dry, and leave the door open to prevent mold from developing within the appliance.

* Note to service technician/qualified persons: Dismantling instruction can be obtained from the free website www.koenic-online.com

Safety Instructions

1. Read this manual thoroughly before first use. It contains important information for your safety as well as for the use and maintenance of the equipment.
2. Do not place any objects on top of the product.
3. Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.
4. Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
5. The mains voltage must match the information on the rating label of the product.
6. Only unplugging from the power socket can separate the product completely from the mains.
7. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
8. Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
9. Only unplug from the power socket by the plug itself. Do not pull on the cord.
10. Unplug the product ...
11. when the product is not being used,
12. in case of malfunctions,
13. before attaching / detaching accessories and
14. before cleaning the product.
15. Use this product in dry indoor areas only and never outdoors.
16. This product is not intended for commercial use. It is designed for household use only.
17. Make sure that electrical components, live parts and the power cord do not become wet.
18. Use accessories supplied with the device or recommended by the manufacturer only!

19. Do not cover the product while in use. Fire hazard!

20. Warning! When positioning the appliance, ensure the supply cord is not trapped or damaged.

21. Warning! Do not locate portable socket-outlets at the rear of the appliance to avoid the possibility of electrical shocks due to water leakage.
22. Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or if it's suspected to be defect.

Caution: Risk of fire!

Flammable materials.

Warning! During use, service and disposal of the appliance, please pay attention to the symbol which is located on the rear of the appliance (rear panel or compressor).

It is the risk of fire warning symbol. There are flammable materials in the refrigerant pipes and the compressor. Please keep clear from it during using, service and disposal.

English

Congratulations!

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

This product is suitable for refrigerating and freezing food only. Any other use may damage the device or cause injuries.

• This product is not intended to be used as a built-in appliance.
• This refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C

The product is only intended to be used in private households and shall not be used for commercial purposes.

The Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.

Before first time use

Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions.

Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter Cleaning and care.

After you have installed the refrigerator, wait for at least 6 hours before you connect it to the mains to permit the cooling system to regain full capacity.

Warranty and spare parts

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.

Content

1 x Freezer

1 x Ice cube tray

1 x Egg holder for 6 eggs

1 x User manual

1 x Warranty card

Controls and components

A Freezer compartment
B Light
c Temperature control
D Glass shelf (2x)
€ Vegetable compartment (fresh food compartment)
F Power cord with plug (not shown)
G Bottle shelf
H Door shelf x 2

Installation

Note:

The installation should be performed by at least 2 persons to avoid dangers.

Fig. 1 Place the unit on a level and stable surface. Keep the minimum distances to all sides.
Fig. 2 Unevenness can be compensated with the adjustable front feet. Ensure, that the product is in a horizontal position to enable the correct working of the cooling circuit. It's advised to use a spirit level for correct positioning.

Fig. 3 The refrigerator is equipped with two glass shelves which, if desired, can be removed by pulling them forward. The upper glass shelf can be used at different heights.

Operation

Fig. 4 Plug the power plug into an appropriate mains socket outlet.

Setting the refrigerator temperature

Note:

• The factory default setting is level 3.
- Allow the product to pre-cool for at-least 6 hours before starting to store food.

Fig. 5 Set the temperature with the temperature control. Levels 1-7 do not correspond to any particular temperature. In position 0 the appliance is switched off. The lower the setting, the higher the inner temperature.

Note:

• To check the temperature, insert a commercially available thermometer into the device.
• The temperature in the unit depends on the ambient temperature and the setting of the temperature controller.
  • Make sure the door of the product is properly closed and not blocked by food.

Door open alarm

If the door is left open for more than 60 seconds the LED light will flash 3 times and then shine continuously for 5 seconds. This cycle will be repeated until the door is closed.

Note:

• The most common temperature for the freezer compartment should be -18°C or lower.
• To determine the temperature of the product, obtain a suitable thermometer, and place it inside the product.
• The temperature of the product depends on the setting of the temperature regulator. Note that, the lower the set temperature, the higher the energy consumption of the product.
• Please make sure the door is closed properly and is not obstructed by foods.
• Never store warm or hot foodstuffs in the appliance, as this will impair the cooling performance of the appliance and will also defrost other foodstuffs.

Recommendation for setting

Environment temperature	Freezer compartment	Fridge compartment
Summer / 2-4
Normal / 4-5
Winter / 5-6

Defrosting

Fig. 6 Defrost the appliance when the layer of ice on the surface reaches 3 to 4 mm. Remove all foods. Unplug the freezer and open the door. After the ice has molten, wipe up the water and clean the interior.

Note:

In order to reduce the build-up of ice, make sure, that the door is opened only for a short period of time and never store warm/hot food in the appliance.

English

Adjust the side of the hinges

Note:

• If necessary, or if the premises require it, the mounting of the doors can be changed. To do this, follow below instructions in the given order.

• The following tools are required: Socket wrench or wrench 10 mm, phillips screwdriver. Due to the uniqueness of the appropriate tools, those are not mentioned separately in the following instructions.

• Remove the two screws at the rear of the top cover.

• Remove top cover then place it aside.
• Unscrew the top hinge and then remove the door and place it on a soft pad to avoid damaging it.
• Unscrew the bottom hinge. Then remove the adjustable feet from both sides.
• Unscrew and remove the bottom hinge pin, turn the hinge plate over and insert the hinge pin from the other side.
• Attach the lower hinge plate with hinge bolt to the left side. Screw in both adjustable feet.
• Detach the door gasket, rotate it upside down and reattach it.
• Place the door back on. Ensure the door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the top hing.
• Put on the top cover and fasten it with the 2 screws at the back.
• Unscrew bottom hinge of freezer door. Then remove the door and place it on a soft pad to avoid scratch.
• Move door latch from the left side to the right side.
• Move the hinge hole cover from left side to right side.
• Rotate the freezer door, place the hinge on the left side and fix it.

Note:

For detailed information see overview illustration i.

Caution

After you have placed the refrigerator upright on its feet, wait for 6 hours before you connect it to the mains to permit the cooling system to regain full performance.

Note:

When installing the door, ensure that the top of the door is level with the top of the cabinet. If the door is not level, the rubber gasket will not make a good seal with the cabinet which can cause the appliance to malfunction.

Energy saving tips

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).
• Ensure unobstructed air flow around the refrigerator and freezer.
• If a layer of ice has built, defrost the unit. A thick layer of ice affects the transmission of the cold, thus the energy consumption will be increased.
• When opening and taking out food, only open the door shortly. A shorter door opening time causes less ice to deposit on the freezer walls.
• Select the temperature regulator setting according to the filling amount of the product.
• Use drawers, baskets or shelves to store the food. If the energy of the product is used efficiently, the energy consumption can be minimized.
• Only place cold or cooled down foodstuffs in the freezer. Never insert hot items.
• It's advised not to remove the provided accessories, such as drawers, shelves balconies, as this might increase the energy consumption, due to inefficient storage of food.

Cleaning and care

Warning

• Unplug the product before cleaning.
- When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).
- Never use oil or grease on the door seal. This will make it porous over time.
- Do not use steam cleaning equipment. The steam may come in contact with electrical parts of the product, causing a short circuit.
- Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.
• Make sure that no water enters the product interior (for example, through the switch).
- Wipe the door seal with clean water only, and dry it thoroughly afterwards.
- Removable parts e.g. the glass plate can be taken out for cleaning.

Decommissioning

Fig. 7 If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Empty the product.
- Unplug the product.
- Clean the interior of the appliance compartment and let it dry.
- Carefully clean all the accessories ice cube maker etc.
- Leave the door open to avoid the formation of unpleasant odors and mold.

Technical data

Rated current : 0.75 A

Energy Consumption

kWh/24h : 0.304 kWh

kWh/year : 111 kWh

Net capacity of fridge : 95 L

Net capacity of freezer : 14 L

Freezing capacity : 2.4 kg/24 h

Ambient temperature : 16°C - 38°C

Measurement (H x W x D):

850×550×580mm

Depth with door open : 1130 mm

Refrigerant : R600a (27 g)

Based on EN 62552: 2020

This refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C

Climate class	Ambient temperature
N +16 °C	to +32 °C
ST +16 °C	to +38 °C

Use the link https://eprel.ec.europa.eu/ to access the European product database EPREL No. 1668446, in which more information about the product is saved. Type in the model identifier, which can be found on the panel of the product as well as on the energy label or simply scan the QR-code on the energy label to access the model information.

English

Troubleshooting

If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self-repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt.

Problem Possible causes	Solution
Product does not work. • Interrupted power supply. • Check the power supply.
Temperature in the compartments is not low enough.	• The door is not closed firmly or it is opened too often.	• Re-arrange the food so that the door can be closed firmly.• Open the door less frequently.
	• The ambient temperature is lower than 16°C or higher than 38°C.	• The product is intended to be operated in an ambient temperature of 16°C to 38°C.

Error codes

In the event of errors, the illumination LED flashes several times as described below.

Cause Flash intervals
Error at temperature control	1x
Door does not close correctly	3x

Replacing the light

The LED light can only be replaced by an authorized service person.

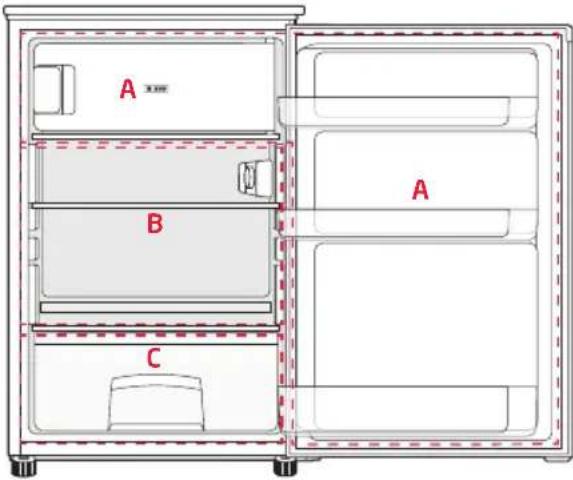

Storage of food and beverages

	Area Recommended food and temperature setting
	A Freezer compartment (-18°C)Foods for long-term storageStorage of frozen food and ice cream, raw meat, poultry, fish, frozen vegetables, chips
	B Fridge (4°C)• Storage of food for daily consumption, delicacies, yogurt, sauces, pickled vegetables, desserts• Storage of meat, fish, sausages, fresh filled pasta, cooked foods, leftovers
	C Fruit and vegetable compartment (8°C)

How to store food and beverages for best preservation over the longest period, in order to avoid food waste?

Fridge

• Use containers made from recycled plastic, metal, aluminum and glass as well as plastic wrap to pack food.
• Liquids as well as foods that lead to odor formation or can easily spoil or that can transfer taste, should be covered.
• If only a small amount of food is to be stored, the use of the shelves above the fruit and vegetable compartment is recommended.
• Foods that give off a large amount of ethylene gas and those that are sensitive to them, such as fruits, vegetables and lettuce, must always be kept separately from one another or packaged in order not to shorten the storage time; For example, do not keep tomatoes with kiwi or cabbage together.
• Use the bottle holder to prevent bottles from tipping over.

• Do not store food too close to one another to allow sufficient air circulation.

• The recommended temperature setting for the fridge compartment is 4°C. If set, foodstuffs can be usually stored for a few days.

• if ambient temperature is around 20°C\~30°C the recommend setting is 4\~5.
• if ambient temperature is less than 20^ C the recommend setting is 5\~6.
• if ambient temperature is more than 30^ C the recommend setting is 2\~4.

Recommendations when refrigerating food

• Store fresh and undamaged food. The quality and freshness will then be retained for longer.
• In the case of convenience products and bottled goods, do not exceed the sell-by date or use-by date specified by the manufacturer.
• To retain aroma, colour and freshness, pack or cover food well before placing it in the appliance. This will prevent flavours from being transferred between foods and the plastic parts from becoming discoloured.

English

- Leave warm food and beverages to cool down before placing them in the refrigerator compartment.

Freezer

• Ideal for storing frozen food, preparing ice cubes and freezing fresh food.
• If you only store small amounts of food in the freezer, it is recommended to use the coldest area in the freezer (corresponds to the middle area).
• The recommended temperature for the freezer compartment is -18^ .
• The storage period specified on the packaging is decisive for commercially available frozen products.

Recommendations when freezing food

• Distribute food in the compartments or frozen food containers.
• Do not bring food which is to be frozen into contact with frozen food. If required, re-stack frozen food in the frozen food containers.

Note: Storage of foods at the wrong temperature may lead to an increase of food waste.

Storage times and temperature

Note: Overlong storage or storage at inappropriate freezing temperatures may cause spoiled foods, which causes food waste, is inedible and may cause food poisoning. The minimum temperature in most cases should be -18°C or colder.

Follow the maximum recommended storage times below:

• Stew, ice cream, sausages, bread: 2-6 months
  • Fish, shrimp, lamb, meat: 4-8 months
  • Vegetables, fruits, poultry, beef: 6-12 months

Mesure (H x W x D): 850 x 550 x 580mm

C Regulator temperature

Storage of food and beverages
