USER MANUAL NereId380B BeamZ

152.040_152.041 V1.3

NEREID380B

USER MANUAL

INDEX

ENGLISH

SAFETY INSTRUCTIONS....3

UNPACKING INSTRUCTION 4

POWERSUPPLY 4

RIGGING 4

DMX512 CONTROL 5

CLEANING 5

REPLACING THE FUSE....5

PROTECTION CLASS IP65 5

MAINTENANCE....6

TROUBLE SHOOTING 6

NEDERLANDS

VEILIGHEIDSINSTRUCTIES 7

UITPAKKEN 8

AANSLUITSPANNING 8

RIGGING 8

DMX BEDIENING....9

REINIGEN 9

VERVANGEN ZEKERING....9

BESCHERMINGSKLASSE IP65 9

ONDERHOUD 10

PROBLEMEN OPLOSSEN 10

DEUTSCH

KLASA OCHRONY IP65 26

KONSERWACJA 27

ROZWIAZYWANIE PROBLEMÓW 27

TECHNICAL DETAILS

CONTROL MENU....28

DMX CHANNELS 30

TECHNICAL SPECIFICATIONS 34

SAFETY INSTRUCTIONS

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

• Unpack and check carefully that there is no transportation damage before using the unit
- Please read these instructions carefully and follow the instructions.
- Observe all safety warnings. Never remove safety warnings or other information from the equipment.
- Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

WARNING! Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

• After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
• Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
- Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
• Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

- Do not switch the unit on and off in short intervals.

- Do not connect the unit to a dimmerpack.

• Install the unit in a well ventilated place.

- Never place any material over the lens.

- Never let the sunlight lights directly to the front lens, even when the unit is not working.

• Always allow free air space of at least 50 cm around the unit for ventilation.

• Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.

- For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!

- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.

- This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

WARNING! If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

• Make sure that the unit is not exposed to extreme heat, moisture or dust.
- Clean the unit using a dry cloth.
- Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
- This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
- If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

- Never attempt to bypass the thermostatic switch or fuses.

- Do not dismantle or modify the unit.

- For replacement use fuses/bulb of same type and rating only.

• Repairs, servicing and electric connection must be carried out by a qualified technician.

- The ambient temperature must always be between -5^ and +45^ .

- If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.

- Plastic bags must be kept out of reach of children.

- Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to ry, it is important that the product be returned in the original factory box and packing.

If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

POWERSUPPLY

The label on the backside of the unit indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

The unit has a powerconnector output on board. Depending on the local conditions several units can be linked by powerconnector in- and output. Connect a maximum of four (when using 230V/16A) units in a row. Use an approved three-core cable with a cross-section of at least 1.5mm^2 . The installation instructions of the manufacturer and the colour coding of the cable must be observed. Do not turn off the unit by turning the powerconnector but use the power on/off switch or schuko!

WARNING! Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire.

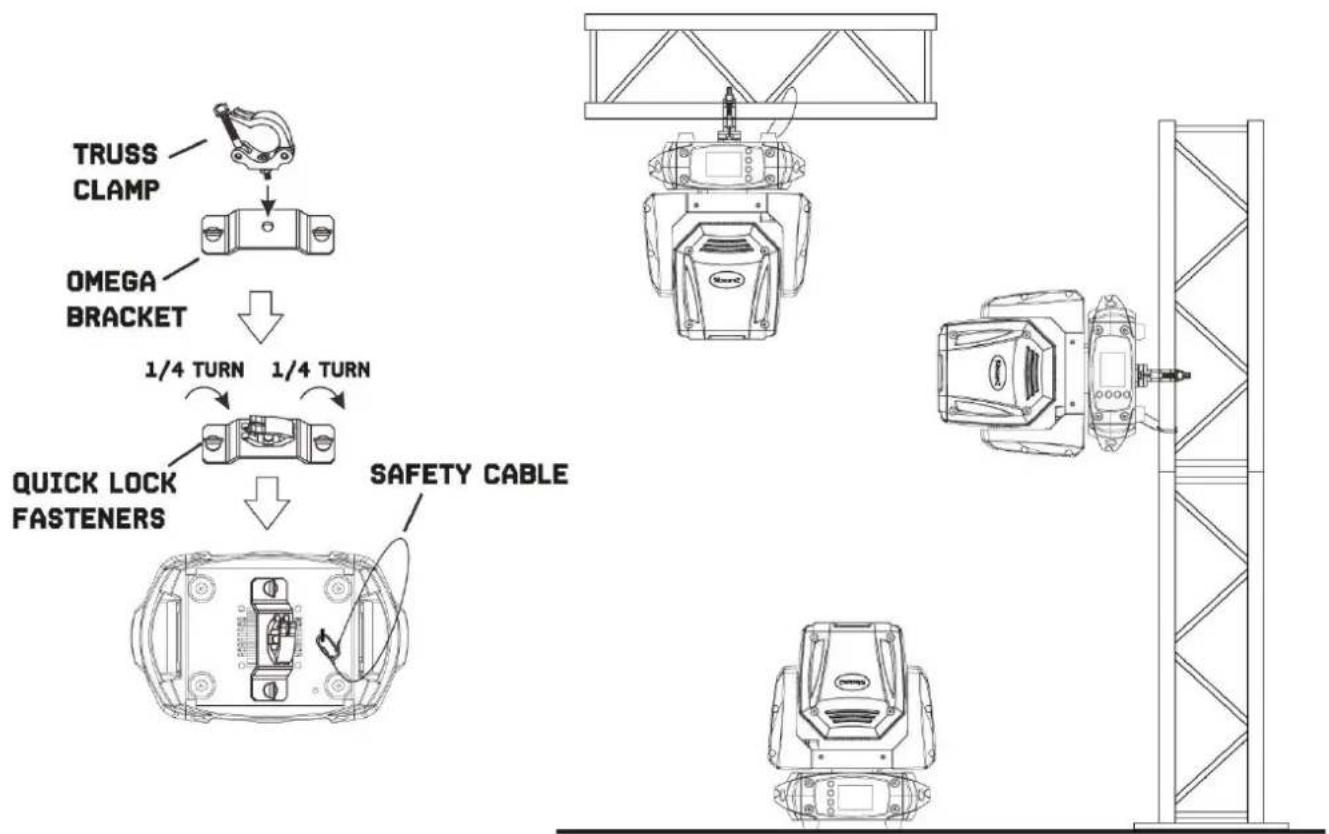

RIGGING

The unit may be set up on a stable and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see below picture. For fixing, certified clamps with correct save working load are required. According to the figure, the quick lock bolts of the omega brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop). The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit's weight. Secure the unit with a safety cable so that it cannot fall down.

When carrying out any installation, always comply European and national guidelines concerning rigging, truss and all other safety issues. Always let the installation checked out by an authorized dealer!


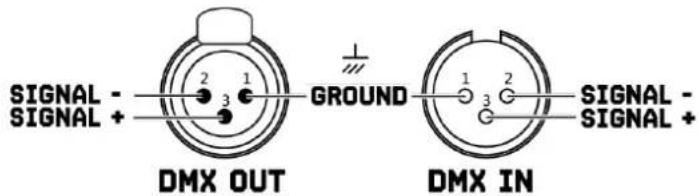

DMX512 CONTROL

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.

CAUTION! At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.

SIGNAL - SIGNAL + DMX OUT GROUND DMX IN SIGNAL - SIGNAL + 1 2 3

1 2 3 120 OHM TERMINATOR

CLEANING

The buildup of dust, dirt and other airborne particles will reduce the unit's light output. It will also prevent the unit from cooling correctly, and this will reduce the unit's lifetime. The rate of dirt buildup will vary depending on environmental factors such as airborne dust, use of smoke machines, airflow from ventilation systems, etc. The unit's cooling fans will accelerate buildup, and any smoke particles that are present in the atmosphere will increase the tendency for dirt to clog.

To get the best performance and lifetime from the unit, inspect it regularly and clean it as soon as you see signs of dirt buildup.

Assess the operating environment each time you begin to use the unit. In dusty or smoky conditions, inspect the unit after a few hours and check it frequently the unit may attract dirt faster than you expect. Draw up a cleaning schedule that will make sure that dirt is removed before it can build up.

Use the following guidelines:

• Disconnect the unit from power and allow it to cool completely before cleaning.
• Do not use solvents, abrasives or any other aggressive product to clean the unit.
• Vacuum or use low-pressure compressed air to remove dust and loose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
• Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Put the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
• Dry the unit with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

PUBE

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing.

PROTECTION CLASS IP65

Units with protection class IP65 are dust-tight and completely protected against contact (first code number). They are also protected against splash water from any angle (second code digit). That is why this unit can also be used out- doors. Events units are generally only designed for temporary use however (event lighting) and not for permanent use outdoors. The specified protection class does not make a statement about the weather resistance of the units (resistance to changing ambient conditions as well as against the effects of sunlight and UV rays). The seals and screw connections of the units must be checked regularly to ensure a fault-free operation.

MAINTENANCE

This unit is virtually maintenance-free, but you should check the unit regularly for mechanical and electrical aspects.

Assess the operating environment and establish an inspection and cleaning schedule that follows the guidelines below:

- Disconnect the unit from the power supply and allow it to cool completely before inspecting and cleaning.

- Check that the screws and bolts used to install the unit are securely tightened and free from corrosion.

- Check the housing, fixing points and installation points, they must not show any signs of deformation, wear or fatigue.

- Check the mechanically moving parts, these must not show any signs of wear or fatigue.

- Check the electrical power and signal cables, they must not show any damage or fatigue.

- Do not use solvents, abrasives or other aggressive products to clean the unit.

- Wipe the unit and clean the glass plate with a soft, clean, lint-free cloth moistened with a weak cleaning solution. Place the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.

- Dry the unit, connectors and contacts with a soft, clean, lint-free cloth or low-pressure compressed air before re-powering the unit.

TROUBLE SHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:

SYMPTOM	POSSIBLE CAUSE	SUGGESTED ACTION
No response from unit.	No power to unit.Fuse blown or internal fault.	Check that power is turned on.Check cables and connections.Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or service that are not described in this User Manual unless you have both authorization from Beamz support or Beamz authorized service partner.
Unit resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected.Bad DMX-line.DMX-line has no end resistance.Incorrect unit addressing.A unit is defective and is disturbing data transmission on the DMX-line.Pin 2 and 3 are reversed in XLR connection.	Connect controller.Inspect connections and cables. Correct poor connections. Repair or replace damaged cables.Insert DMX terminator plug in DMX output socket of last unit on DMX-line.Check unit address and DMX mode settings.Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained.Have defective unit serviced by an authorized technician.Inspect connections and cables. Install a phase-reversing cable between the units or swap pin 2 and 3 in the unit, that behaves erratically.
Error after unit reset.	Effect requires mechanical adjustment.	Check unit's software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	Unit too hot.LEDs damaged.The power supply settings do not match local AC voltage and frequency.	Allow unit to cool. Reduce ambient temperature. Ensure free airflow around unit. Clean unit if necessary.Disconnect unit and contact Beamz support or Beamz authorized service partner.Disconnect unit. Check settings and correct if necessary.

VEILIGHEIDSINSTRUCTIES

BESCHERMINGSKLASSE IP65

REPLACEMENT DU FUSIBLE

Diagram showing a hand holding a screwdriver with an arrow indicating rotation, next to a circular icon with a cross symbol.

Procédure :

MENU			DESCRIPTION
STANDARD	Address	001-512	Set address code
	DMX Mode	Model	Select DMX control mode
		Mode2
	Effect mode	No/Yes	Effect wheel automatically finds the shortest distance to rotate and run
	Started lamp	Off/on	Choose to turn the bulb "on" or "off"
	Switch lamp	Off/on	Turn on the lamp manually
	No signal	Clear	Keep DMX value or clear DMX channel value when no DMX signal
		Hold
	UI Color	Blue	Select screen menu color
		Golden
	Show time	No/Yes	Display the runtime timer on the main screen
	Brightness	000-255	No function
	Effects sync	Off/speed1-7	Sync effects
	Screensaver	Off/on	Turn off the screen when no touch and key operation
	XY encoder	Off/on	Cancel or use the XY auto-correction function
	X inversion	No/Yes	Select X-axis to run forward or reverse
	Y inversion	No/Yes	Select Y-axis to run forward or reverse
	Focus inversion	No/Yes	No function
	Zoom inversion	No/Yes	No function
ADVANCED	*This is the main parameter setting of the fixture and requires permission*
INFO	Error List	No error/View	If there are no errors or there are errors, click OK to view the errors
	Display Ver	Vxxxxxxx	Display version information
	Mainboardv	Vxxxxxxx	Mainboard version information
	Serial NO.	xxxxxxx	Equipment factory number
	SYS timer	00000.0H	Total system running time (hours)
	Run timer	000:00	Running time after this power-on (hours)
	Lamp timer	00000.0H	The total time of lamp on (hours)
	Permission	--/--
	Equip TEMP	000	The temperature of the main part (requires device support)
	Head TEMP	000	The temperature of the head (requires device support)
	FAN 1 Speed	0000 RPM	fan 1 speed (requires equipment support)
	FAN 2 Speed	0000 RPM	fan 2 speed (requires equipment support)
	FAN 3 Speed	0000 RPM	fan 3 speed (requires equipment support)
	FAN 4 Speed	0000 RPM	fan 4 speed (requires equipment support)
	Pan Coder
	Tilt Coder
PERFORM	Run mode	Auto/Sound/DMX	Run selected programs Auto or Sound or DMX
	Run speed	255	Set the speed of Auto running
	Run cross	255	Set run cross for Auto or Sound
	Built-in 1	Off/on	built-in test program 1
	Built-in 2	Off/on	built-in test program 2
	User PRO 1	Off/on	User-programmed program 1
	User PRO 2	Off/on	User-programmed program 2
	User PRO 3	Off/on	User-programmed program 3
	User PRO 4	Off/on	User-programmed program 4
	Circle shape	Off/on	(reserve)
	Square shape	Off/on	(reserve)
	Shape range	000	(reserve)
	Sound DB	000	Adjust the sound control sensitivity

PROGRAM	This function can program up to 4 user programs, and the 4 programs can be run in series, that is to say, the programmed 4 programs can be switched to ON at the same time in the "User-Pro" function. Go to program 2, go to program 3, then program 4, then loop back to program 1, and so on. Of course, it can also be run as a single option.
RESET	Reset to initial position

DMX CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	PAN	000-255	Pan
2	PAN FINE	000-255	Pan fine
3	TILT	000-255	Tilt
4	TILT FINE	000-255	Tilt fine
5	PAN/TILT SPEED	000-255	Speed from fast to slow
6	DIMMER	000-255	Dimmer from dark to bright
7	STROBE	000-003	Shutter closed
		004-103	Strobe from slow to fast
		104-107	Open the shutter
		108-207	Pulse strobe from slow to fast
		208-212	Open
		213-251	Random strobe from slow to fast
		252-255	Open → (controlled by the dimming channel)
8	COLOR WHEEL	000-004	White
		005-009	White+Color 1
		010-014	Color 1
		015-019	Color 1+color 2
		020-024	Color 2
		025-029	Color 2+color 3
		030-034	Color 3
		035-039	Color 3+color 4
		040-044	Color 4
		045-049	Color 4+color 5
		050-054	Color 5
		055-059	Color 5+color 6
		060-064	Color 6
		065-069	Color 6+color 7
		070-074	Color 7
		075-079	Color 7+color 8
		080-084	Color 8
		085-089	Color 8+color 9
		090-094	Color 9
		095-099	Color 9+color 10
		100-104	Color 10
		105-109	Color 10+color 11
		110-114	Color 11
		115-119	Color 11+color 12
		120-124	Color 12
		125-129	Color 12+color 13
		130-134	Color 13
		135-139	Color 13+color 14
		140-144	Color 14
		145-149	Color 14+White
		150-200	Reverse flow (from fast to slow)
		201-255	Forward flow (from slow to fast)
9	GOBO WHEEL	000-003	White
		004-006	Gobo 1
		007-009	Gobo 2
		010-012	Gobo 3
		013-015	Gobo 4
		016 - 018	Gobo 5
		019 - 021	Gobo 6
		022- 024	Gobo 7
		025 - 027	Gobo 8
		028 - 030	Gobo 9
		031 - 033	Gobo 10
		034 - 036	Gobo 11
		037 - 039	Gobo 12
		040 - 042	Gobo 13
		043 - 045	Gobo 14
		046 - 048	Gobo 15
		049 - 051	Gobo 16
		052 - 054	Gobo 17
		055 - 059	Stop
		060 - 063	Gobo 1 shake slow to fast
		064 - 067	Gobo 2 shake slow to fast
		068 - 071	Gobo 3 shake slow to fast
		072 - 075	Gobo 4 shake slow to fast
		076 - 079	Gobo 5 shake slow to fast
		080 - 083	Gobo 6 shake slow to fast
		084 - 087	Gobo 7 shake slow to fast
		088- 091	Gobo 8 shake slow to fast
		092 - 095	Gobo 9 shake slow to fast
		096 - 099	Gobo 10 shake slow to fast
		100 - 103	Gobo 11 shake slow to fast
		104 - 107	Gobo 12 shake slow to fast
		108 - 111	Gobo 13 shake slow to fast
		112 - 115	Gobo 14 shake slow to fast
		116 - 119	Gobo 15 shake slow to fast
		120- 123	Gobo 16 shake slow to fast
		124 - 127	Gobo 17 shake slow to fast
		128-189	Reverse flow from fast to slow
		190-193	Stop
		194-255	Forward flow from slow to fast
10	PRISM 1	000-031	No prism
		032-255	Prism 1
11	PRISM1 ROTATION	000-127	Prism angle adjustment
		128-190	Reverse rotation (fast to slow)
		191-192	Stop
		193-255	Forward rotation (slow to fast)
12	PRISM 2	000-031	No prism
		032-255	Prism 2
13	PRISM 2 ROTATION	000-127	Prism angle adjustment
		128-190	Reverse rotation (fast to slow)
		191-192	Stop
		193-255	Forward rotation (slow to fast)
14	FOCUS	000-255	Pattern clarity from near to far
15	FROST & 6-COLOR EFFECT	000-127	No function
		128-191	Frost
		192-255	6-color effect
16	RGB STROBE	000-001	No function
		002-127	Lamp ring strobe from slow to fast
		128-255	Lamp ring effect speed from slow to fast
17	RGB EFFECT	000-004	Red 1
		005-009	Green 2
		010-014	Blue 3
		015-019	Amber4
		020-024	Rose 5
		025-028	Light blue6
		029-033	White 7
		034-038	Color jump8
		039-043	Effect 9
		044-048	Effect 10
		049-053	Effect 11
		054-057	Effect 12
		058-062	Effect 13
		063-067	Effect 14
		068-072	Effect 15
		073-077	Effect 16
		078-082	Effect 17
		083-086	Effect 18
		087-091	Effect 19
		092-096	Effect 20
		097-101	Effect 21
		102-106	Effect 22
		107-111	Effect 23
		112-115	Effect 24
		116-120	Effect 25
		121-125	Effect 26
		126-130	Effect 27
		131-135	Effect 28
		136-140	Effect 29
		141-144	Effect 30
		145-149	Effect 31
		150-154	Effect 32
		155-159	Effect 33
		160-164	Effect 34
		165-169	Effect 35
		170-173	Effect 40
		174-178	Effect 41
		179-183	Effect 42
		184-188	Effect 43
		189-193	Effect 44
		194-198	Effect 45
		199-202	Effect 46
		203-207	Effect 47
		208-212	Effect 48
		213-217	Effect 49
		218-222	Effect 50
		223-227	Effect 51
		228-231	Effect 52
		232-236	Effect 53
		237-241	Effect 54
		242-246	Effect 55
		247-251	Effect 56
		252-255	Effect 57
18	LAMP CONTROL	000-025	No function
		100-105	Lamp off
		200-205	Lamp on
		250-255	All motors reset

TECHNICAL SPECIFICATIONS

Product colour Black

Colour temperature 8000K

Light source MSD 18R 380W bulb

Colour wheel 14 colours + open

Beam angle 1°

Motorized focus Yes

Illuminance 209.000 lx @ 7m

Head movement: Pan 540°

Head movement: Tilt 270°

Pan/Tilt resolution 16 bit

Static Gobo: Quantity 12 + 5 glass + open

Gobo shake Yes

Prism 1 12-facet

Prism 2 8+16-facet

Rainbow effect wheel Yes

Frost filter Yes

Aura effect ring 40x RGB SMD LEDs

Flash rate per second 1 - 10Hz

Modes Automatic programs, DMX, Master/Slave

RDM Yes

DMX channels 18

DMX connection 3-pin XLR

Display LCD

IP rating IP65

Cooling Fan

Power plug P-Con TR1

Power consumption 3.53 - 1.65A

Power supply 100-240VAC 50/60Hz

Dimensions (L x W x H) 390 x 300 x 600mm

Weight 22,10

Included accessories Mounting bracket, Power cable

Design and product specifications are subject to change without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

BEAMZ

offers a wide range of high performance lighting equipment and related accessories for the rental, entertainment and architectural lighting markets. BeamZ Pro stands for performance, innovation and value pricing!
