i5

Owner's Guide

This owner's guide includes information for Regulatory Model(s): RVD-Y1, 17070

Battery Model(s): ABL-D1, ABL-D1A, ABL-D2Ax, ABL-D2Bx (x = 1 or 2)

SAVE THESE INSTRUCTIONS

⚠ WARNING: When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS

⚠ WARNING: To reduce the risk of injury or damage, read and follow the safety precautions when setting up, using, and maintaining your robot.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

Risk of electric shock Class II equipment

Rated power output, d.c.

Read operator's manual

General symbol for recycling

Risk of fire For indoor use only

Rated power input, d.c.

Keep out of reach of children

\~ Rated power input, a.c.

Separate Supply Unit Class II Equipment

WARNING: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE: Indicates a hazardous situation that, if not avoided, could result in property damage.

GENERAL

WARNING

• Your robot is not a toy. Small children and pets should be supervised when your robot is operating.
• Do not sit or stand on your robot or Home Base.
• Do not use unauthorised chargers. Use of an unauthorised charger could cause the battery to generate heat, smoke, catch fire, or explode.
• Your robot comes with a region approved power supply cord and is designed to be plugged into a standard household AC power socket only. Do not use any other power supply cord. For replacement cords, please contact Customer Care to ensure proper selection of country specific power supply cord.
• Do not open your robot or Home Base. There are no user serviceable parts inside. Refer servicing to qualified service personnel.
• Risk of electric shock, use indoors in dry locations only.
• Do not handle your robot or Home Base with wet hands.
• Store and operate your robot in room temperature environments only.
• If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony and ensure safe operation.
• Clean cliff sensors to remove buildup.
• If the room to be cleaned contains equipment, such as a stove, fan, portable heater, or humidifier, remove the equipment before operation. There is a risk of injury, accident or malfunction if the robot comes in contact with and pushes the equipment.
• Do not allow your robot or charging station to become wet.
• Be aware that floors may be slippery after wet cleaning with your robot.

CAUTION

• Do not operate the robot in areas with exposed electrical sockets in the fl
• If the device passes over a power cord and drags it, there is a chance an

object could be pulled off a table or shelf. Before using this device, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any fragile objects.

• Be aware that the robot moves on its own. Take care when walking in the area that the robot is operating in to avoid stepping on it.
• Do not use this device to pick up sharp objects, glass, or anything that is burning or smoking.
• Perform the required maintenance as per the Owner's Guide to ensure safe operation of the robot and charging station.
• If the robot is operating on a floor with stairs, please remove any clutter from the top step.

NOTICE

• Do not allow your robot or Home Base to become wet.
• Do not place anything on top of your robot.
• The failure to maintain cleanliness of charger contacts could result in loss of ability for the robot to charge the battery.
• Before running your robot on hard floors, please test your robot on a small section of the hard floor to ensure that it is compatible. Using your robot on a hard floor that is not compatible could result in damage to your floor. Contact your hard floor manufacturer with questions on compatibility.
• Before running your robot on carpets or rugs, ensure that the carpets or rugs are compatible with the dual multi-surface rubber brushes on your robot, otherwise known as beater bars. Using your robot on a carpet or rug that is not compatible could result in damage to your carpet or rug. Contact your carpet or rug manufacturer with questions on compatibility.

CHARGING STATION

WARNING

• Do not use a Home Base with a damaged cord or plug. If the cord or plug is damaged, it must be replaced.
• Always disconnect your robot from the Home Base before cleaning or maintaining it.
• Charge your robot only with the power supply provided. The provided power supply delivers safety extra low voltage corresponding to the input marking on the robot which is required to maintain safe operation.
  • To prevent the risk of your robot falling down stairs, ensure that the

Home Base is placed at least 4 feet (1.2 metres) away from stairs.

NOTICE

• Product may not be used with any type of power converter. Use of power converters will immediately void the warranty.
• If you live in an area prone to electrical storms, it is recommended that you use additional surge protection. Your Home Base may be protected with a surge protector in the event of severe electrical storms.

CLEANING SOLUTION

WARNING

• Household cleaning products are safe when used and stored according to the instructions on the label. Always be sure to read and follow the directions carefully.
• Only use authorised cleaning solutions found on answers.irobot.com/s/roomba-combo-cleanser.
• For cleaning solution warnings, please refer to the outer box and solution bottle.

Keep away from children Rinse

Keep away from eyes. If product gets into eyes rinse thoroughly with water

BATTERY

WARNING

• Do not open, crush, or heat above 176°F: 80°C, or incinerate. Follow the manufacturer's instructions.
• Do not short-circuit the battery by allowing metal objects to contact battery terminals or immerse in liquid. Do not subject batteries to mechanical shock.
• Periodically inspect the battery pack for any sign of damage or leakage.
• Do not charge damaged or leaking battery packs, do not allow the liquid to come in contact with skin or eyes. If contact has been made,

wash the affected area with copious amounts of water and seek medical advice. Place the battery in a sealed plastic bag and recycle or dispose of it safely according to local environmental regulations, or return it to your local authorised iRobot Service Center for disposal.

- Lithium ion batteries and products that contain lithium ion batteries are subject to stringent transportation regulations. If you need to ship this product (with the battery included) for service, travel, or any other reason, you MUST see the Troubleshooting section of your manual or contact customer care for shipping instructions.

CAUTION

- Battery usage by children should be supervised. Seek medical advice immediately if a cell or a battery has been swallowed.

NOTICE

• The battery pack must be removed from the robot before recycling or disposal.
• For best results, only use the iRobot Lithium Ion Battery that comes with the robot.
• Do not use non-rechargeable batteries. Use only the rechargeable battery supplied with the product. For replacement, purchase identical iRobot battery or contact iRobot Customer Care for alternative battery options.
• Always charge and remove the battery from your robot and accessories before long-term storage.

This symbol on the battery indicates that the battery must not be disposed of with unsorted common municipal waste. As the end-user, it is your responsibility to dispose of the end-of-life battery in your appliance in an environmentally sensitive manner as follows:

(1) returning it to the distributor/dealer from whom you purchased the product; or (2) depositing it in a designated collection point.

The separate collection and recycling of end-of-life batteries at the time of disposal will help to conserve natural resources and to ensure that it is recycled in a manner that protects human health and the environment. For more information, please contact your local recycling office or the dealer from whom you originally purchased the product. Failure to properly dispose of end-of-life batteries may result in the negative potential effects on the environment and human health due to the substances in the batteries and accumulators. Information regarding the effects of problematic substances in the battery waste stream may be found at the following source: http://ec.europa.eu/environment/waste/batteries/

About Your Roomba® Robot Vacuum

Top View

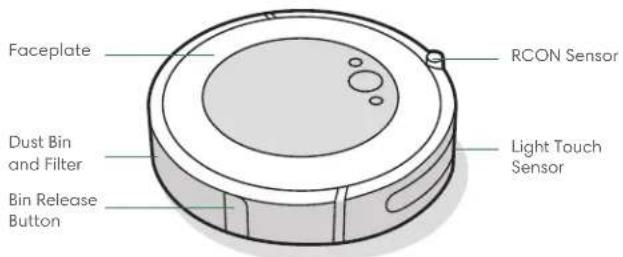

Faceplate RCON Sensor Dust Bin and Filter Bin Release Button Light Touch Sensor

Home Base Charging Station

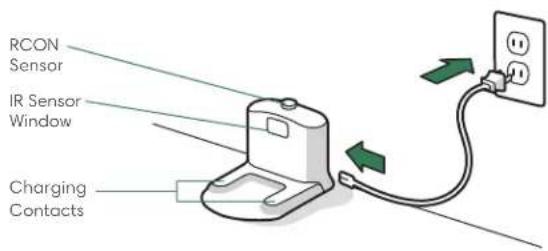

RCON Sensor IR Sensor Window Charging Contacts

Bottom View

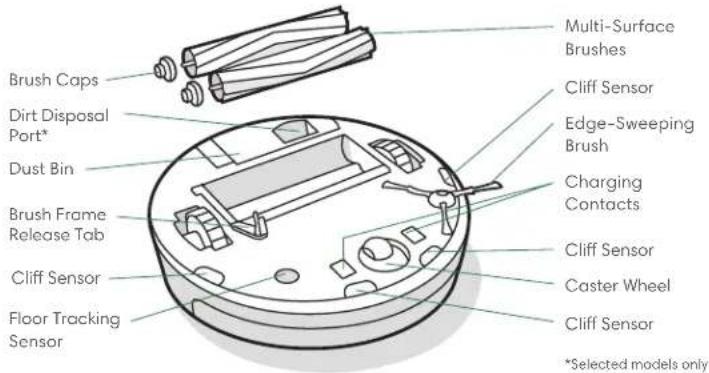

Brush Caps Dirt Disposal Port* Dust Bin Brush Frame Release Tab Cliff Sensor Floor Tracking Sensor Multi-Surface Brushes Cliff Sensor Edge-Sweeping Brush Charging Contacts Cliff Sensor Caster Wheel Cliff Sensor *Selected models only

Buttons & Indicators

Light Ring Indicator CLEAN Spot Clean Button CLEAN/Power Button Home Button

1 For more information, visit global.irobot.com

Using Your Roomba® Robot Vacuum

Positioning the Home Base™ Charging Station Charging

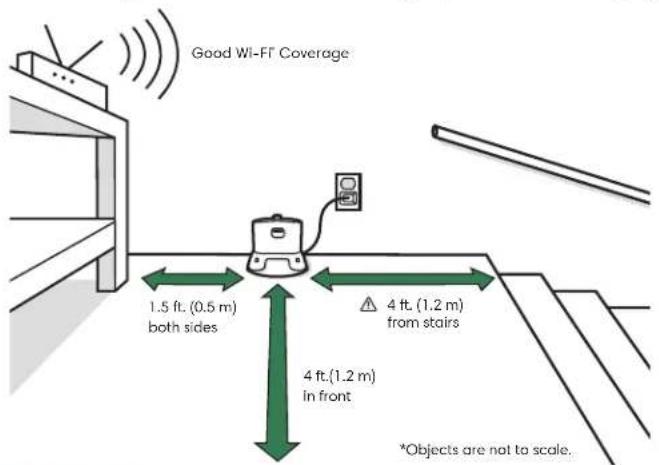

Good Wi-Fi Coverage 1.5 ft. (0.5 m) both sides 4 ft. (1.2 m) from stairs 4 ft. (1.2 m) in front *Objects are not to scale.

WARNING: To prevent the risk of your robot falling downstairs, ensure that the charging station is placed at least 4 feet (1.2 meters) away from stairs.

Download the iRobot Home App and Connect to Wifi

• Follow step-by-step instructions to set up your Roomba.
• Set an automatic cleaning schedule and customise your cleaning preferences.
• Access to tips, tricks, and answers to commonly asked questions.

White Light Ring While Charging Solid White: fully charged Pulsing White: charging Pulsing Red: charging/low CLEAN

• Place the robot on the charging station to activate the battery.
  Note: Your robot comes with a partial charge, but we recommend that you charge the robot for 3 hours prior to starting the first cleaning job.
• If the "CLEAN" text is pulsing while charging, the robot is in the middle of a cleaning job and will automatically resume where it left off once recharged.
• The robot uses a small amount of power whenever it is on the Home Base. You can put the robot in a further-reduced power state when not in use. For instructions and more details on this Reduced Power Standby Mode, refer to the iRobot Home App.
• For long-term storage, turn off the robot by removing it from the charging station and holding down for 10 seconds. Store the robot in a cool, dry place.

Cleaning Troubleshooting

Remove excess clutter from floors before cleaning. Use your robot frequently to maintain well-conditioned floors.

Diagram of a robotic vacuum cleaner with a green sensor and control panel (no text or symbols)

Just Press CLEAN

Tap to Start/Pause/Resume

Hold for 3 seconds to end a job

• Your robot will automatically explore and clean your home. It will return to the charging station at the end of a cleaning job and whenever it needs to recharge.
• To send the robot back to its charging station, tap A blue light ring pattern will indicate that the robot is seeking the charging station.
• When your robot detects an especially dirty area, it will engage Dirt Detect™ mode, moving in a forward/backward motion to clean the area more thoroughly. The light ring indicator will flash blue.
• Tap ⚙ to spot clean a designated area. The robot will spiral outward about 3 feet (1 meter) and then spiral inward to end where it started. The light ring indicator will show a blue spiral.

When the robot senses its bin needs to be emptied, the light ring indicator will illuminate in a red sweeping motion toward the rear.

- Your robot will tell you something is wrong by playing an audio alert and turning the light ring indicator red. Press CLEAN or tap the bumper for details. Further support and instructional videos are available in the iRobot Home App.

Red Light Ring Low battery. Please charge.

- After 90 minutes of inactivity off the charging station, the robot will automatically end its cleaning job.

Battery Safety & Shipping

For best results, only use the iRobot Lithium Ion Battery that comes with your robot.

WARNING: Lithium ion batteries and products that contain lithium ion batteries are subject to stringent transportation regulations. If you need to ship this product for service, travel, or any other reason, you MUST follow the below shipping instructions.

• Battery MUST be turned off before shipping.
• Turn off the battery by removing the robot from the charging station and holding down for 10 seconds. All indicators will turn off.
  • Package the robot securely for shipping.
• If you need further assistance, contact our Customer Care team or visit global.irobot.com.

3 For more information, visit global.irobot.com

Accessories

Dual Mode Virtual Wall® Barrier\*

Note: For best results, place at least 8 feet (2.5 meters) from the charging station.

Use the Dual Mode Virtual Wall® barrier to keep the robot in the places you want cleaned — and out of the ones you don't. It creates an invisible barrier that only the robot can see. You can leave the device in position between cleanings.

Diagram showing a cylindrical device with two labeled circular insets indicating detection or dislocation of particles.

*Dual Mode Virtual Wall Barrier included for selected models only.

Choose the mode to meet your needs:

Virtual Wall Mode: When the switch is in the Virtual Wall position (☐), the device will create a linear barrier to block openings up to 10 feet (3 meters).

10 ft/3 m

Note: This barrier gets wider as it gets further from the device (refer to illustration).

Halo Mode: Toggle the switch to the Halo position (2) to create a circular barrier. This will prevent the robot from approaching zones you want to protect such as a pet bowl, vase, or under a desk. The Halo barrier extends approximately 12 inches (30 centimetres) from the centre of the device.

12 in/30 cm

Note: The batteries will last about 8-10 months under normal use. If you are not planning to use your Virtual Wall barrier for an extended period of time, be sure to turn the switch to the Off or middle position.

Roomba Combo™ Bin

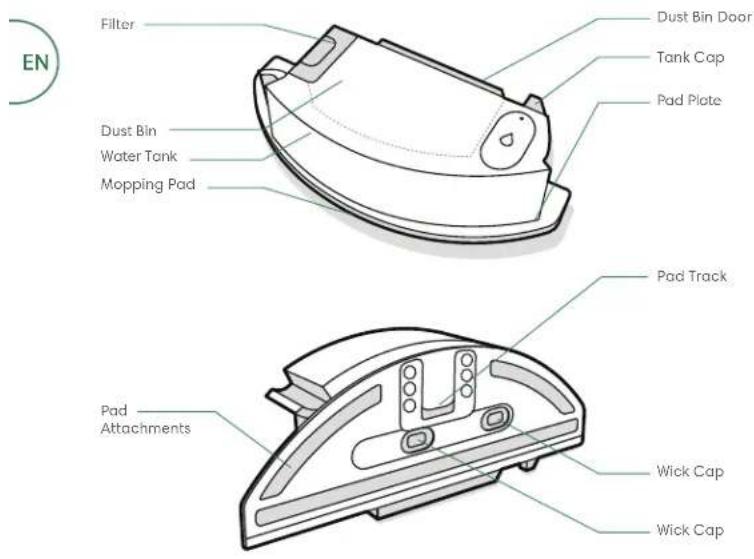

EN Filter Dust Bin Door Tank Cap Pad Plate Dust Bin Water Tank Mopping Pad Pad Track Pad Attachments Wick Cap Wick Cap

IMPORTANT: You must register your product in the iRobot Home App and complete a mapping run before using your Combo Bin. See the Activate your Combo Bin card for instructions.

1

INSTALL THE MOPPING PAD

Slide the pad down over the track. Press the pad to the plate to attach.

Illustration of hands using a pressure relief device to lift a surface (no text or symbols present)

2

FILL THE BIN

Fill the Combo Bin with water. You may also use a compatible cleaning solution. Compatible solutions are listed at this answers.irobot.com/s/roomba-combo-cleanser

Illustration of a hand using a tool to lift a small object on a base (no text or symbols visible)

Note: The product starts wicking as soon as water is put into the tank.

3

SWAP THE BINS

Remove the Dust Bin from the robot, and install the Combo Bin.

Important: Do not flip the robot over with the Combo Bin installed

Illustration of two hands holding circular objects, one with a green handle and the other with a small object inserted (no text or symbols)

Care and Maintenance

Care and Maintenance Instructions

To keep your robot running at peak performance, perform the procedures on the following pages.

There are additional instructional videos in the iRobot Home App. If you notice the robot picking up less debris from your floor, empty the bin, clean the filter, and clean the brushes.

Part Care Frequency		Replacement Frequency*
Bin Wash bin as needed -
Filter	Clean once a week (twice a week if you have a pet).Do not wash.	Every 2 months
Full Bin Sensor Clean every 2 weeks -
Front Caster Wheel Clean every 2 weeks Every 12 months

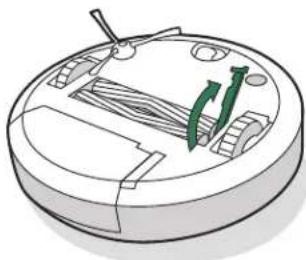

Edge-Sweeping Brush and Multi-Surface Brushes	Clean once a month (twice a month if you have a pet)	Every 12 months

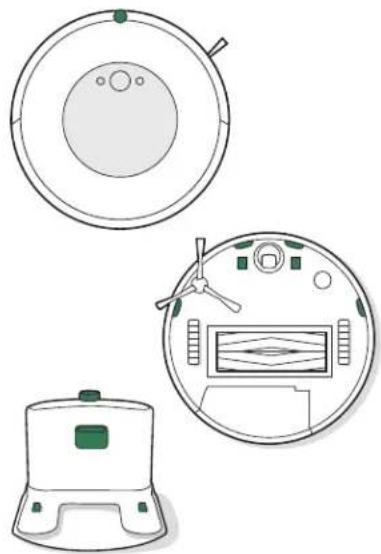

Sensors and Charging Contacts	Clean once a month -
Mapping pad Clean after a mapping job After 30 washes
Wick cap Replace if dirty or shows wear -

Note: iRobot manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact iRobot Customer Care for more information.

* Replacement frequency may vary. Parts should be replaced if visible wear appears.

Emptying the Bin

1 Press bin release button to remove bin.

2 Open bin door to empty bin.

3 Place bin back in the robot.

Cleaning the Filter

1 Remove the bin. Remove the filter by grasping both ends and pulling out.

2 Remove debris by tapping the filter against your trash container.

Line drawing of a hand pouring liquid into a container (no text or symbols)

3 Reinsert filter with ridged grips facing out. Place bin back in the robot.

Important: The robot will not run if the filter is not installed correctly. Replace the filter every two months.

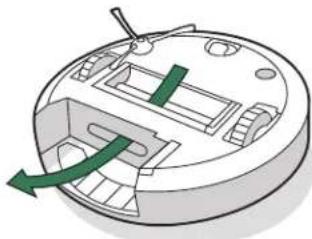

Cleaning the Full Bin Sensors Cleaning the Wedging/Sweeping

1 Remove and empty the bin.

Illustration of a kitchen appliance with a lid, handle, and bucket (no text or symbols)

2 Wipe the inner sensors with a clean, dry cloth.

Top-down schematic of a robotic vacuum cleaner (no text or symbols)

3 Wipe the bin door with a clean, dry cloth.

Closed Door

Open Door

Important: Do not wash the filter. Remove the filter before washing the bin.

1 Release the bin, remove the filter, and open the bin door.

2 Rinse the bin using warm water.

Illustration of a hand using a pipette to measure a device with a screen (no text or symbols visible)

Note: Bin is not dishwasher safe.

3 Make sure bin is completely dry. Reinsert filter and place bin back in the robot.

Brush

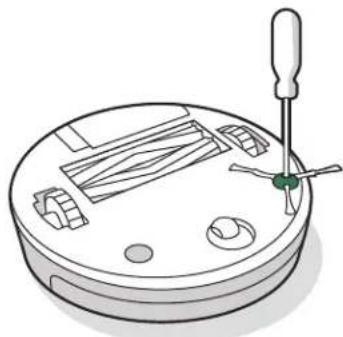

1 Use a coin or small screwdriver to remove the screw holding the Edge-Sweeping Brush in place.

2 Pull to remove the Edge-Sweeping Brush. Remove any hair or debris, then reinstall the brush.

Illustration of a circular electronic device with a screwdriver and internal components (no text or symbols)

7 For more information, visit global.irobot.com

Cleaning the Front Caster Wheel

1 Pull firmly on the front wheel module to remove it from the robot.
2 Pull firmly on the wheel to remove it from its housing (see illustration below).
3 Remove any debris from inside the wheel cavity.
4 Reinstall all parts when finished. Make sure the wheel clicks back into place.

WheelAxle Housing

Important: A front wheel clogged with hair and debris could result in damage to your floor. If the wheel is not spinning freely after you have cleaned it, please contact Customer Care.

Cleaning the Multi-Surface Brushes

1 Pinch the brush frame release tab, lift the tab, and remove any obstructions.

Technical line drawing of a circular mechanical component with internal blades and a handle (no text or symbols)

2 Remove the brushes from the robot. Remove the brush caps from the ends of the brushes. Remove any hair or debris that has collected beneath the caps. Reinstall the brush caps.

3 Remove any hair or debris from the square and hexagonal pegs on the opposite side of the brushes.

Line drawing of a hand holding a wooden object with tassels (no text or symbols)

4 Remove the bin from the robot and clear any debris from the vacuum path.

Diagram of a circular device with internal compartments and a green directional arrow indicating flow or movement (no text or symbols)

5 Reinstall the brushes in the robot. Match the shape of the brush pegs with the shape of the brush icons in the cleaning head module

Diagram showing directional arrows between cylindrical and rod-like components (no text or symbols)

Cleaning the Sensors, Camera Window, and Charging Contacts

1 Wipe sensors, camera window, and charging contacts with a clean, dry cloth.

Three technical line drawings of circular devices: a remote control, a device with a fan, and a base station (no text or symbols)

Important: Do not spray cleaning solution or water onto the sensors or sensor openings.

Cleaning the Mopping Pad Replacing the Wick Cap

HAND WASHING

Thoroughly wash the pad with warm water.

Illustration of a medical procedure with a pipette inserted into a shaded area (no text or symbols)

MACHINE WASHING

Wash using the warm cycle, then air dry. Do not tumble dry. Do not wash with delicates.

1 Remove pad plate

Two-step illustration of hands holding a small object, showing a change with arrows indicating direction (no text or symbols)

2 Remove the wick cap by pulling on the side rubber tab.

Hand holding a device with green arrows indicating upward movement (no text or symbols)

3 Replace with a new wick cap, pressing firmly into place to create a tight seal to prevent leaking.

4 Reintall pad plate

Regulatory Information

Hereby, iRobot Corporation declares that this robot vacuum cleaner model RVD-Y1 is in compliance with the EU Radio Equipment Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.irobot.com/compliance.

Hereby, iRobot Corporation declares that this robot vacuum cleaner model RVD-Y1 is in compliance with the Radio Equipment Regulations 2017. The full text of the UKCA Declaration of Conformity is available at the following internet address: www.irobot.com/compliance.

Chemical information report listing SVHC (substances of very high concern) per EU Regulation EU 1907/2006 can be found here: www.irobot.com/compliance.

This vacuum cleaning robot, model RVD-Y1, incorporates the Sundial radio module model: AXF-Y1. This vacuum cleaning robot, model RVD-Y1 operates in the WLAN 2.4 GHz band. The 2.4 GHz band is limited to operate between 2412 MHz and 2472 MHz with a maximum EIRP output power of 19.1 dBm (81.28 mW) at 2442 MHz.

This symbol on the product indicates that the appliance must not be disposed of with unsorted common municipal waste. As the end-user, it is your responsibility to dispose of the end-of-life appliance in an environmentally sensitive manner as follows:

(1) returning it to the distributor/dealer from whom you purchased the product; or
(2) depositing it in a designated collection point. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details or your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. More information may be found at the following source: https://ec.europa.eu/environment/topics/waste-and-recycling/waste-electrical-and-electronic-equipment-weee_en

Recycle your end-of-life iRobot product responsibly as per local regulations. The following is a list of the WEEE recycling organisations contracted by iRobot at the time of product sale.

Location Organisation URL
Austria UFH http://www.elektro-ade.at/elektrogeraete-sammeln/liste-der-sammelstoesterreich/
Belgium Recupel https://www.recupel.be/en/where-to-go/?searchcollectionPoints=&categories=1%2C2%2C3%2C4#
Germany Zentek https://www.ear-system.de/ear verzeichnis/sammel-und-ruecknahmestback
Denmark Elretul https://www.dpa-system.dk/DPAAplications/DPADB.aspx?wf=CollectionPointSearch.as
Spain Ecotic https://punto-limpio.info/
France Eco-systemes https://www.eco-systemes.fr/france
Ireland WEEE Ireland http://www.weeeireland.ie/household-recycling/where-can-i-recycle/
Netherlands	Wecycle	https://www.watismijnapparaatwaard.nl/
Sweden	El-Kretsen	https://www.sopor.nu/sortera-återvinn/
United Kingdom	Repic	http://www.responsible-recycling.co.uk/contact-us/find-your-local-recy

Manufacturer Address: iRobot Corporation, 8 Crosby Drive, Bedford MA 01730, USA

iRobot

©2022 iRobot Corporation, 8 Crosby Drive, Bedford, MA 01730 USA. All rights reserved. iRobot and Roomba are registered trademarks of iRobot Corporation. Wi-Fi and the Wi-Fi logo are registered trademarks of Wi-Fi Alliance.

11 For more information, visit global.irobot.com

iRobot Customer Care

USA & Canada

If you have questions or comments about your dirt disposal, please contact iRobot before contacting a retailer.

You can start by visiting global.irobot.com for support tips, frequently asked questions, and information about accessories. This information can also be found in the iRobot HOME App. If you need further assistance, call the US Customer Care team at [phone].

iRobot USA Customer Care Hours

Monday to Friday, 9AM — 9PM Eastern Time

Saturday and Sunday 9AM — 6PM Eastern Time

Outside USA & Canada

Visit global.irobot.com to:

Learn more about iRobot in your country

Get hints and tips to improve your product performance

Get answers to questions

Contact your local support center

The complete owner's guide is available at about.irobot.com/manual#comboi5

Diagram of a robotic vacuum cleaner with a green sensor on the cover (no text or symbols)

Appuyez sur CLEAN

Diagram showing a battery with two labeled components and dashed arrows indicating rotation or movement.

Illustration of two hands using a power tool to clean iron, showing step-by-step motion (no text or symbols)

2

REMLISSAGE DU BAC

Illustration of a hand using a pipette to lift a small object on a base (no text or symbols)

Illustration of two hands performing a circular device manipulation task (no text or symbols present)

Line drawing of a hand pouring liquid into a container (no text or symbols)

Line drawing of a circular robotic device with control panel and mesh chamber (no text or symbols)

Illustration of a hand holding a handheld device with a pipette inserted (no text or symbols visible)

Illustration of a circular electronic device with internal components and a screwdriver inserted (no text or symbols)

Technical line drawing of a circular mechanical component with internal components and a green tool (no text or symbols)

Line drawing of a hand holding a wooden object with a tassel, no text or symbols present

Diagram of a circular device with internal compartments and a green arrow indicating rotation (no text or symbols)

Diagram showing three cylindrical objects with green arrows indicating movement or flow, no text or symbols present

Three technical line drawings of circular devices: a remote control, a device with a screen, and a base device (no text or symbols)

Illustration of a medical procedure with a needle inserted into a shaded area (no text or symbols)

NETTOYAGE EN MACHINE À LAVER

Illustration of two hands holding a small object, one with green arrows indicating movement or change (no text or symbols)

2

Hand holding a device with green arrows pointing upward (no text or symbols)

3

iRobot Corporation, 8 Crosby Drive, Bedford MA 01730, USA

Diagram of a robotic vacuum cleaner with a green sensor on the cover (no text or symbols)

Simplemente pulse CLEAN

Diagram showing a battery with two labeled circular insets indicating charge distribution or polarity.

Illustration of hands using a power tool to clean iron, showing step-by-step motion (no text or symbols)

2

LLENADO DEL DEPÓSITO

Illustration of a hand using a sewing machine to lift a small object (no text or symbols visible)

Illustration of two hands holding circular objects, one with a green patch and the other with a green patch (no text or symbols)

Hand pouring liquid into a container (no text or symbols visible)

Illustration of a circular robotic device with internal components and a handle (no text or symbols)

Illustration of a hand holding a handheld device with a pipette inserted (no text or symbols visible)

Illustration of a circular mechanical device with internal components and a handle, no text or symbols present

Technical line drawing of a circular mechanical device with internal components and green arrows indicating motion or force (no text or symbols)

Diagram of a robotic device with green arrows indicating motion or force direction (no text or symbols)

Diagram showing green arrows pointing to cylindrical and rectangular components on a grid-like surface (no text or symbols)

Illustration of a medical or surgical procedure showing a tool inserted into a shaded area (no text or symbols visible)

Illustration of two hands holding a device with green arrows indicating motion (no text or symbols)

Hand holding a device with green arrows pointing upward (no text or symbols)

iRobot Corporation, 8 Crosby Drive, Bedford MA 01730, USA

The image contains a graphical symbol (a lightning bolt) inside a triangle, which is not standard alphanumeric text. According to the instructions, non-text figures/diagrams are to be ignored. Therefore, no OCR output is generated.

Diagram of a robotic vacuum cleaner with a green sensor on the cover (no text or symbols)

Basta premere CLEAN

Diagram showing a battery with two labeled components and dashed circular indicators for measurement or polarity.

Illustration of hands using a power tool to lift a metal iron, showing step-by-step motion (no text or symbols)

3

SCAMBIARE I CONTENITORI

Illustration of a hand using a sewing machine to cut a shoe (no text or symbols visible)

Illustration of two hands holding circular objects, one with a green handle and the other with a green handle (no text or symbols)

Cura e manutenzione

Hand pouring liquid into a container (no text or symbols visible)

Illustration of three hand tools: a lid with a green clip, a hand holding a tool, and a paint can (no text or symbols)

Illustration of a robotic vacuum cleaner with control panel and fan (no text or symbols)

Illustration of a hand holding a handheld device with a pipette inserted (no text or symbols visible)

Illustration of a circular mechanical device with internal components and a screwdriver inserted (no text or symbols)

Technical line drawing of a circular mechanical component with internal channels and a green arrow indicating direction (no text or symbols)

Line drawing of a hand holding a wooden object with a tassel, no text or symbols present

Diagram of a circular device with internal compartments and a green directional arrow indicating movement (no text or symbols)

Diagram showing directional arrows between cylindrical and rectangular components (no text or symbols)

Three technical line drawings of circular devices with internal components, no text or symbols present

Illustration of a medical procedure with a needle inserted into a shaded area (no text or symbols)

LAVAGGIO IN LAVATRICE

Illustration of two hands holding a smartphone with a green arrow indicating the action (no text or symbols present)

Hand holding a device with green arrows pointing upward (no text or symbols)

iRobot Corporation, 8 Crosby Drive, Bedford MA 01730, USA

Illustration of a hand holding a circular device with a green sensor or sensor on the surface (no text or symbols)

Diagram showing a battery with two green cylindrical sensors, one with dashed lines indicating internal structure.

Illustration of hands using a power tool to lift a mechanical component, showing green motion arrows (no text or symbols)

3

Illustration of a hand using a tool to clean or store items, no text or symbols present

Illustration of two hands holding a circular device with a green clip, showing mechanical assembly (no text or symbols)

Pflege und Wartung

Line drawing of a circular robotic device with internal components and no visible text or symbols

Illustration of a hand using a pipette to measure a device (no text or symbols visible)

Line drawing of a circular electronic device with internal components and a screwdriver inserted (no text or symbols)

Technical line drawing of a circular mechanical component with internal blades and a green arrow indicating direction (no text or symbols)

Diagram of a circular device with internal components and a green arrow indicating rotation (no text or symbols)

Diagram showing green arrows pointing to cylindrical objects on a surface, with no visible text or symbols

Illustration of a hand using a tool to lift a textured surface (no text or symbols)

MASCHINENWÄSCHE

Hand holding a device with green arrows indicating upward movement (no text or symbols)

www.irobot.com/compliance.

iRobot Corporation, 8 Crosby Drive, Bedford MA 01730, USA

iRobot® Kundendienst

USA und Kanada

Diagram of a robotic vacuum cleaner with a green sensor on the cover (no text or symbols)

Diagram showing a battery with two labeled components and dashed circular indicators indicating internal structure.

Illustration of two hands using a power iron to press down a component, showing green motion arrows (no text or symbols)

2

NAPEŁNIJ POJEMNIK

Illustration of a hand using a sewing machine to lift a shoe (no text or symbols)

Illustration of two hands holding circular objects, one with a green handle and the other with a green handle (no text or symbols)

Illustration of a hand using a pipette to measure a device with a screen (no text or symbols visible)

Illustration of a circular mechanical device with internal components and a handle, no text or symbols present

Technical line drawing of a circular mechanical component with internal blades and a handle (no text or symbols)

Diagram of a circular device with internal components and a green arrow indicating rotation or movement (no text or symbols)

Diagram showing two cylindrical objects with green directional arrows pointing to each other, no text or symbols present.

Three technical line drawings of circular devices and a device, showing front, top, and side views (no text or symbols)

Illustration of a medical procedure with a needle inserted into a shaded area (no text or symbols)

PRANIE W PRALCE

Illustration of two hands holding a small object, showing a change in the interior (no text or symbols present)

Hand holding a device with green arrows pointing upward (no text or symbols)

iRobot Corporation, 8 Crosby Drive, Bedford MA 01730, USA
