USER MANUAL 307201 Arendo

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Warning symbol with exclamation mark inside triangle

Warning sign depicting a lightning bolt symbol in a triangular hazard triangle

Diagram of a blender with numbered parts for identification

IMPORTANT SAFETY INSTRUCTIONS FOR THIS DEVICE!

• Never immerse the motor unit in water.
• Do not use the container to store carbonated contents. This can cause the lid to pop open and the contents to leak out.

- Only carry or transport the product in an upright position.

- Do not leave the contents in the container for longer than 24 hours.

- This product is not suitable for microwave ovens or similar.

- Never put your fingers or other objects (hair, clothing, cooking utensils, knives, screwdrivers, etc.) near the axis when the appliance is in use.

- Do not use this appliance with wet hands.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance is not intended for use, cleaning or maintenance by persons (including children up to the age of 8) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge. Unless they are supervised by a person responsible for their safety or have received instructions from this person on how to use the appliance and have understood the resulting dangers.

• For safety reasons, please do not leave any packaging parts (plastic bags, cardboard, polystyrene, etc.) within reach of children.
• Children may only use or clean the appliance under supervision or instruction.
• Cleaning and maintenance by the user must not be carried out by children unless they are 8 years or older and are supervised. The appliance and its connecting cable must be kept away from children under the age of 8.
• Never stop the blender by hand.

Thank you for purchasing a product from Arendo. Please read the following quick guide carefully so that you can enjoy your purchased appliance for a long time.

1. Scope of delivery

• Mixing container
• Quick guide

2. Technical data

Input 5V - 1A - 5W via Type-C
Nominal output 7,4W
Filling quantity 700ml jar (600ml scale)
Battery 3.7V, 750mAh; Lithium Ion

3. Produkt-Details

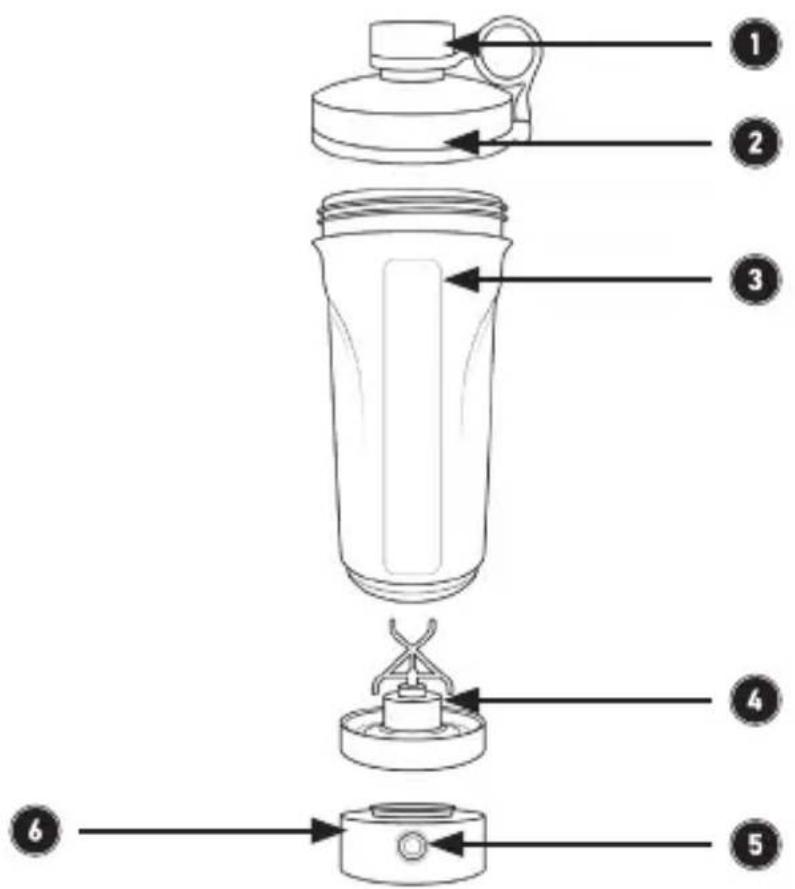

Labeled diagram of a blender with six numbered parts showing internal structure and component layout.

12 English

1 Lid opening
2 Lid opening
3 Container
4 Mixing unit
5 Mixing button +	status LED
6 Battery + motor	unit (base)

4. Important safety regulations for rechargeable batteries

• Before using the rechargeable battery, observe all safety instructions and warnings in this manual as well as the warnings regarding rechargeable batteries.
• Do not disassemble the battery!
• If the operating time of the rechargeable battery has become significantly shorter than usual, stop using the appliance immediately. There is a risk of overheating or explosion.
• If battery fluid gets into the eyes, it must be washed out immediately! Seek medical treatment immediately! There is a risk of losing your eyesight.
• Do not short-circuit the battery. Contacts must not be touched with conductive materials. Do not store the device with conductive materials.
• Do not allow any liquid to come into contact with the battery. A short circuit causes a very strong current flow and can lead to overheating or burns.
• Do not store the power tool or the battery in places where the temperature exceeds 50°C!
• Never attempt to burn the battery, even if it is damaged. The battery may explode in a fire!
• Ensure that the battery is never dropped or subjected to any kind of impact. Do not use a battery that has been dropped or shaken.

5. Start-up

Remove the device from the packaging and remove all packaging material. Fully charge the device before using it for the first time. To do this, connect a USB Type-C cable to the battery unit (base) and to a corresponding 5V / 1A power supply. The status LED on the mixing button flashes during the charging process. As soon as the device is fully charged, it lights up permanently.

5.1 Utilisation

Pour the desired ingredients into the cup. Press the mix button to mix the contents. The appliance stops automatically after one minute.

6. Cleaning and care

To make cleaning easier, disassemble the components (2 + 3 + 4) and remove the battery unit (base)

Caution! Do not immerse the battery unit in water!

• Wash all parts with warm soapy water before first use and as soon as possible after each use. Rinse all parts thoroughly and allow them to dry. The contents should not remain in the container for more than 24 hours. Wash the cup as soon as possible after each use.
• Do not use abrasive cleaners or scrubbing brushes as these can damage the paintwork.
• Do not use bleach or cleaners containing chlorine.
• Liquid residues, food or other contents can collect between the product components, e.g. the lid parts, container parts and seals.

7. Safety instructions and disclaimer

Never attempt to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use; only use it in dry conditions. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden temperature changes or strong vibrations, as this could damage the electronic components.

Check the device for damage before use. The appliance should not be used if it has been knocked or damaged in any other way. Please observe the national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or modification to the appliance that is not carried out by the original supplier will invalidate the warranty or guarantee. The appliance may only be used by persons who have read and understood these instructions. The device specifications may change without prior notice.

8. Disposal instructions

According to the European WEEE Directive, electrical and electronic devices may not be disposed of with household waste. Their components must be recycled or disposed of separately, as toxic and hazardous components can cause lasting damage to the environment if disposed of incorrectly.

As a consumer, you are obliged under the Electrical and Electronic Equipment Act (ElektroG) to return electrical and electronic equipment free of charge at the end of its life to the manufacturer, the point of sale or to public collection centres set up for this purpose. Details are regulated by the respective state law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating, recycling and disposing of old appliances in this way, you are making an important contribution to protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

9. Notes on battery disposal

In connection with the sale of batteries or the delivery of devices containing batteries, the supplier is obliged to inform the customer of the following: The customer is legally obliged to return used batteries as the end user. The customer can return used batteries that the supplier carries or has carried as new batteries free of charge to the supplier's dispatch warehouse (dispatch address). The symbols shown on the batteries have the following meaning: Pb = battery contains more than 0.004 per cent lead by mass, Cd = battery contains more than 0.002 per cent cadmium by mass, Hg = battery contains more than 0.0005 per cent mercury by mass.

The crossed-out dustbin symbol means that the battery must not be disposed of with household waste.

WEEE Directive 2012/19/EU

WEEE Register No.: DE 67896761

Hereby, the company WD Plus GmbH declares that the device 307201 is in compliance with the essential requirements and other relevant provisions. You can obtain a complete declaration of conformity from WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany
