TTFGR20RD - Grill plate Taco Tuesday - Free user manual and instructions

Product type	Electric griddle with warming drawer
Brand	Taco Tuesday
Model	TTFGR20RD
Power supply	120 V, 60 Hz, 1400 W
Dimensions (approx.)	50 x 30 x 15 cm
Weight (approx.)	4.5 kg
Cooking surface coating	Copper non-stick, cast aluminum
Temperature range	200 °F to 425 °F (93 °C to 218 °C) via adjustable thermostat
Warming drawer	Yes, to keep food warm
Drip tray	Removable, to collect grease
Power cord	Detachable, with integrated thermostat, polarized plug
Indicator light	Red "On" light
Base material	Heat-resistant plastic
Use	Household use only, indoors
Care and cleaning	Hand wash with a damp cloth and mild soap; do not immerse in water or put in dishwasher
Safety	Hot surfaces, do not touch; use oven mitts; unplug after use; do not leave unattended
Spare parts and repairability	The detachable power cord can be replaced; other parts are not designed to be user-repaired
General information	One-year limited warranty; customer service at [phone] or www.nostalgiaproducts.com

Frequently Asked Questions - TTFGR20RD Taco Tuesday

What is the voltage and power of the Taco Tuesday TTFGR20RD griddle?

The appliance operates on 120 V AC, 60 Hz, and consumes 1400 W. It is designed for household use only.

How to clean the non-stick surface without damaging it?

Use a damp, non-abrasive cloth with a little mild soap. Never use metal utensils or harsh cleaners. Do not put the griddle in the dishwasher.

Can I use metal utensils on the non-stick surface?

No, it is strongly discouraged to use metal utensils as they scratch and damage the non-stick coating. Prefer plastic or wood.

How to adjust the temperature of the griddle?

The thermostat integrated into the detachable cord allows temperature adjustment from 200 °F (93 °C) to 425 °F (218 °C). Turn the dial to the desired setting.

What is the warming drawer for?

The drawer under the griddle allows you to keep food warm (e.g., pancakes, tortillas, bacon) while you cook the rest of the meal.

Should I oil the surface before first use?

Yes, it is recommended to lightly coat the cooking surface with vegetable oil using a paper towel before first use and periodically to preserve the non-stick coating.

Why is there smoke during first use?

A slight smoke or odor is normal during the first heating, due to manufacturing residues burning off. Let it preheat for 3 to 7 minutes until it disappears.

Can I leave the griddle unattended?

No, never leave the appliance unattended while plugged in or in use. The surface becomes very hot and poses a fire risk.

How to clean the drip tray?

Let the appliance cool down, remove the drip tray, and wash it with warm soapy water. Rinse and dry before putting it back.

What types of food can I cook on the griddle?

The griddle is suitable for pancakes, eggs, bacon, steaks, vegetables, fajitas, French toast, etc.. Refer to the cooking time chart in the manual.

USER MANUAL TTFGR20RD Taco Tuesday

All products are trademarks of Nostalgia Products LLC.

Worldwide design & utility patented or patents pending.

© 2020 Nostalgia Products LLC.

www.nostalgiaproducts.com

(rev. 01/22/20 AG)

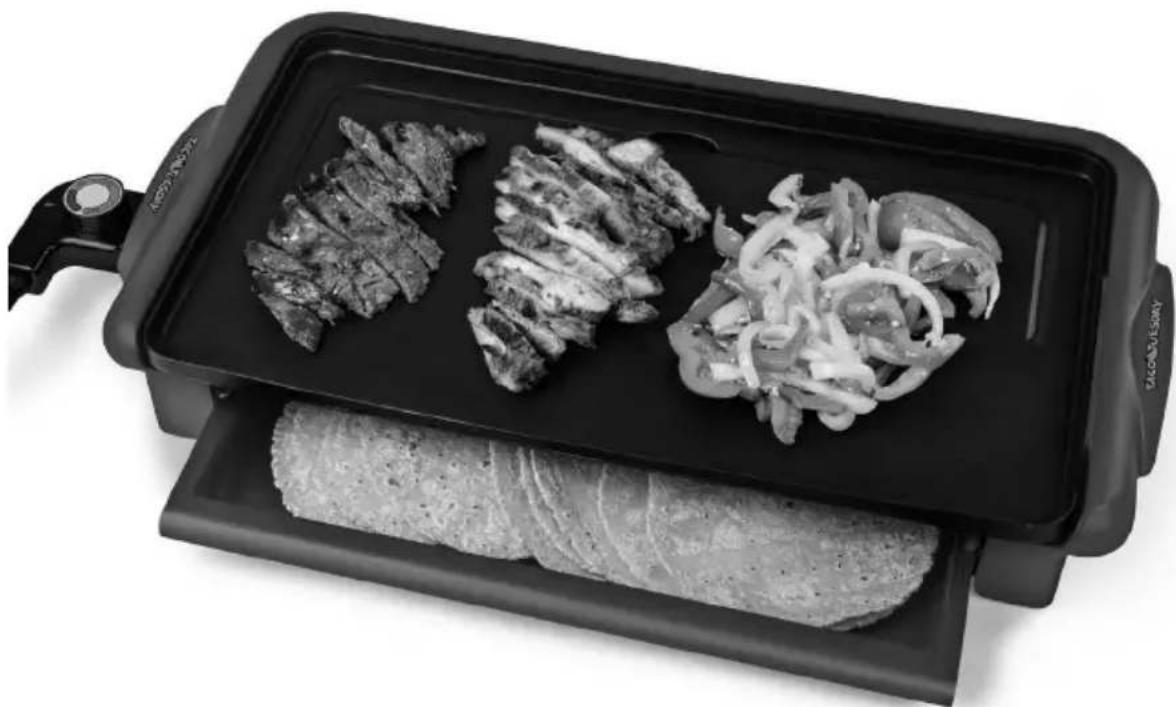

Black grating tray with cut meats and bread, no visible text or symbols

Instructions and Recipes

Make every day a party!

Visit www.nostalgiaproducts.com for more fun products.

CONTENTS

SAFETY 2

IMPORTANT SAFEGUARDS 3

ADDITIONAL IMPORTANT SAFEGUARDS 3

INTRODUCTION 4

PARTS & ASSEMBLY 5

HOW TO OPERATE 6

HELPFUL TIPS 7

CLEANING & MAINTENANCE 7

RECIPES 8

RETURNS & WARRANTY 10

SAFETY

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can cause serious injury to you and others.

All safety messages will follow the safety alert symbol.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Appliance Specifications:

120 Volts, 60 Hertz, 1400 Watts

THIS PRODUCT IS FOR USE IN 120V AC OUTLET ONLY.

Refer to www.nostalgiaproducts.com/user-manuals/ for the most updated manual.

IMPORTANT SAFEGUARDS

A person who has not read and understood all operating and safety instructions is not qualified to operate this appliance. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance.

When using electrical appliances, basic safety precautions should always be followed, including:

1. Read all instructions before operating this appliance.
2. DO NOT TOUCH the hot surfaces. Use handles or knobs.
3. This appliance is NOT A TOY.
4. Unsupervised young children and cognitively challenged individuals should never operate this appliance.
5. Close supervision is necessary when any appliance is used by or near children.
6. To protect against electrical shock do not immerse cord, plug or any part of this unit in water or other liquids.
7. Unplug from outlet when not in use, before removing parts and before cleaning. Allow to cool before putting on or taking off any parts, and before cleaning.
8. DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination, repair or adjustment.
9. The manufacturer does not recommend the use of accessory attachments other than what is provided by the manufacturer. Use of attachments may cause injuries.
10. DO NOT use the appliance for other than its intended use.
11. DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.
12. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
13. DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
14. NEVER leave unit unattended while in use or when plugged into an outlet.
15. Extreme caution must be used when moving an appliance containing hot food.

ADDITIONAL IMPORTANT SAFEGUARDS

Operating Safety Precautions

1. Always use unit with Drip Tray in place.
2. Check the Drip Tray frequently during cooking sessions to prevent overflow.
3. Cooking Surface will be HOT. Wear oven mitts while using to prevent burns.

Instructions for the Electrical Cord and Plug

1. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electrical shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
2. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.

3. If a long detachable power-supply cord or extension cord is used:

4. Extension cords can be used if care is exercised in their use.

5. The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance.

6. When using a longer cord or extension cord, make sure that the cord does not drape over a countertop or tabletop where it can be pulled on or tripped over unintentionally.

7. The manufacturer does not recommend using this machine in countries that do not support 120V AC even if a voltage adapter, transformer, or converter is in use.

SAVE THESE INSTRUCTIONS!

INTRODUCTION

Thank you for purchasing the TACO TUESDAY NON-STICK GRIDDLE WITH WARMING DRAWER! This unit is Perfect For Making Fajitas, Street Tacos, Quesadillas, & Breakfast Burritos! With a die-cast aluminum cooking surface, foods cook evenly and won't stick to the surface, making cleanup simple. It includes a small drip tray to catch fat and grease, and a larger drawer to keep foods warm. The detachable plug has a thermostat affixed that allow you to cook between 200°F to 425°F.

Features include:

• Helps create quick, easy-to-cook meals
• Warming drawer keeps foods warm until ready to serve
  • Die-cast aluminum cooking surface
• Removable drip tray traps food drippings
• Detachable plug with adjustable thermostat (200°F to 425°F)
• Red power indicator light
  • List of Estimated Cook Times included

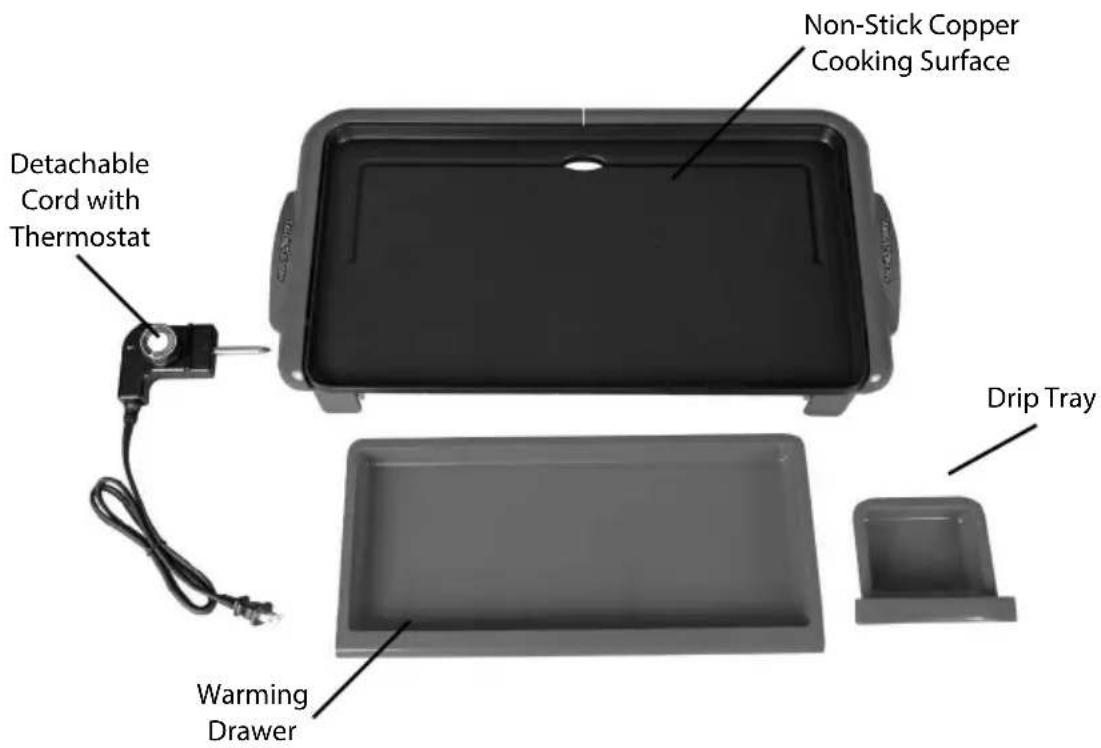

PARTS & ASSEMBLY

Non-Stick Copper Cooking Surface Detachable Cord with Thermostat Drip Tray Warming Drawer

HOW TO OPERATE

Before first use, wipe down all surfaces with a non-abrasive, damp cloth and dry.

1. Place the unit on a clean, dry and level surface near an electrical outlet. Allow about eight inches of clear space all around the exterior of the unit.
2. Slide the Drip Tray and Warming Drawer into base of the Griddle.
3. To help protect the surface of the griddle, use a paper towel to coat the Cooking Surface with a small amount of vegetable oil. This should be done periodically to maintain the non-stick quality.
4. Plug the Detachable Power Cord with Thermostat into the Griddle first with controls facing up, making sure the Thermostat is turned to OFF.
5. Plug the Detachable Power Cord with Thermostat into the nearby electrical outlet and turn ON.
6. Preheat the appliance for a minimum of 3-7 minutes. NOTE: During this time, you may notice a slight odor or smoking. This is normal with most new electrical appliances. Allow the appliance to preheat until smoke and odor no longer exist.
7. While the appliance is preheating, prepare the food and ingredients to be cooked.
8. When appliance has preheated, you may begin cooking your foods. Cooking time will vary depending on the food being made. CAUTION: Cooking Surface will be HOT. Wear oven mitts while using to prevent burns.
9. When done using, make sure the Thermostat is turned OFF to prevent any sparking from the outlet, then unplug the unit from the electrical outlet.
10. Once the appliance has cooled, remove the Drip Tray and Warming Drawer to empty and clean.

HELPFUL TIPS

⚠️ NEVER leave the appliance unattended while operating.

Cooking Tips

There may be some smoking during first use. This is normal.

Remove foods from the Griddle using a flat plastic or wooden utensil. DO NOT use metal utensils as they may scratch and damage the non-stick cooking surface.

Put foods that you want to keep warm (i.e. toast, cooked pancakes) in the Warming Drawer and slide under the Griddle until ready to serve.

Some meats create a lot of drippings. When cooking meat, be sure to periodically check the Drip Tray to prevent overflow.

CLEANING & MAINTENANCE

Please take care of your NON-STICK GRIDDLE WITH WARMING DRAWER by following these simple instructions.

1. Turn the Thermostat to the OFF position.
2. Unplug Detachable Cord with Thermostat from the wall outlet.
3. Disconnect Detachable Cord with Thermostat from the appliance.
4. Make sure the appliance is cool before removing the Drip Tray and Warming Drawer.
5. Empty the Drip Tray.
6. Clean Drip Tray and Warming Drawer in warm, soapy water. Rinse and dry.
7. Wipe the Non-stick Cooking Surface and base with a damp, non-abrasive cloth and dry.
8. To prolong the life of the coating on the Non-stick Cooking Surface, never stack objects other than food on the surface and never use a metal spatula or metal tongs to turn or flip foods.
9. Never put the appliance in a dishwasher.
10. It is that simple! Remember to lightly coat the Non-stick Cooking Surface with vegetable oil prior to cooking to preserve the non-stick finish.

RECIPES

Use your imagination and choose favorite ingredients to create a variety of meals using the NON-STICK GRIDDLE WITH WARMING DRAWER. It's perfect for Making Fajitas, Street Tacos, Quesadillas, & Breakfast Burritos.

The variety of meals and foods that can be cooked on the NON-STICK GRIDDLE WITH WARMING DRAWER is virtually endless. Also can be used to make grilled cheese, eggs, hash browns, pork chops, chicken, steak, fry bacon and more!

Be creative and ENJOY your NON-STICK GRIDDLE WITH WARMING DRAWER!

Below, see estimated cook times for some dishes:

FOOD	TIME	TEMPERATURE	INSTRUCTIONS
Chicken	25 min	350°F	Flip food as needed
Steak	10 min	350°F	Flip food as needed
Fajitas (Veggies)	10 min	350°F	Flip food as needed
Tortilla Shells	Place in warming drawer
BACON	8-14 min	325-350°F	Turn food as needed
SAUSAGES	10-12 min	325-350°F	Turn food as needed
FRENCH TOAST	6-10 min	350°F	Flip food as needed
EGGS	1-3 min	325°F	Flip periodically until done to taste
HASH BROWNS	8-10 min	350°F	Flip as needed until golden brown
PANCAKES	2-6 min	350°F	Pour batter; flip when bubbles appear

RETURNS & WARRANTY

SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.

NON-STICK GRIDDLE WITH WARMING DRAWER / TTFGR20RD

Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 8:00 AM and 5:00 PM, Monday through Friday, Central Standard Time.

Distributed by:

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Customer Service

Phone: [phone]

Web: www.nostalgiaproducts.com

Customer Service Inquiry

To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and fill out the Customer Service Inquiry form and click the Submit button.

A representative will contact you as soon as possible.

Product Warranty Terms

Nostalgia Products LLC (the "Company") hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benefits. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you) for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specifically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by filling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada.

This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you.

This warranty does not apply to re-manufactured merchandise.

Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty.

For more information, visit us online at www.nostalgiaproducts.com.

Like us on Facebook at www.facebook.com/NostalgiaElectrics.

Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx.

Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.
