Wood Style 306922 - Kettle Arendo - Free user manual and instructions

Brand	Arendo
Model	Wood Style 306922
Product type	Electric kettle
Power supply	220-240 V AC, 50/60 Hz
Power consumption	2200 W
Capacity	0.5 L (min) – 1.5 L (max)
Temperature levels	45, 60, 70, 85, 90, 95, 100 °C
Keep warm function	Yes, up to 1 hour
Auto shut-off	Yes
Acoustic signal	Yes (end of heating)
Display	LED screen with actual and set temperature
Light indicator	LED in glass body for selected temperature
Body material	Glass
Base	With connection cable, rotates 360°
Lid opening	Push button (flip lid)
Inner graduated scale	Yes
Cleaning	Damp cloth; descaling with citric acid-based agent
Safety	Auto shut-off, burn protection (do not touch hot interior)
Package contents	Kettle, base, user manual
Usage	Household and similar (offices, canteens, hotels, farms)

Frequently Asked Questions - Wood Style 306922 Arendo

What is the maximum capacity of the Wood Style 306922 kettle?

The maximum capacity is 1.5 liters and the minimum capacity is 0.5 liters. Do not exceed the maximum mark to avoid splashing boiling water.

How to set the water temperature?

Press the Temperature button on the handle several times to select from the levels: 45, 60, 70, 85, 90, 95 or 100 °C. Then press ON/OFF briefly to start heating.

How to use the keep warm function?

Press and hold the Temperature button for about 2 seconds. The keep warm LED lights up and the appliance maintains the selected temperature for 1 hour. To deactivate, lift the kettle or press and hold the button again.

Can I heat other liquids besides water?

No, the kettle is designed only for heating water. Do not heat milk, soup, or other liquids.

How to descale the kettle?

Use a common citric acid-based descaler following the dosage on the package. Fill the kettle, boil, then rinse thoroughly. Perform this operation regularly depending on usage.

What if the LED indicator does not light up?

Make sure the kettle is properly placed on the base and the base is plugged in. If the screen remains off after 5 minutes of inactivity, it turns off automatically. Press a button to reactivate it.

Can I clean the kettle in the dishwasher?

No, never immerse the kettle or base in water. Clean the exterior with a damp cloth and avoid abrasive objects.

What are the recommended temperatures for different teas?

White teas: 70 °C, green teas: 80 °C, black teas and coffee: 90 °C, boiling water: 100 °C.

Does the kettle shut off automatically?

Yes, once the target temperature is reached, a beep sounds 3 times and the heating element shuts off automatically. You can also stop heating at any time by pressing ON/OFF.

What to do if the water does not heat up?

Make sure the kettle is properly placed on the base, the plug is connected, and the water level is between min and max. If the problem persists, contact customer service.

USER MANUAL Wood Style 306922 Arendo

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Important safety guidelines for this appliance

- This appliance is meant exclusively for personal use and for the intended purpose. This appliance is not intended for commercial use.

- Please do not immerse it in water.

- Do not use the appliance outdoors and keep it away from sources of heat (e.g., electric stove) and direct sunlight. Please do not keep the appliance in immediate proximity to water sources (e.g., washbasin).

- Do not use this appliance with wet hands.

- Keep it on an suitable surface so that it does not tip over.

- Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.

- Operate the product only with the voltage indicated on the appliance label.

- This appliance is not intended to be used, cleaned or maintained by people (including children) with reduced physical, sensory or mental abilities or lack of experience and/or knowledge. Unless they are supervised by a person who is responsible for their safety or have received instructions from this person about how the appliance is to be used.

• Children should be supervised to ensure that they do not play with the appliance.

- In the interest of child safety, do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around.

- Fill the water tank only with cold water and do not boil the remaining water a second time.

- Do not move the appliance when it is being operated.

- Do not open the lid during operation, it could cause burns!

- Steam escapes from the top of the appliance during operation, maintain distance from the escaping steam.

- The heating element remains hot for some time even after the

appliance is switched off. Ensure that nobody touches the inside of the container. There is a risk of burns!

- Use the appliance only with the supplied shut-off device.

- Provide clearance to other objects and walls so that the air can circulate freely. Do not cover the appliance.

- Do not boil any liquids other than water.

- The housing of the kettle becomes hot during operation. Hold the kettle only using the handle provided for this purpose.

- If the power cable is damaged, then it should be replaced by the manufacturer, his specialist dealer or an equally qualified person,

so as to prevent any risk.

• Children should use or clean the appliance only under supervision or guidance.
• Do not overfill the kettle, as water may spurt out.
• This appliance is intended for use at home and similar places. For applications as in
• staff kitchen areas in shops, offices and other workplaces;
• farmhouses;
• hotels, motels and other types of residential surroundings by customers

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Kettle
• Baseplate with connection cable

• User manual

• Technical data

Power supply 220-240 V AC,	50/60 Hz
Power consumption 2200 W
Water filling capacity	• min 0.5 l• max. 1.5 l
Temperature settings 45 / 60	/ 70 / 85 / 90 / 95 / 100°C can be selected
Ambient temperature	+ 0-3°C until 35-40°C
Features • Automatic shutdown	• audible beep• LEDs in the glass body for displaying the select-ed temperature• The set and current temperatures can be alter-nately seen on the display• Keep warm function for one hour

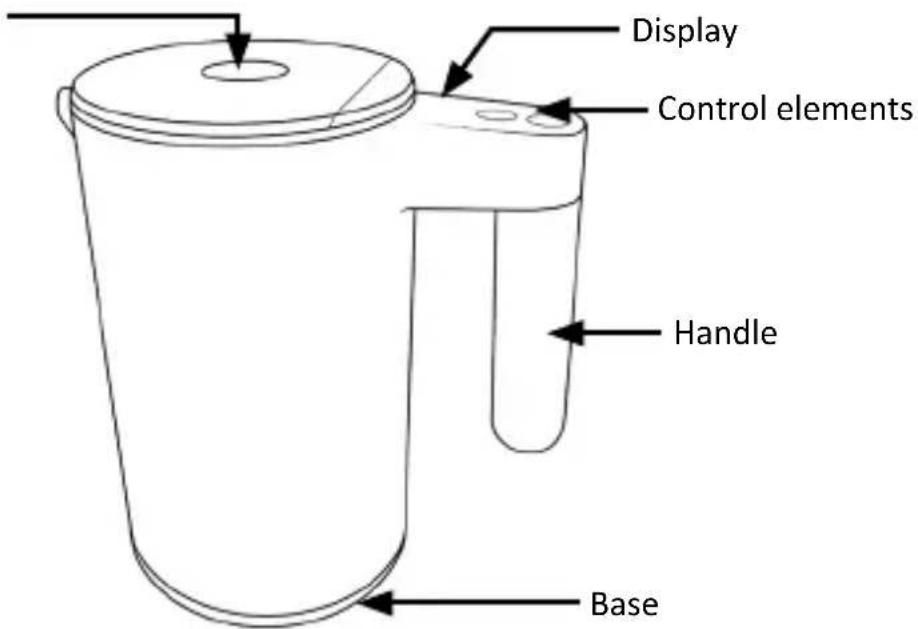

3. Product details

Lid opener

Display Control elements Handle Base

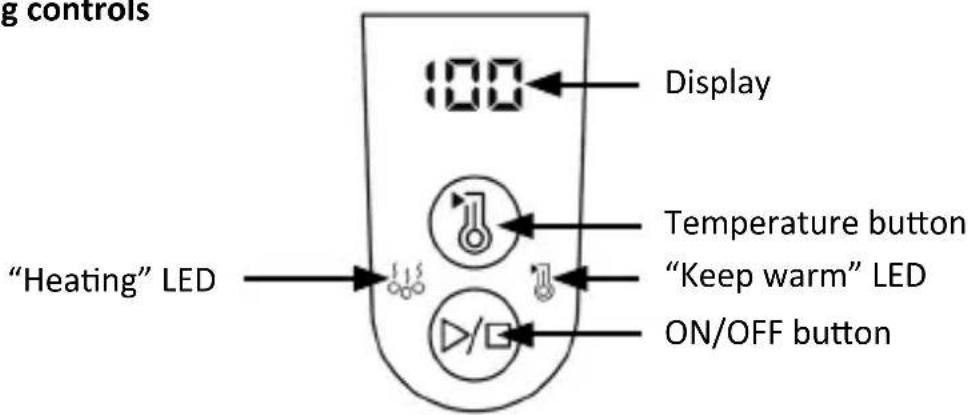

Operating controls

g controls Display "Heating" LED Temperature button "Keep warm" LED ON/OFF button

4. Initial use

Remove the kettle and the base plate out of the packaging and connect the base plate to a properly installed earthed socket. Wipe the surface of the kettle using a slightly dampened cloth. To remove any manufacturing residues, fill the water container once with cold water up to the maximum mark before using it for the first time.

Boil the water by pressing the "ON/OFF" button. You will hear a beep and the kettle starts boiling the water. Then discard the water. Repeat this process twice.

5. Usage

Press on the lid opener to open the tiltable lid. Fill the kettle with cold water and press the lid down until it locks into place.

Note: A scale is provided on the inside. Do not fill the container above the maximum mark. The boiling water may spurt out if the kettle is overfilled.

Place the kettle on the base plate. The ACTUAL temperature of the water in the kettle is shown on the LED display. The display switches off automatically after 5 minutes of inactivity.

5.1 Heating the warm

There is an operating panel at the top of the handle. Press the "Temperature" button and select your desired temperature (45 / 60 / 70 / 85 / 90 / 95 / 100°C) by pressing repeatedly. The boiling process is started by briefly pressing the "ON/OFF" button, you hear a beep and the kettle heats to the selected temperature.

Alternatively, you can start the appliance by briefly pressing the "ON/OFF" button and heat it to 100°C. Once the water reaches the target temperature, you hear the beep 3 times. The heating element switches off automatically and the boiling process is stopped. The appliance can now be lifted and the water can be used. If you want to stop the boiling process early on, you can press the "ON/OFF" button at any time.

Please wait until the boiling process is completed. You will hear a beep at the end.

Temperature Usage	example
70°C Ideal for white teas
80°C Ideal for green teas
90°C Ideal for black teas and coffee
100°C Boiling water

5.2. Temperatures

5.3. Keep-warm function

Then, press and hold the "Temperature 🔊" on the appliance panel for about 2 seconds. An acoustic signal and a brief illumination of the "Keep warm" LED confirm that the keep warm function has been activated. If a target temperature is now selected using the "Temperature button", this temperature will be maintained for 1 hour once it has been reached.

The keep warm function is deactivated by lifting the kettle from the base or pressing and holding the temperature button for 2 seconds.

Caution! When the kettle measures a temperature drop of about 10^ C, it switches on again and heats up to the set target temperature.

6. Descaling and cleaning

• We recommend to descale the kettle at regular intervals depending upon the intensity of use.
• Before cleaning, pull out the power plug and wait until the appliance cools down completely.
• Please use only commercially available descaling agents based on citric acid to descale the water container.
• For the appropriate dosage, please refer to the specifications on the package or insert of the descaling agent.
• The heating plate should not be specifically cleaned. Do not use any hard objects on the heating plate.
• Use only a damp cloth for cleaning the kettle externally.
• Do not use any abrasive items like wire brush or steel sponge.
• Never use any cleaning agents which may corrode the surface or present a health risk if consumed!
• Never immerse the appliance, the power cable or the plug in water or in any other liquid to prevent risk of electric shock.

PLEASE NOTE!

7. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms. The appliance is not approved for outdoor use. Please use it only in dry surroundings. Protect it from high humidity, water and snow.

Never expose the appliance to high outdoor temperatures. Do not expose the appliance to sudden changes in temperature or heavy vibrations, as this could damage the electronic components. Check the appliance for any damages before using it. The appliance should not be used if it has been subject to impact or has been damaged in some other way. Please follow the national regulations and restrictions. Do not use the appliance for purposes other than those described in this manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Use the appliance only with the supplied base plate. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims.

The appliance should be used only by persons who have read and understood this user manual. The specifications of the appliance may be changed without prior intimation. The appliance should be used only by persons who have read and understood this user manual.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 306922; 306923; 306924; 306925; 306929; 306930 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

DANGER ! PRUDENCE !

"FR031263". For information on authorised collection points in your area, please contact your local city or municipal administration.

MO-FR 9:30am - 18pm CET

QR code image containing encoded data, no visible human-readable text

www.arendo.de
