USER MANUAL HT6360IN/1 HOOVER

Technical line drawing of a rectangular enclosure with a circular top and base plate (no text or symbols)

Content

1. Safety instructions
   2....Installation
   3....Start using your cooker hood
   4....Troubleshooting
   5....Maintenance and cleaning
   6 Environment protection

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
  ● Never leave naked flames under the cooker hood.

• If the cooker hood is damaged, do not attempt to use.
  ● Do not flambé under the cooker hood.
  ● CAUTION: Accessible parts may become hot when used with cooking appliances.
  ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
  ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Always to do:

• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
  ● The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
  ● All installation work must be carried out by a competent person or qualified electrician.
• Please dispose of the packing material carefully. Children are vulnerable to it.
  ● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
  ● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
  ● Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards
  ● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
● Cooker hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Black and white pictogram showing two people crossed out of a diagonal line, no text or symbols present

● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

• Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
  ● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
  ● There is a fire risk if cleaning is not carried out in accordance with the instructions
  ● Regulations concerning the discharge of air have to be fulfilled.
  ● Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
  ● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
  ● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
  ● Cleaning and user maintenance shall not be made by children without supervision.
• When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
  ● WARNING: Danger of fire: do not store items on the cooking surfaces.
  ●A steam cleaner is not to be used.
  ● NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION (VENT OUTSIDE)

There are two ways of installation of cooker hood: on the wall and under a wall unit.

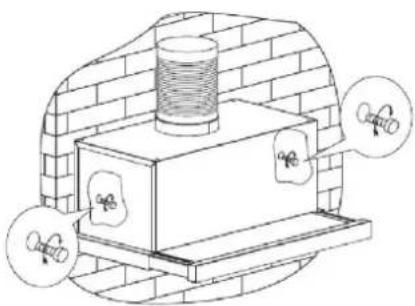

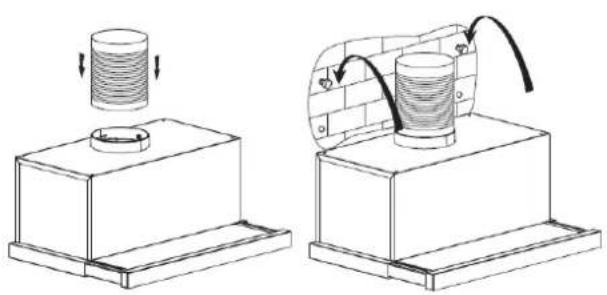

Way one: Mounting on the wall:

1. The cooker hoods should be placed at a distance of 65-75cm from the cooking surface for best effect.

65cm 75cm

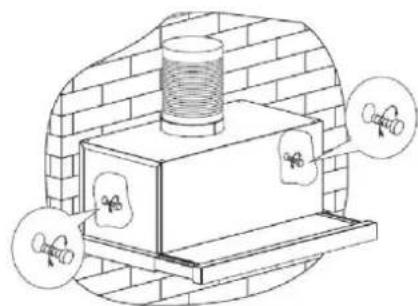

1. To install onto the wall drill 4 holes of ∅8mm on a suitable place according with the centre distance of hole in the back of the cooker hood.

495 100 60 cm

1. Insert the nut into the holes.
2. Insert the screws into the nuts and tight.
3. Put up the cooker hood onto the fixed screws.

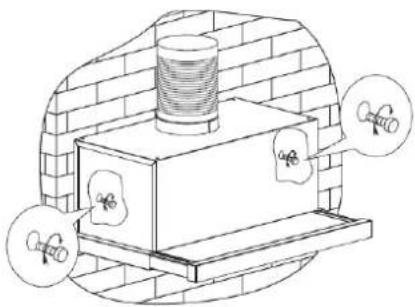

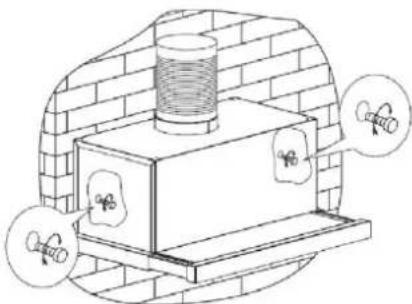

Diagram showing two mechanical setups: one with a cylindrical component being lifted, the other with a cylindrical container being compressed (no text or symbols present)

Diagram of a box mounted on a wall with two hanging objects and a coiled tube inside (no text or symbols)

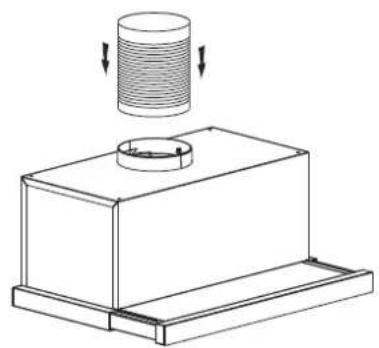

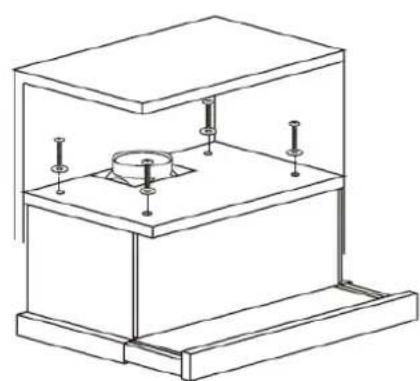

Way two:Mounting under a wall unit

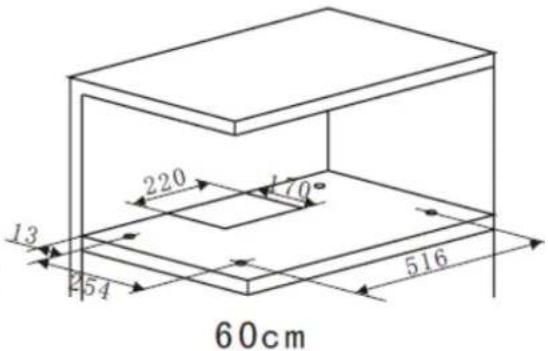

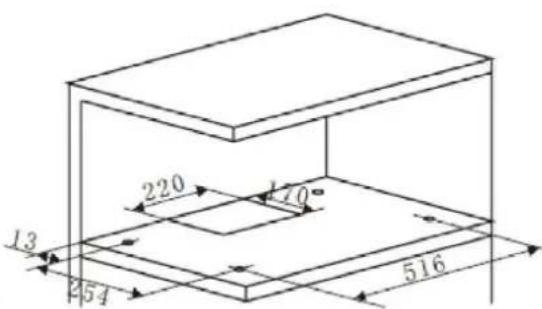

1. Drill 4 holes of 4 ~mm diameter at the bottom of the hanging cupboard.

254 516 60cm

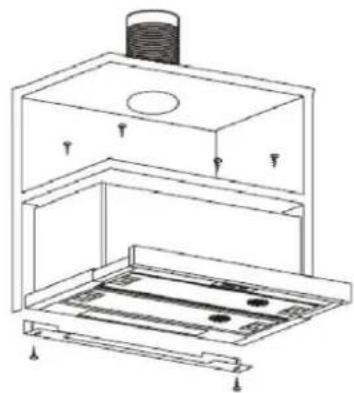

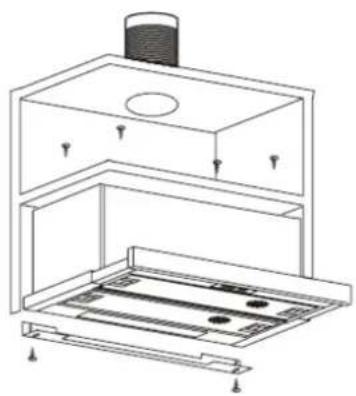

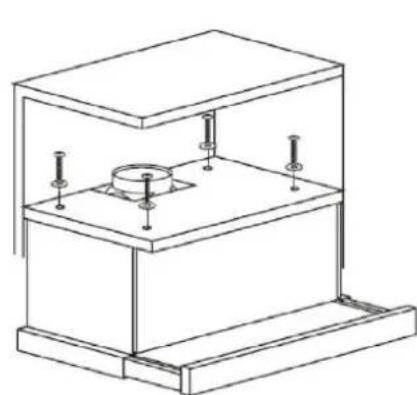

1. Install the cooker hood on the bottom of the cupboard, tighten the hood with the M4 screws.
2. Use two 3*12 screws to fix the adjusted board on the bottom of the hood in order to keep out the gap between hood back and cupboard.

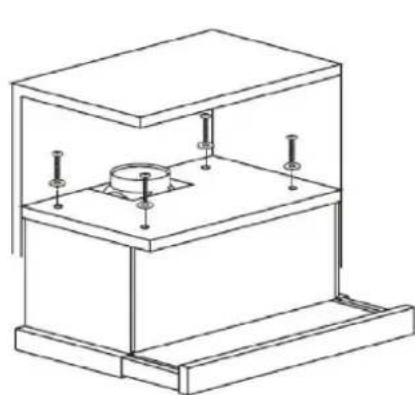

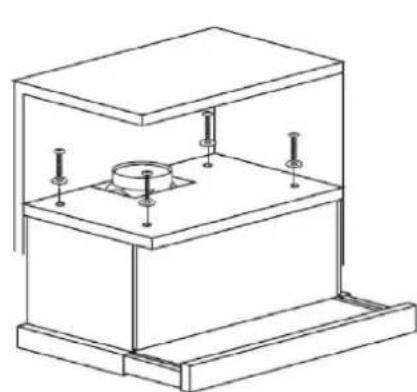

Technical line drawing of a mechanical assembly with a cylindrical component and base plate (no text or symbols)

220 13 454 70° 516 60cm

Technical line drawing of a mechanical assembly with mounting base and central component (no text or symbols)

Technical line drawing of a mechanical or electrical assembly with no visible text, numbers, or symbols.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a

minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is

damaged, it must be replaced by a special cord or assembly available

from the manufacturer or its service agent.

L N L N

WARNING: This is a Class I appliance and MUST be earthed

This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

WARNING:

For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

Five-key electronic button

Five circular icons with weather and energy symbols: sun, wind, solar, power, and a leaf (no text or labels)

There are five touch buttons: (Low), (Mid), (High), (Light), (Power). See Pic above.

1. After connecting to power, indicator light will lit on, all the output close and the hood will enter standby mode. The indicator light will be off automatically after reminding if no operation.

2. Power on: Press power button ⏻ one time, its indicator light will lit on, the hood works at low speed. Indicator light of low speed ⚡ will be bright. Press power button again to close it, and its indicator light will be off. All the function operation of

the hood will be closed, the hood enters into standby mode, and recycle by circle. The speed buttons and lamp button can work separately and not controlled by the power button. Press one function button, the hood will work at that function status. Press power button at any status will close all function operation.

1. Press lamp button once; lights will be turn on. Indicator light of lamp button and power button will lit on. Press lamp button again to turn off the lights. Indicator light of lamp button and power button will be off. And recycle like this.
2. Press the ⚙ (High) button one time, motor runs on high speed, the indicator light of high button ⚙ and power button ⏻ will beam. Press high button ⚙ again and the motor will stop. Indicator light of high button and power button will be off, and recycle by circle.
3. Press the ⏻ (Mid) button one time, motor runs on middle speed, the indicator light of middle button ⏻ and power button ⏻ will beam. Press middle button ⏻ again and the motor will stop. Indicator light of middle button and power button will be off, and recycle by circle.
4. Press the ☑ (low) button one time, motor runs on low speed, the indicator light of low button ⏻ and power button ⏻ will beam. Press low button ⏻ again and the motor will stop. Indicator light of low button and power button will be off, and recycle by circle.

Low speed, mid speed and high speed cannot work at the same time. When hood is on high speed, press low speed, it will turn to low speed at once; when it is in low speed, press middle speed, it will turn to middle speed immediately, and so on.

TROUBLESHOOTING

Fault Possible Cause		Solution
Light on, but motor does not work	Fan switch turned off	Select a fan switch position.
	Fan switch failed	Contact service center.
	Motor failed	Contact service center.
Light does not work, motor does not work	House fuses blown	Reset/Replace fuses.
	Power cord loose or disconnected	Refit cord to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Lights not working	Broken/Faulty globes	Replace globes as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before

undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

• Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the cooker hood is switched off at the wall socket.
• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and

will void manufactures warrantee.

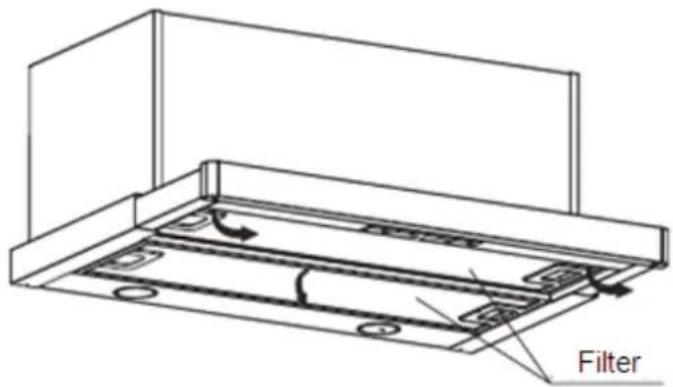

GREASE MESH FILTERS

The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it. (Leave to dry naturally out of direct sun light)

Filter

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps.
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.

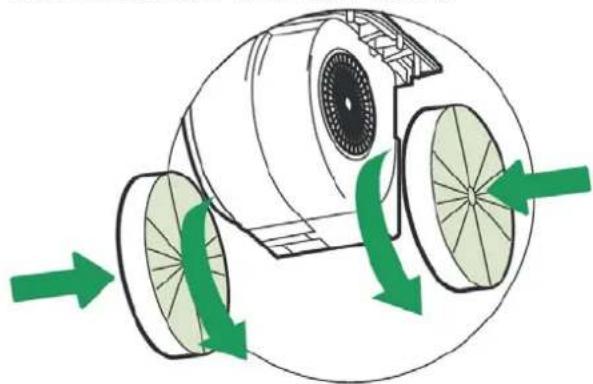

CARBON FILTER-not supplied

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

• Please pull out the hood and take off the tow filters.
  ● Fix the charcoal filter into motor side to make sure its tighten. See Pic.below.
  ● Put back the two filters into hood.

Diagram of a mechanical device with green arrows indicating rotational or fluid flow, no text or symbols present.

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
When handling globes hold with a cloth or gloves to ensure perspiration does not come in contact with the globe as this can reduce the life of the globe.

Note:

• Before Replacement light that the cooker hood can be isolated from the supply mains by means of a plug or an all-pole switch.
• Protect against danger when changing lights, such as wearing gloves.

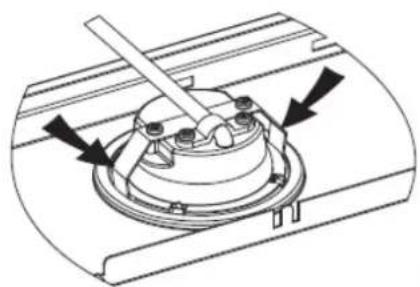

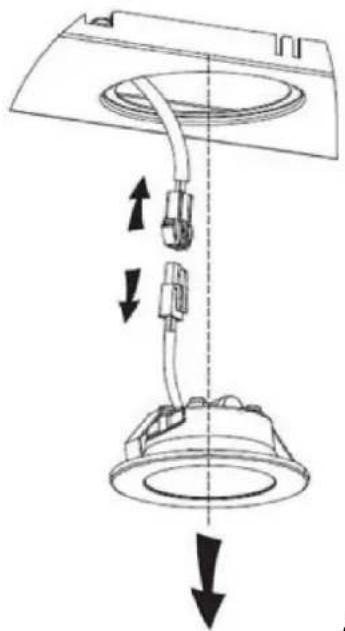

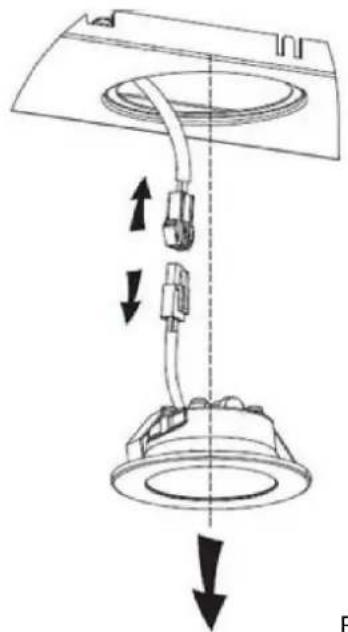

Changing the lights:

Remove the grease filter.

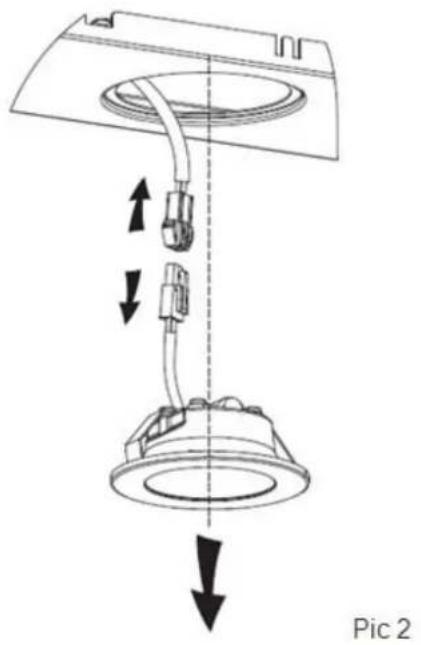

Use a tool or the hand to press the spring splinter of both sides of LED light to the inside, until the light is pressed out, see pic 1. Then slightly pull the light connecting wire out, and dismantle the terminal of the light connecting wire. . See pic 2.
Apply the reverse procedure to install the light back.
- ILCOS D code for this lamp is: DSR-1.5/65-H-64
- LED modules -round lamp
- Max wattage: 2 × 1.5 ~W
- Voltage range: DC 12V
- Dimensions:

64 20.5

Technical diagram of a mechanical component with arrows indicating assembly or force direction (no text or symbols present)

Pic 1

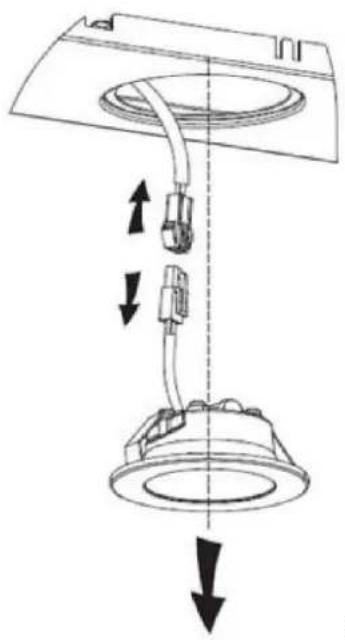

Diagram of a ceiling lamp with internal components and directional arrows indicating assembly or installation (no text or symbols)

ENVIRONMENTAL PROTECTION:

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an

important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• the WEEE should not be treated as domestic waste;
• the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.

HT6360IN/1

Line drawing of a rectangular container with a circular top and side supports (no text or symbols)

Περιεχόμενα

Illustration of a laboratory setup with a lamp, beaker, and heating element (no text or symbols)

Prohibition sign with two figures and a diagonal line, indicating no smoking or rejection

Diagram showing two mechanical setups: one with a cylindrical component being lifted, the other with a coiled cylinder mounted on a base (no text or symbols present)

Diagram of a brick enclosure with a cylindrical structure and two hanging sensors, enclosed in a circular frame (no text or symbols)

Yellow triangular warning sign with black exclamation mark, commonly used for safety alerts

Diagram of a mechanical device with rotating wheels and green directional arrows indicating motion (no text or symbols)

ΣΗΜΕΙΩΣΗ:

Technical diagram of a mechanical assembly with arrows indicating direction (no text or symbols)

Eikóva 1

Diagram of a ceiling lamp with internal components and directional arrows indicating assembly or movement (no text or symbols)

Εικόνα 2

Technical line drawing of a rectangular enclosure with a circular top and base plate (no text or symbols)

Inhalt

Prohibition sign with two pictograms showing a person walking away of another holding a diagonal line, symbolizing social or religious prohibition.

Simple line drawing of a mechanical component with a cylindrical top and base, no text or symbols present.

Simple line drawing of a mechanical setup with a cylindrical component mounted on a base, no text or symbols present.

Diagram of a brick wall-mounted device with a cylindrical component and two labeled sensors (no text or symbols present)

Technical line drawing of a mechanical component with a cylindrical component above a base, showing motion arrows (no text or symbols)

220 170 13 254 516

60 cm

Technical line drawing of a mechanical assembly with mounting base and central component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components and mounting holes (no text or symbols)

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Five circular icons with leaf, sun, and power symbols arranged horizontally (no text or labels)

Diagram of a mechanical device with green arrows indicating rotational or fluid flow around its components (no text or symbols present)

HINWEIS:

Mechanical assembly diagram showing a central component with arrows indicating direction (no text or symbols)

Abb. 1

Diagram of a ceiling lamp with internal components and directional arrows indicating assembly or movement (no text or symbols)

Abb. 2

UMWELTSCHUTZ:

Technical line drawing of a rectangular enclosure with a circular top and base plate (no text or symbols)

Inhoud

Prohibition sign with two pictograms showing a person and child crossing a diagonal line

INSTALLATIE (VENTILATIE BUITEN)

Three-step diagram showing a cylindrical object being compressed, then into a container with a coiled tube, and finally into a brick wall with a coiled tube (no text or symbols present)

Diagram of a cylindrical object being compressed onto a rectangular base, with arrows indicating compression direction (no text or symbols)

220 70 13 254 516

60 cm

Technical line drawing of a mechanical assembly with mounting base and central component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components and mounting holes (no text or symbols)

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or alert event.

Five circular icons with leaf, sun, and power symbols arranged horizontally (no text or labels)

Diagram of a mechanical device with rotating wheels and green directional arrows indicating motion (no text or symbols)

OPMERKING:

Mechanical assembly diagram showing a central component with arrows indicating direction (no text or symbols)

Afb. 1

Diagram of a ceiling lamp with internal components and directional arrows indicating assembly or movement (no text or symbols)

Afb. 2

BESCHERMING VAN HET MILIEU:

Technical line drawing of a rectangular mechanical housing with a circular top and base plate (no text or symbols)

Sommaire

Prohibition sign with two pictograms showing a person and child against a diagonal line, indicating no intervention or absence of intervention.

Simple line drawing of a mechanical setup with a cylindrical component and a base (no text or symbols)

Simple line drawing of a cylindrical container mounted on a base, with arrows indicating flow or movement (no text or symbols)

Diagram of a greenhouse structure with a container, chimney, and two hanging sensors (no text or symbols)

Diagram of a cylindrical object being compressed onto a rectangular base, with arrows indicating compression direction (no text or symbols)

220 70 13 254 516

60 cm

Technical line drawing of a mechanical assembly with mounting base and central component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components and mounting holes (no text or symbols)

Yellow triangular warning sign with black exclamation mark, commonly used to indicate a hazard or caution event.

Six circular icons with weather and energy symbols: sun, wind, moon, sun, power, and a leaf (no text or labels)

Diagram of a mechanical device with rotating wheels and green directional arrows indicating motion (no text or symbols)

REMARQUE :

Mechanical assembly diagram showing a rotating component with arrows indicating direction (no text or symbols)

Fig. 1

Diagram of a ceiling lamp with internal components and directional arrows indicating assembly or movement (no text or symbols)

Fig. 2

PROTECTION DE L'ENVIRONNEMENT :
