USER MANUAL DO99504M DOMO

Exterior view of a four-tiered stainless steel refrigerator (no visible text or symbols)

EN Instruction booklet 4-door fridge-freezer

Read all instructions carefully.

Save this instruction manual for future reference.

Labeled diagram of a refrigerator interior showing numbered compartments and doors

INSTALLATIE

E C D B A F H F L G

A 790 mm

B 630 mm

C 1800 mm

D min=50 mm

E min=50 mm

F min=50 mm

G 1580 mm

H 1410 mm

L 135°

Technical line drawings of mechanical components and assembly views (no text or symbols)

Diagram showing a refrigerator interior with a coiled tube and an open door, alongside a close-up of a hand operating a tool to cut the door.

Simple diagram of an oval shape with two arrows pointing upward and downward, labeled 'CRISPER' below (no text or symbols within the shape)

BEWAARWIJZER

Diagram showing a hand placing a component into a shelf, and a close-up of a mechanical component with two upward arrows (no text or symbols)

VERLICHTING

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Labeled diagram of a refrigerator interior showing numbered compartments and doors

H F F L G

A 790 mm

B 620 mm

C 1800 mm

D min=50 mm

E min=50 mm

F min=50 mm

G 1580 mm

H 1410 mm

L 135°

Technical line drawings of mechanical components and assembly views (no text or symbols)

Diagram showing refrigerator interior with a coiled tube and directional arrows, alongside a photo of a hand operating a tool.

FR

Simple line drawing of an oval shape with two arrows pointing upward and downward, labeled 'CRISPER' below (no other text or symbols)

GUIDE DE CONSERVATION

Line drawing of a hand holding a shelf with a ruler, no text or symbols present

Simple line drawing of a mechanical component with two upward arrows indicating direction (no text or symbols)

ÉCLAIRAGE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Labeled diagram of a refrigerator interior showing numbered compartments and doors

INSTALLATION

H F F L G

A 790 mm

B 620 mm

C 1800 mm

D min=50 mm

E min=50 mm

F min=50 mm

G 1580 mm

H 1410 mm

L 135°

Technical line drawings of mechanical components and assembly views (no text or symbols)

Diagram showing a refrigerator interior with a coiled tube and an open refrigerator, alongside a close-up of a pliers being inserted.

Simple diagram of an oval shape with two arrows pointing upward and downward, labeled 'CRISPER' at the bottom (no text or symbols within the shape)

Line drawing of a hand holding a shelf with a tray (no text or symbols)

Pure technical diagram of a mechanical component with two upward arrows indicating direction (no text or symbols)

BELEUCHTUNG

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

• Make sure that children do not touch the cord or appliance.

- Your appliance uses isobutane (R600a) as a refrigerant. Despite the fact that R600a is an environmentally friendly and natural gas, it is highly flammable. Therefore you should be careful

during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your refrigerator from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- Using the appliance incorrectly may cause an injury. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

• It is prohibited to alter or modify the device and its specifications.
• When disposing of the appliance, remove the plug from the power socket, cut the power cord (as closely as possible to the appliance), and remove the door to prevent playing children getting an electrical shock or shutting themselves in the appliance.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• The lamp in the appliance is intended for use in this cooling device only. Do not use the lamp as a household light.

⚠️INSTALLATION

• Do not place near flammable materials, gases or explosives.
  • Always use the appliance on a steady, level and dry surface.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Keep the ventilation openings free of obstructions.
• Avoid long exposure to direct sunlight.
• Make sure that you have access to the plug of the appliance.
• Make sure the plug and cord are not crushed or damaged by the back of the appliance. This can cause short circuits and, as a result, overheating and fire.
  • This is a heavy appliance. Be careful when moving it.
• This cooling unit is not intended for use as a built-in appliance.
• Do not place a power strip or other portable power supply behind the appliance.
  • After installation, it is advisable to wait 6 hours before connecting the appliance to allow the oil to flow back in the compressor.

⚠ USE

• Do not use or store this appliance outdoors.

• Do not use this appliance for other than intended use.

• Do not use any other electrical appliance inside the refrigerator, unless they are approved for this purpose by the manufacturer.

• Do not keep any explosive substances inside the appliance, like for instance aerosol cans with a flammable propellant.
• Do not use the appliance without a lamp.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.
• Ensure the food in the appliance does not touch the back wall.
• Do not touch anything that comes out of the freezer with damp or wet hands. This could cause skin burns.
• Be careful when consuming ice cubes or ice creams that come from the freezer. These can cause frostbite on the lips or tongue.

• Follow the instructions below to prevent contamination of food:

• Keeping the door open for long periods may cause the temperature in the compartments of the appliance to rise considerably.

• Clean the surfaces that could come into contact with food regularly.
• If the appliance is left empty for longer periods, it should be turned off, defrosted and cleaned. Allow it to dry and leave the door ajar to prevent mould from growing in the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Do not place warm or hot objects on top of the appliance.
• Do not clean the appliance with anything made of metal.
• Make sure that the refrigerant circuit does not get damaged, for instance during transportation or installation.
• Do not use mechanical appliances or other means to speed up the defrosting process, unless approved by the manufacturer.

WARNING: Never place this appliance on or in the neighbourhood of a gas or electric fire or in a place where it could come into contact with a heat source. There are flammable materials located on the back of the appliance.

Pay attention to the symbol 'Fire risk – flammable materials' located on the back of the appliance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

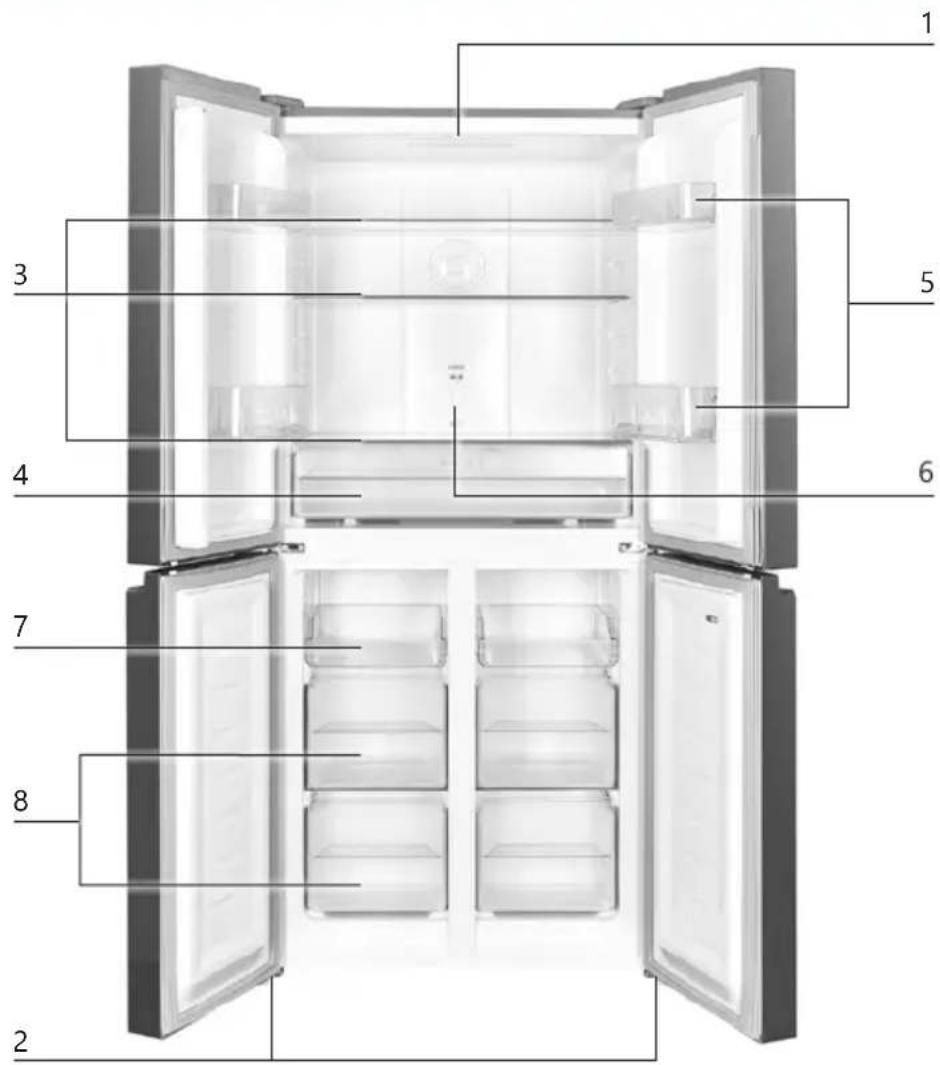

PARTS

1. LED lighting
2. Levelling feet

REFRIGERATOR

1. Glass shelves
2. Crisper drawer
3. Door shelves
4. Temperature controller for crisper drawer

FREEZER

1. Open freezer drawers
2. Freezer drawers

Labeled diagram of a refrigerator interior showing numbered compartments and doors

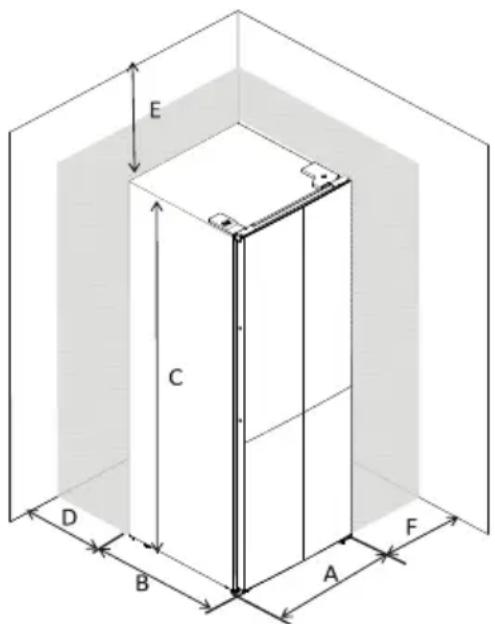

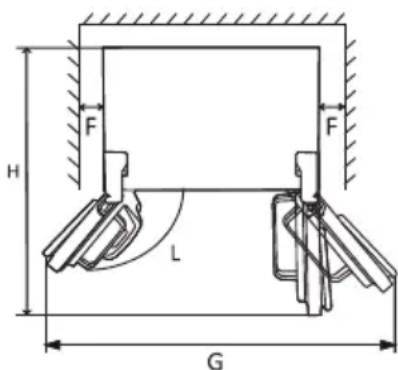

INSTALLATION

• Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and the inside, shelves, drawers, and door racks with a soft cloth, warm water, and a mild detergent. Dry the appliance off well.
• Let air circulate freely around the cabinet.

E C D B A F

H F L G F

A 790 mm

B 620 mm

C 1800 mm

D min= 50 mm

E min= 50 mm

F min= 50 mm

G 1580 mm

H 1410 mm

L 135°

• Make sure there is sufficient space to open the door.
• This cooling unit is not intended for use as a built-in appliance.
• Select a place with a strong, level floor.
• Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat sources nearby will cause higher electricity consumption.
• Avoid very moist places. Too much moisture in the air will cause frost to form very quickly on the evaporator, and your refrigerator.
• Before connecting your refrigerator to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance.
• The plug is the only way to disconnect the device from the power supply, make sure it is always easily accessible. To disconnect power to the device, turn off the device and then unplug it.
  • After installation, leave the fridge for 6 hours before turning it on. This way the refrigerant can settle.
• Allow the appliance to run empty for 12 hours so the compartment can cool to the appropriate temperature.

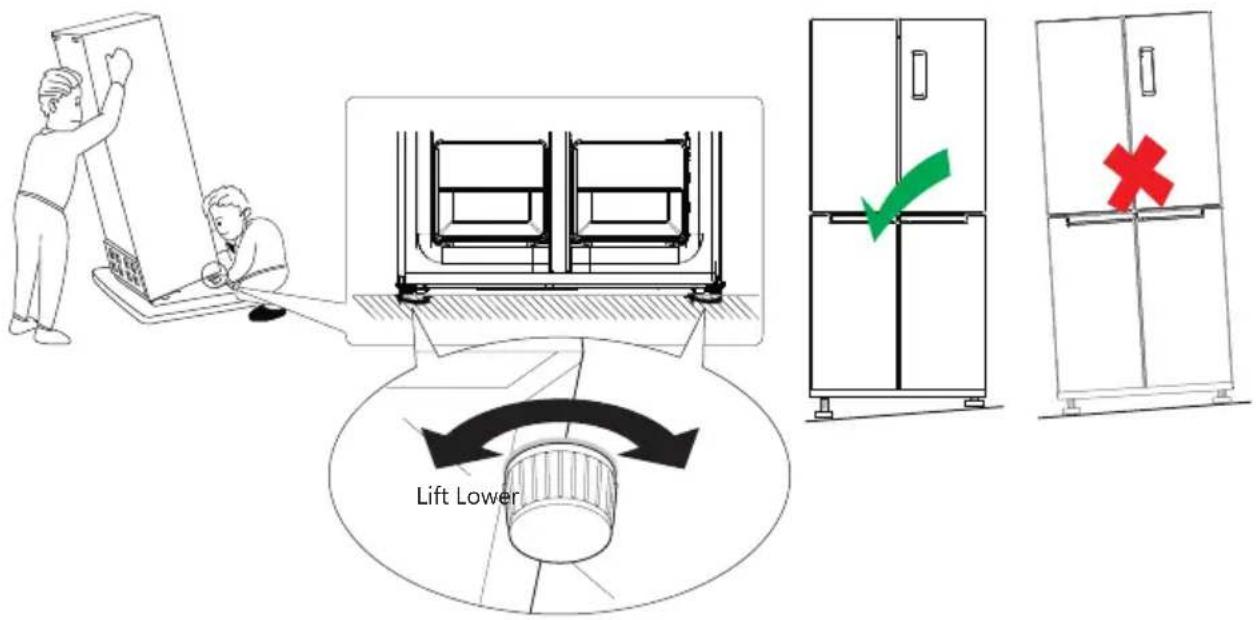

• You can level the appliance using the adjustable legs. The adjustable legs can be adjusted by screwing them in or out of the appliance.

Lift Lower

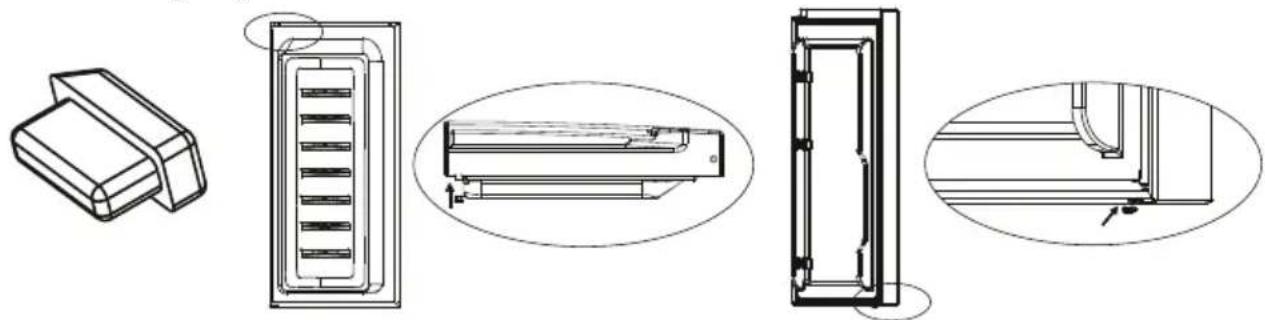

- Rubber bumpers are built into the doors to dampen them. Check that the rubber bumpers are in place before use. If the rubber bumpers are missing, insert the spare rubber bumpers from the accessory bag.

Technical line drawings of mechanical components and assembly (no text or symbols)

The rubber bumpers are small parts. Keep out of reach of children to prevent swallowing/ choking.

- The climate class indicates the minimum and maximum ambient temperature for the proper operation of an appliance. You can find the climate class on the type plate on the inside or back of the appliance.

• SN: Subnormal: ambient temperature between 10°C and 32°C
• N: Normal: ambient temperature between 16°C and 32°C
• ST: Subtropical: ambient temperature between 16°C and 38°C
• T: Tropical: ambient temperature between 16°C and 43°C

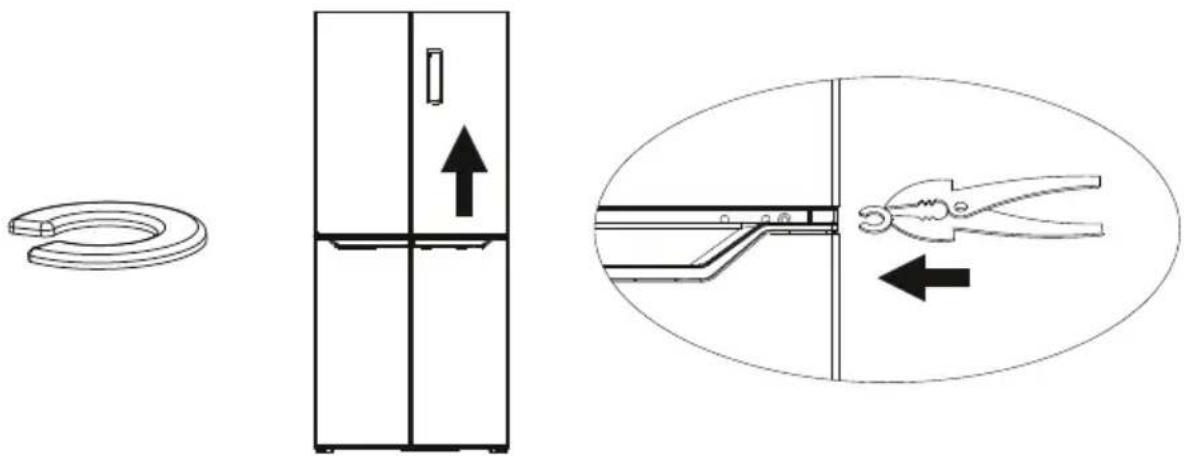

ADJUSTING THE DOORS

It is possible that the top doors are not aligned due to transport or weight after loading the door racks. You can adjust it with the supplied C-rings.

1. Make sure the appliance is level. If necessary, align the front levelling feet.
2. Check that the top of the doors are aligned. If not, lift the lowest door a little and place one or more C-rings between the bottom of the door and the hinge.

Diagram showing a refrigerator interior with a coiled tube and an open refrigerator, alongside a close-up of a hand operating a tool labeled '←' (←).

⚠️ Use tools to place the C-rings. Avoid getting your fingers caught in the door.

The C-rings are small parts. Keep out of reach of children to prevent swallowing/choking

USE

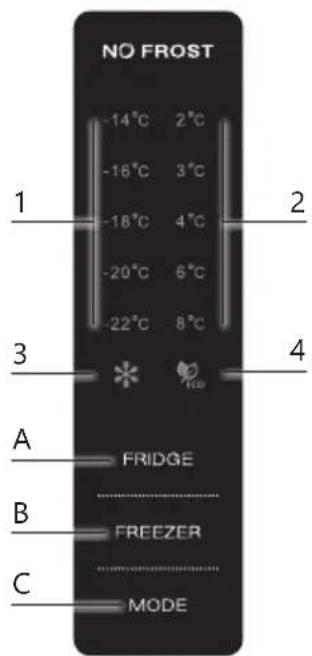

CONTROL PANEL

Touchscreen buttons

A. FRIDGE: temperature of fridge
B. FREEZER: temperature of freezer
C. MODE: mode selection

Display

1. Temperature of fridge
2. Temperature of freezer
3. SUPER-mode
4. ECO-mode

NO FROST -14°C 2°C -16°C 3°C -18°C 4°C -20°C 6°C -22°C 8°C A FRIDGE B FREEZER C MODE

When the unit is switched on, the control panel will illuminate for 3 seconds and return to the last settings used before it switched off. After this, you can change the settings.

DISPLAY

• The control panel illuminates for 2 minutes as soon as the refrigerator door is opened.
• The control panel illuminates when one of the touchscreen buttons is pressed.
• The control panel goes out 2 minutes after the last activity. After that, the set temperature for the fridge and freezer will remain illuminated.

CONTROL BUTTONS

FRIDGE

- Press the FRIDGE button to select the refrigerator temperature in normal user mode and in SUPER mode.

• The temperature of the fridge can be set between 2 and 8^ . Under normal conditions, it is best to select 4^ . Press and keep pressing the FRIDGE button until the desired temperature illuminates on the display.
• The FRIDGE button will not function in ECO mode.

FREEZER

• Press the FREEZER button to select the refrigerator temperature in normal user mode.
• The freezer can be set between -14 and -22^ . Under normal conditions, it is best to select -18^ . Press and keep pressing the FREEZER button until the desired temperature illuminates on the display.
• The FREEZER button will not function in SUPER and ECO mode.

MODE

Press the MODE button to choose between ECO mode, SUPER mode, and normal user mode.

SETTING THE MODES

Continuously press the MODE button until the desired mode illuminates:

• SUPER icon illuminates: SUPER mode is activated;
• ECO icon illuminates: ECO mode is activated;
- SUPER and ECO icons go out, temperature setting freezer and refrigerator illuminate: normal user mode is activated.

SUPER-mode

The temperature of the freezer is reduced to the minimum in SUPER mode. Select this function if the standard temperature does not cool sufficiently. For example: with extremely hot weather, if the doors are opened often, with a high environmental temperature, when you want to freeze fresh food, etc.

• The FREEZER button is deactivated in SUPER mode and the freezer temperature cannot be selected.
• You turn off SUPER mode by pressing the MODE button and selecting another mode.
• After 50 hours, the device automatically switches off SUPER mode and goes into normal user mode.

When planning to freeze a large amount of fresh food, it's best to turn on SUPER mode 24 hours in advance.

⚠️ The unit will run harder in SUPER mode and consequently make a little more noise.

ECO-mode

In ECO mode, the appliance selects the ideal temperature itself depending on the ambient temperature.

• The FREEZER and FRIDGE keys are deactivated in ECO mode and no temperature can be selected.
• You turn off ECO mode by pressing the MODE button and selecting another mode.

Normal user mode

In normal user mode, the SUPER and ECO icons go out and you can select the temperature of the freezer using the FREEZER button and of the fridge using the FRIDGE button.

ALARM

If the refrigerator door remains open for 90 seconds, you will hear a signal. This alarm is a warning so that you do not accidentally leave the door open and spoil your food. The alarm stops as soon as the door is closed again.

SETTING THE TEMPERATURE OF THE CRISPER DRAWER

You can determine the temperature of the crisper drawer using the switch on the rear wall.

• Place the switch in the 'crisper' position to keep fruit and vegetables fresh and store them for longer. The perfect temperature and humidity is maintained.
• Place the switch in the top position for fresh, perishable foods such as fish. The temperature is colder. The food is kept fresh, but not frozen.

Tip: if you place the controller in this position, we recommend setting the refrigerator temperature to 4^ C or less. The appropriate period for storing fresh ingredients is a maximum of 3 days.

Simple diagram of an oval shape with two arrows pointing upward and downward, labeled 'CRISPER' at the bottom (no text or symbols within the shape)

STORAGE GUIDE

The higher up in your appliance, the warmer. So whatever spoils fastest (fish, meat, etc.) is best put at the bottom. The door is the least cold because it opens regularly. For the best storage, set up your refrigerating appliance as follows:

Refrigerator compartment Type of food

Door rack • Food with natural preservatives such as jams, juices, drinks, spices, etc.Tip: do not store food with a limited shelf life here

Top shelf • Food that does not need to be cooked, such as ready-made meals, leftovers, spreads, etc.

Middle shelf • Dairy and eggs

Bottom shelf • Raw meat, poultry, fish

Crisper drawer • Fruits, herbs, and vegetablesTip: do not refrigerate bananas, onions, potatoes, or garlic

Freezer compartment Type of food

Top drawer • Ice cream, frozen fruit, frozen baked goods

Middle drawer • Frozen vegetables and fries

Bottom drawer • Raw meat, poultry, fish

MOVING THE SHELVES AND DOOR RACK

• Empty the fridge before moving the shelves or the door racks.
  • To move a shelf, raise it and pull it towards you.
• To move a door rack, grip it firmly with 2 hands. Raise the door rack and pull it towards you.

Line drawing of a hand using a tool to clean or store shelves (no text or symbols)

Technical line drawing of a mechanical component with two upward arrows indicating motion (no text or symbols)

LIGHTING

The lighting in the fridge is a LED light. LED lights are more ecological and manufactured for a long life. For this reason, these may not be replaced. If there is a problem with the lighting, contact a qualified service centre in your area.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or fix them into the fridge to avoid any shock.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 2 hours before turning on.

STORING FOOD IN THE FRIDGE

The fridge helps to extend the storage times of fresh perishable foods.

Fresh food care for best results:

• Store foods that are very fresh and of good quality.
• Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer.
• Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours.
• Cool hot foods down before placing them in the fridge.

FREEZING AND STORING FOOD IN THE FREEZER

Use the freezer

• To store deep-frozen food.
- To make ice cubes.
- To freeze food.

⚠ Ensure that the freezer door has been closed properly. Avoid opening the freezer drawers unnecessarily.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the 'use by/best before/best by/' date.
• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer.

Freezing fresh food

Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

⚠️Keep food to be frozen away from food which is already frozen.

- The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter,

ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.

- The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging: plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

RECOMMENDED STORAGE TIMES OF FROZEN FOOD IN THE FREEZER

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food Storage time
Bacon, casseroles, milk 1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months
Non-oily fish, shellfish, pizza, scones and muffins 3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

When you freeze fresh foods with a 'use by/best before/best by/' date, you must freeze them before the expiry of this date.

⚠️ Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.

⚠️Once defrosted, food should be consumed quickly.

VACATION

For short vacation periods, leave the control knobs at their usual settings. During longer absences take the following measures:

• Remove all foods.
• Disconnect from electrical outlet.
• Clean the appliance thoroughly.

- Leave the doors open to avoid possible formations of condensate, mould or odours.

POWER FAILURE

- Most power failures are corrected within an hour or two and will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off.

- During power failures of longer duration, take steps to protect your food by putting dry ice on top of packages.

SOME IMPORTANT RULES FOR THE CORRECT USE OF THE REFRIGERATOR

• Never place hot foods in the refrigerator or freezer.
• Beverages should be stored in sealed containers.
• Foods to be stored for a long time should be wrapped in cellophane or polyethylene foil, or kept in glass containers.
• Never place spoiled foods in the refrigerator or freezer.
• Don't overload the cabinet.
• Don't open the doors unless necessary.
• Keep all accessories, such as shelves, door racks, and drawers, in the appliance to minimise energy consumption.
• Please read the storage instructions on the food packaging. Always check the storage date.
• Do not place carbonated drinks in the freezer. The bottle/can is pressurised and may explode.
• Be careful when consuming ice creams that come from the freezer. These can cause frostbite.
• An empty fridge consumes more energy. After all, when the door is opened, warm air enters the space and needs to be cooled. More air enters when there are fewer products, meaning that more energy needs to be consumed to cool that air. So fill your fridge properly or choose a model sized for your needs.

⚠️Not for outer camping use (e.g. in a tent).

⚠️ For indoor use only.

⚠ The appliance can not be used in public transportation.

CLEANING AND MAINTENANCE

• Do not use abrasive cleaning agents or solvents.
• Disconnect the mains plug from the mains socket.
  • Take out the food and store in a cool location.
• Clean the appliance with a soft cloth, warm water and detergent.
• Wipe the door seal with clear water only and then wipe dry thoroughly.
  • After cleaning, put the plug in the socket and set the desired mode or temperature.
• Remark: when the unit is switched on, the control panel will illuminate for 3 seconds and return to the last settings used before it switched off. After this, you can change the settings if desired.
• Put the food back into the appliance.

DEFROSTING

This is a fridge-freezer with full no-frost function. The appliance defrosts automatically, so there is no need to do this manually.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The refrigerator does not work.	Check connection of power cord to power source.Plug in unit.Use proper voltage.
The refrigerator cools too frequently.	The temperature setting is too cool.Close door securely.Be sure that food is cool before inserting.Do not keep door open for too long and minimize door openings.Use proper voltage.Do not place unit close to heat sources or direct sunlight.
The internal temperature is not cold enough.	Check connection of power cord to power source.Plug in unit.Check setting and adjust as needed.Close door securely.Be sure that food is cool before inserting.Do not keep door open for too long and minimize door openings.Allow room for air to circulate around unit.Use proper voltage.Do not place unit close to heat sources or direct sunlight.
Unusual sounds. • The appliance is not level. Readjust the adjusting feet and level the unit.The unit is touching a wall or another object. Gently move the appliance.
There is water on the floor. • The condensation duct is blocked. See the chapter on cleaning.Too much condensation has formed in the fridge, causing the reservoir to overflow. Too much condensation is caused by a heat difference. Is the door closed properly? Have you put hot food in the fridge? Does the seal still close properly?
The door does not close properly.	The door seal is deformed. Heat it gently using a hairdryer. The rubber seal will become flexible and the magnetic strip in the rubber will automatically pull towards the appliance. After cooling, the rubber stays in that position.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Labeled diagram of a refrigerator interior showing numbered compartments and doors

H F F L G

A 790 mm

B 620 mm

C 1800 mm

D min=50 mm

E min=50 mm

F min=50 mm

G 1580 mm

H 1410 mm

L 135°

Technical line drawings of mechanical components and assembly (no text or symbols)

Diagram showing a refrigerator interior with a coiled tube and an open refrigerator, alongside a close-up of a hand operating a tool to cut the refrigerator.

Simple diagram of an oval shape with two arrows pointing upward and downward, labeled 'CRISPER' at the bottom (no text or symbols within the shape)

Illustration showing a hand placing a component into a shelf, and a close-up of a mechanical component with two upward arrows (no text or symbols)

ILUMINACIÓN

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Labeled diagram of a refrigerator interior showing numbered compartments and doors

H F F L G

A 790 mm

B 620 mm

C 1800 mm

D min=50 mm

E min=50 mm

F min=50 mm

G 1580 mm

H 1410 mm

L 135°

Technical line drawings of mechanical components and assembly (no text or symbols)

Diagram showing a refrigerator interior with a coiled tube and an open drawer, alongside a close-up of a tool being inserted into a pan.

Simple diagram of an oval shape with two arrows pointing upward and downward, labeled 'CRISPER' at the bottom (no text or symbols within the shape)

Diagram showing a hand placing a component into a shelf and then to a device with two upward arrows (no text or symbols present)

ILLUMINAZIONE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Labeled diagram of a refrigerator interior showing numbered compartments and doors

PŘED PRVNÍM POUŽITÍM

H F F L G

A 790 mm

B 620 mm

C 1800 mm

D min= 50 mm

E min= 50 mm

F min= 50 mm

G 1580 mm

H 1410 mm

L 135°

Technical line drawings of mechanical components and assembly views (no text or symbols)

Diagram showing a refrigerator interior with a coiled tube and a close-up of the door being cut by a tool, illustrating the process of lifting or discharging.

Simple diagram of an oval shape with two arrows pointing upward and downward, labeled 'CRISPER' below (no text or symbols within the shape)

NÁVOD NA VHODNÉ USKLADNĚNÍ / ROZLOŽENÍ POTRAVIN V LEDNICI

Illustration of a hand placing a rectangular object on a multi-tiered shelf (no text or symbols)

Simple line drawing of a mechanical component with two upward arrows indicating motion or force (no text or symbols)

OSVĚTLENÍ

MANIPULACE S PŘÍSTROJEM

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Labeled diagram of a refrigerator interior showing numbered compartments and doors

H F L G F

A 790 mm

B 630 mm

C 1800 mm

D min= 50 mm

E min= 50 mm

F min= 50 mm

G 1580 mm

H 1410 mm

L 135°

Technical line drawings of mechanical components and assembly views (no text or symbols)

Diagram showing a refrigerator interior with a coiled tube and an open refrigerator, alongside a close-up of a hand operating a tool.

Simple diagram of an oval shape with two arrows pointing upward and downward, labeled 'CRISPER' at the bottom (no text or symbols within the shape)

NÁVOD NA VHODNÉ USKLADNENIE / ROZLOŽENIE POTRAVÍN V CHLADNIČKE

Illustration showing a hand holding a shelf and a close-up of a mechanical component with upward arrows (no text or symbols)

OSVETLENIE

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
