Product type	Fridge-freezer
Brand	BOSCH
Model	GSN36VW30G
Configuration	Free-standing appliance
Installation	Free, do not expose to sunlight or heat source
Minimum distance from an electric or gas cooker	3 cm
Minimum distance from an oil or coal heater	30 cm
Required door opening angle	90°
Door hinge reversal	Possible (recommended by after-sales service)
Door handle	Changeable
Wall spacers	Included, to be mounted
Appliance adjustment	Via two front screw feet, use a spirit level
Side-by-side installation	Possible: refrigerator left, freezer right
Side-by-side connection kit	Available from the dealer
Power supply	220-240 V ~ 50 Hz (typical)
User manual	47 pages, multilingual
After-sales service	Recommended for door reversal and repairs
Defrosting	Automatic or manual (not specified)
Interior lighting	Present (not specified)
Compatibility with uneven floors	Compensation via screw feet

Frequently Asked Questions - GSN36VW30G BOSCH

How to install my BOSCH GSN36VW30G fridge-freezer?

Choose a dry, well-ventilated room, away from sunlight and heat sources. Respect the minimum distances: 3 cm from an electric or gas cooker, 30 cm from an oil or coal heater. Ensure a door opening angle of 90°. Adjust the screw feet so that the appliance is perfectly level using a spirit level.

Can I reverse the door opening direction?

Yes, reversal is possible. We recommend entrusting this operation to our after-sales service. Before any manipulation, unplug the appliance. Follow the numbered steps in Figure 1 of the manual, carefully laying the appliance on its back after placing a cushioning material.

How to change the door handle?

The door handle is changeable. Follow the order of numbers indicated in Figure 4 of the installation manual. Unscrew the old one and screw on the new handle following the instructions.

What are the minimum distances from a heat source?

Respect 3 cm from an electric or gas cooker, and 30 cm from an oil or coal heater. If installation next to a heat source is unavoidable, use an appropriate insulating panel.

How to adjust the appliance to make it level?

Place the appliance in its intended location. Compensate for uneven floor using the two front screw feet. Use a spanner to turn them. Check the level with a spirit level; the appliance must rest perfectly vertical.

Is it possible to install two appliances side by side?

Yes, when installing two appliances, place the refrigerator on the left and the freezer on the right. To avoid condensation, stick the provided spacers on the four corners of the right side of the refrigerator, each 5 cm from the side edges. A connection kit is available from your dealer.

Where can I get a connection kit for side-by-side installation?

The connection kit can be obtained through your dealer. Contact your usual dealer or BOSCH after-sales service.

How to clean the appliance?

Always unplug the appliance before cleaning. Use a soft cloth and warm soapy water. Avoid abrasive or alcohol-based products. For stainless steel surfaces, use a specific care product. Clean the rear grille regularly to prevent dust accumulation.

What to do in case of a breakdown?

First check the power supply and fuse. If the appliance is not cooling, make sure the door is properly closed and the thermostat is not set to 0. If the problem persists, contact BOSCH after-sales service. Do not attempt to repair the appliance yourself.

Where to find the complete manual for my appliance?

The complete user and installation manual for your BOSCH GSN36VW30G is available for free download at notice-facile.com. It contains 47 pages and is available in multiple languages (FR, DE, EN, etc.). You can also request a translation of the manual into a language of your choice by leaving your email address on the site.

USER MANUAL GSN36VW30G BOSCH

Using the installation instructions 8

Installation location 8

Installing appliances

next to each other 9

Changing over the door hinges 9

Changing the door handle 10

Fitting the wall spacer 10

Aligning the appliance 10

fr Table des matieres

Lieud'st installation 11

Using the installation instructions

Please fold out the illustrated last page.

These installation instructions refer to several models.

The diagrams may differ.

Installation location

A dry, well ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:

3 cm to electric or gas cookers.
30 cm to an oil or coal-fired cooker.

The floor of the installation location must not give way; if required, reinforce floor. If the floor is uneven, compensate with supports.

Distance from wall

When installing the appliance, ensure that the door can be opened by 90^ .

Installing appliances next to each other

Fig. 2

When installing two appliances, ensure that the refrigerator is on the left and the freezer is on the right.

The right side panel of the refrigerator is heated slightly. This prevents condensation from forming between the appliances.

Attaching spacers

Fig. 3

1. On the right side of the refrigerator, degrease the adhesive areas with petroleum ether or spirit.
2. Stick spacers in all four corners at a distance of 5cm from the side edges to ensure a minimum gap between the appliances.

Note

You can purchase a connection set from your dealer.

Changing over the door hinges

(if required)

We recommend that you have the door hinges changed over by our customer service. You can find out the costs for changing over the door hinges from your appropriate customer service.

Warning

While changing over the door hinges, ensure that the appliance is not connected to the power supply. Pull out the mains plug beforehand. To prevent damaging the back of the appliance, place adequate padding underneath. Carefully place the appliance on its back.

Change over the door hinges in numerical sequence. Fig. 1

Note

If the appliance is placed on its back, ensure that the wall spacer is not fitted.

Changing the door handle

(if required)

Fig. 4

Change the door handle in numerical sequence.

Fitting the wall spacer

Fig. 5

If available:

Fit wall spacers to obtain the indicated energy absorption of the appliance.

A reduced wall gap will not restrict the function of the appliance. The energy absorption may then change slightly.

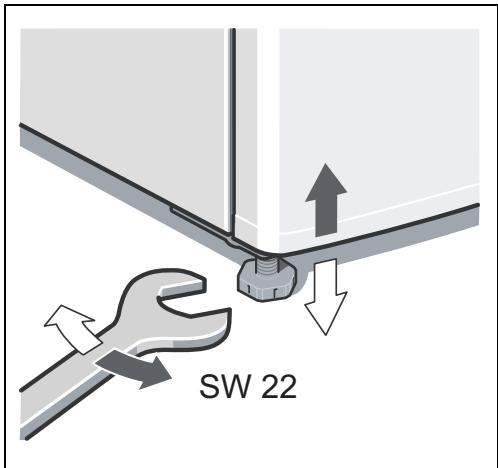

Aligning the appliance

Place the appliance in the designated location and align. The appliance must be level. If the floor is uneven, use the front height-adjustable feet. Adjust the height-adjustable feet with a wrench.

Note

The appliance must be upright. Please align it with a spirit level.
