Product type	Connected lamp (smart light source)
Brand	IKEA
Model	TRÅDFRI 005.415.07
Power supply	Mains (via standard socket)
Operating frequency	2405 - 2480 MHz
Output power	10 dBm
Maximum number of pairings	Up to 10 light sources per control device
Main functions	On/off, dimming via IKEA control device
Reset	Toggle the main switch 6 times
Dimmer compatibility	Do not use with a standard dimmer
System compatibility	IKEA smart lighting range
Dimensions	Approx. 60 x 110 mm (standard bulb size)
Weight	Approx. 45 g
Protection rating	IP20 (indoor use)
Care and cleaning	Clean with a dry cloth, unplug before cleaning
Safety	Do not use with standard dimmer, follow pairing instructions
Spare parts and repairability	Product not user-serviceable, contact IKEA for replacement
General information	Recycle according to local regulations (crossed-out wheelie bin symbol)

Frequently Asked Questions - TRÅDFRI 005.415.07 IKEA

How to pair the TRÅDFRI bulb with a control device?

Make sure the bulb is installed and turned on. Hold the control device within 5 cm of the bulb, then press the pairing button ⚙ for at least 10 seconds. A red LED light stays on, then the bulb flashes once to confirm pairing.

Can I use the TRÅDFRI bulb with a standard dimmer?

No, this bulb must not be used with a standard dimmer. Use only the control device supplied with the product or another product from the IKEA smart lighting range.

How to reset the TRÅDFRI bulb?

To reset the bulb, toggle the main switch (on/off) 6 times in a row. The bulb will restore its factory settings.

How many bulbs can I pair to a single control device?

You can pair up to 10 light sources to a single control device. Pair them one by one, and unplug already paired ones if they are close.

Is the wireless signal range limited?

The operating frequency is 2405 to 2480 MHz with an output power of 10 dBm. The effective range depends on the environment, but indoors it is typically 10 to 30 meters.

What to do if the bulb does not turn on after pairing?

Check that the bulb is screwed in properly and the wall switch is on. Try repeating the pairing procedure by holding the ⚙ button for 10 seconds. If the problem persists, reset the bulb (switch 6 times) and try again.

Is the TRÅDFRI bulb compatible with other IKEA smart products?

Yes, this bulb works exclusively with products from the IKEA smart lighting range, such as TRÅDFRI remotes, gateways, and sensors.

How to clean the bulb?

Unplug the bulb and clean it with a soft dry cloth. Do not use chemicals or liquids.

Where can I find spare parts?

IKEA smart bulbs are not designed to be user-repaired. In case of failure, contact IKEA customer service for a replacement under warranty.

How should I recycle the bulb at the end of its life?

The crossed-out wheelie bin symbol indicates that it must be recycled in accordance with local regulations. Dispose of it at an electronic waste collection point.

USER MANUAL TRÅDFRI 005.415.07 IKEA

LED2102G3, LED2103G5

max 5 cm (max 2")

English 8

German 11

French 14

Dutch 17

Danish 20

Icelandic 23

Norwegian 26

Finnish 29

Swedish 32

Czech 35

Spanish 38

Italian 41

Hungarian 44

Polish 47

Estonian 50

Latvian 53

Lithuanian 56

Portuguese 59

Romanian 62

Slovak 65

Bulgarian 68

Croatian 71

Greek 74

Russian 77

Ukrainian 80

Serbian 83

Slovenian 86

Turkish 89

ADD LIGHT SOURCES TO YOUR STEERING DEVICE:

Before you can use your light source you'll need to pair it with a steering device.

To add more light sources, just repeat the steps below:

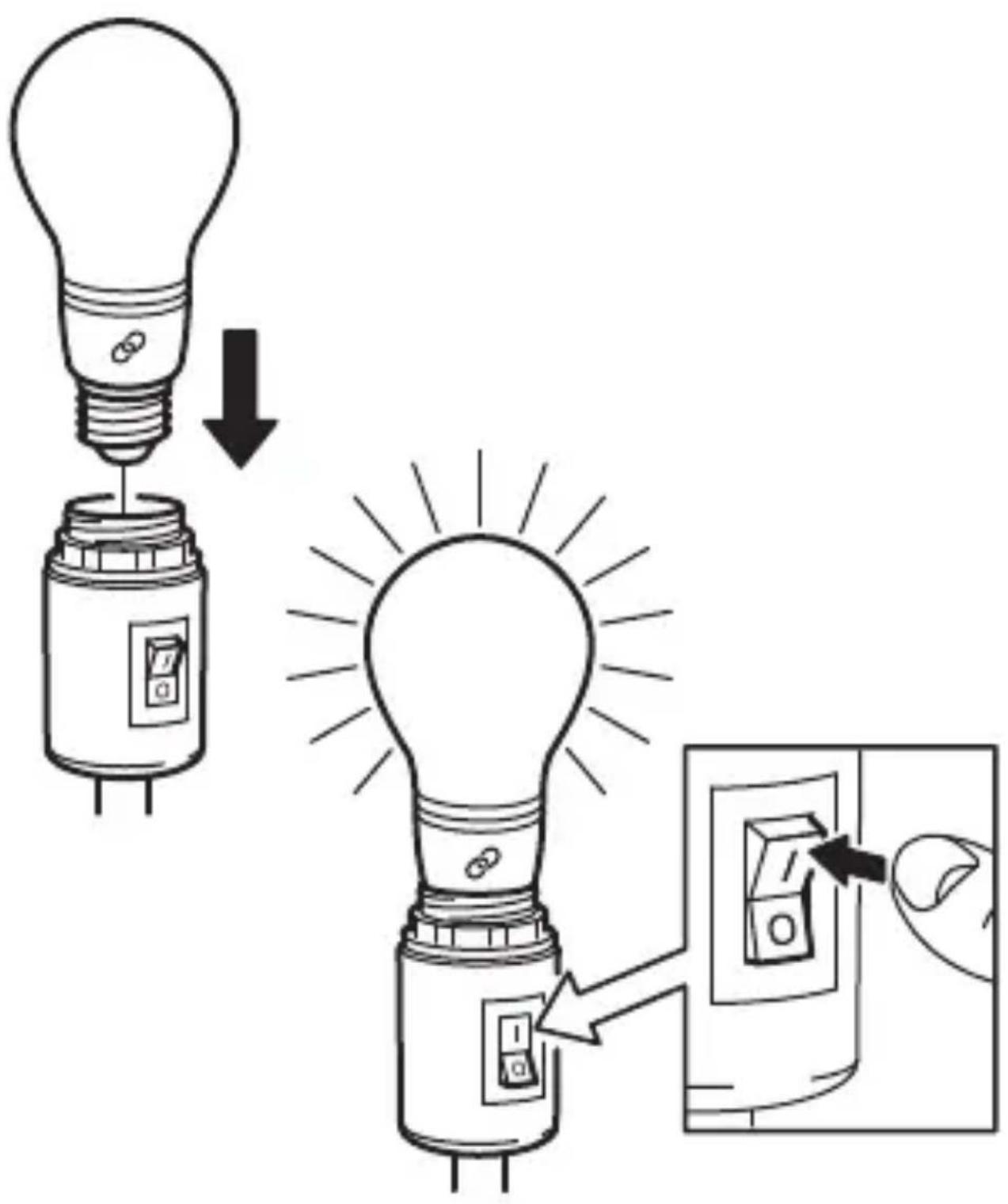

1. Make sure that your light source is installed and the main power switch is turned on.

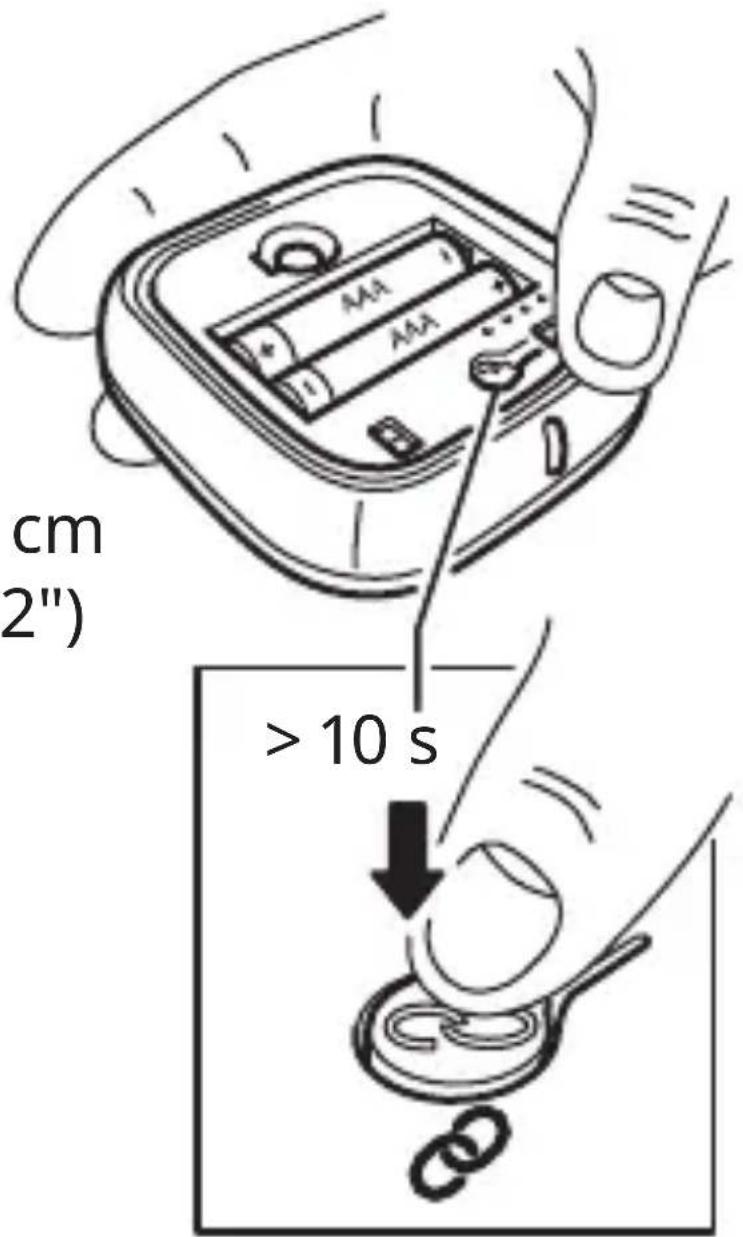

2. Hold the steering device close to the light source you want to add (no more than 5 cm away).

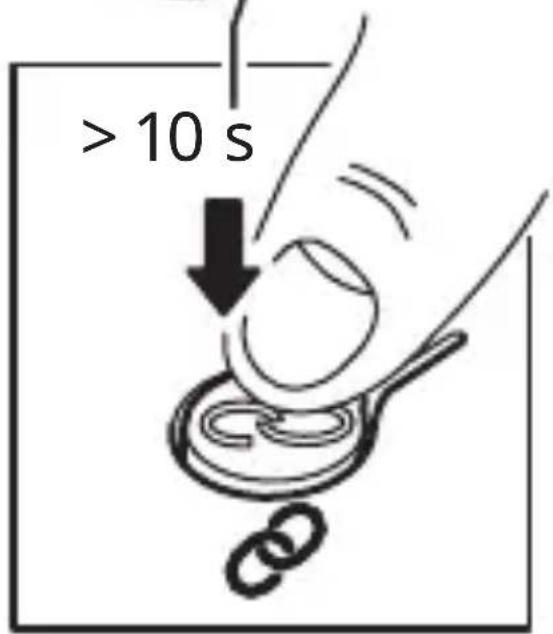

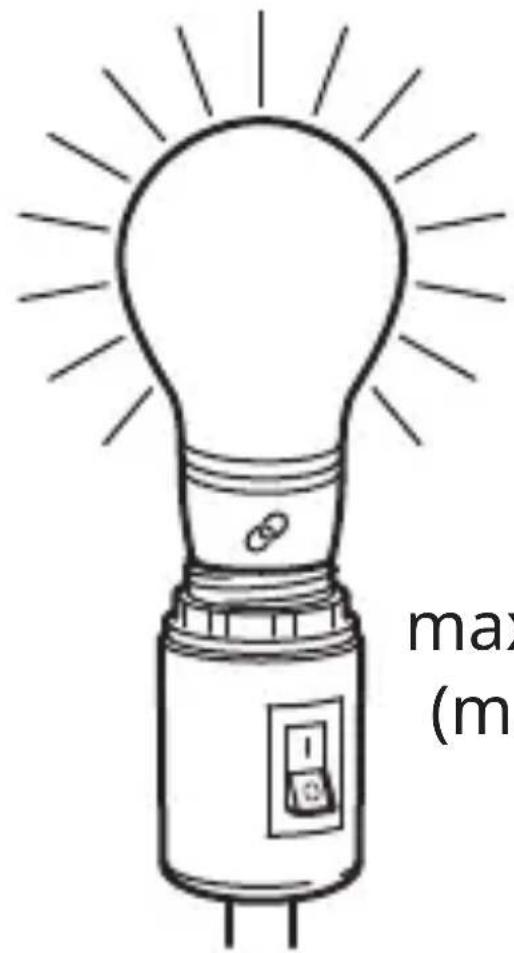

3. Press and hold the pairing button for at least 10 seconds. A red light will shine steadily on the steering device. Your light source will begin to dim and finally flash one time to indicate that it has been successfully paired.

Up to 10 light sources can be paired with 1 steering device.

Make sure to pair them one at a time. If the light sources are close to each other, disconnect those that have already been paired from the main power switch.

CAUTION:

DO NOT USE WITH STANDARD DIMMERS. Only use the control provided with or specified by these instructions to control this bulb. This bulb will not operate properly when connected to a standard (incandescent) dimmer or dimming control. Only controllable by IKEA Smart lighting products.

RESET YOUR DEVICE

Toggle the main switch 6 times.

TECHNICAL DATA:

Operating frequency: 2405 - 2480 MHz

Output power: 10 dBm

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 Älmhult, SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
