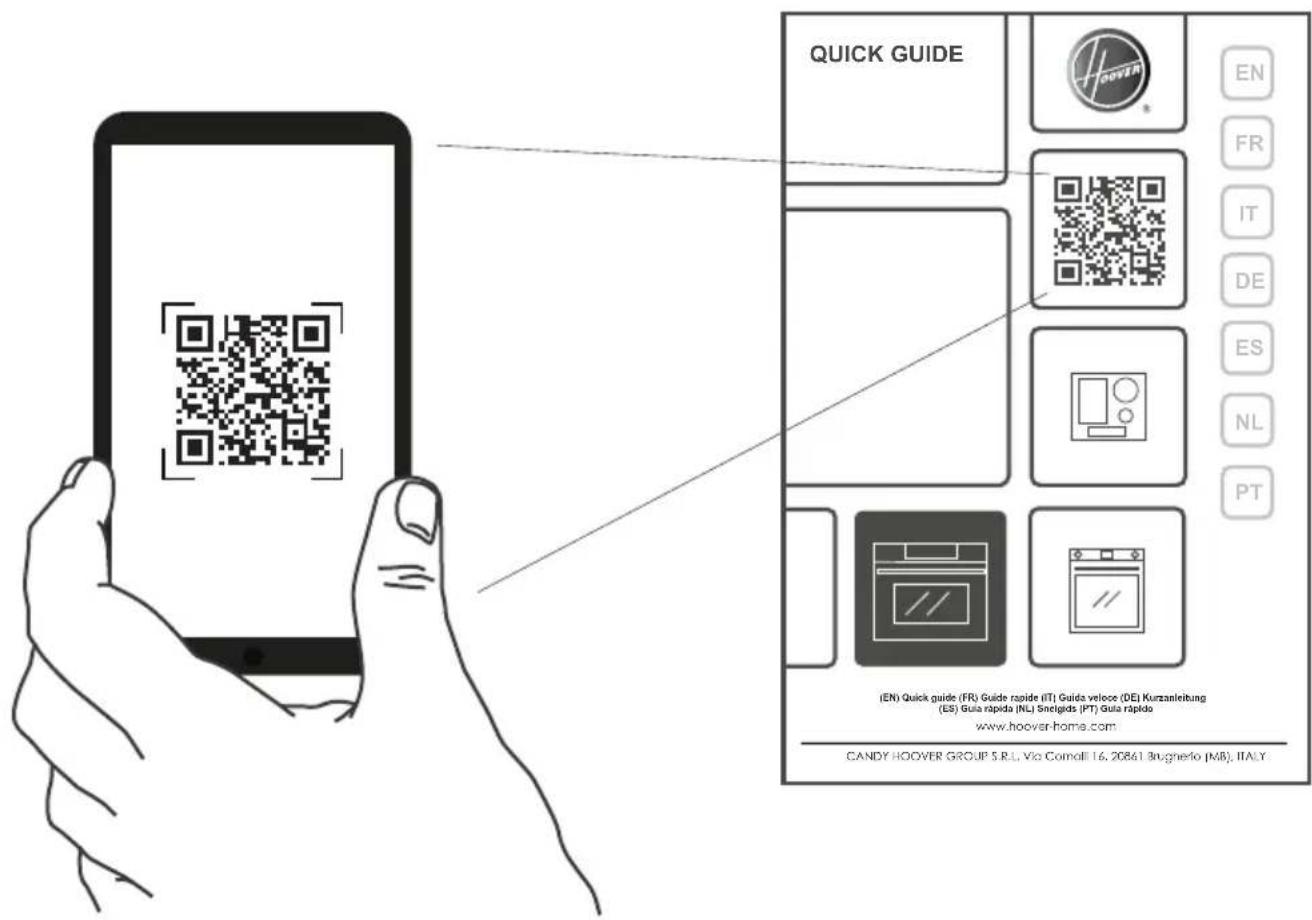

(EN) Quick guide (FR) Guide rapide (IT) Guida veloce (DE) Kurzanleitung (ES) Guía rápida (NL) Snelgids (PT) Guia rápido

www.hoover-home.com

DISCOVER THE FULL USER MANUAL

DÉCOUVREZ LE MANUEL D'UTILISATION COMPLET

SCOPRI IL MANUALE PER L'UTENTE COMPLETO

ENTDECKEN SIE DAS VOLLSTÄNDIGE BENUTZERHANDBUCH

DESCUBRA EL MANUAL DE USUARIO COMPLETO

ONTDEK DE VOLLEDIGE GEBRUIKERSHANDLEIDING

DESCUBRA O MANUAL COMPLETO DO UTILIZADOR

QUICK GUIDE (EN) Quick guide (FR) Guide rapide (IT) Guida veloce (DE) Kurzanleitung (ES) Guia rápida (NL) Snelgidis (PT) Guia rápido www.hoover-home.com CANDY HOOVER GROUP S.R.L. Via Comoll 16.20861 Bugnerlo (MR), ITALY

OVENS
EN 4
FOURS
FR 21
FORNI
IT 38
ÖFEN
DE 55
HORNOS
ES 72
OVENS
NL 89
FORNOS
PT 106

User Instructions

Mode d'emploi

5 Safety Information
17 Product Description
19 Cleaning And Maintenance
19 Trouble Shooting
20 Environmental Protection And Disposal
123 Installation

Thank you for choosing our product. To ensure your safety and get the best results, please read this manual carefully, including the safety instructions, and keep it for future reference.

Before installing the microwave oven, make a note of the serial number, which you might need for repairs. Check for any damage during transportation and consult a technician if you're unsure before using it. Keep packaging materials away from children.

NOTE: Please note that the microwave oven's features and accessories may vary depending on the model you purchased.

SAFETY INFORMATION

WARNING: To reduce the risk of fire, electrical shock, injury to persons or damage when using the appliance, follow the important safety instructions listed below. Read all the instructions before use. Use only for its intended purpose as described in these instructions.

GENERAL

• This product has been designed for use in a domestic (residential) environment. This product is not designed for any commercial use. Any commercial use by the customer will affect this product's manufacturer's warranty.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments

• farm houses
• by clients in hotels, motels and other residential environments
• bed and breakfast type environments

- Household appliances are not intended to be played with by children.

- Do not leave children alone. Children should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

- HOT CONTENTS CAN CAUSE SEVERE BURNS. DO NOT ALLOW CHILDREN TO USE THE MICROWAVE. Use caution when removing hot items.

• Children of less than 8 years old must be kept away from the appliance unless continuously supervised. This appliance can be used by children aged from 8 years and above, and persons

with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and they understand the hazards involved. Cleaning and user maintenance shall not be done by children without supervision.

• Do not place heavy objects on the oven door.
• Do not let aluminum foils and food probes touch the heating elements.
• Do not operate your appliance by means of an external timer or separate remote control system.
• Placement of oven shelves: always position shelves in the desired location while the oven is cool (before preheating). If a shelf must be removed while the oven is hot, do not let the oven mitts or potholder contact hot heating elements in the oven or the base of the oven.
• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
• Do not use rough or abrasive materials or sharp metal scrapers to clean the oven door glasses, as they can scratch the surface and cause the glass to shatter.
• Do not heat unopened food containers. They can build up pressure that may cause the container to burst and result in injury.
• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.

INSTALLATION

• Ensure your appliance is properly installed and grounded by a qualified technician in accordance with the provided installation instructions.
  • This appliance is intended to be built-in.
  • Install or locate this appliance only in accordance with the pro-

vided installation instructions.

• Do not install or operate the appliance if it is damaged or not working properly. If you receive a damaged product, contact your dealer or installer immediately.
• The appliance must not be installed behind a decorative door in order to avoid overheating.
• Do not mount this appliance over a sink.
  • This oven is not approved or tested for marine use.
• Do not store this appliance outdoors. Do not use this near a swimming pool, near a sink or in similar locations.
• Do not immerse cord or plug in water. Do not let cord hang over edge of table or counter. Keep cord away from heated surfaces.
• Do not cover or block any openings on the appliance.
  • Take care – some edges are sharp.

ELECTRICAL WARNINGS

- IF THE MICROWAVE OVEN IS PROVIDED BY THE MANUFACTURER WITHOUT PLUG: THE APPLIANCE MUST NOT BE CONNECTED TO THE POWER SOURCE USING PLUG OR SOCKETS, BUT MUST BE DIRECTLY CONNECTED TO THE SUPPLY MAINS. The connection to the power source must be carried out by a suitably qualified professional. In order to have an installation compliant to the current safety legislation the oven must be connected only placing an omnipolar breaker, with contact separation compliant to the requirements for overvoltage category III, between the appliance and the power source. The omnipolar breaker must bear the maximum connected load and must be in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The omnipolar breaker used for the connection must be easily accessible when the appliance is installed. The connection to the power source must be carried out by a suitably

qualified professional considering the polarity of the microwave oven and of the power source. The disconnection must be achieved incorporating a switch in the fixed wiring in accordance with the wiring rules.

- IF THE MICROWAVE OVEN IS PROVIDED BY THE MANUFACTURER WITH PLUG:

The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in color. This operation should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker, with contact separation compliant to the requirements for overvoltage category III, between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

- If the power cable is damaged, it should be substituted with a cable or special bundle available from the manufacturer or by contacting the customer service department.

- Failure to comply with the above can compromise the safety of the appliance and invalidate the guarantee.

- The microwave oven must be switched off before removing the removable parts. After cleaning, reassemble them according to the instructions.

- The use of any electrical appliance implies the observance of some fundamental rules:

- do not pull on the power cable to disconnect the appliance from the power source;

do not touch the appliance with wet or damp hands or feet;

- in general the use of adaptors, multiple sockets and extension cables is not recommended;

- in case of malfunction and /or poor operation, switch off the appliance and do not tamper with it.

- ENSURE THAT AN ELECTRICIAN OR QUALIFIED TECHNICIAN MAKES THE ELECTRICAL CONNECTIONS. The power supply to which the oven is connected must conform with the laws in force in the country of installation. The manufacturer accepts no responsibility for any damage caused by the failure to observe these instructions. The oven must be connected to an electrical supply with an earthed wall outlet or a disconnector with multiple poles, depending on the laws in force in the country of installation. The electrical supply should be protected with suitable fuses and the cables used must have a transverse section that can ensure correct supply to the oven.

- CONNECTION. The oven is supplied with a power cable that should only be connected to an electrical supply with 220-240 Vac power between the phases or between the phase and the neutral. Before the oven is connected to the electrical supply, it is important to check power voltage indicated on the gauge and the setting of the disconnector. The grounding wire connected to the oven's earth terminal must be connected to the earth terminal of the power supply.

- WARNING. Before connecting the oven to the power supply, ask a qualified electrician to check the continuity of the power supply's earth terminal. The manufacturer accepts no responsibility for any accidents or other problems caused by failure to

connect the oven to the earth terminal or by an earth connection that has defective continuity.

• Before carrying out any work on the electrical section of the appliance, it must be disconnected from the mains electricity supply.
• Connection to a good ground wiring system is absolutely essential and mandatory.
  • Alterations to the domestic wiring system must only be made by a qualified electrician.

NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed. The power cable must only be substituted by technical service staff or by technicians with equivalent qualifications.

SERVICING

• User servicing: do not repair or replace any part of the appliance unless specifically recommended in this guide. All other servicing should be done by a Haier trained and supported service technician.
• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person.
• If the microwave oven light fails, contact a Haier trained and supported service technician or Customer Care.

FIRE HAZARD

- Do not use adapters, reducers, or branching devices to connect this appliance to the mains power supply.

- The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating or warming pads, slippers, sponges, damp cloths and similar may lead to risk of

injury, ignition or fire.

• Do not overcook food. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the microwave oven to facilitate cooking.
• Remove wire twist-ties from paper or plastic bags before placing in microwave.

If materials inside the microwave oven should ignite, keep microwave oven door closed, turn microwave oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel.

• Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
• Utensils should be checked to ensure that they are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, check the oven frequently due to the possibility of ignition.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• During and after use, do not touch, or let clothing or other flammable materials contact any interior area of the oven; allow sufficient time for cooling first.
• In case of fire, smother the flame or use a dry chemical or foam type extinguisher.
• Use only dry oven mitts or potholders. Moist or damp potholders on hot surfaces could result in burns from steam. Do not let potholders touch hot areas or heating elements. Do not use a towel or a bulky cloth for a potholder. It could catch fire.

FOOD SAFEDY

- Safe food handling: leave food in the oven for as short a time as possible before and after cooking. This is to avoid contamination by organisms which may cause food poisoning. Take particular care during warm weather.

CLEANING

• The oven must be cleaned periodically and all food residues must be removed.
• Failure to keep the oven clean could cause deterioration of the surfaces that could reduce the life of the appliance and cause dangerous conditions.
• Do not use oven cleaners, harsh/abrasive cleaning agents, waxes, or polishes. No commercial oven cleaner, oven liner, or protective coating of any kind should be used in or around any part of the oven. Do not use harsh/abrasive cleaners, scourers or sharp metal scrapers to clean the oven door glass since they scratch the surface, which may result in the glass shattering.
• Avoid using products containing chlorine, acids or abrasives, especially for cleaning painted parts. In addition, avoid using acid or alkaline substances.
• Do not spray water or use a steam cleaner to clean any part of the oven. Use only slightly damp cloths.

MICROWAVE COOKING

• Do not attempt to operate this microwave with the door open. This can result in harmful exposure to microwave energy. It is important not to damage or tamper with the safety interlocks.
• Do not place any object between the microwave oven and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• Do not operate the microwave oven if it is damaged. It is particularly important that the microwave oven door closes properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.

• Do not repair or replace any part of the appliance unless specifically recommended in this guide. All other servicing should be done by a Haier trained and supported service technician.

• If the door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

• It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• Do not operate microwave functions while the oven is empty.
• Eggs in their shells and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.

• Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.
• Liquids, such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
• Do not overheat liquid. To avoid delayed boiling when heating liquids, always put a spoon in the container. Beverages containing spoons should be placed in the center of the oven. Metal components must stay at least 2 cm from the walls of the oven and the inside of the door. Sparks could damage the inside of the glass door. Stir the liquid both before and halfway through heating it.
• Do not use straight-sided containers with narrow necks. Use a wide-mouthed container.
  • After heating, allow the container to stand in the microwave

oven for at least 20 seconds before removing the container.

• Use extreme care when inserting a spoon or other utensil into the container.
• WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
• Only use utensils that are suitable for use in microwave ovens.

UNSUITABLE DISHWARE

• The baking tray must be removed when using the microwave mode. It can be used with convection functions and combined functions.
• Never turn on the microwave oven before you have put in the food. The only exception allowed is testing dishware.
• Only use plates and crockery that are microwave safe.
• Never heat food covered in tin foil.
• Use only bakeware approved for oven use. Follow the manufacturer's instructions.
  Metallic containers for food and beverage are not allowed during microwave cooking.

PACEMAKERS

- Most pacemakers are shielded from interference from electronic products, including microwaves. However, patients with pacemakers may wish to consult their physicians if they have concerns.

ARCING

- Arcing can occur during both speed cooking and microwave cooking. If you see arcing, press CANCEL/OFF and correct the problem. Arcing is the microwave term for sparks in the oven. Arcing is caused by:

- Metal or foil touching the side of the oven.

• Metal cookware or the wire oven rack used during either speed cook or microwave cooking.
• Metal such as twist-ties, poultry pins, or gold rimmed dishes in the oven.
• Recycled paper towels containing small metal pieces being used in the oven.

NOTE:

- Microwave functions tend to generate water vapour - condensation of water on the door may occur, it is an expected behavior.

- All the functions require the door to be closed in order to operate. If the door is opened, the UI will ask you to close the door before restarting the cooking process.

- The household appliance is equipped with a temperature management system that can result in acoustic variations during and after use. These variations are an integral part of the cooling process and ensure the best product performance. The cooling process can be accelerated by opening the door after cooking is complete.

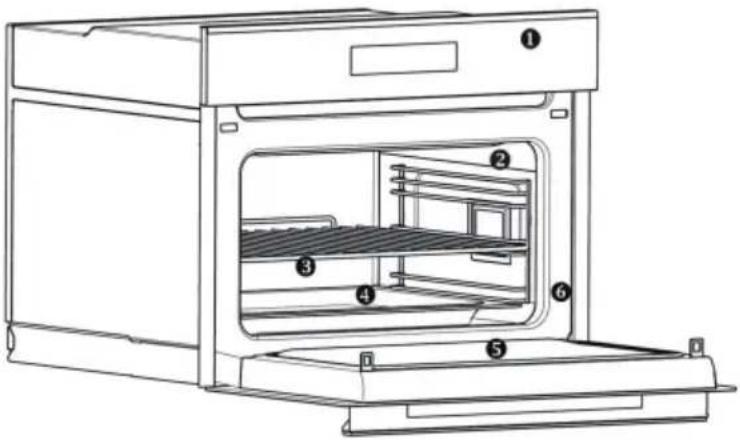

Technical diagram of an oven with numbered components for identification

1. Control panel
2. Lateral wire grids
3. Metal grids
4. Tray
5. Oven door
6. Serial number & QR Code

Empty white rectangle with black border (no text or symbols)

Write here your serial number for future reference

ACCESSORIES

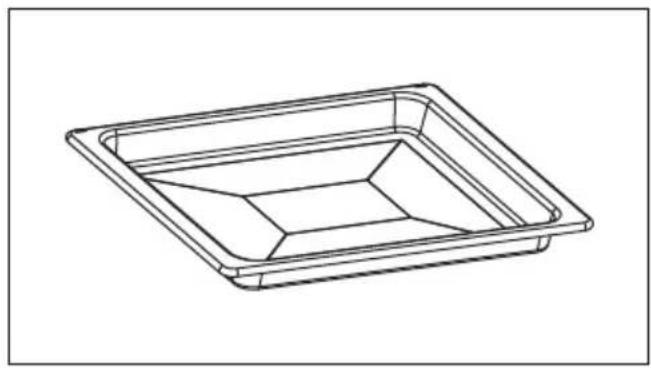

Tray

Line drawing of a square tray with internal geometric cutouts (no text or symbols)

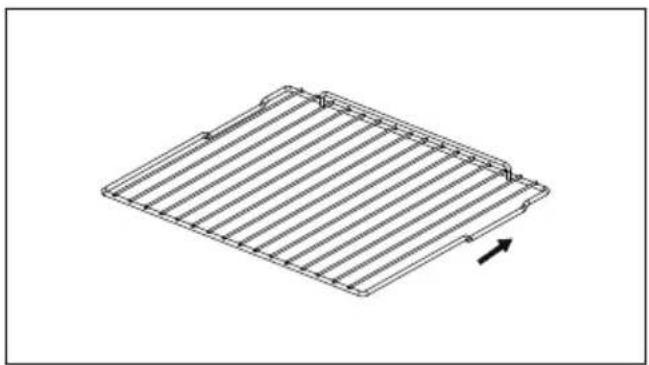

Metal grid

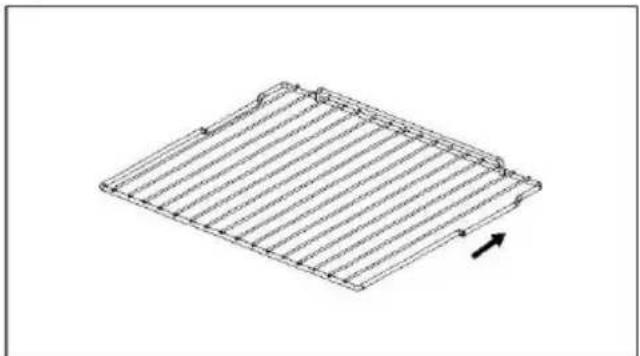

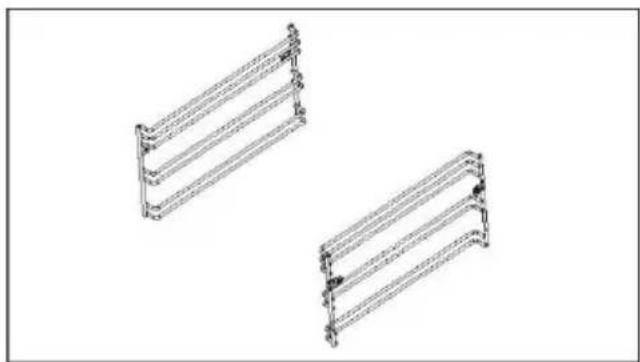

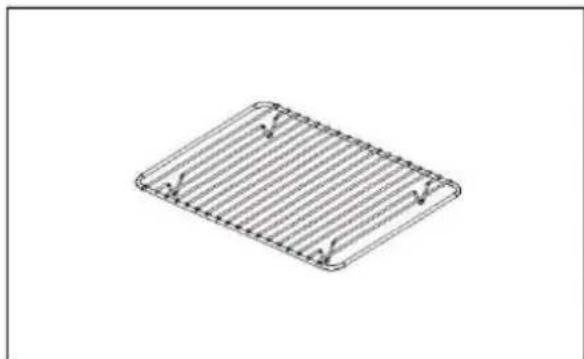

Isometric line drawing of a rectangular metal grate or rack structure with a directional arrow indicating rotation (no text or symbols)

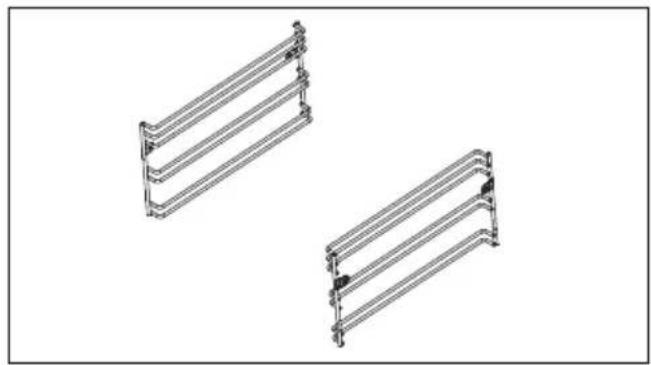

Lateral wire grids

Two identical metal frame structures arranged side by side, no text or symbols present.

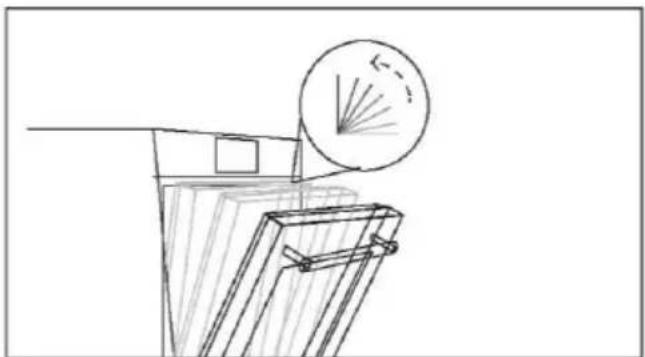

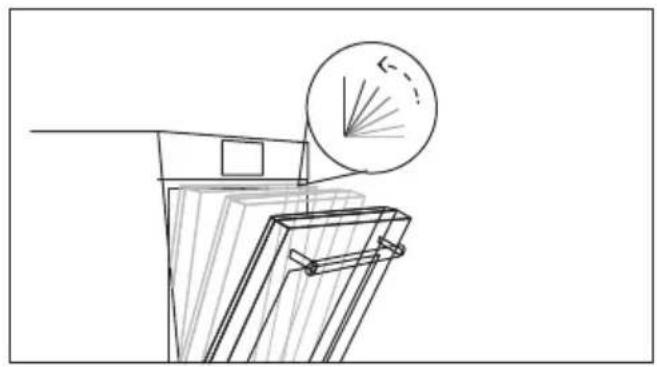

Soft close

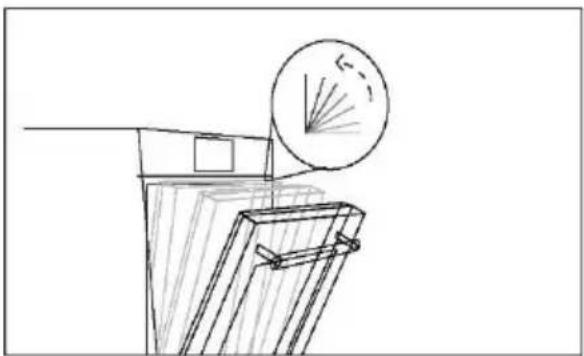

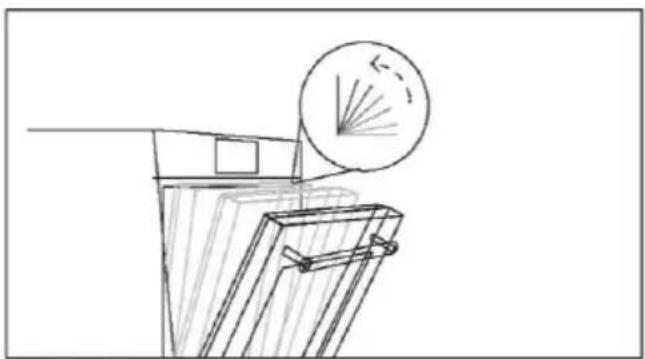

Line drawing of a cabinet with a magnified circular inset showing radial lines (no text or symbols)

©

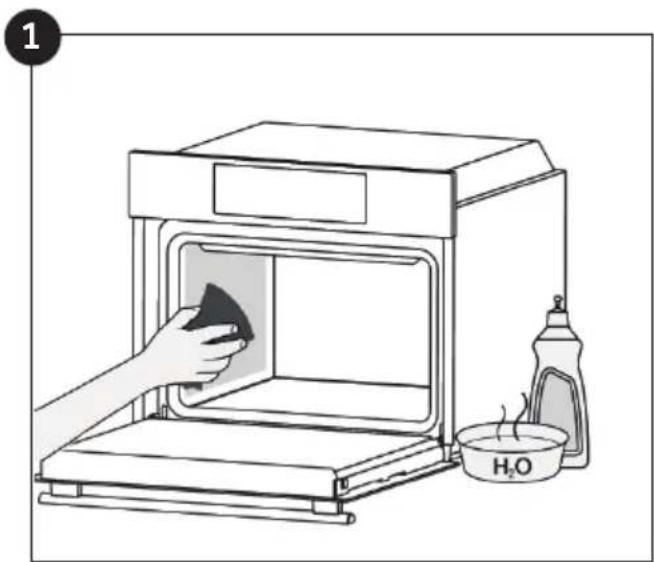

1 H₂O

2 H₂O

TROUBLE SHOOTING

Oven window seal Error

ERROR

1

Simple line drawing of a cabinet with a coiled snake on top (no text or symbols)

1 H2O

SAVING AND RESPECTING TH ENVIRONMEN'

Where possible, avoid pre-heating the oven and always try to fill it. Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate. Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the "delayed cooking" programme makes energy saving more simple, moving the cooking process to start at the reduced tariff time slot.

WASTE MANAGEMENT AN ENVIRONMENTAL PROTECTIC

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused).

Symbol of a trash bin crossed with two crossed lines, no text or labels present

It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. In - individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• The WEEE should not be treated as domestic waste;
• The WEEE should be taken to dedicated collection areas managed by the town council or a registered company
  In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

FR RECO

22 INFORMATIONS SUR LA SÉCURITÉ
34 DESCRIPTION DU PRODUIT
36 NETTOYAGE ET ENTRETIEN
36 DÉPANNAGE
37 PROTECTION DE L'ENVIRONNEMENT ET ÉLIMINATION
123 INSTALLATION

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Line drawing of a rectangular tray with internal compartments (no text or symbols)

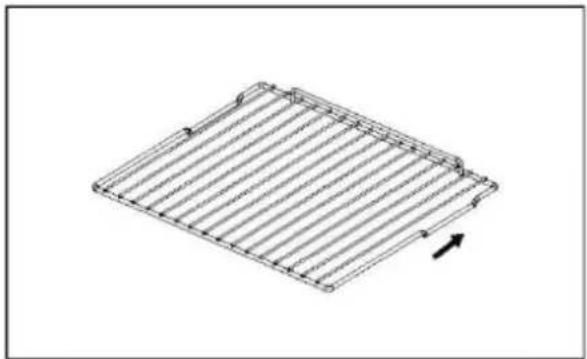

Grille métallique

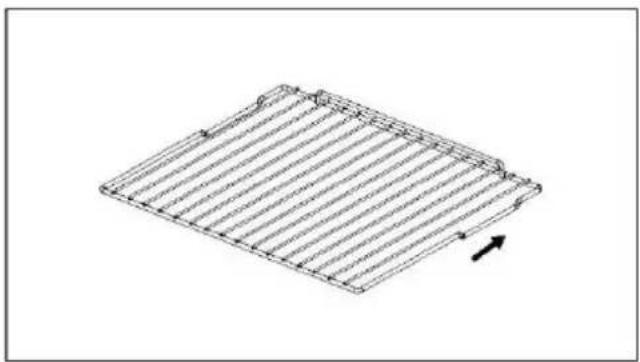

Isometric line drawing of a grid-like structure with an arrow indicating direction (no text or symbols)

Two identical metal truss structures arranged in a 2x2 grid, no text or symbols visible.

Fermeture douce

Hand-drawn sketch of a mechanical component with a circular inset showing radial lines (no text or symbols)

Technical line drawing of a rectangular metal grate or rack structure with a directional arrow indicating rotation (no text or symbols)

Simple line drawing of a square container with a rounded top and bottom edges (no text or symbols)

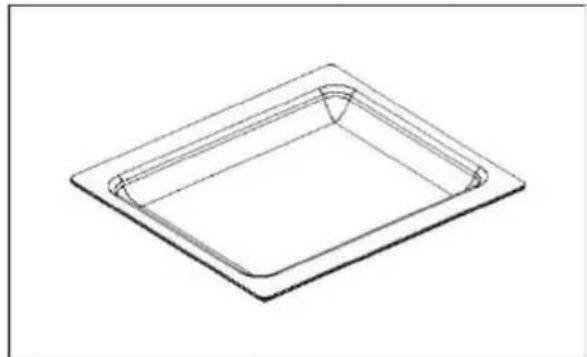

Isometric line drawing of a rectangular plate with horizontal grooves and corner holes (no text or symbols)

Line drawing of a medical or laboratory probe with a curved tube and connector (no text or symbols)

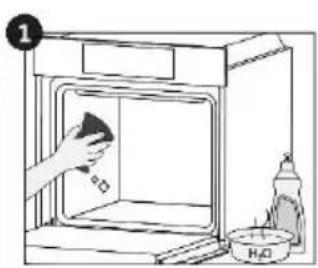

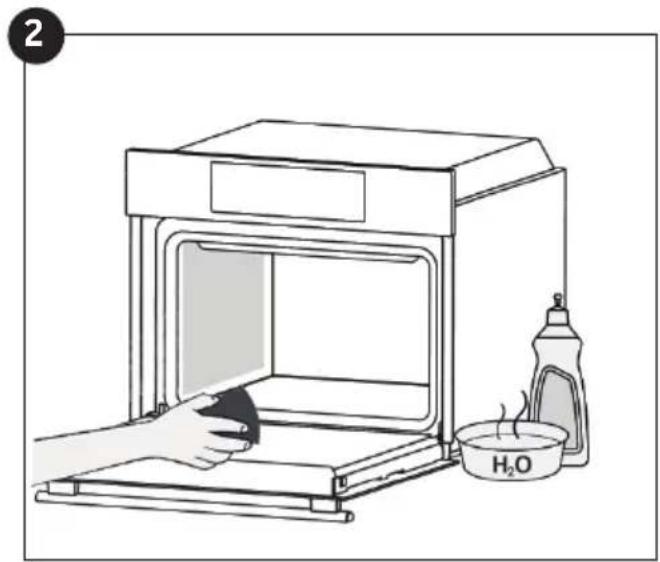

Illustration of a kitchen oven with a hand cleaning the interior and a water bottle labeled H₂O (no text or symbols on the main subject)

DÉPANNAGE

Erreur

ERROR

Illustration showing two people discussing a rising stock chart, with one person gesturing and the other observing.

Simple line drawing of a mechanical component with a scroll and warning symbol (no text or labels)

Diagram showing a hand cleaning a kitchen with a water bottle and labeled component

PROTECTION DE L'ENVIRONNEMENT ET ÉLIMINATION

PROTECTION ET RESPECT DE L'ENVIRONNEMENT

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic inside (no text or symbols)

Symbolic diagram showing recycling process with person, recycling arrow, open book, and trash bin icon

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Line drawing of a rectangular tray with internal compartments (no text or symbols)

Griglia metallica

Isometric line drawing of a grid-like structure with horizontal lines and an arrow indicating direction (no text or symbols)

Two identical metal truss structures arranged in a 2x2 grid, no text or symbols visible.

Soft Close

Hand-drawn sketch of a mechanical component with a circular inset showing radial lines (no text or symbols)

Technical line drawing of a rectangular grid structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a square frame with rounded corners and a central curved cutout (no text or symbols)

Isometric line drawing of a rectangular plate with horizontal grooves and corner cutouts (no text or symbols)

Line drawing of a medical or laboratory probe with a curved tube and two connectors (no text or symbols)

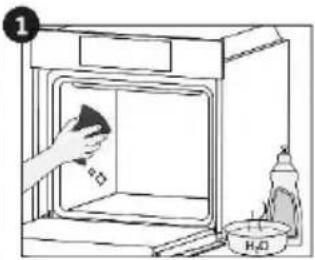

Illustration of a kitchen oven with a hand cleaning the interior and a water bottle labeled H₂O (no text or symbols on the main subject)

Illustration showing two people discussing a rising stock chart, with one person gesturing and the other observing.

Diagram of a mechanical or electrical component with swirling patterns and directional arrows (no text or symbols)

Diagram showing a hand cleaning a kitchen with a water bottle and labeled component

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Symbolic diagram showing recycling, file open, and trash bin with icons for person, refresh, and recycle.

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Line drawing of a rectangular tray with internal compartments (no text or symbols)

Metallrost

Technical line drawing of a grid-like structure with an arrow indicating direction (no text or symbols)

Two identical metal truss structures arranged in a 2x2 grid, no text or symbols visible.

Soft Close

Sketch of a window frame with a circular inset showing radial lines (no text or symbols)

Line drawing of a rectangular metal grate with horizontal slats and a directional arrow (no text or symbols)

Simple line drawing of a rectangular tray or container with rounded edges (no text or symbols)

Isometric line drawing of a rectangular grid-like structure with diagonal lines and corner markers (no text or symbols)

Line drawing of a medical or laboratory probe with a curved tube and connector (no text or symbols)

Illustration showing two people discussing a rising stock chart, with one person gesturing and the other observing.

Dichtung Ofentür

Simple line drawing of a mechanical component with a scroll-like extension and an arrow indicating direction (no text or symbols)

1 H2O

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

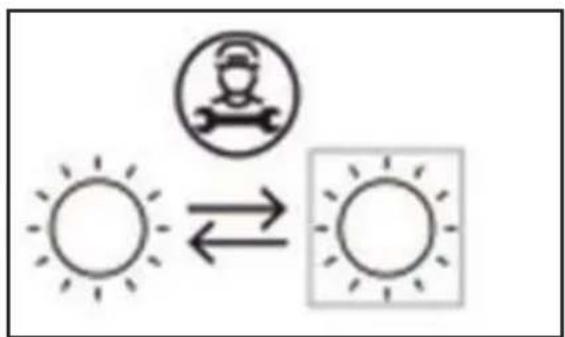

Weather icon showing sun and person with directional arrow, likely indicating solar or wind circulation

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Line drawing of a rectangular tray with internal compartments (no text or symbols)

Rejilla metálica

Technical line drawing of a grid-like structure with an arrow indicating direction (no text or symbols)

Rejillas laterales

Two identical metal truss structures arranged in a 2x2 grid, no text or symbols visible.

Cierre suave

Hand-drawn sketch of a mechanical component with a circular inset showing radial lines (no text or symbols)

Estante de alambre abatible

Technical line drawing of a rectangular metal grate or rack structure with no text or symbols

Isometric line drawing of a rectangular tray or container with a curved top edge (no text or symbols)

Isometric line drawing of a rectangular plate with horizontal grooves and rounded edges (no text or symbols)

Line drawing of a medical or laboratory probe with a curved tube and connector (no text or symbols)

Illustration showing two people discussing a rising stock chart, with one person gesturing and the other observing.

Diagram of a mechanical or electrical component with swirling lines and directional arrows, no readable text or symbols present.

Diagram showing a kitchen appliance with a cloth cleaning the interior, labeled with a numbered step and a chemical reaction setup.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

FR Open Book

Weather icon and sun symbol diagram showing a person in a hat above the sun, with arrows indicating direction of change.

90 VEILIGHEIDSINFORMATIE
102 PRODUCTBESCHRIJVING
104 REINIGING EN ONDERHOUD
104 PROBLEEMOPLOSSING
105 MILIEUBESCHERMING EN VERWIJDERING
123 INSTALLATIE

Technical diagram of an oven with numbered components for identification

Empty white rectangle with black border (no text or symbols)

Line drawing of a rectangular tray with internal compartments (no text or symbols)

Metalen rooster

Isometric line drawing of a grid-like structure with horizontal lines and an arrow indicating direction (no text or symbols)

Zijroosters

Two identical metal truss structure diagrams arranged in a 2x2 grid (no text or symbols)

Soft-close

Hand-drawn sketch of a mechanical component with a circular inset showing radial lines (no text or symbols)

Technical line drawing of a rectangular grid structure with an arrow indicating direction (no text or symbols)

Isometric line drawing of a square container with a curved top surface (no text or symbols)

Grillrooster/braadrooster

Isometric line drawing of a rectangular plate with horizontal grooves and corner arrows indicating direction (no text or symbols)

Line drawing of a medical or laboratory probe with a curved tube and connector (no text or symbols)

Illustration of a kitchen oven with a hand cleaning the interior and a water bottle labeled H₂O (no text or symbols on the main subject)

PROBLEEMOPLOSSING

Fout

ERROR

Illustration showing two people discussing a rising stock chart, with one person gesturing and the other observing.

Diagram of a mechanical or electrical component with swirling lines and directional arrows, no readable text or symbols present.

Diagram showing a kitchen appliance with a cloth cleaning the interior, labeled with a numbered step and a chemical reaction setup.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Technical diagram of an oven with numbered components for identification

1. Painel de controlo
2. Grades laterais
3. Grades metálicas
4. Tabuleiro
5. Porta do forno
6. Número de série e código QR

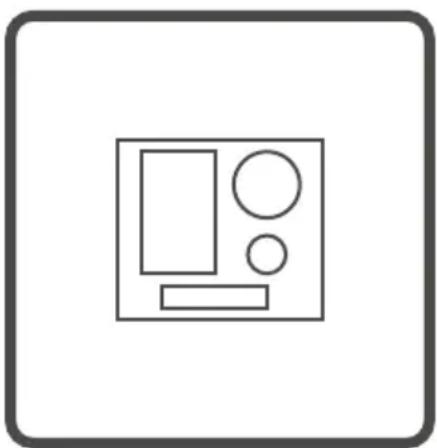

Empty rectangular frame with black border (no text or symbols)

Line drawing of a rectangular tray with internal geometric patterns (no text or symbols)

Grade metálica

Isometric view of a rectangular metal grate with horizontal slats and an arrow indicating direction (no text or symbols)

Grades laterais

Two identical metal truss structures arranged side by side, no text or symbols visible

Fecho suave

Hand-drawn sketch of a wooden cabinet with a circular inset showing radial lines (no text or symbols)

Isometric line drawing of a rectangular grid structure with a directional arrow (no text or symbols)

Grelha de grill/cozedura

(apenas se presente*)

Isometric line drawing of a rectangular plate with horizontal slats and a central slot, no text or symbols present.

Tabuleiro de vidro MW (apenas se presente*)

Isometric line drawing of a square plate with a small triangular cutout on top (no text or symbols)

Sonda de carne com fio (apenas se

presente*)

Line drawing of a medical or laboratory probe with a curved tube and two connectors (no text or symbols)

Illustration of a hand cleaning a small oven with a bottle and water bath (no text or symbols)

Simple line drawing of a cabinet with a scroll and warning symbol (no text or labels)

1 H2O

Isometric line drawing of a 3D box with internal compartments and a side clip (no text or symbols)

EN NOTE: It is not recommended to install the oven under cooktop.

If this is necessary, be sure to leave a large enough gap for the cooktop according to the manufacturer's instructions. Fixed the product on the cabinet by using the attached two screws.
