USER MANUAL J-28 Brentwood

© 2024 Brentwood Appliances, Inc.

ELECTRIC CITRUS JUICER EXPRIMIDOR ELÉCTRICO DE CÍTRICOS PRESSE-AGRUMES ÉLECTRIQUE

ITEM NO.: J-28_BK, J-28_BL

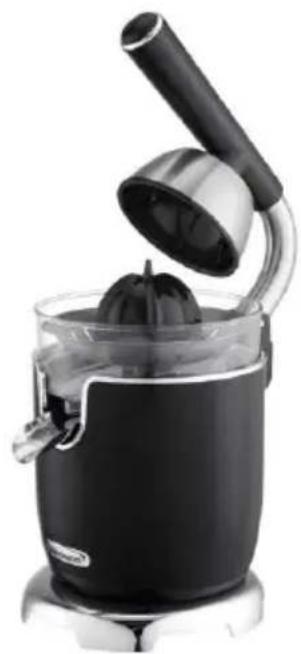

Black and white kitchen juicer with a hand mixer, no visible text or symbols

Modern kitchen blender with mint blue and silver casing (no text or symbols visible)

Operating and Safety Instructions

FOR INDOOR HOUSEHOLD USE ONLY

When using this or any other electrical appliance, always follow these basic safety precautions, especially when children are present.

READ ALL INSTRUCTIONS BEFORE USE

⚠ WARNING-To reduce the risk of fire, electric shock, serious personal injury and property damage please note the following:

• This appliance is not intended for use by children. Keep the appliance out of the reach of children and pets. Extra caution is necessary when using this appliance near children.
• Always ensure the product is unplugged from the electrical outlet and allowed to cool before assembling, disassembling, relocating, or cleaning.
• Do not leave the appliance unattended while it is in use. Always unplug the appliance from the electrical outlet when not in use.
• Do not immerse or expose the Base, Power Cord, or Plug of this appliance in water or other liquids.
• Do not use attachments not recommended or sold by the Manufacturer as it may cause fire, electric shock or injury.
• Do not place appliance on or near a hot gas or electric burner, in a heated oven, or other heated surfaces.
• Use extreme caution when moving an appliance containing food or liquids.
• Do not plug or unplug the appliance from the electrical outlet with a wet hand.
• This appliance is intended solely for non-commercial, non-industrial, household use in cooking of food for human consumption; do not use the product outdoors or for any other purpose.
• Do not operate the appliance empty.
• Do not let cord hang over edge of table or counter where it may be tripped over or pulled. Do not allow cord to touch hot surfaces.
• Do not operate the appliance if it has a damaged power cord or plug, if wires are exposed, if it malfunctions, if it is dropped or damaged, or if the motor housing is dropped in or exposed to water.
• This appliance has no user-serviceable parts. Do not attempt to examine or repair this appliance yourself. Please review the Warranty Policy on Page 7.
• Do not put any stress on the power cord where it connects to the appliance, as the power cord could fray and break.

SPECIAL INSTRUCTIONS: A short power supply cord is provided to reduce the risk of

becoming entangled in or tripping over a longer cord. An extension cord is not recommended for use with this product, but if one must be used:

• The marked electrical rating must be at least as great as that of the product.
• Arrange the extension cord so that it will not drape over the countertop or tabletop where it can be tripped over or pulled.

For EU product versions and/or in the case that it is requested in your country: Ecology and recyclability of the product:

• The materials of which the packaging of this appliance consists are included in a collection, classification, and recycling system. If you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.
• This symbol means that if you wish to dispose of the product once its working life has ended, take it to an authorized waste agent for the selective collection of waste electrical and electro equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment, and Directive 2009/125/EC on the eco-design requirements for energy-related products.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

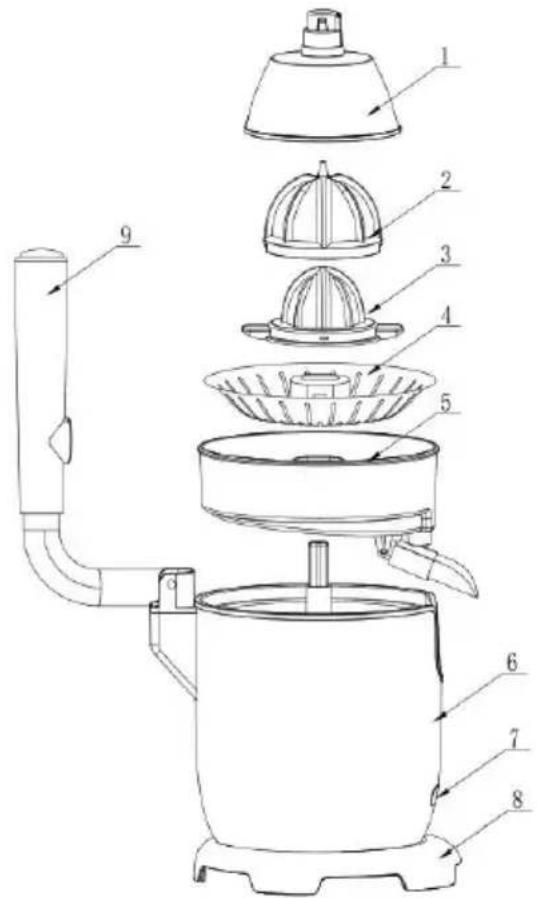

Parts:

Technical diagram of a coffee maker with numbered parts for identification

1. Protective cover
2. Bigger Cone
3. Smaller Cone
4. Filter
5. Juice Tray
6. Main Housing
7. Decorative Part
8. Base
9. Lever

Before First Use

IMPORTANT: Please check all packaging material carefully before discarding, as there may be accessory parts inside the packaging material.

NOTE: Before first use, clean all surfaces with a damp cloth and then dry.

Using Your Citrus Juicer:

Attention: First use may cause a slight odor or small smoking upon heating, it is normal. This is a result of the heating element chemical reaction. It quickly goes away.

1. Ensure that the power cord is fully extended and free of tangles to prevent any accidents.
2. Plug the citrus juicer into a power outlet to provide it with electricity.
3. Prepare the citrus fruits (such as oranges, lemons, or limes) by cutting them in half, making it easier to extract the juice.
4. Position a glass or container beneath the anti-drip valve of the juicer to catch the freshly squeezed juice and prevent any spills.
5. Once a halved citrus fruit is securely placed on the juicing cone, activate the juicer by pressing down on the handle. This action applies pressure to the fruit, extracting its juice.

NOTE: The adjustable spout adds convenience and reduces mess, allowing you to pour your juice with precision and ease. Lift it to close the spout, preventing any juice from escaping until you're ready to pour.

1. When you've finished extracting juice from the fruit, release pressure on the handle to stop the juicing process. This ensures that the appliance stops functioning and allows for safe removal of the fruit.

In addition to the previous steps, here are some more details for efficient and safe operation of the citrus juicer:

• Different Cones for Different Fruits: Use the appropriate cone size for the fruit you are juicing. The larger cone is suitable for bigger fruits like oranges, and you can press down using the lever provided. The smaller cone is for smaller fruits like lemons, and you need to press down with your hand.
• Correct Operation Timing Control: Follow a specific timing pattern for operating the appliance. Turn on the appliance for 15 seconds, then turn it off for 15 seconds to complete one working cycle. After operating the appliance for 10 cycles, it's important to stop operation and turn off the appliance for 30 minutes to allow it to rest and prevent overheating.
• Periodic Cleaning: If you're processing a large quantity of fruits, it's essential to periodically clean the filter and juice tray to remove any pulp or residue. This helps maintain the efficiency of the juicer and ensures that the juice remains free from any contaminants.

After you have finished using the appliance, follow these steps for proper maintenance:

• Always disconnect the appliance from the power source by unplugging it from the electrical outlet. This prevents any accidental activation of the appliance and ensures safety during cleaning.
• Proper cleaning of the appliance is essential to maintain its performance and hygiene. You may need to disassemble certain parts of the juicer for thorough cleaning. Use mild detergent and warm water to clean all removable parts, such as the cones, filter, and juice container. Pay special attention to any areas where pulp or juice may have accumulated. Rinse the parts thoroughly with clean water and allow them to dry completely before reassembling the appliance.

NOTE:

Only the removable parts (protective cover, larger cone, smaller cone, filter, and juice tray) may be cleaned with detergent and warm water or top rack dishwasher. The body should be wiped with a damp cloth if it becomes dirty.

RECIPE IDEAS

Homemade Lemonade:

Ingredients:4-6 large lemons (to yield about 1 cup of lemon juice)1 cup granulated sugar (adjust to taste)5 cups cold waterIce cubesFresh lemon slices and mint leaves for garnish (optional)

Directions:Prepare Lemons: Roll and cut lemons in half.Juice Lemons: Use a citrus juicer to extract about 1 cup of fresh lemon juice. Strain to remove seed and pulp if desired.Make Simple Syrup: Heat 1 cup of sugar and water until dissolved. Let cool.Mix Lemonade: Combine lemon juice, simple syrup, and 4 cups of cold water in a pitcher. Adj. sweetness or tartness to taste.Chill and Serve: Refrigerate for at least 1 hour. Serve over ice, garnish with lemon slices and mint if desired. Enjoy!

Lime Margarita:

Ingredients:4-6 limes (to yield about 1 cu of lime juice)1/2 cup silver tequila1/4 cup triple sec or orange liqueur1/4 cup simple syrup (or adju to taste)Ice cubesSalt or sugar for rimming glasses (optional)Lime wedges for garnish

Directions:Prepare Limes: Roll and halve limes. Juice them using a citrus juicer, strain pulp if desired.Mix Margaritas: In a shaker with ice, combine lime juice, tequila, triple sec, and simple syrup. Shak well.Prepare Glasses: Optionally rim glasses with salt or sugar.Serve: Fill glasses with ice, strain margarita mixture into glasses.Garnish and Enjoy: Garnish with lime wedges. Serve immediately. Cheers!

Write down the following information about your appliance to better help you obtain assistance or service if you ever need it.

CUSTOMER RECORD

Date of Purchase ____ Store/Dealer ____

Model/Item No: ____

THIS WARRANTY APPLIES TO PRODUCTS PURCHASED AND USED IN THE CONTINENTAL U.S. AND CANADA ONLY. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

THIS WARRANTY EXTENDS ONLY TO THE ORIGINAL CONSUMER PURCHASER. KEEP THE ORIGINAL SALES RECEIPT, AS PROOF OF PURCHASE IS REQUIRED TO MAKE A WARRANTY CLAIM.

This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than what is specified on the rating label (E.G., 120V\~60Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim do not return this appliance to the store.

TO OBTAIN WARRANTY SERVICE AND/OR TROUBLESHOOTING INFORMATION:

Call Customer Service at 1-888-903-0060 in the U.S.

Monday through Friday: 9:00am – 5:00pm PST.

U.S. Customers Please Email: [e-mail]

Canadian Customers Please Email: [e-mail]

Go online: www.brentwoodus.com

Technical diagram of a coffee maker with numbered parts for identification

Technical diagram of a coffee maker with numbered parts for identification

1. Cubierta protectora
2. Cono grande
3. Cono pequeño
4. Filtro
5. Bandeja de jugo
6. Carcasa principal
7. Parte decorativa
8. Base
9. Palanca
