USER MANUAL Barista LM8018 L'or

Technical diagram of a blender with labeled components including power button, socket, and plug, showing exploded view and assembly steps.

English 7

Dansk 27

Deutsch 46

Español 66

Français 86

Italiano 106

Nederlands 126

Norsk 146

Português 165

Svenska 185

Machine overview

1 On/off button
2 Ristretto button
3 Espresso button
4 Lungo button
5 Water tank lid
6 Water tank
7 Milk frother lid
8 Whisk holder
9 Whisk
10 On/off button of milk frother
11 Base of milk frother
12 Mains cord with plug
13 Used capsule drawer
14 Waste water drawer
15 Lower drip tray
16 Drip tray
17 Cup platform
18 Coffee outlet
19 Coffee dispensing spout cap
20 Capsule compartment
21 Lever

Introduction

Welcome to the L'OR Barista world! The L'OR Barista coffee system is the only capsule coffee system that allows you to brew two cups of coffee at the same time thanks to a coffee dispensing spout with double outlet.

The new and exclusive L'OR Barista double-shot coffee capsules allow you to brew two cups of coffee or a double shot of coffee.

The L'OR Barista coffee machine is also compatible with the L'OR Espresso single-shot coffee capsules. Thanks to the Dual Capsule Recognition technology, the machine automatically recognizes the capsule size and adapts the volume accordingly. All you need to do is press the button for the type of coffee you desire.

This model of the L'OR Barista coffee machine has an integrated milk frother to brew coffee with fresh, frothed milk.

Capsule compatibility

The L'OR Barista coffee machine has been designed to work with L'OR Espresso single-shot capsules and L'OR Barista double-shot capsules, as well as with Nespresso* capsules and aluminum capsules from coffee brands produced by Jacobs Douwe Egberts, such as Douwe Egberts, JACOBS, Jacqmotte, Jacques Vabre, Grand Mère, L'OR, Marcilla, Moccona, Saimaza and Senseo.

*brand of a third party not connected to JACOBS DOUWE EGBERTS and / or PHILIPS

Preparing for use

Before first use, remove all packaging materials from the machine.

When you use the machine for the first time or if you have not used it for 1 day or longer, perform the following steps:

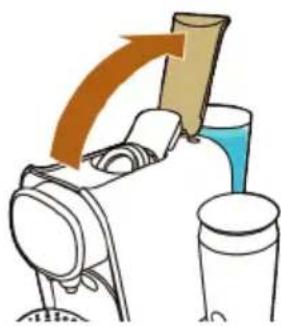

1 Remove the water tank from the machine.

Diagram of a robotic arm with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a glass with blue liquid being poured into it by a funnel (no text or symbols)

2 Rinse and fill the water tank under the tap. Place the water tank back onto the machine.

Illustration showing a coffee maker pouring liquid with a red X symbol indicating a warning or rejection.

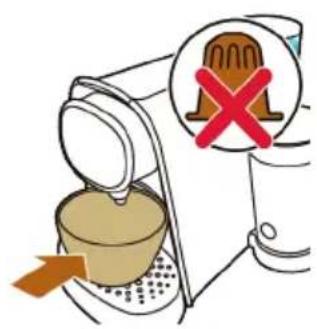

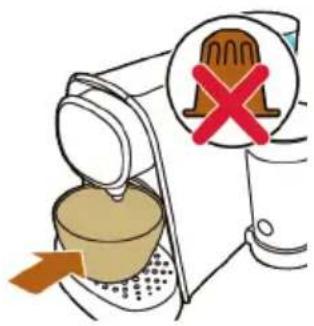

3 Place a bowl under the coffee dispensing spout. Do not insert a capsule and make sure that the lever is closed.

25 sec °C

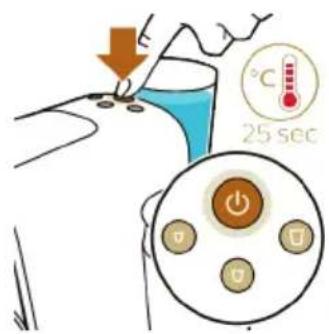

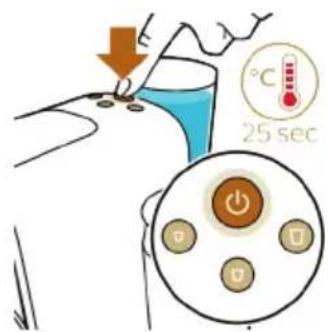

4 Press the on/off button to switch on the machine.

- The on/off button flashes slowly to indicate that the machine is heating up.

Diagram showing a hand pressing down on a device with a magnified view of five buttons labeled with icons.

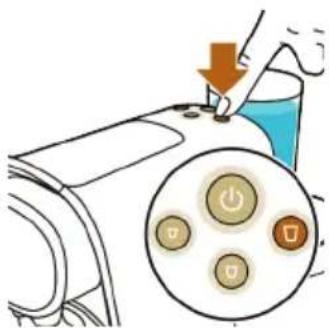

5 When all buttons light up continuously, press the lungo button. - Water flows from the coffee dispensing spout.

Note: When the internal water circuit is empty, the machine produces a humming sound. When the machine dispenses water, it produces a less loud humming sound. This is normal.

6 The machine is ready when all buttons light up continuously.
7 Empty the drip tray and waste water drawer (see 'Cleaning the used capsule drawer and waste water drawer').

The machine is now ready for use.

Brewing coffee

Beverages and capsules

Capsules

L'OR aluminum capsules are available online at www.lorespresso.com and in shops. You can choose from a variety of coffee capsules for different types of coffee.

Beverages

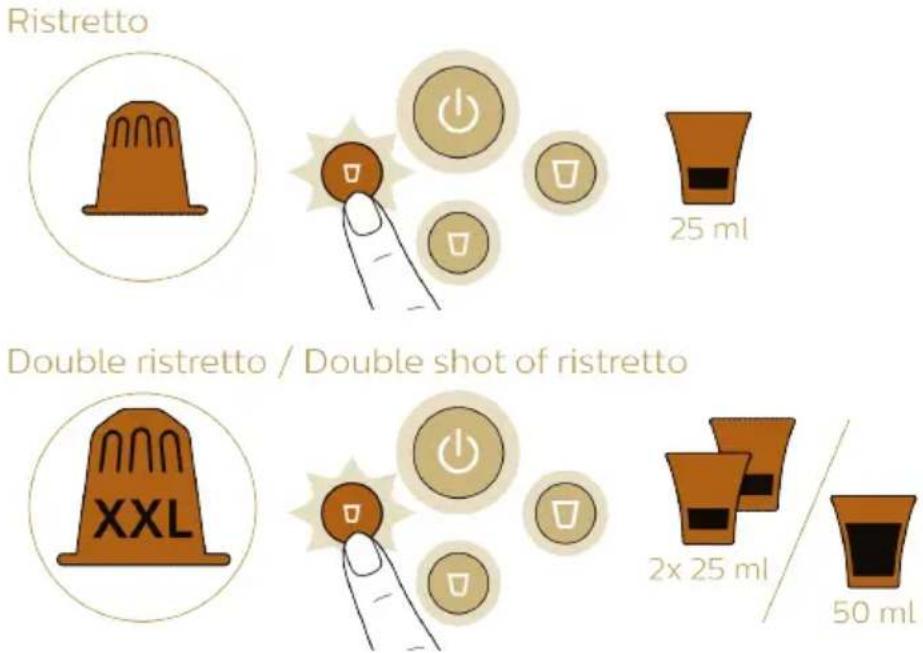

Thanks to the Dual Capsule Recognition technology, the machine automatically recognizes the capsule size and adapts the volume of your drink accordingly. All you need to do is press the button for the type of coffee you desire.

Ristretto 25 ml Double ristretto / Double shot of ristretto XXL 2x 25 ml 50 ml

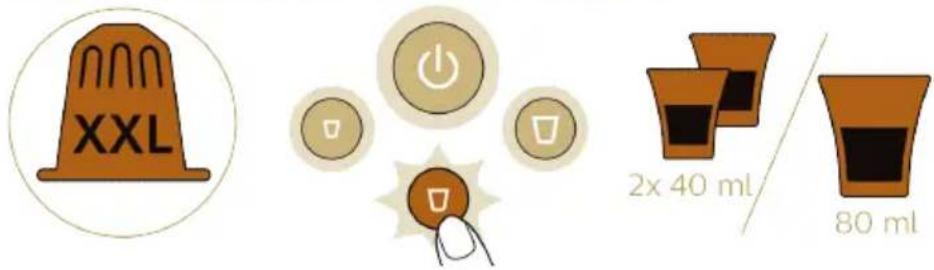

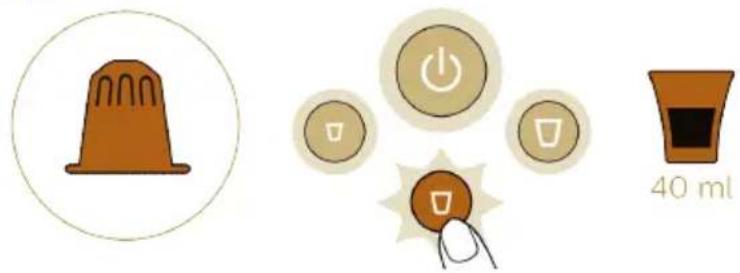

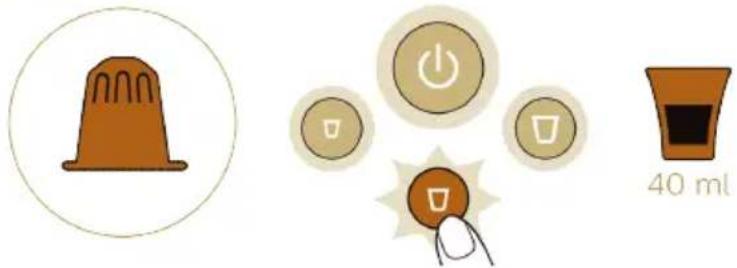

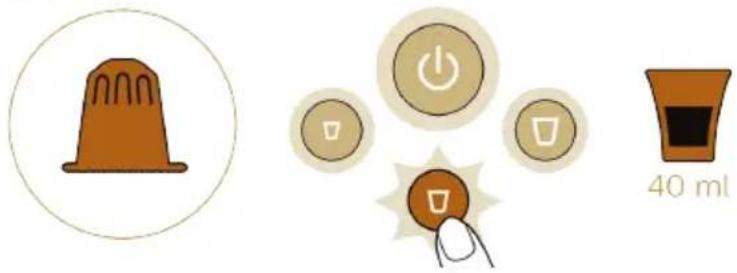

Espresso

40 ml

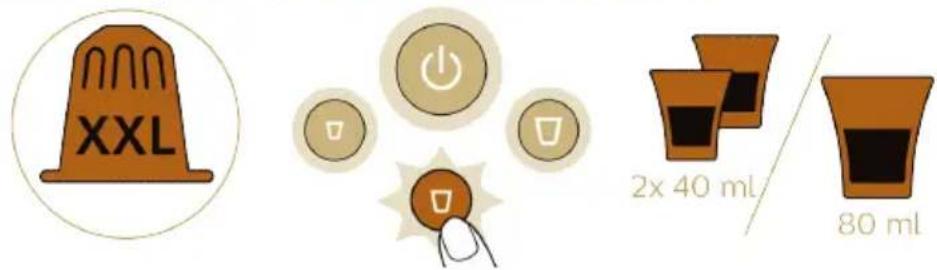

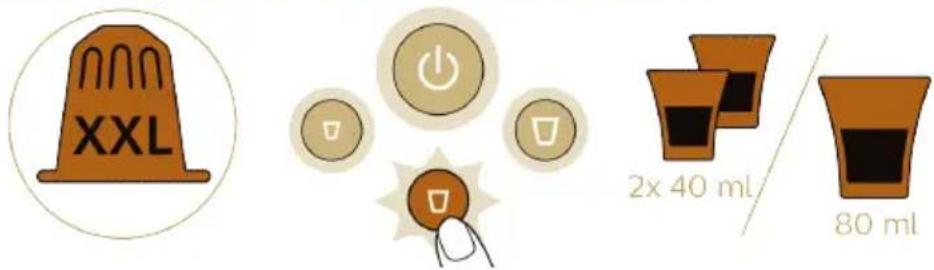

Double espresso / Double shot of espresso

XXL 2x 40 ml / 80 ml

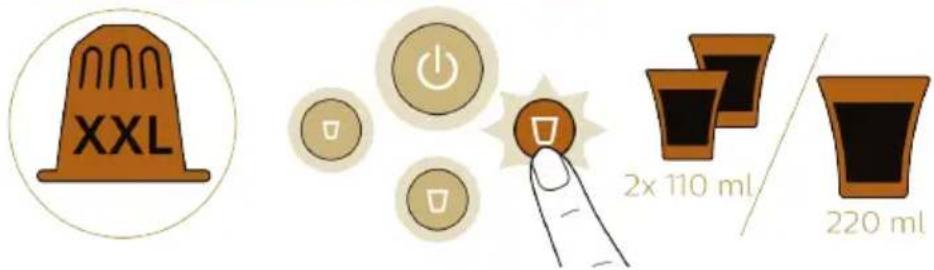

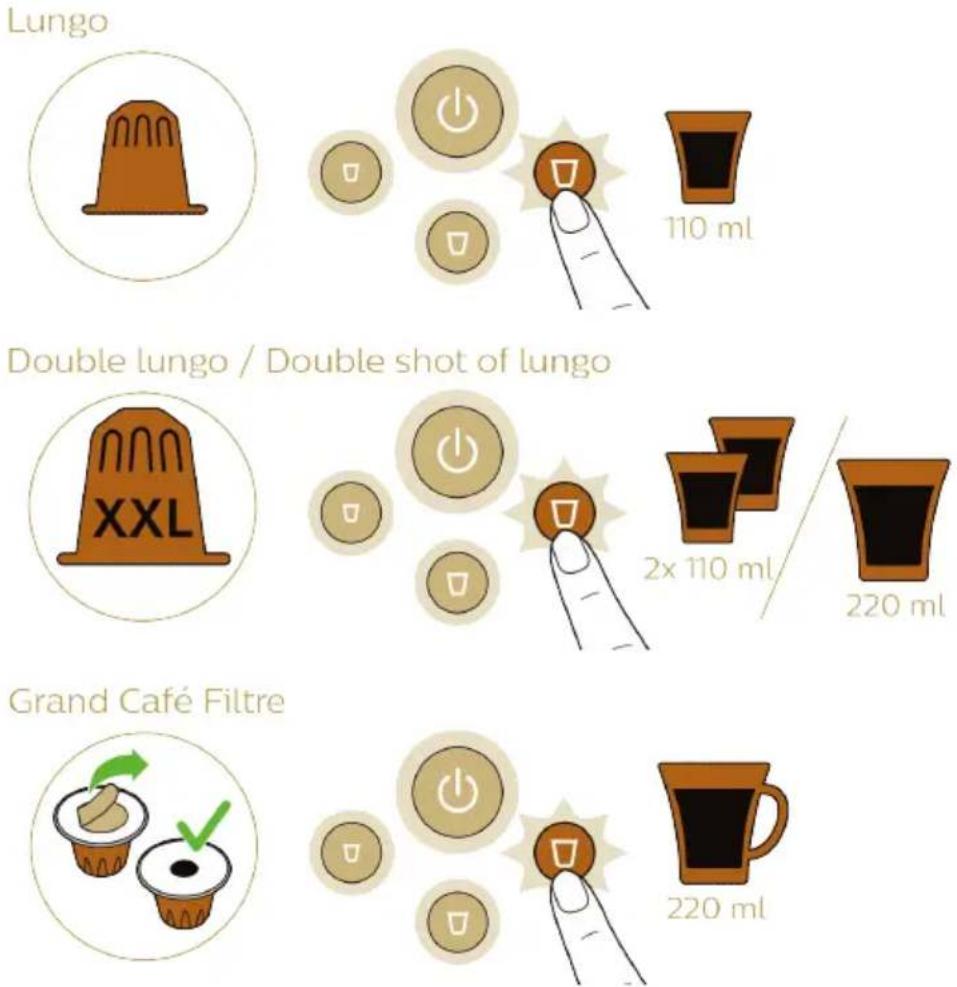

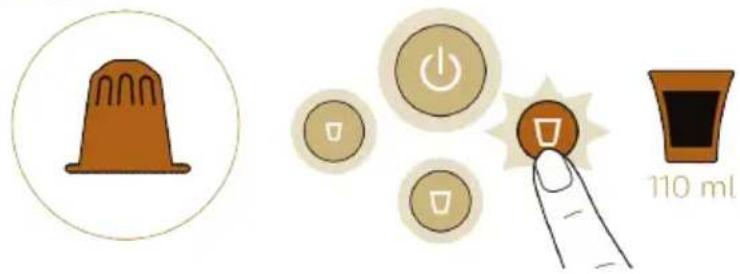

Lungo

110 ml

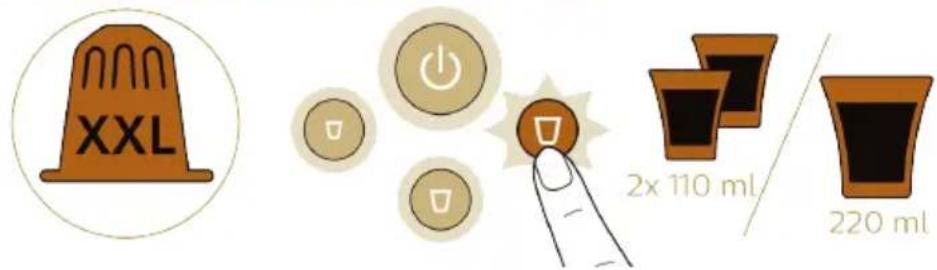

Double lungo / Double shot of lungo

XXXL 2x 110 ml / 220 ml

Grand Café Filtre

Illustration showing a cup with a green checkmark, a coffee cup, a power button, and a 220 ml volume indicator.

Preparing coffee

1 Press the on/off button to switch on the machine. The on/off button starts flashing to indicate that the machine is heating up.

Line drawing of a handheld device with a circular handle and central component (no text or symbols)

2 For one coffee, place one cup under the coffee spout.

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

3 For two coffees, place two cups under the coffee spout.

Line drawing of a mechanical device with a handle and base (no text or symbols)

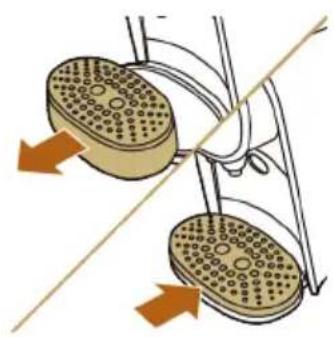

4 For a large coffee or Grand Café Filtre, remove the cup platform and the drip tray, place the cup platform on the lower drip tray and place a large cup or mug on the cup platform under the coffee spout.

Illustration of a hand pouring liquid into a container with a bottle, showing motion (no text or symbols)

5 Lift the lever.

Illustration showing a hand pouring liquid into a container with a magnified view of a brown object above it.

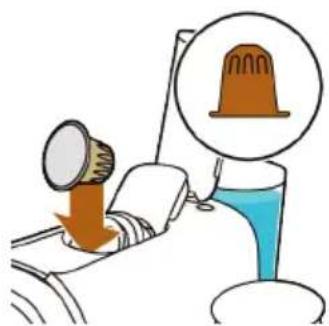

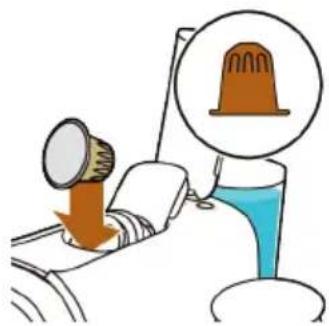

6 Insert a capsule.

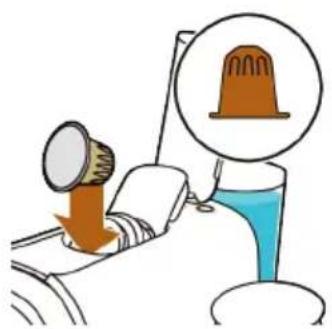

- For a single cup of coffee, insert a L'OR Espresso single-shot capsule.

XXL

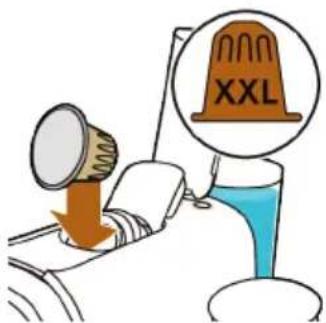

- For two cups of coffee or one large coffee, insert a L'OR Barista double-shot capsule.

Illustration of a hand washing machine with a blue cup and orange brush (no text or symbols)

7 Close the lever by pushing it down.

Make sure the lid is closed properly and the lid lever is locked before you start brewing.

Diagram showing a hand pressing down on a machine with a power button, alongside a circular icon labeled 'Power' and control buttons.

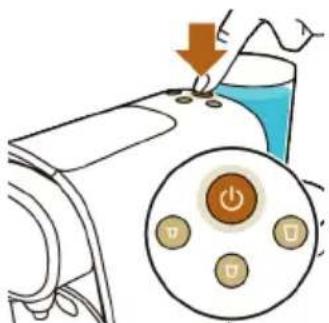

8 When the on/off button stops flashing and all buttons light up continuously, press the button for the type of coffee you desire.
9 Do not lift the lever until the brewing process has finished. Brewing is finished when the lights stop flashing and no more coffee comes out of the coffee outlets.

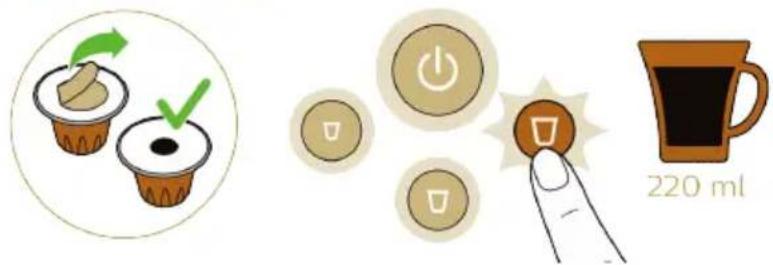

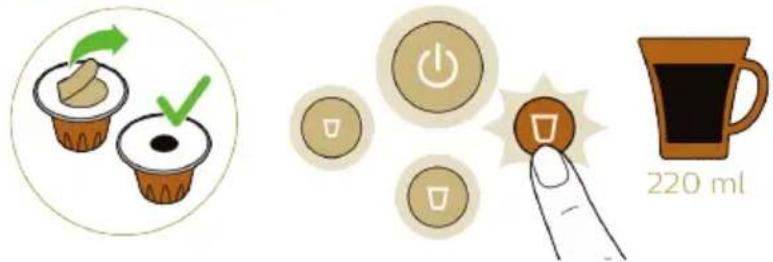

Brewing Grand Café Filtre

Illustration of two cupcake cups with green arrows indicating rotation and checkmark (no text or symbols)

1 Remove the seal completely from the capsule.

Illustration of a mechanical device pressing down on a glass with liquid, no text or symbols present

2 Lift the lever and insert the capsule.

Illustration of a hand pouring liquid from a bottle onto a device (no text or symbols)

3 Close the lever.

Diagram of two circular foot pushers with directional arrows indicating movement or force (no text or symbols)

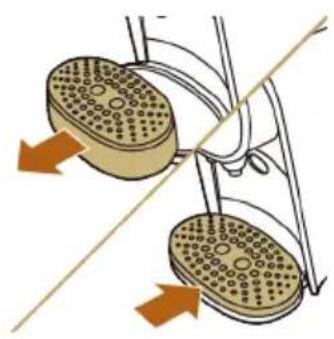

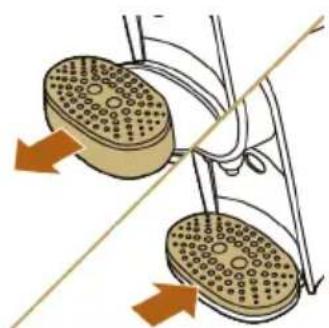

4 Remove the drip tray with the cup platform. Put the drip tray aside and place the cup platform on the lower drip tray.

Line drawing of a handheld device with a circular handle and base (no text or symbols)

5 Place a large cup or mug on the cup platform under the coffee dispensing spout.

Diagram showing a hand pressing down on a device with a circular button labeled with icons and a downward arrow indicating action.

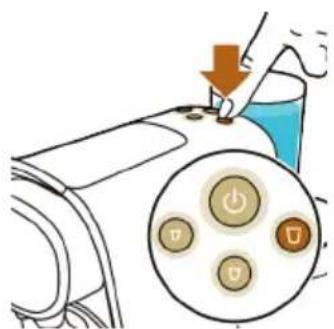

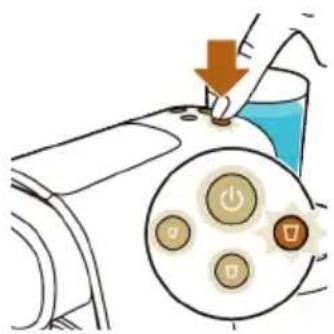

6 Press the lungo button to start the brewing process.

Drink personalization

With drink personalization, you can program your drink volume. Each coffee button on the machine has been programmed to brew coffee at its ideal setting. Nevertheless, you can adapt the coffee volume to your wishes, within a range that ensures the best coffee quality.

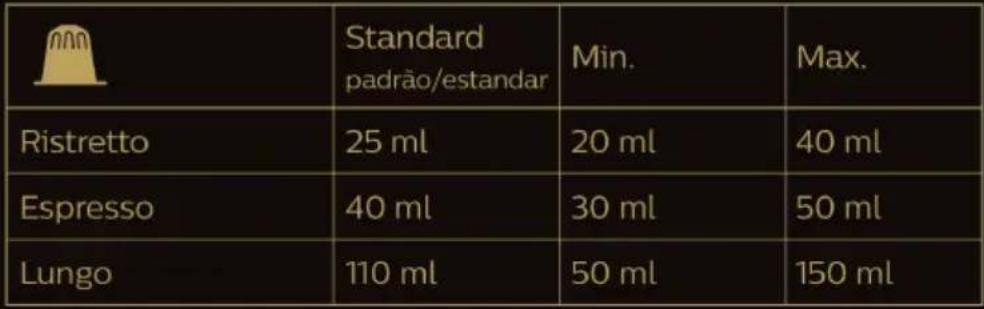

The coffee volumes for L'OR Espresso single-shot and L'OR Barista double-shot capsules are adjusted separately:

1 Press the on/off button to switch on the machine.
2 Fill the water tank.
3 Insert a capsule and close the lever.

• If you want to adjust the volume for L'OR single-shot espresso capsules, insert a normal L'OR Espresso capsule.
• If you want to adjust the volume for a L'OR Barista double-shot capsule, insert a L'OR Barista capsule.

4 Press and hold the button of the coffee whose volume you want to adjust for 3 seconds until the button flashes quickly. Then release the button. The machine starts brewing coffee.
5 Press the same button again when the cup contains the desired volume.

Note: If you press the coffee button too early, the machine programs the minimum volume of coffee shown in the table above. If you do not press the coffee button, the machine programs the maximum volume of coffee.

Resetting the coffee quantities

To reset the coffee quantities to their factory settings:

1 Press the on/off button to switch on the machine.
2 Wait until the machine has heated up and all buttons light up.
3 Press and hold the ristretto, espresso and lungo buttons simultaneously until all buttons flash quickly to show that the machine has been reset to factory settings.

Preparing milk

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

1 Remove the milk frother lid with the whisk holder attached from the milk frother.

Illustration of a funnel pouring liquid into a container with a bag of contents (no text or symbols)

2 Fill the milk frother with milk to the desired level. Do not fill beyond the MAX level.

Diagram showing a funnel pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

3 Place the milk frother lid with whisk holder back onto the milk frother.

Illustration showing a hand pressing a red object into a cup, with a speedometer indicating 1 second and a coffee cup nearby.

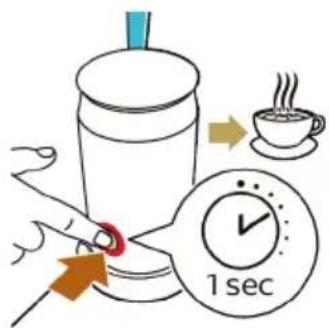

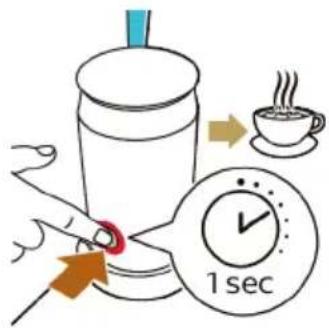

4 Press the button for 1 second to heat and froth the milk. The light in the on/off button comes on.

3 sec

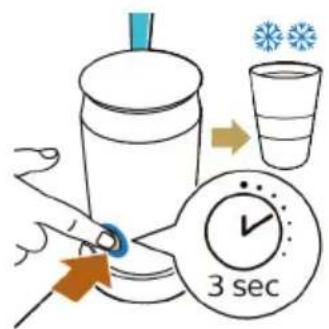

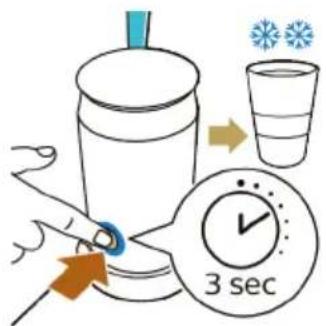

Note: Press the button for 3 seconds for cold frothed milk.

5 The milk froth is ready when the light in the on/off light goes off. You can now remove the milk frother lid with the whisk holder attached from the milk frother. Pour the frothed milk onto the freshly brewed coffee.

Cleaning and maintenance

Cleaning the used capsule drawer and waste water drawer

Check the used capsule drawer and waste water drawer regularly.

Illustration of a mechanical device with a gear and handle, showing internal components without any text or symbols.

Note: For optimal hygiene, pull up the lever after use to ensure the last used capsule falls into used capsule drawer.

1 Pull the used capsule drawer and the waste water drawer out of the machine.

Illustration of a hand turning a doorbell with a handle, showing mechanical components (no text or symbols)

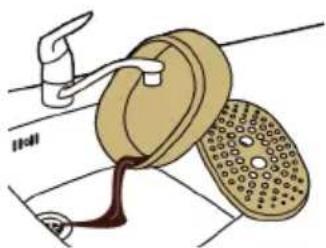

2 Remove the drip tray from the lower drip tray and rinse the drip tray and the cup tray under a warm tap. Do not clean these parts in the dishwasher.

Illustration of a box with open lid and open lid, showing internal compartments (no text or symbols)

3 Remove the used capsule drawer by pulling it up and empty it.

Caution: Be careful when you remove the used capsule drawer. Capsules are still hot immediately after brewing.

Illustration of a mechanical device with a green checkmark on its screen (no text or symbols present)

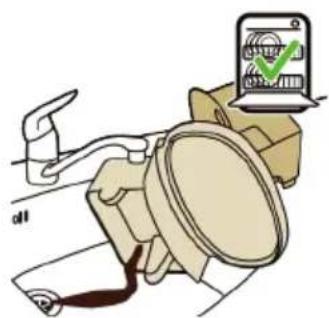

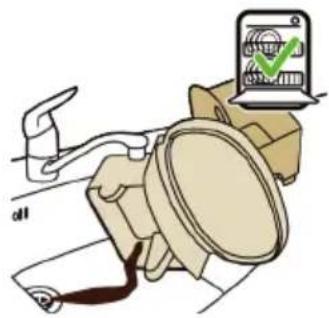

4 Rinse all parts under a warm tap. Dry all parts with a soft cloth. You can also clean all these parts in the dishwasher.

5 Reinsert the used capsule drawer into the waste water drawer.

6 Insert the waste water drawer with the used capsule drawer into the machine.

7 Place the drip tray back onto the lower drip tray. Place the cup platform onto the drip tray.

Cleaning other parts of the machine

Line drawing of a mechanical device with no visible text or symbols

1 Clean the outside of the machine with a soft damp cloth.

Caution: Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the machine.

Warning: Do not insert a finger into the capsule compartment to avoid injury. There is an invisible piercer inside.

Diagram illustrating seatbelt usage with labeled components and a smartphone displaying a weather check icon

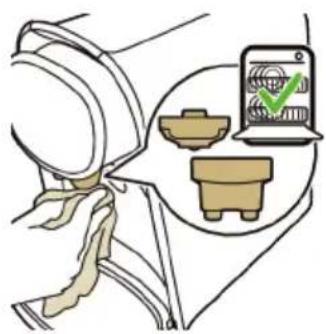

2 Clean the front of the machine with a soft damp cloth and clean the two parts of the coffee dispensing spout (the coffee outlet and the spout cover) under a warm tap or in the dishwasher.

3 Clean the water tank by rinsing it under a warm tap. The water tank is not dishwasher-proof.

Note: Rinse the water tank and fill it with fresh water every 24 hours.

Cleaning the coffee circuit

Illustration of a coffee machine with a cup and two cups (no text or symbols)

Clean the coffee circuit every week to ensure you get coffee with an optimum quality and taste.

1 Place a cup under the coffee dispensing spout.

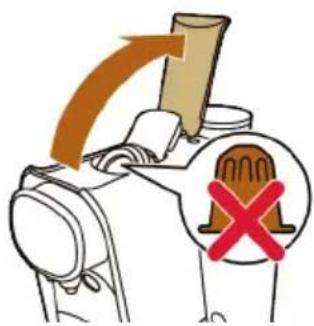

2 Lift the lever to ensure the last used capsule falls into the used capsule drawer.

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a red X symbol below a device.

3 Do not insert a new capsule and close the lever.

Diagram showing a hand pressing down on a device with a magnified circular button labeled with icons for power, switch, and battery.

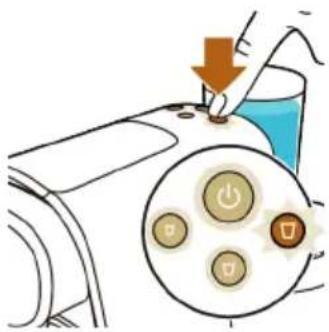

4 Press the lungo button.
5 Empty the cup after the machine has finished dispensing water.
6 Open the lever and repeat steps 3 to 5 to ensure proper cleaning of the coffee circuit.

The machine is now ready for use.

Cleaning the milk frother

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

1 Remove the milk frother from its base.
2 Remove the milk frother lid with the whisk holder attached from the milk frother.

Diagram illustrating temperature measurement with a thermometer and blue liquid flowing into a container

3 Rinse the inside of the milk frother under hot running water.

4 Clean the outside of the milk frother with a moist cloth.

5 Remove the whisk holder from the milk frother lid.

Diagram of a mechanical component with an upward arrow, no text or symbols present

6 Remove the whisk from the whisk holder.

Diagram illustrating a water treatment procedure with thermometer, temperature scale, and monitoring device interface

7 Rinse the milk frother lid and the whisk holder parts under hot running water.

Note: The lid and the whisk holder parts can also be cleaned in the dishwasher.

Diagram of a mechanical device with labeled parts and directional arrows indicating rotation or movement.

8 Reattach the whisk to the whisk holder.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

9 Reattach the shaft of the whisk holder to the milk frother lid.

Illustration of a hand pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

10 Place the milk frother lid with whisk holder back into the milk frother.

Descaling

When to descale

Simple line drawing of a curved surface with scattered circular elements (no text or symbols)

- Descale the machine when the ristretto and lungo button flash quickly a few times after brewing. The descaling procedure takes up to 40 minutes and consists of a descaling cycle and a rinsing cycle. Do not interrupt the descaling procedure.

Why to descale

Descaling is essential for the following reasons:

• It prolongs the life of your L'OR Barista coffee machine
• It ensures maximum cup volume
• It ensures maximum coffee temperature

- The machine produces less sound during brewing - It prevents malfunctioning

If the descaling procedure is not performed correctly, scale residue remains behind in the machine. This causes scale to build up more quickly and may cause permanent and irreparable damage to the machine.

Use the correct descaler

Only lactic acid-based descalers are suitable for descaling the L'OR Barista machine. This type of descaler descales the machine without damaging it. We advise you to use the dedicated L'OR Barista liquid descaler (CA6530) or Saeco liquid descaler (CA6700). It is available in bottles that contain liquid descaler for two descaling procedures. You need half a bottle for one descaling procedure and can store the other half for the next descaling procedure.

Descaling procedure

Diagram illustrating the step of pouring liquid into a glass, with labeled bottles and directional arrows.

Note: If something goes wrong during the descaling procedure, e.g. because you accidentally interrupt the descaling cycle, you have to restart the descaling procedure from step 1.

1 Press the on/off button to switch on the machine.

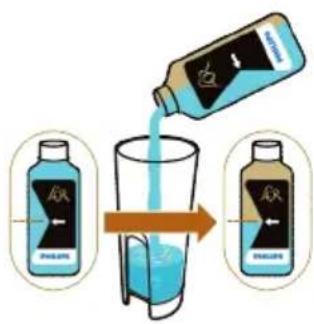

2 Pour half a bottle of L'OR Barista liquid descaler (CA6530) into the water tank.

3 Fill up the water tank with fresh tap water.

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a cross symbol in the lower right.

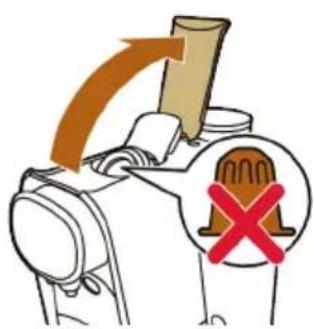

4 Make sure that there is no capsule in the capsule compartment.

Illustration of a hand washing machine with a bottle and fan (no text or symbols)

5 Close the lever.

1.5L

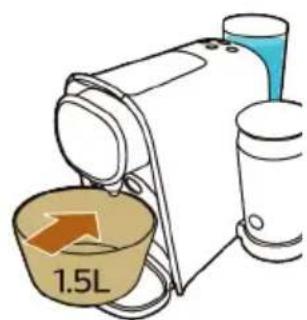

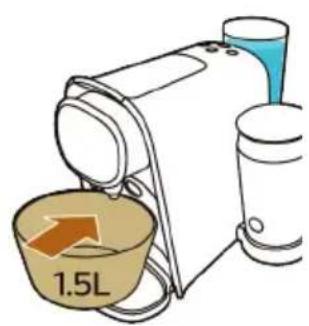

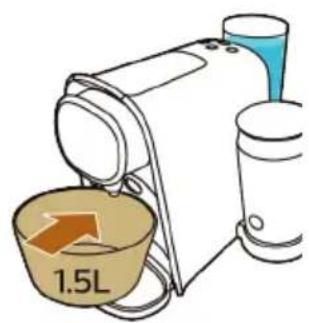

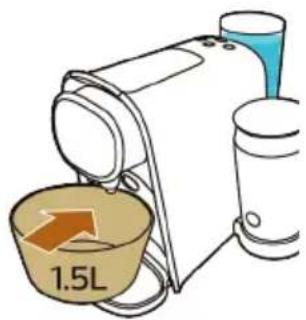

6 Place a bowl with a minimum capacity of 1.5 liters on the lower drip tray under the coffee dispensing spout to collect the descaling solution.

Diagram showing a hand using a tool to press down a device with a control panel, indicating action or operation.

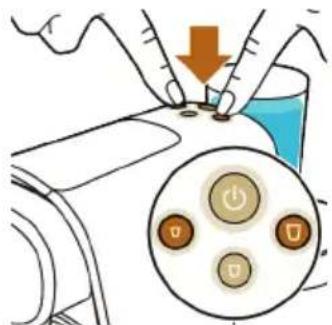

7 Press the ristretto and lungo button briefly at the same time.

Diagram showing a device with a power button and a magnified view of its control panel, indicating action or operation.

8 The ristretto button starts to flash quickly. Press the ristretto button to activate the descaling cycle. The machine dispenses the entire descaling solution at regular intervals. This takes up to 30 minutes.

- When the lungo button starts to flash quickly again, the first phase of the descaling cycle has finished.

Illustration of a hand washing a bowl into a sink with a faucet (no text or symbols)

9 Remove and empty the bowl. Place the bowl back onto the lower drip tray under the coffee dispensing spout.

10 Remove the water tank and rinse it under the tap. Fill the water tank with cold tap water and place it back onto the machine.

Diagram showing a hand pressing down on a device with a circular button labeled 'Power' and 'Switch', indicating action or operation.

11 Press the lungo button to start the flushing cycle.

Note: The water tank will be emptied without interruption. The flushing cycle lasts about 3 minutes.

Simple line drawing of a curved path with scattered brown oval objects and a green checkmark above (no text or symbols)

12 When the flushing cycle has finished, the ristretto and lungo button flash a few times.

Note: It is normal that some water remains behind in the water tank after the descaling procedure.

The machine switches off. The descaling procedure is finished.

Meaning of light signals

• The on/off button flashes slowly: the machine is heating up.
• The on/off button flashes quickly: the water tank is empty, fill the water tank with tap water.
• All buttons light up continuously: the machine is ready for use.
• The selected coffee button flashes slowly: the machine is preparing the coffee recipe.
• The selected coffee button flashes quickly:
• Programming is activated.
• The new coffee volume is saved.
• The ristretto and lungo button flash simultaneously after brewing coffee: you need to descale the machine.

Troubleshooting

This chapter summarizes the most common problems you could encounter with your machine. If you are unable to solve the problem with the information below, visit www.lorbarista.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Troubleshooting coffee machine

Problem Possible cause Solution

The machine does not switch on.	The machine is not connected to the mains.	Put the plug in an earthed wall socket.
The on/off button is flashing slowly.	The machine is heating up. This is normal.

Problem Possible cause Solution

The brewing time is longer than before.	The machine is clogging up with scale.	Descale the machine.
The temperature of freshly brewed coffee gradually decreases.	The machine is clogging up with scale.	Descale the machine.
The pump makes a lot of noise.	There is not enough water in the water tank.	Fill the water tank with fresh tap water.
	The water tank is not placed correctly.	Place the water tank correctly and push it downwards.
The machine suddenly stops brewing coffee.	There is not enough water in the water tank.	Fill the water tank with fresh tap water. Press the button of the selected type of coffee again to continue brewing. When the cup is full, press the same button again to stop the brewing process.
The on/off button flashes quickly.	The water tank is empty. Fill the water tank with fresh tap water. Press the button of the selected type of coffee again to continue brewing. When the cup is full, press the same button again to stop the brewing process.
I cannot close the capsule compartment lever completely.	Check if you use the recommended L'OR capsule. Other capsules may cause problems during use..
	The used capsule drawer is full. Empty the used capsule drawer and insert the capsule again.
	The capsule is not inserted correctly. Insert the capsule again and check if it is inserted correctly.
	The capsule is stuck. Open and close the lever a few times with moderate force to remove the capsule.
The lever does not open completely.	The used capsule drawer is full. Empty the used capsule drawer.
The machine does not dispense coffee or only dispenses drops of coffee.	You have not flushed the machine before first use.	Flush the machine before first use (see 'Preparing for use').
	There is not enough water in the water tank.	Fill the water tank with fresh tap water.
	Scale has built up inside the machine (see 'Descaling').	Descale the machine (see 'Descaling').

Problem Possible cause Solution

Coffee grounds end up in the cup of coffee.	A small amount of ground coffee will always end up on the bottom of the cup.	This is normal.
The coffee flow splits or is not straight.	The coffee dispensing spout cap is not placed correctly or it is missing.	Snap the coffee dispensing spout onto the coffee outlets.
The ristretto and lungo button lights are flashing after brewing.	This means it is time to descale the machine to prevent it from clogging with scale.	Descale the machine (see 'Descaling').
Why do I find water in the waste water drawer?	The used capsule drawer and waste water drawer catch the residual water released after brewing coffee.	This is normal.
The coffee quantity is not what I expected.	The coffee quantity has been adjusted.	Readjust the coffee quantity (see 'Drink personalization') or reset the coffee quantities (see 'Resetting the coffee quantities').
My coffee is less warm. When you brew the first cup of the day or when it has been a while since your previous cup of coffee, the inside of the machine is still cold when you brew coffee.		You can pre-heat the machine and coffee cup by brewing a cup of coffee first without placing a coffee capsule.
	If you use a cold, thick-walled cup, the coffee will cool down immediately.	Use thin-walled cups, as thin-walled cups will absorb less heat from the coffee than thick-walled cups. Make sure the size of the cup matches the coffee quantity. Do not brew a small quantity of coffee in a large cup.
	The machine is clogged with scale.	Descale the machine when the ristretto and lungo button flash quickly a few times after brewing (see 'Descaling').
	You used cold milk. If you drink coffee with cold, fresh milk, this will cool down your coffee. You can prevent this by preheating the milk.
The machine suddenly switches off after some time.	This is the automatic shut-off function.	The automatic shut-off function is programmed to switch off the machine after 9 minutes of inactivity to save energy.

Troubleshooting milk frother

Problem Possible cause Solution

The light in the on/off button flashes but the appliance does not operate.	You just prepared hot frothed milk or hot milk and pressed the button for milk or hot frothed milk again without letting the appliance cool down.	If you want to prepare hot frothed milk or hot milk again, the milk jug needs to cool down for a few minutes before you can use it again. As long as the milk jug is still hot, the temperature limiter makes sure that the appliance cannot be operated. You can rinse the inside of the milk jug with cold water to let it cool down faster.
	The temperature of the milk is too high.	Replace the warm milk with cold milk or let the appliance cool down.
The appliance does not froth. You have not placed the lid properly on the appliance.		Place the lid properly.
	You did not attach the frothing coil to the coil holder.	Attach the frothing coil to the coil holder.
	You used a type of milk that is not suitable for frothing.	Many factors can influence the quality of the milk froth (like protein content). If the milk does not froth as you would like, try a different type or brand of milk. Use semi-skimmed cow's milk at refrigerator temperature for the best frothing result.
	The inside of the milk jug is polluted with milk residues, which prevents the coil holder from rotating.	Clean the coil holder and the inside of the milk jug.
Milk escapes from under the lid. You put too much milk in the milk jug.		Do not fill the milk jug beyond the MAX indication.

Problem Possible cause Solution

The milk is not very hot. This is normal. The milk is heated up to	approx 74°C to ensure the best froth and taste. Milk proteins start to break down and burn if the milk is overheated.
Not all milk has been frothed. This is normal. The appliance does not froth	all the milk. The appliance created the optimal milk-froth ratio. The milk easily mixes with coffee or other beverages and the milk froth stays on top for a delicious head.

Oversigt over maskinen

Diagram of a hand pump mechanism with an upward arrow indicating motion (no text or symbols present)

Illustration of a glass with blue liquid being inverted by a funnel (no text or symbols)

Illustration showing a coffee maker with a red X symbol indicating a coffee maker's absence, accompanied by a magnified view of the printer.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified view of control buttons, indicating action or operation.

XXL 2x 25 ml 50 ml

Espresso

40 ml

Double espresso / Double shot of espresso

XXL 2x 40 ml / 80 ml

Lungo 110 ml Double lungo / Double shot of lungo XXL 2x 110 ml / 220 ml Grand Café Filtre 220 ml

Line drawing of a mechanical device with a handle and base (no text or symbols)

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Line drawing of a mechanical device with a handle and central component (no text or symbols)

4 For en stor kaffe eller Grand Café Filtre skal du fjerne kopplatformen og drypbakken, placere kopplatformen på den nederste drypbakke og placere en stor kop eller et krus på kopplatformen under kaffeudløbsrøret.

Illustration of a robotic arm with a wooden stick and arrow, next to a cup with liquid (no text or symbols)

5 Løft håndtaget.

Illustration showing a device emitting a bottle onto a glass with a magnified view of a bottle above it.

6 Sæt en kapsel i.

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

Diagram showing a hand pressing down on a blue liquid with a power button, alongside a circular control panel with four buttons labeled 'Power', 'Control', and 'Display'.

Illustration of two food containers with green arrows indicating a step, one open and one closed, both without any text or symbols.

Illustration of a mechanical device with a rotating knob and liquid, no text or symbols present

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

3 Luk håndtaget.

Diagram of two circular footshells connected by a rope, with arrows indicating force direction (no text or symbols)

4 Fjern drypbakken med kopplatformen. Læg drypbakken til side, og placer kopplatformen på den nederste drypbakke.

Line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram showing a hand pressing down on a surface with a magnified view of circular buttons labeled 'Power', 'Battery', and 'Discharge'.

Diagram of a hand pouring liquid into a container with an upward arrow, no text or symbols present

Illustration of a funnel pouring liquid into a container with a bag and a small object nearby (no text or symbols)

Illustration of a funnel pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

Illustration showing a hand pressing a red button into a steaming cup, with a stopwatch indicating 1 second time.

Diagram illustrating a step-by-step cooking process with a hand holding a blue object, showing steps to draw a glass and a 3-second timer.

Diagram of a mechanical device with internal components and a highlighted section (no text or symbols)

Illustration of a hand holding a wrench and a computer monitor, no text or symbols present

Illustration of a wooden box with an open lid and a paperclip, showing internal components (no text or symbols)

Illustration of a mechanical device with a green checkmark on its screen (no text or symbols present)

Line drawing of a hand cleaning a cylindrical device with handles and a cloth (no text or symbols)

Illustration of a car seatbelt with a laptop displaying a green checkmark (no text or symbols)

Line drawing of a coffee machine with a cup and two cups (no text or symbols)

Diagram illustrating a mechanical device with an arrow indicating direction and a red X symbol indicating failure or rejection.

Diagram showing a hand pressing down on a device with a circular button labeled with icons and a downward arrow indicating action.

Diagram showing a hand pouring liquid into a container with an upward arrow, no text or symbols present

Illustration showing a thermometer measuring liquid flow in a container with a thermometer above it

Simple line drawing of a curved surface with scattered circular elements (no text or symbols)

Diagram illustrating a glass being poured into a bottle, showing liquid transfer from left to right.

2 Hæld en halv flaske L'OR Barista flydende afkalkningsmiddel (CA6530) i vandtanken.

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a red 'X' symbol highlighting a specific component.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

5 Luk håndtaget.

1.5L

Diagram showing a hand pressing down on a small object with a circular button interface displaying three buttons labeled 'Power', 'Control', and 'Display'.

7 Tryk kortvarigt på ristretto- og lungo-knappen på samme tid.

Diagram showing a device with a hand pressing down on a surface, highlighted by a circular interface with three buttons labeled 'Power', 'U', and 'Control'.

Illustration of a faucet pouring liquid into a bowl (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons and an arrow pointing to it.

11 Tryk på lungo-knappen for at starte skyllecyklussen.

Simple line drawing of a curved path with scattered dots and a green checkmark (no text or symbols)

Diagram of a sewing machine with an upward arrow indicating motion (no text or symbols)

Illustration of a glass with blue liquid being poured into a tube (no text or symbols)

Diagram showing a coffee maker with a red X symbol indicating a warning or rejection, and a hand pouring liquid into a cup.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified view of three buttons labeled 'Power', 'Control', and 'Display'.

XXL 2x 40 ml 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXL 2x 110 ml 220 ml

Grand Café Filtre

220 ml

Kaffee zubereiten

Line drawing of a handheld device with a circular top and base (no text or symbols)

Line drawing of a vacuum cleaner device with handle and base (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Illustration of a robotic arm with an arrow indicating motion, no text or symbols present

Illustration of a hand pouring liquid into a container with a magnified view of a lid (no text or symbols)

Illustration of a hand washing machine with a brush and fan (no text or symbols)

Diagram showing a hand pressing down on a device with a power button, alongside a circular icon labeled 'Power' and control buttons.

Illustration of two cupcake cups with green arrows indicating rotation and checkmark (no text or symbols)

Illustration of a mechanical device with a rotating knob and liquid, no text or symbols present

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

Diagram of two circular objects with textured surfaces connected by wires, showing directional arrows (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons and a downward arrow indicating action.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Illustration of a funnel pouring liquid into a container with a bag of contents (no text or symbols)

Diagram showing a funnel pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

Illustration showing a hand using scissors to interact with a steaming cup and coffee, with a 1-second time scale indicator.

Illustration of a medical device with a magnified view showing internal components (no text or symbols)

Illustration of a hand holding a faucet and a circular device with a handle, connected to a pipe (no text or symbols)

Illustration of a wooden box with an open lid and a rolled coin inside, showing internal compartments (no text or symbols)

Illustration of a mechanical device with a magnified inset showing a green checkmark (no text or symbols present)

Line drawing of a mechanical device with circular ports and a handle (no text or symbols)

Diagram illustrating car seatbelt usage with a device displaying a green checkmark and icons for seatbelt, seatbelt, and seatbelt.

Illustration of a coffee machine with a cup and two cups (no text or symbols)

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a red X symbol highlighting a specific component.

Diagram showing a hand pressing down on a device with a circular button labeled 'Power' and a switch icon, indicating action or operation.

Diagram showing a container being poured into a bottle with an upward arrow indicating flow (no text or symbols present)

Illustration showing a thermometer measuring liquid flow in a container with a thermometer above it

Diagram of a mechanical component with an upward arrow indicating motion (no text or symbols)

Diagram illustrating a water treatment procedure with thermometer, valve, and monitoring device interface

Diagram of a mechanical device with labeled parts and directional arrows indicating rotation or movement.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing a container being poured into a bottle with liquid, no text or symbols present

Simple line drawing of a curved surface with scattered circular elements (no text or symbols)

Illustration showing a glass being poured into a bottle, with Chinese text labels and directional arrows indicating flow.

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a cross symbol in red.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with three buttons and an arrow indicating force or direction.

Diagram showing a hand pressing down on a device with a magnified view of three buttons labeled 'Power', 'U', and 'O'.

Illustration of a hand pouring liquid into a bowl on a kitchen sink (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled 'Power' and 'Switch', indicating action or control buttons.

Simple line drawing of a curved path with scattered brown dots and a green checkmark (no text or symbols)

Illustration of a hand washing machine with an upward arrow indicating motion (no text or symbols)

Illustration of a coffee maker with a red X symbol indicating a warning or rejection, showing a cup pouring liquid and a coffee container.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified view of three buttons labeled 'Power', 'Control', and 'Display'.

XXL 2x 40 ml / 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXXL 2x 110 ml 220 ml

Grand Café Filtre

220 ml

Line drawing of a handheld device with a circular top and base (no text or symbols)

Line drawing of a vacuum cleaner device with handle and base (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Illustration of a robotic arm with an arrow indicating motion, no text or symbols present

5 Levante la palanca.

Illustration of a hand pouring liquid into a container with a magnified view of a lid (no text or symbols)

Illustration of a hand washing machine with a brush and fan (no text or symbols)

Diagram showing a hand pressing down on a device with a power button, alongside a circular icon labeled 'Power' and control buttons.

Illustration of two cupcake cups with green arrows indicating rotation and checkmark (no text or symbols)

Illustration of a mechanical device with a rotating knob and liquid, no text or symbols present

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

3 Cierre la palanca.

Diagram of two circular objects with textured surfaces connected by wires, showing directional arrows (no text or symbols)

Line drawing of a handheld device with a circular handle and base (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons and a downward arrow indicating action.

Diagram showing a hand pouring liquid into a container with an upward arrow, no text or symbols present

Illustration of a funnel pouring liquid into a container with a bag of contents (no text or symbols)

Diagram showing a funnel pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

Illustration showing a hand pressing a red object into a cup, with a speedometer indicating 1 second and a coffee cup nearby.

Illustration of a medical device with a perforated plate and surrounding tubing (no text or symbols)

Illustration of a hand turning a car with a gear and a circular device (no text or symbols)

Illustration of a wooden box with open lid and open lid, containing small objects inside (no text or symbols)

Illustration of a car interior with a steering wheel and a device showing a screen (no text or symbols present)

Line drawing of a hand cleaning a small mechanical device with no text or symbols

Diagram illustrating a car seatbelting mechanism with labeled components and a smartphone displaying a weather check icon.

Illustration of a coffee machine with a cup and two cups (no text or symbols)

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a red 'X' symbol below a device.

Diagram showing a hand pressing down on a device with a magnified circular button labeled with icons for power, switch, and power button.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Illustration showing a thermometer measuring liquid flow in a container with a thermometer above it

Diagram of a mechanical component with an upward arrow, no text or symbols present

Diagram illustrating a water tap with temperature indicators and a health monitoring device showing improved water quality.

Diagram of a mechanical device with labeled parts and directional arrows indicating rotation or movement.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing a container being poured into a bottle with liquid, no text or symbols present

Simple line drawing of a curved surface with scattered circular elements (no text or symbols)

Illustration showing a glass being poured into a bottle of liquid, with two bottles labeled 'FAK' and 'PHILIPS'.

Diagram illustrating a process with directional arrows and a warning symbol, including a red 'X' indicating no error.

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

5 Cierre la palanca.

1.5L

Diagram showing a hand pressing down on a device with a circular control panel displaying three buttons labeled 'Power', 'Control', and 'Display'.

Diagram showing a device with a downward arrow and a circular button interface displaying three labeled buttons.

Illustration of a faucet pouring liquid into a bowl (no text or symbols)

Diagram showing a hand pressing down on a car's seatbelt with icons for power and switch controls, indicating mechanical or electrical hazard.

Simple line drawing of a curved path with scattered circular elements and a green checkmark (no text or symbols)

Diagram of a sewing machine with an upward arrow indicating motion (no text or symbols present)

Illustration of a glass with blue liquid being poured into a tube (no text or symbols)

Diagram showing a coffee maker with a red X symbol indicating a warning or rejection, and a hand pouring liquid into a cup.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified view of five buttons labeled 'Power', 'Control', and 'Display'.

XXL 2x 25 ml 50 ml

Espresso

40 ml

Double espresso / Double shot of espresso

XXL 2x 40 ml / 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXXL 2x 110 ml / 220 ml

Grand Café Filtre

Illustration showing a cupcake being cleaned with a green checkmark, followed by icons for power, battery, and a 220 ml volume.

Préparation du café

Line drawing of a handheld device with a circular top and base (no text or symbols)

Line drawing of a vacuum cleaner device with handle and base (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Illustration of a robotic arm with an arrow indicating motion, no text or symbols present

Illustration of a hand pouring liquid into a container with a magnified view of a lid (no text or symbols)

Illustration of a hand washing machine with a brush and fan (no text or symbols)

Diagram showing a hand pressing down on a device with a power button, alongside a circular icon labeled 'Power' and control buttons.

Illustration of two cupcake cups with green arrows indicating rotation and checkmark (no text or symbols)

Illustration of a mechanical device with a rotating knob and liquid, no text or symbols present

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

3 Fermez le levier.

Diagram of two circular foot pushers with arrows indicating movement, connected by a diagonal line (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons and a downward arrow indicating action.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Illustration of a funnel pouring liquid into a container with a bag of contents (no text or symbols)

Diagram showing a funnel pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

Illustration showing a hand holding a red object into a cup, with a stopwatch indicating 1 second time and a steaming cup nearby.

Illustration showing a hand using a tool to interact with a glass, with a stopwatch indicating 3 seconds duration and snowflakes nearby.

Diagram of a mechanical device with a gear and lever mechanism (no text or symbols)

Illustration of a hand turning a doorbell with a magnified view of the lid (no text or symbols)

Illustration of a wooden box with open lid and open lid, showing internal compartments (no text or symbols)

Illustration of a mechanical device with a green checkmark on its side panel (no text or symbols present)

Line drawing of a mechanical device with circular components and a handle (no text or symbols)

Illustration of a car seatbelt with a device displaying a green checkmark (no text or symbols present)

Illustration of a coffee machine with a cup and two cups (no text or symbols)

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a red X symbol highlighting a specific component.

Diagram showing a hand pressing down on a device with a circular button labeled 'Power' and 'Switch', indicating action or operation.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Illustration showing a thermometer measuring liquid flow in a container with a thermometer above it

Illustration of a mechanical component with an upward arrow indicating motion (no text or symbols)

Diagram illustrating a water tap with temperature indicators and a health monitoring device showing improved water quality.

Diagram of a mechanical device with labeled parts and directional arrows indicating rotation or movement.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

Simple line drawing of a curved surface with scattered circular elements (no text or symbols)

Illustration showing a glass being poured into a bottle, with Chinese text labels and directional arrows indicating flow.

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a red X symbol highlighting a specific component.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

5 Fermez le levier.

1.5L

Diagram showing a hand pressing down on a device with a circular button labeled with three buttons and an arrow indicating force or direction.

Diagram showing a hand pressing down on a device with a magnified view of three buttons labeled 'Power', 'U', and 'O'.

Illustration of a hand pouring liquid into a bowl on a stainless steel sink (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons, indicating action or control buttons.

Simple line drawing of a curved path with scattered brown oval objects and a green checkmark above (no text or symbols)

Diagram of a robotic arm with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a glass with blue liquid and a funnel inserted into it (no text or symbols)

Illustration showing a coffee maker pouring liquid with a red X symbol indicating a warning or rejection.

25 sec °C

Diagram showing a hand pressing down on a washing machine with a circular button set to indicate power, switch, and drain control.

XXL 2x 40 ml / 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXXL 2x 110 ml 220 ml

Grand Café Filtre

220 ml

Simple line drawing of a mechanical device with a handle and base (no text or symbols)

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Illustration of a hand pouring liquid into a container with a bottle, showing motion (no text or symbols)

5 Alzate la leva.

Illustration of a hand pouring liquid into a container with a magnified view of a brown object (no text or symbols)

6 Inserite una capsula.

Illustration of a hand washing machine with a brush and orange motion arrow (no text or symbols)

Diagram showing a hand pressing down on a device with a power button, alongside a circular icon labeled 'Power' and control buttons.

Illustration of two cupcake cups with green arrows indicating rotation and checkmark (no text or symbols)

Illustration of a mechanical device with a downward arrow and liquid, next to a glass (no text or symbols)

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

3 Chiudete la leva.

Diagram of two circular objects with textured surfaces connected by wires, showing directional arrows (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons and a downward arrow indicating action.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Illustration of a funnel pouring liquid into a container with a bag of contents (no text or symbols)

Diagram showing a funnel pouring liquid into a container with a downward arrow indicating flow (no text or symbols present)

Diagram illustrating a cooking step with a hand holding a red object, showing steps to smoke and take 1 second.

Illustration of a medical device with a magnified view showing internal components (no text or symbols)

Illustration of a hand holding a toilet with a magnified view of the lid (no text or symbols)

Illustration of a wooden box with open lid and open lid, showing internal compartments (no text or symbols)

Illustration of a mechanical device with a green checkmark symbol, no text or labels present

Line drawing of a mechanical device with circular components and a handle (no text or symbols)

Diagram illustrating a device's status with a monitor displaying a network icon and a gear-like device below it.

Illustration of a coffee machine with a cup and side cups (no text or symbols)

Diagram illustrating a mechanical device with an arrow indicating motion and a red 'X' symbol highlighting a specific component.

Diagram showing a hand pressing down on a device with a circular button labeled 'Power' and a switch icon, indicating action or operation.

Diagram showing a container being poured into a bottle with an upward arrow indicating flow (no text or symbols present)

Illustration showing a thermometer measuring liquid flow in a container with a thermometer above it

Diagram of a mechanical component with an upward arrow indicating motion (no text or symbols)

Diagram illustrating a water tap with thermometer and cooling device, showing temperature readings and cleaning process.

Diagram of a mechanical device with labeled parts and directional arrows indicating rotation or movement.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

Simple line drawing of a curved surface with scattered circular elements (no text or symbols)

Diagram illustrating a chemical process with two bottles labeled 'Prelates' pouring liquid into a glass, showing the resulting product.

Diagram illustrating a process with directional arrows and a warning symbol, including a red 'X' indicating no error.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

5 Chiudete la leva.

1.5L

Diagram showing a hand pressing down on a device with a circular button labeled 'Power' and control buttons below, indicating action or operation.

Diagram showing a device with a hand pressing down on a screen, highlighting three buttons labeled 'a', 'b', and 'c' inside a circle.

Illustration of a faucet pouring liquid into a bowl (no text or symbols)

Diagram showing a hand pressing down on a car's seatbelt with icons for power and switch controls, indicating mechanical or electrical hazard.

Simple line drawing of a curved path with scattered circular elements and a green checkmark above (no text or symbols)

Diagram of a robotic arm with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a glass with blue liquid being poured into it by a funnel (no text or symbols)

Illustration showing a coffee maker pouring liquid with a red X symbol indicating a warning or rejection.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified circular button set to four buttons, indicating action or control.

XXL 2x 40 ml / 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXXL 2x 110 ml / 220 ml

Grand Café Filtre

220 ml

Koffie bereiden

Line drawing of a handheld device with a circular top and base (no text or symbols)

Line drawing of a vacuum cleaner device with handle and base (no text or symbols)

Line drawing of a handheld device with a circular handle and base (no text or symbols)

Illustration of a robotic arm with a tool and blue liquid, no text or symbols present

5 Trek de hendel omhoog.

Illustration of a hand pouring liquid into a container with a magnified inset showing a brown object (no text or symbols)

Illustration of a hand washing machine with a brush and fan (no text or symbols)

7 Duw de hendel omlaag.

Diagram showing a hand pressing down on a device with a power button, alongside a circular icon labeled 'Power' and control buttons.

Illustration of two cupcake cups with green arrows indicating rotation and checkmark (no text or symbols)

Illustration of a mechanical device with a rotating knob and liquid, no text or symbols present

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

3 Duw de hendel omlaag.

Diagram of two circular foot pushers with directional arrows indicating movement or force (no text or symbols)

Line drawing of a handheld device with a circular handle and base (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons and a downward arrow indicating action.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Illustration of a funnel pouring liquid into a container with a bag of contents (no text or symbols)

Diagram showing a funnel pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

Illustration showing a hand using scissors to interact with a steaming cup and coffee, with a 1-second time scale indicator.

Illustration of a medical device with a magnified view showing internal components (no text or symbols)

Illustration of a hand holding a toilet with a magnified view of the lid (no text or symbols)

Illustration of a wooden box with open lid and open lid, showing internal compartments (no text or symbols)

Illustration of a mechanical device with a green checkmark on its side, no text or symbols present

Line drawing of a handheld device with circular ports and a handle, no text or symbols present

Illustration of a person's seatbelt with a laptop displaying a green checkmark (no text or symbols)

Illustration of a coffee machine with a cup and two cups (no text or symbols)

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a red X symbol highlighting a specific component.

Diagram showing a hand pressing down on a device with a circular button labeled 'Power' and 'Switch', indicating action or operation.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Illustration showing a thermometer measuring liquid flow in a container with a thermometer above it

Diagram of a mechanical component with an upward arrow indicating motion (no text or symbols)

Diagram illustrating a water tap with temperature and cooling system, showing liquid flow, thermometer, and monitoring device interface.

Diagram of a mechanical assembly with labeled parts and directional arrows indicating rotation or movement.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pouring liquid into a container with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a curved path with scattered circular elements (no text or symbols)

Illustration showing a glass being poured into a bottle, with Chinese text labels and directional arrows indicating flow.

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a red X symbol highlighting a specific component.

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

5 Duw de hendel omlaag.

1.5L

Diagram showing a hand pressing down on a device with a circular button labeled with three buttons and an arrow indicating force or direction.

Diagram showing a hand pressing down on a device with a magnified view of three buttons labeled 'Power', 'U', and 'O'.

Illustration of a hand pouring liquid into a bowl on a kitchen sink (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled 'Power' and 'Switch', indicating action or operation.

Simple line drawing of a curved path with scattered brown dots and a green checkmark above (no text or symbols)

Diagram of a hand pump mechanism with an upward arrow indicating motion (no text or symbols present)

Illustration of a glass with blue liquid and a funnel inserted into it (no text or symbols)

Illustration showing a coffee maker with a red X symbol indicating a coffee maker's absence, accompanied by a magnified view of the device.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified circular button set to indicate control buttons.

XXL 2x 25 ml 50 ml

Espresso

40 ml

Double espresso / Double shot of espresso

XXL 2x 40 ml / 80 ml

Trakte kaffe

Line drawing of a portable washing machine with handle and spout (no text or symbols)

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Lungo 110 ml Double lungo / Double shot of lungo XXL 2x 110 ml / 220 ml Grand Café Filtre 220 ml

1 Trykk på av/på-knappen for å slå på maskinen. Av/på-knappen blinker for å angi at maskinen varmes opp.
2 Hvis du vil trakte én kopp med kaffe, setter du én kopp under kaffetuten.

Diagram showing a hand pressing down on a device with a power button, accompanied by a circular icon indicating control buttons.

Illustration of two cupcake cups with green arrows indicating a process (no text or symbols)

Illustration of a mechanical device with a rotating knob and liquid, no text or symbols present

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

3 Lukk hendelen.

Diagram of two circular footshells with textured surfaces, connected by a diagonal line (no text or symbols)

4 Fjern dryppbrettet sammen med koppeplattformen. Sett til side dryppbrettet og plasser koppeplattformen på nedre dryppbrett.

Line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram showing a hand pressing down on a device with a power button and switch, indicating action or operation.

5 Sett en stor kopp eller et krus under kaffetuten på koppeplattformen.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Illustration of a hand pouring liquid into a container with a bag, no text or symbols present

Illustration of a hand pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

3 Sett lokket og vispholderen tilbake på plass på melkeskummeren.

Illustration showing a hand pressing a red button into a steaming cup, with a stopwatch indicating 1 second time.

4 Hold inne knappen i ett sekund for å varme opp og skumme melken. Lampen i av/på-knappen tennes.

Diagram illustrating a step-by-step cooking process with a hand holding a blue object, showing steps to remove snow and take 3 seconds.

Merk: Hold inne knappen i tre sekunder for å skumme kald melk.

Illustration of a medical device with surgical instruments and a highlighted component (no text or symbols)

Illustration of a hand holding a wrench and a computer monitor, no text or symbols present

Illustration of a wooden toolbox with an open lid and an arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a green checkmark on its screen (no text or symbols present)

Line drawing of a hand cleaning a cylindrical device with handles and a cloth (no text or symbols)

Illustration of a car seatbelt with a laptop displaying a green checkmark (no text or symbols)

Illustration of a coffee machine with a cup and two cups (no text or symbols)

1 Sett en kopp under kaffetuten.

Diagram illustrating a mechanical device with an arrow indicating direction and a red X symbol indicating absence or failure.

3 Lukk hendelen uten å sette inn en ny kapsel.

Diagram showing a hand pressing down on a device with a circular button labeled with icons and a downward arrow indicating action.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Illustration showing a thermometer measuring liquid flow in a container with a thermometer above it

Simple line drawing of a curved path with scattered circular elements (no text or symbols)

Diagram showing liquid being poured into a glass, with two labeled bottles and directional arrows indicating flow.

1 Trykk på av/på-knappen for å slå på maskinen.
2 Hell en halv flaske flytende L'OR Barista-avkalkingsmiddel (CA6530) i vannbeholderen.

3 Fyll vannbeholderen med friskt vann fra springen.

Diagram showing a device with a circular button labeled 'Power' and icons, indicating action or operation.

Illustration of a faucet pouring liquid into a bowl (no text or symbols)

9 Fjern og tøm skålen. Sett skålen tilbake på nedre dryppbrett under kaffetuten.

Diagram showing a hand pressing down on a device with a circular button labeled with three buttons and an arrow indicating downward motion.

Simple line drawing of a curved surface with scattered circular elements and a green checkmark (no text or symbols)

Diagram of a sewing machine with an upward arrow indicating motion (no text or symbols present)

Illustration of a glass with blue liquid being poured into a tube (no text or symbols)

Diagram showing a coffee maker with a red X symbol indicating a warning or rejection, and a hand pouring liquid into a cup.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified view of three buttons labeled 'Power', 'Control', and 'Display'.

XXL 2x 40 ml / 80 ml

Lungo

110 ml

Double lungo / Double shot of lungo

XXXL 2x 110 ml 220 ml

Grand Café Filtre

Illustration showing a cupcake being cleaned with a green checkmark, followed by icons for power, battery, and a 220 ml volume.

Preparar café

Simple line drawing of a handheld device with a circular handle and base (no text or symbols)

Line drawing of a handheld device with a circular top and two side compartments (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Illustration of a hand pouring liquid into a container with a bottle, showing motion (no text or symbols)

Illustration of a hand pouring liquid into a container with a magnified view of a brown object (no text or symbols)

Illustration of a hand washing machine with a brush and fan (no text or symbols)

7 Baixe o manípulo para o fechar.

Diagram showing a hand pressing down on a device with a power button, alongside a circular icon labeled 'Power' and control buttons.

Illustration of two cupcake cups with green arrows indicating rotation and checkmark (no text or symbols)

1 Retire o selo da cápsula por completo.

Illustration of a mechanical device with a downward arrow and liquid, no text or symbols present

2 Levante o manípulo e insira a cápsula.

Illustration of a hand pouring liquid from a bottle onto a device (no text or symbols)

3 Feche o manípulo.

Diagram of two circular foot pushers with arrows indicating movement, connected by a rope (no text or symbols)

Line drawing of a handheld device with a circular handle and base (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled with icons and a downward arrow indicating action.

Diagram of a coffee maker pouring liquid into a container with an upward arrow (no text or symbols)

Illustration of a funnel pouring liquid into a container with a bag of contents (no text or symbols)

Diagram showing a funnel pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

Illustration showing a hand using scissors to interact with a steaming cup and coffee, with a 1-second time scale indicator.

Illustration of a medical device with a magnified view showing internal components (no text or symbols)

Illustration of a faucet and a showerhead on a surface, showing mechanical components (no text or symbols)

Illustration of a wooden box with an open lid and a rolled coin inside, showing internal compartments (no text or symbols)

Illustration of a car with a checkmark icon and 'dll' label, no readable text or symbols present

Line drawing of a mechanical device with no visible text or symbols

Diagram illustrating car seatbelt usage with a device displaying a green checkmark and icons for seatbelt, seatbelt, and seatbelt.

Illustration of a coffee machine with a cup and side cups (no text or symbols)

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a red 'X' symbol below a device.

Diagram showing a hand pressing down on a device with a magnified circular button labeled with icons for power, switch, and power button.

Illustration of a hand pouring liquid into a container with an upward arrow (no text or symbols)

Diagram showing a thermometer measuring liquid flow in a container with a thermometer above it, likely illustrating a physics or fluid mechanics concept.

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram illustrating a water flow experiment with temperature and cooling device, showing liquid transfer from faucet to sink.

Diagram of a mechanical device with labeled parts and directional arrows indicating rotation or movement.

8 Volte a encaixar o batedor no respetivo suporte.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a downward arrow indicating flow (no text or symbols)

Simple line drawing of a curved surface with scattered circular elements (no text or symbols)

Diagram illustrating a chemical process with two bottles labeled 'Prelates' pouring liquid into a glass, showing the resulting product.

Illustration of a faucet pouring liquid into a bowl (no text or symbols)

Diagram showing a hand pressing down on a car's seatbelt with icons for power and switch controls, indicating mechanical or electrical hazard.

Simple line drawing of a checkmark over a curved path with scattered dots (no text or symbols)

Diagram of a hand pump mechanism with an upward arrow indicating motion (no text or symbols present)

Illustration of a glass with blue liquid and a funnel inserted into it (no text or symbols)

Illustration showing a coffee maker with a red X symbol indicating a coffee maker's absence, accompanied by a magnified view of the printer.

25 sec °C

Diagram showing a hand pressing down on a device with a magnified circular button set to indicate action buttons, likely illustrating a process or system adjustment.

XXL 2x 25 ml 50 ml

Espresso

40 ml

Double espresso / Double shot of espresso

XXL 2x 40 ml / 80 ml

Lungo 110 ml Double lungo / Double shot of lungo XXL 2x 110 ml / 220 ml Grand Café Filtre 220 ml

Förbereda kaffe

Line drawing of a mechanical device with a handle and base (no text or symbols)

Line drawing of a vacuum cleaner with handle and base (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Illustration of a robotic arm with a wooden stick and arrow, connected to a cup with liquid (no text or symbols)

5 Lyft spaken.

Illustration showing a device emitting a bottle into a glass with a magnified view of a bottle above it.

6 Sätt i en kapsel.

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

Diagram showing a hand pressing down on a blue liquid with a power button, alongside a circular control panel with four buttons labeled 'Power', 'Control', and 'Display'.

Illustration of two food containers with green arrows indicating a step, one open and one closed, both without any text or symbols.

Illustration of a mechanical device pressing down on a surface with a blue liquid, next to a glass (no text or symbols)

Illustration of a robotic arm with motion arrows indicating motion (no text or symbols)

3 Stäng spaken.

Diagram of two circular footshells connected by a rope, with directional arrows indicating movement or force (no text or symbols)

Line drawing of a mechanical device with a handle and base (no text or symbols)

Diagram showing a hand pressing down on a bottle with a magnified view of circular buttons labeled 'Power', 'Battery', and 'Discharge'.

Diagram of a hand pouring liquid into a container with an upward arrow, no text or symbols present

Illustration of a funnel pouring liquid into a container with a bag and a small object nearby (no text or symbols)

Diagram showing a funnel pouring liquid into a container with an arrow indicating downward motion (no text or symbols)

Illustration showing a hand pressing a red button into a steaming cup, with a 1-second time scale and a coffee cup nearby.

Diagram illustrating a step in a glass with a blue object, showing a hand pressing a button to a cup and a stopwatch indicating 3 seconds.

Illustration of a medical device with internal components and a highlighted section (no text or symbols)

Illustration of a hand turning a doorbell with a scroll wheel (no text or symbols)

Illustration of a wooden box with an open lid and a paperclip, showing internal components (no text or symbols)

Illustration of a mechanical device with a green checkmark on its side (no text or symbols present)

Line drawing of a hand cleaning a cylindrical device with handles and a cloth (no text or symbols)

Illustration of a car seatbelt with a device displaying a green checkmark (no text or symbols present)

Line drawing of a coffee machine with a cup and two cups (no text or symbols)

Diagram illustrating a mechanical device with an arrow indicating direction and a red X symbol indicating failure or rejection.

Diagram showing a hand pressing down on a device with a circular button labeled with icons and a downward arrow indicating action.

Diagram showing a hand pouring liquid into a container with an upward arrow, no text or symbols present

Illustration showing a thermometer measuring liquid flow in a container with a thermometer above it

Simple line drawing of a curved path with scattered circular elements (no text or symbols)

Diagram illustrating a glass being poured into a bottle, showing liquid transfer from left to right.

Illustration of a glass with blue liquid and a pipette inserted into it (no text or symbols)

Diagram illustrating a mechanical or electrical hazard with an arrow indicating upward motion and a red 'X' symbol highlighting a specific component.

Illustration of a robotic arm with motion arrows indicating movement (no text or symbols)

5 Stäng spaken.

1.5L

Diagram showing a hand pressing down on a small object with a circular button set to indicate action buttons, likely illustrating a procedure or control mechanism.

Diagram showing a device with a hand pressing down on a screen, indicating a process or operation, with a circular button labeled 'Power' and icons below.

Illustration of a faucet pouring liquid into a bowl (no text or symbols)

Diagram showing a hand pressing down on a device with a circular button labeled 'Power' and icons, indicating action or control.

Simple line drawing of a curved path with scattered dots and a green checkmark (no text or symbols)

Abstract artistic composition with flowing, dark and light tones, no text or symbols present

2023 © Versuni Holding B.V. PHILIPS and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. This product has been manufactured by and is sold under the responsibility of Versuni Holding B.V., and Versuni Holding B.V. is the warrantor in relation to this product.
