Product type	Refrigerator-freezer
Brand	Whirlpool
Model	WT70I 832 W
Total capacity	310 L
Refrigerator capacity	220 L
Freezer capacity	90 L
Dimensions (H x W x D)	185 x 60 x 65 cm
Net weight	70 kg
Power supply	230 V, 50 Hz
Energy class	A+
Annual energy consumption	220 kWh
Noise level	42 dB(A)
Main features	Quick freezing, 0°C freshness zone, Temperature indicator, Open door alarm
Included accessories	Ice cube tray, Bottle holder
Refrigerator defrost	Automatic
Freezer defrost	Manual
Maintenance and cleaning	Clean regularly with a soft cloth and warm soapy water
Safety	Safety instructions included in the manual
Repairability	Repairability index not provided

Frequently Asked Questions - WT70I 832 W WHIRLPOOL

How to set the refrigerator temperature?

Press the Temperature button on the control panel to cycle through the settings from the coldest to the warmest. The default temperature is set to the middle position.

What is the Quick Freezing function for?

The Quick Freezing function increases the freezer's cooling power to quickly freeze large quantities of fresh food. It is activated by pressing the Temperature button until the 3 LED indicators flash then remain on. It automatically deactivates after 48 hours.

How to use the ice cube tray?

Pour water into the ice cube containers, place them in the ice cube device. After about 2 hours, turn both knobs to the right to drop the ice cubes into the container below.

What does the 'OK' indicator in the refrigerator mean?

The Temperature indicator displays 'OK' when the interior temperature is cold enough for optimal preservation. If the word does not appear, the temperature is too high: set a lower temperature and wait 10 hours before checking again.

What to do if the open door alarm goes off?

The alarm goes off if the door remains open for more than 2 minutes (flashing) or 4 minutes (indicator off). Simply close the door to deactivate the alarm.

How to maintain and clean the refrigerator?

Unplug the appliance. Clean the interior with a soft cloth dampened with warm water and mild soap. Rinse and dry. Do not use abrasive products. Clean the door gasket regularly.

Which foods to place in the 0°C freshness zone?

The 0°C freshness zone is ideal for meat, fish, cold cuts, fresh pasta, and prepared dishes. It allows preservation for up to a week without altering nutrients.

How to adjust the refrigerator shelves?

The shelves are removable and adjustable in height using their slides. Slightly lift the front of the shelf and pull it towards you to remove it, then reposition it at the desired height.

Why are operational noises heard?

The noises are normal: hissing (refrigerant fluid), humming (fan or valve), gurgling (liquid flow) and cracking (compressor). The click comes from the thermostat.

Where to find the rating plate and device codes?

The rating plate is located inside the refrigerator, often on the left side wall or at the bottom. It indicates the model, serial number, and electrical data. Note this information before contacting the After-Sales Service.

USER MANUAL WT70I 832 W WHIRLPOOL

THANK YOU FOR PURCHASING A WHIRLPOOL PRODUCT

To receive more comprehensive help and support, please register your product at www.whirlpool.eu/register

You can download the Safety Instructions and the Use and Care Guide by visiting our website docs.whirlpool.eu and following the instructions on the back of this booklet.

Before using the appliance carefully read the Health and Safety guide.

PRODUCT DESCRIPTION

APPLIANCE

1. Ice Device *
2. Quick Freezer*
3. Freezer And Storage Compartment
4. Food Care Zone 0 °C / Safe Defrost *
5. Control Panel
6. Shelves *
7. Bottle Rack *
8. Fruit And Vegetable Bin *
9. Movable Shelves *
10. Dairy Shelf *
11. Temperature Indicator *
12. Bottle Shelf
13. Levelling Feet

* Varies by number and/or position, available only on certain models.

CONTROL PANEL

1. ON/STANDBY Button and Temperature Buton
2. Indicator LEDs to display the current temperature setpoint or the Fast Freezing function.

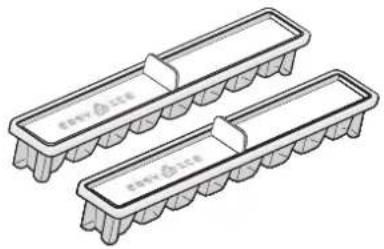

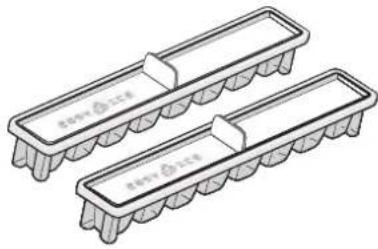

ACCESSORIES

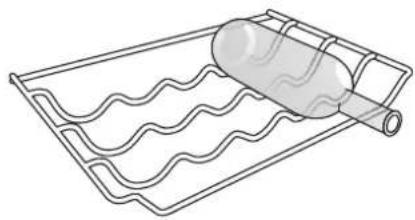

EASY ICE BOTTLE RACK

Two identical rectangular electronic components with textured bases, no visible text or symbols

Line drawing of a wavy container with a cylindrical object on top, no text or symbols present

FIRST TIME USE

HOW TO START THE APPLIANCE

After plugging the appliance to the mains, it starts the operation automatically. After starting the appliance, wait at least 4-6 hours before placing food into the fridge and into the freezer compartment.

When the appliance is connected to the power supply, the display lights up and all the icons appear on the display for approximately 1 second. The default (factory) values of the fridge - freezer compartment settings light-up.

DAILY USE

See Use and Care Guide for more details on functions / see last page for information on how to obtain the Use and Care Guide

FUNCTIONS

ON/STANDBY

To put the product in Stand-by, press and hold the On / Standby button for 3 seconds. All the temperature indicators turn off. Press again to reactivate the appliance (see the Instructions for Use).

TEMPERATURE SETTING

Press the Temperature button on the control panel to adjust the temperature from the warmest through the lower to the coldest level.

Pressing the Temperature button, the temperature setting will change cyclically.

At first plug-in of appliance temperature setpoint is present at medium position (factory setting).

FAST FREEZING

The use of the Fast Freezing function is recommended: to increase the cooling capacity of the freezer compartment when placing a very high quantity of food within it. To activate the Fast Freezing function, press the Temperature button cyclically on the control panel till all the 3 LEDs blink and remain on.

The function is automatically deactivated after 48 hours and return to previous selected set point. The function can be manually deactivated by press Temperature button on the control panel.

TEMPERATURE INDICATOR \*

Temperature indicator informs you if the temperature in this cavity is cold enough for storage with the word "OK".

1. Check that OK appears clearly on the indicator light (see the picture below).

1. If the word "OK" does not appear it means that the temperature is too high: set a lower temperature and wait approximately 10 hours until the temperature has been stabilised.

2. Check the indicator light again: if necessary, readjust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before adjusting the REFRIGERATOR OPERATION knob to a higher setting.

FOOD CARE ZONE 0°C / SAFE DEFROST \*

A compartment designed to keep delicate food such as meat and fish fresh. The low temperature in the compartment makes it possible to store the food for up to one week - tests performed on meat products - without changing its nutrients, appearance and flavour.

The compartment is also very suitable for healthy food defrosting, as low-temperature defrosting prevents any proliferation of microorganisms, while protecting its taste and organoleptic properties.

It is not suitable for fruit, vegetables and green salad. But it can be used for stuffed fresh pasta and even cooked food or leftovers.

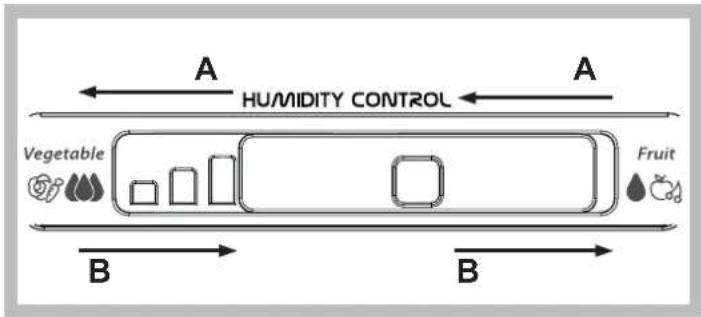

FRUIT AND VEGETABLE BIN \*

The salad crispers fitted inside the fridge have been specially designed for the purpose of keeping fruit and vegetables fresh and crisp. Open the humidity regulator (position B) if you want to store food in a less humid environment like fruit, or close it (position A) to store food in a more humid environment like vegetable.

SHELVES \*

Due to the special guides the shelves are removable and the height is adjustable, allowing easy storage of large containers and food.

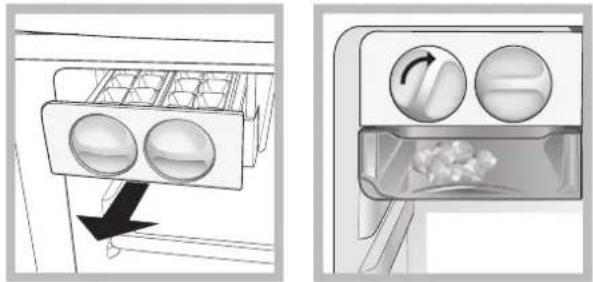

ICE DEVICE \*

After pouring water in the special ice cups, place them in their places in the ice device. After about 2 hours, the ice cubes will be ready. In order to get the ice cubes, it will be sufficient to turn the two buttons to the right. The ice cubes will fall in to the tray below, ready to be used.

Diagram showing a refrigerator interior with two circular compartments and a directional arrow indicating airflow (no text or symbols)

ALARM TABLE

ALARM TYPE SIGNAL CAUSE SOLUTION
Door open alarm. Refrigerator Light blinks. Alarm Indicator blinks.	The door has remained open for more than 2 minutes.	Close the door.
Door open alarm. Refrigerator Light OFF. The door has remained open for more than 4 minutes.	Close the door.
Malfunction. Any temperature indicators blinks.	Product malfunction. Contact the After-sales Service.

SOME OF THE FUNCTIONAL SOUNDS YOU MIGHT HEAR

A hissing sound when switching on the appliance for the first time or after a long pause.

Buzzing sound when water valve or fan start working.

A gurgling sound when refrigerant fluid enters into the pipes.

A cracking sound when compressor starts.

BRRR sound is from the compressor running.

Illustration of three objects: a tree with 'Brnrr' label, a globe-like structure, and a refrigerator with a speech bubble (no text or symbols on objects)

The CLICK is from the thermostat which adjusts how often the compressor is running.

Three simple diagrams showing a door, an open refrigerator, and a hanging object with a 'Click' button (no text or symbols beyond basic icons)

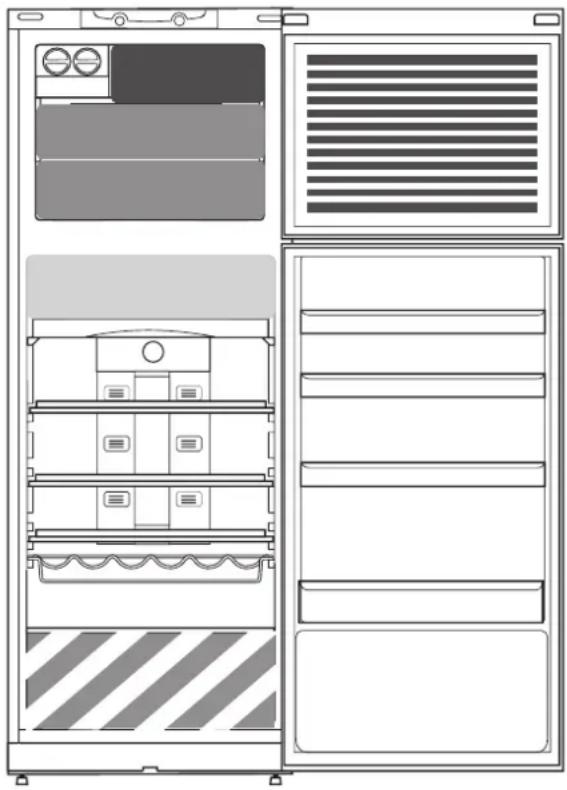

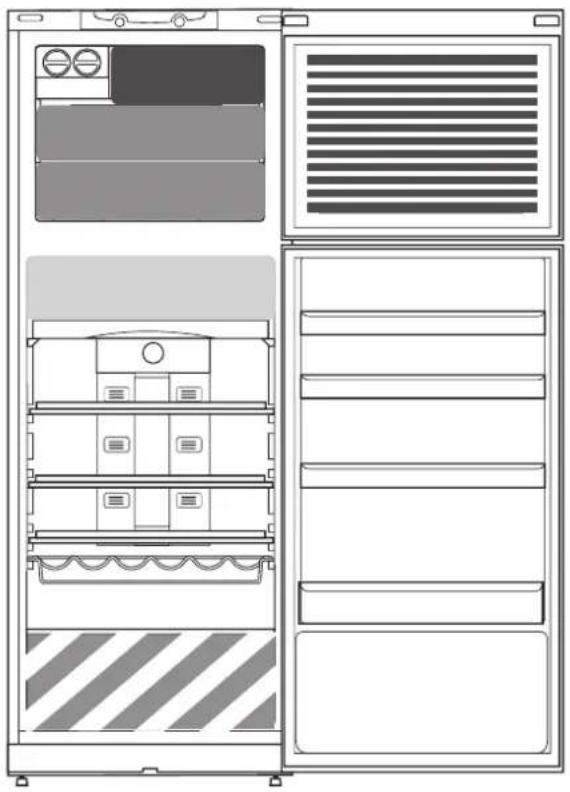

HOW TO STORE FOOD AND BEVERAGE

Front and side technical line drawing of a refrigerator cabinet with doors, drawers, and storage compartments (no text or symbols)

Legend

COOL ZONE

Suggested for the storage of beverage, milk and food as dairy food, delicatessen, yogurt, eggs, butter, sauces, pickles, desserts

COOLER ZONE:

FOOD CARE ZONE 0 °C / SAFE DEFROST \*

Suggested for the storage of meat, fish, cold cuts, stuffed fresh pasta, cooked food, leftovers. This zone is also suggested for food defrosting.

FRUIT & VEGETABLE DRAWER

FAST FREEZING ZONE DRAWER

Max cool zone suggested to freeze fresh food and cooked food.

NORMAL FREEZER DRAWERS

Suggested for the storage of frozen food and ice cream.

ICE CREAM LOADING IN THE BALCONIES AREA

Note: The Grey tone of the legend doesn't match with the color of drawers

FRIDGE COMPARTMENT

Use recyclable plastic, metal, aluminum and glass containers and cling film to wrap foods.

Always use closed containers for liquids and for food that may give off or be tainted by odor or flavor transfer or cover them.

If you have a little quantity of food to store in the refrigerator, we recommend to use the shelves above the crisper for fruits and vegetables since this is the coolest area of the compartment.

Foods which give off a large amount ethylene gas and those that are sensitive to this gas, such as fruit, vegetables and salad, should always be separated or wrapped so as not to reduce the storage life; for example do not store tomatoes together with kiwi fruits or cabbage.

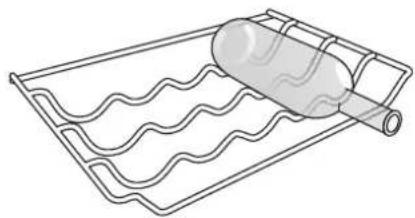

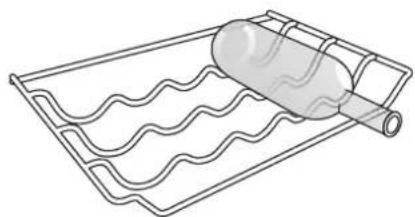

To avoid bottles falling over, you can use the bottle holder (available on selected models).

Do not store food too close together to enable sufficient air circulation.

FREEZER COMPARTMENT

The freezer is the ideal storage location for store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

The maximum number of kilograms of fresh food that can be frozen within a 24-hour period is indicated on the rating plate (...kg/24h).

If you have a little quantity of food to store in the freezer, we recommend to use the coldest areas of your freezer compartment, corresponding to the middle area.

PRODUCT FICHE

www The product fiche with energy data of this appliance can be downloaded from Whirlpool website docs.whirlpool.eu

HOW TO OBTAIN THE USE AND CARE GUIDE

www Download the Use and Care Guide from our website docs.whirlpool.eu(you can use this QR Code), specifying the product's commercial code

Alternatively, contact our Client After-sales Service.

CONTACTING AFTER-SALES SERVICE

You can find our contact details in the warranty manual. When contacting our Client After-sales Service, please state the codes provided on your product's identification plate.

Printed in Italy

DANKE, DASS SIE SICH FÜR EIN WHIRLPOOL-PRODUKT ENTSCHIEDEN HABEN

Two identical rectangular electronic components with textured bases, no visible text or symbols

Line drawing of a bottle rolling on a wavy surface next to a grid-patterned tray (no text or symbols)

ERSTER GEBRAUCH

Diagram showing airflow direction and component placement inside a refrigerator (no text or symbols)

ALARMTABELLE

Illustration of three objects: a tree, a globe, and a refrigerator with a speech bubble (no text or symbols)

Three simple diagrams showing a hand pressing down, a refrigerator, and a hanging object with a 'Click' button (no text or symbols beyond basic icons)

AUFBEWAHREN VON LEBENSMITTELN UND GETRÄNKEN

Front and back view diagram of a refrigerator with internal compartments and ventilation grilles (no text or labels)

Legende

KÜHLER BEREICH

Gedruckt in Italien

GUIDE D'UTILISATION QUOTIDIENNE

MERCI D'AVOIR CHOISI UN PRODUIT WHIRLPOOL

Two identical 3D rectangular electronic components with ribbed top and side connectors, no text or symbols visible.

Line drawing of a bottle rolling on a wavy surface next to a grid-patterned tray (no text or symbols)

PREMIÈRE UTILISATION

MISE EN MARCHE DE L'APPAREIL

Diagram showing a refrigerator interior with two circular windows and a directional arrow indicating airflow (no text or symbols)

TABLEAU D'AVERTISSEMENTS

Three grayscale illustrations: a tree with a figure, a globe-like structure, and a server unit (no text or symbols)

Three simple icons showing a hand pointing at a panel, a refrigerator, and a hanging lamp (no text or symbols)

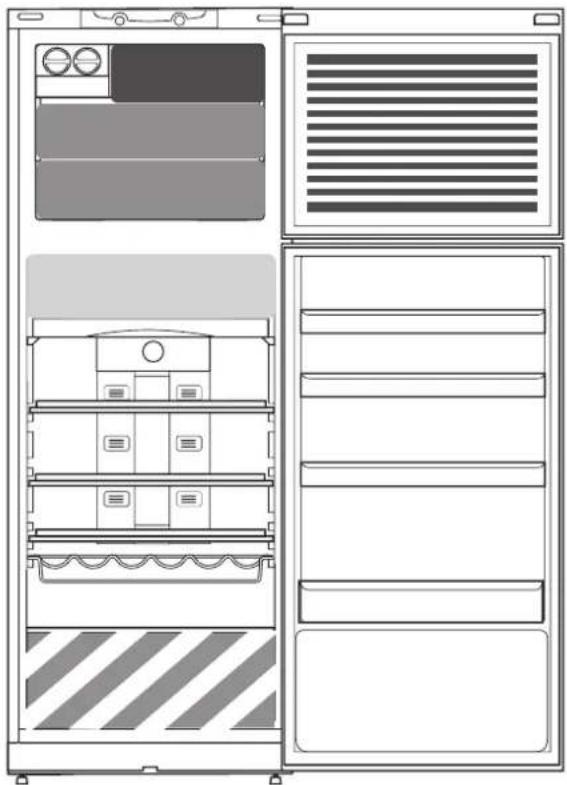

COMMENT CONSERVER LES ALIMENTS ET LES BOISSONS

Front and side technical line drawing of a refrigerator cabinet with internal compartments and ventilation grilles (no text or symbols)

Légende

ZONE FROIDE

SNELLE REFERENTIE

GIDS

DANK U WEL VOOR UW AANKOOP VAN EEN WHIRLPOOL PRODUCT

Two identical rectangular electronic component enclosures with no visible text or symbols

Line drawing of a wavy container with a cylindrical object attached, no text or symbols present

EERSTE GEBRUIK

IN WERKING STELLEN VAN HET APPARAAT

Diagram showing a refrigerator interior with two circular compartments and a directional arrow indicating flow (no text or symbols present)

ALARM TABEL

BRRR geluid van de compressor die loopt..

Illustration of three objects: a tree with 'Brrrr' label, a globe-like structure, and a server unit (no text or symbols on objects)

Three simple icons showing a pointing hand, a refrigerator, and a hanging pendulum with 'Click' labels (no text or symbols on objects)

OPSLAAN VAN ETENSWAAR EN DRANKEN

Front and back view diagram of a refrigerator with internal compartments and ventilation grilles (no text or labels)

Legenda

KOUDE ZONE

NORMALE DIEPVRIESLADEN

Gedrukt in Italië

GUIDA

RAPIDA

GRAZIE PER AVERE ACQUISTATO UN PRODOTTO WHIRLPOOL

Illustration of two rectangular electronic components with internal pins, no text or symbols present

Line drawing of a wavy container with a cylindrical object on top, no text or symbols present

PRIMO UTILIZZO

ACCENSIONE DELL'APPARECCHIO

Diagram showing a refrigerator interior with two circular gauges and a directional arrow indicating airflow (no text or symbols)

TABELLA ALLARMI

Illustration of three objects: a tree with 'Brrrr' label, a globe-like structure, and an open refrigerator with a speech bubble (no text or symbols on objects)

Three simple icons showing a door, a refrigerator, and a hanging lamp with a 'Click' button (no text or symbols beyond basic icons)

COME CONSERVARE ALIMENTI FRESCHI E BEVANDE

Front and side technical line drawing of a refrigerator cabinet with ventilation grilles and storage compartments (no text or symbols)

Legenda

ZONA FREDDA

Stampato in Italia

GUIA DE CONSULTA

DIÁRIA

OBRIGADO POR TER ADQUIRIDO UM PRODUTO WHIRLPOOL

Illustration of two rectangular electronic components with internal pins, no text or symbols present

Line drawing of a wavy container with a cylindrical object on top, no text or symbols present

UTILIZAR PELA PRIMEIRA VEZ

COMO LIGAR O APARELHO

Diagram showing a refrigerator interior with two circular windows and a directional arrow indicating flow (no text or symbols present)

TABELA DE ALARME

Illustration of three industrial components: a tree with 'Brrrr' label, a globe-like structure, and a cabinet with 'Brrrr' label (no text or symbols on objects)

Three simple icons showing a door, a refrigerator, and a hanging object with a 'Click' button (no text or symbols beyond basic symbols)

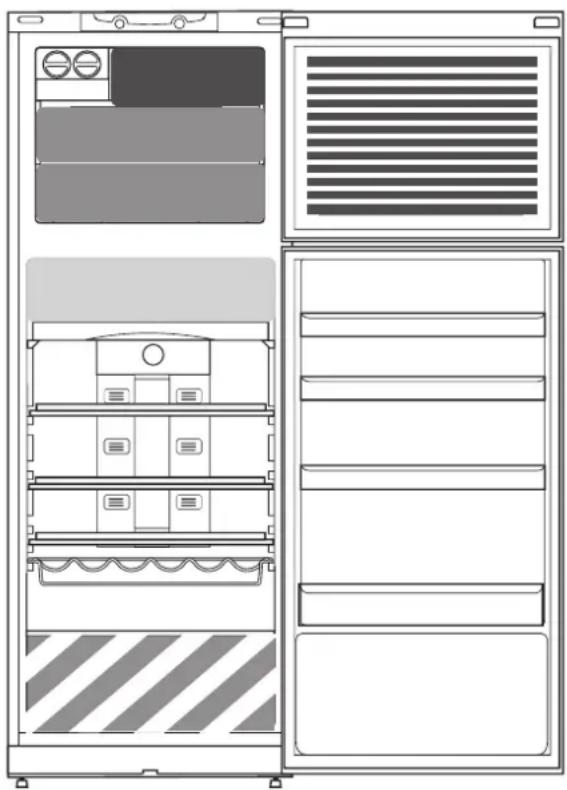

COMO ARMAZENAR ALIMENTOS E BEBIDAS

Front and side technical line drawing of a refrigerator cabinet with internal compartments and ventilation grilles (no text or symbols)

Legenda

ZONA FRESCA

Two identical isometric view of two rectangular electronic components with side connectors (no text or symbols)

Line drawing of a wavy surface covered in plastic film, with a cylindrical roller resting on it (no text or symbols)
        direction LR
        A1["A"] --> A2["A"]
        A2 --> A3["B"]
    end

РАФТОВЕ\*

Diagram showing a refrigerator interior with two circular gauges and a directional arrow indicating airflow (no text or symbols)

Front and side technical line drawing of a refrigerator cabinet with doors, shelves, and ventilation grilles (no text or symbols)

Легенда

ХЛАДНА ЗОНА

Отпечатано в Италия

PŘÍRUČKA

PRO KAŽDODENNÍ POUŽITÍ

DĚKUJEME VÁM ZA NÁKUP VÝROBKU ZNAČKY WHIRLPOOL.

Illustration of two rectangular electronic components with internal wavy leads, no text or symbols present.

Line drawing of a wavy container with a cylindrical object on top, no text or symbols present

PŘED PRVNÍM POUŽITÍM

ZAPNUTÍ SPOTŘEBIČE

Diagram showing airflow direction and internal components of a refrigerator (no text or symbols)

TABULKA VÝSTRAŽNÝCH SIGNÁLŮ

Illustration of three objects: a tree with 'Brrrr' label, a globe-like structure, and a refrigerator with a speech bubble (no text or symbols on objects)

Front and side technical line drawing of a refrigerator cabinet with ventilation grilles and doorways (no text or symbols)

Vysvětlivky

CHLADNÁ ZÓNA

Vytištěno v Itálii

Two identical rectangular electronic components with side connectors, no text or symbols visible

Line drawing of a bottle rolling on a wavy surface next to a grid-patterned tray (no text or symbols)

ΠΡΩΤΗ ΧΡΗΣΗ

Diagram showing a refrigerator interior with two circular compartments and a downward arrow indicating airflow or movement (no text or symbols present)

ΠΙΝΑΚΑΣ ΣΥΝΑΓΕΡΜΩΝ

Illustration of three objects: a tree-like figure labeled 'Brrrr', a globe-like dome, and a server unit with a speech bubble (no text or symbols on the figures themselves)

Three simple icons showing a door, a refrigerator, and a hanging knob with 'Click' labels (no text or symbols on objects)

Front and back view diagram of a refrigerator with internal compartments and ventilation grilles (no text or labels)

Λεζάντα

Two identical rectangular electronic components with textured bases, no visible text or symbols

Line drawing of a bottle rolling on a wavy surface next to a grid-patterned tray (no text or symbols)

ELSŐ HASZNÁLAT

A KÉSZÜLÉK BEKAPCSOLÁSA

Diagram showing a refrigerator interior with two circular compartments and a directional arrow indicating flow or movement (no text or symbols present)

RIASZTÁSOK TÁBLÁZATA

Illustration of three objects: a tree with 'Brntr' label, a globe-like structure, and a refrigerator with a speech bubble (no text or symbols on objects)

Three simple icons showing a door, a refrigerator, and a hanging object with a 'Click' button (no text or symbols beyond basic symbols)

Front and back view diagram of a refrigerator with internal compartments and ventilation grilles (no text or labels)

Jelmagyarázat

HÜVÖS ZÓNA

Two identical rectangular electronic component enclosures with no visible text or symbols

Line drawing of a wavy surface covered in plastic film, with a cylindrical object resting on it (no text or symbols)

Diagram showing a refrigerator interior with two circular chambers and a directional arrow indicating flow or movement (no text or symbols present)

ДАБЫЛДАР КЕСТЕСІ

Illustration of three objects: a tree with 'Brrrr' label, a globe-like structure, and a refrigerator with a speech bubble (no text or symbols on objects)

ТАFАМДАР МЕН СУСЫНДАРДЫ САКТАУ

Front and back line drawing of a refrigerator with internal compartments and ventilation grilles (no text or symbols)

Шартты белгілер

САЛКЫНДАТУ АЙМАФЫ

Illustration of two rectangular electronic components with internal pins, no text or symbols present

Line drawing of a wavy surface next to a cylindrical object on a grid (no text or symbols)

PIERWSZE UŻYCIE

URUCHOMIENIE URZĄDZENIA

Diagram showing a refrigerator interior with two circular compartments and a directional arrow indicating flow (no text or symbols present)

TABELA ALARMÓW

Illustration of a globe, a cabinet, and a person holding a device (no text or symbols)

Three simple icons showing a door, a refrigerator, and a hanging knob with 'Click' labels (no text or symbols beyond basic icons)

Front and back view diagram of a refrigerator with internal compartments and ventilation grilles (no text or labels)

Legenda

STREFA NISKIEJ TEMPERATURY

TĂVITĂ PENTRU CUBURI DE GHEAȚĂ RAFT PENTRU STICLE

Illustration of two rectangular electronic components with no visible text or symbols

Line drawing of a wavy container with a cylindrical object on top, no text or symbols present

PRIMA UTILIZARE

PUNEREA ÎN FUNCTIUNE A APARATULUI

Diagram showing a refrigerator interior with two circular chambers and a directional arrow indicating flow or movement (no text or symbols present)

TABELUL CU ALARME

Illustration of three objects: a tree with a globe, a dome-shaped container, and a refrigerator with a speech bubble (no text or symbols)

Three simple icons showing a door, a refrigerator, and a hanging lamp with 'Click' labels (no text or symbols on objects)

DEPOZITAREA ALIMENTELOR ŞI A BĂUTURILOR

Front and back view diagram of a refrigerator with internal compartments and ventilation grilles (no text or labels)

Legendă

ZONA RECE

Tipärit in Italia

КРАТКОЕ СПРАВОЧНОЕ

РУКОВОДСТВО

Illustration of two rectangular electronic components with textured bases, no text or symbols present

Line drawing of a wavy surface next to a cylindrical object on a grid (no text or symbols)

Diagram showing a refrigerator interior with two circular compartments and a directional arrow indicating flow or movement (no text or symbols present)

ТАБЛИЦА СИГНАЛОВ

Illustration of three industrial or ecological icons: a tree with 'Brrrr' label, a globe-like structure, and a refrigerator with a speech bubble (no text or symbols on icons)

Three grayscale illustrations of a door, cabinet, and hanging object with 'Click' labels (no text or symbols on objects)

Front and back view diagram of a refrigerator with internal compartments and ventilation grilles (no text or labels)

Обозначения

ХОЛОДНАЯ ЗОНА

Two identical rectangular electronic component blocks with textured bases, no text or symbols visible

Line drawing of a wavy container with a cylindrical object on top, no text or symbols present

PRVÉ POUŽITIE

ZAPNUTIE SPOTREBIČA

INDIKÁTOR TEPLOTY \*

Diagram showing a refrigerator interior with two circular chambers and a directional arrow indicating flow or movement (no text or symbols present)

TABUL'KA ALARMOV

Illustration of three objects: a tree with 'Brrrr' label, a globe-like structure, and a server unit (no text or symbols on objects)

Three grayscale illustrations of a door, a refrigerator, and a hanging lamp with a 'Click' button (no text or symbols on objects)

AKO USKLADŇOVAŤ POTRAVINY A NÁPOJE

Front and back view diagram of a refrigerator with internal compartments and ventilation grilles (no text or labels)

Legenda

CHLADNÁ ZÓNA

Two identical rectangular electronic components with wavy top tabs and segmented side panels, no text or symbols visible.

Line drawing of a wavy tray with a cylindrical object on top, no text or symbols present

Diagram showing a refrigerator interior with two circular compartments and a downward arrow indicating airflow or movement (no text or symbols)

ТАБЛИЦЯ ПОПЕРЕДЖЕНЬ

Illustration of a globe, a refrigerator, and a tree with 'Brimm' text (no other symbols or labels)

Three simple icons showing a pointing hand, a refrigerator, and a hanging button with 'Click' labels (no text or symbols beyond basic icons)

Front and side technical line drawing of a refrigerator cabinet with ventilation grilles and storage compartments (no text or symbols)

Умовні позначки

ЗОНА ОХОЛОДЖЕННЯ

Line drawing of a wavy surface covered in material, with a cylindrical object resting on it (no text or symbols)

Two identical rectangular electronic components with side connectors, no text or symbols visible

الاستخدام لأول مرة

Diagram of a device with two circular components and a black arrow pointing to a component (no text or symbols)

Illustration of a refrigerator interior with two circular doors and a glass container filled with food items (no text or symbols)

Illustration of three objects: a tree with 'Brrm' label, a globe-like structure, and a server unit (no text or symbols on objects)

مفتاح الأشكال

منطقة التبريد

Front and side technical line drawing of a refrigerator cabinet with doors, drawers, and storage compartments (no text or symbols)

حيز التجميد
