Product Type	Electric sit-stand desk
Brand	IKEA
Model	BEKANT 002.552.56
Height adjustment range (EU)	64 to 125 cm
Maximum load	70 kg
Noise level	Less than 55 dB(A)
Operating temperature	+5 to +40°C
Storage temperature	-10 to +50°C
Permissible humidity	20% to 80% at 30°C
Power supply	DC 29 V, 200 W
Power supply unit type	ROL ERGO ASW0579-2902002W
Intended use	Desk for sitting or standing work, in dry indoor environments
Safety	Use by children from 8 years under supervision; do not lift people; unplug before maintenance
Maintenance	Check screws after 1 week; clean with a soft cloth
Spare parts	Contact IKEA customer service
Repairability	Do not modify the control box; replacement of electrical parts by a professional
Manufacturer	IKEA, Box 702, SE-343 81 Älmhult, Sweden
Manufacturer phone number	[phone]
Country of origin	Sweden

Frequently Asked Questions - BEKANT 002.552.56 IKEA

How to adjust the height of the BEKANT desk?

Insert the safety key into the manual control, then press the up button (arrow up) to raise or the down button (arrow down) to lower. Ensure nothing obstructs movement.

What is the maximum load of the desk?

The maximum load is 70 kg. Do not exceed this limit to avoid damaging the mechanism.

What to do if the desk does not go up or down?

Check that all cables are properly connected, the safety key is inserted into the manual control, and the power cable is plugged into the wall outlet. Unplug and replug the wall outlet after one minute if necessary.

Can I use the BEKANT desk outdoors?

No, this desk is designed for indoor use only in dry premises (offices or similar environments).

How to clean the BEKANT desk?

Clean with a soft cloth slightly damp. Do not use abrasive products or solvents. After one week of use, check that the screws are tight.

What are the essential safety precautions?

Keep a safety distance during adjustment, remove chairs before moving the table, keep the safety key out of reach of children when absent, and never lift people with the desk.

How to reset the desk system?

Press the up and down buttons simultaneously for at least 8 seconds. Then hold the down button until the desk slowly lowers to the lowest point. The system is then reset.

What to do if only one leg column moves?

Restart the desk by unplugging and replugging the power supply. If only one column continues to move, contact IKEA customer service.

The desk is noisy, is this normal?

The noise level is less than 55 dB(A) during normal operation. If the noise is abnormal, check that the desk is not overloaded and nothing is blocking movement. Contact IKEA if the noise persists.

Can I leave the desk permanently plugged in?

Yes, you can leave it plugged in. However, for safety reasons or during prolonged absence, it is advisable to unplug the power cable and remove the safety key.

USER MANUAL BEKANT 002.552.56 IKEA

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Translated from the original instructions.

Advice and instructions for BEKANT sit/stand desk.

Sound level: lower than 55 dB(A)

Height setting interval:

EU-version: 64-125 cm

NA-version: 57,4-122,4

Maximum load: 70 kg

Temperature interval at usage:

+5 up to +40 degrees C

Temperature interval at storage:

-10 up to +50 degrees C

Humidity: 20% up to 80% at +30 degrees C.

Power supply unit: DC 29V, 200W / 220W (JP)

Manufacturer: ROL ERGO

Model:

ASW0579-2902002W /

ASW0643-29020002W (JP)

This appliance shall only be used together with the included power supply unit

Every person who is responsible for this table at installation or employment of the table in daily use or in service and repair work should carefully read these instructions. Keep these instructions close to your sit/stand table.

Installation instructions

• The table is assembled according to separate assembly instructions.
• Connect the cable from one leg to the other. Connect the hand control to one of the leg and the power-supply to the other leg. The cables to the legs, hand control and power supply should be placed in the accompanying net. Place the electrical cables so that they do not get damaged, see assembly instruction.
• Connect the electrical cable to a wall socket. NB! The electrical cable must have full mobility.
• Insert the safety key in the socket on the hand control.
• The table is now ready for use. The motors stop automatically when the table reaches its lowest and highest position respectively.

Usage of the table

• The table shall only be used as a working table with the possibility to continuously adjust working height between sitting and standing position. The table shall only be used indoors and in dry premises (office environment or similar).
• The table must not be overloaded - maximum load is 70 kg/154 lbs. The motors may be run continuously for maximum 1 minutes. Afterward, the motors must stand by for approx. 9 minutes before they can be used again.

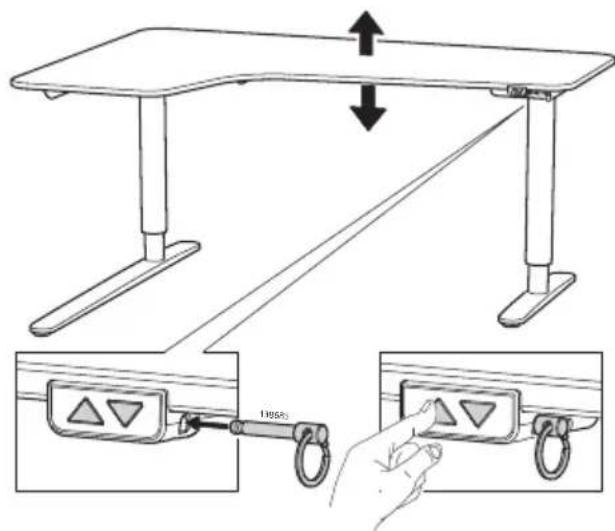

Follow these instructions when adjusting table height:

1. Insert the safety key in the socket on the hand control.
2. Make sure no objects are in the way of the table adjusting height freely.
3. In order to run the table up/down, press the manoeuvre button with an arrow pointing up and down respectively.

Safety regulations

• When the table is run up/down, keep the necessary safety distance to avoid the risk to get squeezed between the moving table top and fixed objects in the surrounding area.
• When the table is run up/down the user shall keep watch so that nobody is injured or no object is damaged. The table top must not bump into a fixed object so that the table is overturned. Always remove any office chair before the table is run up/down.
• When the table is left unattended, the safety key must be removed from the hand control and placed out of reach of children.
• The table tripod must not be altered or reconstructed in any way. In service and repair work of the table, the electrical cable must always be disconnected from the wall socket.
• Alterations to the control box are absolutely forbidden!
• The table must not be used as a hoisting device for persons.

Maintenance and repair instructions

• After approx. 1 week of use, check that the screws are properly tightened.

- If the table cannot be lowered or raised, check the connections between the legs and the wall socket and be sure the safety key is inserted in the hand control.

- If any part of the electrical system is replaced, the electrical cable must first be disconnected from the wall socket. Replace the electrical part and then connect the electrical cable to the wall socket. The table is now ready for use.

If the table still does not work, please contact your nearest IKEA store or customer service.

EU Declaration of Conformity is included in the packaging as a separate document.

Manufacturer: IKEA of Sweden AB

(commercial registration number: 556074-7551)

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Telephone no.: [phone]

SAVE THESE INSTRUCTIONS

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Perform a reset by

Simultaneously pressing the up and down buttons for minimum of 8 second

Press and hold the down button and the desk will slowly move the lowest point possible

The desk/ stand is ready for normal use

TroubleshootingIKEA BEKANT - iDrive
Problem Check Try
The underframe will not move. 1. Make sure that all cables are undamaged and connected.2. Make sure that the safety key is correctly inserted into the hand control.3. Unplug the desk from the wall socket for approximately one minute and reconnect.	Connect the cables and insert the safety key.Follow the installation instructions and perform a reset.If problem remains, contact IKEA customer service.
Only one leg is moving. Perform a reset. If there's still	only one leg moving, contact IKEA costumer service.
Both legs are moving but at different speeds.		Perform a reset. If legs still are moving at different speeds, contact Ikea customer service.
The underframe only moves short distances.	Make sure that the desk is not overloaded, and that the safety key is correctly inserted in the hand control.	Move any load off the desk and insert the safety key securely.Perform a reset. If the problem remains, contact IKEA customer service.
The underframe stops and reverses during operation.	Make sure that nothing is blocking the table.	Remove the obstacle. Perform a reset. If the problem remains, contact IKEA customer service.
The underframe can only move in one direction (up or down).		Perform a reset. If problem remains, contact IKEA customer service.
The desk is not horizontal.
